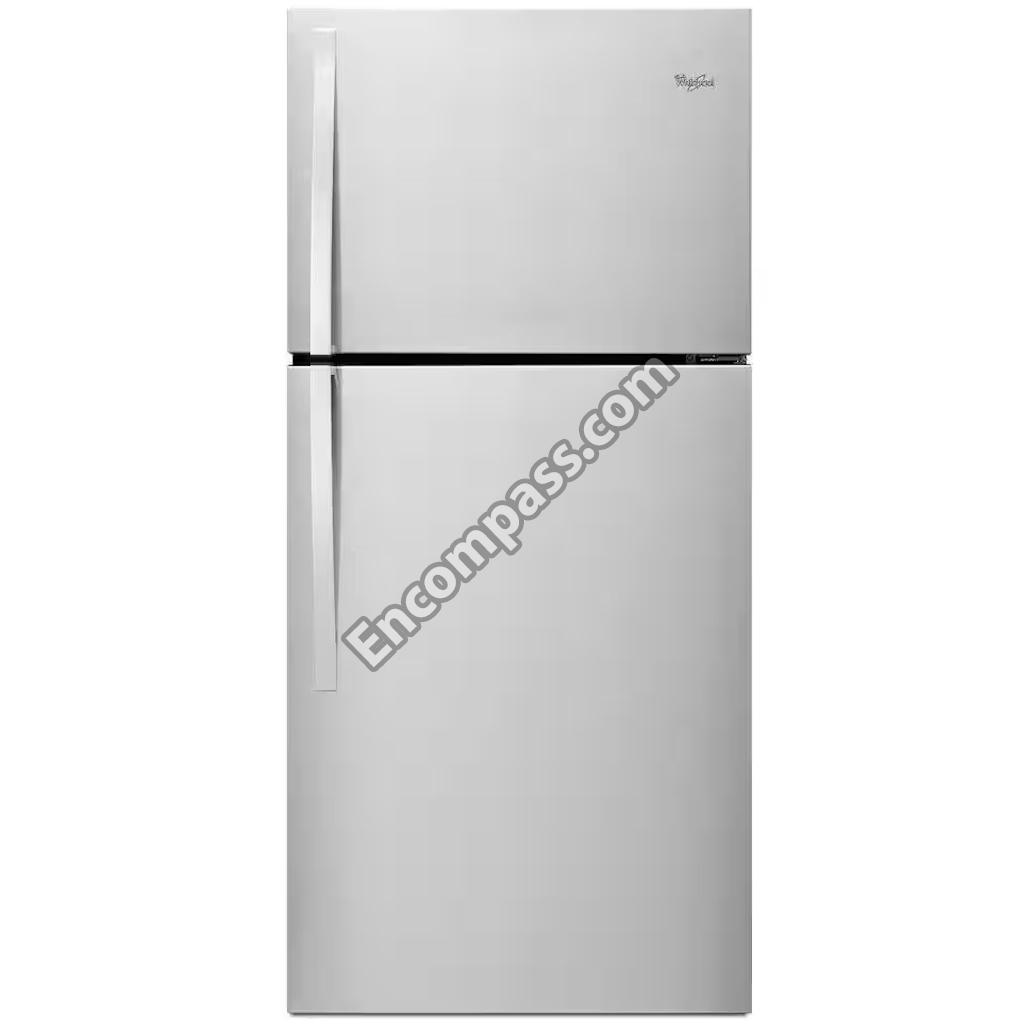

Model Image
Manufacturer

Whirlpool

Model Number

WRT519SZDM09

Description

19 Cu. Ft. Top Freezer Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"

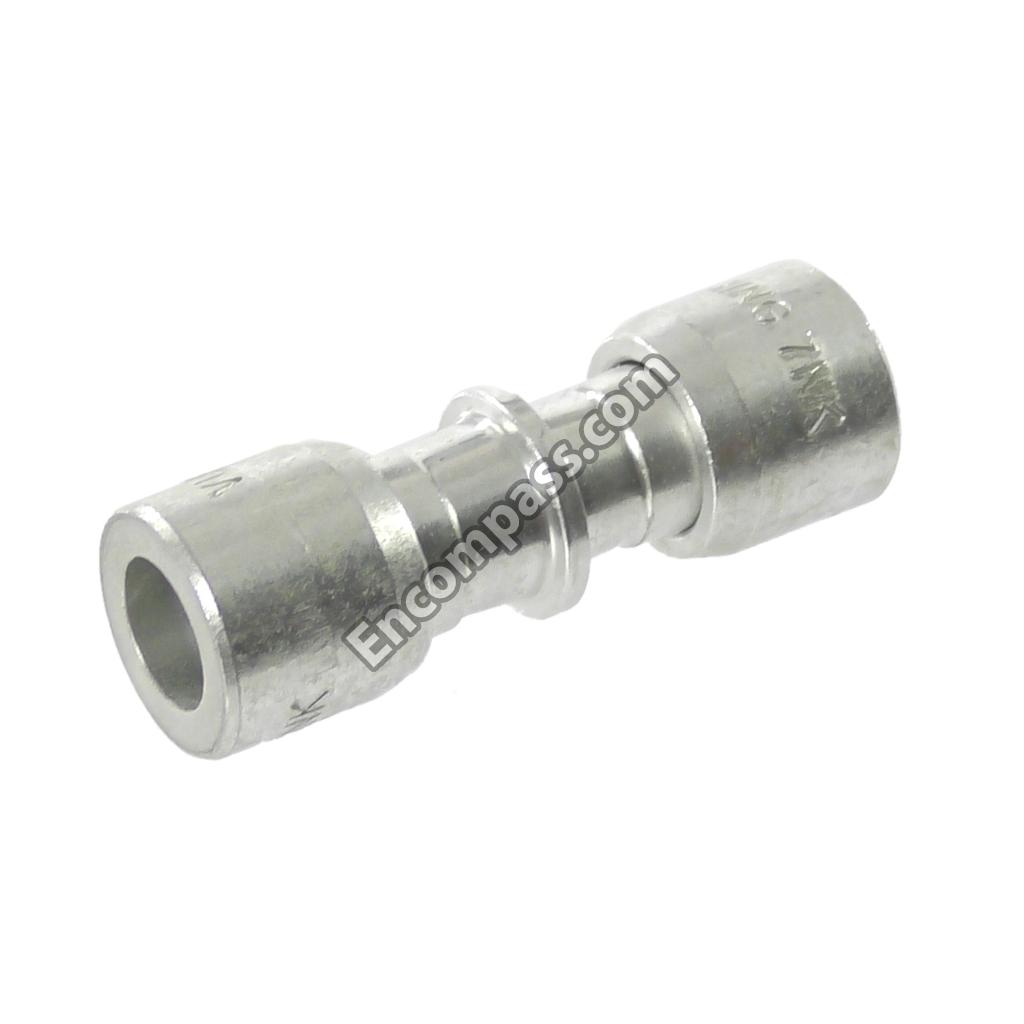

W11504419 W11504419 (8/7 NR AL 00) (SUCTION LINE TO EVAPORATOR)
W11504449 W11504449 4/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR)
W11506623 W11506623 5 NK MS 00 (HIGH SIDE TO CONDENSER)
W11504445 W11504445 5/4 NR MS 00 (HEAT LOOP TO CONDENSER)
W11504431 W11504431 7/5 NR MS 00 (COMPRESSOR TO CONDENSER)
W11506619 W11506619 8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
W11504415 W11504415 8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR)
W11594405 W11594405 AXLE
W11175807 W11175807 AXLE
W11736795 W11736795 BAFFLE-AIR
606755 606755 BAG
WPW10308867 WPW10308867 BIN CONTROL LEVER
WPW10308868 WPW10308868 BIN CONTROL LEVER
WP2163777 WP2163777 BLADE-FAN
W11193484 W11193484 BLADE-FAN
W11745278 W11745278 BRACKET
W11402852 W11402852 BRACKET
W11340313 W11340313 BRACKET, EVAPORATOR
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
WPW10511911 WPW10511911 BUSHING
WPW10520304 WPW10520304 BUTTON-PLG
WPW10520305 WPW10520305 BUTTON-PLG
WPW10520306 WPW10520306 BUTTON-PLG
WPW10520307 WPW10520307 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP2212651 WP2212651 BUTTON-PLG
WP2212649 WP2212649 BUTTON-PLG
WP2254517 WP2254517 BUTTON-PLG
W11512421 W11512421 CAMERA LENS-LIGHT
W10679138 W10679138 CAP, DOME (BISCUIT)
W10846529 W10846529 CAP-SCREW
W10853677 W10853677 CAP-SCREW
W10849198 W10849198 CAP-SCREW
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10861184 W10861184 CLAMP
W11234470 W11234470 CLAMP, PLASTIC
W11577799 W11577799 CLIP
W10812039 W10812039 CLIP
2219077 2219077 CLIP, HARNESS
W11582592 W11582592 COMPRESSOR
W11512423 W11512423 CONDENSER
W11244470 W11244470 CONTROL
W11562260 W11562260 CONTROL BOARD
W10854527 W10854527 COVER
W11256504 W11256504 COVER
W11562261 W11562261 COVER
W11562262 W11562262 COVER-EVAP
W11476772 W11476772 COVER-UNIT
W10860753 W10860753 CRISPER PAN
W10638176 W10638176 CUP, AIR DIFFUSER
W11026417 W11026417 DAMPER-AIR
W10861170 W10861170 DIFFUSER
LW10636232 LW10636232 DOOR ASSEMBLY
LW10672970 LW10672970 DOOR ASSEMBLY
LW10685257 LW10685257 DOOR ASSEMBLY
LW10672972 LW10672972 DOOR ASSEMBLY
LW10636404 LW10636404 DOOR ASSEMBLY
LW10672964 LW10672964 DOOR ASSEMBLY
LW10685227 LW10685227 DOOR ASSEMBLY
LW10672966 LW10672966 DOOR ASSEMBLY
W10838574 W10838574 DOOR GASKET
W11240749 W11240749 DOOR GASKET
W10861499 W10861499 DOOR GASKET
W11229610 W11229610 DOOR GASKET
W11725106 W11725106 DOOR GASKET
W11574983 W11574983 DOOR GASKET
WPW10300065 WPW10300065 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
W11675283 W11675283 DOOR-COMP
W11109499 W11109499 DRIER-TUBE
W10919804 W10919804 DUCT-AIR
W10838039 W10838039 ENDCAP-HDL
W11095248 W11095248 ENERGY GUIDE
W11562258 W11562258 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
W11383479 W11383479 EXTENSION, DRAIN TUBE
W11292468 W11292468 FITTING
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP1106508 WP1106508 GASKET
W10849448 W10849448 GASKET
W11030687 W11030687 GASKET, DOOR (BEIGE)
W11030683 W11030683 GASKET, DOOR (GREY)
W11674479 W11674479 GLASS SHELF
W11674478 W11674478 GLASS SHELF
W11674475 W11674475 GLASS SHELF
WPW10628707 WPW10628707 GLASS SHELF
WP542638 WP542638 GREASE
WP2264462 WP2264462 GROMMET
W11678963 W11678963 GROMMET
W10852725 W10852725 GROMMET
W10837577 W10837577 HANDLE
W10839425 W10839425 HANDLE
W10837029 W10837029 HANDLE
W10656974 W10656974 HANDLE, DOOR (BISCUIT)
W11611126 W11611126 HEAT-PROBE
W11562215 W11562215 HEATER
W11026307 W11026307 HINGE-PIN
W10861519 W10861519 HOLDER
W11729596 W11729596 ICEMAKER
WPW10279909 WPW10279909 INLET VALVE
4387491 4387491 INSERT, TUBE
W11553819 W11553819 INSULATION
W11416038 W11416038 KIT-DOOR
W11415957 W11415957 KIT-DOOR
W10854419 W10854419 LEVELER
W11216993 W11216993 LIGHT BULB
W10676240 W10676240 MISCELLANEOUS, DOOR REVERSAL KIT STAINLESS MODEL
W10691128 W10691128 MISCELLANEOUS, DOOR REVERSAL KIT, BISCUIT MODEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11127829 W11127829 MOTOR-COND
W11178521 W11178521 NAMEPLATE
W10850162 W10850162 ORIFICE
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
W10861806 W10861806 PAN-MEAT
W11666427 W11666427 PANEL-UI
WP2174706 WP2174706 PIN-HITCH
W10830984 W10830984 PLUG-HNDLE
W10830983 W10830983 PLUG-HNDLE
W10830981 W10830981 PLUG-HNDLE
W10830982 W10830982 PLUG-HNDLE
W11676611 W11676611 RING
W11164152 W11164152 ROLLER
W11256723 W11256723 ROLLER-CAB
W11096015 W11096015 ROLLER-CAB
WPW10475495 WPW10475495 ROLLER-CAB
W10276642 W10276642 SCREW
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
WP488163 WP488163 SCREW
W11544659 W11544659 SCREW
WP3400065 WP3400065 SCREW
WPW10170540 WPW10170540 SCREW
WP489357 WP489357 SCREW
WP8281206 WP8281206 SCREW
WP4449746 WP4449746 SCREW
WP489128 WP489128 SCREW
WP489478 WP489478 SCREW
W11417341 W11417341 SCREW
W10829281 W10829281 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W11562216 W11562216 SHIELD
WP2183852 WP2183852 SHIM
W10883637 W10883637 SHIM, TOP HINGE
2264838 2264838 SLEEVE
W11590562 W11590562 SLIDE
W11547180 W11547180 START-DEV
W10624648 W10624648 SUPPORT PLATE, COMPRESSOR
W11384469 W11384469 SWITCH
W11123941 W11123941 SWITCH, ROCKER
W11238399 W11238399 TAPE
W11511780 W11511780 TECH SHEET
W11438736 W11438736 THERMISTOR
WPW10384183 WPW10384183 THERMISTOR
W11189115 W11189115 THIMBLE
W11676573 W11676573 THIMBLE
W10492019 W10492019 THIMBLE (BISCUIT)
W11759045 W11759045 THIMBLE (WHITE)
WPW10339879 WPW10339879 TIE-WIRE
W11595235 W11595235 TRACK
W11595233 W11595233 TRACK
W11595232 W11595232 TRACK
W10633582 W10633582 TRAY, EVAPORATOR
W10592149 W10592149 TRIM, DOOR
W10592151 W10592151 TRIM, DOOR
W11661102 W11661102 TUBE
W11562211 W11562211 TUBE
W10633573 W10633573 TUBE, DRAIN
W11507956 W11507956 USE AND CARE GUIDE
WP489467 WP489467 WASHER
W10847959 W10847959 WASHER
W10823511 W10823511 WATER TUBE
W11436564 W11436564 WIRE HARNESS
W11562214 W11562214 WIRE HARNESS
W11611445 W11611445 WIRE HARNESS
