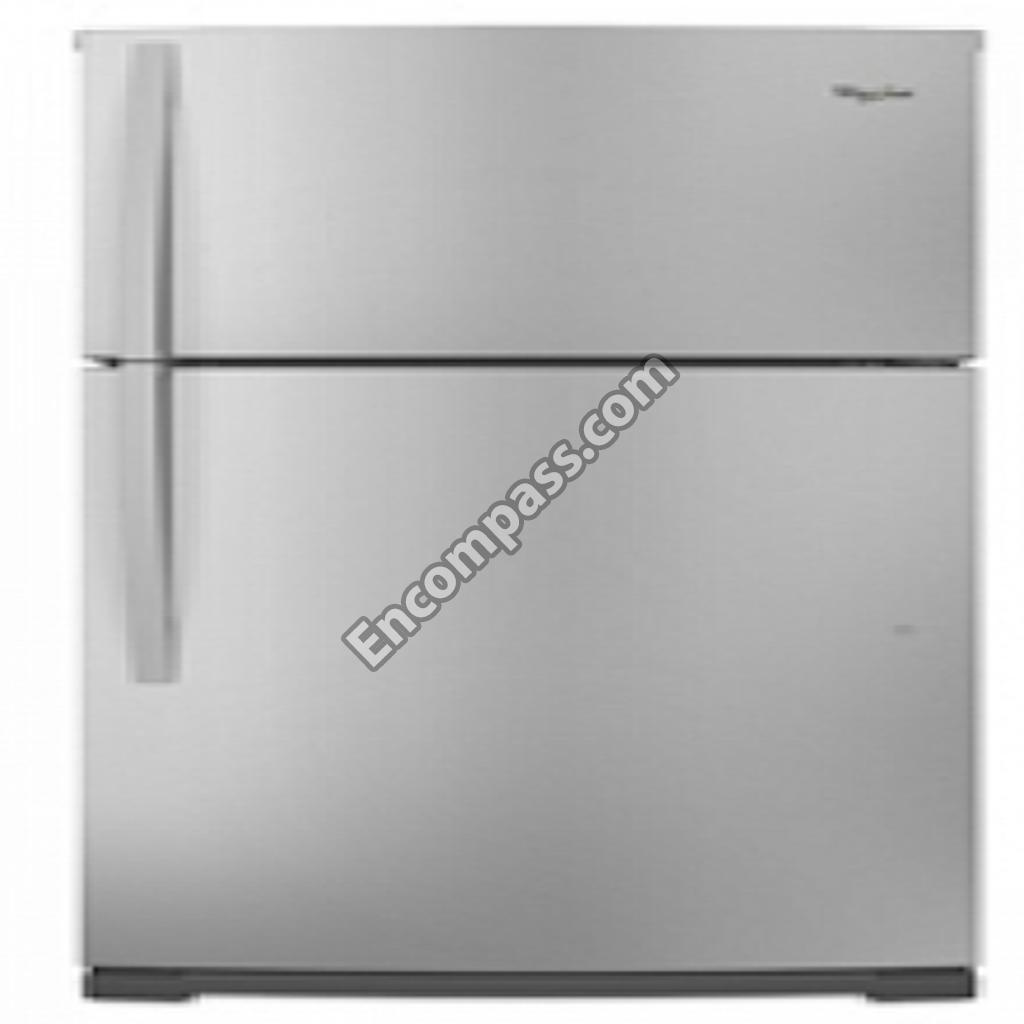

Model Image
Manufacturer

Whirlpool

Model Number

WRT779RFYM10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10395376 WPW10395376 AIR-TOWER
WPW10305174 WPW10305174 AIR-TOWER
WPW10396926 WPW10396926 AIR-TOWER
W10311524 W10311524 ANTIBACTERIAL FILTER
W11594405 W11594405 AXLE
WP2315541 WP2315541 BAFFLE-AIR
W10349514 W10349514 BAFFLE-AIR
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
W10356445 W10356445 BIN
WPW10308867 WPW10308867 BIN CONTROL LEVER
WPW10308868 WPW10308868 BIN CONTROL LEVER
WPW10139483 WPW10139483 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
W11745278 W11745278 BRACKET
W10314197 W10314197 BRACKET
WP2212651 WP2212651 BUTTON-PLG
WP2254517 WP2254517 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WPW10520307 WPW10520307 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
WP2151652 WP2151652 BUTTON-PLG
WPW10313918 WPW10313918 CAMERA LENS-LIGHT
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 CLAMP
549193 549193 CLAMP, CORD
W10683556 W10683556 CLIP
W10174383 W10174383 CLIP
W10331226 W10331226 CLIP
W10296661 W10296661 CLIP
2219077 2219077 CLIP, HARNESS
W10233960 W10233960 COMPRESSOR
WPW10342567 WPW10342567 CONDENSER
W10316942 W10316942 CONTRL-BOX
WPW10336519 WPW10336519 CONTROL BOARD
WPW10392184 WPW10392184 CONTROL BOARD
WPW10356895 WPW10356895 COVER
WPW10305175 WPW10305175 COVER
W10331654A W10331654A COVER
W10353950A W10353950A COVER
W10353948A W10353948A COVER
W10331560A W10331560A COVER
W10353947A W10353947A COVER
W10353945A W10353945A COVER
W10309097 W10309097 COVER
W10336009 W10336009 COVER
W10404405 W10404405 COVER
W10636716 W10636716 COVER, UNIT
W10385128 W10385128 COVER-EVAP
WPW10339203 WPW10339203 COVER-TUBE
WPW10373936 WPW10373936 CRISPER PAN
WPW10373941 WPW10373941 CRISPER PAN
WPW10130299 WPW10130299 CUP
LW10353882 LW10353882 DOOR ASSEMBLY BL
LW10353301 LW10353301 DOOR ASSEMBLY BL
LW10353893 LW10353893 DOOR ASSEMBLY SS
LW10353320 LW10353320 DOOR ASSEMBLY SS
LW10298864 LW10298864 DOOR ASSEMBLY WH
LW10299907 LW10299907 DOOR ASSEMBLY WH
2177305 2177305 DOOR GASKET, MAGNETIC (BLACK)
2177304 2177304 DOOR GASKET, MAGNETIC (BLACK)
2159057 2159057 DOOR GASKET, MAGNETIC (MIST BEIGE)
2159327 2159327 DOOR GASKET, MAGNETIC (MIST BEIGE)
WP2254473 WP2254473 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
WPW10308843 WPW10308843 DOOR-COMP
WPW10143759 WPW10143759 DRIER-UV
WPW10338485 WPW10338485 ENDCAP
WPW10308871 WPW10308871 ENDCAP
WPW10353932 WPW10353932 ENDCAP-GRL
WPW10339257 WPW10339257 ENDCAP-GRL
W10353930 W10353930 ENDCAP-GRL
W10381059 W10381059 ENDCAP-GRL
W10381060 W10381060 ENDCAP-GRL
W10381064 W10381064 ENDCAP-GRL
W10422356 W10422356 ENERGY LABEL
W10383445 W10383445 ESCUTCHEON
WPW10314205 WPW10314205 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
W10851579 W10851579 FILLER
WPW10283959 WPW10283959 FILLER
W11252732 W11252732 FILLER
WP2254360 WP2254360 GASKET
W11624977 W11624977 GASKET ASSEMBLY
W11624958 W11624958 GASKET ASSEMBLY
WPW10313893 WPW10313893 GLASS SHELF
WPW10486290 WPW10486290 GLASS SHELF
WP542638 WP542638 GREASE
WPW10330850 WPW10330850 GRILLE
WPW10353933 WPW10353933 GRILLE
WPW10300127 WPW10300127 GRILLE
WPW10353935 WPW10353935 GRILLE
W10852725 W10852725 GROMMET
WPW10169124 WPW10169124 GROMMET
WP2264462 WP2264462 GROMMET
WPW10646617 WPW10646617 HANDLE
WPW10498430 WPW10498430 HANDLE
WPW10498429 WPW10498429 HANDLE
W10341566 W10341566 HARNS-WIRE
W10405935 W10405935 HARNS-WIRE
2223680 2223680 HEAT SHIELD
WPW10316428 WPW10316428 HEATER
WPW10300065 WPW10300065 HINGE-DOOR
WPW10308809 WPW10308809 HOUSING
WPW10313917 WPW10313917 HOUSING
W11700559 W11700559 ICEMAKER
W11553819 W11553819 INSULATION
W10437914 W10437914 KIT, DOOR REVERSAL (STAINLESS)
W10437913 W10437913 KIT, DOOR REVERSAL BLACK
W10437912 W10437912 KIT, DOOR REVERSAL WHITE
876029 876029 KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
833938 833938 KIT, TERMINAL CONNECTOR
W10339195 W10339195 LENS
W11518235 W11518235 LIGHT BULB
WPA3073101 WPA3073101 LIGHT BULB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
2225623 2225623 MODULAR ICEMAKER SERVICE SHEET
WP2188874 WP2188874 MOTOR-COND
W11178521 W11178521 NAMEPLATE
WPW10393264 WPW10393264 NAMEPLATE
W10850162 W10850162 ORIFICE
W10394708 W10394708 OVERLAY
799344 799344 PAINT, BULK (1 QT.) (ENAMEL, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10890667 W10890667 PAN-DRIP
WPW10308848 WPW10308848 PAN-MEAT
W10300116 W10300116 PLATE
N_P N_P RAIL, CENTER (NOT SERVICED)
2254454 2254454 REAR BRACKET, EVAPORATOR FAN
WP2210509 WP2210509 RELEAS-VAC
WPW10475495 WPW10475495 ROLLER-CAB
W10849386 W10849386 ROLLER-CAB
W11544659 W11544659 SCREW
WP489128 WP489128 SCREW
W11501418 W11501418 SCREW
WP489357 WP489357 SCREW
WPW10170540 WPW10170540 SCREW
WP489174 WP489174 SCREW
WP488163 WP488163 SCREW
WP488729 WP488729 SCREW
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
WP489464 WP489464 SCREW
W10850698 W10850698 SCREW
WP681249 WP681249 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
W10414767 W10414767 SERVICE & WIRING SHEET
WPW10502933 WPW10502933 SHELF-CANT
W10477088 W10477088 SHELF-WIRE
WPW10314195 WPW10314195 SHIELD
WP2183852 WP2183852 SHIM
W10883637 W10883637 SHIM-HINGE
WPW10191429 WPW10191429 SOCKET
W11661565 W11661565 SOCKET
W10892065 W10892065 START-DEV
W10236396 W10236396 STRAP
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10383615 WPW10383615 THERMISTOR
WPW10384183 WPW10384183 THERMISTOR
WP2182181 WP2182181 THIMBLE
W11189115 W11189115 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX KEY
WPW10468555 WPW10468555 TRACK
WPW10468556 WPW10468556 TRACK
WPW10468557 WPW10468557 TRACK
W10469910 W10469910 TRIM, DOOR
W10469909 W10469909 TRIM, DOOR SHELF
W11676464 W11676464 TUBE
W10466683 W10466683 TUBE
W10343810 W10343810 USE & CARE GUIDE
WP978025 WP978025 VALVE
W11190084 W11190084 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
WP487576 WP487576 WASHER
WP489467 WP489467 WASHER
WPW10283809 WPW10283809 WIRE HARNESS
