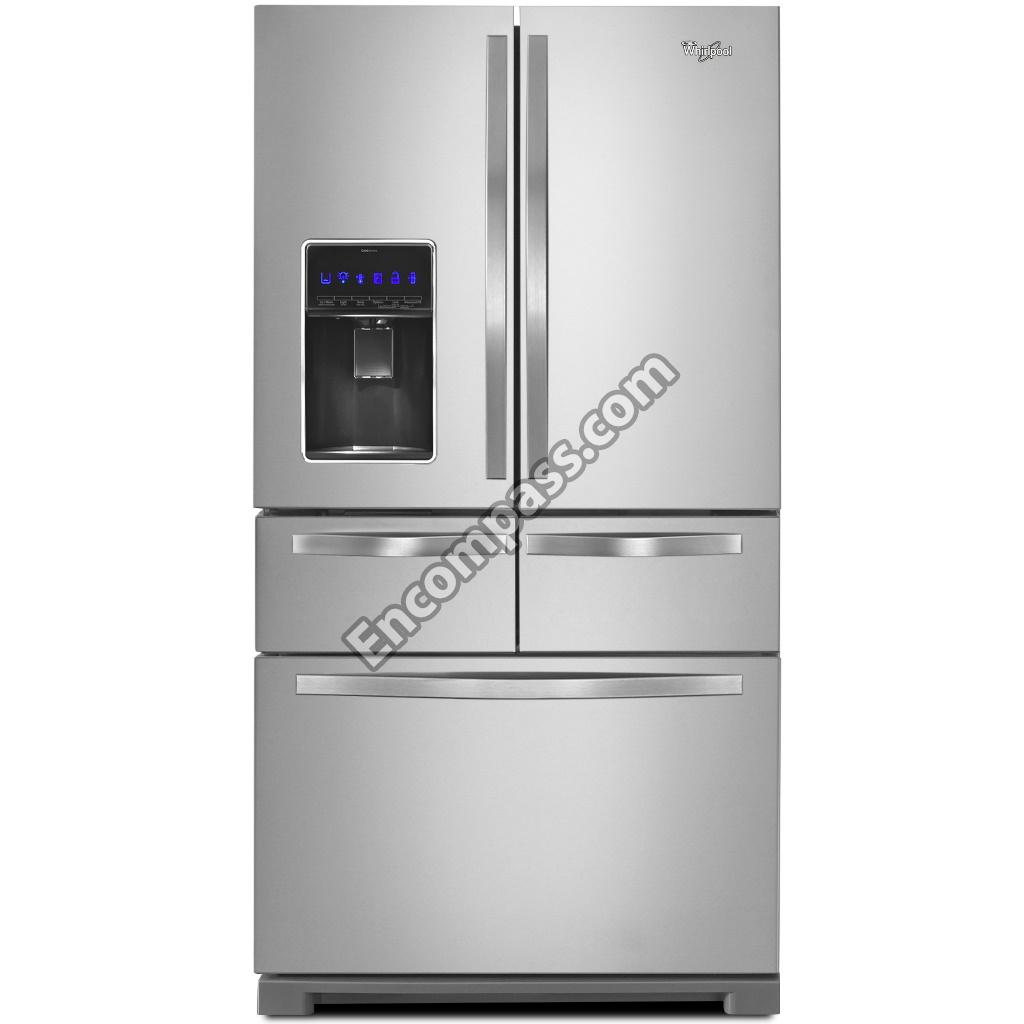

Model Image
Manufacturer

Whirlpool

Model Number

WRV986FDEM01

Description

25.8-cu Ft 5-door French Door Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
WPW10635022 WPW10635022 ADAPTER
W11294518 W11294518 ADAPTER, PANTRY (LEFT HAND)
W11294519 W11294519 ADAPTER, PANTRY (RIGHT HAND)
W10830496 W10830496 AIR-TOWER
W10311524 W10311524 ANTIBACTERIAL FILTER
W11559683 W11559683 ARM-SHUT
W10503218 W10503218 ASSEMBLY, DRAIN FUNNEL
W10820058 W10820058 ASSEMBLY, DUAL VALVE BOX
W10730080 W10730080 ASSEMBLY, DUAL WATER VALVE BRACKET (INCLUDES GASKET)
W11215630 W11215630 ASSEMBLY, FLOOR (INCLUDES HEATER)
W10682576 W10682576 ASSEMBLY, ICEBOX FASCIA
W10673702 W10673702 ASSEMBLY, PAD (BLACK)
W11294550 W11294550 ASSEMBLY, PANTRY CENTER ADAPTER
W10734569 W10734569 ASSEMBLY, PANTRY DRAWER
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
W10634634 W10634634 ASSEMBLY, SECONDARY MULLION BIN
W11573594 W11573594 AXLE
67006434 67006434 AXLE, ROLLER (2)
W10570074 W10570074 BASEPLATE
WP627985 WP627985 BIMETL-DEF
W11371716 W11371716 BIN CONTROL LEVER
W10709259 W10709259 BIN, ICE
W10680631 W10680631 BIN, LOWER
W10724458 W10724458 BIN, UPPER
WP67006337 WP67006337 BLADE- FAN
WP2188935 WP2188935 BLADE-FAN
W10734554 W10734554 BLOCK, PIVOT
W11242954 W11242954 BOX-ICE
W11668671 W11668671 BRACKET
W10713934 W10713934 BRACKET, CONNECTOR
W10422272 W10422272 BRACKET, ICEMAKER
W10391376 W10391376 BRACKET, VALVE
W11573367 W11573367 BUMPER-DOR
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10505294 WPW10505294 CAM-DOOR
W11456069 W11456069 CLAMP
549193 549193 CLAMP, POWER CORD
W10847834 W10847834 CLIP
W11673433 W11673433 CLIP
W10683556 W10683556 CLIP
W10852685 W10852685 CLIP
W11712696 W11712696 CLIP
W10815861 W10815861 CLIP, BOTTOM COVER
W10704335 W10704335 CLIP, DRAWER BODY
W10732765 W10732765 CLIP, GLIDE DOOR
W11212164 W11212164 CLOSER
W10904595 W10904595 CLOSER
W10832994 W10832994 COMPRESSOR
W10758093 W10758093 CONDENSER
W11209438 W11209438 CONNECTOR
WPW10248595 WPW10248595 CONTROL

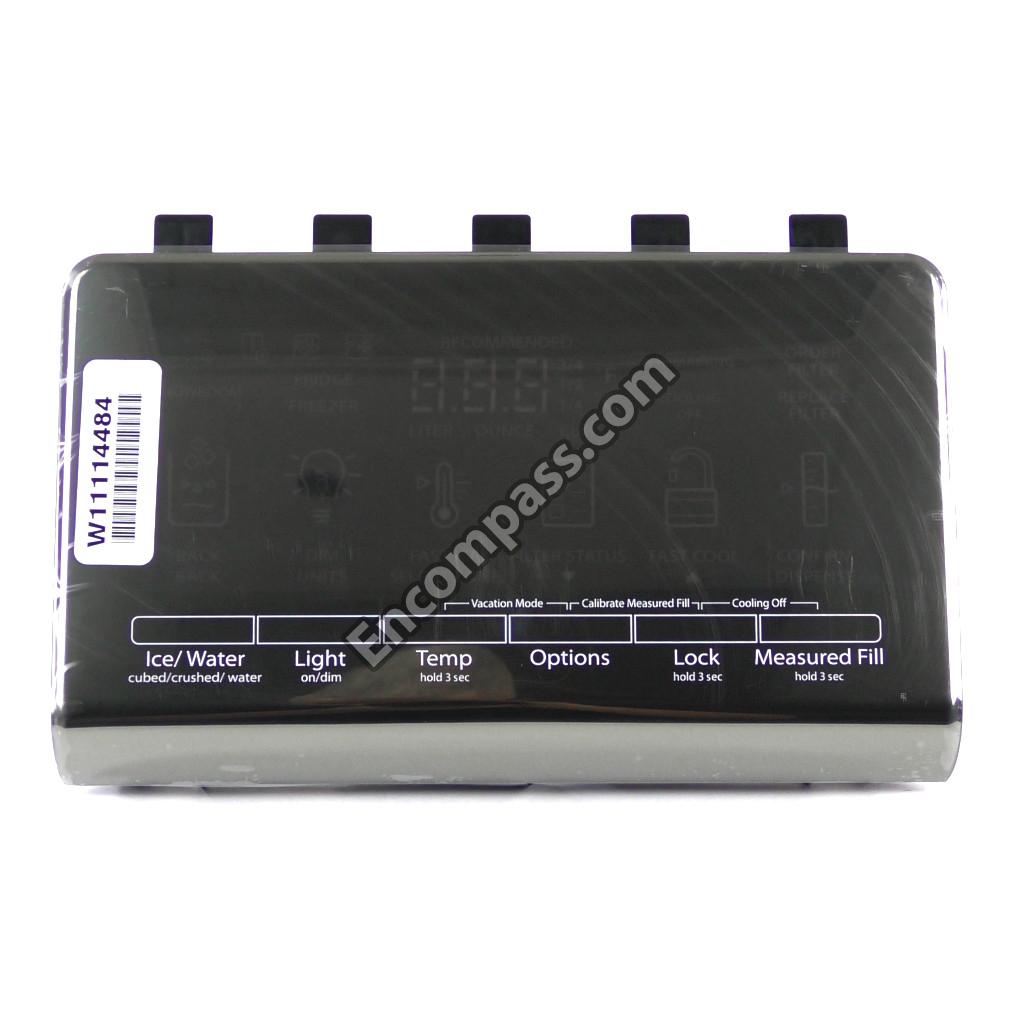

W11387384 W11387384 CONTROL BOARD
WPW10677119 WPW10677119 CONTROL BOARD
W10870822 W10870822 CONTROL BOARD
W10898445 W10898445 CONTROL BOARD
W10804160 W10804160 CONTROL BOARD
WPW10675033 WPW10675033 CONTROL BOARD
WPW10624574 WPW10624574 CONTROL BOARD
W10830861 W10830861 COVER
W11238397 W11238397 COVER
WPW10598013 WPW10598013 COVER
W11190820 W11190820 COVER
W10278140 W10278140 COVER, CONDENSER (BOTTOM)
W10711645 W10711645 COVER, CONNECTOR
W10754591 W10754591 COVER, CONTROL BOX
W10258502 W10258502 COVER, EMITTER
W10377174 W10377174 COVER, FRONT
W10258510 W10258510 COVER, RECEIVER
W10709866 W10709866 COVER, RIGHT HINGE (GREY)
W10336736 W10336736 COVER, ROLLER
W10518036 W10518036 COVER, SIDE ADAPTER
W10698555 W10698555 COVER, THERMISTOR
W10725013 W10725013 COVER, TOP HINGE LEFT HAND (GREY)
W11482027 W11482027 COVER-BACK
W11690163 W11690163 COVER-EVAP
W11188493 W11188493 COVER-EVAP
WPW10277949 WPW10277949 COVER-FILT
W10839369 W10839369 CRISPER PAN
W10509275 W10509275 CRISPER, SMALL
W10734891 W10734891 DIFFUSER, AIR
W11026309 W11026309 DIVIDER
WPW10485654 WPW10485654 DIVIDER
W10507444 W10507444 DIVIDER, LOWER
W10815676 W10815676 DOOR ASSEMBLY SS
W10815674 W10815674 DOOR ASSEMBLY SS
W10815698 W10815698 DOOR ASSEMBLY SS
W10815685 W10815685 DOOR ASSEMBLY SS
W10815692 W10815692 DOOR ASSEMBLY SS
W11122872 W11122872 DOOR HINGE
W11167119 W11167119 DOOR HINGE
W11736793 W11736793 DOOR HINGE
WP2223877 WP2223877 DOOR LATCH
W11122874 W11122874 DOOR-ICE
WPW10549589 WPW10549589 DOOR-ICE
W11028805 W11028805 DRAWER SLIDE RAIL
W11122876 W11122876 DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
W10811115 W10811115 ENCLOSURE, WATER VALVE
W10811659 W10811659 ENERGY GUIDE
WPW10608485 WPW10608485 EVAPORATOR
W11492867 W11492867 EVAPORATOR
W11109595 W11109595 EVAPORATOR MOTOR
W11087438 W11087438 EVAPORATOR MOTOR
W11745092 W11745092 EXTENSION
W10846539 W10846539 FAN
WP12587703AP WP12587703AP FILLER
WPW10258520 WPW10258520 FLIPPER
W11127833 W11127833 FRAME
WPW10347087 WPW10347087 GASKET
W11624997 W11624997 GASKET
W10459031 W10459031 GASKET
WPW10392172 WPW10392172 GASKET
WPW10280988 WPW10280988 GASKET
WPW10320706 WPW10320706 GASKET
W11568592 W11568592 GASKET
W10505487 W10505487 GASKET
W10832386 W10832386 GASKET ASSEMBLY
W10407216 W10407216 GASKET ASSEMBLY
W10846057 W10846057 GASKET ASSEMBLY
W10491355 W10491355 GASKET, AIRDAM
W10470981 W10470981 GASKET, DAMPER
W10465948 W10465948 GASKET, EVAPORATOR ENCLOSURE
W10415341 W10415341 GASKET, HV BOX
WPB8381501 WPB8381501 GASKET- DR
W11038526 W11038526 GLASS SHELF
WPW10709163 WPW10709163 GLASS SHELF
WPW10709175 WPW10709175 GLASS SHELF
W11242542 W11242542 GLIDE, COMPACT (ALSO ORDER ITEMS 34 AND 35) (LEFT HAND)
WP542638 WP542638 GREASE
W10911309 W10911309 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
W11676465 W11676465 GROMMET- F
W10638123 W10638123 GUIDE, CRISPER
WPW10435760 WPW10435760 GUIDE-ICE
W10915399 W10915399 HANDLE
W10883202 W10883202 HANDLE
W10672164 W10672164 HARNESS, ICE MAKER

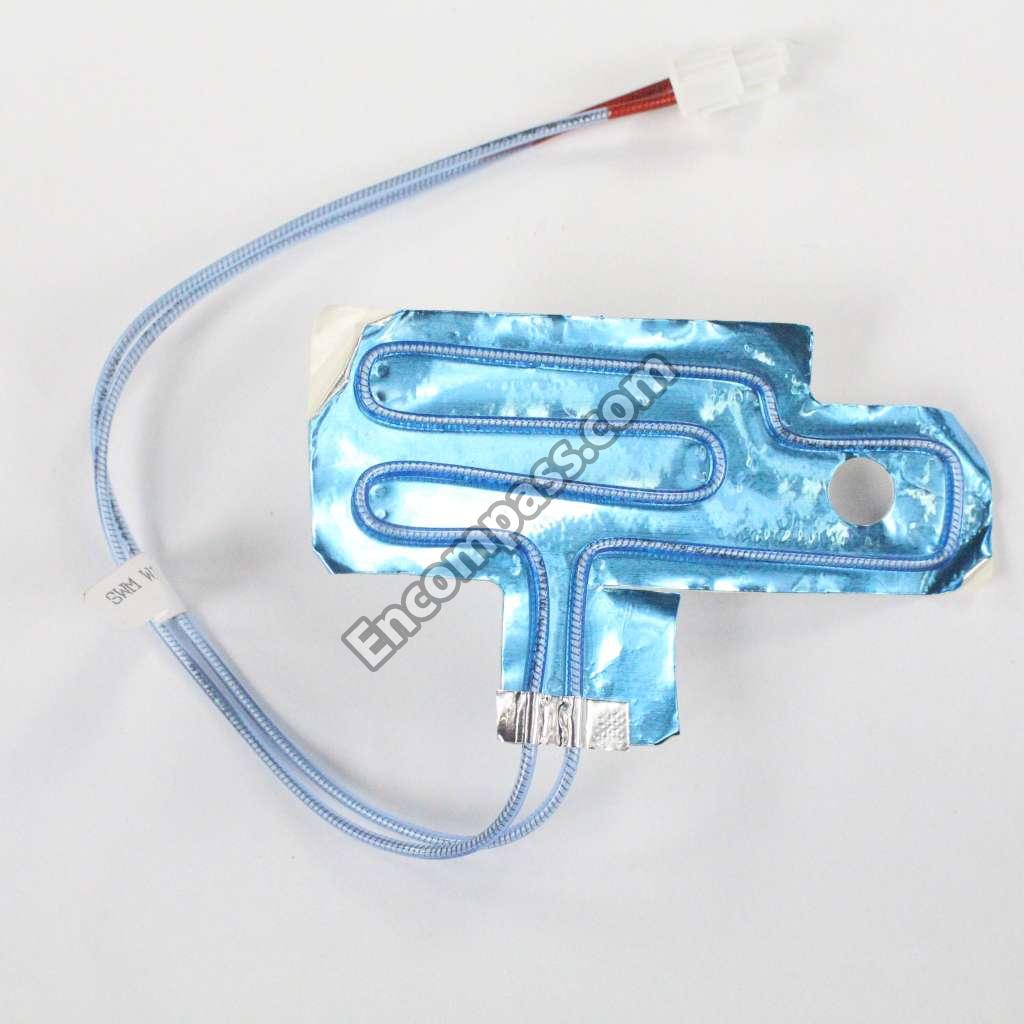

WP12729128 WP12729128 HEATER
W11226501 W11226501 HEATER
W11027247 W11027247 HINGE, TOP (LEFT HAND)
W11435997 W11435997 HOUSING
W11194438 W11194438 HOUSING
W10842950 W10842950 HOUSING
WPW10347093 WPW10347093 ICE-CONTNR
W10886931 W10886931 ICEMAKER
W11658802 W11658802 ICEMAKER
W11553819 W11553819 INSULATION
WPW10280983 WPW10280983 INSULATION
W11087200 W11087200 INVRTR-BOX
W10673048 W10673048 JUMPER, FASCIA HEATER
W10467461 W10467461 LADDER, CENTER
W10467460 W10467460 LADDER, SIDE
WPW10141622 WPW10141622 LEVELER
W11290115 W11290115 LIGHT
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
F2WC9I1 F2WC9I1 MISCELLANEOUS, WATER FILTER
W11683243 W11683243 MODULE
W10822606 W10822606 MOTOR
W11127829 W11127829 MOTOR-COND
W11223753 W11223753 NAMEPLATE
W10737730 W10737730 NUT, RIVET
W10730915 W10730915 OWNERS MANUAL
12702901 12702901 PAD, GLIDE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11457241 W11457241 PAN-DRIP
WP2198634 WP2198634 PIN-DOOR
W11347434 W11347434 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON
W10702033 W10702033 RESERVOIR, WATER (ALSO ORDER WIRE TIE PART 8567668)
WPW10400825 WPW10400825 RETAINER
W11225849 W11225849 RETAINER
W10705239 W10705239 RETAINER, DOOR
W10663633 W10663633 RING, TRIM (CHROME)
W10788795 W10788795 ROLLER
WP67005149 WP67005149 ROLLER
W11578839 W11578839 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W10182881 W10182881 SCOOP, ICE PAN
WP8281163 WP8281163 SCREW
WPW10272364 WPW10272364 SCREW
W10737605 W10737605 SCREW
W10423561 W10423561 SCREW
67006692 67006692 SCREW
W10664603 W10664603 SCREW
WPW10348409 WPW10348409 SCREW
WP98006631 WP98006631 SCREW
W10421495 W10421495 SCREW
W11544659 W11544659 SCREW
W10142255 W10142255 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
WPW10141625 WPW10141625 SCREW
WP489443 WP489443 SCREW
WPW10661886 WPW10661886 SCREW
W11311945 W11311945 SCREW
WPW10238319 WPW10238319 SCREW
WP98165 WP98165 SCREW
WP67006908 WP67006908 SCREW
W10854958 W10854958 SCREW
WPW10141645 WPW10141645 SCREW
W11214483 W11214483 SCREW
W11686675 W11686675 SCREW
W11126052 W11126052 SCREW
W11573362 W11573362 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
2006254 2006254 SCREW, 6-19 X .250
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W11509548 W11509548 SHAFT
WPW10503522 WPW10503522 SHAFT
WPW10406719 WPW10406719 SHROUD
WPW10363507 WPW10363507 SHROUD
W11661094 W11661094 SLEEVE
W10258540 W10258540 SLIDE, ICEMAKER SHUT OFF
W11429989 W11429989 SOLENOID
W11109505 W11109505 SPRING
WP2198635 WP2198635 SPRING
WPW10485089 WPW10485089 STOP-PAN
WPW10485096 WPW10485096 STOP-PAN
W10236396 W10236396 STRAP, COMPRESSOR
W11677723 W11677723 SUPPORT
W11230117 W11230117 SUPPORT
WPW10389152 WPW10389152 SUPPORT
W10530297 W10530297 SUPPORT, CRISPER FRONT
W10493547 W10493547 SUPPORT, CRISPER REAR
W11087492 W11087492 SWITCH
W11291138 W11291138 SWITCH
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10849496 W10849496 TECH SHEET (ENGLISH)
W10849500 W10849500 TECH SHEET (FRENCH)
W11168403 W11168403 THERMISTOR
W11724692 W11724692 THERMISTOR
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11408656 W11408656 TRAY, DRIP
W10875578 W10875578 TRAY, DRIP (GREY)
W11225840 W11225840 TRAY-EVAP
W10505516 W10505516 TRIM, ICEBOX
W11366475 W11366475 TRIVET
WPW10626970 WPW10626970 TUBE

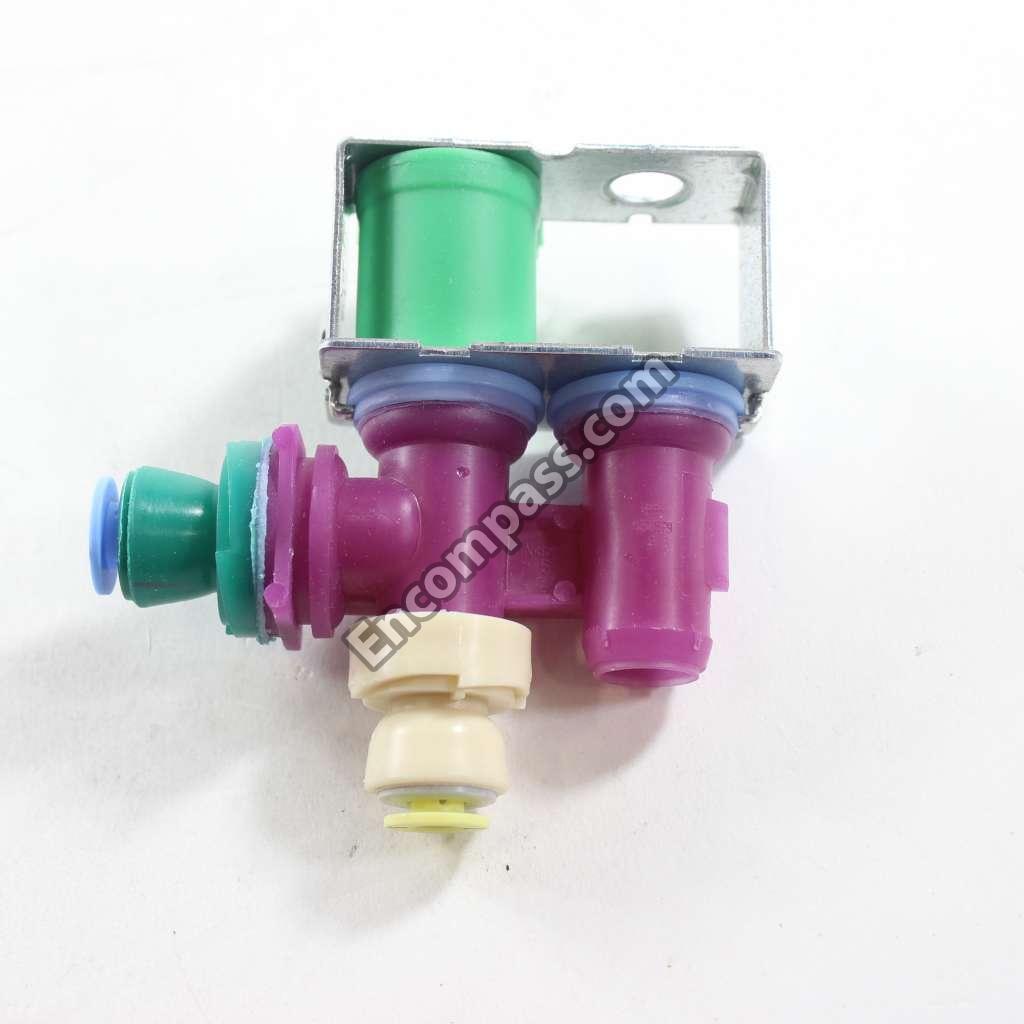

WP978025 WP978025 VALVE
W11575003 W11575003 VALVE
WPW10341329 WPW10341329 VALVE
W11129435 W11129435 VALVE
W10865826 W10865826 VALVE
W11684620 W11684620 VENT
W10874569 W10874569 WALL, DISPENSER FALSE (GREY)
EDR2RXD1 EDR2RXD1 WATER FILTER

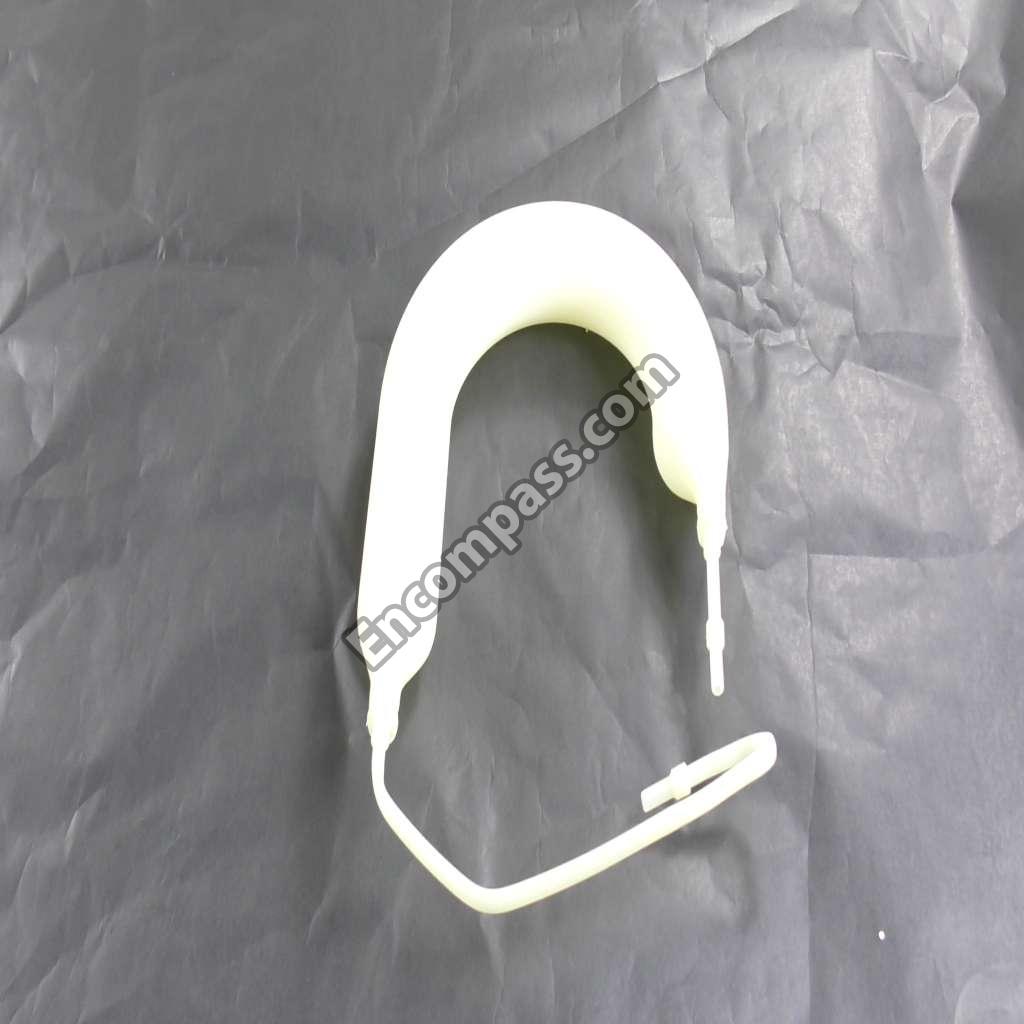

W11126260 W11126260 WATER TUBE

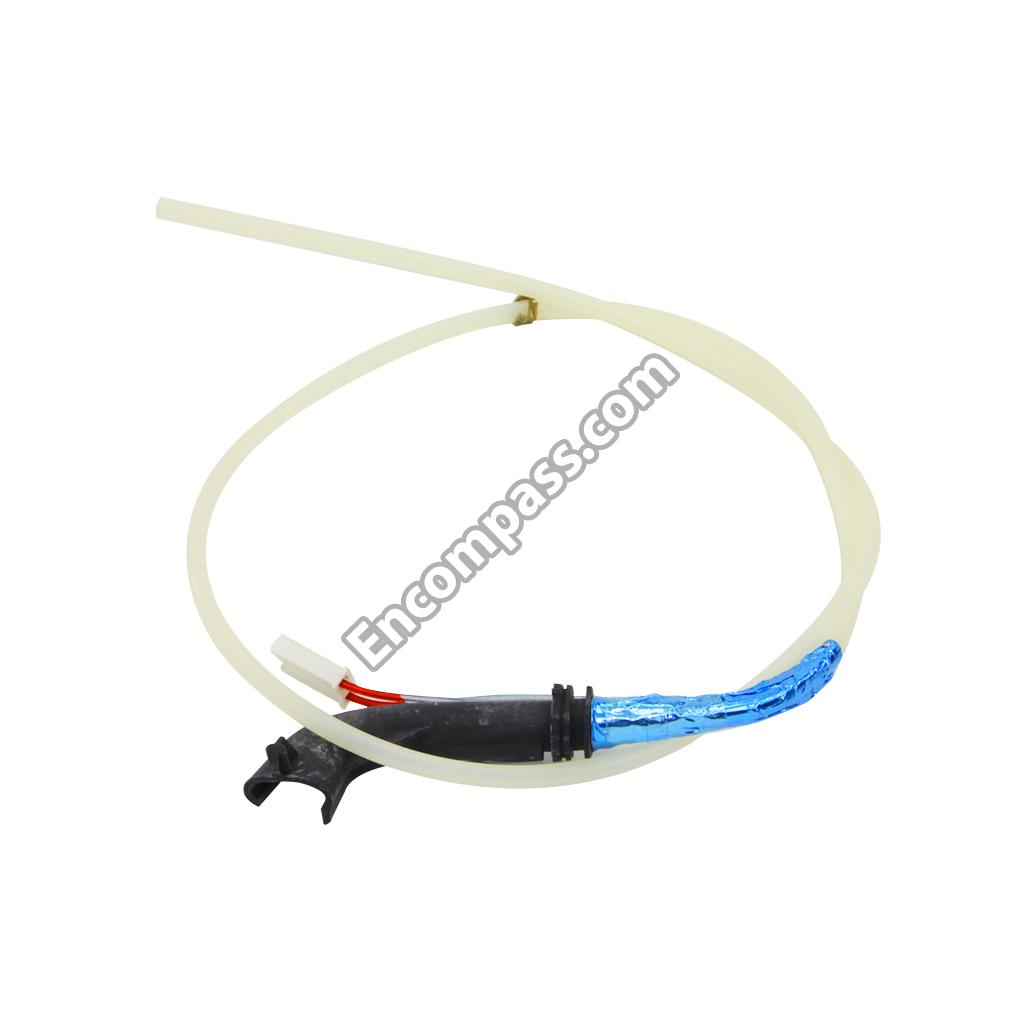

W11238340 W11238340 WATER TUBE
W11686800 W11686800 WATER TUBE
W11686799 W11686799 WATER TUBE
W11482381 W11482381 WATER TUBE
W10723352 W10723352 WATERLINE
W11238426 W11238426 WIRE HARNESS
W11170612 W11170612 WIRE HARNESS
W11401475 W11401475 WIRE HARNESS
W10822346 W10822346 WIRING DIAGRAM
