Model Image
Manufacturer

Whirlpool

Model Number

WRX988SIBW01

Description

Whirlpool Bottom-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description

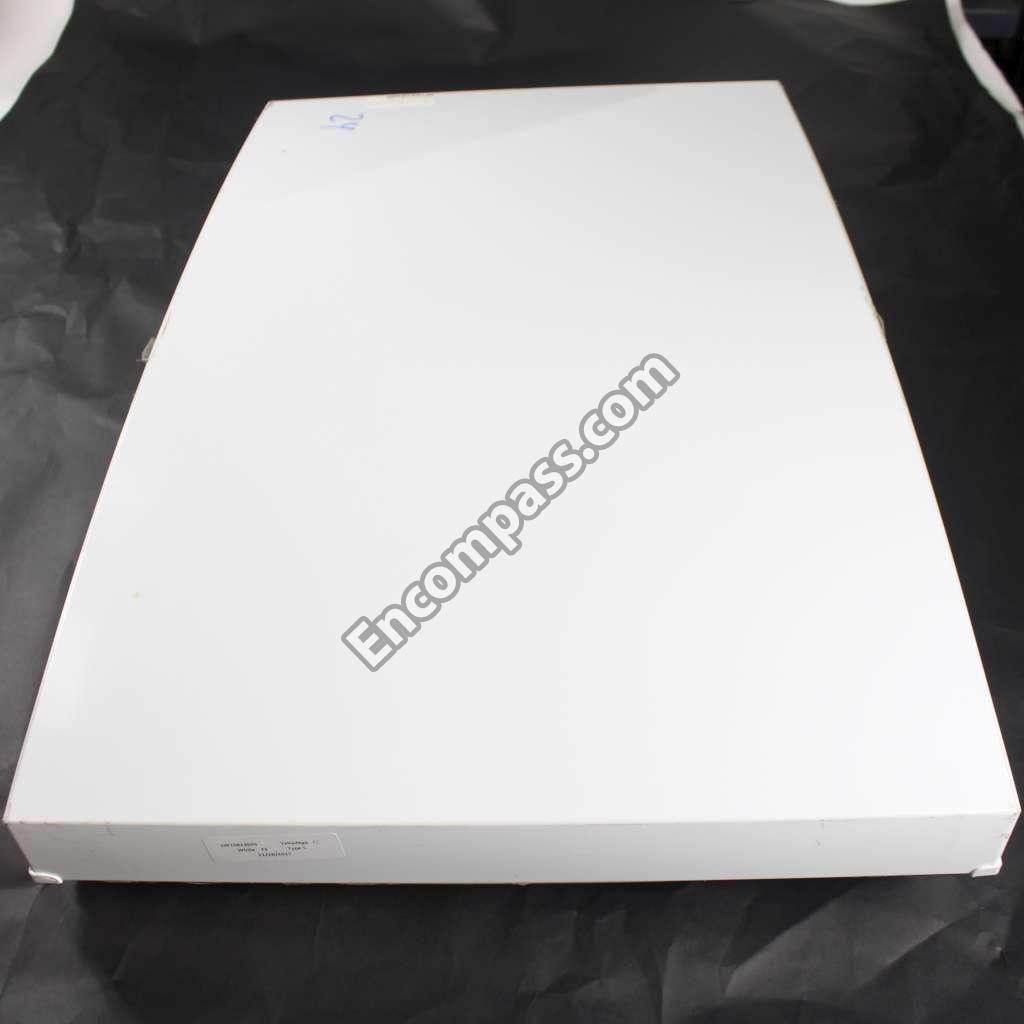

876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W11215629 W11215629 ADAPTER
W11093718 W11093718 ADAPTER, PANTRY (RIGHT HAND)
W10311524 W10311524 AIR FILTER
W11715935 W11715935 AIR RETURN GROMMET
W10830496 W10830496 AIR TOWER ASSEMBLY
W10491355 W10491355 AIRDAM GASKET
WPW10515762 WPW10515762 ASSEMBLY ROLLER (RIGHT)
W10782690 W10782690 ASSEMBLY, FLOOR (INCLUDES HEATER)
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
WPW10515763 WPW10515763 ASSEMBLY, ROLLER (LEFT)
W11573594 W11573594 AXLE
WPW10674770 WPW10674770 BIN CONTROL LEVER
W10650427 W10650427 BIN-FREEZR
WPW10344432 WPW10344432 BLOCK, PIVOT
W10846539 W10846539 BLOWER ASSEMBLY
W10296661 W10296661 BOTTOM COVER CLIP
W10278140 W10278140 BOTTOM UNIT COVER
W11668671 W11668671 BRACKET ASSEMBLY (LEFT)
W10713934 W10713934 BRACKET, CONNECTOR
WPW10141622 WPW10141622 BRAKE ROLLER
WPA3076901 WPA3076901 BUTTON PLUG (BLACK)
N_P N_P CABINET (NOT A SERVICABLE PART)
W11690685 W11690685 CENTER LADDER
W10858802 W10858802 CENTER PAN ASSEMBLY
549193 549193 CLAMP POWER CORD
W10815861 W10815861 CLIP, BOTTOM COVER
W11212164 W11212164 CLOSER
W10904595 W10904595 CLOSER
W10681408 W10681408 CLOSER
WPW10364560 WPW10364560 COIL, 3 WAY VALVE
8201675 8201675 COMPRESSOR
W10276644 W10276644 COMPRESSOR
W10236396 W10236396 COMPRESSOR STRAP
W11673437 W11673437 CONDENSER
W10683556 W10683556 CONDENSER CLIP

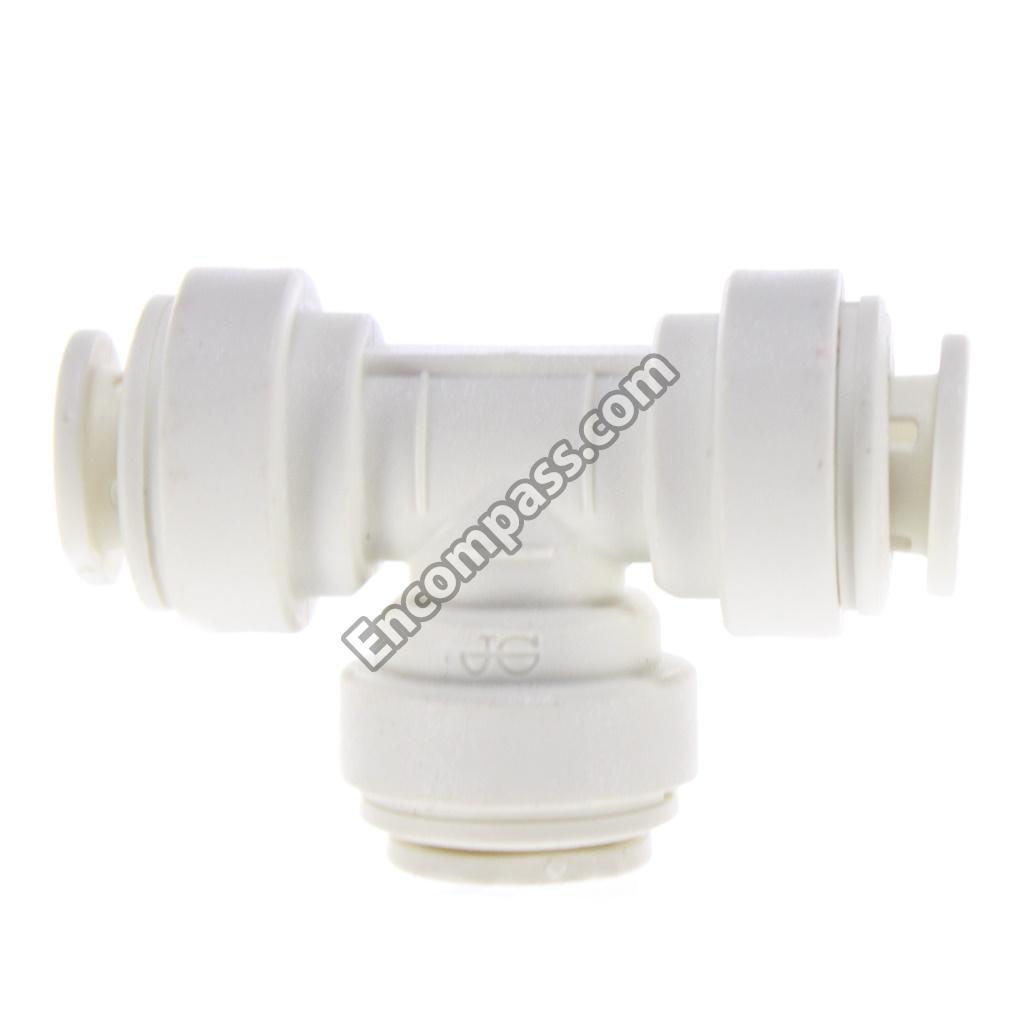

W11209438 W11209438 CONNECTOR
W10518378 W10518378 CONNECTOR COVER
W10789393 W10789393 CONTROL BOARD
W10807590 W10807590 CONTROL BOARD
WPW10589837 WPW10589837 CONTROL BOARD
W11190820 W11190820 COVER
W10754591 W10754591 COVER, CONTROL BOX
WPW10485658 WPW10485658 COVER, CONTROL BOX
WP12587703AP WP12587703AP COVER, CORNER (GREY)
12587703W 12587703W COVER, CORNER (WHITE)
W11690163 W11690163 COVER, EVAPORATOR
W11188493 W11188493 COVER, EVAPORATOR
WPW10471618 WPW10471618 COVER, LEFT HINGE (GREY)
W10471615 W10471615 COVER, LEFT HINGE (WHITE)
WPW10407158 WPW10407158 COVER, RIGHT HINGE (GREY)
W10248562 W10248562 COVER, RIGHT HINGE (WHITE)
W10336736 W10336736 COVER, ROLLER
W11661208 W11661208 COVER, THERMISTOR
W11238397 W11238397 COVER, THERMISTOR
W11127833 W11127833 CRISPER COVER
W11038526 W11038526 CRISPER GLASS
W10577906 W10577906 CRISPER GUIDE
WPW10248595 WPW10248595 DAMPER, ELECTRONIC CONTROL
WP12729128 WP12729128 DEFROST HEATER
W10606648 W10606648 DISPENSER FALSE, WALL (GREY)
W10606658 W10606658 DISPENSER FALSE, WALL (WHITE)
W10822606 W10822606 DISPENSER MOTOR
W10772797 W10772797 DIVIDER, LARGE PANTRY
LW10624505 LW10624505 DOOR ASSEMBLY WH
W11573367 W11573367 DOOR BUMPER (GREY)
W11687672 W11687672 DOOR BUMPER (WHITE )
WPW10505294 WPW10505294 DOOR COUPLER
WPW10258520 WPW10258520 DOOR EMITTER
LW10624503 LW10624503 DOOR FREEZER (WHITE)
WPW10549589 WPW10549589 DOOR ICE
LW10503829 LW10503829 DOOR LEFT (STAINLESS STEEL)
LW10624501 LW10624501 DOOR LEFT (WHITE)
LW10550670 LW10550670 DOOR PANTRY (STAINLESS STEEL)
WP2198634 WP2198634 DOOR PIN
LW10550669 LW10550669 DOOR RIGHT (STAINLESS STEEL)
LW10624502 LW10624502 DOOR RIGHT (WHITE)
WP2198635 WP2198635 DOOR SPRING
WPW10277949 WPW10277949 DOOR, FILTER ACCESS
W11745092 W11745092 DRAIN EXTENSION
W10503218 W10503218 DRAIN FUNNEL ASSEMBLY
W11457241 W11457241 DRAIN PAN
W10503562 W10503562 DRAIN TUBE
W11025614 W11025614 DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER
W11408656 W11408656 DRIP TRAY
WPW10606639 WPW10606639 DRIP TRAY (GREY)
W10606644 W10606644 DRIP TRAY (WHITE)
WPW10341329 WPW10341329 DUAL WATER VALVE
W10870822 W10870822 EMITTER CIRCUIT BOARD
W10258502 W10258502 EMITTER, COVER
W10729266 W10729266 ENERGY GUIDE
WPW10608485 WPW10608485 EVAPORATOR
W11492867 W11492867 EVAPORATOR ASSEMBLY
W11435997 W11435997 EVAPORATOR ENCLOSURE
W11452196 W11452196 EVAPORATOR MOTOR
W10633627 W10633627 EVAPORATOR MOTOR
W11032800 W11032800 EVAPORATOR MOTOR
WP2188935 WP2188935 FAN BLADE
WP67006337 WP67006337 FAN BLADE
W11712696 W11712696 FAN MOTOR CLIP
W11676465 W11676465 FAN MOTOR GROMMET
WPW10389152 WPW10389152 FAN SUPPORT
W11637688 W11637688 FASCIA ASSEMBLY
WPW10709163 WPW10709163 FIXED SHELF
W10548667 W10548667 FLOOR ASSEMBLY
LW10547320 LW10547320 FREEZER DOOR (STAINLESS STEEL )
W11175811 W11175811 FREEZER PAN FRONT
WPW10236512 WPW10236512 FRONT SUPPORT
W10505487 W10505487 GASKET
W10407216 W10407216 GASKET ASSEMBLY
W10470981 W10470981 GASKET, DAMPER
W10846057 W10846057 GASKET, DOOR (GREY)
W10638486 W10638486 GASKET, DOOR (WHITE)
W10638484 W10638484 GASKET, DOOR (WHITE)
WPB8381501 WPB8381501 GASKET, DRAIN
W11568592 W11568592 GASKET, DRAIN TUBE
W10668165 W10668165 GASKET, DUAL EVAPORATOR
W10465948 W10465948 GASKET, EVAPORATOR ENCLOSURE
WPW10392172 WPW10392172 GASKET, FAN
W10856123 W10856123 GASKET, FOAM
W11624997 W11624997 GASKET, ICE DOOR
W10622446 W10622446 GASKET, PANTRY (GREY)
W11627531 W11627531 GASKET, PANTRY (WHITE)
WPW10320706 WPW10320706 GASKET, REAR RETURN
WPW10280988 WPW10280988 GASKET, REAR SUPPLY
WPW10277361 WPW10277361 GEAR COLLAR
W10284709 W10284709 GEAR COVER
W10294414 W10294414 GEAR COVER (RIGHT)
WP542638 WP542638 GREASE
W10871842 W10871842 GRILLE, AIR (FREEZER)
WPW10637671 WPW10637671 GRILLE, TOE (GREY)
WPW10637668 WPW10637668 GRILLE, TOE (WHITE)
WPW10169124 WPW10169124 GROMMET
W10530296 W10530296 GUIDE, CRISPER
W10827046 W10827046 HANDLE, DOOR (STAINLESS STEEL)
W11459378 W11459378 HANDLE, DOOR (STAINLESS STEEL)
W10830089 W10830089 HANDLE, DOOR (WHITE)
W10830136 W10830136 HANDLE, DOOR (WHITE)
W10859326 W10859326 HARNESS, DUAL VALVE
W10837236 W10837236 HARNESS, EVAPORATOR WIRE
W11087201 W11087201 HEATER
W10537691 W10537691 HEATER
W11673433 W11673433 HEATER CLIP
W11592404 W11592404 HING, TOP (RIGHT)
W10878115 W10878115 HINGE, CENTER LEFT (GREY)
W10248434 W10248434 HINGE, CENTER LEFT (WHITE)
W11240748 W11240748 HINGE, CENTER RIGHT (GREY)
W10248433 W10248433 HINGE, CENTER RIGHT (WHITE)
W11592405 W11592405 HINGE, TOP (LEFT)
W10842950 W10842950 HOUSING
W10415341 W10415341 HV BOX GASKET
W10277839 W10277839 HV LID
W10837274 W10837274 ICE CHUTE PLATE
WPW10347087 WPW10347087 ICE CHUTE, GASKET
WPW10400825 WPW10400825 ICE CHUTE, RETAINER
WPW10347093 WPW10347093 ICE CONTAINER ASSEMBLY
WPW10435760 WPW10435760 ICE GUIDE
WPW10635022 WPW10635022 ICEBOX ADAPTER
WPW10492817 WPW10492817 ICEBOX ASSEMBLY (FOAMED)
WPW10598013 WPW10598013 ICEBOX COVER
W10505516 W10505516 ICEBOX TRIM
W11577195 W11577195 ICEMAKER ASSEMBLY
W10258540 W10258540 ICEMAKER SHUT OFF, SLIDE
W11553819 W11553819 INSULATION
WPW10280983 WPW10280983 INSULATION
WPW10154805 WPW10154805 INVERTER BOX ASSEMBLY
W10839397 W10839397 LARGE PANTRY DIVIDER
W11290115 W11290115 LED ASSEMBLY
W11384469 W11384469 LIGHT SWITCH
W10507444 W10507444 LOWER DIVIDER
W10839369 W10839369 MEDIUM CRISPER
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11683241 W11683241 MODULE
W11509548 W11509548 MOTOR SHAFT
W11127829 W11127829 MOTOR-COND
WPW10393265 WPW10393265 NAMEPLATE (GREY)
WPW10391355 WPW10391355 NAMEPLATE (WHITE)
W10505280 W10505280 OWNERS MANUAL
W11028219 W11028219 PAD ASSEMBLY (CAST GREY)
W10853387 W10853387 PAD ASSEMBLY (TEMPEST GREY)
12702901 12702901 PAD, GLIDE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10485096 WPW10485096 PAN STOP (LEFT)
WPW10485089 WPW10485089 PAN STOP (RIGHT)
W11677723 W11677723 PAN SUPPORT
WPW10530656 WPW10530656 PANTRY PAN
W10570074 W10570074 PLATE
WPW10494227 WPW10494227 POWER CORD
WPW10453401 WPW10453401 POWER SUPPLY
P1KL6S1CS P1KL6S1CS PRODUCE PRESERVER ASSEMBLY
WP2223877 WP2223877 PUSH LATCH
W10298176 W10298176 RACK SHAFT
W10698206 W10698206 RAIL-MULLN
W10698202 W10698202 RAIL-MULLN
WPW10248967 WPW10248967 REAR SUPPORT
W10898445 W10898445 RECEIVER CIRCUIT BOARD
W10258510 W10258510 RECEIVER COVER
W11168758 W11168758 RESERVOIR WATER
W11225849 W11225849 RETAINER
W10847834 W10847834 RETAINER CLIP
W10212137 W10212137 RETAINER, DOOR
W10788795 W10788795 ROLLER
W11578839 W11578839 ROLLER
WP67005149 WP67005149 ROLLER
67006434 67006434 ROLLER AXLE
W10141518 W10141518 SCREW
WPW10238319 WPW10238319 SCREW
W11686675 W11686675 SCREW
W11126052 W11126052 SCREW
W11573362 W11573362 SCREW
W10421495 W10421495 SCREW
WPW10272364 WPW10272364 SCREW
W10423560 W10423560 SCREW
67006692 67006692 SCREW
12991702 12991702 SCREW
W11544659 W11544659 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
WPW10141625 WPW10141625 SCREW
WPW10661886 WPW10661886 SCREW
W11311945 W11311945 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
WP67006908 WP67006908 SCREW
W10854958 W10854958 SCREW
67006425 67006425 SCREW
WPW10141645 WPW10141645 SCREW
W11214483 W11214483 SCREW
WP33001882 WP33001882 SCREW
67006564 67006564 SCREW
WP8281196 WP8281196 SCREW
WPW10308751 WPW10308751 SCREW (BLACK)
WP67006380 WP67006380 SCREW (GREY)
WP8281163 WP8281163 SCREW (STAINLESS)
WP489443 WP489443 SCREW (STAINLESS)
WP3400065 WP3400065 SCREW (STAINLESS)
W10673841 W10673841 SCREW (WHITE)
W10403208 W10403208 SCREW (WHITE)
2006254 2006254 SCREW, 6-19 X .250
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WPM0500703 WPM0500703 SEAL
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W10858273 W10858273 SECONDARY MULLION BIN
WPW10577864 WPW10577864 SEPERATOR ASSEMBLY
WPW10503522 WPW10503522 SHAFT
W10852685 W10852685 SHAFT CLIP
W10802341 W10802341 SHAFT, RACK
WPW10406719 WPW10406719 SHROUD
WPW10363507 WPW10363507 SHROUD, EVAPORATOR FAN
W10518036 W10518036 SIDE ADAPTER COVER
W11170612 W11170612 SIDE ADAPTER HARNESS
WPW10372170 WPW10372170 SIDE LADDER
W11661094 W11661094 SLEEVE
W10509275 W10509275 SMALL CRISPER
W11429989 W11429989 SOLENOID
W10277360 W10277360 SPUR GEAR
WPW10306786 WPW10306786 SUPPLY, POWER LED
W10530297 W10530297 SUPPORT, CRISPER FRONT
W11230117 W11230117 SUPPORT, DAMPER
W11396033 W11396033 SWITCH, LIGHT
W11238399 W11238399 TAPE
W10689354 W10689354 TECH SHEET (ENGLISH)
W10689355 W10689355 TECH SHEET (FRENCH)
2215676 2215676 TERMINAL COVER
W11724692 W11724692 THERMISTOR
W11168403 W11168403 THERMISTOR VENT
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11448765 W11448765 TRAY-DRIP
W11225840 W11225840 TRAY-EVAP
WPW10402180 WPW10402180 TRIM RING (CHROME)
W10462438 W10462438 TRIM RING (WHITE)
W10846358 W10846358 TRIVET

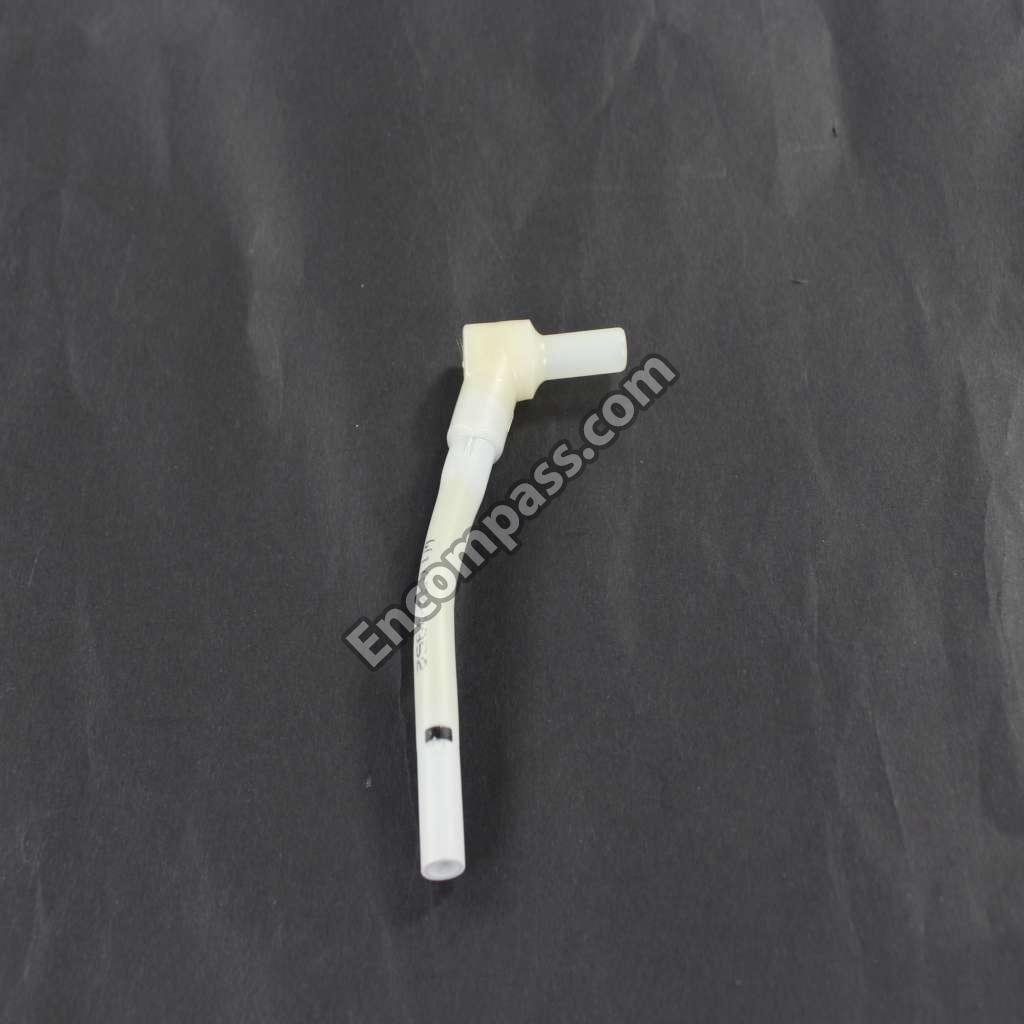

WPW10626970 WPW10626970 TUBE
W11456069 W11456069 TUBE CLAMP
W10562834 W10562834 TUBE CLIP
W11686799 W11686799 TUBE, FILL
WPW10709175 WPW10709175 TUCK SHELF
W11482027 W11482027 UNIT COVER
W11189618 W11189618 UNIT HARNESS
WPW10493169 WPW10493169 UPPER BIN
W10850332 W10850332 UPPER PAN ADAPTER (LEFT)
W10858092 W10858092 UPPER PAN ADAPTER (RIGHT)
WPW10503833 WPW10503833 USER INTERFACE (STAINLESS STEEL)
876764 876764 VALVE
978027 978027 VALVE
978026 978026 VALVE
WP978025 WP978025 VALVE
978030 978030 VALVE
978029 978029 VALVE
W11580434 W11580434 VALVE BODY ASSEMBLY
W10391376 W10391376 VALVE BRACKET
W10811115 W10811115 VALVE ENCLOSURE
W11686800 W11686800 VALVE TO HINGE, WATERLINE
978028 978028 VALVE, ACCESS
W11684620 W11684620 VENT
W10819058 W10819058 WALL, DISPENSER FALSE (GREY)
EDR2RXD1 EDR2RXD1 WATER FILTER
W11194438 W11194438 WATER FILTER HOUSING
W11482381 W11482381 WATER TUBE
WPW10499015 WPW10499015 WATER TUBE
W10865826 W10865826 WATER VALVE
W10723352 W10723352 WATERLINE
Main Menu x
