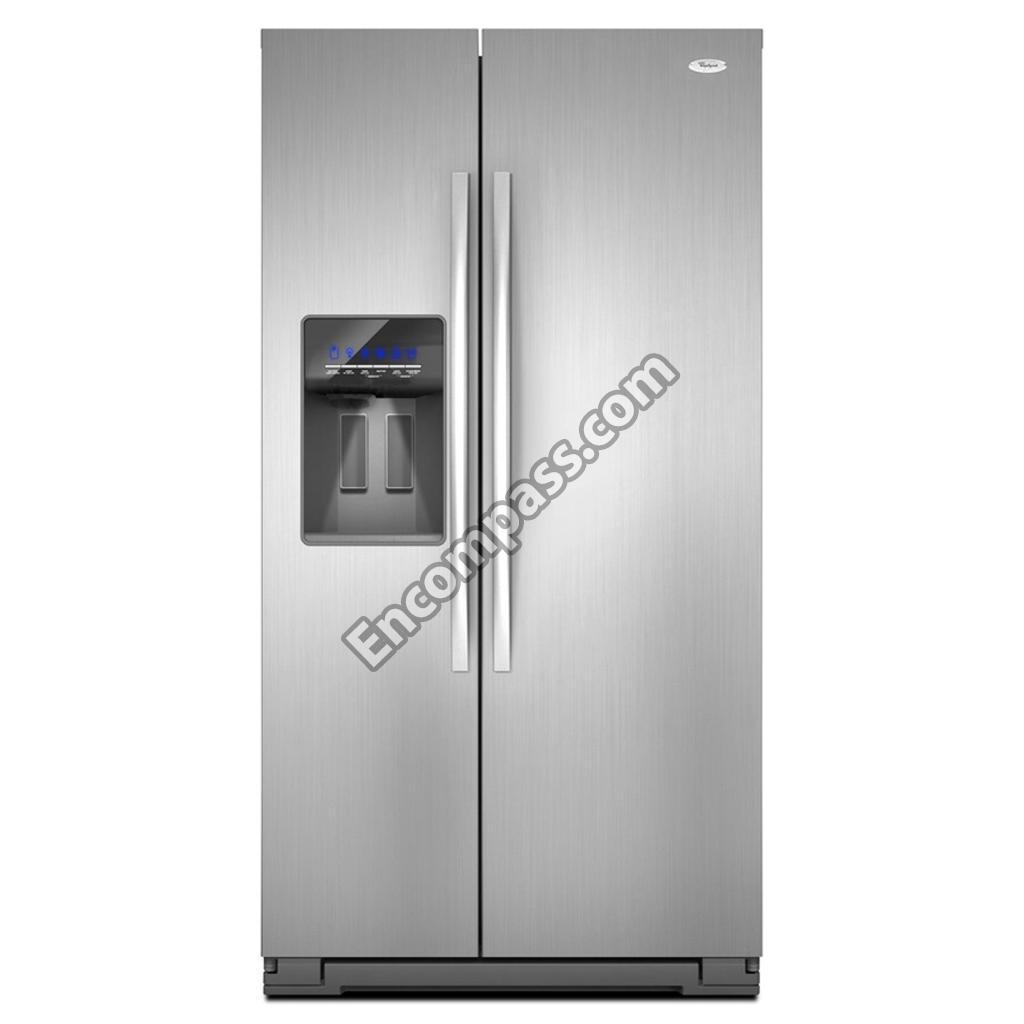

Model Image
Manufacturer

Whirlpool

Model Number

WSF26C3EXY01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
W10311524 W10311524 ANTIBACTERIAL FILTER
W10318644 W10318644 ARM-EJECTR
W10688625 W10688625 ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)
WPW10269136 WPW10269136 ASSEMBLY, SHELF
W11175807 W11175807 AXLE
67006434 67006434 AXLE, ROLLER (2)
WPW10251467 WPW10251467 BAFFLE-AIR
WP2321258 WP2321258 BIMETL-DEF
WPW10296857 WPW10296857 BIN CONTROL LEVER
WPW10296855 WPW10296855 BIN CONTROL LEVER
WPW10321304 WPW10321304 BIN CONTROL LEVER
WPW10260985 WPW10260985 BIN-FREEZR
W11193484 W11193484 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WPW10282880 WPW10282880 BODY-CNTRL
W10847867 W10847867 BRACKET
W11293380 W11293380 BRACKET
W11037957 W11037957 BRACKET
W11678273 W11678273 BRACKET
W11266052 W11266052 BRACKET
W10251080 W10251080 BRACKET
W10174827 W10174827 BRACKET
W10747726 W10747726 BRACKET, MOUNTING
N_P N_P CABINET (NOT A SERVICEABLE PART)
WPW10257206 WPW10257206 CAM-DOOR
W11607100 W11607100 CAM-DOOR
WPW10248015 WPW10248015 CAM-DOOR
WPW10257203 WPW10257203 CAM-DOOR
WPW10257201 WPW10257201 CAM-DOOR
WPW10248011 WPW10248011 CAM-DOOR
W10876191 W10876191 CAM-DOOR
W10876198 W10876198 CAM-DOOR
W11311687 W11311687 CAM-DOOR
W11311686 W11311686 CAM-DOOR
W11311685 W11311685 CAM-DOOR
WPW10269101 WPW10269101 CAMERA LENS-LIGHT
WPW10269099 WPW10269099 CAMERA LENS-LIGHT
WPW10350564 WPW10350564 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
W11573761 W11573761 CHUTE
549193 549193 CLAMP, POWER CORD
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
WP2161324 WP2161324 CLIP
W10683556 W10683556 CLIP
W11545866 W11545866 CLIP
W10296661 W10296661 CLIP
W11232019 W11232019 CLIP
W10815861 W10815861 CLIP, BOTTOM COVER
W10309989 W10309989 COMPRESSOR
W11673437 W11673437 CONDENSER
WPW10271543 WPW10271543 CONNECTOR
WPW10372206 WPW10372206 CONTROL BOARD
W10898445 W10898445 CONTROL BOARD
W10870822 W10870822 CONTROL BOARD
W11088499 W11088499 CONTROL BOARD
WP2220458 WP2220458 COUPLING
WPW10269181 WPW10269181 COVER
WPW10282541 WPW10282541 COVER
WPW10290493 WPW10290493 COVER
WPW10425252 WPW10425252 COVER
W11226688 W11226688 COVER
W10340015 W10340015 COVER
W10342986 W10342986 COVER
W10666135 W10666135 COVER
W10258510 W10258510 COVER
W10258502 W10258502 COVER
W10260382 W10260382 COVER
67003485 67003485 COVER, CORNER (BLK)
W10632060 W10632060 COVER, DOOR STOP (BLACK)
W10789145 W10789145 COVER, DOOR STOP (BLACK)
W10632059 W10632059 COVER, DOOR STOP (WHITE)
W10363396 W10363396 COVER, RECEIVER
W10257238 W10257238 COVER, UNIT
W10323148 W10323148 COVER, WIRE
WPW10388268 WPW10388268 COVER-EVAP
WPW10260405 WPW10260405 COVER-FILT
W10861728 W10861728 COVER-FRNT
W10278140 W10278140 COVER-UNIT
WPW10632062 WPW10632062 COVER-WIRE
W11661847 W11661847 COVER-WIRE
W10257216 W10257216 COVER-WIRE
W10789144 W10789144 COVER-WIRE
WPW10278653 WPW10278653 CRISPER PAN
W11087463 W11087463 DAMPER
W10814742 W10814742 DEVICE, START
W11177624 W11177624 DIFFUSER
LW10371918 LW10371918 DOOR ASSEMBLY MS
LW10352231 LW10352231 DOOR ASSEMBLY MS
LW10352230 LW10352230 DOOR ASSEMBLY MS
LW10371916 LW10371916 DOOR ASSEMBLY ST
LW10352226 LW10352226 DOOR ASSEMBLY WH
W10770895 W10770895 DOOR CLOSER (FC) (BLACK)
WPW10670421 WPW10670421 DOOR HANDLE (STAINLESS) SAME FOR FRIGE OR FREEZER
W11366418 W11366418 DOOR HANDLE SCREW (CHROME)
W11292872 W11292872 DOOR HINGE
W11311416 W11311416 DOOR HINGE
W11320488 W11320488 DOOR HINGE
W11293374 W11293374 DOOR HINGE
W11269265 W11269265 DOOR HINGE
W11293373 W11293373 DOOR HINGE
W11409290 W11409290 DOOR HINGE
W11573587 W11573587 DOOR HINGE
W11590581 W11590581 DOOR HINGE
W11652042 W11652042 DOOR LATCH-BIN
LW10334261 LW10334261 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
LW10261130 LW10261130 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
LW10352229 LW10352229 DOOR, REFRIGERATOR (INCLUDES ITEM 5) (BLACK)
W11096215 W11096215 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
W10515038 W10515038 DUCT-AIR
W10260378 W10260378 DUCT-AIR
W10542830 W10542830 ENERGY LABEL
WPW10254285 WPW10254285 ESCUTCHEON
W10276229 W10276229 ESCUTCHEON
W10260988 W10260988 ESCUTCHEON
WP2188822 WP2188822 EVAPORATOR
W10379525 W10379525 EXTENSION
4389144 4389144 FAN MOTOR
W10251462 W10251462 FAN-SCROLL
WP12587703AP WP12587703AP FILLER
12587703W 12587703W FILLER, WRAPPER (WHITE)
WPW10347034 WPW10347034 FITTING
WPW10277958 WPW10277958 FITTING
WP2300868 WP2300868 FITTING
W10370680 W10370680 FITTING
WPW10258520 WPW10258520 FLIPPER
WPW10287594 WPW10287594 FRONT COVER
WPW10400435 WPW10400435 GASKET
W10166854 W10166854 GASKET
W10240370 W10240370 GASKET
WPW10355585 WPW10355585 GASKET ASSEMBLY
WPW10249913 WPW10249913 GASKET ASSEMBLY
WPW10247885 WPW10247885 GASKET ASSEMBLY
W10355582 W10355582 GASKET ASSEMBLY
WPW10249912 WPW10249912 GASKET ASSEMBLY
WPW10247884 WPW10247884 GASKET ASSEMBLY
WPW10269145 WPW10269145 GLASS SHELF
WPW10238483 WPW10238483 GLASS SHELF
WP542638 WP542638 GREASE
WPW10276223 WPW10276223 GRILLE
WPW10276221 WPW10276221 GRILLE
WPW10276220 WPW10276220 GRILLE
WPW10713153 WPW10713153 GRILLE
WPW10713158 WPW10713158 GRILLE
WPW10713160 WPW10713160 GRILLE
WPW10169124 WPW10169124 GROMMET
WP2176759 WP2176759 GROMMET
WPW10435760 WPW10435760 GUIDE-ICE
WPW10268057 WPW10268057 HANDLE
WPW10268056 WPW10268056 HANDLE
WPW10300794 WPW10300794 HARDWR PAK
W10242384 W10242384 HARNESS, WIRING
W10411699 W10411699 HARNS-WIRE
W10253282 W10253282 HARNS-WIRE
WPW10495967 WPW10495967 HEATER
W11568758 W11568758 HINGE-DOOR
W10901052 W10901052 HINGE-DOOR
W10249941 W10249941 HINGE-DOOR
W10901051 W10901051 HINGE-DOOR
WPW10238123 WPW10238123 HOUSING
WP2195914 WP2195914 HOUSING-IM
W11347840 W11347840 ICE-CONTNR
WPW10251076 WPW10251076 ICEMAKER
WPW10341320 WPW10341320 INLET VALVE
WPW10238100 WPW10238100 INLET VALVE
W11553819 W11553819 INSULATION
W10280420 W10280420 LENS-LIGHT
WPW10141622 WPW10141622 LEVELER
W11679940 W11679940 LIGHT BULB
WPA3073101 WPA3073101 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
W10251081 W10251081 MOLD-ICE
WPW10205978 WPW10205978 MOTOR
W11202789 W11202789 MOTOR
WP2188874 WP2188874 MOTOR-COND
WPW10511972 WPW10511972 NAMEPLATE
WPW10511975 WPW10511975 NAMEPLATE
WPW10370594 WPW10370594 PAD
WPW10370592 WPW10370592 PAD
WPW10370593 WPW10370593 PAD
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
8171358 8171358 PAINT, BULK (1 QT. GRAPHITE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10256774 WPW10256774 PAN-MEAT
WPW10256770 WPW10256770 PAN-SNACK
W10331749 W10331749 PIN-DOOR
WPW10242407 WPW10242407 POWER CORD
WP2210509 WP2210509 RELEAS-VAC
W11613294 W11613294 RESERVOIR
W11671527 W11671527 RETAINER
W11678575 W11678575 RING
W11676611 W11676611 RING
W11208384 W11208384 RIVET
W11164152 W11164152 ROLLER
WP67005149 WP67005149 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
489136 489136 SCREW
WPW10141625 WPW10141625 SCREW
W11544659 W11544659 SCREW
WPW10171469 WPW10171469 SCREW
WP489478 WP489478 SCREW
WP4449745 WP4449745 SCREW
WPW10010150 WPW10010150 SCREW
WPW10296804 WPW10296804 SCREW
WPW10661886 WPW10661886 SCREW
WPW10296816 WPW10296816 SCREW
WP3400906 WP3400906 SCREW
WP489464 WP489464 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WPW10308489 WPW10308489 SCREW
WPW10142283 WPW10142283 SCREW
WPW10308751 WPW10308751 SCREW
WPW10308750 WPW10308750 SCREW
WPW10297485 WPW10297485 SCREW
WP98008545 WP98008545 SCREW
W10001280 W10001280 SCREW
W10001240 W10001240 SCREW
W10142255 W10142255 SCREW
WP693995 WP693995 SCREW
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
WPW10258544 WPW10258544 SHAFT
W10274575 W10274575 SHIELD
2223680 2223680 SHIELD, HEAT
W11661094 W11661094 SLEEVE
W11746089 W11746089 SLIDE
W10258540 W10258540 SLIDE
W10260989 W10260989 SLIDE
W10362465 W10362465 SLIDE, MEAT PAN CONTROL
WPW10191429 WPW10191429 SOCKET
WP2198635 WP2198635 SPRING
W10852956 W10852956 SPRING
2223314 2223314 STRAP, BALE
W10236396 W10236396 STRAP, COMPRESSOR
W10747731 W10747731 STRIPPER, ICE
WPW10346124 WPW10346124 SUPPORT
W10277704 W10277704 SUPPORT
W11123943 W11123943 SWITCH
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W10373993 W10373993 TECH SHEET
W11724692 W11724692 THERMISTOR
WP2182181 WP2182181 THIMBLE
WP2205813 WP2205813 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10703218 W10703218 TRAY, EVAPORATOR
W10276194 W10276194 TRAY-DRIP
W11246841 W11246841 TRAY-DRIP
W10276193 W10276193 TRAY-DRIP
W10280178 W10280178 TRIM
WPW10276186 WPW10276186 TRIM-DISPR
W10276227 W10276227 TRIM-DISPR
W10276187 W10276187 TRIM-DISPR
W11253681 W11253681 TRIM-PAN
W11214890 W11214890 TRIM-PAN
W11214888 W11214888 TRIM-PAN
WPW10256775 WPW10256775 TRIM-PAN
W11236850 W11236850 TRIM-PAN
W10858105 W10858105 TUBE
W11311688 W11311688 TUBE
W10281961 W10281961 USE & CARE
W10632882 W10632882 USE AND CARE GUIDE
WP978025 WP978025 VALVE
WP2305382 WP2305382 WASHER
EDR1RXD1 EDR1RXD1 WATER FILTER
WPW10238092 WPW10238092 WATER TUBE
WPW10386778 WPW10386778 WATER TUBE
W11619800 W11619800 WATER TUBE
WPW10279884 WPW10279884 WATER TUBE
WPW10279882 WPW10279882 WATER TUBE
W11676780 W11676780 WIRE HARNESS
W10253300 W10253300 WIRE-JUMPR
