Model Image
Manufacturer

Whirlpool

Model Number

WTW4850HW0

Description

3.6 Cu. Ft. Electric Top Load Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10135699 W10135699 ACCESSORY PARTS, AFFRESH ODOR REMOVER
285452A 285452A ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2)
285448A 285448A ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4)
8212656RP 8212656RP ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLACK HOSES W/STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212487RP 8212487RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
8212526 8212526 ACCESSORY PARTS, WASHER, DRIP TRAY
W10913953 W10913953 ACTUATOR-SHIFT
W11216550 W11216550 ASSEMBLY, CONTROL KNOB (WHITE)
W10860912 W10860912 ASSEMBLY, LID AND BUMPER (WHITE) (REPLACES: W10027624)
W10910409 W10910409 BASKET ASSEMBLY
WP21258 WP21258 BEARING, LID HINGE
W11239857 W11239857 BELT, DRIVE
W11661767 W11661767 BRACE, CABINET TOP - FRONT
W11712680 W11712680 BRACE, CABINET TOP - REAR
WP9724509 WP9724509 BUMPER
W10596395 W10596395 CABINET (WHITE)
W10339680 W10339680 CABLE TIE
WPW10305259 WPW10305259 CAP
W11395618 W11395618 CAPACITOR, MOTOR RUN
W10005430 W10005430 CLAMP, CABLE
WP356138 WP356138 CLAMP, HOSE
WP285655 WP285655 CLAMP, HOSE
WP8312709 WP8312709 CLIP, CONSOLE
WP90016 WP90016 CLIP, HARNESS
WP8536939 WP8536939 CLIP, SPRING

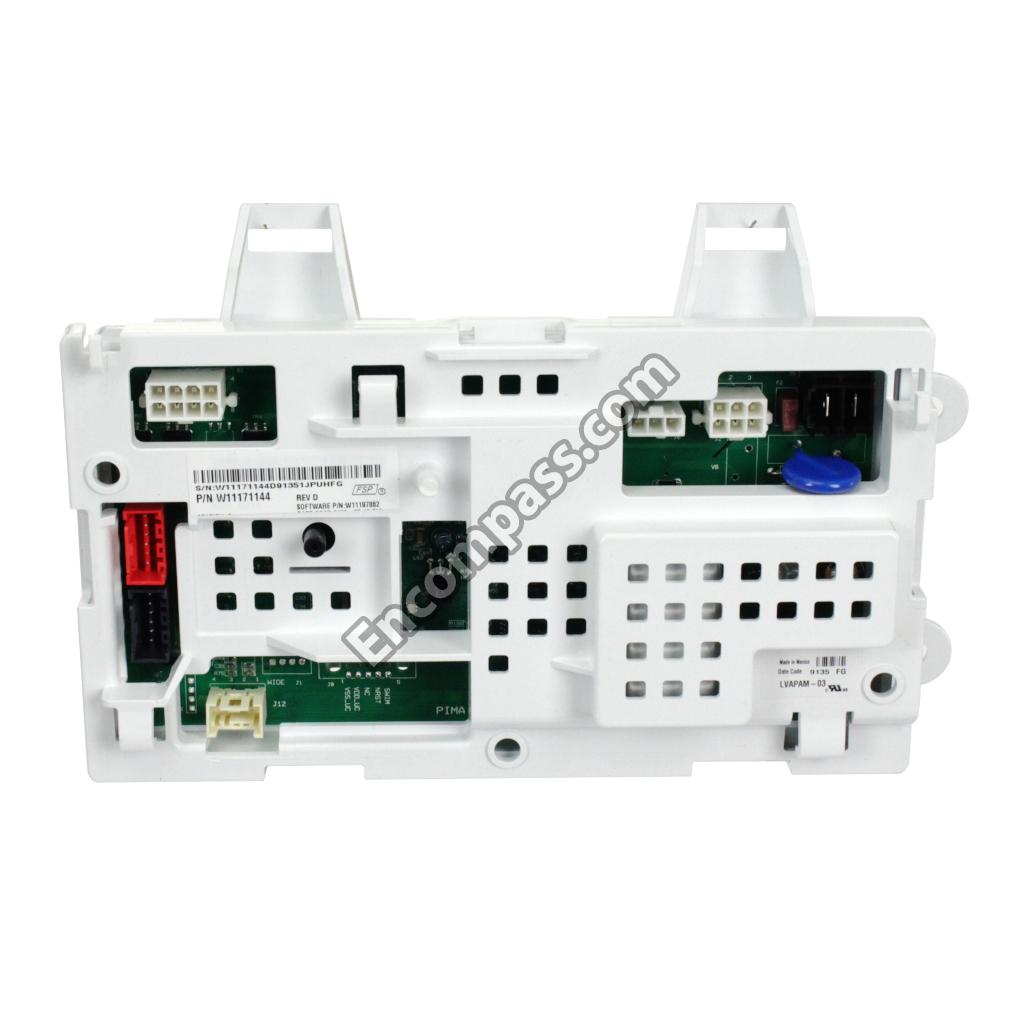

W11226499 W11226499 CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
W10850133 W10850133 CORD, POWER
WP384496 WP384496 COUPLING, HOSE EXTENSION KIT
W10676061 W10676061 COVER, HARNESS
WPW10192089 WPW10192089 DISPENSER, BLEACH
W11036679 W11036679 ENERGY GUIDE
WPW10215093 WPW10215093 FILTER
W11213957 W11213957 FOOT ASSEMBLY, LEVELING
W11454372 W11454372 GEARCASE ASSEMBLY
W11233717 W11233717 HARNESS, LOWER
W10694671 W10694671 HARNESS, UPPER
W10868094 W10868094 HARNESS, VALVE
WP91770 WP91770 HINGE, LID (LEFT HAND)
WP54583 WP54583 HINGE, LID (RIGHT HAND)
W10846364 W10846364 HOSE
W10899966 W10899966 HOSE, INNER DRAIN ASSEMBLY
W11244231 W11244231 HOSE, OUTER DRAIN ASSEMBLY
W10528947 W10528947 HUB
W11210459 W11210459 INLET ASSEMBLY, WATER
W10240509 W10240509 INSTALLATION INSTRUCTIONS
W11216549 W11216549 KNOB, TIMER (WHITE)
W11307244 W11307244 LATCH, LID LOCK ASSEMBLY
W10832724 W10832724 MOTOR, DRIVE
W10759923 W10759923 NUT
W11172317 W11172317 OWNERS MANUAL
W10684258 W10684258 PAD, LID HINGE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
72017B 72017B PAINT, TOUCH-UP (1/2OZ. WHITE)
W11226498 W11226498 PANEL, CONSOLE
W10409320 W10409320 PANEL, CONSOLE REAR COVER
W11486091 W11486091 PANEL, REAR
W10919003 W10919003 PUMP ASSEMBLY, DRAIN
W10783949 W10783949 QUICK START GUIDE
W11385424 W11385424 RETAINER
W11550886 W11550886 RING-TUB
W11685857 W11685857 SCREW
WPW10109200 WPW10109200 SCREW
WP8533928 WP8533928 SCREW
WP8533953 WP8533953 SCREW
W10772621 W10772621 SCREW
WP9740848 WP9740848 SCREW
WP974848 WP974848 SCREW
WPW10119828 WPW10119828 SCREW
WPW10273971 WPW10273971 SCREW
WPW10213953 WPW10213953 SCREW
W11685943 W11685943 SCREW
WP489128 WP489128 SCREW
W10846509 W10846509 SCREW
WP489069 WP489069 SCREW
WP90767 WP90767 SCREW
WPW10004910 WPW10004910 SCREW
WPW10249633 WPW10249633 SCREW
W10182109 W10182109 SCREW
W11596033 W11596033 SCREW
W11573574 W11573574 SCREW
WP285195 WP285195 SEALER, GASKET (.20 FL. OZ.) (6ML)
WPW10550173 WPW10550173 SHIELD, PULLEY COVER
W10721967 W10721967 SPLUTCH KIT (60HZ)
W10837741 W10837741 STRIKE, LID LOCK (WHITE)
W11217817 W11217817 SUSPENSION ROD KIT
W11168256 W11168256 SWITCH, ROTARY ENCODER (2 POSITION)
WPW10414398 WPW10414398 SWITCH, ROTARY ENCODER (4 POSITION)
W10859568 W10859568 SWITCH, ROTARY ENCODER (5 POSITION)
W10740573 W10740573 TECH SHEET
W10740573 W10740573 TECH SHEET
WPW10339879 WPW10339879 TIE, CABLE
W11210992 W11210992 TOP (WHITE)
W10371566 W10371566 TUB-OUTER
WPW10280024 WPW10280024 U-BEND, DRAIN HOSE
WP3949550 WP3949550 WASHER
WPW10215115 WPW10215115 WASHPLATE
285863 285863 WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP
3363920A 3363920A WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIAMETER TO 1" DIAMETER
285835 285835 WATER SYSTEM PARTS, CONNECTOR ASSEMBLY
DRNEXT4 DRNEXT4 WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
