Model Image
Manufacturer

Whirlpool

Model Number

WTW58ESVW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP3976348 WP3976348 ABSORBER, SOUND
40922 40922 ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT
40923 40923 ADAPTER
285771 285771 BASE
W10389328 W10389328 BASKET
W10820043 W10820043 BASKTDRIVE
285205 285205 BEARING
WP8546462 WP8546462 BEARING
WP8546455 WP8546455 BEARING
WP3952374 WP3952374 BEARING
WP8319539 WP8319539 BEARING
WP389140 WP389140 BLOCK
3354925 3354925 BLOCK, CONNECTOR (COLD VALVE)
3354926 3354926 BLOCK, CONNECTOR (HOT VALVE)
3390423 3390423 BLOCK, DISCONNECT (12-WAY) (TIMER) (USE TERM. 94613)
3347243 3347243 BLOCK, DISCONNECT (USE TERM. 352088)
WP64065 WP64065 BRACKET
WP64067 WP64067 BRACKET
8566003 8566003 BRACKET, CONTROL
280129A 280129A BREAK-SPHN
WP9724509 WP9724509 BUMPER
63424 63424 CABINET
285809 285809 CAM-AGIT
WP8546461 WP8546461 CAM-BRAKE
WP62646 WP62646 CAP
WPW10074580 WPW10074580 CAP
WP8572717 WP8572717 CAPACITOR
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS10, 11 & 19)
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
WP596669 WP596669 CLAMP
W10185367 W10185367 CLAMP
3949496 3949496 CLAMP, CAPACITOR
8541668 8541668 CLAMP, HOSE
WP90016 WP90016 CLIP
8528351 8528351 CLIP
WP3355454 WP3355454 CLIP
WP3354845 WP3354845 CLIP
WP8312709 WP8312709 CLIP
WP8536939 WP8536939 CLIP
WP62780 WP62780 CLIP
3352944 3352944 CLIP, HARNESS
8281256 8281256 CLIP, HARNESS
388498 388498 CLIP, HARNESS
3349557 3349557 CLIP, HARNESS
2219077 2219077 CLIP, PRESSURE SWITCH HOSE
285785 285785 CLUTCH
WP3360056 WP3360056 CONNECTOR
WP2172937 WP2172937 CONNECTOR
WP62505 WP62505 CONNECTOR
WP62889 WP62889 CONNECTOR
W10876590 W10876590 CONNECTOR
717252 717252 CONNECTOR (2-WAY) (USE TERM. 94614)
3349494 3349494 CONNECTOR, ETC
285753A 285753A COUPLING
285202 285202 COVER, GEARCASE
WP8566018 WP8566018 DIAL
8575076A 8575076A DISPENSER
WPW10192089 WPW10192089 DISPENSER
80040 80040 DOG-AGIT
367031 367031 DRAIN PROTECTOR
WP661600 WP661600 DRIVE MOTOR
3407125 3407125 E.T.C. CONTROL
W11087440 W11087440 ENDCAP
W10062856 W10062856 ENERGY GUIDE
W10200856 W10200856 FEATURE SHEET (ENGLISH/FRENCH)
W10200857 W10200857 FEATURE SHEET (SPANISH)
WPW10001130 WPW10001130 FEET-LVLNG
285244 285244 FEET-LVLNG
WPW10367632 WPW10367632 FILTER
WPW10176591 WPW10176591 FLOWMETER
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
W10814296 W10814296 GASKET
285515 285515 GEARCASE
3360629 3360629 GEARCASE
WP62691 WP62691 GROMMET
W10217789 W10217789 HARNS-WIRE
W10180973 W10180973 HARNS-WIRE
WP91770 WP91770 HINGE
WPW10225136 WPW10225136 HINGE, LID (L.H.)
WP353244 WP353244 HOSE
285871 285871 HOSE
W10166731 W10166731 HOSE
W11087528 W11087528 HOSE
285452A 285452A HOSE SCREEN (PACKAGE OF 2)
285448A 285448A HOSE WASHERS (PACKAGE OF 4)
WPW10189267 WPW10189267 HOSE-DRAIN
8212656RP 8212656RP INLET HOSES, 10 FT TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212546RP 8212546RP INLET HOSES, 4 FT. (TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212545RP 8212545RP INLET HOSES, 5 FT. ONE RED HOSE & ONE BLUE HOSE W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212641RP 8212641RP INLET HOSES, 5 FT. TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212487RP 8212487RP INLET HOSES, 5 FT. TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212638RP 8212638RP INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
W10200331 W10200331 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W10200662 W10200662 INSTALLATION INSTRUCTIONS (SPANISH)
WPW10034380 WPW10034380 KNOB
WP8566022 WP8566022 KNOB
WPW10193861 WPW10193861 LID
285790 285790 LINING
WP63466 WP63466 LINK
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
4313896 4313896 MANUAL, WASHER
WP3363003 WP3363003 MOVER-AGIT
388253A 388253A NEUTRL-PAK
WP3359452 WP3359452 NUT
WP21366 WP21366 NUT-SPANER
350572 350572 OIL
285744 285744 PAD
285219 285219 PAD
WP62747 WP62747 PAD
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
350930 350930 PAINT, SPRAY (WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10194451 W10194451 PANEL-REAR
W10196934 W10196934 PANELCNTL
WP62837 WP62837 PIN-DOWEL
WP62611 WP62611 PLATE
353424 353424 PLUG, TERMINAL (3-WAY) (POWER CORD) (USE TERM 94613)
W10820044 W10820044 POWER CORD
63523 63523 PROTECTOR
3347730 3347730 RECEPTACLE, (6-WAY) (USE TERM. 94613)
285777 285777 RELIEF-STR
8559320 8559320 RESTRAINT, HOSE
WP389379 WP389379 RETAINER
WPW10145155 WPW10145155 RETAINER
WP8546127 WP8546127 RETAINER
WPW10086010 WPW10086010 RETAINER
WP8577378 WP8577378 RETAINER
WP8055003 WP8055003 RETAINER
62677 62677 RETAINER, SPRING
WP62658 WP62658 RING
WP63134 WP63134 RING
285353 285353 RING
WPW10080230 WPW10080230 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP387240 WP387240 RING-BAL
WPW10072840 WPW10072840 RING-O
285765 285765 RING-RETNR
W11033823 W11033823 RING-WIRE
W10846509 W10846509 SCREW
WP273556 WP273556 SCREW
WP3400516 WP3400516 SCREW
WP358237 WP358237 SCREW
WP9740848 WP9740848 SCREW
WP3400818 WP3400818 SCREW
WP3390631 WP3390631 SCREW
WPW10119828 WPW10119828 SCREW
WP90767 WP90767 SCREW
WP3351614 WP3351614 SCREW
3400073 3400073 SCREW, GROUND
WP8577376 WP8577376 SEAL
W11095997 W11095997 SEAL
285352 285352 SEAL, THRUST PLUG
WP3349985 WP3349985 SEAL-COVER
WP356427 WP356427 SEAL-SHAFT
WP8577374 WP8577374 SEAL-SHAFT
WP3976308 WP3976308 SEAL-TUB
WP285195 WP285195 SEALER
WP389387 WP389387 SHAFT-AGIT
WP3946532 WP3946532 SHIELD
W10245838 W10245838 SHIELD
W10838408 W10838408 SHIELD-MTR
285438 285438 SHOE-BRAKE
WP3946509 WP3946509 SKATE PLT
WP63022 WP63022 SLEEVE
285658 285658 SLEEVE
WP62750 WP62750 SPACER
WPW10250667 WPW10250667 SPRING
8316845 8316845 SPRING
WP63907 WP63907 SPRING
WP3946792 WP3946792 SPRING
62676 62676 SPRING, AGITATE
387806 387806 SPRING, BRAKE
WP8568314 WP8568314 STRAP
280184 280184 SUPPORT
WP8519200 WP8519200 SUPPORT
WPW10168262 WPW10168262 SWITCH-CYC

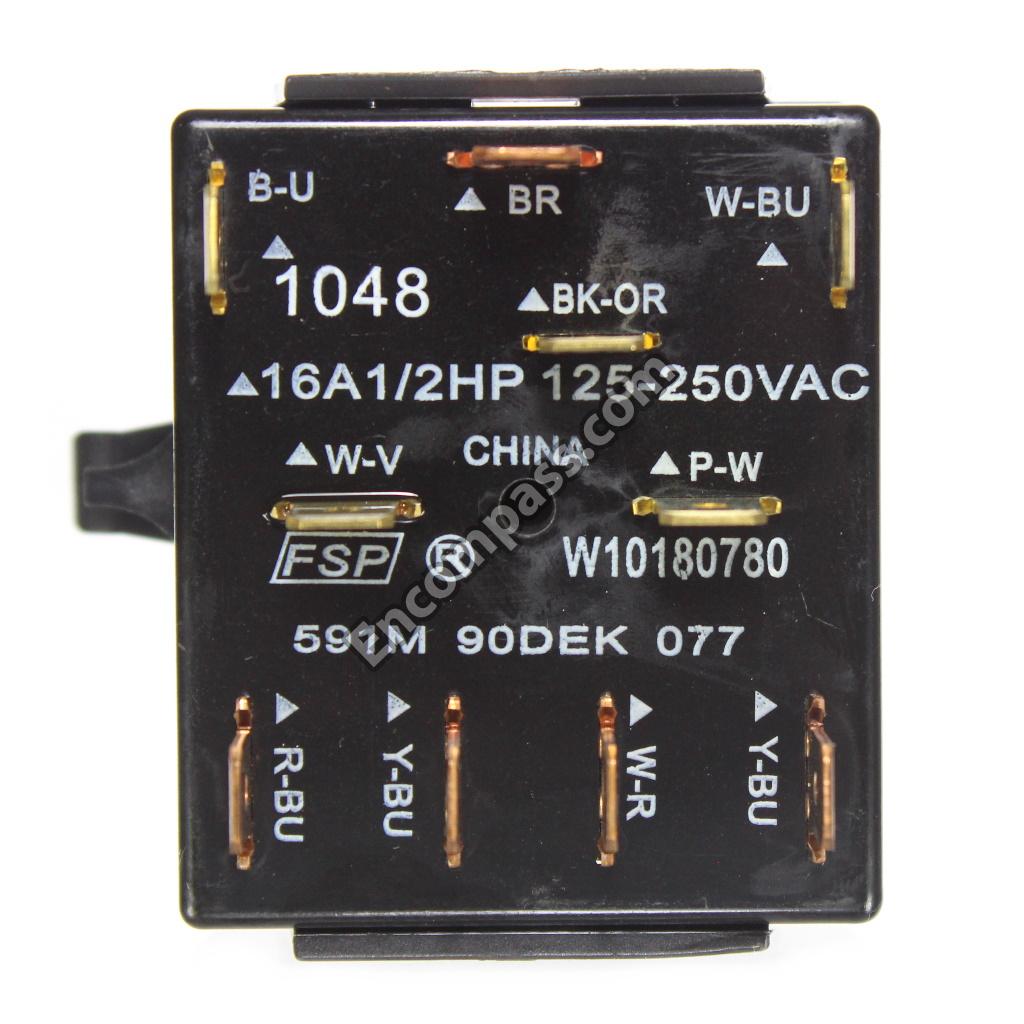

W10180780 W10180780 SWITCH-CYC
WP8318084 WP8318084 SWITCH-LID
WP8529896 WP8529896 SWITCH-MTR
WPW10292584 WPW10292584 SWITCH-SEN
WPW10179666 WPW10179666 SWTCH-TEMP
WPW10339879 WPW10339879 TIE-WIRE

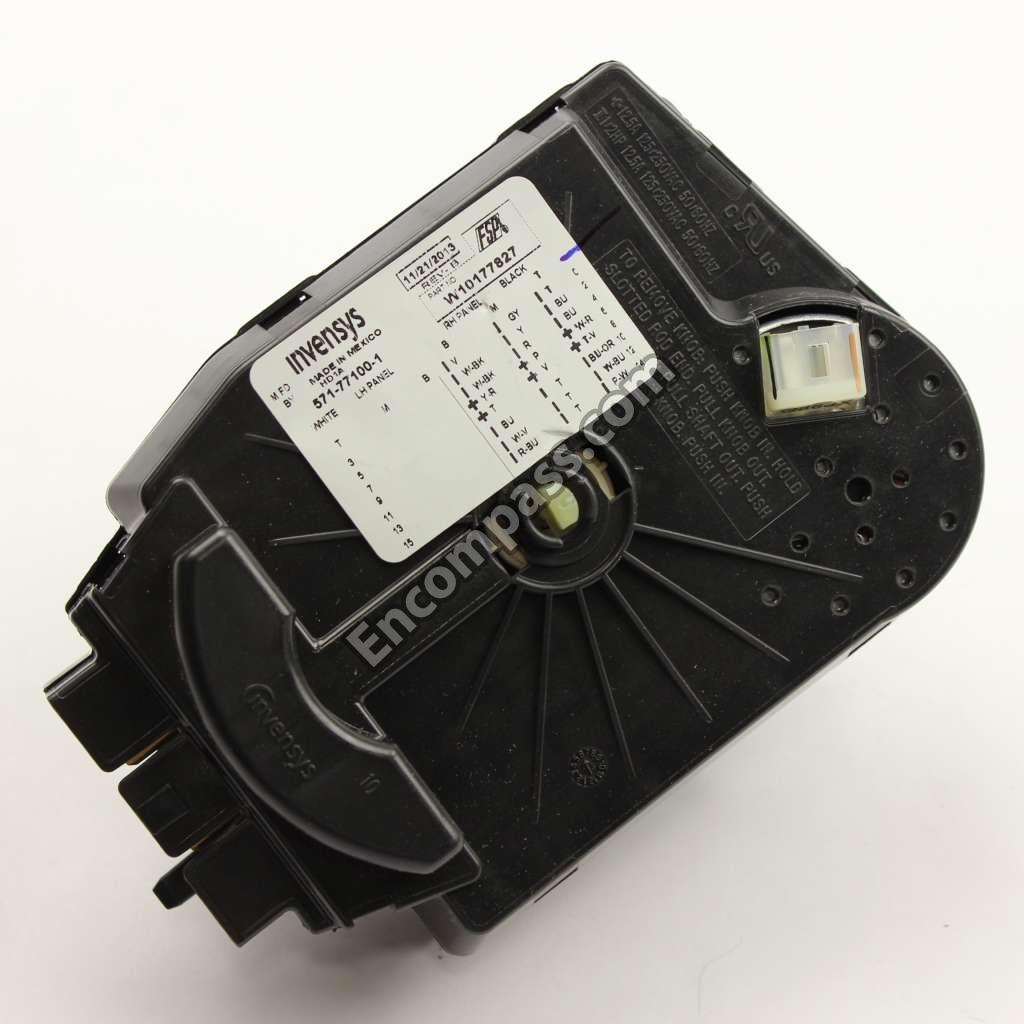

WPW10177827 WPW10177827 TIMER
3948614 3948614 TIMER, BLOCK DISCONNECT (WHITE)
WPW10194572 WPW10194572 TOP
63849 63849 TUB
WPW10167984 WPW10167984 TUB RING & GASKET
WP64208 WP64208 TUBE-SPIN
W10200828 W10200828 USE & CARE GUIDE (ENGLISH/FRENCH)
W10200829 W10200829 USE & CARE GUIDE (SPANISH)
WPW10175893 WPW10175893 VALVE
WP388815 WP388815 WASHER
WP63292 WP63292 WASHER
WP3949550 WP3949550 WASHER
WP3951608 WP3951608 WASHER
WP8543666 WP8543666 WASHER
285565 285565 WASHER AGITATOR
WP3951632 WP3951632 WASHER AGITATOR
285766 285766 WASHER KIT, THRUST
62619 62619 WASHER, AGITATE GEAR
62618 62618 WASHER, CAM THRUST
WP3363394 WP3363394 WATER PUMP
W10177829 W10177829 WIRING DIAGRAM
