Model Image
Manufacturer

Whirlpool

Model Number

WTW6600SW2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8564458 WP8564458 ABSORBER
W10296143 W10296143 BASKET
WPW10052730 WPW10052730 BEARING
W10045190 W10045190 BEZEL
W10045210 W10045210 BEZEL
W10052520 W10052520 BEZEL
8580018 8580018 BEZEL, BLEACH DISPENSER (BISCUIT)
8580019 8580019 BEZEL, BLEACH DISPENSER (ELEPHANT)
8566211 8566211 BEZEL, BLEACH DISPENSER (WHITE)
8564979 8564979 BEZEL, DETERGENT DISPENSER (WHITE)
8580016 8580016 BEZEL, FABRIC SOFTENER DISPENSER (BISCUIT)
8580017 8580017 BEZEL, FABRIC SOFTENER DISPENSER (ELEPHANT)
8566210 8566210 BEZEL, FABRIC SOFTENER DISPENSER (WHITE)
8563939 8563939 BEZEL, LID LOCK (BISCUIT)
WP8572019 WP8572019 BEZEL, LID LOCK (WHITE)
100000 100000 BOLT, ROTOR ASSEMBLY NON-SERVICEABLE (SUPPLIED W/ROTOR)
8543784 8543784 BRACKET, DRAIN HOSE
W10070000 W10070000 CABINET
W10069980 W10069980 CABINET
W10069990 W10069990 CABINET
WPW10106600 WPW10106600 CAP
WP3367052 WP3367052 CLAMP
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
W10005430 W10005430 CLAMP
8534021 8534021 CLAMP, RECIRC HOSE RETAINER
WP90016 WP90016 CLIP
WPW10160572 WPW10160572 CONNECTOR
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
W10070070 W10070070 CONSOLE (BISCUIT)
WPW10070080 WPW10070080 CONSOLE (BLACK)
WPW10070060 WPW10070060 CONSOLE (WHITE)
WPW10189966 WPW10189966 CONTROL BOARD
WP384496 WP384496 COUPLR-HSE
8563941 8563941 COVER, HARNESS
8564265 8564265 COVER, REAR- USER INTERFACE
WP8564017 WP8564017 CUP
W10131104 W10131104 DISPENSER
WPW10642278 WPW10642278 DISPENSER
WPW10172146 WPW10172146 DISPENSER
W10059170 W10059170 DISPENSER
WP8564976 WP8564976 DISPENSER, DETERGENT (WHITE)
WPW10619844 WPW10619844 DOOR LATCH
367031 367031 DRAIN PROTECTOR
W10107030 W10107030 ENERGY GUIDE
W10739673 W10739673 FEET-LVLNG
WPW10222008 WPW10222008 FILTER, DUAL PUMP HOOD
W10180912 W10180912 FRAME
8565259 8565259 GASKET, CONSOLE/TRAY
W10130502 W10130502 GASKET, VALVE TRAY
280155 280155 GROMMET, PUMP MOUNTING (4)
3407187 3407187 HARNESS, THERMISTOR
WP8564456 WP8564456 HINGE
WP8563962 WP8563962 HINGE
WP8563963 WP8563963 HINGE
WP8572974 WP8572974 HINGE
WP8563965 WP8563965 HINGE
WP8182767 WP8182767 HOSE
WP8182769 WP8182769 HOSE
WP8543774 WP8543774 HOSE
280190 280190 HOSE
WP353244 WP353244 HOSE
WP89503 WP89503 HOSE-FILL
W10820039 W10820039 HUB
W10183157 W10183157 KIT
W10198919 W10198919 KIT
WP8574957 WP8574957 KNOB
W10816014 W10816014 LID, GLASS ASSEMBLY (GOLD DUST)
W10042120 W10042120 LOCATOR
WP8563785 WP8563785 LOCK
WPW10106990 WPW10106990 NOZZLE
W10022060 W10022060 NUT
98460 98460 NUT, PUSH-IN (2)
18849 18849 PAD, TOP HINGE (2)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
786020 786020 PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GREY)
350930 350930 PAINT, SPRAY (WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP8566090 WP8566090 PANEL-REAR
WP8557836 WP8557836 PLATE
WP3407203 WP3407203 POWER CORD
W10106480 W10106480 QUICK START GUIDE
WP8576642 WP8576642 RETAINER
8533987 8533987 RETAINER, PUSH-IN
WPW10130807 WPW10130807 RING-TUB
280146 280146 ROTOR
WPW10109200 WPW10109200 SCREW
WP8533928 WP8533928 SCREW
WPW10004910 WPW10004910 SCREW
WP8533953 WP8533953 SCREW
WPW10076270 WPW10076270 SCREW
WPW10141625 WPW10141625 SCREW
W10846509 W10846509 SCREW
W11700520 W11700520 SCREW
WP8281136 WP8281136 SCREW
WP693995 WP693995 SCREW
WP681414 WP681414 SCREW
WP488729 WP488729 SCREW
W11404293 W11404293 SCREW
WP489069 WP489069 SCREW
WP4449745 WP4449745 SCREW
W10004990 W10004990 SCREW
WP8534042 WP8534042 SCREW, 1/4-20 X .968 (4)
8565324 8565324 SCREW, 10-16 X 1.75
8533957 8533957 SCREW, 10-16 X 1/2
WP285195 WP285195 SEALER
WPW10137698 WPW10137698 SHIELD, DRIVE MOTOR (INCLUDES ITEM 16)
8578386 8578386 SHIELD, WIRE HARNESS
285320 285320 SIPHON BREAK KIT
285321 285321 SLEEVE KIT, (CONTAINS 2 SLEEVES)
8578225 8578225 SOUND ABSORBER, CABINET
8576784 8576784 SOUND ABSORBER, CABINET
8576476 8576476 SPACER, REAR (CABINET/TOP)
WPW10419333 WPW10419333 STATOR
W10820048 W10820048 SUSPENSION ROD KIT
W10026571 W10026571 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
WP8565314 WP8565314 TOP
8565312 8565312 TOP (BISCUIT)
W10053420 W10053420 TOP (BLACK)
8565306 8565306 TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) (BISCUIT)
8565305 8565305 TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) (BLACK)
8565304 8565304 TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) (WHITE)
W10193886 W10193886 TUB-OUTER
280142 280142 TUBE
W10106470 W10106470 USE & CARE GUIDE

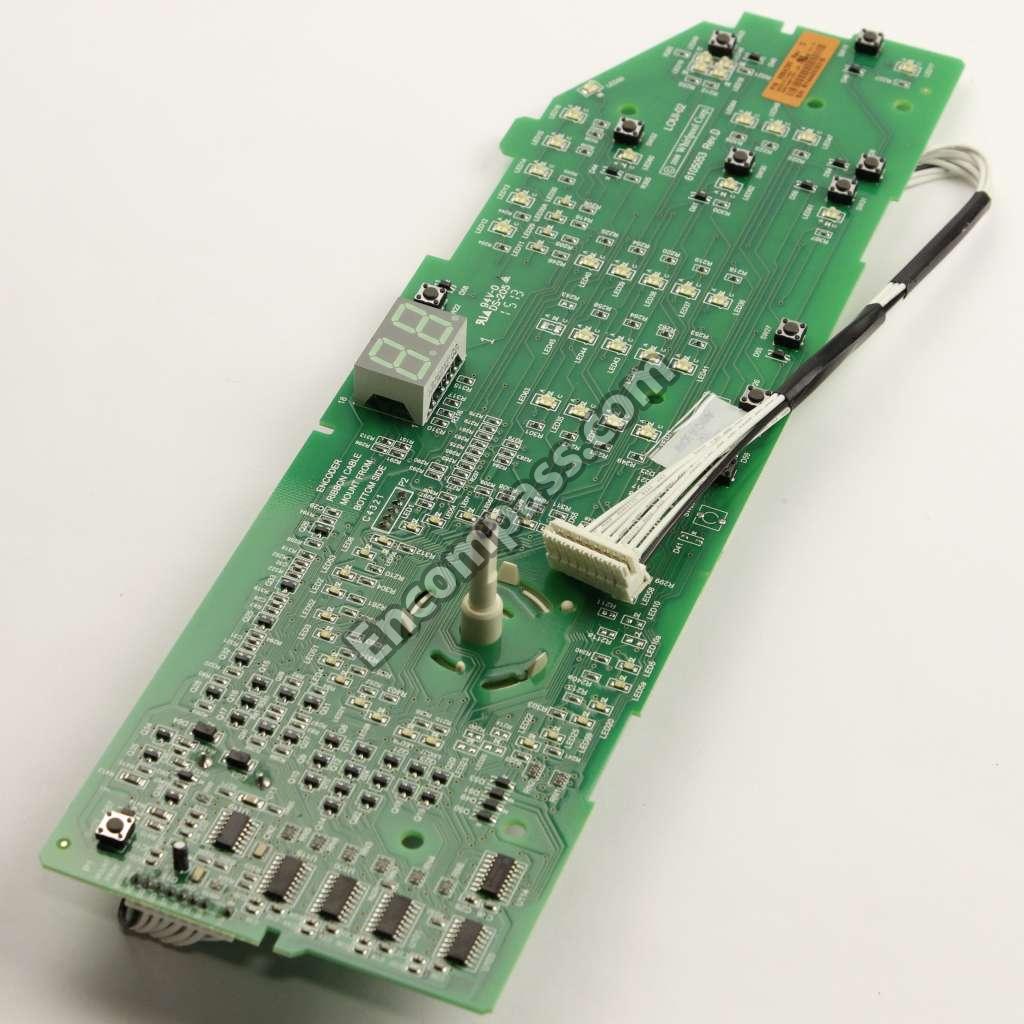

WP8564290 WP8564290 USER INTERFACE
W10372095 W10372095 VALVE
WPW10076260 WPW10076260 WASHER
WP16123 WP16123 WASHER
WP8577896 WP8577896 WASHER
W11252784 W11252784 WASHPLATE
WPW10233462 WPW10233462 WATER PUMP
W10536347 W10536347 WATER PUMP
8542674 8542674 WEIGHT, TUB COUNTERBALANCE
3184020 3184020 WIRE, GROUND
8577781 8577781 WIRING DIAGRAM
8546680 8546680 WRAP, TUB
