Model Image
Manufacturer

Whirlpool

Model Number

WTW7800XL4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10205824 W10205824 ABSORBER
W10135699 W10135699 AFFRESH WASHER CLEANER
W10310957 W10310957 BASKET
WP8546627 WP8546627 BEARING

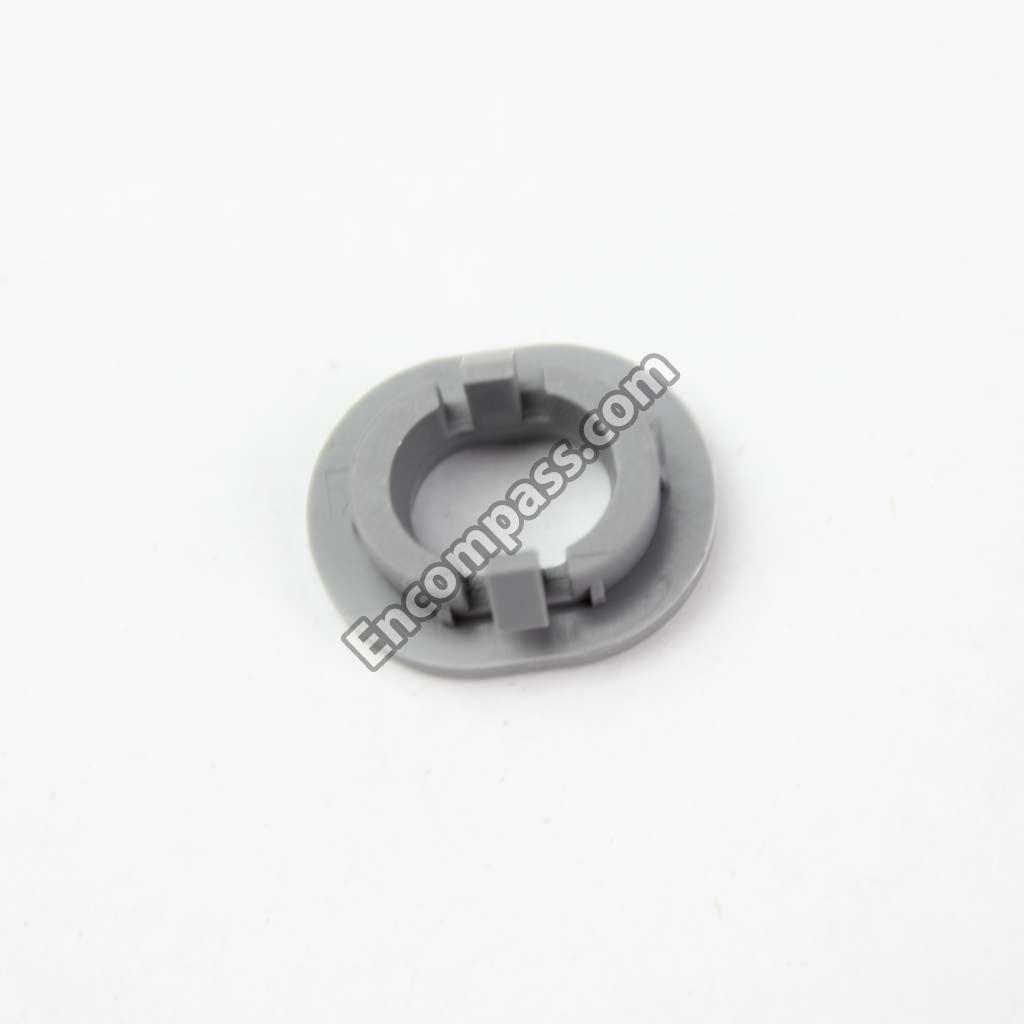

WP8563877 WP8563877 BEZEL
WPW10131523 WPW10131523 BEZEL
WPW10136371 WPW10136371 BEZEL
W10052520 W10052520 BEZEL
W10143661 W10143661 BEZEL
W10306027 W10306027 BEZEL
W10306028 W10306028 BEZEL
W10306029 W10306029 BEZEL
WP8572019 WP8572019 BEZEL, LID LOCK (WHITE)
N_P N_P BOLT, ROTOR ASSEMBLY NON-SERVICEABLE (SUPPLIED W/ROTOR)
8543784 8543784 BRACKET, DRAIN HOSE
W10434974 W10434974 CABINET
W10193880 W10193880 CABINET
W10193869 W10193869 CABINET (BLACK)
WPW10305259 WPW10305259 CAP
WP3367052 WP3367052 CLAMP
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
W10005430 W10005430 CLAMP
8534021 8534021 CLAMP, RECIRC HOSE RETAINER
W10355010 W10355010 CLEANER
WP90016 WP90016 CLIP
WPW10160572 WPW10160572 CONNECTOR

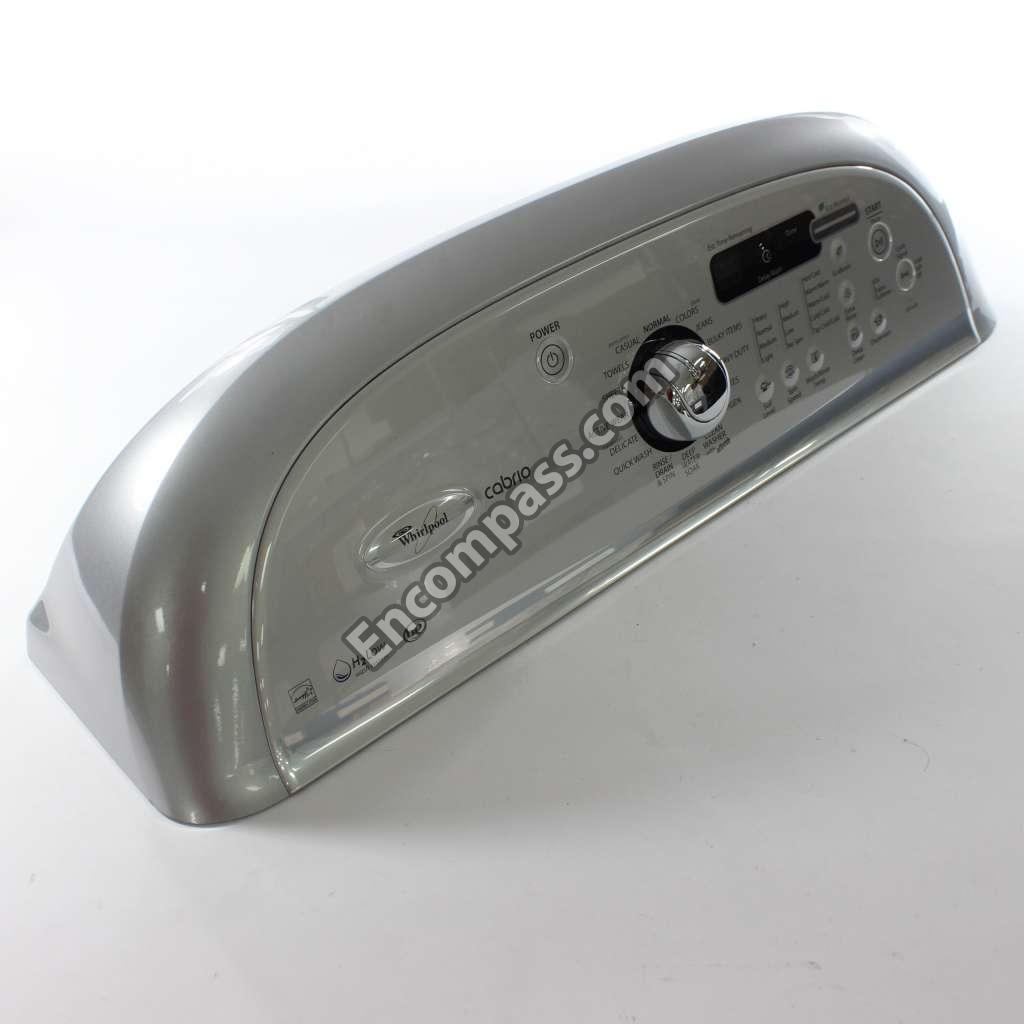

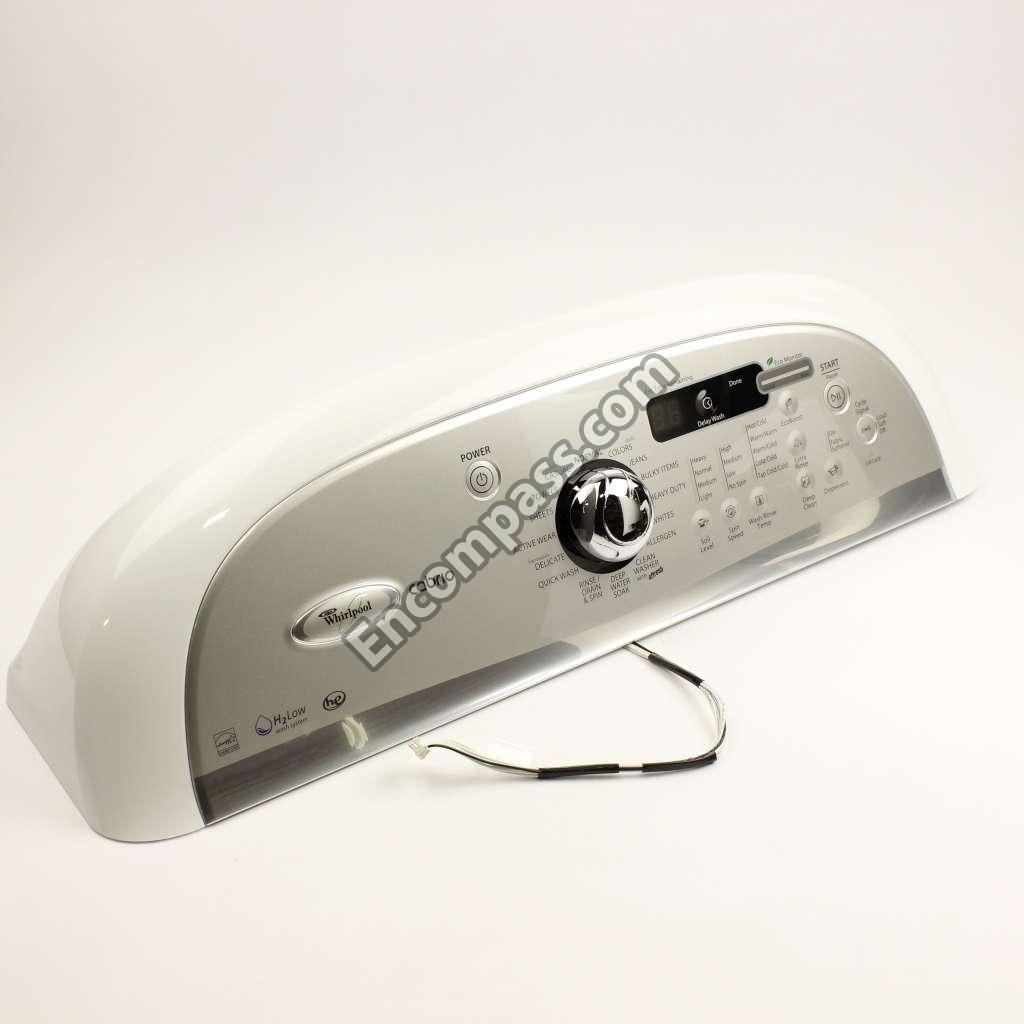

W10211349 W10211349 CONSOLE
WPW10211350 WPW10211350 CONSOLE (SILVER)
WPW10211348 WPW10211348 CONSOLE (WHITE)

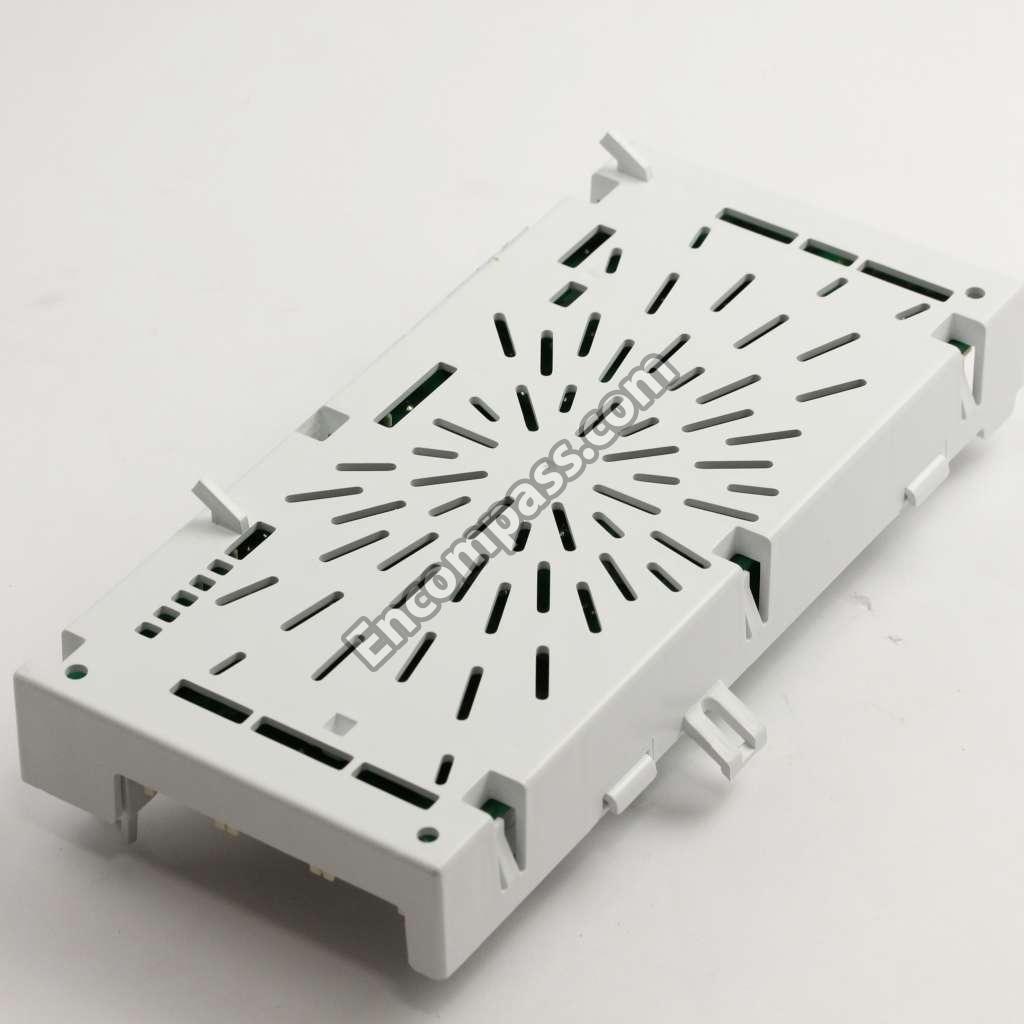

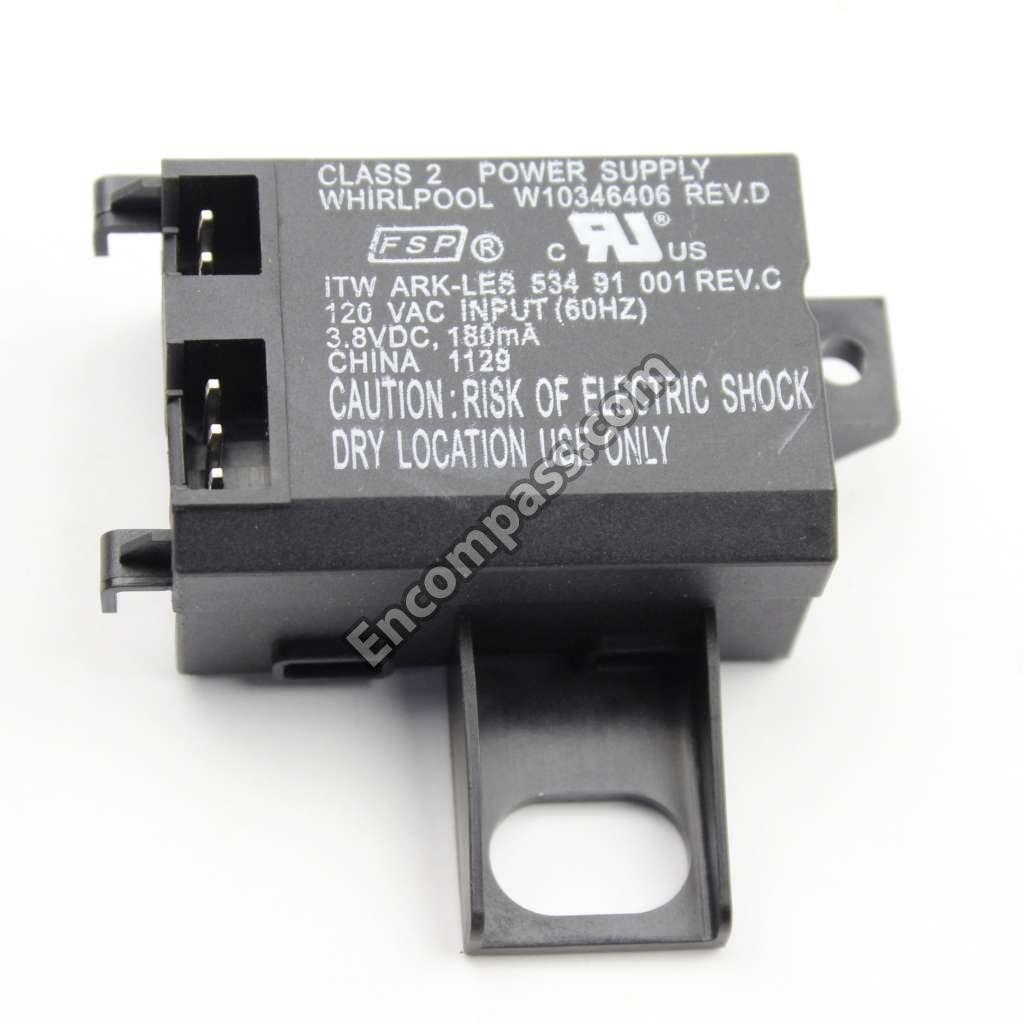

WPW10346406 WPW10346406 CONTROL BOARD

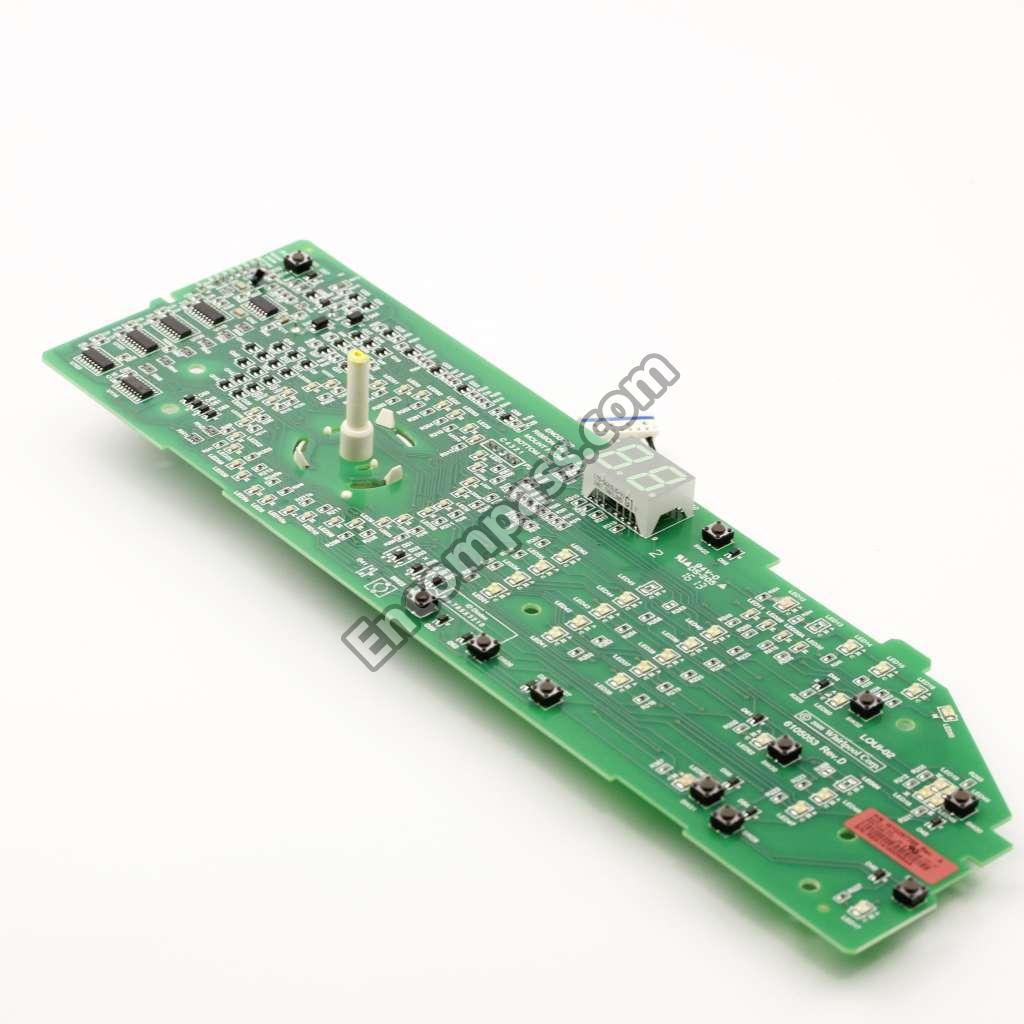

WPW10297399 WPW10297399 CONTROL BOARD
WPW10372179 WPW10372179 CONTROL UNIT ASSEMBLY, MACHINE & MOTOR
WP384496 WP384496 COUPLR-HSE
8563941 8563941 COVER, HARNESS
WP8564017 WP8564017 CUP

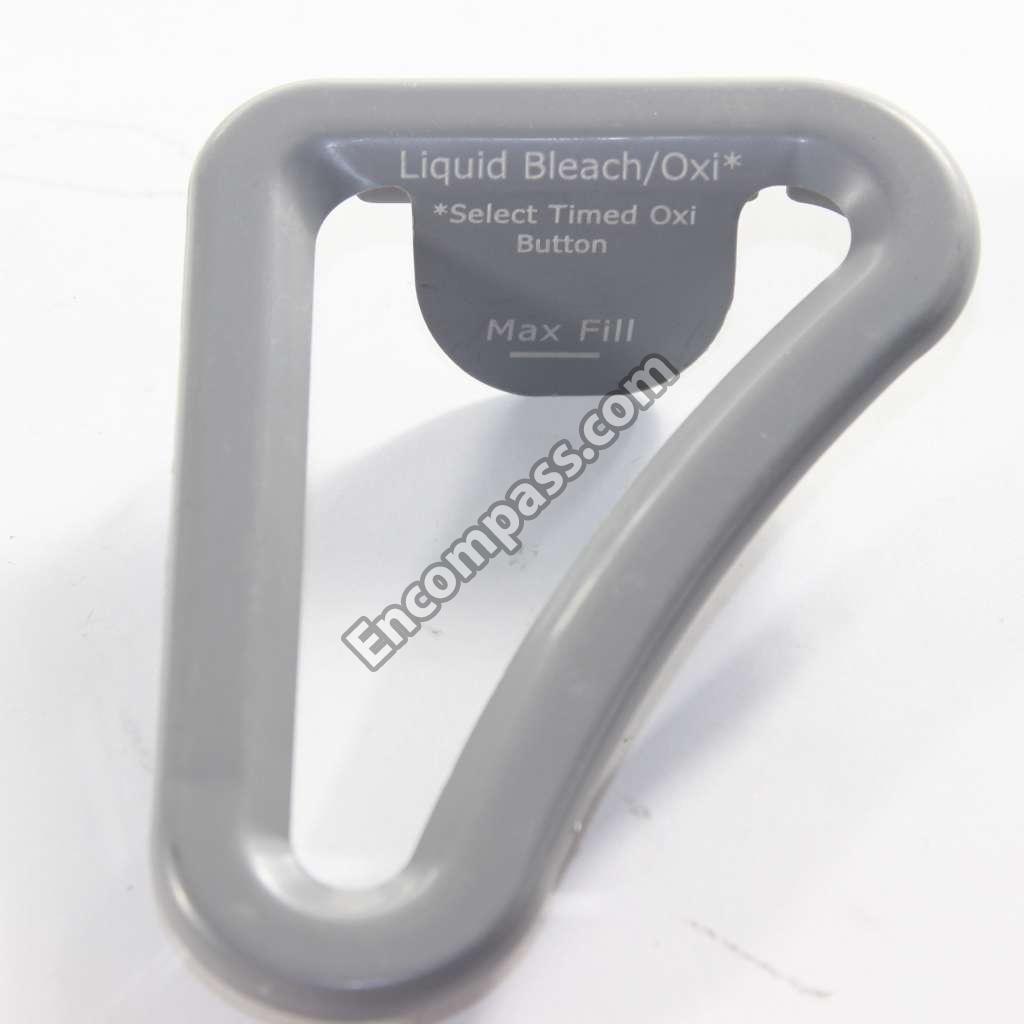

WPW10172154 WPW10172154 DISPENSER
WPW10187307 WPW10187307 DISPENSER
WPW10172146 WPW10172146 DISPENSER
WPW10619844 WPW10619844 DOOR LATCH
W10385943 W10385943 ENERGY GUIDE
WPW10240448 WPW10240448 FEET-LVLNG
WPW10222008 WPW10222008 FILTER, DUAL PUMP HOOD
W10198634 W10198634 FRAME
W10130502 W10130502 GASKET
8546616 8546616 GASKET, CONSOLE/TRAY
280155 280155 GROMMET, PUMP MOUNTING
W10350667 W10350667 HARNS-WIRE

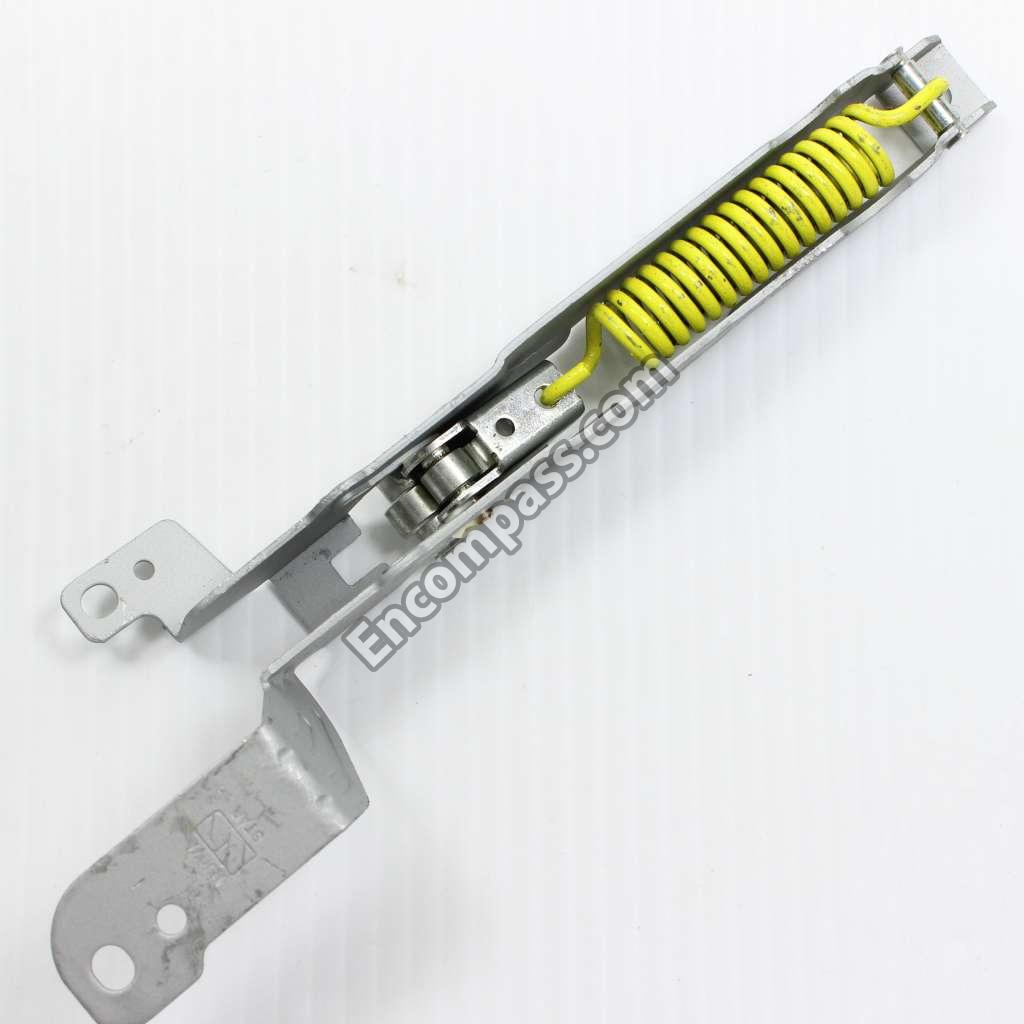

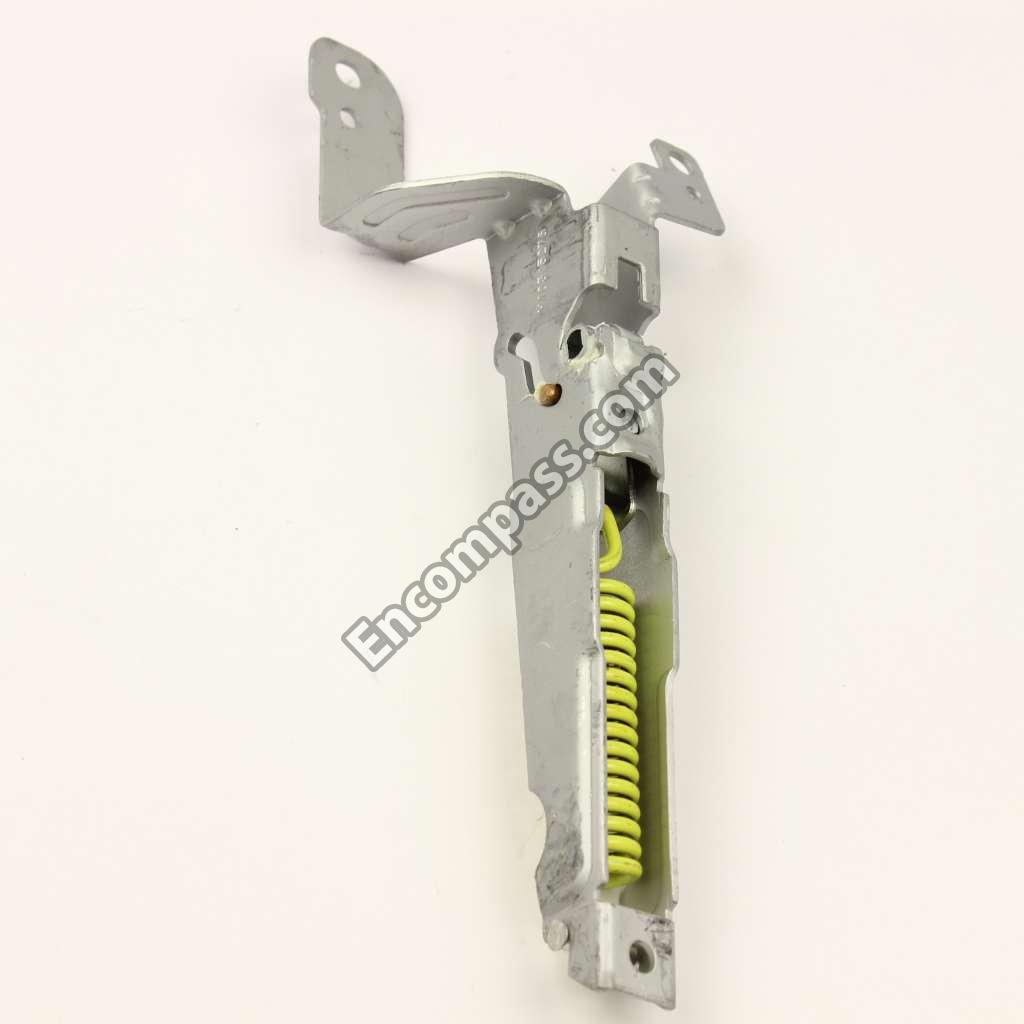

WP8564456 WP8564456 HINGE
WPW10305276 WPW10305276 HINGE
WPW10305275 WPW10305275 HINGE
WP8572974 WP8572974 HINGE
WP8563965 WP8563965 HINGE
WP8182767 WP8182767 HOSE
WP8182769 WP8182769 HOSE
WP8543774 WP8543774 HOSE
WPW10236686 WPW10236686 HOSE
WP353244 WP353244 HOSE
DRNEXT4 DRNEXT4 HOSE
285452A 285452A HOSE SCREEN (PACKAGE OF 2)
285448A 285448A HOSE WASHERS (PACKAGE OF 4)
WP89503 WP89503 HOSE-FILL
W10820039 W10820039 HUB
8212656RP 8212656RP INLET HOSE, 10 FT. (TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212546RP 8212546RP INLET HOSES, 4 FT. (TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212545RP 8212545RP INLET HOSES, 5 FT. ONE RED HOSE & ONE BLUE HOSE W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212641RP 8212641RP INLET HOSES, 5 FT. TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212487RP 8212487RP INLET HOSES, 5 FT. TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212638RP 8212638RP INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
W10240438 W10240438 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W10240439 W10240439 INSTALLATION INSTRUCTIONS (SPANISH)
W10198919 W10198919 KIT
WPW10211335 WPW10211335 KNOB

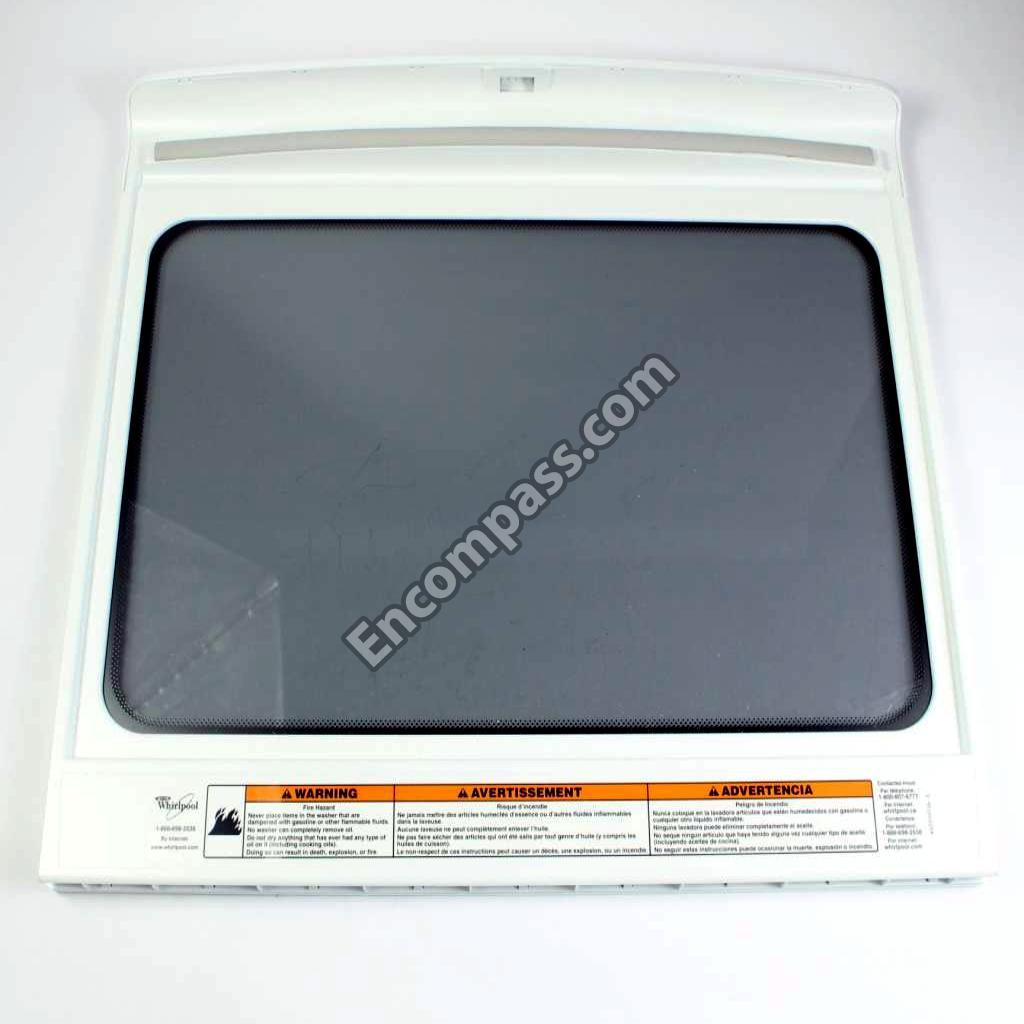

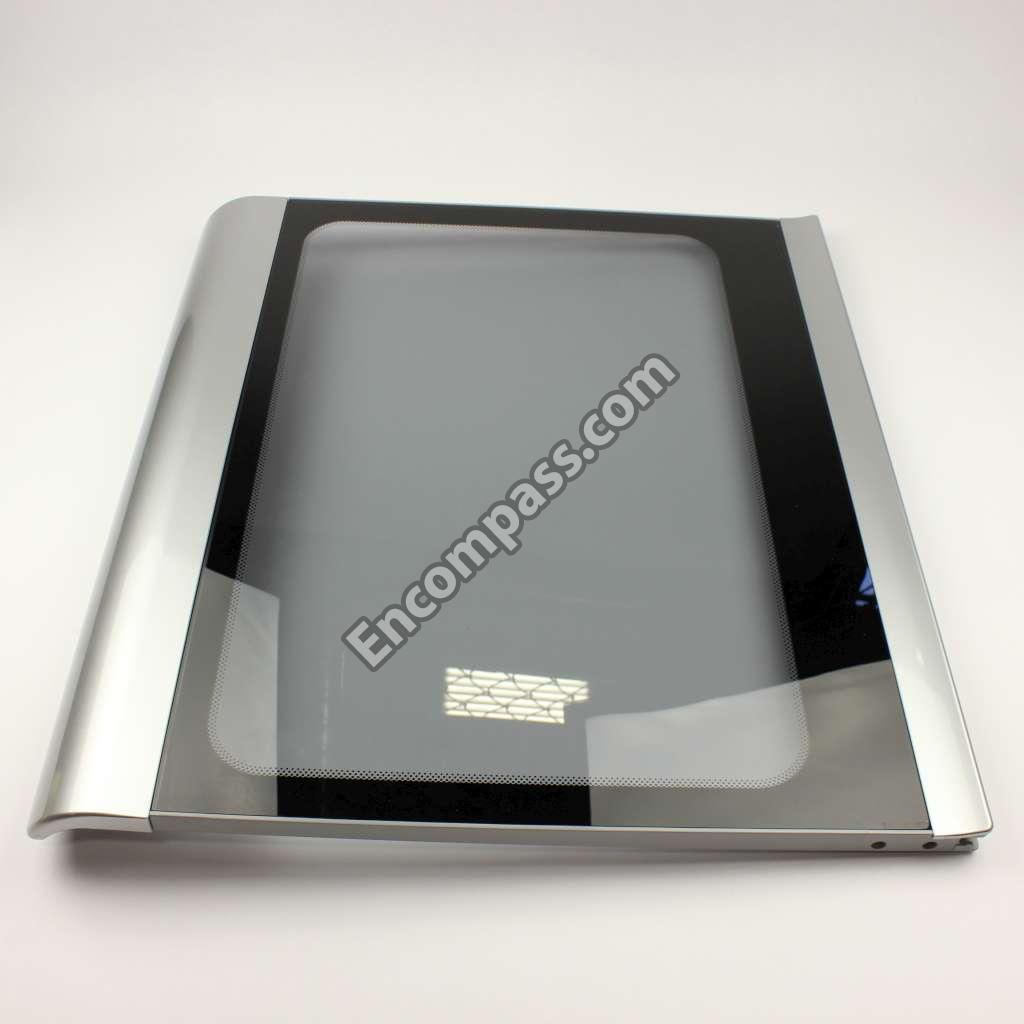

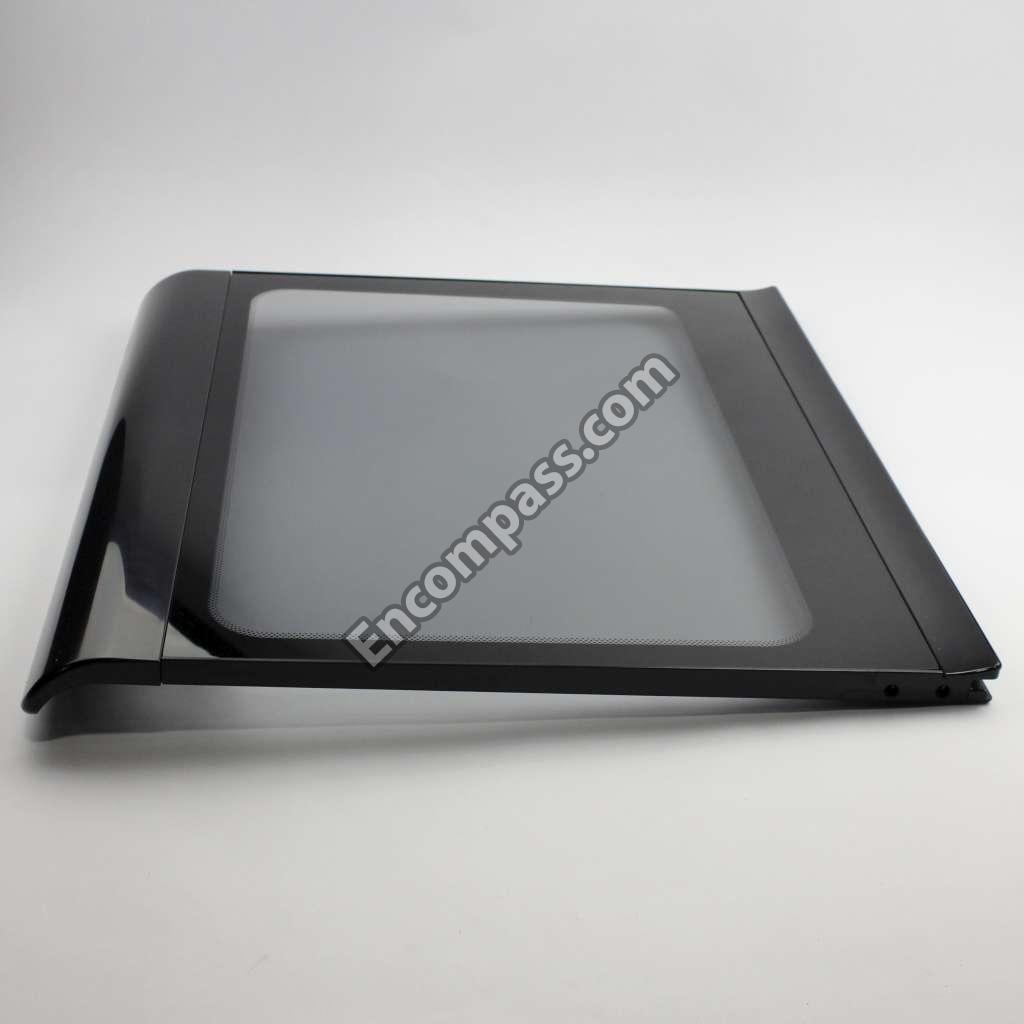

WPW10349136 WPW10349136 LID
WPW10349135 WPW10349135 LID
WPW10349235 WPW10349235 LID
W10042120 W10042120 LOCATOR
WP8563785 WP8563785 LOCK
WPW10341737 WPW10341737 MODULE-LED
WPW10106990 WPW10106990 NOZZLE
W10022060 W10022060 NUT
3400917 3400917 NUT, LOCK
98460 98460 NUT, PUSH IN
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
350930 350930 PAINT, SPRAY (WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP8566090 WP8566090 PANEL-REAR
WP8557836 WP8557836 PLATE
WP3407203 WP3407203 POWER CORD
WP8576642 WP8576642 RETAINER
WPW10309696 WPW10309696 RING-TUB
280146 280146 ROTOR
WPW10109200 WPW10109200 SCREW
WPW10004910 WPW10004910 SCREW
WP8533928 WP8533928 SCREW
WP8533953 WP8533953 SCREW
WPW10076270 WPW10076270 SCREW
WP9740849 WP9740849 SCREW
WP3351614 WP3351614 SCREW
WPW10052600 WPW10052600 SCREW
W10846509 W10846509 SCREW
W11700520 W11700520 SCREW
WP8281136 WP8281136 SCREW
WP693995 WP693995 SCREW
WP681414 WP681414 SCREW
WP488729 WP488729 SCREW
W11404293 W11404293 SCREW
WP489069 WP489069 SCREW
WP8534042 WP8534042 SCREW, 1/4-20 X .968
8565324 8565324 SCREW, 10-16 X 1.75
8533957 8533957 SCREW, 10-16 X 1/2
W10161707 W10161707 SEAL
WP285195 WP285195 SEALER
WPW10178988 WPW10178988 SENSOR
WPW10137698 WPW10137698 SHIELD
8578572 8578572 SHIELD, RECIRC PUMP
8578386 8578386 SHIELD, WIRE HARNESS
W11096159 W11096159 SOUND ABSR
8576476 8576476 SPACER, REAR (CABINET/TOP)
WPW10419333 WPW10419333 STATOR
W10247710 W10247710 SUSPENSION ROD KIT
W10338694 W10338694 TECH SHEET
WP3391018 WP3391018 TIE-WIRE
WPW10339879 WPW10339879 TIE-WIRE
WPW10155270 WPW10155270 TIE-WIRE

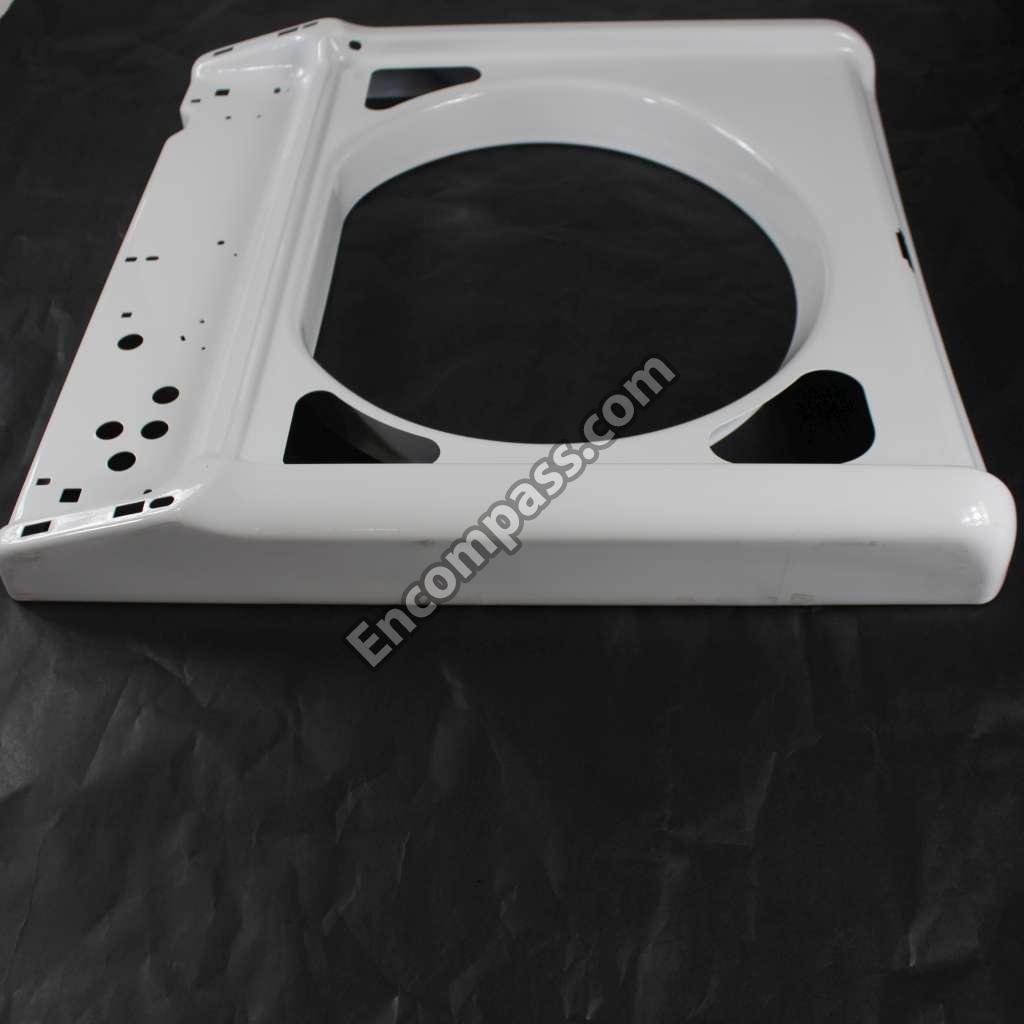

WP3957177 WP3957177 TOP
W10298630 W10298630 TOP
W10298629 W10298629 TOP
WP8578550 WP8578550 TRAY
W10309224 W10309224 TRAY
W10309229 W10309229 TRAY
W10193886 W10193886 TUB-OUTER
280142 280142 TUBE
W10268217 W10268217 TUCHUP
W10420499 W10420499 USE & CARE GUIDE
W10853723 W10853723 VALVE
WPW10076260 WPW10076260 WASHER
WP16123 WP16123 WASHER
WP8577896 WP8577896 WASHER
8212526 8212526 WASHER, DRIP TRAY
W11252784 W11252784 WASHPLATE
WPW10233462 WPW10233462 WATER PUMP
W10536347 W10536347 WATER PUMP
285442 285442 WATER SYSTEM PARTS (CONNECTOR KIT, PLASTIC DRAIN HOSE)
285320 285320 WATER SYSTEM PARTS (SIPHON BREAK KIT)
285321 285321 WATER SYSTEM PARTS (SLEEVE KIT, (CONTAINS 2 SLEEVES))
367031 367031 WATER SYSTEM PARTS, DRAIN PROTECTOR
WPW10137697 WPW10137697 WIRE HARNESS
3184020 3184020 WIRE, GROUND
