Model Image
Manufacturer

Whirlpool

Model Number

WTW8240YW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8564458 WP8564458 ABSORBER
W10135699 W10135699 AFFRESH WASHER CLEANER
WPW10370996 WPW10370996 BASE
WPW10378012 WPW10378012 BASE
WPW10370995 WPW10370995 BASE
WPW10378013 WPW10378013 BASE
W10549509 W10549509 BASKET ASSEMBLY
WP8546627 WP8546627 BEARING
WP8563877 WP8563877 BEZEL
WP8563876 WP8563876 BEZEL
WPW10136371 WPW10136371 BEZEL
WP8572019 WP8572019 BEZEL, LID LOCK
N_P N_P BOLT, ROTOR ASSEMBLY NON-SERVICEABLE (SUPPLIED W/ROTOR)
8543784 8543784 BRACKET, DRAIN HOSE
W10076780 W10076780 BUMPER
W10434974 W10434974 CABINET
WPW10384795 WPW10384795 CAP
WP3367052 WP3367052 CLAMP
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
W10005430 W10005430 CLAMP
8534021 8534021 CLAMP, RECIRC HOSE RETAINER
W10355010 W10355010 CLEANER
WP90016 WP90016 CLIP
WPW10160572 WPW10160572 CONNECTOR

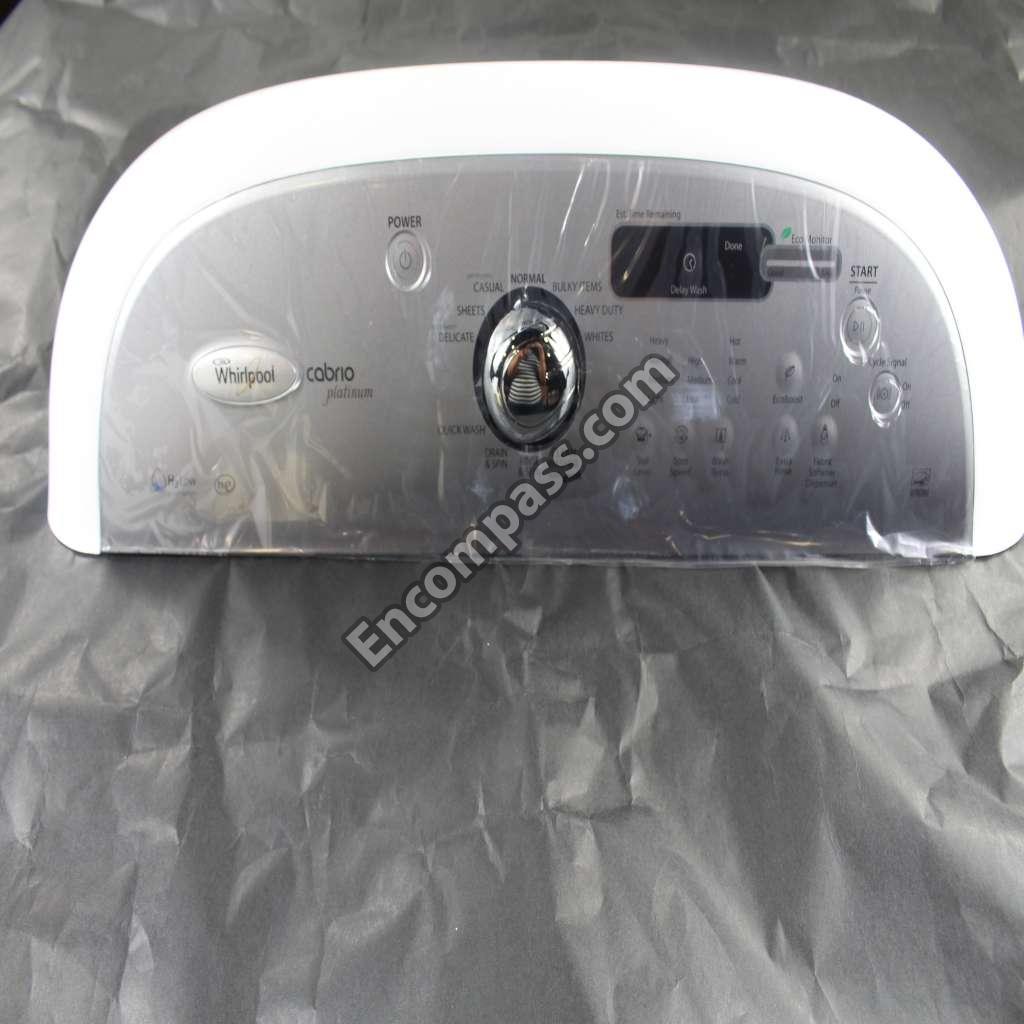

WPW10404672 WPW10404672 CONSOLE
WPW10394242 WPW10394242 CONTROL BOARD

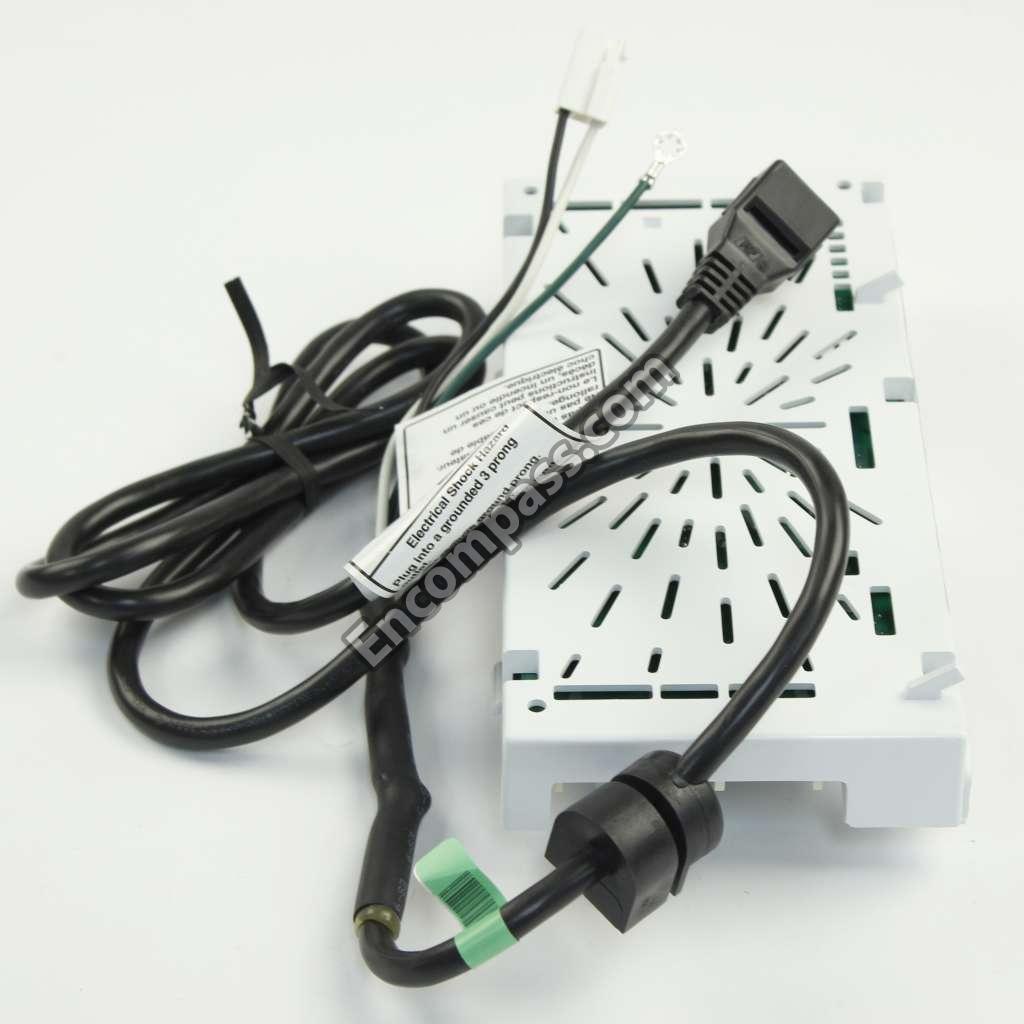

W10763748 W10763748 CONTROL BOARD
WPW10547372 WPW10547372 CORD-POWER
WP384496 WP384496 COUPLR-HSE
8563941 8563941 COVER, HARNESS
8564265 8564265 COVER, REAR UI
WP8564017 WP8564017 CUP
WPW10172154 WPW10172154 DISPENSER
WPW10187307 WPW10187307 DISPENSER
WPW10172146 WPW10172146 DISPENSER
WPW10619844 WPW10619844 DOOR LATCH
W10405151 W10405151 ENERGY GUIDE
WPW10363890 WPW10363890 FEET-LVLNG
WPW10222008 WPW10222008 FILTER, DUAL PUMP HOOD
W10440741 W10440741 FRAME
W10130502 W10130502 GASKET
8546616 8546616 GASKET, CONSOLE/TRAY
280155 280155 GROMMET, PUMP MOUNTING
WPW10305277 WPW10305277 HINGE
WPW10305278 WPW10305278 HINGE
WP8563964 WP8563964 HINGE
W10432012 W10432012 HINGE
WP8182767 WP8182767 HOSE
WP8182769 WP8182769 HOSE
WPW10363892 WPW10363892 HOSE
WPW10363893 WPW10363893 HOSE
WP353244 WP353244 HOSE
DRNEXT4 DRNEXT4 HOSE
285452A 285452A HOSE SCREEN (PACKAGE OF 2)
285448A 285448A HOSE WASHERS (PACKAGE OF 4)
W10820039 W10820039 HUB
8212656RP 8212656RP INLET HOSES, 10 FT TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212546RP 8212546RP INLET HOSES, 4 FT. (TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212545RP 8212545RP INLET HOSES, 5 FT. ONE RED HOSE & ONE BLUE HOSE W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212641RP 8212641RP INLET HOSES, 5 FT. TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212487RP 8212487RP INLET HOSES, 5 FT. TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212638RP 8212638RP INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
W10410358 W10410358 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W10410359 W10410359 INSTALLATION INSTRUCTIONS (SPANISH)
WPW10211335 WPW10211335 KNOB
1903WH 1903WH LAUNDRY SUPPLY STORAGE CART
WP8572026 WP8572026 LID
WP8572012 WP8572012 LID-INNER
WPW10248088 WPW10248088 LOCK
WPW10106990 WPW10106990 NOZZLE
W10022060 W10022060 NUT
98460 98460 NUT, PUSH IN
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
350930 350930 PAINT, SPRAY (WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP8566090 WP8566090 PANEL-REAR
WP8557836 WP8557836 PLATE
W10433527 W10433527 QUICK START GUIDE
WP8576642 WP8576642 RETAINER
WPW10362224 WPW10362224 RING-TUB
280146 280146 ROTOR
WPW10109200 WPW10109200 SCREW
WPW10004910 WPW10004910 SCREW
WP8533928 WP8533928 SCREW
WP8533953 WP8533953 SCREW
WPW10076270 WPW10076270 SCREW
WP3351614 WP3351614 SCREW
WPW10052600 WPW10052600 SCREW
W11700520 W11700520 SCREW
WP8281136 WP8281136 SCREW
WP693995 WP693995 SCREW
WP681414 WP681414 SCREW
WP488729 WP488729 SCREW
WPW10119828 WPW10119828 SCREW
WP489069 WP489069 SCREW
WP4449745 WP4449745 SCREW
W10406220 W10406220 SCREW
WP8534042 WP8534042 SCREW, 1/4 - 20
8565324 8565324 SCREW, 10-16 X 1.75
8533957 8533957 SCREW, 10-16 X 1/2
8563892 8563892 SCREW, 8-18 X 5/8
W10161707 W10161707 SEAL
W10645577 W10645577 SEAL, USER INTERFACE
WP285195 WP285195 SEALER
WPW10178988 WPW10178988 SENSOR
WPW10137698 WPW10137698 SHIELD
8578925 8578925 SHIELD, DRAIN PUMP
8578572 8578572 SHIELD, RECIRC PUMP
8578386 8578386 SHIELD, WIRE HARNESS
8576476 8576476 SPACER, REAR (CABINET/TOP)
WPW10419333 WPW10419333 STATOR
W10440786 W10440786 SUSPENSION ROD KIT
W10440729 W10440729 SUSPENSION ROD KIT
W10405149 W10405149 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
WPW10155270 WPW10155270 TIE-WIRE
WPW10391067 WPW10391067 TOP
WP8578550 WP8578550 TRAY
W10381078 W10381078 TUB-OUTER
280142 280142 TUBE
W10405142 W10405142 USE & CARE GUIDE
W10853723 W10853723 VALVE
WPW10076260 WPW10076260 WASHER
WP8577896 WP8577896 WASHER
8212526 8212526 WASHER, DRIP TRAY
WPW10357576 WPW10357576 WASHPLATE
WPW10403803 WPW10403803 WATER PUMP
WPW10409079 WPW10409079 WATER PUMP
367031 367031 WATER SYSTEM PARTS, DRAIN PROTECTOR
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
WPW10297447 WPW10297447 WIRE HARNESS
WPW10404419 WPW10404419 WIRE HARNESS
