Model Image
Manufacturer

Whirlpool

Model Number

WTW8500DR2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8564458 WP8564458 ABSORBER
W11197416 W11197416 ABSORBER
W10135699 W10135699 ACCESSORY PARTS, AFFRESH ODOR REMOVER
W10355010 W10355010 ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
285452A 285452A ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2)
285448A 285448A ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4)
8212656RP 8212656RP ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
3363920A 3363920A ADAPTER
W10601876 W10601876 ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
W10601845 W10601845 ASSEMBLY, DISPENSER BEZEL (WHITE)
W10811960 W10811960 BASKET
W11579387 W11579387 BEARING
W11168238 W11168238 BEARING
W11237158 W11237158 BEZEL
W11237157 W11237157 BEZEL
W11712680 W11712680 BRACE
W11661767 W11661767 BRACE
W11695477 W11695477 BRACE
W10752892 W10752892 BRACE, CABINET TOP - FRONT (RED)
W11398707 W11398707 BUMPER
W10677266 W10677266 CABINET (CHROME SHADOW)
W10744645 W10744645 CABINET (RED)
W10677265 W10677265 CABINET (WHITE)
W11050804 W11050804 CAP
WP8269146 WP8269146 CLAMP
WP356138 WP356138 CLAMP
WP285655 WP285655 CLAMP
W10005430 W10005430 CLAMP, CABLE
3363365 3363365 CLAMP, HOSE
8534021 8534021 CLAMP, RECIRC HOSE RETAINER
WP8312709 WP8312709 CLIP
WP90016 WP90016 CLIP
W10754448 W10754448 CLUTCH

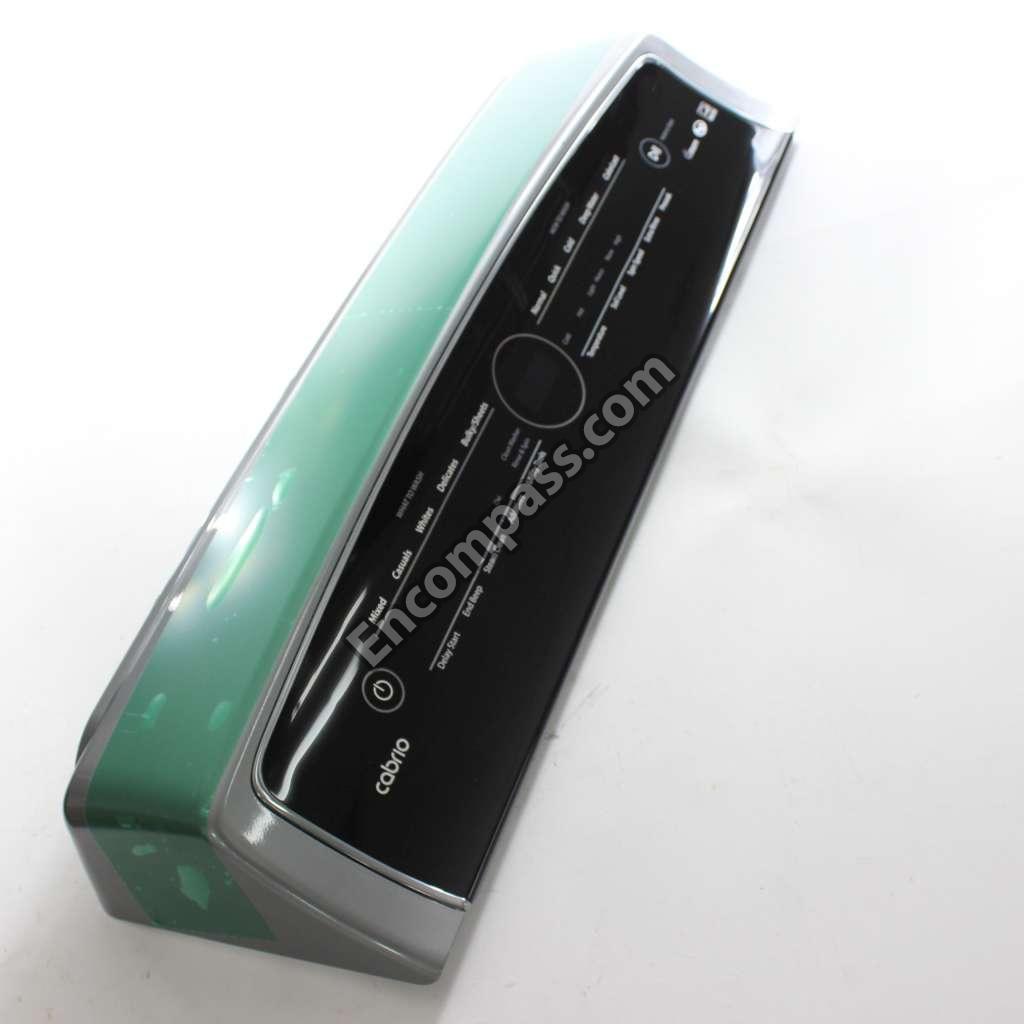

W11169707 W11169707 CONSOLE
W10838672 W10838672 CONSOLE
W10861501 W10861501 CONSOLE
W10631630 W10631630 CONSOLE MOUNT (LEFT)
W10631629 W10631629 CONSOLE MOUNT (RIGHT)
W11689205 W11689205 CONTROL BOARD

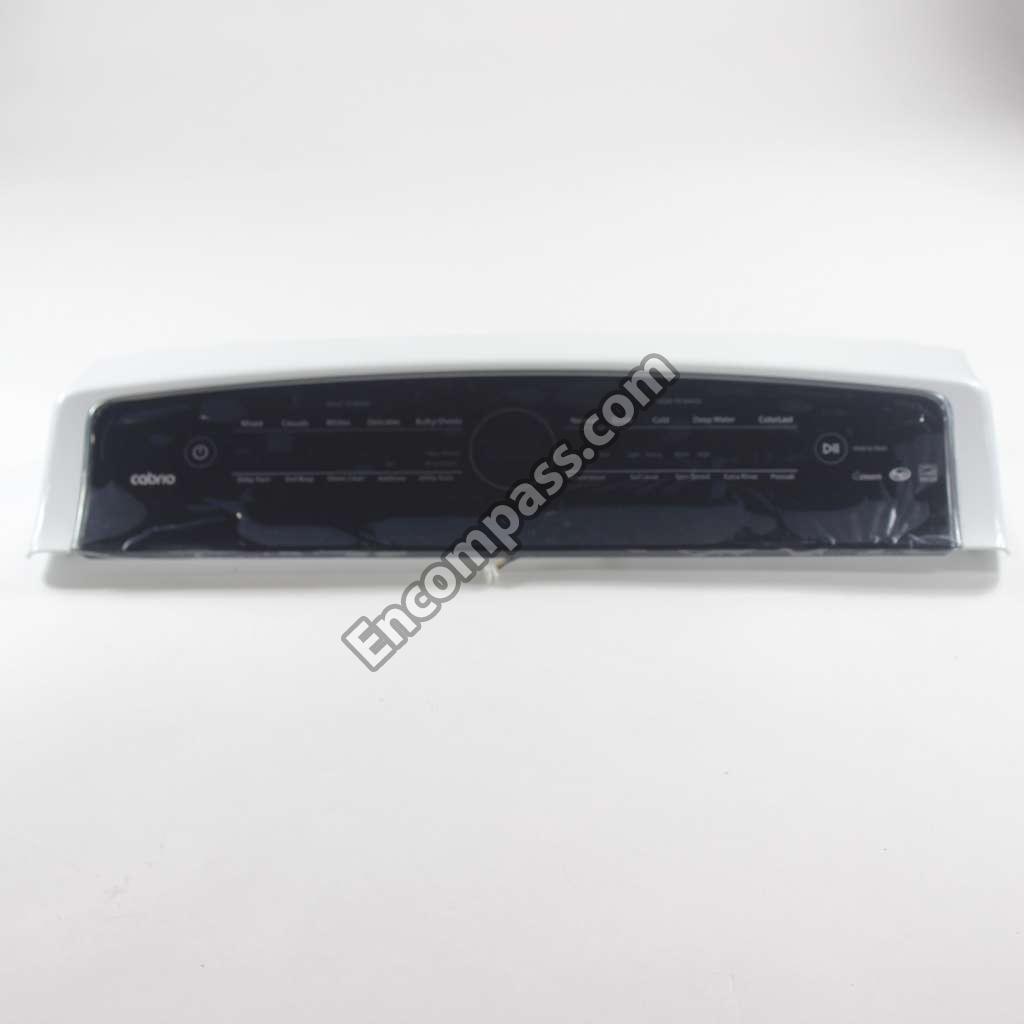

W11115199 W11115199 CONTROL PANEL
WP384496 WP384496 COUPLR-HSE
W11288102 W11288102 COVER
W10676061 W10676061 COVER, HARNESS
W11096159 W11096159 DAMPER, SOUND
W11234070 W11234070 DISPENSER
W11234069 W11234069 DISPENSER
W10861642 W10861642 DOOR LATCH
W10810403 W10810403 DOOR LATCH

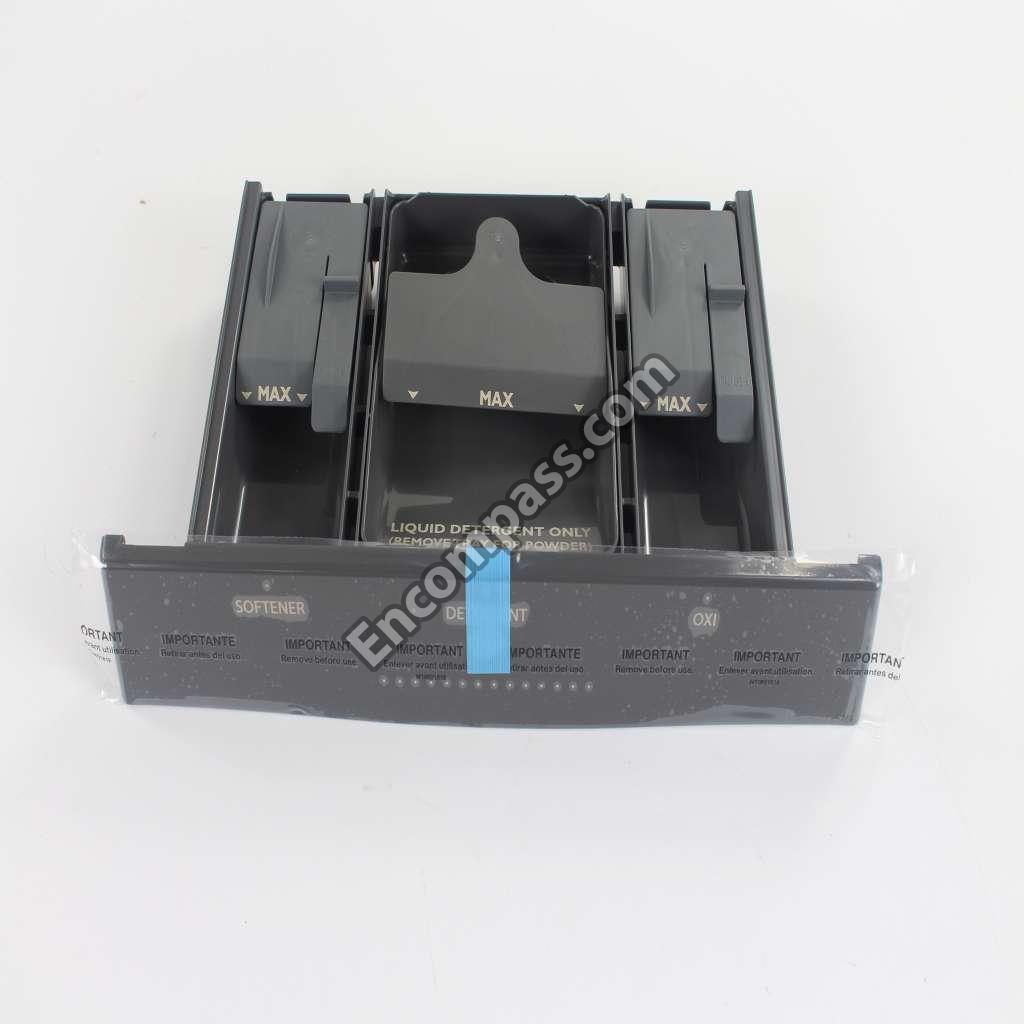

W11129928 W11129928 DRAWER
W11209429 W11209429 DRAWER
W10063047 W10063047 ENERGY GUIDE
WPW10687506 WPW10687506 FEET-LVLNG
W11393685 W11393685 GEARCASE
W10673062 W10673062 HARNESS SHIELD - MOTOR
W10777956 W10777956 HARNESS, LOWER (INCLUDES PRESSURE SWITCH HOSE)
W11041462 W11041462 HEATER
W11023747 W11023747 HINGE
W10861714 W10861714 HINGE
WP8572974 WP8572974 HINGE
WP8563965 WP8563965 HINGE
W10597575 W10597575 HOOD, DUAL PUMP
W10802689 W10802689 HOSE
WP353244 WP353244 HOSE
W11246418 W11246418 HOSE
W11244231 W11244231 HOSE
W10763460 W10763460 HOSE - RECIRCULATION (TUB TO PUMP)
W10622692 W10622692 HOSE, RECIRCULATION
W11173599 W11173599 HOUSING
8212487RP 8212487RP INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
W10682742 W10682742 INSTALLATION INSTRUCTIONS
W11102314 W11102314 LID
WPW10393264 WPW10393264 NAMEPLATE
W11178521 W11178521 NAMEPLATE
W11213336 W11213336 NUT
W10909670 W10909670 NUT-SPANER
W10607427 W10607427 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
W10446202 W10446202 PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10611544 W10611544 PANEL, CONSOLE REAR COVER
W11417171 W11417171 PANEL, REAR
W11096073 W11096073 POWER CORD
W10740587 W10740587 QUICK START GUIDE
WPW10280024 WPW10280024 RETAINER
W11161993 W11161993 RING-TUB
W10754161 W10754161 ROTOR
WPW10004910 WPW10004910 SCREW
WPW10249633 WPW10249633 SCREW
WP8533928 WP8533928 SCREW
W10752189 W10752189 SCREW
W10743982 W10743982 SCREW
W11027980 W11027980 SCREW
W10752187 W10752187 SCREW
W11700520 W11700520 SCREW
W11311945 W11311945 SCREW
WPW10109200 WPW10109200 SCREW
W10846509 W10846509 SCREW
W10853898 W10853898 SCREW
W10728156 W10728156 SCREW
WP313808 WP313808 SCREW
WP9740848 WP9740848 SCREW
WP90767 WP90767 SCREW
W11568617 W11568617 SCREW
WP489069 WP489069 SCREW
WP693995 WP693995 SCREW
WPW10273971 WPW10273971 SCREW
W11404293 W11404293 SCREW
W10726624 W10726624 SEAL, CONSOLE
WP285195 WP285195 SEALER
W10894129 W10894129 SHIELD, HEAT
W10637933 W10637933 SHIELD, RECIRCULATION PUMP
W10734521 W10734521 SLIDER
W11123146 W11123146 SPEAKER
W10754158 W10754158 STATOR
W11130356 W11130356 SUSPENSION ROD KIT
W10607408 W10607408 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
W10817363 W10817363 TOP
W11097645 W11097645 TOP
W10744647 W10744647 TOP (RED)
W10512164 W10512164 TUB
W11165546 W11165546 VALVE
W11032711 W11032711 WASHER
W10752283 W10752283 WASHPLATE
W10915703 W10915703 WATER PUMP
W10876600 W10876600 WATER PUMP
DRNEXT4 DRNEXT4 WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
W11193817 W11193817 WIRE HARNESS
W10915405 W10915405 WIRE HARNESS
