Model Image
Manufacturer

Whirlpool

Model Number

WUR50X24EM00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4344757 4344757 ACTUATOR, SWITCH
4344876 4344876 ASSEMBLY, EVAPORATOR FAN
4344782 4344782 BAFFLE, AIR
W10860146 W10860146 BIMETL-DEF
WPW10299081 WPW10299081 BLADE-FAN
W10772873 W10772873 BOLT
W10780355 W10780355 BOLT
4344765 4344765 BOX, CONTROL
W10204638 W10204638 BRACE, SUPPORT
4344773 4344773 BRACKET, DEFROST TIMER
4344771 4344771 BRACKET, GRILLE
4344785 4344785 BRACKET, MOTOR
4344784 4344784 BRACKET, MOTOR
4344899 4344899 BRACKET, MOTOR
N_P N_P CABINET (NOT A SERVICE PART)
W10772877 W10772877 CABINET BASE PLATE
4344739 4344739 CAMERA LENS, LIGHT
W11456069 W11456069 CLAMP
31462A 31462A CLEANER
WP4344836 WP4344836 CLIP
W10238022 W10238022 CLIP, BUSHING
4344819 4344819 CLIP, GRILLE
8201787 8201787 COMPRESSOR
4344786 4344786 COVER, REAR
WPW10319114 WPW10319114 DOOR ASSEMBLY
W10319175 W10319175 DOOR BIN, LOWER
W10319176 W10319176 DOOR BIN, MIDDLE
W10319168 W10319168 DOOR CORNER (RUBBER, LH)
W10319169 W10319169 DOOR CORNER (RUBBER, RH)
4344758 4344758 DOOR STOP
W10922160 W10922160 DOOR-SKIN
W10163273 W10163273 DRIER
W10841188 W10841188 ENERGY GUIDE

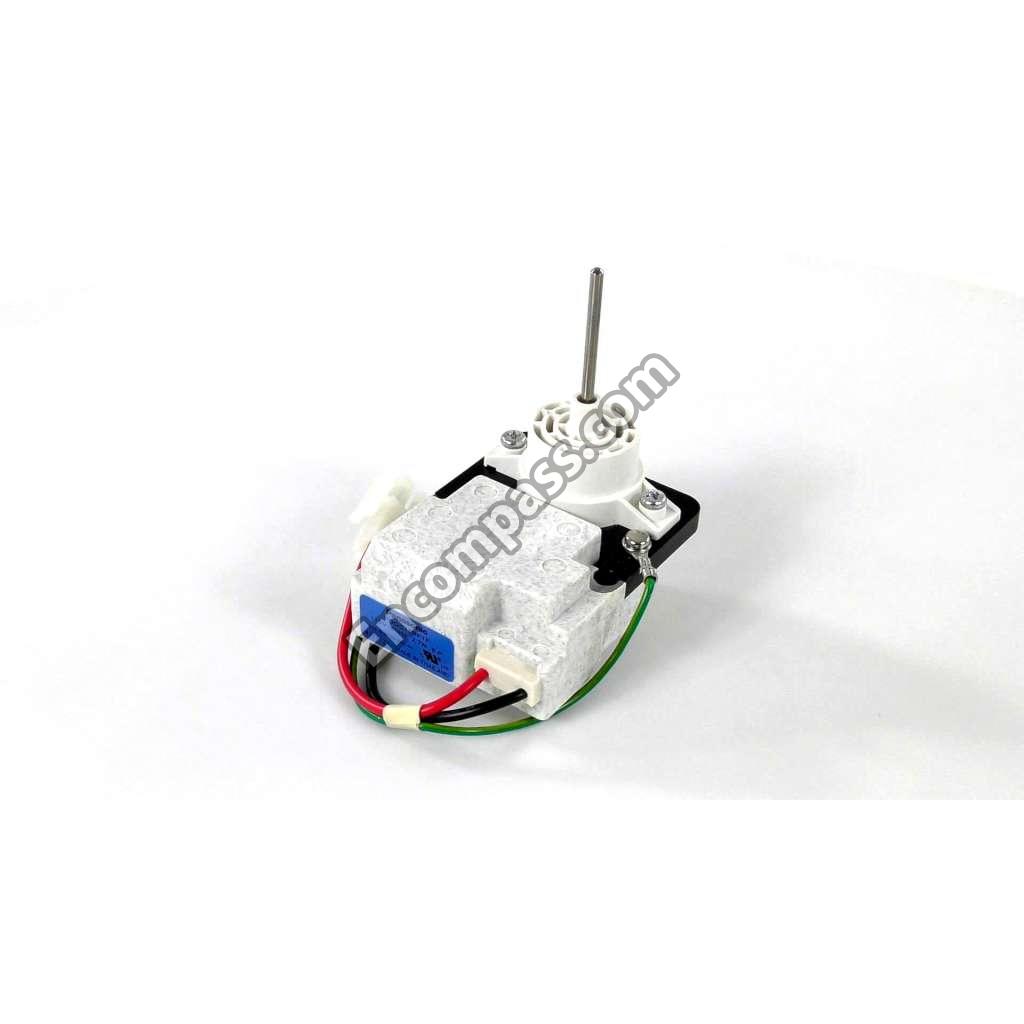

W10922164 W10922164 EVAPORATOR MOTOR
4344789 4344789 FRAME, SIDE (LEFT HAND)
4344770 4344770 FRAME, SIDE (RIGHT SIDE)
4344820 4344820 FRAME, SUPPORT (LEFT HAND)
4344821 4344821 FRAME, SUPPORT (RIGHT HAND)
WPW10238068 WPW10238068 GASKET
WPW10319159 WPW10319159 GLASS SHELF
WPW10238193 WPW10238193 GRILLE
WP4344779 WP4344779 GROMMET
4344778 4344778 GROMMET, FAN MOTOR
W10841194 W10841194 HANDLE, DOOR
4344877 4344877 HARNESS, WIRE
4344822 4344822 HARNESS, WIRE
W11230119 W11230119 HEATER
W10319155 W10319155 HINGE COVER
W10319154 W10319154 HINGE, BOTTOM
W10319153 W10319153 HINGE, BOTTOM MOUNT - LH
W10319152 W10319152 HINGE, BOTTOM MOUNT - RH
W10319150 W10319150 HINGE, TOP
W10319178 W10319178 KNOB, THERMOSTAT
W10163191 W10163191 LABEL
W11106296 W11106296 LEVELER
WP22002263 WP22002263 LIGHT BULB
W10239396 W10239396 LOCK WASHER
WPW10299090 WPW10299090 MOTOR-COND
WPW10511972 WPW10511972 NAMEPLATE
W10778965 W10778965 OVERLOAD RELAY
W10316689 W10316689 PAN, DRAIN
W11263339 W11263339 PLATE
4344762 4344762 PLATE, BOTTOM
WPW10204676 WPW10204676 POWER CORD
W10163274 W10163274 RUBBER, VIBRATION
W10772895 W10772895 RUNNING CAPACITOR
WP90767 WP90767 SCREW
4344834 4344834 SCREW
W10319185 W10319185 SCREW
W10162988 W10162988 SCREW
W10319187 W10319187 SCREW
4344801 4344801 SCREW
W10243123 W10243123 SCREW
W10837731 W10837731 SCREW
4344797 4344797 SCREW
4344796 4344796 SCREW
W10319183 W10319183 SCREW
W11380570 W11380570 SCREW
4358271 4358271 SCREW
W10841091 W10841091 SCREW
W10774183 W10774183 SCREW
4344825 4344825 SCREW
4344826 4344826 SCREW
W10162986 W10162986 SCREW, HANDLE
4344823 4344823 SEAL, BRACE
W10319144 W10319144 SHELF SUPPORT LH
WPW10319158 WPW10319158 SHELF, CRISPER
4344747 4344747 SHIELD, HEAT
4344756 4344756 SPACER, BOTTOM HINGE
4344788 4344788 SPACER, DOOR
4344755 4344755 SPACER, TOP HINGE
WP8564951 WP8564951 STUD
WP4344767 WP4344767 SWITCH
W11176247 W11176247 THERMOSTAT
4344829 4344829 TIE, CABLE
W11609704 W11609704 TIMER-DEF
W10163276 W10163276 TRAP, DRAIN
4344907 4344907 TRIM, EDGE
W10319156 W10319156 TRIM, FRONT
W10285879 W10285879 USE & CARE GUIDE
4344760 4344760 WASHER
W11241702 W11241702 WASHER
