Whirlpool

Model Number

YKSEG700EBS4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORIES, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORIES, CLEANER, COOKTOP
W10123240 W10123240 ACCESSORIES, RACK, BROILER PAN AND ROASTING
W10432544 W10432544 ACCESSORY PARTS, ASSEMBLY, BACKSPLASH KIT, GRIDDLE
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
W10432545 W10432545 ACCESSORY PARTS, KIT, GRILL
W10750011 W10750011 ACCESSORY PARTS, KIT, OVEN CLEANING
W10391473 W10391473 ACCESSORY PARTS, PAD, COOKTOP CLEANING
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W11217187 W11217187 ANCHOR-TIP
W11502257 W11502257 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11122085 W11122085 ASSEMBLY, FLUE
W10675026 W10675026 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (5/8 IN BLACK)
WPW10675028 WPW10675028 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (5/8 IN STAINLESS)
W11430922 W11430922 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (5/8 IN WHITE)
W10655449 W10655449 BACKSPLASH ASSEMBLY (BLACK)
W10655450 W10655450 BACKSPLASH ASSEMBLY (STAINLESS)
W10655448 W10655448 BACKSPLASH ASSEMBLY (WHITE)
W11676564 W11676564 BAFFL-CONV
W11379357 W11379357 BAKE PAN
W10813558 W10813558 BEZEL-KNOB
WP8203546 WP8203546 BLOCK-TERM
W10777210 W10777210 BOTTM-OVEN
W10289168 W10289168 BOX, BURNER SI
W10162253 W10162253 BRACE, CORNER (LEFT)
W10162252 W10162252 BRACE, CORNER (RIGHT)
W10598048 W10598048 BRACKET, CONSOLE (CENTER)
W10558372 W10558372 BRACKET, CONTROL
W10541911 W10541911 BRACKET, GLASS UPPER HANDLE
W10273002 W10273002 BRACKET, OVEN SUPPORT
W11175271 W11175271 BRACKET, RADIANT
W10555923 W10555923 BRACKET, USER INTERFACE
WPW10318026 WPW10318026 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W11104127 W11104127 BUMPER
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10162241 W10162241 CHANNEL, REAR
W10336909 W10336909 CLEANER
W10841090 W10841090 CLIP
16515 16515 CLIP, HARNESS
W10664316 W10664316 CLIP, HARNESS (COOKTOP)
W10137382 W10137382 CLIP, PANEL
WPW10281322 WPW10281322 CONNECTOR
W10860957 W10860957 CONSOLE, LOWER PANEL (BLACK)

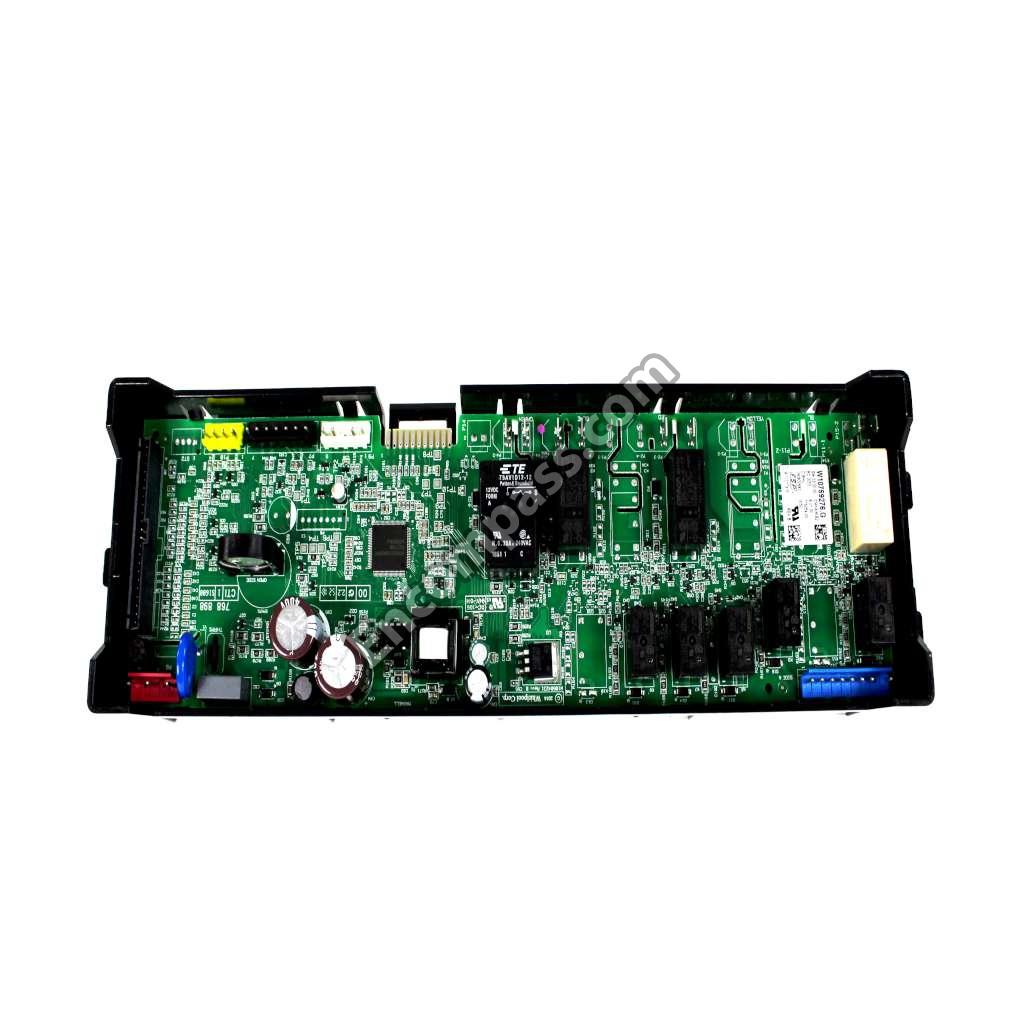

W11105615 W11105615 CONTROL BOARD
W11082269 W11082269 CONTROL BOARD
W11091880 W11091880 CONTROL PANEL
W10814036 W10814036 COOKTOP
W11379354 W11379354 COVER, BACK
W10162248 W10162248 COVER, WIRE
W11104399 W11104399 DOOR HANDLE
W11162113 W11162113 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W10162254 W10162254 DUCT, COOLING
W10162255 W10162255 DUCT, COVER
W10779716 W10779716 ELMNT-BAKE
W11238400 W11238400 ELMNT-BROL
W10913412 W10913412 ENDCAP (BLACK (LEFT))
W10913413 W10913413 ENDCAP (BLACK (RIGHT))
W11107275 W11107275 FAN-BLWR
W11414552 W11414552 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WP3196548 WP3196548 FUSE-THRML
W10802441 W10802441 GASKET
W10882900 W10882900 GASKET
WP71002569 WP71002569 GASKET- IN
W11562931 W11562931 GASKT-DOOR
W10915619 W10915619 GLASS DOOR
W11339500 W11339500 GLASS DOOR
W11454507 W11454507 HARNESS, MAIN
W10647259 W10647259 HINGE-RECV
W11129442 W11129442 INFINITE CONTROL SWITCH
W10917724 W10917724 INFINITE CONTROL SWITCH
W10911303 W10911303 INFINITE CONTROL SWITCH
W11025100 W11025100 INSERT
WPW10208653 WPW10208653 INSULATION
W11688363 W11688363 INSULATION
W11688730 W11688730 INSULATION
W11688567 W11688567 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W11355689 W11355689 KEYPAD SHIELD
W10877188 W10877188 KNOB
W11568640 W11568640 KNOB
W10877180 W10877180 KNOB
W11628652 W11628652 KNOB
WPW10571723 WPW10571723 LIGHT BULB
W10902192 W10902192 LINER-DOOR
W10839793 W10839793 NAMEPLATE
WP7103P027-60 WP7103P027-60 NUT
WP3400029 WP3400029 NUT
W11509603 W11509603 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10536275 W10536275 PAN, RADIANT
W10860958 W10860958 PANEL, DRAWER FRONT 9BLACK)
W11730303 W11730303 PANEL-SIDE
W11226497 W11226497 POWER CORD
W11435572 W11435572 QUICK START GUIDE
W11699908 W11699908 RACK-OVEN
W11256463 W11256463 RACK-OVEN
W11673270 W11673270 RACK-OVEN
W10813140 W10813140 RAIL, HORIZONTAL SUPPORT
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11403917 W11403917 RESERVOIR
W11370463 W11370463 ROD, DOOR SWITCH
WP8533988 WP8533988 SCREW
WP355214 WP355214 SCREW
WPW10031790 WPW10031790 SCREW
W11245710 W11245710 SCREW
W10777162 W10777162 SCREW
WP3196557 WP3196557 SCREW
WP3400016 WP3400016 SCREW
3196172 3196172 SCREW
WPW10067840 WPW10067840 SCREW
W11169708 W11169708 SCREW
W11244557 W11244557 SCREW
W11233072 W11233072 SCREW
W11135756 W11135756 SCREW-TORX
W10833885 W10833885 SENSOR
W10541959 W10541959 SHIELD, BAKE
W10655441 W10655441 SHIELD, POWER CORD
W11117035 W11117035 SHIELD, WIRE
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594170 W11594170 SOCKT-LITE
W11190816 W11190816 SPACER
W10877054 W10877054 SPACER
W11673273 W11673273 SPACR-GLAS
WPW10225448 WPW10225448 SPRING
W11744483 W11744483 SUPPORT
W10289170 W10289170 SUPPORT, COOKTOP (LEFT)
W10289169 W10289169 SUPPORT, COOKTOP (RIGHT)
W10035900 W10035900 SUPPORT, OVEN BOTTOM
W11041453 W11041453 SURFACE ELEMENT
WPW10342780 WPW10342780 SURFACE ELEMENT
WPW10251108 WPW10251108 SURFACE ELEMENT
W11171119 W11171119 SURFACE ELEMENT
W10823720 W10823720 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W11326876 W11326876 TECH SHEET
511873 511873 TOUCH-UP PAINT (WHITE PORCELAIN (2 OZ.))
W11251351 W11251351 TRIM-VENT
W11240519 W11240519 TRIM-VENT
W11676355 W11676355 WASHER
W11226786 W11226786 WIRE HARNESS
W11226773 W11226773 WIRE HARNESS
W11226772 W11226772 WIRE HARNESS
W11025616 W11025616 WIRE HARNESS
