Model Image
Manufacturer

LG

Model Number

25870

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4994A20079A 4994A20079A BASE
3041A10042A 3041A10042A BASE ASSEMBLY,SINGLE
4810AR4155A 4810AR4155A BRACKET
4960A20009D 4960A20009D BRACKET,MOTOR
3090A10042A 3090A10042A CABINET
3H00660V 3H00660V CAPACITOR,FILM,BOX
0CZZA20005J 0CZZA20005J CAPACITOR,FILM,BOX
ABQ36532605 ABQ36532605 CASE ASSEMBLY,CONTROL
4H00442J 4H00442J CLAMP,CAPACITOR
TBZ31951701 TBZ31951701 COMPRESSOR SET,CHINA
5403A20114H 5403A20114H CONDENSER ASSEMBLY,FIRST
5214A20027B 5214A20027B CONNECTOR,HOSE
3550UTL006A 3550UTL006A COVER
3551A20109D 3551A20109D COVER ASSEMBLY,DISPLAY
4830A30005A 4830A30005A DAMPER,COMPRESSOR
3831A20079D 3831A20079D ESCUTCHEON
ADL36964801 ADL36964801 EVAPORATOR ASSEMBLY,FIRST
MDG41709701 MDG41709701 FAN,TURBO
5230A20040A 5230A20040A FILTER,AIR
4986UTL001G 4986UTL001G GASKET
3531A18012D 3531A18012D GRILLE ASSEMBLY,FRONT
3530A10193B 3530A10193B GRILLE,REAR
3650A20004A 3650A20004A HANDLE

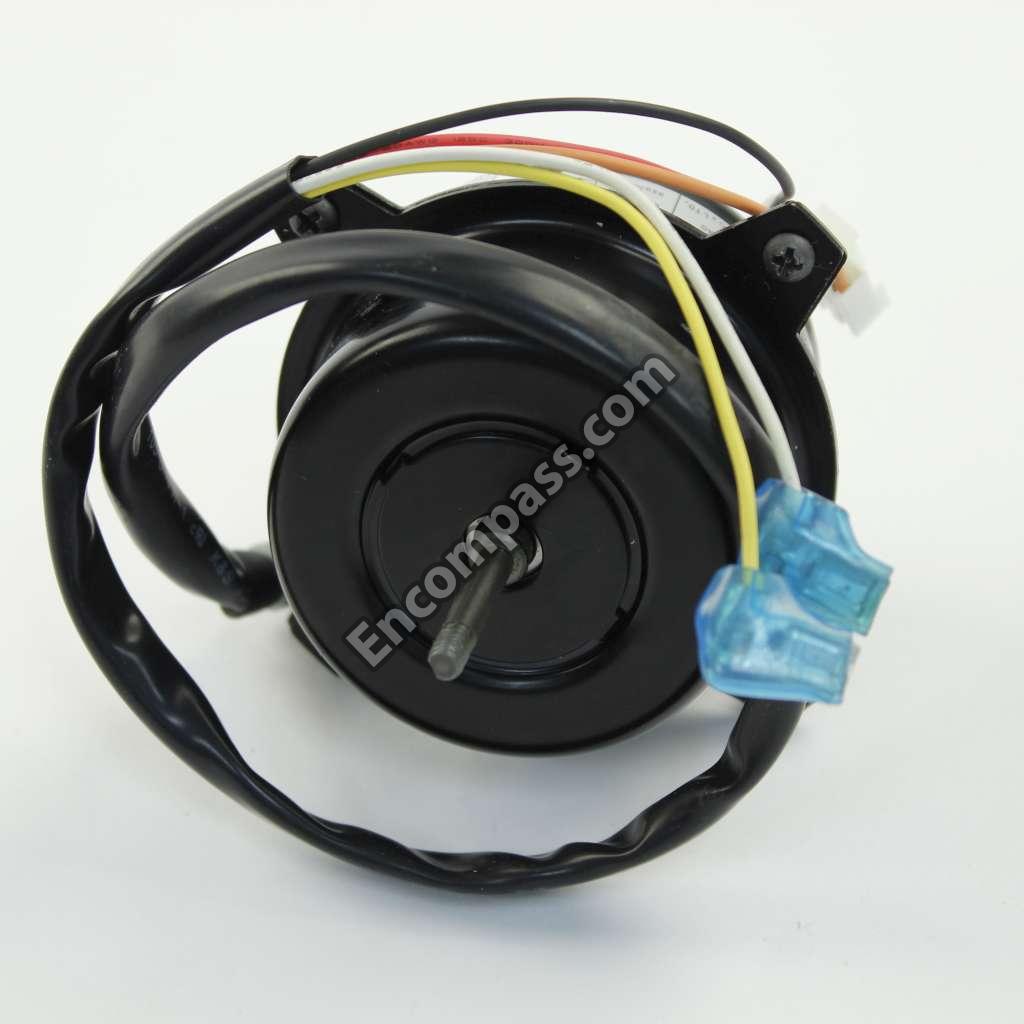

EAU32357504 EAU32357504 MOTOR ASSEMBLY,AC
4H00947A 4H00947A NUT,COMMON
1NHA0801206 1NHA0801206 NUT,COMMON
FAD00019002 FAD00019002 NUT,COMMON
6750U-L048A 6750U-L048A OVERLOAD PROTECT
3087A10019E 3087A10019E PAN ASSEMBLY,DRAIN
6871A20600A 6871A20600A PCB ASSEMBLY,DISPLAY
EBR36909304 EBR36909304 PCB ASSEMBLY,MAIN
6411A20001Z 6411A20001Z POWER CORD ASSEMBLY
4441A30001F 4441A30001F ROLLER
6877A30013V 6877A30013V SENSOR ASSEMBLY
4998A10034C 4998A10034C SHROUD
4999A10002C 4999A10002C SHROUD ASSEMBLY
6600A30003C 6600A30003C SWITCH ASSEMBLY
4839A10002B 4839A10002B TANK ASSEMBLY,BUCKET
AJR36953601 AJR36953601 TUBE ASSEMBLY,CAPILLARY
AJR36966901 AJR36966901 TUBE ASSEMBLY,DISCHARGE
5211A10454B 5211A10454B TUBE ASSEMBLY,SUCTION
1WZZUTL001A 1WZZUTL001A WASHER,CUSTOMIZED
