Model Image
Manufacturer

LG

Model Number

31452

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AAJ72909611 AAJ72909611 BALANCE ASSEMBLY
AAN73431018 AAN73431018 BASE ASSEMBLY,CABINET
FAA30850701 FAA30850701 BOLT,COMMON
AAZ73855940 AAZ73855940 BOX ASSEMBLY,DETERGENT
MAY65797101 MAY65797101 BOX,DETERGENT
MAY65797231 MAY65797231 BOX,DETERGENT
MAZ63674301 MAZ63674301 BRACKET,TOP
ABJ72919651 ABJ72919651 CABINET ASSEMBLY
MBL65120102 MBL65120102 CAP,COVER
5006EA3009B 5006EA3009B CAP,PULSATOR
MBL65440002 MBL65440002 CAP,SOFTENER
MBL65460502 MBL65460502 CAP,SOFTENER
4861FR3068A 4861FR3068A CLAMP
3W40106R 3W40106R CLAMP
ACJ73350401 ACJ73350401 CONNECTOR ASSEMBLY
MCD62647002 MCD62647002 CONNECTOR,DRAIN HOSE
ACP73009001 ACP73009001 COUPLING ASSEMBLY
ACQ85605504 ACQ85605504 COVER ASSEMBLY,TUB
MCK67634401 MCK67634401 COVER,LOWER
MCK67652502 MCK67652502 COVER,REAR
MCK67394604 MCK67394604 COVER,TOP
5040FA4226B 5040FA4226B DAMPER
ACV73730201 ACV73730201 DAMPER ASSEMBLY,FRICTION
4036FA4364B 4036FA4364B GASKET
4974EA2004B 4974EA2004B GUIDE,WATER
EAD64205502 EAD64205502 HARNESS,SINGLE
MEF62462103 MEF62462103 HINGE
4930EA3002F 4930EA3002F HOLDER
4930EA3002A 4930EA3002A HOLDER
MEG64119601 MEG64119601 HOLDER
AEM73213001 AEM73213001 HOSE ASSEMBLY,DRAIN
AEM73732904 AEM73732904 HOSE ASSEMBLY,DRAIN
AEM73732901 AEM73732901 HOSE ASSEMBLY,DRAIN
5214EA3004B 5214EA3004B HOSE,INLET
AEN74532607 AEN74532607 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN72910503 AEN72910503 HOUSING ASSEMBLY,DETERGENT
MEL62741701 MEL62741701 HUB,TUB(INNER)
4263FA3933C 4263FA3933C LEG ASSEMBLY
EAU64283201 EAU64283201 MOTOR ASSEMBLY,DC,CLUTCH
AGB73672403 AGB73672403 NOZZLE ASSEMBLY
FAD33190601 FAD33190601 NUT,COMMON
4020FA4208J 4020FA4208J NUT,COMMON
AGZ72909711 AGZ72909711 PULSATOR ASSEMBLY
AHA75673402 AHA75673402 PUMP ASSEMBLY,DRAIN

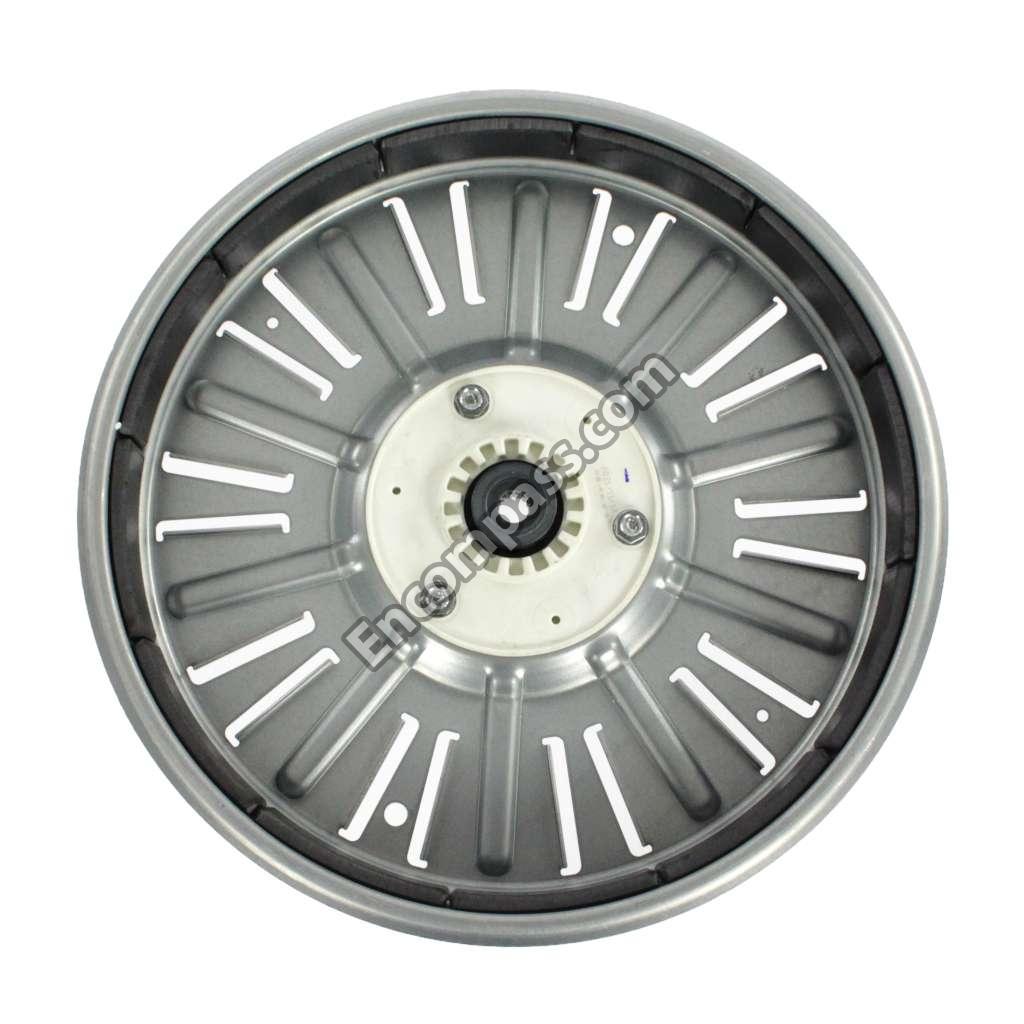

AHL73894503 AHL73894503 ROTOR ASSEMBLY
AHL76195103 AHL76195103 ROTOR ASSEMBLY,COMBINED
FAB30598601 FAB30598601 SCREW,CUSTOMIZED
4000FA4196Q 4000FA4196Q SCREW,CUSTOMIZED
1TTL0403384 1TTL0403384 SCREW,TAPPING
AJB73816015 AJB73816015 STATOR ASSEMBLY
AJB76315015 AJB76315015 STATOR ASSEMBLY,COMBINED
EBF61215202 EBF61215202 SWITCH ASSEMBLY,LOCKER
6501EA1001R 6501EA1001R SWITCH ASSEMBLY,SENSOR
AJQ73293815 AJQ73293815 TUB ASSEMBLY,INNER
AJU75152602 AJU75152602 VALVE ASSEMBLY,INLET
1WZZEA4002C 1WZZEA4002C WASHER,COMMON
4040FA4045C 4040FA4045C WASHER,COMMON
FAF30369201 FAF30369201 WASHER,COMMON
