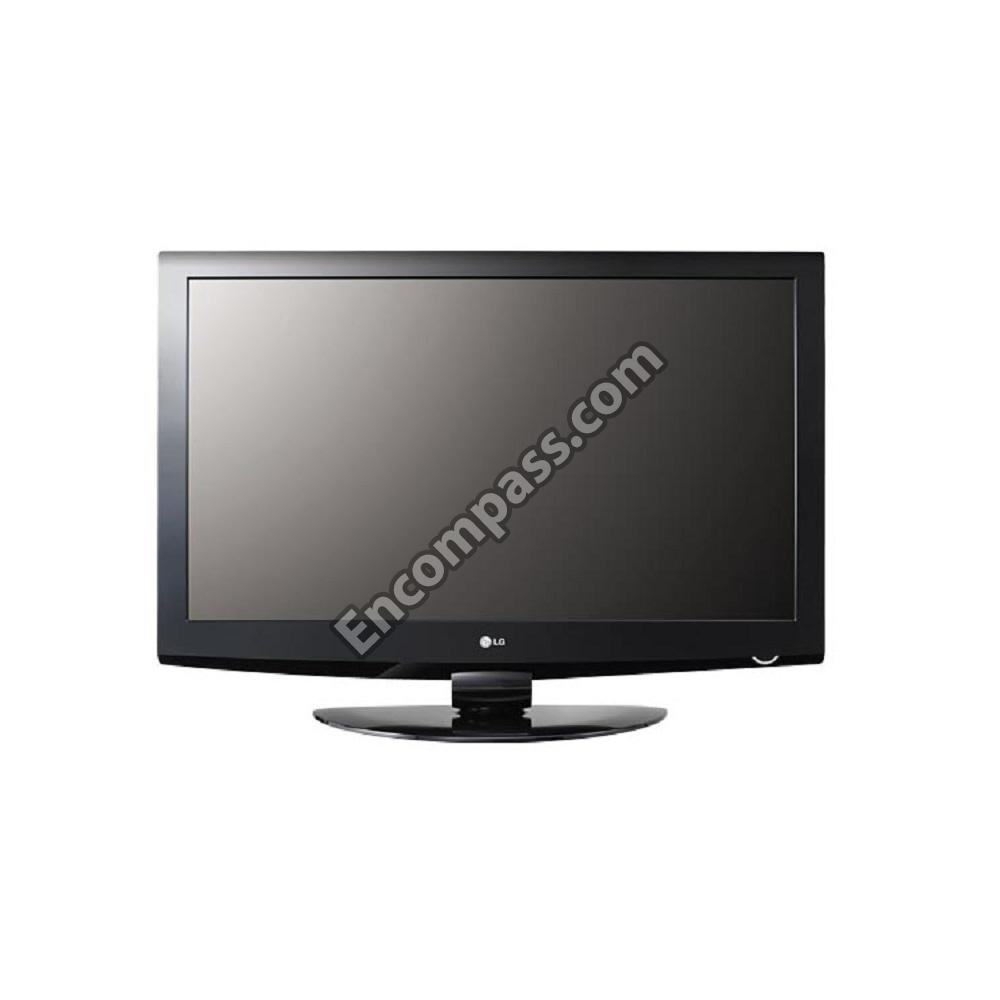

32LF11UA

Description

32lf11-ua

Interactive Exploded View

Parts List

Part Number	Description
AAN74592401	BASE ASSEMBLY [900]
EBU60680826	BPR TOTAL ASSEMBLY [540]
ABA35815716	BRACKET ASSEMBLY [122]
ABA72912705	BRACKET ASSEMBLY [521]
ABJ35835025	CABINET ASSEMBLY [300]
EAE36144701	CAPACITOR,AL,CHIP [C1013]
0CE476WF6DC	CAPACITOR,AL,CHIP [C1039]
0CH8106F691	CAPACITOR,AL,CHIP [C1208]
0CE106WFKDC	CAPACITOR,AL,CHIP [C600]
EAE60171701	CAPACITOR,AL,CHIP [C602]
0CE476WH6DC	CAPACITOR,AL,CHIP [C722]
0CK104CK56A	CAPACITOR,CERAMIC,CHIP [C1005]
0CC330CK41A	CAPACITOR,CERAMIC,CHIP [C1006]
0CK103BH56A	CAPACITOR,CERAMIC,CHIP [C1008]
0CK103CK56A	CAPACITOR,CERAMIC,CHIP [C1009]
EAE52158501	CAPACITOR,CERAMIC,CHIP [C1011]
0CK473CK56A	CAPACITOR,CERAMIC,CHIP [C1012]
0CC101CK41A	CAPACITOR,CERAMIC,CHIP [C1015]
EAE32166101	CAPACITOR,CERAMIC,CHIP [C101]
EAE32755801	CAPACITOR,CERAMIC,CHIP [C1023]
0CK334CF56A	CAPACITOR,CERAMIC,CHIP [C1036]
0CK102BK56A	CAPACITOR,CERAMIC,CHIP [C104]
0CC270CK41A	CAPACITOR,CERAMIC,CHIP [C1071]
0CK105CF94A	CAPACITOR,CERAMIC,CHIP [C1076]
0CK225DF56A	CAPACITOR,CERAMIC,CHIP [C1077]
0CC680CK41A	CAPACITOR,CERAMIC,CHIP [C110]
0CK101BK4EA	CAPACITOR,CERAMIC,CHIP [C1207]
0CK475DD57A	CAPACITOR,CERAMIC,CHIP [C120]
0CK106DC67A	CAPACITOR,CERAMIC,CHIP [C121]
0CC102CK41A	CAPACITOR,CERAMIC,CHIP [C1220]
0CC180BKFAA	CAPACITOR,CERAMIC,CHIP [C1222]
0CH2334F566	CAPACITOR,CERAMIC,CHIP [C1229]
0CK104CF56A	CAPACITOR,CERAMIC,CHIP [C1230]
0CC470CK41A	CAPACITOR,CERAMIC,CHIP [C1242]
0CK475EF56A	CAPACITOR,CERAMIC,CHIP [C133]
0CK225DD66A	CAPACITOR,CERAMIC,CHIP [C134]
0CK106EF56A	CAPACITOR,CERAMIC,CHIP [C13]
EAE33970001	CAPACITOR,CERAMIC,CHIP [C181]
EAE30281301	CAPACITOR,CERAMIC,CHIP [C186]
0CK104BF56A	CAPACITOR,CERAMIC,CHIP [C1]
0CK102CK56A	CAPACITOR,CERAMIC,CHIP [C606]
0CK223CK56A	CAPACITOR,CERAMIC,CHIP [C614]
0CK474EK66A	CAPACITOR,CERAMIC,CHIP [C633]
EAE50191801	CAPACITOR,CERAMIC,CHIP [C646]
0CK105DH56A	CAPACITOR,CERAMIC,CHIP [C706]
0CC150BK4AA	CAPACITOR,CERAMIC,CHIP [C711]
0CK105EJ56A	CAPACITOR,CERAMIC,CHIP [C723]
0CK104DK56A	CAPACITOR,CERAMIC,CHIP [C741]
0CN475FH67A	CAPACITOR,CERAMIC,CHIP [C743]
0CK106CC67A	CAPACITOR,CERAMIC,CHIP [C751]
EAE60365101	CAPACITOR,CERAMIC,CHIP [C800]
6630G00001C	CONNECTOR,DSUB [JK1201]
6630TGA004K	CONNECTOR,DSUB [JK1204]
EAG60692001	CONNECTOR,FFC/FPC/PIC [P800]
EAG31022001	CONNECTOR,USB [JK1203]
6630V90141B	CONNECTOR,WAFER [P101]
EAG58732904	CONNECTOR,WAFER [P1205]
6602T25009C	CONNECTOR,WAFER [P600]
EAG60670701	CONNECTOR,WAFER [P700]
ACQ35838752	COVER ASSEMBLY [400]
6212AB2872A	CRYSTAL [X1005]
6202VDT002A	CRYSTAL [X100]
0DSON00138A	DIODE,SCHOTTKY [D500]
0DSGD00038A	DIODE,SWITCHING [D1000]
0DSIH00028A	DIODE,SWITCHING [D102]
EAH39491601	DIODE,TVS [D1207]
EAH39491701	DIODE,TVS [D1220]
0DZ560009DA	DIODE,ZENER [D1238]
EAN60351601	DISPLAY SOC,DIGITAL TV [IC100]
0TFTH80001A	FET [IC503]
EBK32753101	FET [Q706]
EAM36140901	FILTER,AC LINE [550]
EAM44020101	FILTER,BEAD [L1005]
EAM42641602	FILTER,BEAD [L1010]
EAM38058401	FILTER,BEAD [L1012]
EAM38769501	FILTER,BEAD [L1202]
EAM32500203	FILTER,BEAD [L1]
0LCML00003B	FILTER,BEAD [L603]
EAM38769506	FILTER,BEAD [L701]
EAD60686101	HARNESS,SINGLE [C1]
6631900049N	HARNESS,SINGLE [C2]
EAD60673305	HARNESS,SINGLE [C3]
EAD60748701	HARNESS,SINGLE [C4]
EAD39295757	HARNESS,SINGLE [C5]
EAD52821202	HARNESS,SINGLE [C6]
EAD60679316	HARNESS,SINGLE [LV1]
EAN60664001	IC,AUDIO AMPLIFIER [IC600]
EAN42650901	IC,CMOS [IC1203]
EAN57653801	IC,DC,DC CONVERTER [IC704]
EAN55705501	IC,DDR2 SDRAM [IC1]
EAN43352801	IC,EEPROM [IC104]
0IMMRCS012C	IC,EEPROM [IC105]
0IMMRAL014D	IC,EEPROM [IC1200]
EAN35989901	IC,EEPROM [IC500]
0IPMGS1010A	IC,LDO VOLTAGE REGULATOR [IC1000]
0IPMGKE030A	IC,LDO VOLTAGE REGULATOR [IC1002]
EAN38975801	IC,LDO VOLTAGE REGULATOR [IC1003]
0IPMG00049A	IC,LDO VOLTAGE REGULATOR [IC601]
EAN54428601	IC,LDO VOLTAGE REGULATOR [IC702]
0IPMGA0010A	IC,LDO VOLTAGE REGULATOR [IC702]
EAN58270401	IC,RECEIVER [IC1004]
EAN43244901	IC,RESET [IC103]
EAN60670101	IC,RESET [IC107]
EAN41348201	IC,TX/RX [IC1201]
EAP39314714	INDUCTOR,MULTILAYER,CHIP [L1002]
EAP39314706	INDUCTOR,MULTILAYER,CHIP [L1004]
EAP38319001	INDUCTOR,WIRE WOUND,CHIP [L606]
EAP32842802	INDUCTOR,WIRE WOUND,CHIP [L710]
EAY60713901	INVERTER ASSEMBLY [200N]
EAG59952301	JACK,COMPLEX [JK1200]
EAG39789402	JACK,DIN [JK500]
6612B00015D	JACK,DIN [JK500]
EAG42463001	JACK,DIN [JK502]
EAG37842001	JACK,FIBER OPTIC [JK601]
6612F00099A	JACK,PHONE [JK1205]
EAG42205801	JACK,RCA [JK1202]
CRD30299701	LCD,MODULE-TFT [200]
0DL210009GC	LED,CHIP [LD1000]
EBR59953703	PCB ASSEMBLY [510]
EBR63036201	PCB ASSEMBLY,FRONT [500]
MGJ40619001	PLATE [803]
MGJ40618707	PLATE [804]
MGJ40315506	PLATE [821]
MGJ40618307	PLATE,METAL [802]
MGJ40620501	PLATE,METAL [805]
6410TUW008A	POWER CORD [A3]
AKB74115501	REMOTE CONTROLLER ASSEMBLY [A2]
0RR0222T621	RESISTOR,ARRAY [AR100]
0RJ0222C692	RESISTOR,ARRAY [AR104]
EBC32260601	RESISTOR,ARRAY [AR1070]
EBC39283301	RESISTOR,ARRAY [AR1]
0RH0000D622	RESISTOR,CHIP [L1013]
0RJ0000D677	RESISTOR,CHIP [R1003]
0RJ1202D677	RESISTOR,CHIP [R1007]
0RJ1002D677	RESISTOR,CHIP [R1008]
0RJ4700D677	RESISTOR,CHIP [R1010]
0RJ2002D477	RESISTOR,CHIP [R1011]
0RJ1002D477	RESISTOR,CHIP [R1012]
0RJ2700D677	RESISTOR,CHIP [R1019]
0RJ0000C678	RESISTOR,CHIP [R101]
0RJ1002E472	RESISTOR,CHIP [R101]
0RJ0222D677	RESISTOR,CHIP [R1022]
0RJ0000G676	RESISTOR,CHIP [R1034]
0RJ2002D677	RESISTOR,CHIP [R1036]
0RJ1002C678	RESISTOR,CHIP [R103]
0RH1801D422	RESISTOR,CHIP [R103]
0RJ0332C678	RESISTOR,CHIP [R104]
0RH2700D622	RESISTOR,CHIP [R104]
0RJ4701C678	RESISTOR,CHIP [R105]
0RJ1001D677	RESISTOR,CHIP [R1060]
0RJ1000D477	RESISTOR,CHIP [R1061]
0RJ1000D677	RESISTOR,CHIP [R1064]
0RJ1004D677	RESISTOR,CHIP [R1072]
0RJ4702D677	RESISTOR,CHIP [R1074]
0RJ0562C478	RESISTOR,CHIP [R10]
0RJ1000C678	RESISTOR,CHIP [R110]
0RJ0472C678	RESISTOR,CHIP [R114]
0RJ1000C478	RESISTOR,CHIP [R1200]
0RJ4703D677	RESISTOR,CHIP [R1206]
0RJ0752D477	RESISTOR,CHIP [R1215]
0RJ5102D677	RESISTOR,CHIP [R1221]
0RJ0752D677	RESISTOR,CHIP [R1238]
0RJ4700C678	RESISTOR,CHIP [R123]
0RJ3301D677	RESISTOR,CHIP [R1274]
0RJ2200D677	RESISTOR,CHIP [R1299]
0RJ3301C678	RESISTOR,CHIP [R131]
0RJ2200C678	RESISTOR,CHIP [R144]
0RJ0222C678	RESISTOR,CHIP [R146]
0RJ1001C678	RESISTOR,CHIP [R150]
0RJ3900E472	RESISTOR,CHIP [R152]
0RJ3901C678	RESISTOR,CHIP [R158]
0RJ1201C678	RESISTOR,CHIP [R185]
0RJ3002D477	RESISTOR,CHIP [R2216]
0RJ5111D477	RESISTOR,CHIP [R2217]
0RJ1001E478	RESISTOR,CHIP [R23]
0RJ1004C478	RESISTOR,CHIP [R252]
0RJ0332C478	RESISTOR,CHIP [R31]
0RJ8200D677	RESISTOR,CHIP [R501]
0RJ6802C678	RESISTOR,CHIP [R528]
0RJ9101D677	RESISTOR,CHIP [R551]
0RJ0561D677	RESISTOR,CHIP [R613]
0RJ0331D677	RESISTOR,CHIP [R621]
EBC32476501	RESISTOR,CHIP [R625]
0RJ0222D477	RESISTOR,CHIP [R641]
0RJ1202D477	RESISTOR,CHIP [R711]
0RJ9101D477	RESISTOR,CHIP [R713]
0RJ7502E472	RESISTOR,CHIP [R722]
0RH2202D422	RESISTOR,CHIP [R723]
0RJ0102D477	RESISTOR,CHIP [R724]
0RJ5600D677	RESISTOR,CHIP [R730]
0RJ2202D677	RESISTOR,CHIP [R732]
0RJ2402E472	RESISTOR,CHIP [R736]
0RJ0102D677	RESISTOR,CHIP [R737]
0RJ4702D477	RESISTOR,CHIP [R739]
0RJ8202D677	RESISTOR,CHIP [R741]
0RJ1802D477	RESISTOR,CHIP [R769]
0RJ5602D477	RESISTOR,CHIP [R770]
SAA34081306	S/W,FIRMWARE [IC101]
FAB30016415	SCREW ASSEMBLY [A10]

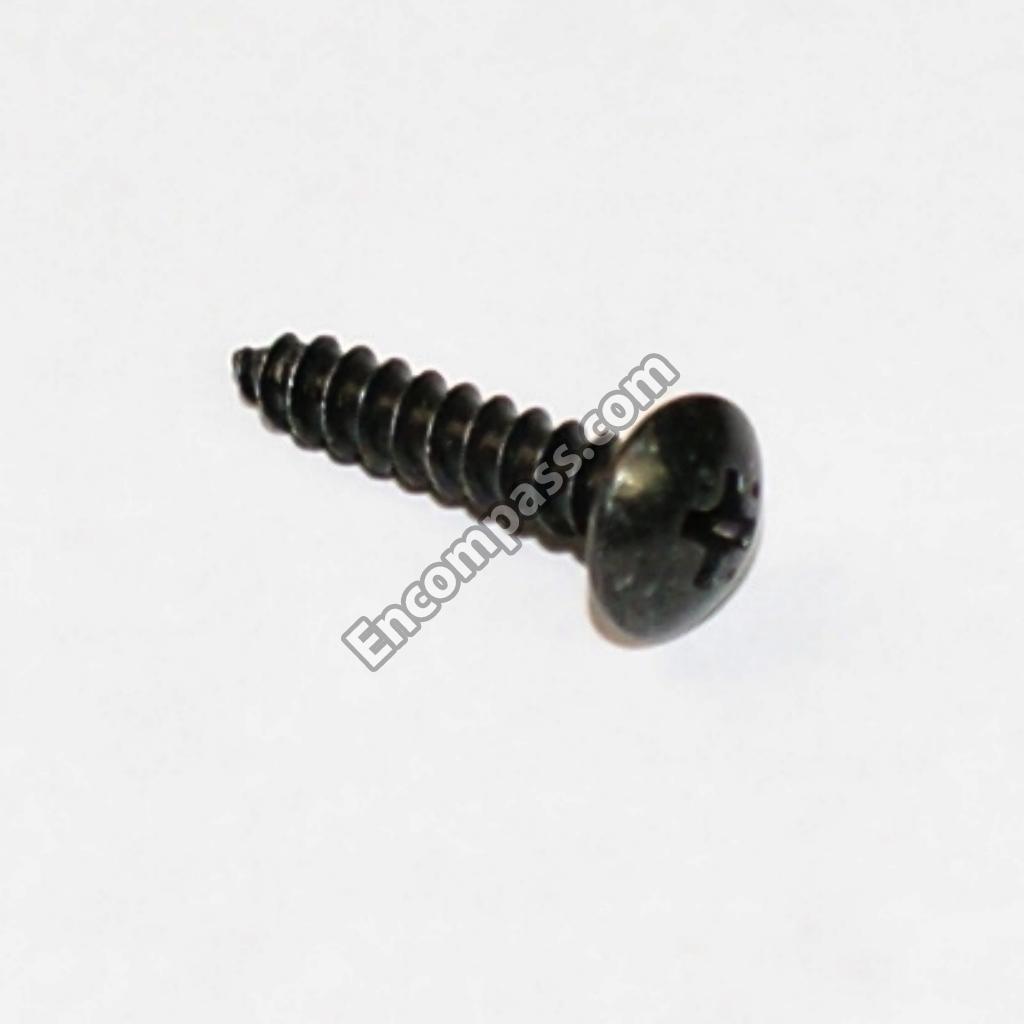

FAB30021301	SCREW,TAPPING [A8]
CRB30867101	SMPS,AC/DC [530]
EAB41280202	SPEAKER,FULL RANGE [120]
MJH40621401	SUPPORTER [800]
MJH40619101	SUPPORTER [801]
MJH55509402	SUPPORTER [910]
6600R00004C	SWITCH,TACT [SW100]
140-313B	SWITCH,TACT [SW101]
EAT60666401	TIME CONTROL [200T]
EBK58172301	TR,BIPOLAR [Q1000]
0TR103009AG	TR,BIPOLAR [Q100]
0TRIY80001A	TR,BIPOLAR [Q107]
0TRIH80004A	TR,BIPOLAR [Q701]
EBL60152902	TUNER,ANALOG/DIGITAL [TU1001]
6102W5V016A	VARISTOR [VR509]
