Model Image
Manufacturer

LG

Model Number

37LH260HUB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AAN67805602 AAN67805602 BASE ASSEMBLY
ABA69568734 ABA69568734 BRACKET ASSEMBLY
ABJ65853911 ABJ65853911 CABINET ASSEMBLY
68509A0004T 68509A0004T CABLE,ASSEMBLY
68509A0004Z 68509A0004Z CABLE,ASSEMBLY
0CE227WF6DC 0CE227WF6DC CAPACITOR,AL,CHIP
0CE476SF6DC 0CE476SF6DC CAPACITOR,AL,CHIP
EAE36144701 EAE36144701 CAPACITOR,AL,CHIP
EAE32246001 EAE32246001 CAPACITOR,CERAMIC,CHIP
0CK106CC67A 0CK106CC67A CAPACITOR,CERAMIC,CHIP
0CK105DH56A 0CK105DH56A CAPACITOR,CERAMIC,CHIP
0CN475FH67A 0CN475FH67A CAPACITOR,CERAMIC,CHIP
0CK104DK56A 0CK104DK56A CAPACITOR,CERAMIC,CHIP
EAE50191801 EAE50191801 CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
EAE58111001 EAE58111001 CAPACITOR,CERAMIC,CHIP
0CK474EK66A 0CK474EK66A CAPACITOR,CERAMIC,CHIP
0CK225DF56A 0CK225DF56A CAPACITOR,CERAMIC,CHIP
0CC561CK41A 0CC561CK41A CAPACITOR,CERAMIC,CHIP
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP
EAE31992101 EAE31992101 CAPACITOR,CERAMIC,CHIP
0CK476FD67A 0CK476FD67A CAPACITOR,CERAMIC,CHIP
0CK105EK56A 0CK105EK56A CAPACITOR,CERAMIC,CHIP
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP
0CK224DH56A 0CK224DH56A CAPACITOR,CERAMIC,CHIP
0CK104CF56A 0CK104CF56A CAPACITOR,CERAMIC,CHIP
0CK471CK56A 0CK471CK56A CAPACITOR,CERAMIC,CHIP
EAE60365101 EAE60365101 CAPACITOR,CERAMIC,CHIP
EAE30281301 EAE30281301 CAPACITOR,CERAMIC,CHIP
EAE33970001 EAE33970001 CAPACITOR,CERAMIC,CHIP
0CK225DD66A 0CK225DD66A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
0CC470CK41A 0CC470CK41A CAPACITOR,CERAMIC,CHIP
0CK106DC67A 0CK106DC67A CAPACITOR,CERAMIC,CHIP
0CK475DD57A 0CK475DD57A CAPACITOR,CERAMIC,CHIP
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CK105CF94A 0CK105CF94A CAPACITOR,CERAMIC,CHIP
0CC270CK41A 0CC270CK41A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
0CH5221K416 0CH5221K416 CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
0CK103BH56A 0CK103BH56A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CS335EFKDC 0CS335EFKDC CAPACITOR,TA,NIOBIUM
EAG60981201 EAG60981201 CONNECTOR,BTOB
EAG61233701 EAG61233701 CONNECTOR,BTOB
EAG61233801 EAG61233801 CONNECTOR,BTOB
6630G00001C 6630G00001C CONNECTOR,DSUB
6630TGA004P 6630TGA004P CONNECTOR,DSUB
6630TGA004K 6630TGA004K CONNECTOR,DSUB
EAG60692001 EAG60692001 CONNECTOR,FFC/FPC/PIC
EAG41945401 EAG41945401 CONNECTOR,USB
EAG60670701 EAG60670701 CONNECTOR,WAFER
6602T25009C 6602T25009C CONNECTOR,WAFER
6602T20008C 6602T20008C CONNECTOR,WAFER
EAG58732903 EAG58732903 CONNECTOR,WAFER
6630VF03415 6630VF03415 CONNECTOR,WAFER
366-932E 366-932E CONNECTOR,WAFER
6602T20008K 6602T20008K CONNECTOR,WAFER
EAG58732902 EAG58732902 CONNECTOR,WAFER
366-921K 366-921K CONNECTOR,WAFER
MCK54408002 MCK54408002 COVER
ACQ65854258 ACQ65854258 COVER ASSEMBLY,REAR
6212AB2872A 6212AB2872A CRYSTAL
0DSIH00028A 0DSIH00028A DIODE,SWITCHING
0DRSE00038A 0DRSE00038A DIODE,TVS
EAH39491701 EAH39491701 DIODE,TVS
EAH39491601 EAH39491601 DIODE,TVS
0DZ560009DA 0DZ560009DA DIODE,ZENER
0DZRM00178A 0DZRM00178A DIODE,ZENER
EBK60752601 EBK60752601 FET
0TR830009BA 0TR830009BA FET
EAM60352206 EAM60352206 FILTER,AC LINE
EAM38769506 EAM38769506 FILTER,BEAD
EAM38769505 EAM38769505 FILTER,BEAD
0LCML00003B 0LCML00003B FILTER,BEAD
EAM38769501 EAM38769501 FILTER,BEAD
EAM44020101 EAM44020101 FILTER,BEAD
EAM38058401 EAM38058401 FILTER,BEAD
EAM42641602 EAM42641602 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
EAD60956362 EAD60956362 HARNESS,SINGLE
6631T20020Q 6631T20020Q HARNESS,SINGLE
EAD39295756 EAD39295756 HARNESS,SINGLE
EAD35983004 EAD35983004 HARNESS,SINGLE
EAD60676304 EAD60676304 HARNESS,SINGLE
EAD60673302 EAD60673302 HARNESS,SINGLE
EAN43439401 EAN43439401 IC,ANALOG SWITCH
0ISTL00024A 0ISTL00024A IC,CMOS
EAN55705501 EAN55705501 IC,DDR2 SDRAM
EAN55706101 EAN55706101 IC,DDR2 SDRAM
EAN35989901 EAN35989901 IC,EEPROM
0IMMRCS012C 0IMMRCS012C IC,EEPROM
0IMMRRA001A 0IMMRRA001A IC,FRAM
0IPMG00049A 0IPMG00049A IC,LDO VOLTAGE REGULATOR
EAN38975801 EAN38975801 IC,LDO VOLTAGE REGULATOR
0IPMGKE030A 0IPMGKE030A IC,LDO VOLTAGE REGULATOR
0IMCR02109D 0IMCR02109D IC,MICROPROCESSORS
EAN38563401 EAN38563401 IC,NAND FLASH MEMORY
EAN38068401 EAN38068401 IC,PLD
EAN39050401 EAN39050401 IC,SERIAL FLASH MEMORY
0IMCRSG010A 0IMCRSG010A IC,TRANSCEIVER
EAP57674101 EAP57674101 INDUCTOR,MULTILAYER,CHIP
EAP40283004 EAP40283004 INDUCTOR,MULTILAYER,CHIP
EAG59952301 EAG59952301 JACK,COMPLEX
6612E00008C 6612E00008C JACK,MODULAR
6612E00043A 6612E00043A JACK,MODULAR
6612E00008A 6612E00008A JACK,MODULAR
6612F00099A 6612F00099A JACK,PHONE
EAG42205801 EAG42205801 JACK,RCA
CRD30484601 CRD30484601 LCD,MODULE-TFT
EAV44273501 EAV44273501 LED,CHIP
0DL210009GC 0DL210009GC LED,CHIP
6204B62704A 6204B62704A OSCILLATOR,CRYSTAL
6204B62705A 6204B62705A OSCILLATOR,CRYSTAL
AGF73983404 AGF73983404 PACKAGE ASSEMBLY
AGF73983605 AGF73983605 PACKAGE ASSEMBLY
AGF73983705 AGF73983705 PACKAGE ASSEMBLY
EBU60696317 EBU60696317 PCB ASSEMBLY
EAD60817903 EAD60817903 POWER CORD
EAV59155102 EAV59155102 RECEIVER MODULE
AKB74115501 AKB74115501 REMOTE CONTROLLER ASSEMBLY
EBC32260601 EBC32260601 RESISTOR,ARRAY
0RR0222T621 0RR0222T621 RESISTOR,ARRAY
EBC39283301 EBC39283301 RESISTOR,ARRAY
0RJ2402E472 0RJ2402E472 RESISTOR,CHIP
0RJ5600D677 0RJ5600D677 RESISTOR,CHIP
0RJ0102D477 0RJ0102D477 RESISTOR,CHIP
0RH2202D422 0RH2202D422 RESISTOR,CHIP
0RJ1202D477 0RJ1202D477 RESISTOR,CHIP
0RJ0331D677 0RJ0331D677 RESISTOR,CHIP
0RJ0561D677 0RJ0561D677 RESISTOR,CHIP
0RJ3002D477 0RJ3002D477 RESISTOR,CHIP
0RJ1003D477 0RJ1003D477 RESISTOR,CHIP
0RJ8202D677 0RJ8202D677 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ4702D477 0RJ4702D477 RESISTOR,CHIP
0RJ1102D677 0RJ1102D677 RESISTOR,CHIP
0RJ2000D677 0RJ2000D677 RESISTOR,CHIP
0RJ2702D477 0RJ2702D477 RESISTOR,CHIP
0RJ4701D477 0RJ4701D477 RESISTOR,CHIP
0RJ1201D677 0RJ1201D677 RESISTOR,CHIP
0RJ3301D677 0RJ3301D677 RESISTOR,CHIP
0RJ7501D677 0RJ7501D677 RESISTOR,CHIP
EBC60973201 EBC60973201 RESISTOR,CHIP
0RJ0472D677 0RJ0472D677 RESISTOR,CHIP
0RJ1800D677 0RJ1800D677 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ5101D677 0RJ5101D677 RESISTOR,CHIP
0RJ2001D677 0RJ2001D677 RESISTOR,CHIP
0RJ8201D677 0RJ8201D677 RESISTOR,CHIP
0RJ3002D677 0RJ3002D677 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ2201D677 0RJ2201D677 RESISTOR,CHIP
0RJ3900D677 0RJ3900D677 RESISTOR,CHIP
0RJ3001D677 0RJ3001D677 RESISTOR,CHIP
0RJ5601D477 0RJ5601D477 RESISTOR,CHIP
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP
0RJ1000D677 0RJ1000D677 RESISTOR,CHIP
0RJ3300D677 0RJ3300D677 RESISTOR,CHIP
0RJ0332D677 0RJ0332D677 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP
0RJ3900E472 0RJ3900E472 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ0222D677 0RJ0222D677 RESISTOR,CHIP
0RJ0752D677 0RJ0752D677 RESISTOR,CHIP
0RJ4703D677 0RJ4703D677 RESISTOR,CHIP
0RH3301D622 0RH3301D622 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RH2202D622 0RH2202D622 RESISTOR,CHIP
0RJ4702D677 0RJ4702D677 RESISTOR,CHIP
0RJ1004D677 0RJ1004D677 RESISTOR,CHIP
0RH1002D622 0RH1002D622 RESISTOR,CHIP
0RH1004D622 0RH1004D622 RESISTOR,CHIP
0RH2200D622 0RH2200D622 RESISTOR,CHIP
0RJ2002D677 0RJ2002D677 RESISTOR,CHIP
0RH4700D622 0RH4700D622 RESISTOR,CHIP
0RJ2700D677 0RJ2700D677 RESISTOR,CHIP
0RJ2002D477 0RJ2002D477 RESISTOR,CHIP
0RH4701D622 0RH4701D622 RESISTOR,CHIP
0RJ1202D677 0RJ1202D677 RESISTOR,CHIP
0RH4703D622 0RH4703D622 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
FAB30016431 FAB30016431 SCREW ASSEMBLY
EAY60991101 EAY60991101 SMPS,AC/DC

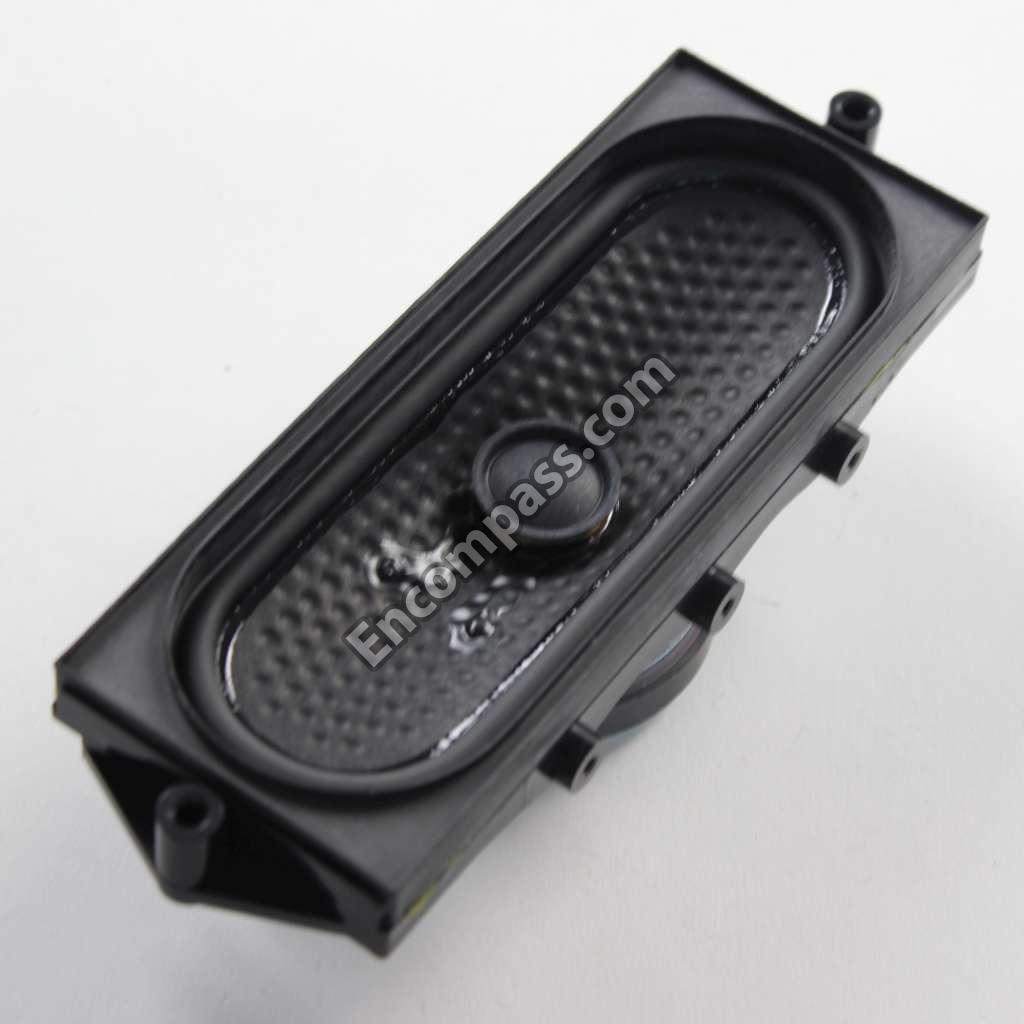

EAB58304304 EAB58304304 SPEAKER,FULL RANGE
MJH56736710 MJH56736710 SUPPORTER
MJH55846801 MJH55846801 SUPPORTER
MJH55846708 MJH55846708 SUPPORTER
MJH55846601 MJH55846601 SUPPORTER
MJH55846509 MJH55846509 SUPPORTER
MJH59708302 MJH59708302 SUPPORTER
6600VR1004A 6600VR1004A SWITCH,TACT
140-313B 140-313B SWITCH,TACT
6600R00004C 6600R00004C SWITCH,TACT
0TRIH80004A 0TRIH80004A TR,BIPOLAR
0TR102009AG 0TR102009AG TR,BIPOLAR
0TRIH80002A 0TRIH80002A TR,BIPOLAR
0TRIY80001A 0TRIY80001A TR,BIPOLAR
EBK58172301 EBK58172301 TR,BIPOLAR
EBL60152905 EBL60152905 TUNER,ANALOG/DIGITAL
EBL60659401 EBL60659401 TUNER,RF MODULATOR
