Model Image
Manufacturer

LG

Model Number

43LW540SUA

Description

43-inch Full Hd Direct Led-backlit Lcd Commercial

Interactive Exploded View

Parts List

Part Number Description
AAN75669734 AAN75669734 BASE ASSEMBLY
AAN75669714 AAN75669714 BASE ASSEMBLY
AAN75669733 AAN75669733 BASE ASSEMBLY
AAN75669713 AAN75669713 BASE ASSEMBLY
MAY67414602 MAY67414602 BOX
ABA75770138 ABA75770138 BRACKET ASSEMBLY
EAD63265811 EAD63265811 CABLE,FFC
EAE61423901 EAE61423901 CAPACITOR,AL,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP
0CK471BK56A 0CK471BK56A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
EAE62303301 EAE62303301 CAPACITOR,CERAMIC,CHIP
0CH1224K512 0CH1224K512 CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
0CC3R3BKFBA 0CC3R3BKFBA CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
EAE62771201 EAE62771201 CAPACITOR,CERAMIC,CHIP
0CK224DK56A 0CK224DK56A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
EAE32246001 EAE32246001 CAPACITOR,CERAMIC,CHIP
EAE62281601 EAE62281601 CAPACITOR,CERAMIC,CHIP
0CK475DD56A 0CK475DD56A CAPACITOR,CERAMIC,CHIP
0CK105CD56A 0CK105CD56A CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
ECZH0001215 ECZH0001215 CAPACITOR,CERAMIC,CHIP
EAE31992101 EAE31992101 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
0CC270BK61A 0CC270BK61A CAPACITOR,CERAMIC,CHIP
EAE31360401 EAE31360401 CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP
EBT64315601 EBT64315601 CHASSIS ASSEMBLY
6630TGA004Q 6630TGA004Q CONNECTOR,DSUB
6630G00001E 6630G00001E CONNECTOR,DSUB
EAG64329801 EAG64329801 CONNECTOR,FFC/FPC/PIC
EAG63530103 EAG63530103 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
EAG61091602 EAG61091602 CONNECTOR,WAFER
6630V90141F 6630V90141F CONNECTOR,WAFER
EAG63590906 EAG63590906 CONNECTOR,WAFER
ACQ88452966 ACQ88452966 COVER ASSEMBLY,REAR
ACQ88416659 ACQ88416659 COVER ASSEMBLY,REAR
EAW58239602 EAW58239602 CRYSTAL
6202TST001E 6202TST001E CRYSTAL
EAH61714301 EAH61714301 DIODE,SWITCHING
EAH60666101 EAH60666101 DIODE,SWITCHING
EAH61872501 EAH61872501 DIODE,TVS
0DZKE00138A 0DZKE00138A DIODE,ZENER
EAN62929402 EAN62929402 DISPLAY SOC,MONITOR
EBK61913702 EBK61913702 FET
EAM62091201 EAM62091201 FILTER,BEAD
0LCML00003B 0LCML00003B FILTER,BEAD
EAM54407902 EAM54407902 FILTER,BEAD
EAM38769505 EAM38769505 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
EAD63266902 EAD63266902 HARNESS,MULTI
EAD62526505 EAD62526505 HARNESS,SINGLE
EAD63245304 EAD63245304 HARNESS,SINGLE
MEG41035801 MEG41035801 HOLDER
EAN62886103 EAN62886103 IC,AUDIO AMPLIFIER
EAN63548102 EAN63548102 IC,AUDIO AMPLIFIER
EAN63530101 EAN63530101 IC,DC,DC CONVERTER
EAN63530601 EAN63530601 IC,DC,DC CONVERTER
EAN64086801 EAN64086801 IC,DDR3 SDRAM
EAN61133501 EAN61133501 IC,EEPROM
EAN64109101 EAN64109101 IC,LDO VOLTAGE REGULATOR
EAN61950603 EAN61950603 IC,NAND FLASH MEMORY
EAN63127201 EAN63127201 IC,SERIAL FLASH MEMORY
EAN62693501 EAN62693501 IC,TIMER
EAN41348201 EAN41348201 IC,TX/RX
EAN63491301 EAN63491301 IC,VOLTAGE DETECTOR
EAP39314712 EAP39314712 INDUCTOR,MULTILAYER,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EAP63266601 EAP63266601 INDUCTOR,WIRE WOUND,CHIP
EAP62506403 EAP62506403 INDUCTOR,WIRE WOUND,CHIP
EAP61606601 EAP61606601 INDUCTOR,WIRE WOUND,CHIP
MEV65851201 MEV65851201 INSULATOR
EAG59023302 EAG59023302 JACK,DIN
EAG37842003 EAG37842003 JACK,FIBER OPTIC
EAG35781010 EAG35781010 JACK,MODULAR
EAG60841811 EAG60841811 JACK,PHONE
EAG60968213 EAG60968213 JACK,RCA
EAJ63728101 EAJ63728101 LCD,MODULE-TFT
EBR81960204 EBR81960204 PCB ASSEMBLY,SUB
EAD63505502 EAD63505502 POWER CORD
EAY64229501 EAY64229501 POWER SUPPLY ASSEMBLY
AGF76692632 AGF76692632 REMOTE CONTROL
EBC62582704 EBC62582704 RESISTOR,ARRAY
EBC62582706 EBC62582706 RESISTOR,ARRAY
0RJ0222C692 0RJ0222C692 RESISTOR,ARRAY
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
EBC32476501 EBC32476501 RESISTOR,CHIP
0RJ0511D677 0RJ0511D677 RESISTOR,CHIP
EBC35293401 EBC35293401 RESISTOR,CHIP
0RJ6801C478 0RJ6801C478 RESISTOR,CHIP
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP
ERHZ0000242 ERHZ0000242 RESISTOR,CHIP
0RJ2202C478 0RJ2202C478 RESISTOR,CHIP
0RJ1203C478 0RJ1203C478 RESISTOR,CHIP
0RJ3302C478 0RJ3302C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ5601C478 0RJ5601C478 RESISTOR,CHIP
0RJ1402C478 0RJ1402C478 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ2002C678 0RJ2002C678 RESISTOR,CHIP
0RJ3902C478 0RJ3902C478 RESISTOR,CHIP
EBC30996801 EBC30996801 RESISTOR,CHIP
0RJ5101C478 0RJ5101C478 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
EBC34656201 EBC34656201 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1002E472 0RJ1002E472 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ2401C678 0RJ2401C678 RESISTOR,CHIP
0RJ0221C678 0RJ0221C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
EBC01890805 EBC01890805 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
EBC62798406 EBC62798406 RESISTOR,CHIP
FAB30021301 FAB30021301 SCREW,TAPTITE

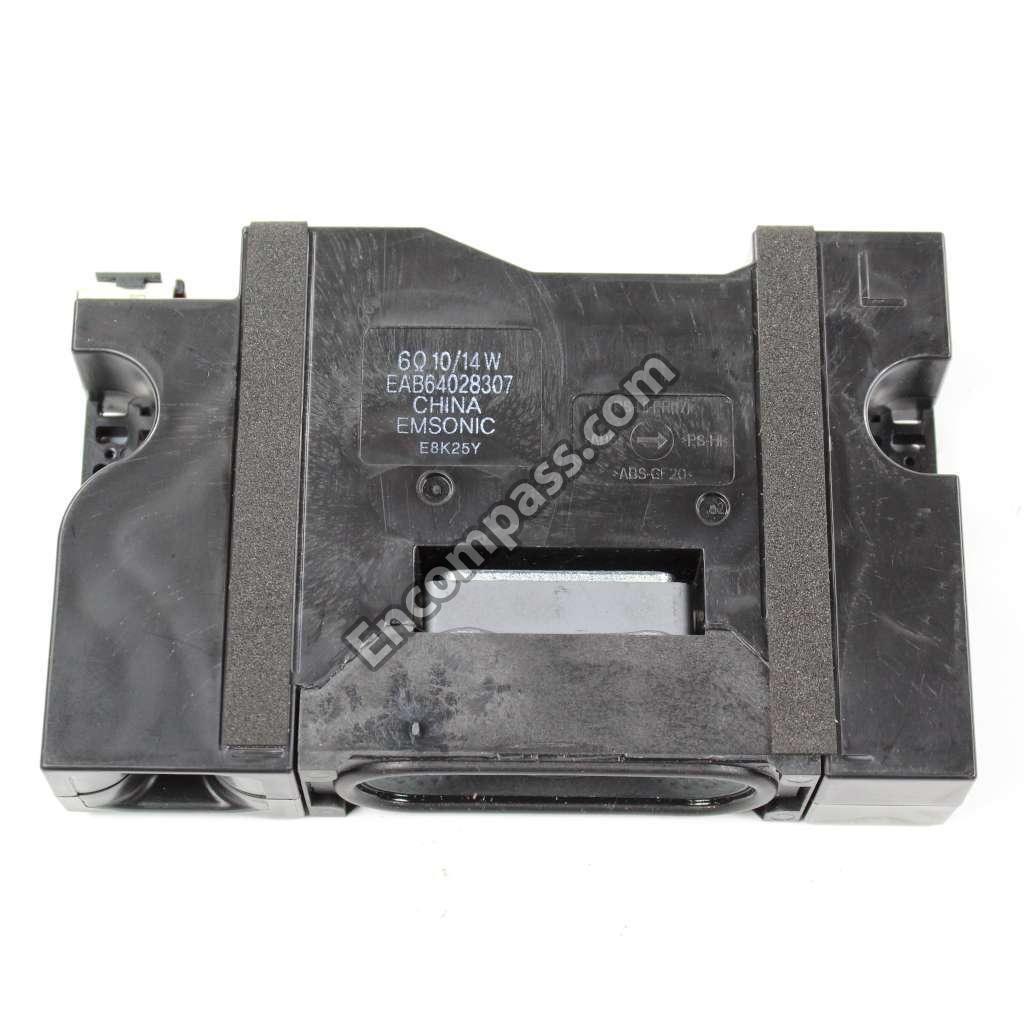

EAB64028307 EAB64028307 SPEAKER ASSEMBLY
EAB64028308 EAB64028308 SPEAKER ASSEMBLY
MJH64333102 MJH64333102 SUPPORTER,VESA
EAT63355601 EAT63355601 TIME CONTROL
0TR390609DC 0TR390609DC TR,BIPOLAR
0TRKE80046A 0TRKE80046A TR,BIPOLAR
EBL61740501 EBL61740501 TUNER,ANALOG/DIGITAL
EAF61530301 EAF61530301 VARISTOR
EAF61530102 EAF61530102 VARISTOR
