Model Image
Manufacturer

LG

Model Number

47VL10BAAG

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
ABJ33809129 ABJ33809129 CABINET ASSEMBLY
0CK105CF94A 0CK105CF94A CAPACITOR,CERAMIC,CHIP
6602T20008J 6602T20008J CONNECTOR,WAFER
6602T20008C 6602T20008C CONNECTOR,WAFER
6602T25008A 6602T25008A CONNECTOR,WAFER
ACQ33809528 ACQ33809528 COVER ASSEMBLY,REAR
0DS226009AA 0DS226009AA DIODE,SWITCHING
EAH39491601 EAH39491601 DIODE,TVS
EAH33945901 EAH33945901 DIODE,TVS
0DR050008AA 0DR050008AA DIODE,TVS
0DZ360009EB 0DZ360009EB DIODE,ZENER
EAH60270608 EAH60270608 DIODE,ZENER
0DZ560009DA 0DZ560009DA DIODE,ZENER
EBT61809305 EBT61809305 DMS CHASSIS ASSEMBLY
0TFIR80016B 0TFIR80016B FET,ARRAY
EAM44020101 EAM44020101 FILTER,BEAD
EAM38769507 EAM38769507 FILTER,BEAD
EAD37197602 EAD37197602 HARNESS,SINGLE
EAD40113906 EAD40113906 HARNESS,SINGLE
EAJ61088301 EAJ61088301 LCD,MODULE-TFT
EAV34876201 EAV34876201 LED,CHIP
0DLBE0048AA 0DLBE0048AA LED,CHIP
AGF76285203 AGF76285203 PACKAGE ASSEMBLY
MGJ61889604 MGJ61889604 PLATE,METAL
MGJ38657102 MGJ38657102 PLATE,METAL
MGJ38587602 MGJ38587602 PLATE,METAL
MGJ38587502 MGJ38587502 PLATE,METAL
MGJ61889608 MGJ61889608 PLATE,METAL
MGJ48937205 MGJ48937205 PLATE,METAL
MGJ32890007 MGJ32890007 PLATE,METAL
MGJ32897006 MGJ32897006 PLATE,METAL
MGJ32889805 MGJ32889805 PLATE,METAL
MGJ38586202 MGJ38586202 PLATE,METAL
MGJ38586104 MGJ38586104 PLATE,METAL
MGJ38586004 MGJ38586004 PLATE,METAL
MGJ38586502 MGJ38586502 PLATE,SHIELD
MGJ37885004 MGJ37885004 PLATE,SHIELD
EAD60810701 EAD60810701 POWER CORD
EAV37989901 EAV37989901 RECEIVER MODULE
AKB33871457 AKB33871457 REMOTE CONTROLLER ASSEMBLY
0RJ2000D677 0RJ2000D677 RESISTOR,CHIP
0RJ3300D677 0RJ3300D677 RESISTOR,CHIP
0RH0000D622 0RH0000D622 RESISTOR,CHIP
0RH1501D622 0RH1501D622 RESISTOR,CHIP
0RH4701D622 0RH4701D622 RESISTOR,CHIP
0RH1302D622 0RH1302D622 RESISTOR,CHIP
0RJ2001D677 0RJ2001D677 RESISTOR,CHIP
0RJ1000D677 0RJ1000D677 RESISTOR,CHIP
0RJ1001D677 0RJ1001D677 RESISTOR,CHIP

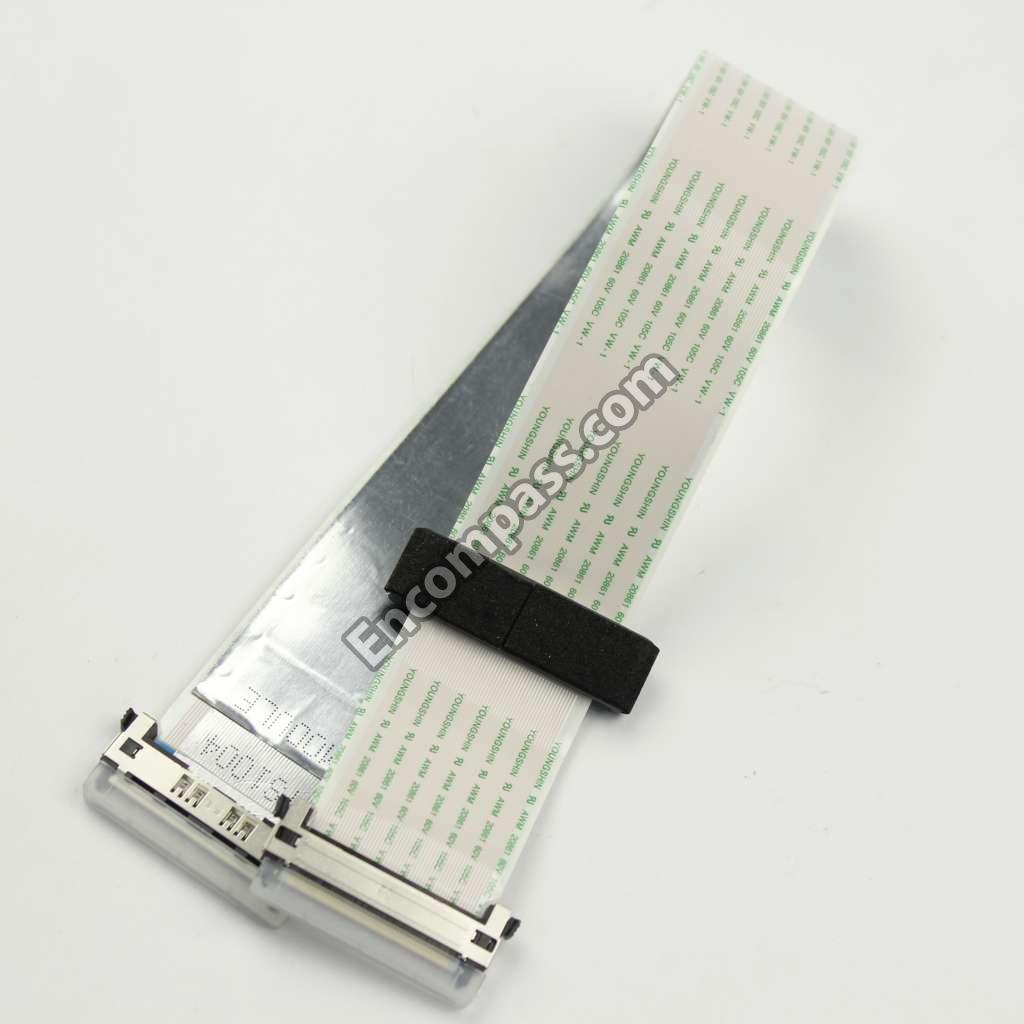

4812V00004D 4812V00004D RIBBON
EAY40505304 EAY40505304 SMPS,AC/DC
140-058E 140-058E SWITCH,TACT
0TR390609FA 0TR390609FA TR,BIPOLAR
0TR390609DC 0TR390609DC TR,BIPOLAR
