Model Image
Manufacturer

LG

Model Number

49UK6090PUA

Description

49-inch Smart Led 4k Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description

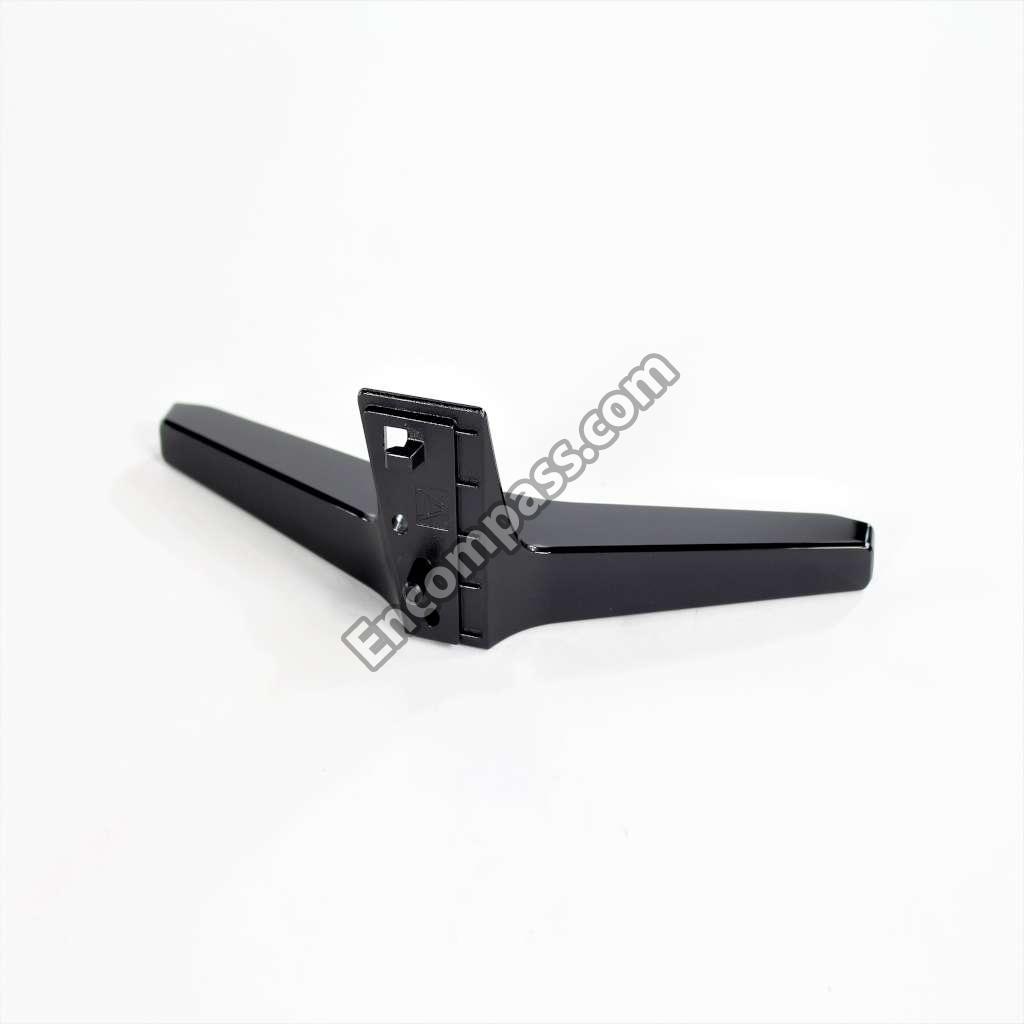

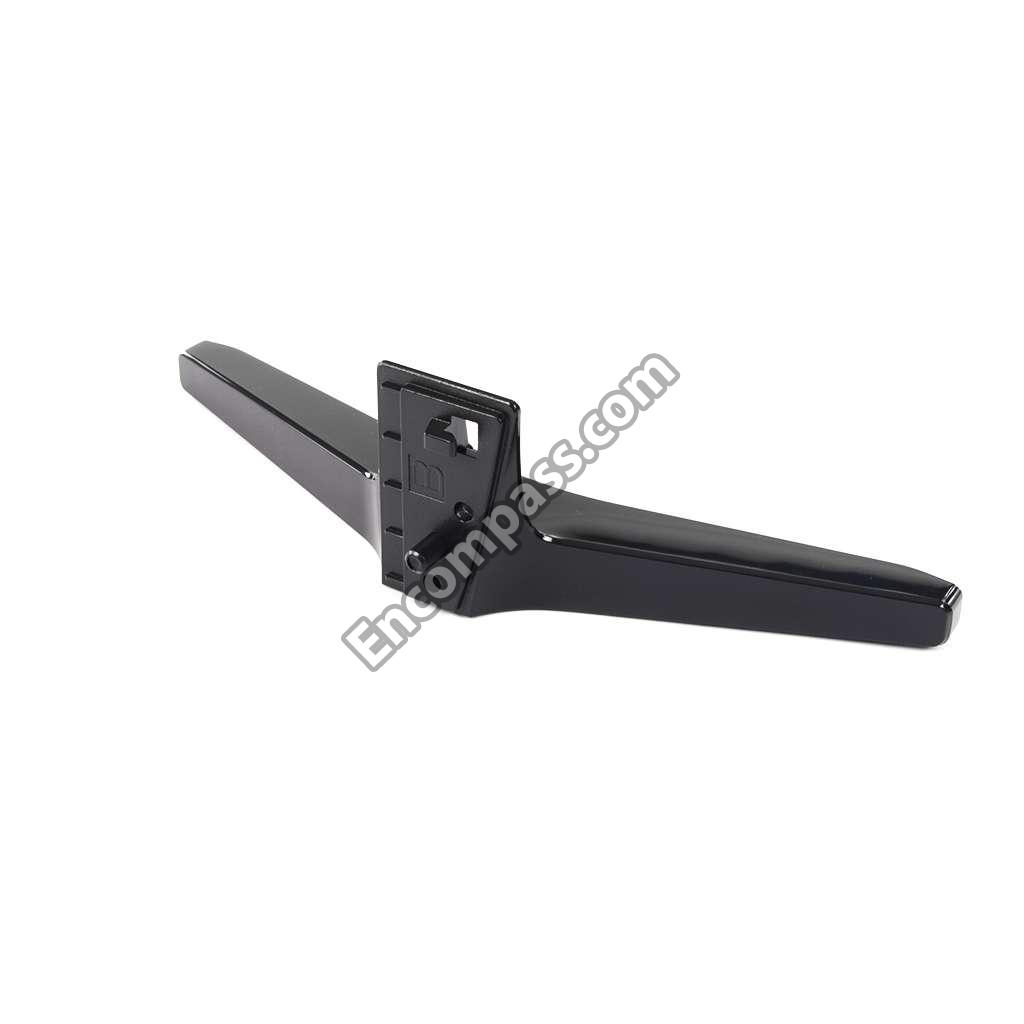

AAN75851267 AAN75851267 BASE ASSEMBLY
AAN75851255 AAN75851255 BASE ASSEMBLY
AAN75851256 AAN75851256 BASE ASSEMBLY
AAN75851268 AAN75851268 BASE ASSEMBLY
MAY68748501 MAY68748501 BOX
MAZ66165215 MAZ66165215 BRACKET
EAD64666101 EAD64666101 CABLE,FFC
EAD64666102 EAD64666102 CABLE,FFC
EBT65532904 EBT65532904 CHASSIS ASSEMBLY
ACQ90391207 ACQ90391207 COVER ASSEMBLY
ACQ90391356 ACQ90391356 COVER ASSEMBLY,REAR
ACQ90391382 ACQ90391382 COVER ASSEMBLY,REAR
EAD63727302 EAD63727302 HARNESS,MULTI
EAD64586003 EAD64586003 HARNESS,SINGLE
MEV66492401 MEV66492401 INSULATOR
EAJ64429902 EAJ64429902 LCD,MODULE-TFT
EAJ64409001 EAJ64409001 LCD,PANEL-TFT
AGF76631070 AGF76631070 PACKAGE ASSEMBLY
AGM76589501 AGM76589501 PARTS ASSEMBLY,SVC
EAD63505502 EAD63505502 POWER CORD
EAD64108402 EAD64108402 POWER CORD
EAY64511101 EAY64511101 POWER SUPPLY ASSEMBLY
FAB30006309 FAB30006309 SCREW,TAPTITE
EAB64028307 EAB64028307 SPEAKER ASSEMBLY
EAB64028308 EAB64028308 SPEAKER ASSEMBLY
MJH64333102 MJH64333102 SUPPORTER,VESA
