Model Image
Manufacturer

LG

Model Number

50PG20

Description

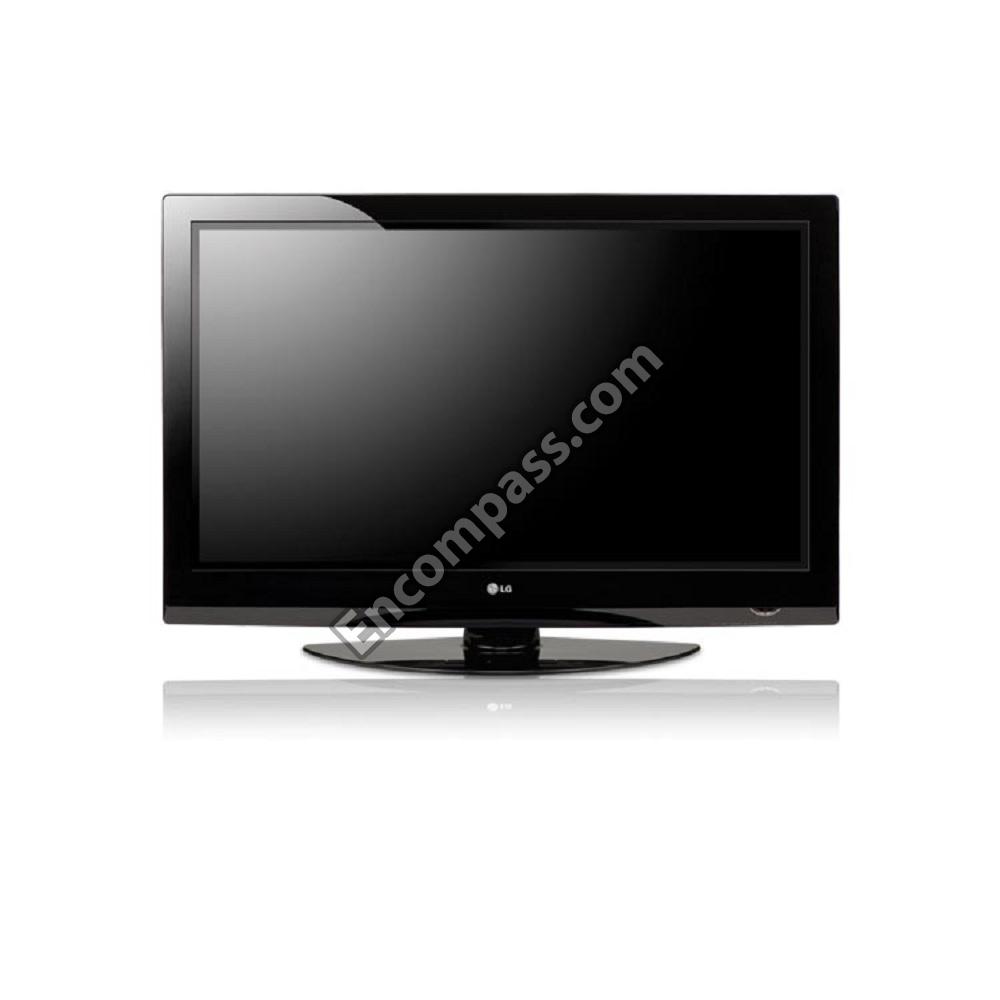

50 Class Plasma Hdtv (49.9-inch In Diagonal)

Interactive Exploded View

Parts List

Part Number Description
AAN74592601 AAN74592601 BASE ASSEMBLY [900]
ABA36825004 ABA36825004 BRACKET ASSEMBLY [301]
ABA36912801 ABA36912801 BRACKET ASSEMBLY [571]

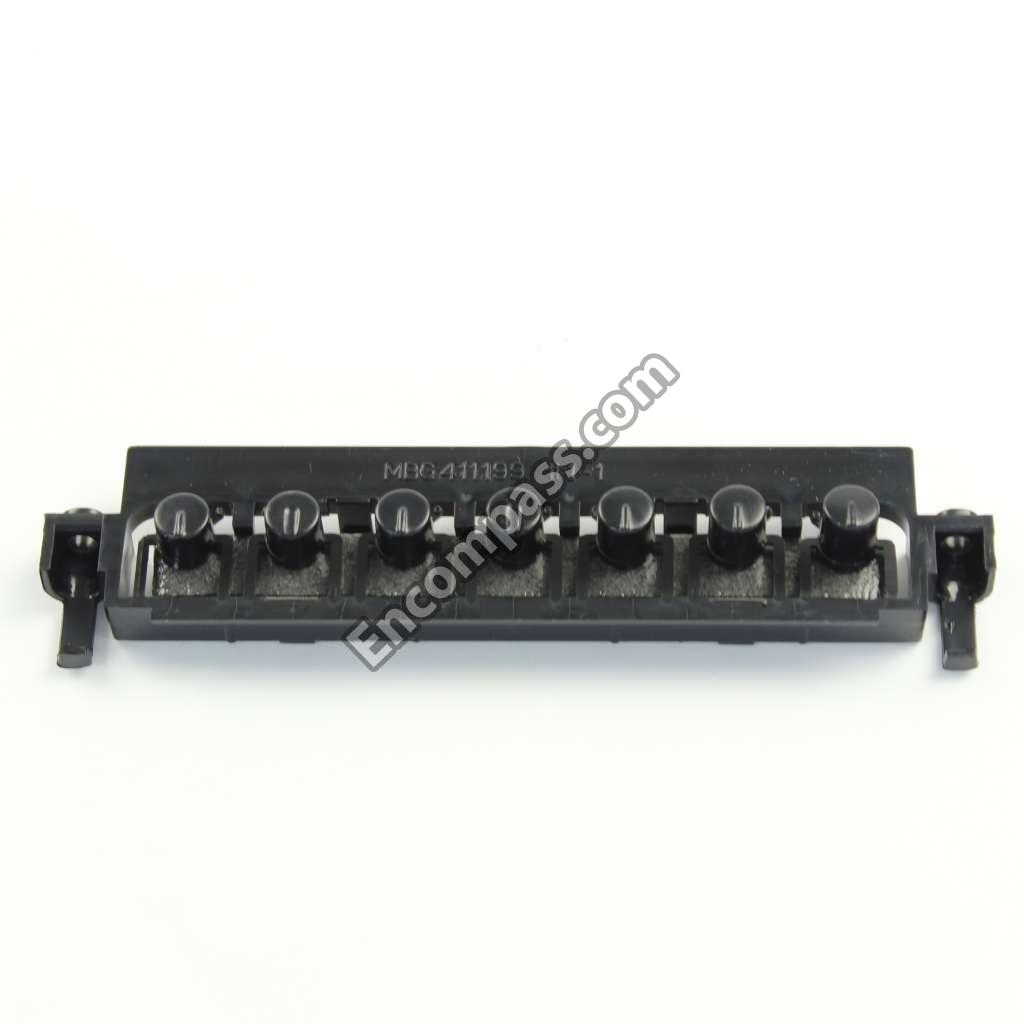

MBG41119901 MBG41119901 BUTTON,CONTROL [561]
ABJ35754705 ABJ35754705 CABINET ASSEMBLY [300]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY [A4]
0CE476SF6DC 0CE476SF6DC CAPACITOR,AL,CHIP [C103]
0CE336WD6D8 0CE336WD6D8 CAPACITOR,AL,CHIP [C402]
0CE106WFKDC 0CE106WFKDC CAPACITOR,AL,CHIP [C505]
0CE337WJ6D8 0CE337WJ6D8 CAPACITOR,AL,CHIP [C515]
0CE477WF6DC 0CE477WF6DC CAPACITOR,AL,CHIP [C726]
0CH8106F691 0CH8106F691 CAPACITOR,AL,CHIP [C805]
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP [C101]
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP [C102]
0CK225DFK4A 0CK225DFK4A CAPACITOR,CERAMIC,CHIP [C102]
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP [C106]
0CK475DD57A 0CK475DD57A CAPACITOR,CERAMIC,CHIP [C107]
0CK473CK56A 0CK473CK56A CAPACITOR,CERAMIC,CHIP [C109]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C121]
EAE32755801 EAE32755801 CAPACITOR,CERAMIC,CHIP [C131]
0CK105DH56A 0CK105DH56A CAPACITOR,CERAMIC,CHIP [C133]
0CK475EF67A 0CK475EF67A CAPACITOR,CERAMIC,CHIP [C134]
0CH3224K946 0CH3224K946 CAPACITOR,CERAMIC,CHIP [C142]
0CK226FF67A 0CK226FF67A CAPACITOR,CERAMIC,CHIP [C156]
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP [C301]
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP [C302]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C400]
0CC180CK41A 0CC180CK41A CAPACITOR,CERAMIC,CHIP [C403]
0CH5240K416 0CH5240K416 CAPACITOR,CERAMIC,CHIP [C406]
0CC270CK41A 0CC270CK41A CAPACITOR,CERAMIC,CHIP [C433]
0CK271CK46A 0CK271CK46A CAPACITOR,CERAMIC,CHIP [C442]
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP [C502]
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP [C504]
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP [C514]
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP [C548]
0CC471CK41A 0CC471CK41A CAPACITOR,CERAMIC,CHIP [C622]
0CH2334F566 0CH2334F566 CAPACITOR,CERAMIC,CHIP [C628]
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP [C630]
0CH5220K416 0CH5220K416 CAPACITOR,CERAMIC,CHIP [C633]
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP [C646]
0CK474CH94A 0CK474CH94A CAPACITOR,CERAMIC,CHIP [C701]
0CK104CF56A 0CK104CF56A CAPACITOR,CERAMIC,CHIP [C716]
0CK562CK56A 0CK562CK56A CAPACITOR,CERAMIC,CHIP [C720]
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP [C833]
0CC100CK41A 0CC100CK41A CAPACITOR,CERAMIC,CHIP [C942]
0CK225DK94A 0CK225DK94A CAPACITOR,CERAMIC,CHIP [C948]
6630TGA004K 6630TGA004K CONNECTOR,DSUB [JK607]
6630G00001C 6630G00001C CONNECTOR,DSUB [JK609]
EAG41945401 EAG41945401 CONNECTOR,USB [JK804]
6602T25009C 6602T25009C CONNECTOR,WAFER [JK501]
6602T12005L 6602T12005L CONNECTOR,WAFER [P101]
6602T20009C 6602T20009C CONNECTOR,WAFER [P101]
6602V12001C 6602V12001C CONNECTOR,WAFER [P102]
EAG42049601 EAG42049601 CONNECTOR,WAFER [P302]
6602T12004L 6602T12004L CONNECTOR,WAFER [P303]
EAG42057301 EAG42057301 CONNECTOR,WAFER [P701]
ACQ35758902 ACQ35758902 COVER ASSEMBLY,REAR [400]
MCK40421002 MCK40421002 COVER [A6]
MCK41119502 MCK41119502 COVER,REAR [401]
6202VDT002A 6202VDT002A CRYSTAL [X100]
6212AB2872A 6212AB2872A CRYSTAL [X400]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D100]
0DSON00138A 0DSON00138A DIODE,SCHOTTKY [D801]
0DSGD00038A 0DSGD00038A DIODE,SWITCHING [D401]
EAH33945901 EAH33945901 DIODE,TVS [D626]
0DRSE00038A 0DRSE00038A DIODE,TVS [D633]
0DZ560009DA 0DZ560009DA DIODE,ZENER [ZD2]
0TFVI80067A 0TFVI80067A FET [Q706]
0TR830009BA 0TR830009BA FET [Q801]
0TFDI80001B 0TFDI80001B FET [Q806]
MDJ38042611 MDJ38042611 FILTER [305]
EAM35012711 EAM35012711 FILTER,AC LINE [590]
6210TCE001A 6210TCE001A FILTER,BEAD [L301]
6210VC0006A 6210VC0006A FILTER,BEAD [L303]
EAM38769505 EAM38769505 FILTER,BEAD [L501]
0LCML00003B 0LCML00003B FILTER,BEAD [L708]
6210VH0001A 6210VH0001A FILTER,FERRITE CORE [F1]
MDS41482308 MDS41482308 GASKET [1]
MDS41482309 MDS41482309 GASKET [3]
MDS41482310 MDS41482310 GASKET [5]
EBR38301801 EBR38301801 HAND INSERT PCB ASSEMBLY [201]
EBR38374804 EBR38374804 HAND INSERT PCB ASSEMBLY [203]
EBR38299203 EBR38299203 HAND INSERT PCB ASSEMBLY [204]
EBR38299501 EBR38299501 HAND INSERT PCB ASSEMBLY [205]
EBR38299701 EBR38299701 HAND INSERT PCB ASSEMBLY [206]
CRB30419201 CRB30419201 HAND INSERT PCB ASSEMBLY [207]
EBR38374501 EBR38374501 HAND INSERT PCB ASSEMBLY [208]
EBR40167201 EBR40167201 HAND INSERT PCB ASSEMBLY [209]

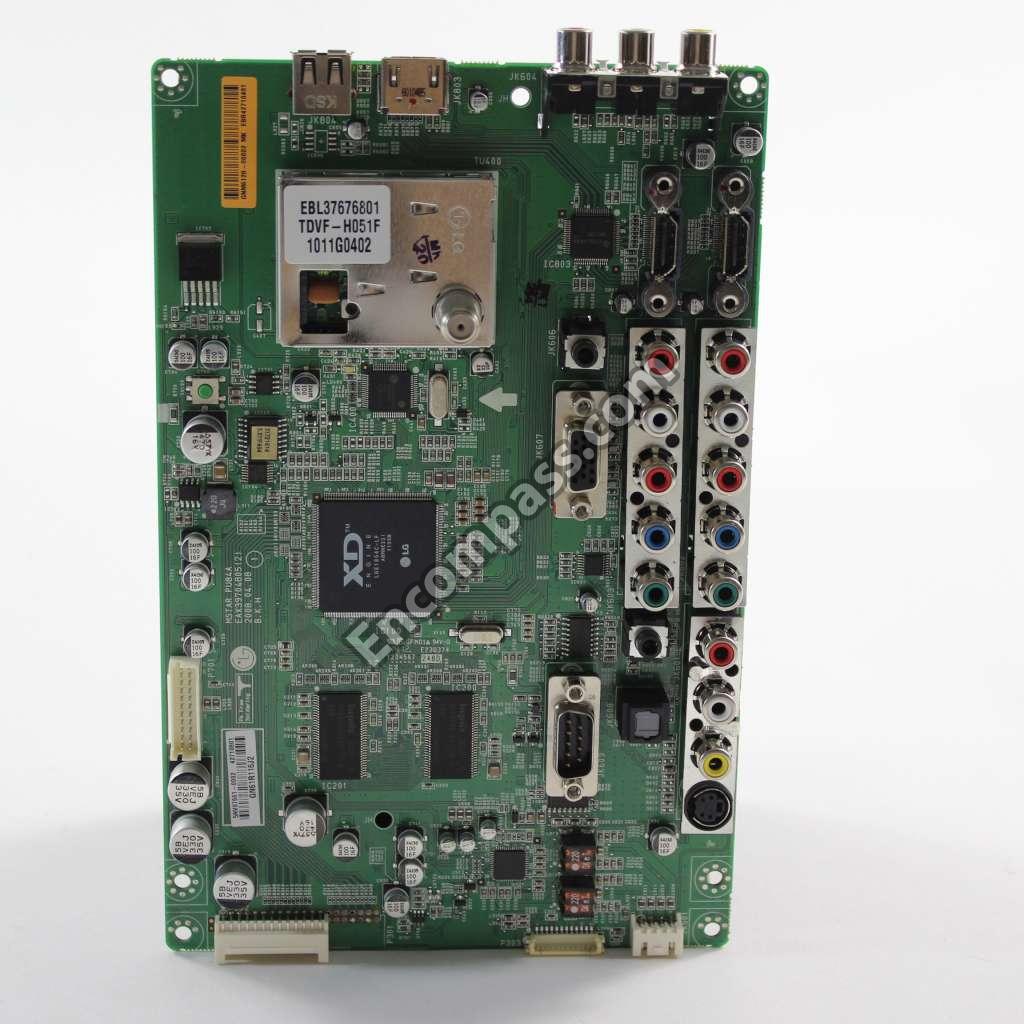

EBR42710401 EBR42710401 HAND INSERT PCB ASSEMBLY,MAIN [520]
EBR43329401 EBR43329401 HAND INSERT PCB ASSEMBLY,SUB [570]
EAD42465301 EAD42465301 HARNESS,SINGLE [C1]
EAD42635002 EAD42635002 HARNESS,SINGLE [C2]
EAD42465401 EAD42465401 HARNESS,SINGLE [C3]
EAD42465505 EAD42465505 HARNESS,SINGLE [C4]
EAD39295726 EAD39295726 HARNESS,SINGLE [C5]
EAD42463801 EAD42463801 HARNESS,SINGLE [C6]
MEG42255501 MEG42255501 HOLDER [A5]
0ISTL00031A 0ISTL00031A IC ASSEMBLY [IC602]
EAN32724702 EAN32724702 IC,ANALOG SWITCH [IC601]
EAN41584001 EAN41584001 IC,AUDIO AMPLIFIER [IC502]
0ISTLPH026A 0ISTLPH026A IC,CMOS [IC104]
0ICTMLG019C 0ICTMLG019C IC,DATA CONTROLLER [IC400]
EAN33143501 EAN33143501 IC,DC,DC CONVERTER [IC703]
EAN31729202 EAN31729202 IC,DDR SDRAM [IC200]
0IMCRAL021A 0IMCRAL021A IC,EEPROM [IC102]
0IMMRAL014D 0IMMRAL014D IC,EEPROM [IC604]
0IMI623200B 0IMI623200B IC,I/O SUPPORT CHIP [IC715]
0IPMG00049A 0IPMG00049A IC,LDO VOLTAGE REGULATOR [IC501]
0IPMGS1010A 0IPMGS1010A IC,LDO VOLTAGE REGULATOR [IC701]
0IPMG00027A 0IPMG00027A IC,LDO VOLTAGE REGULATOR [IC702]
0IPMG78341A 0IPMG78341A IC,LDO VOLTAGE REGULATOR [IC705]
0IPMG78346A 0IPMG78346A IC,LDO VOLTAGE REGULATOR [IC706]
0IPMGA0010A 0IPMGA0010A IC,LDO VOLTAGE REGULATOR [IC708]
EAN41348201 EAN41348201 IC,TX/RX [IC603]
EAN37156404 EAN37156404 IC,VIDEO PROCESSORS [IC100]
0IKE702700D 0IKE702700D IC,VOLTAGE DETECTOR [IC101]
0LCML00020D 0LCML00020D INDUCTOR,MULTILAYER,CHIP [L101]
0LCML00020B 0LCML00020B INDUCTOR,MULTILAYER,CHIP [L402]
EAP39314701 EAP39314701 INDUCTOR,MULTILAYER,CHIP [L407]
0LC0233002A 0LC0233002A INDUCTOR,MULTILAYER,CHIP [L408]
EAP32842806 EAP32842806 INDUCTOR,WIRE WOUND,CHIP [L711]
EAP38319001 EAP38319001 INDUCTOR,WIRE WOUND,CHIP [L919]
EAG35541101 EAG35541101 JACK,COMPLEX [JK601]
EAG39789401 EAG39789401 JACK,DIN [JK801]
EAG42463001 EAG42463001 JACK,DIN [JK803]
EAG37842001 EAG37842001 JACK,FIBER OPTIC [JK608]
6612F00099A 6612F00099A JACK,PHONE [JK605]
EAG42205801 EAG42205801 JACK,RCA [JK604]
EAV44273501 EAV44273501 LED,CHIP [LD1]
0DL210009GC 0DL210009GC LED,CHIP [LD400]
CRD30701701 CRD30701701 PDP,MODULE-XGA [200]
MGJ41164505 MGJ41164505 PLATE [602]
MGJ41163803 MGJ41163803 PLATE [603]
6410TUW008A 6410TUW008A POWER CORD [A3]
EAV38493101 EAV38493101 RECEIVER MODULE [IC1]
AKB74115501 AKB74115501 REMOTE CONTROLLER [A2]
0RJ0222C692 0RJ0222C692 RESISTOR,ARRAY [AR102]
EBC32260601 EBC32260601 RESISTOR,ARRAY [AR401]
0RJ1000D677 0RJ1000D677 RESISTOR,CHIP [R1000]
0RJ0472D677 0RJ0472D677 RESISTOR,CHIP [R100]
0RJ0222D677 0RJ0222D677 RESISTOR,CHIP [R1013]
0RJ0562D677 0RJ0562D677 RESISTOR,CHIP [R1015]
0RJ4700C678 0RJ4700C678 RESISTOR,CHIP [R101]
0RJ0332D677 0RJ0332D677 RESISTOR,CHIP [R1028]
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP [R102]
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP [R103]
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP [R1046]
0RJ4700D677 0RJ4700D677 RESISTOR,CHIP [R105]
0RJ6200D677 0RJ6200D677 RESISTOR,CHIP [R106]
0RH0000D622 0RH0000D622 RESISTOR,CHIP [R111]
0RJ1004D677 0RJ1004D677 RESISTOR,CHIP [R117]
0RJ6800D677 0RJ6800D677 RESISTOR,CHIP [R141]
0RJ1002D677 0RJ1002D677 RESISTOR,CHIP [R142]
0RJ1001D677 0RJ1001D677 RESISTOR,CHIP [R154]
0RJ1001D477 0RJ1001D477 RESISTOR,CHIP [R157]
0RJ6802D677 0RJ6802D677 RESISTOR,CHIP [R169]
EBC32306001 EBC32306001 RESISTOR,CHIP [R175]
0RJ3900D677 0RJ3900D677 RESISTOR,CHIP [R176]
0RJ3000D677 0RJ3000D677 RESISTOR,CHIP [R210]
0RJ2201D677 0RJ2201D677 RESISTOR,CHIP [R400]
0RJ1202D677 0RJ1202D677 RESISTOR,CHIP [R402]
0RJ5101D677 0RJ5101D677 RESISTOR,CHIP [R423]
0RJ4702D677 0RJ4702D677 RESISTOR,CHIP [R446]
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP [R501]
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP [R502]
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP [R511]
0RJ0331D677 0RJ0331D677 RESISTOR,CHIP [R521]
0RJ0471D677 0RJ0471D677 RESISTOR,CHIP [R527]
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP [R532]
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP [R543]
0RJ0272C678 0RJ0272C678 RESISTOR,CHIP [R6001]
0RJ0752D677 0RJ0752D677 RESISTOR,CHIP [R601]
0RJ2001D677 0RJ2001D677 RESISTOR,CHIP [R6054]
0RJ3301D677 0RJ3301D677 RESISTOR,CHIP [R6061]
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP [R606]
0RJ4703D677 0RJ4703D677 RESISTOR,CHIP [R607]
0RJ1502D477 0RJ1502D477 RESISTOR,CHIP [R6150]
0RJ8201D477 0RJ8201D477 RESISTOR,CHIP [R6151]
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP [R706]
0RJ0102D677 0RJ0102D677 RESISTOR,CHIP [R709]
0RJ2002D477 0RJ2002D477 RESISTOR,CHIP [R725]
0RJ1002D477 0RJ1002D477 RESISTOR,CHIP [R726]
0RJ2203D677 0RJ2203D677 RESISTOR,CHIP [R737]
0RJ3002D477 0RJ3002D477 RESISTOR,CHIP [R742]
0RJ9101D677 0RJ9101D677 RESISTOR,CHIP [R746]
0RJ6801D477 0RJ6801D477 RESISTOR,CHIP [R747]
0RJ0000G676 0RJ0000G676 RESISTOR,CHIP [R750]
0RJ2002D677 0RJ2002D677 RESISTOR,CHIP [R751]
0RJ4320D477 0RJ4320D477 RESISTOR,CHIP [R756]
0RJ4020D477 0RJ4020D477 RESISTOR,CHIP [R757]
0RJ5602D477 0RJ5602D477 RESISTOR,CHIP [R805]
0RJ5102D677 0RJ5102D677 RESISTOR,CHIP [R859]
0RJ3901C478 0RJ3901C478 RESISTOR,CHIP [R861]
0RN3001F409 0RN3001F409 RESISTOR,METAL FILM [R102]
0RN5601F409 0RN5601F409 RESISTOR,METAL FILM [R103]
0RN1302F409 0RN1302F409 RESISTOR,METAL FILM [R104]
0RN6200F409 0RN6200F409 RESISTOR,METAL FILM [R108]
SAA31721604 SAA31721604 S/W,FIRMWARE [IC105]

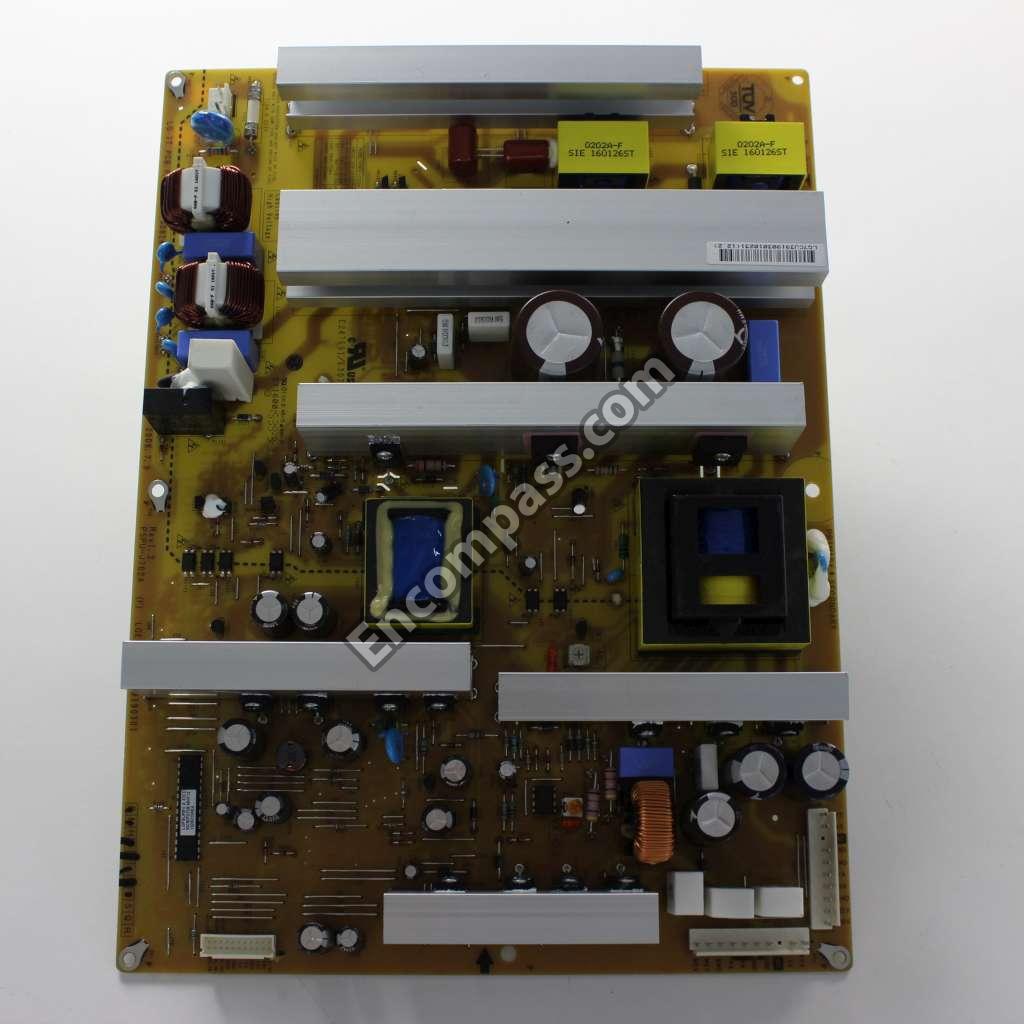

EAY39190301 EAY39190301 SMPS,AC/DC [580]
EAB41280401 EAB41280401 SPEAKER,FULL RANGE [120]
AJJ35707601 AJJ35707601 SUPPORTER ASSEMBLY [240]
AJJ35707501 AJJ35707501 SUPPORTER ASSEMBLY [250]
AJJ35805401 AJJ35805401 SUPPORTER ASSEMBLY [302]
AJJ35805201 AJJ35805201 SUPPORTER ASSEMBLY [303]
AJJ35805301 AJJ35805301 SUPPORTER ASSEMBLY [304]
MJH40272501 MJH40272501 SUPPORTER [501]
6600VR1004A 6600VR1004A SWITCH,TACT [SW100]
140-058B 140-058B SWITCH,TACT [SW102]
EBK58172301 EBK58172301 TR,BIPOLAR [Q400]
0TR102009AJ 0TR102009AJ TR,BIPOLAR [Q601]
0TRIY80001A 0TRIY80001A TR,BIPOLAR [Q703]
EBL37676801 EBL37676801 TUNER,ANALOG/DIGITAL [TU400]
6102W5V016A 6102W5V016A VARISTOR [VR801]
