Model Image
Manufacturer

LG

Model Number

50PX2DUD

Description

50px2d-ud

Interactive Exploded View

Parts List

Part Number Description
4811V00118P 4811V00118P BRACKET ASSEMBLY [601]
5020V01068B 5020V01068B BUTTON [541]
6850TD9007E 6850TD9007E CABLE,ASSEMBLY [A4]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY [A5]
6850J00005G 6850J00005G CABLE,ASSEMBLY [A6]
6851V00022D 6851V00022D CABLE,ASSEMBLY [C2]
6631V10003C 6631V10003C CABLE,FFC [C3]
6631V10004Z 6631V10004Z CABLE,FFC [C4]
0CE476WH6DC 0CE476WH6DC CAPACITOR,AL,CHIP [C100]
0CE335WK6D8 0CE335WK6D8 CAPACITOR,AL,CHIP [C1026]
0CE475WK6DC 0CE475WK6DC CAPACITOR,AL,CHIP [C1078]
0CE105WK6DC 0CE105WK6DC CAPACITOR,AL,CHIP [C1104]
0CE225WK6DC 0CE225WK6DC CAPACITOR,AL,CHIP [C1115]
0CE227SF6DC 0CE227SF6DC CAPACITOR,AL,CHIP [C1133]
0CE477WF6DC 0CE477WF6DC CAPACITOR,AL,CHIP [C804]
0CE476SF6DC 0CE476SF6DC CAPACITOR,AL,CHIP [C817]
0CE476VH6DC 0CE476VH6DC CAPACITOR,AL,CHIP [C831]
0CE4763F618 0CE4763F618 CAPACITOR,AL,RADIAL [C103]
0CE108EJK18 0CE108EJK18 CAPACITOR,AL,RADIAL [C1070]
0CE477EK618 0CE477EK618 CAPACITOR,AL,RADIAL [CC111]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C1008]
0CC020CK01A 0CC020CK01A CAPACITOR,CERAMIC,CHIP [C1009]
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP [C100]
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP [C1011]
0CC560CK41A 0CC560CK41A CAPACITOR,CERAMIC,CHIP [C1014]
0CK105DF64A 0CK105DF64A CAPACITOR,CERAMIC,CHIP [C1017]
0CK104DK56A 0CK104DK56A CAPACITOR,CERAMIC,CHIP [C101]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C1028]
0CC220CK41A 0CC220CK41A CAPACITOR,CERAMIC,CHIP [C102]
0CK474CH94A 0CK474CH94A CAPACITOR,CERAMIC,CHIP [C1032]
0CK222CK51A 0CK222CK51A CAPACITOR,CERAMIC,CHIP [C1033]
0CC471CK41A 0CC471CK41A CAPACITOR,CERAMIC,CHIP [C1055]
0CC821CK41A 0CC821CK41A CAPACITOR,CERAMIC,CHIP [C105]
0CK333CK56A 0CK333CK56A CAPACITOR,CERAMIC,CHIP [C1073]
0CC470CK41A 0CC470CK41A CAPACITOR,CERAMIC,CHIP [C118]
0CK823CF56A 0CK823CF56A CAPACITOR,CERAMIC,CHIP [C1315]
0CK822CK56A 0CK822CK56A CAPACITOR,CERAMIC,CHIP [C1319]
0CC200CK41A 0CC200CK41A CAPACITOR,CERAMIC,CHIP [C134]
0CC561CK41A 0CC561CK41A CAPACITOR,CERAMIC,CHIP [C142]
0CK334CF56A 0CK334CF56A CAPACITOR,CERAMIC,CHIP [C200]
0CK473CK56A 0CK473CK56A CAPACITOR,CERAMIC,CHIP [C203]
0CC100CK11A 0CC100CK11A CAPACITOR,CERAMIC,CHIP [C307]
0CC331CK41A 0CC331CK41A CAPACITOR,CERAMIC,CHIP [C370]
0CC151CK41A 0CC151CK41A CAPACITOR,CERAMIC,CHIP [C371]
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP [C387]
0CC180CK41A 0CC180CK41A CAPACITOR,CERAMIC,CHIP [C632]
0CK472CK56A 0CK472CK56A CAPACITOR,CERAMIC,CHIP [C719]
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP [C921]
0CF4741L438 0CF4741L438 CAPACITOR,FILM,DIP [C1084]
3110V00351A 3110V00351A CASE [122]
3110V00352A 3110V00352A CASE [124]
31419SF004A 31419SF004A CHASSIS ASSEMBLY [590]
6140VB0004B 6140VB0004B COIL,CHOKE [L1013]
6140VB0032A 6140VB0032A COIL,CHOKE [L1025]
6630G70016A 6630G70016A CONNECTOR,DSUB [JK101]
6630G70017A 6630G70017A CONNECTOR,DSUB [JK200]
6630VE00725 6630VE00725 CONNECTOR,FFC/FPC/PIC [P200]
6630VE00731 6630VE00731 CONNECTOR,FFC/FPC/PIC [P201]
6612J00042G 6612J00042G CONNECTOR,RF [ANT1]
366-036B 366-036B CONNECTOR,WAFER [C6]
6602T12007D 6602T12007D CONNECTOR,WAFER [JK900]
366-921J 366-921J CONNECTOR,WAFER [P1001]
6630V90142A 6630V90142A CONNECTOR,WAFER [P100]
6602T12002M 6602T12002M CONNECTOR,WAFER [P101]
6602T12006M 6602T12006M CONNECTOR,WAFER [P101]
366-922L 366-922L CONNECTOR,WAFER [P101]
366-922B 366-922B CONNECTOR,WAFER [P102]
366-932C 366-932C CONNECTOR,WAFER [P1102]
366-932B 366-932B CONNECTOR,WAFER [P1103]
366-932E 366-932E CONNECTOR,WAFER [P200]
366-921F 366-921F CONNECTOR,WAFER [P800]
366-921L 366-921L CONNECTOR,WAFER [P801]
3091V00678B 3091V00678B COVER ASSEMBLY [300]
3809V00463Q 3809V00463Q COVER ASSEMBLY [400]
3550V00396A 3550V00396A COVER [123]
6202VDT002H 6202VDT002H CRYSTAL [X1000]
6212AB2015E 6212AB2015E CRYSTAL [X100]
6212AB2015A 6212AB2015A CRYSTAL [X101]
6202VDT002D 6202VDT002D CRYSTAL [X102]
6212AB2806A 6212AB2806A CRYSTAL [X300]
6212AB2845A 6212AB2845A CRYSTAL [X600]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D100]
0DD181009AB 0DD181009AB DIODE,SWITCHING [D101]
0DRSE00038A 0DRSE00038A DIODE,TVS [D200]
0DZRM00248A 0DZRM00248A DIODE,ZENER [ZD1000]
5900V12003C 5900V12003C FAN MODULE [101]
0TR830009BA 0TR830009BA FET [Q1008]
0LCML00003B 0LCML00003B FILTER,BEAD [L1000]
6210VC0005A 6210VC0005A FILTER,BEAD [L101]
6210VC0006A 6210VC0006A FILTER,BEAD [L102]
6200QJ3001A 6200QJ3001A FILTER,LCR [F800]

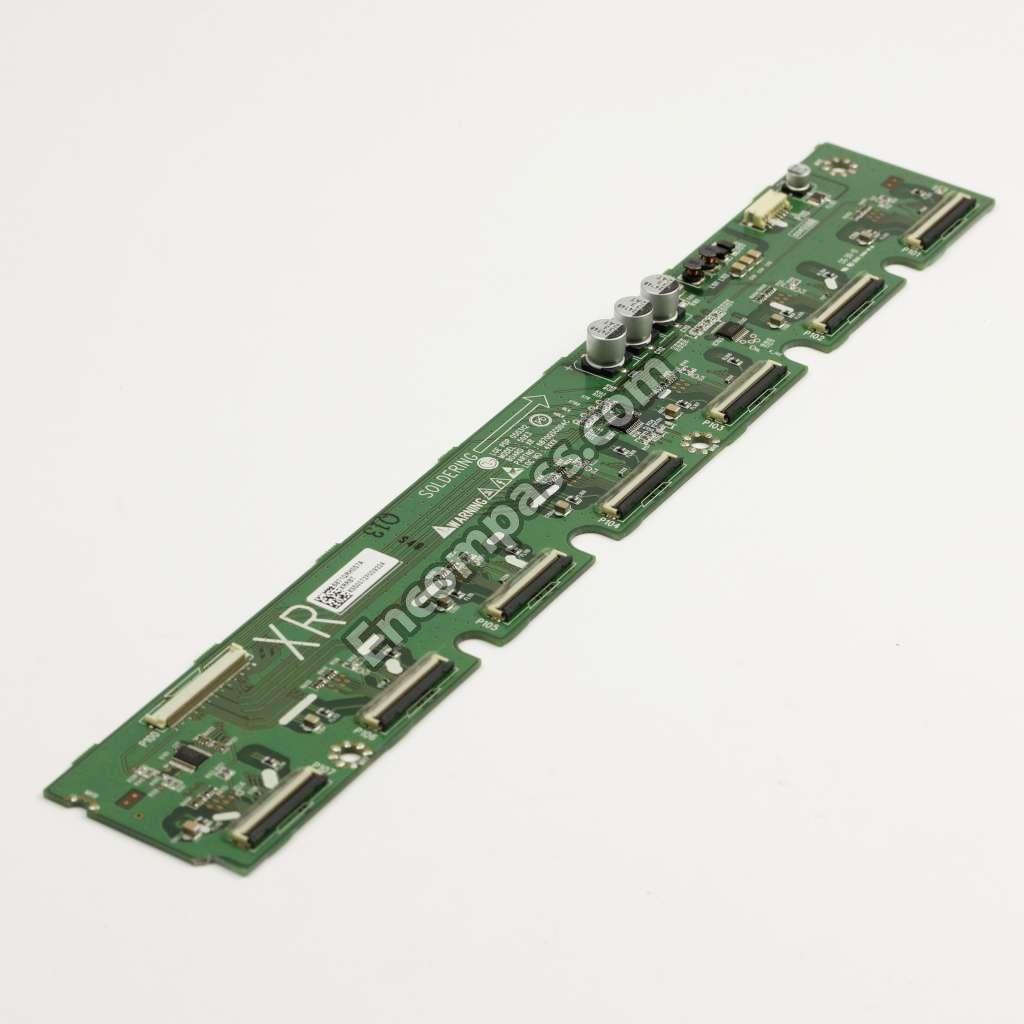

6871QCH059B 6871QCH059B HAND INSERT PCB ASSEMBLY [201]

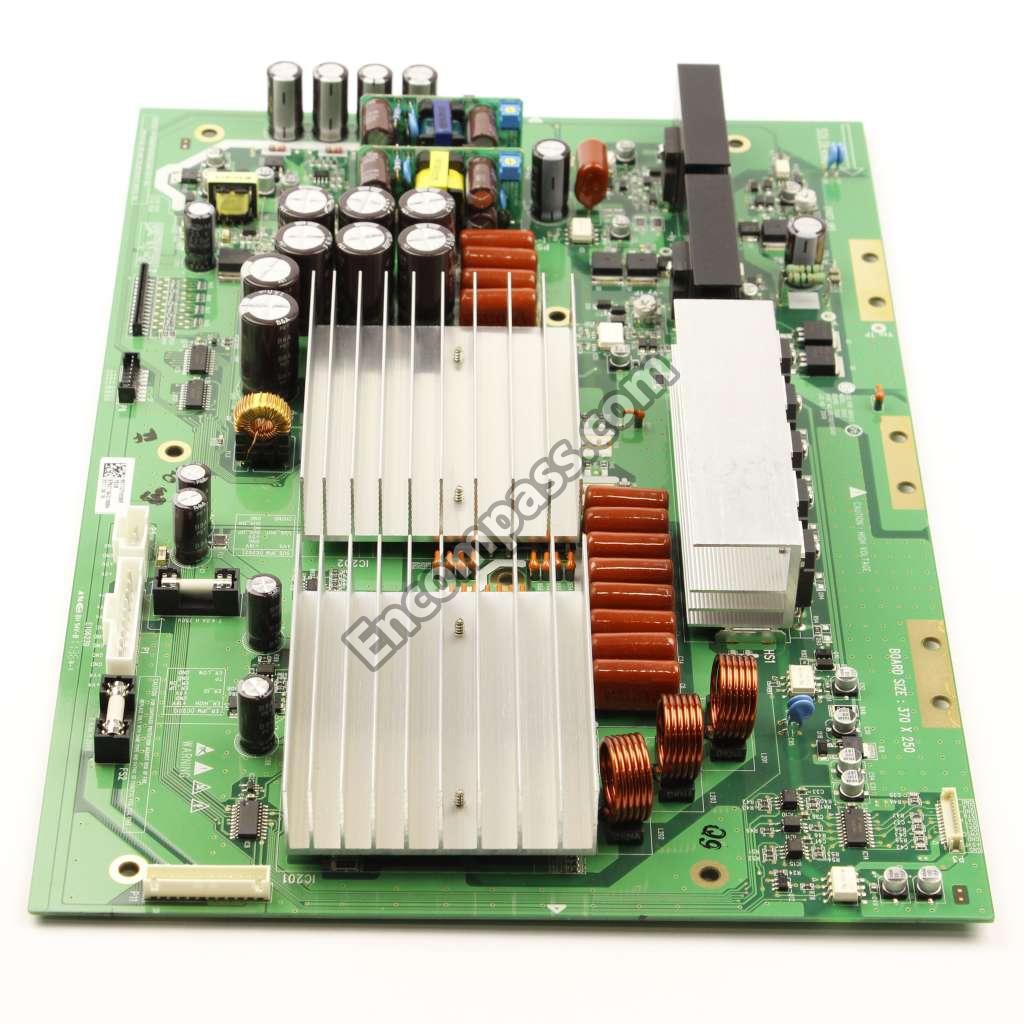

6871QDH088A 6871QDH088A HAND INSERT PCB ASSEMBLY [202]

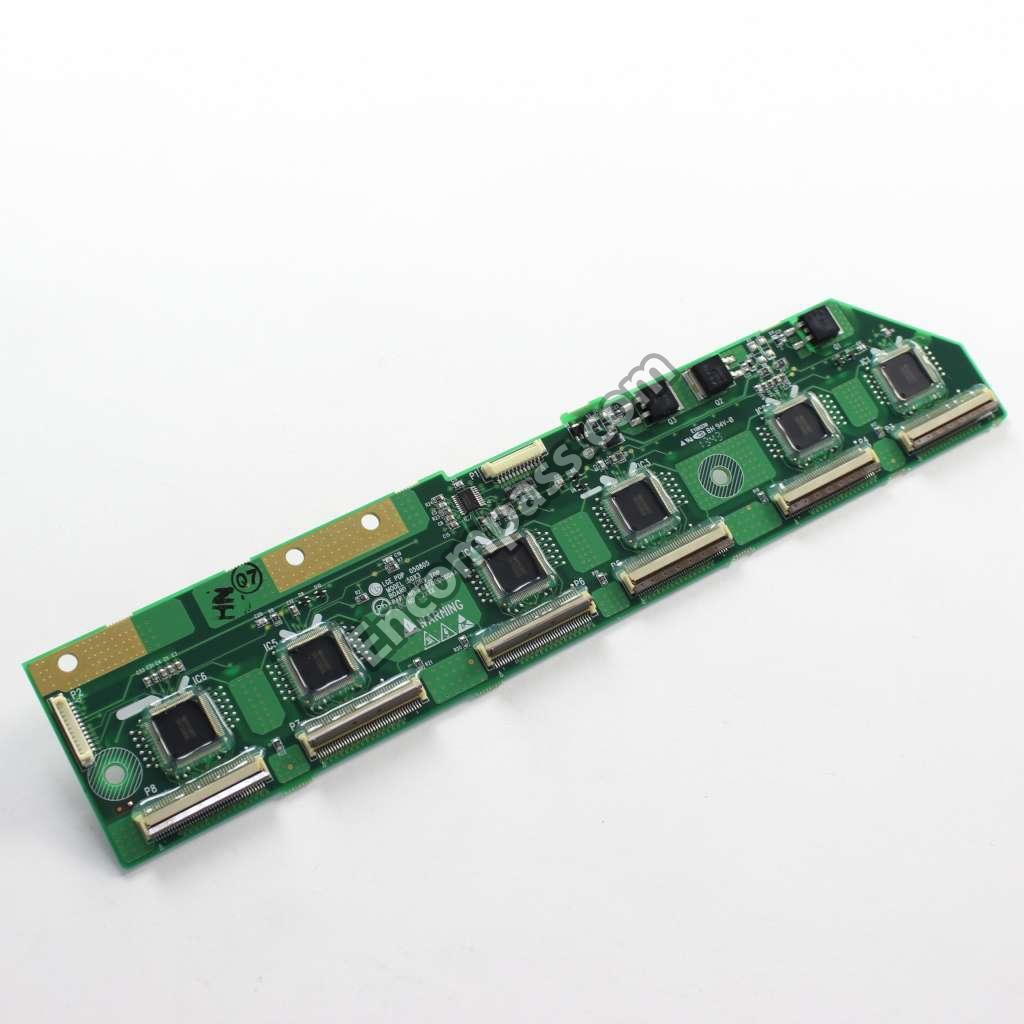

6871QDH089A 6871QDH089A HAND INSERT PCB ASSEMBLY [203]

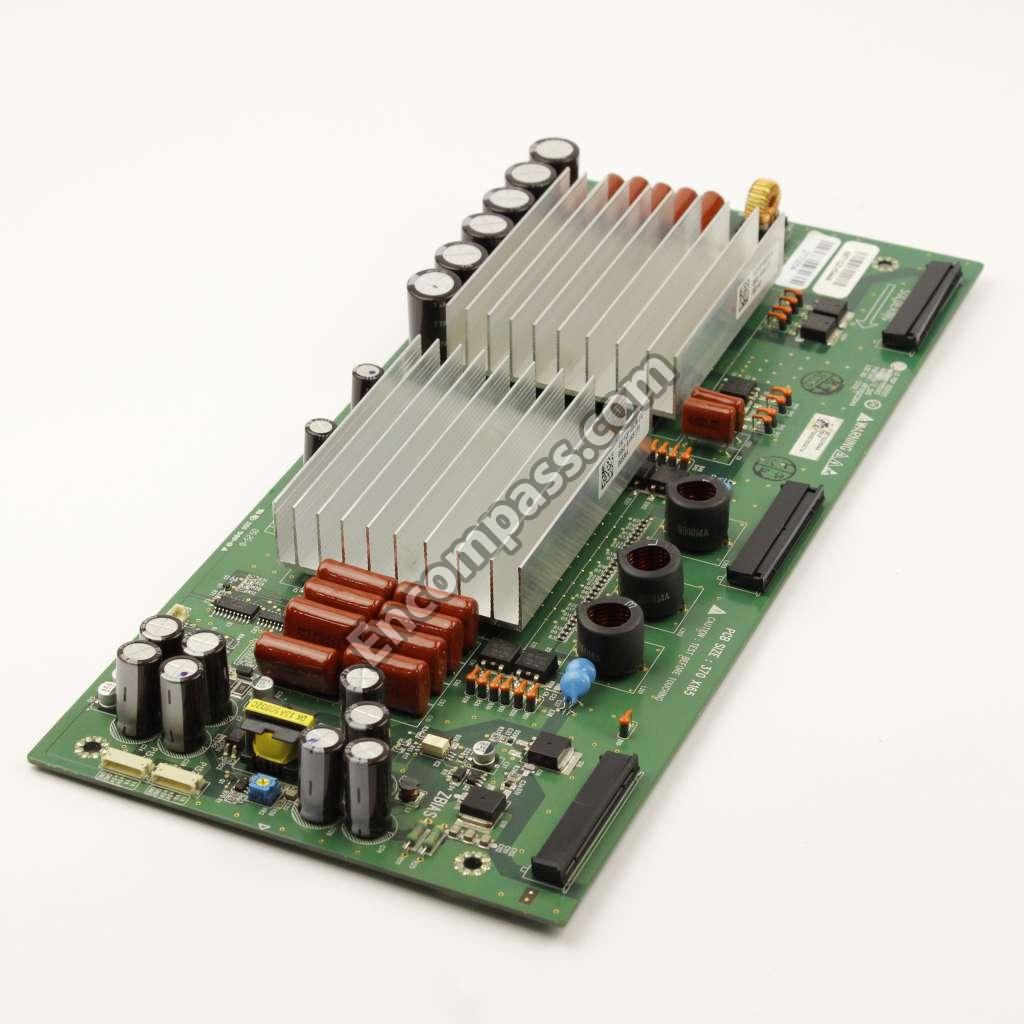

6871QLH049A 6871QLH049A HAND INSERT PCB ASSEMBLY [204]
6871QXH030A 6871QXH030A HAND INSERT PCB ASSEMBLY [205]
6871QRH057A 6871QRH057A HAND INSERT PCB ASSEMBLY [206]
6871QYH039B 6871QYH039B HAND INSERT PCB ASSEMBLY [207]
CRB30627901 CRB30627901 HAND INSERT PCB ASSEMBLY [208]
68719SM145A 68719SM145A HAND INSERT PCB ASSEMBLY,SUB [530]
6631V12047L 6631V12047L HARNESS,SINGLE [C10]
6631V25032E 6631V25032E HARNESS,SINGLE [C11]
6631V25032G 6631V25032G HARNESS,SINGLE [C12]
6631V25083C 6631V25083C HARNESS,SINGLE [C13]
6631V25084C 6631V25084C HARNESS,SINGLE [C14]
6631V39015E 6631V39015E HARNESS,SINGLE [C15]
6631V39016E 6631V39016E HARNESS,SINGLE [C16]
387-J12K 387-J12K HARNESS,SINGLE [C2]
6631V25032J 6631V25032J HARNESS,SINGLE [C5]
387-G03E 387-G03E HARNESS,SINGLE [C7]
6631V00045D 6631V00045D HARNESS,SINGLE [C9]
4921QP1053B 4921QP1053B HEAT SINK ASSEMBLY [0]
4921QP1052B 4921QP1052B HEAT SINK ASSEMBLY [0]
0ICB533100A 0ICB533100A IC,A/D CONVERTER [IC701]
0ISO206900A 0ISO206900A IC,ANALOG SWITCH [IC103]
0IPRP00538A 0IPRP00538A IC,ANALOG SWITCH [IC1101]
0ICTMLG013A 0ICTMLG013A IC,ASIC [IC505]
0ILNR00015A 0ILNR00015A IC,AUDIO AMPLIFIER [IC1002]
0IMCRTI028C 0IMCRTI028C IC,AUDIO AMPLIFIER [IC1003]
0IMCRPH026B 0IMCRPH026B IC,BUFFER [IC201]
0IMCRCY001A 0IMCRCY001A IC,BUFFER [IC504]
0IPH741400E 0IPH741400E IC,CMOS [IC103]
0ISTL00024A 0ISTL00024A IC,CMOS [IC104]
0IMCRFA013A 0IMCRFA013A IC,CMOS [IC700]
0ICTMLG019A 0ICTMLG019A IC,DATA CONTROLLER [IC1100]
0IMMRAL014B 0IMMRAL014B IC,EEPROM [IC100]
0IMCRAL006A 0IMCRAL006A IC,EEPROM [IC111]
0IMCRAL021A 0IMCRAL021A IC,EEPROM [IC202]
0IMI623200B 0IMI623200B IC,I/O SUPPORT CHIP [IC800]
0IPRPFA015A 0IPRPFA015A IC,IMAGE FILTER [IC300]
0IPRPFA016A 0IPRPFA016A IC,IMAGE FILTER [IC304]
0IMCRSJ001A 0IMCRSJ001A IC,LDO VOLTAGE REGULATOR [IC1005]
0IPMGA0010A 0IPMGA0010A IC,LDO VOLTAGE REGULATOR [IC1007]
0IPMGSG018C 0IPMGSG018C IC,LDO VOLTAGE REGULATOR [IC301]
0IPMGKE032A 0IPMGKE032A IC,LDO VOLTAGE REGULATOR [IC703]
0IMCRSJ001B 0IMCRSJ001B IC,LDO VOLTAGE REGULATOR [IC802]
0IMCRSS016A 0IMCRSS016A IC,MICROPROCESSORS [IC100]
0IMO330780B 0IMO330780B IC,OP AMPLIFIER [IC702]
0IMCRXL004A 0IMCRXL004A IC,PLD [IC203]
0IPRPS5005A 0IPRPS5005A IC,RECEIVER [IC600]
0ICB841500B 0ICB841500B IC,RECEIVER [IC704]
0IMMRSS041D 0IMMRSS041D IC,SDRAM [IC107]
0ISS416162D 0ISS416162D IC,SDRAM [IC303]
0IMMRSS041F 0IMMRSS041F IC,SDRAM [IC500]
0IMCRMN028C 0IMCRMN028C IC,SOUND/AUDIO PROCESSOR [IC1004]
0IPH740800M 0IPH740800M IC,TTL [IC102]
0IPRP00009A 0IPRP00009A IC,TX/RX [IC200]
0IMCRTH002A 0IMCRTH002A IC,TX/RX [IC903]
0IPRPNE008A 0IPRPNE008A IC,VIDEO DECODE [IC302]
0IMCRSO025A 0IMCRSO025A IC,VIDEO PROCESSORS [IC101]
0ICTMLG009C 0ICTMLG009C IC,VIDEO PROCESSORS [IC400]
0ICTMLG018B 0ICTMLG018B IC,VIDEO PROCESSORS [IC902]
0IKE704200J 0IKE704200J IC,VOLTAGE DETECTOR [IC110]
0IMCRSH001A 0IMCRSH001A IC,VOLTAGE REGULATOR [IC1000]
0IMCRFA010A 0IMCRFA010A IC,VOLTAGE REGULATOR [IC1008]
6613V00026A 6613V00026A JACK,COMPLEX [JK101]
6612J00062N 6612J00062N JACK,COMPLEX [JK104]
6612B00015B 6612B00015B JACK,DIN [JK600]
6612BBBHN4A 6612BBBHN4A JACK,FIBER OPTIC [JK100]
6612F00099A 6612F00099A JACK,PHONE [JK100]
6612J10012A 6612J10012A JACK,RCA [JK102]
0DL200000CA 0DL200000CA LED,DIP [LD101]
3828VA0528M 3828VA0528M MANUAL [A1]
6204B47985K 6204B47985K OSCILLATOR,CRYSTAL [X1100]
6204B60001B 6204B60001B OSCILLATOR,VCXO [VX500]
6871VMM903B 6871VMM903B PCB ASSEMBLY,MAIN [520]
6871VSMF97A 6871VSMF97A PCB ASSEMBLY,SUB [540]
6871VSMF18A 6871VSMF18A PCB ASSEMBLY,SUB [560]
6871VSMT96A 6871VSMT96A PCB ASSEMBLY,SUB [600]
3301V00070C 3301V00070C PLATE ASSEMBLY [501]
3301900003A 3301900003A PLATE ASSEMBLY [502]
3301900002B 3301900002B PLATE ASSEMBLY [503]
EAD36518301 EAD36518301 POWER CORD [A3]
6712000002B 6712000002B RECEIVER MODULE [PA101]
AKB73575301 AKB73575301 REMOTE CONTROLLER [10]
MKJ39927806 MKJ39927806 REMOTE CONTROLLER [6]
MKJ39927807 MKJ39927807 REMOTE CONTROLLER [7]
0RRZVTA001C 0RRZVTA001C RESISTOR,ARRAY [AR100]
0RRZVTA001D 0RRZVTA001D RESISTOR,ARRAY [AR1101]
0RD0222A609 0RD0222A609 RESISTOR,CARBON FILM [R821]
0RN1002F409 0RN1002F409 RESISTOR,METAL FILM [R126]
0IPRPNS054A 0IPRPNS054A SENSOR,TEMPERATURE [IC801]
6709900007A 6709900007A SMPS,AC/DC [580]
6401VD0011E 6401VD0011E SPEAKER,WOOFER [120]
4980V01018A 4980V01018A SUPPORTER [102]
4980V01017A 4980V01017A SUPPORTER [103]
4980V00D78B 4980V00D78B SUPPORTER [214]
4980V00D77B 4980V00D77B SUPPORTER [215]
4980V01112E 4980V01112E SUPPORTER [301]
4980V01113E 4980V01113E SUPPORTER [302]
4980V01114E 4980V01114E SUPPORTER [303]
4980V01115E 4980V01115E SUPPORTER [304]
6600VM2006C 6600VM2006C SWITCH,PUSH BUTTON [S1]
140-315F 140-315F SWITCH,TACT [SW101]
EBF43466201 EBF43466201 SWITCH,TACT [SW101]
6927V1306AH 6927V1306AH SYSTEM S/W [IC105]
6927V1307AH 6927V1307AH SYSTEM S/W [IC106]
692791017AB 692791017AB SYSTEM S/W [IC109]
EBK58172301 EBK58172301 TR,BIPOLAR [Q1000]
0TR102008AA 0TR102008AA TR,BIPOLAR [Q1006]
0TR102009AG 0TR102009AG TR,BIPOLAR [Q101]
6700AN0002C 6700AN0002C TUNER,ANALOG/DIGITAL [TU1100]
6634D00010B 6634D00010B TUNER,RF MODULATOR [SW200]
