Manufacturer

Model Number

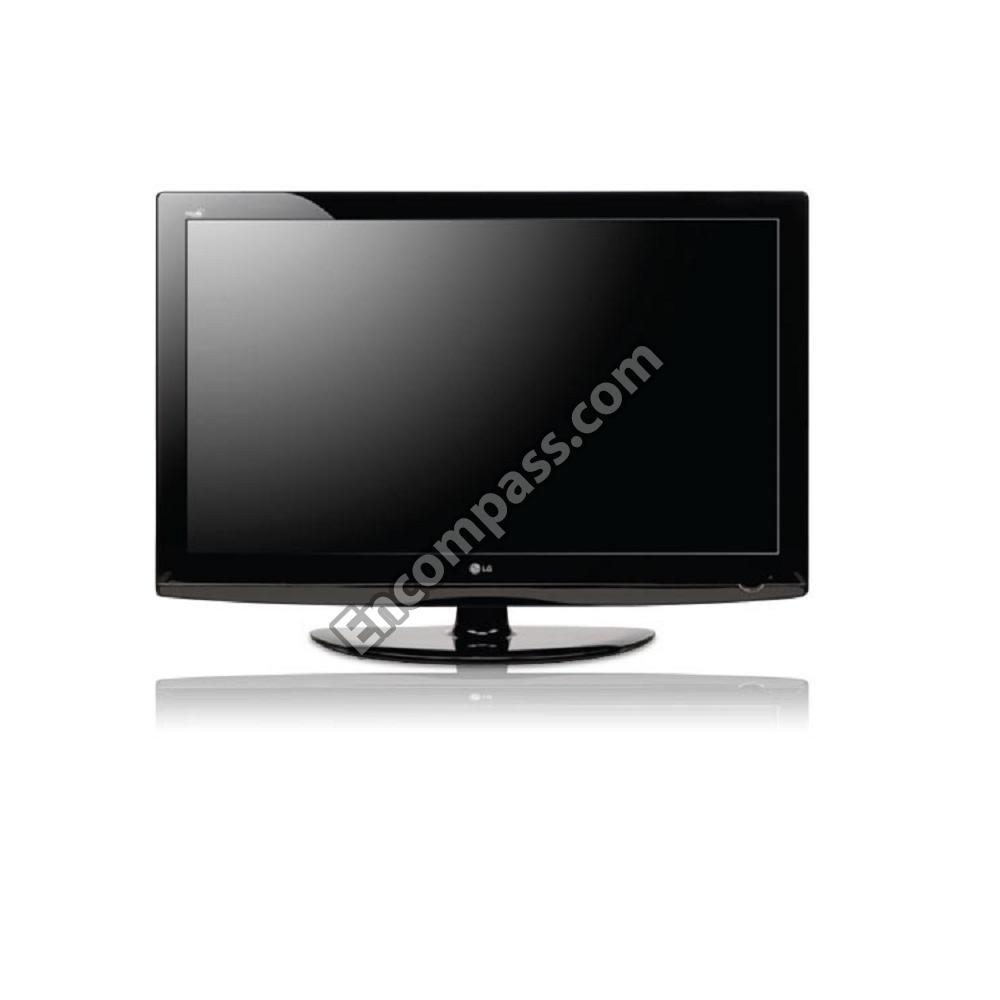

52LG50DCUG

Description

52lg50dc-ug

Interactive Exploded View

Parts List

Part Number	Description
AAN35804125	BASE ASSEMBLY [900]
ABA35890405	BRACKET ASSEMBLY [122]
ABA35569919	BRACKET ASSEMBLY [520]
ABJ35821730	CABINET ASSEMBLY [300]
0CE476WF6DC	CAPACITOR,AL,CHIP [C1704]
0CE227WF6DC	CAPACITOR,AL,CHIP [C302]
EAE36144701	CAPACITOR,AL,CHIP [C402]
0CE336WD6D8	CAPACITOR,AL,CHIP [C444]
0CE106WFKDC	CAPACITOR,AL,CHIP [C503]
0CE107WH6DC	CAPACITOR,AL,CHIP [C516]
0CE476WH6DC	CAPACITOR,AL,CHIP [C567]
0CE337WJ6D8	CAPACITOR,AL,CHIP [C704]
0CE477WF6DC	CAPACITOR,AL,CHIP [C724]
0CH8106F691	CAPACITOR,AL,CHIP [C814]
0CK225DF56A	CAPACITOR,CERAMIC,CHIP [C100]
0CK104CK56A	CAPACITOR,CERAMIC,CHIP [C108]
0CK473CK56A	CAPACITOR,CERAMIC,CHIP [C111]
0CK102CK56A	CAPACITOR,CERAMIC,CHIP [C112]
EAE32755801	CAPACITOR,CERAMIC,CHIP [C137]
0CK105DH56A	CAPACITOR,CERAMIC,CHIP [C139]
0CK475EF67A	CAPACITOR,CERAMIC,CHIP [C140]
0CK103CK56A	CAPACITOR,CERAMIC,CHIP [C142]
EAE50191801	CAPACITOR,CERAMIC,CHIP [C163]
0CK104BF56A	CAPACITOR,CERAMIC,CHIP [C1700]
0CK334CF56A	CAPACITOR,CERAMIC,CHIP [C1702]
0CK103BH56A	CAPACITOR,CERAMIC,CHIP [C1706]
0CK106EF56A	CAPACITOR,CERAMIC,CHIP [C1708]
EAE56752801	CAPACITOR,CERAMIC,CHIP [C1715]
0CH3224K946	CAPACITOR,CERAMIC,CHIP [C172]
0CK226FF67A	CAPACITOR,CERAMIC,CHIP [C220]
0CC102CK41A	CAPACITOR,CERAMIC,CHIP [C301]
0CC101CK41A	CAPACITOR,CERAMIC,CHIP [C304]
0CH5390K416	CAPACITOR,CERAMIC,CHIP [C406]
0CC270CK41A	CAPACITOR,CERAMIC,CHIP [C433]
0CK224DH56A	CAPACITOR,CERAMIC,CHIP [C441]
0CK101BK4EA	CAPACITOR,CERAMIC,CHIP [C500]
0CK102BK56A	CAPACITOR,CERAMIC,CHIP [C502]
0CK223CK56A	CAPACITOR,CERAMIC,CHIP [C514]
0CK474DK56A	CAPACITOR,CERAMIC,CHIP [C550]
0CC331CK41A	CAPACITOR,CERAMIC,CHIP [C604]
0CC471CK41A	CAPACITOR,CERAMIC,CHIP [C605]
0CH5220K416	CAPACITOR,CERAMIC,CHIP [C617]
0CC180CK41A	CAPACITOR,CERAMIC,CHIP [C623]
0CH2334F566	CAPACITOR,CERAMIC,CHIP [C628]
0CK473CH56A	CAPACITOR,CERAMIC,CHIP [C630]
0CK225DK94A	CAPACITOR,CERAMIC,CHIP [C634]
0CK104CF56A	CAPACITOR,CERAMIC,CHIP [C638]
0CC561CK41A	CAPACITOR,CERAMIC,CHIP [C644]
0CC470CK41A	CAPACITOR,CERAMIC,CHIP [C646]
0CK474CH94A	CAPACITOR,CERAMIC,CHIP [C718]
0CK822CK56A	CAPACITOR,CERAMIC,CHIP [C741]
6630TGA004K	CONNECTOR,DSUB [JK605]
6630G70017A	CONNECTOR,DSUB [JK609]
EAG41945401	CONNECTOR,USB [P800]
6602T12005C	CONNECTOR,WAFER [P100]
EAG33942601	CONNECTOR,WAFER [P300]
6630VF03415	CONNECTOR,WAFER [P304]
6602T25009C	CONNECTOR,WAFER [P500]
EAG39798201	CONNECTOR,WAFER [P700]
ACQ35820618	COVER ASSEMBLY,REAR [400]
6202VDT002A	CRYSTAL [X100]
6212AB2872A	CRYSTAL [X400]
0DSON00138A	DIODE,SCHOTTKY [D800]
0DSIH00028A	DIODE,SWITCHING [D100]
0DSGD00038A	DIODE,SWITCHING [D401]
EAH33945901	DIODE,TVS [D600]
0DRSE00038A	DIODE,TVS [D633]
EAH37908001	DIODE,ZENER [ZD600]
0DZ560009DA	DIODE,ZENER [ZD901]
EAN37156404	DISPLAY SOC,DIGITAL TV [IC100]
0TFFC80046A	FET [Q600]
EBK32753101	FET [Q706]
0TR830009BA	FET [Q802]
EAM36140902	FILTER,AC LINE [550]
EAM38769501	FILTER,BEAD [L301]
EAM30764101	FILTER,BEAD [L308]
EAM38769505	FILTER,BEAD [L500]
0LCML00003B	FILTER,BEAD [L510]
EAM38058401	FILTER,BEAD [L700]
EAM42641602	FILTER,BEAD [L721]

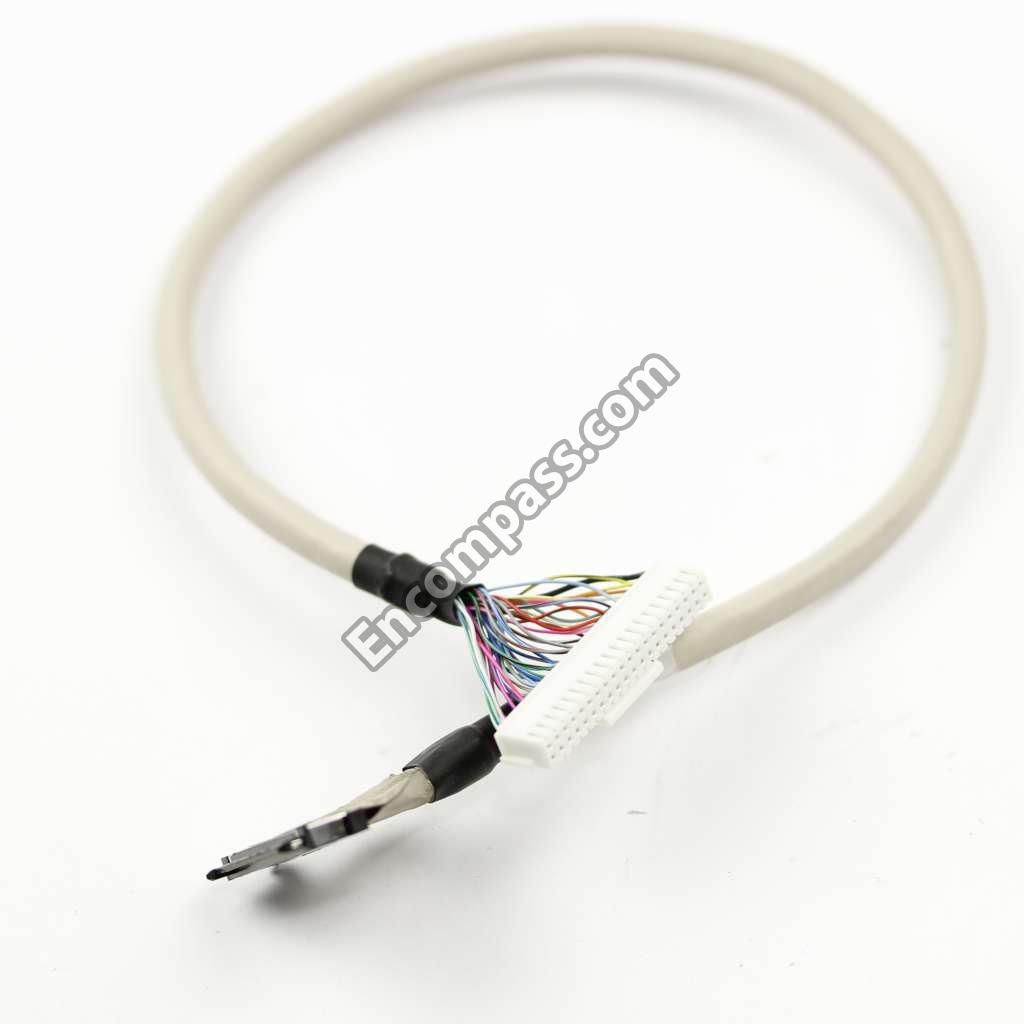

5240T0F004A	HARNESS,SINGLE [CA1]
6631900049B	HARNESS,SINGLE [CA2]
6631V12031J	HARNESS,SINGLE [CA3]
EAD39752805	HARNESS,SINGLE [CA4]
EAD42065907	HARNESS,SINGLE [CA5]
EAD43525701	HARNESS,SINGLE [CA6]
EAD43527704	HARNESS,SINGLE [CA7]
EAD57820301	HARNESS,SINGLE [CA8]
EAD44015202	HARNESS,SINGLE [LV1]
EAN41347201	IC,ANALOG SWITCH [IC802]
EAN32724702	IC,ANALOG SWITCH [IC903]
EAN41584001	IC,AUDIO AMPLIFIER [IC501]
0IPRPTI034B	IC,AUDIO AMPLIFIER [IC502]
EAN33624801	IC,BICMOS [IC904]
0ISTLPH026A	IC,CMOS [IC104]
0ISTL00031A	IC,CMOS [IC901]
0ICTMLG019C	IC,DATA CONTROLLER [IC400]
EAN41788501	IC,DDR SDRAM [IC200]
EAN43352801	IC,EEPROM [IC102]
EAN35989901	IC,EEPROM [IC600]
0IMI623200B	IC,I/O SUPPORT CHIP [IC900]
0IPMG00049A	IC,LDO VOLTAGE REGULATOR [IC500]
0IPMGA0010A	IC,LDO VOLTAGE REGULATOR [IC702]
0IPMG78341A	IC,LDO VOLTAGE REGULATOR [IC703]
0IPMG78346A	IC,LDO VOLTAGE REGULATOR [IC704]
0IPMGS1010A	IC,LDO VOLTAGE REGULATOR [IC708]
0IPMG00027A	IC,LDO VOLTAGE REGULATOR [IC709]
0IPMGKE030A	IC,LDO VOLTAGE REGULATOR [IC710]
EAN38975801	IC,LDO VOLTAGE REGULATOR [IC711]
EAN42961201	IC,SERIAL FLASH MEMORY [IC103]
EAN41348201	IC,TX/RX [IC603]
0IKE702700D	IC,VOLTAGE DETECTOR [IC101]
EAP39314706	INDUCTOR,MULTILAYER,CHIP [L402]
EAP39314714	INDUCTOR,MULTILAYER,CHIP [L407]
EAP40283004	INDUCTOR,MULTILAYER,CHIP [L505]
0LCML00020C	INDUCTOR,MULTILAYER,CHIP [L600]
0LCTA00006E	INDUCTOR,WIRE WOUND,CHIP [L409]
EAP38319001	INDUCTOR,WIRE WOUND,CHIP [L503]
6612J00062H	JACK,COMPLEX [JK600]
EAG39789401	JACK,DIN [JK800]
EAG37842001	JACK,FIBER OPTIC [JK902]
6612F00099A	JACK,PHONE [JK601]
EAG42205801	JACK,RCA [JK602]
6612J10043A	JACK,RCA [JK603]
6612J10031C	JACK,RCA [JK900]
EAG35542202	JACK,RCA [JK904]
EAJ56934501	LCD,MODULE-TFT [200]
AGF67018301	PACKAGE ASSEMBLY [510]
EBR42597902	PCB ASSEMBLY,FRONT [500]
EBR61163401	PCB ASSEMBLY,MAIN [540]
MGJ40315502	PLATE [810]
MGJ40618903	PLATE,METAL [800]
MGJ40619203	PLATE,METAL [801]
MGJ40616202	PLATE,METAL [802]
MGJ40618502	PLATE,METAL [803]
MGJ40618602	PLATE,METAL [804]
MGJ40618802	PLATE,METAL [805]
MGJ40935202	PLATE,METAL [806]
MGJ40652303	PLATE,METAL [820]
MGJ40651702	PLATE,SHIELD [521]
MGJ41032602	PLATE,SHIELD [830]
6410TUW008A	POWER CORD [A3]
AKB74115501	REMOTE CONTROLLER [A2]
0RJ0222C692	RESISTOR,ARRAY [AR1070]
EBC32260601	RESISTOR,ARRAY [R436]
0RJ4700D677	RESISTOR,CHIP [R1006]
0RJ0472D677	RESISTOR,CHIP [R1007]
0RJ0000D677	RESISTOR,CHIP [R1023]
0RJ3900D677	RESISTOR,CHIP [R1024]
0RJ1004D677	RESISTOR,CHIP [R1026]
0RJ2202D677	RESISTOR,CHIP [R1027]
0RJ1000D677	RESISTOR,CHIP [R1029]
0RJ2001D677	RESISTOR,CHIP [R102]
EBC32306001	RESISTOR,CHIP [R1031]
0RJ0332D677	RESISTOR,CHIP [R1034]
0RJ1002D677	RESISTOR,CHIP [R1037]
0RJ7501D677	RESISTOR,CHIP [R103]
0RJ2702D677	RESISTOR,CHIP [R104]
0RJ2200D677	RESISTOR,CHIP [R1052]
0RJ8200D677	RESISTOR,CHIP [R1053]
0RJ2700D677	RESISTOR,CHIP [R105]
0RJ0222D677	RESISTOR,CHIP [R1062]
0RJ1001D677	RESISTOR,CHIP [R1069]
0RJ6802D677	RESISTOR,CHIP [R1083]
0RJ1001D477	RESISTOR,CHIP [R1085]
0RJ4702D677	RESISTOR,CHIP [R1091]
0RJ0562D677	RESISTOR,CHIP [R1092]
0RJ3301D677	RESISTOR,CHIP [R1130]
0RJ1302D677	RESISTOR,CHIP [R1142]
0RJ3000D677	RESISTOR,CHIP [R210]
0RJ0000C678	RESISTOR,CHIP [R300]
0RJ2201D677	RESISTOR,CHIP [R400]
0RJ1202D677	RESISTOR,CHIP [R402]
0RJ5101D677	RESISTOR,CHIP [R423]
0RJ0000G676	RESISTOR,CHIP [R429]
0RJ3301C678	RESISTOR,CHIP [R500]
0RJ1000C678	RESISTOR,CHIP [R501]
0RJ0222C678	RESISTOR,CHIP [R504]
0RJ0331D677	RESISTOR,CHIP [R506]
0RJ0471D677	RESISTOR,CHIP [R512]
0RJ3302D677	RESISTOR,CHIP [R519]
0RJ4701C678	RESISTOR,CHIP [R533]
0RJ3302C678	RESISTOR,CHIP [R536]
0RJ0752D677	RESISTOR,CHIP [R601]
0RJ4703D677	RESISTOR,CHIP [R606]
0RJ0102C678	RESISTOR,CHIP [R609]
0RJ0102D677	RESISTOR,CHIP [R635]
0RJ3001D677	RESISTOR,CHIP [R669]
0RJ1502D477	RESISTOR,CHIP [R716]
0RJ8201D477	RESISTOR,CHIP [R717]
0RJ1502D677	RESISTOR,CHIP [R741]
0RJ4320D477	RESISTOR,CHIP [R742]
0RJ4020D477	RESISTOR,CHIP [R743]
0RJ2002D477	RESISTOR,CHIP [R751]
0RJ1002D477	RESISTOR,CHIP [R752]
0RJ1203D677	RESISTOR,CHIP [R835]
0RJ3901C478	RESISTOR,CHIP [R840]
0RJ5102D677	RESISTOR,CHIP [R858]
0RJ6803D677	RESISTOR,CHIP [R909]
0RJ0272C678	RESISTOR,CHIP [R937]
0RJ1001C678	RESISTOR,CHIP [R939]
0RJ1200C678	RESISTOR,CHIP [R994]
0RJ0752C678	RESISTOR,CHIP [R995]
0RJ1100D677	RESISTOR,CHIP [R996]
FAB30018306	SCREW,TAPTITE [A10]

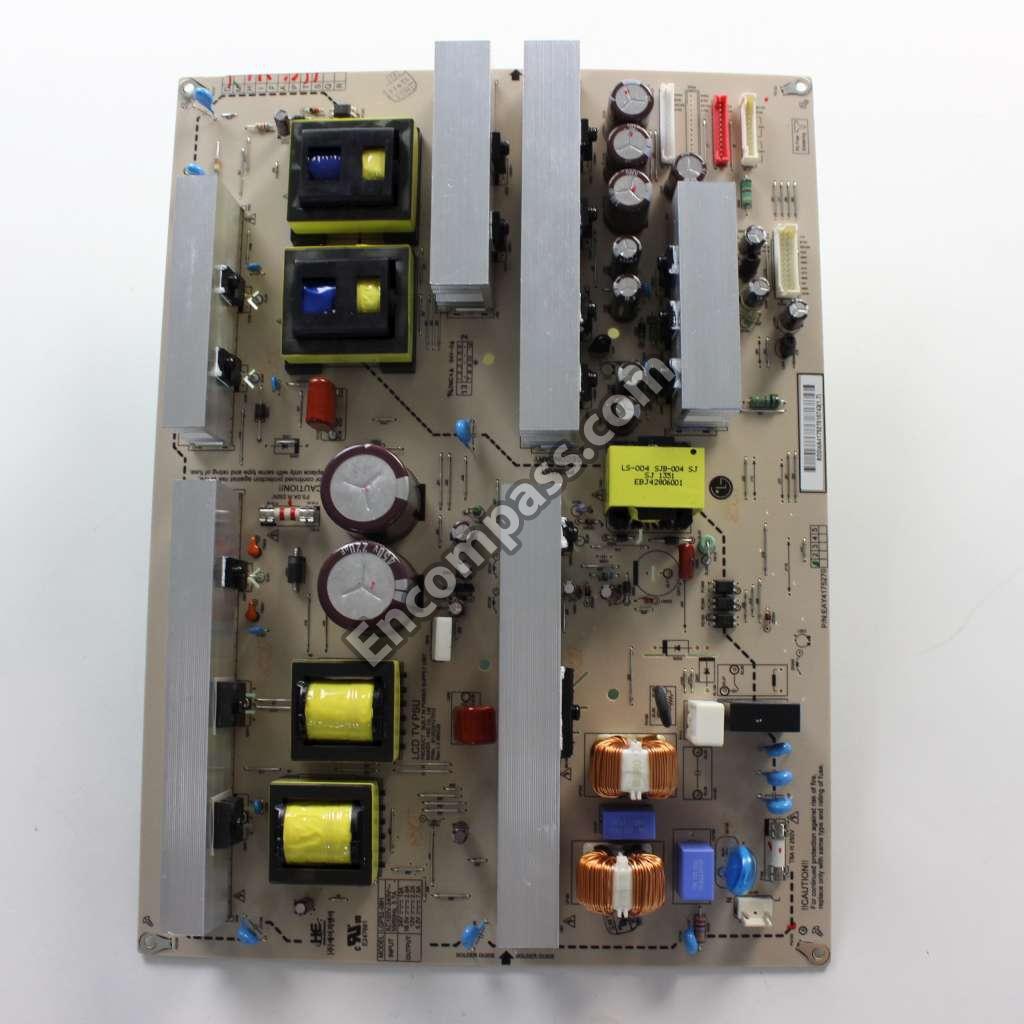

EAY41752701	SMPS,AC/DC [530]
EAB41280401	SPEAKER,FULL RANGE [120]
EAB41284401	SPEAKER,TWEETER [121]
6600R00004C	SWITCH,TACT [SW102]
0TRIY80001A	TR,BIPOLAR [Q1900]
0TR390609FA	TR,BIPOLAR [Q300]
0TRIH80002A	TR,BIPOLAR [Q400]
0TRIH80003A	TR,BIPOLAR [Q900]

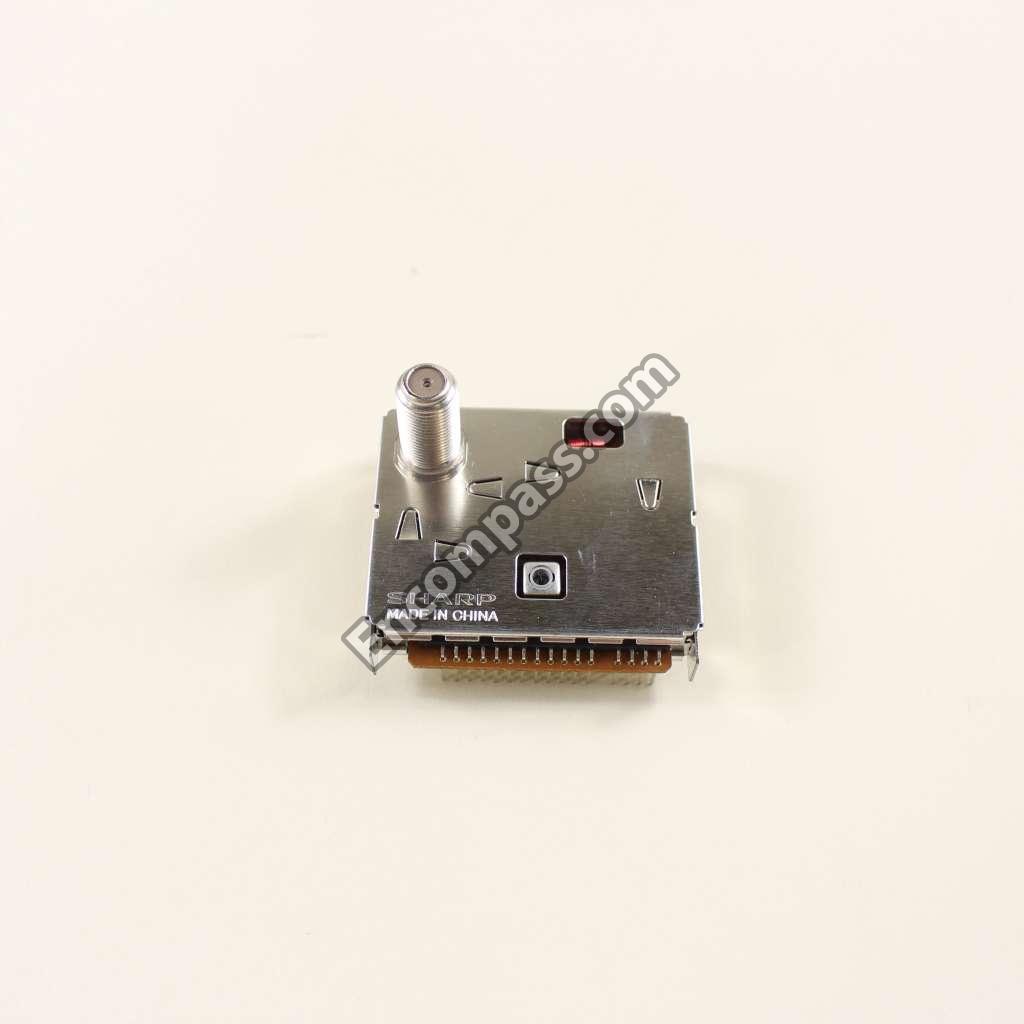

EBL42885001	TUNER,ANALOG/DIGITAL [TU402]
