Model Image
Manufacturer

LG

Model Number

52SX4D

Description

52sx4d

Interactive Exploded View

Parts List

Part Number Description
6316000009B 6316000009B BALLAST [640]
3500V00118A 3500V00118A BASE [681]
4811V00152E 4811V00152E BRACKET ASSEMBLY [503]
4810V01112C 4810V01112C BRACKET [432]
4810V01113C 4810V01113C BRACKET [433]
4810900012C 4810900012C BRACKET [601]
5020V01057B 5020V01057B BUTTON [310]
6850TD9007E 6850TD9007E CABLE,ASSEMBLY [A3]
6851V00023B 6851V00023B CABLE,ASSEMBLY [A4]
68509A0004A 68509A0004A CABLE,ASSEMBLY [C14]
68509J0002B 68509J0002B CABLE,ASSEMBLY [C16]
0CE335SK6DC 0CE335SK6DC CAPACITOR,AL,CHIP [C1100]
0CE106SF6DC 0CE106SF6DC CAPACITOR,AL,CHIP [C1101]
0CE226SF6DC 0CE226SF6DC CAPACITOR,AL,CHIP [C1140]
0CE106VF6DC 0CE106VF6DC CAPACITOR,AL,CHIP [C1200]
0CE227VF6DC 0CE227VF6DC CAPACITOR,AL,CHIP [C1214]
0CE107SF6DC 0CE107SF6DC CAPACITOR,AL,CHIP [C1217]
0CE476SF6DC 0CE476SF6DC CAPACITOR,AL,CHIP [C1246]
0CE107VF6DC 0CE107VF6DC CAPACITOR,AL,CHIP [C160]
0CE105VK6DC 0CE105VK6DC CAPACITOR,AL,CHIP [C241]
0CE336SH6DC 0CE336SH6DC CAPACITOR,AL,CHIP [C526]
0CE106SH6DC 0CE106SH6DC CAPACITOR,AL,CHIP [C555]
0CE106DF618 0CE106DF618 CAPACITOR,AL,RADIAL [C101]
0CE476DD618 0CE476DD618 CAPACITOR,AL,RADIAL [C108]
0CE107DF618 0CE107DF618 CAPACITOR,AL,RADIAL [C10]
0CE227DF618 0CE227DF618 CAPACITOR,AL,RADIAL [C110]
0CE4766K618 0CE4766K618 CAPACITOR,AL,RADIAL [C110]
0CE107BF618 0CE107BF618 CAPACITOR,AL,RADIAL [C112]
0CE476BK618 0CE476BK618 CAPACITOR,AL,RADIAL [C116]
0CE107DK618 0CE107DK618 CAPACITOR,AL,RADIAL [C123]
181-064P 181-064P CAPACITOR,AL,RADIAL [C130]
0CE107DH618 0CE107DH618 CAPACITOR,AL,RADIAL [C149]
0CE477DJ618 0CE477DJ618 CAPACITOR,AL,RADIAL [C166]
0CE226DF618 0CE226DF618 CAPACITOR,AL,RADIAL [C1]
0CE476DF618 0CE476DF618 CAPACITOR,AL,RADIAL [C1]
0CE475DK618 0CE475DK618 CAPACITOR,AL,RADIAL [C223]
0CE335DK618 0CE335DK618 CAPACITOR,AL,RADIAL [C648]
0CE107DD618 0CE107DD618 CAPACITOR,AL,RADIAL [C703]
0CE227DD618 0CE227DD618 CAPACITOR,AL,RADIAL [C707]
0CE227BF618 0CE227BF618 CAPACITOR,AL,RADIAL [C719]
0CE227DH618 0CE227DH618 CAPACITOR,AL,RADIAL [C720]
0CE107BH618 0CE107BH618 CAPACITOR,AL,RADIAL [C747]
0CE108EF618 0CE108EF618 CAPACITOR,AL,RADIAL [C749]
0CE107EF638 0CE107EF638 CAPACITOR,AL,RADIAL [C751]
0CE105DK618 0CE105DK618 CAPACITOR,AL,RADIAL [C774]
0CE227DK618 0CE227DK618 CAPACITOR,AL,RADIAL [C782]
0CE188JQ610 0CE188JQ610 CAPACITOR,AL,RADIAL [C801]
0CE475BK618 0CE475BK618 CAPACITOR,AL,RADIAL [C813]
0CE478EHK50 0CE478EHK50 CAPACITOR,AL,RADIAL [C833]
0CE338EF618 0CE338EF618 CAPACITOR,AL,RADIAL [C833]
0CE477BH618 0CE477BH618 CAPACITOR,AL,RADIAL [C872]
0CE108DK61A 0CE108DK61A CAPACITOR,AL,RADIAL [C873]
0CN1030F679 0CN1030F679 CAPACITOR,CERAMIC,AXIAL [C2]
0CN1010K519 0CN1010K519 CAPACITOR,CERAMIC,AXIAL [C3]
0CK104CF56A 0CK104CF56A CAPACITOR,CERAMIC,CHIP [C101]
0CH2103K516 0CH2103K516 CAPACITOR,CERAMIC,CHIP [C102]
0CH5150K416 0CH5150K416 CAPACITOR,CERAMIC,CHIP [C103]
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP [C107]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C108]
0CH2222K516 0CH2222K516 CAPACITOR,CERAMIC,CHIP [C111]
0CC200CK41A 0CC200CK41A CAPACITOR,CERAMIC,CHIP [C1121]
0CC331CK41A 0CC331CK41A CAPACITOR,CERAMIC,CHIP [C1160]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C1167]
0CC470CK41A 0CC470CK41A CAPACITOR,CERAMIC,CHIP [C1173]
0CH2102K516 0CH2102K516 CAPACITOR,CERAMIC,CHIP [C11]
0CK392CK56A 0CK392CK56A CAPACITOR,CERAMIC,CHIP [C1202]
0CH5220K416 0CH5220K416 CAPACITOR,CERAMIC,CHIP [C1202]
0CC561CK41A 0CC561CK41A CAPACITOR,CERAMIC,CHIP [C1204]
0CN105EJ56A 0CN105EJ56A CAPACITOR,CERAMIC,CHIP [C1206]
0CC471CK41A 0CC471CK41A CAPACITOR,CERAMIC,CHIP [C1215]
0CH2474F566 0CH2474F566 CAPACITOR,CERAMIC,CHIP [C1218]
0CK271CK46A 0CK271CK46A CAPACITOR,CERAMIC,CHIP [C1221]
0CH4101K416 0CH4101K416 CAPACITOR,CERAMIC,CHIP [C1238]
0CH2472K516 0CH2472K516 CAPACITOR,CERAMIC,CHIP [C1239]
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP [C1243]
0CK105DF64A 0CK105DF64A CAPACITOR,CERAMIC,CHIP [C1244]
0CC180CK41A 0CC180CK41A CAPACITOR,CERAMIC,CHIP [C1248]
0CH5271K416 0CH5271K416 CAPACITOR,CERAMIC,CHIP [C125]
0CH5561K416 0CH5561K416 CAPACITOR,CERAMIC,CHIP [C12]
0CH5221K416 0CH5221K416 CAPACITOR,CERAMIC,CHIP [C14]
0CH2224F946 0CH2224F946 CAPACITOR,CERAMIC,CHIP [C154]
0CH2333K516 0CH2333K516 CAPACITOR,CERAMIC,CHIP [C159]
0CK105DK94A 0CK105DK94A CAPACITOR,CERAMIC,CHIP [C168]
0CH3104K566 0CH3104K566 CAPACITOR,CERAMIC,CHIP [C1]
0CH5102K416 0CH5102K416 CAPACITOR,CERAMIC,CHIP [C233]
0CH5151K416 0CH5151K416 CAPACITOR,CERAMIC,CHIP [C2564]
0CK222CK56A 0CK222CK56A CAPACITOR,CERAMIC,CHIP [C3220]
0CK472CK56A 0CK472CK56A CAPACITOR,CERAMIC,CHIP [C501]
0CK684DF56A 0CK684DF56A CAPACITOR,CERAMIC,CHIP [C606]
0CK4R7CKFDA 0CK4R7CKFDA CAPACITOR,CERAMIC,CHIP [C611]
0CK473CH56A 0CK473CH56A CAPACITOR,CERAMIC,CHIP [C625]
0CH2332K516 0CH2332K516 CAPACITOR,CERAMIC,CHIP [C626]
0CH5100K416 0CH5100K416 CAPACITOR,CERAMIC,CHIP [C635]
0CH5560K416 0CH5560K416 CAPACITOR,CERAMIC,CHIP [C637]
0CH2272K516 0CH2272K516 CAPACITOR,CERAMIC,CHIP [C649]
0CC270CK41A 0CC270CK41A CAPACITOR,CERAMIC,CHIP [C650]
0CC100CK41A 0CC100CK41A CAPACITOR,CERAMIC,CHIP [C725]
0CH2334F566 0CH2334F566 CAPACITOR,CERAMIC,CHIP [C804]
0CC680CK41A 0CC680CK41A CAPACITOR,CERAMIC,CHIP [C808]
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP [C902]
0CK224CF56A 0CK224CF56A CAPACITOR,CERAMIC,CHIP [C908]
0CN106FF66A 0CN106FF66A CAPACITOR,CERAMIC,CHIP [C912]
0CN106KH67A 0CN106KH67A CAPACITOR,CERAMIC,CHIP [C915]
0CK823CF56A 0CK823CF56A CAPACITOR,CERAMIC,CHIP [C928]
0CK822CK46A 0CK822CK46A CAPACITOR,CERAMIC,CHIP [C932]
0CK272CK46A 0CK272CK46A CAPACITOR,CERAMIC,CHIP [C965]
0CK224DH56A 0CK224DH56A CAPACITOR,CERAMIC,CHIP [C968]
0CN475ED66A 0CN475ED66A CAPACITOR,CERAMIC,CHIP [C981]
0CH5471K416 0CH5471K416 CAPACITOR,CERAMIC,CHIP [R301]
0CK10202510 0CK10202510 CAPACITOR,CERAMIC,RADIAL [C805]
0CK1040K945 0CK1040K945 CAPACITOR,CERAMIC,RADIAL [C809]
181-091U 181-091U CAPACITOR,CERAMIC,RADIAL [C810]
0CK4710K515 0CK4710K515 CAPACITOR,CERAMIC,RADIAL [C811]
181-091Q 181-091Q CAPACITOR,CERAMIC,RADIAL [C831]
181-120L 181-120L CAPACITOR,CERAMIC,RADIAL [C898]
181-035U 181-035U CAPACITOR,CERAMIC,RADIAL [C899]
0CF4741L438 0CF4741L438 CAPACITOR,FILM,DIP [C149]
181-011B 181-011B CAPACITOR,FILM,DIP [C804]
0CS336IDKDC 0CS336IDKDC CAPACITOR,TA,NIOBIUM [C1133]
0CH7105H612 0CH7105H612 CAPACITOR,TA,NIOBIUM [C1139]
0CH7106F622 0CH7106F622 CAPACITOR,TA,NIOBIUM [C1166]
0CH7226F652 0CH7226F652 CAPACITOR,TA,NIOBIUM [C1200]
0CH7335F622 0CH7335F622 CAPACITOR,TA,NIOBIUM [C1201]
0CH7476F662 0CH7476F662 CAPACITOR,TA,NIOBIUM [C2501]
0CH7106H652 0CH7106H652 CAPACITOR,TA,NIOBIUM [C502]
0CH7107F662 0CH7107F662 CAPACITOR,TA,NIOBIUM [C841]
3110V00473B 3110V00473B CASE [403]
3110V00477B 3110V00477B CASE [612]
3141VEN092G 3141VEN092G CHASSIS ASSEMBLY [571]
EBT30567507 EBT30567507 CHASSIS ASSEMBLY [600]
3141VSNH97C 3141VSNH97C CHASSIS ASSEMBLY [671]
6140VB0003A 6140VB0003A COIL,CHOKE [L102]
6140VB0024A 6140VB0024A COIL,CHOKE [L105]
6630B60F432 6630B60F432 CONNECTOR,BTOB [P101A]
6630B60F532 6630B60F532 CONNECTOR,BTOB [P101B]
366-173L 366-173L CONNECTOR,BTOB [P105]
6630GZ00724 6630GZ00724 CONNECTOR,DSUB [CN2700]
6630TGA004F 6630TGA004F CONNECTOR,DSUB [JA1200]
6630VGA004B 6630VGA004B CONNECTOR,DSUB [JA203]
6630VE00204 6630VE00204 CONNECTOR,FFC/FPC/PIC [P2]
366-009D 366-009D CONNECTOR,TERMINAL [P4]
6630SD01708 6630SD01708 CONNECTOR,USB [CN3500]
366-169B 366-169B CONNECTOR,WAFER [C1]
6630VF01612 6630VF01612 CONNECTOR,WAFER [CN101]
6630V90141A 6630V90141A CONNECTOR,WAFER [CN103]
6602V12001C 6602V12001C CONNECTOR,WAFER [CN1101]
6630VE01269 6630VE01269 CONNECTOR,WAFER [CN1102]
366-921D 366-921D CONNECTOR,WAFER [CN1201]
366-932E 366-932E CONNECTOR,WAFER [J3201]
6630BX05007 6630BX05007 CONNECTOR,WAFER [J3202]
6612VMH003A 6612VMH003A CONNECTOR,WAFER [J800]
366-932B 366-932B CONNECTOR,WAFER [P06]
366-921F 366-921F CONNECTOR,WAFER [P1000A]
366-169G 366-169G CONNECTOR,WAFER [P1001A]
366-922C 366-922C CONNECTOR,WAFER [P100]
366-922B 366-922B CONNECTOR,WAFER [P101]
6630VF01610 6630VF01610 CONNECTOR,WAFER [P1100]
6630VF01608 6630VF01608 CONNECTOR,WAFER [P1]
366-921L 366-921L CONNECTOR,WAFER [P200]
366-921J 366-921J CONNECTOR,WAFER [P2]
6602V12001F 6602V12001F CONNECTOR,WAFER [P3]
6602T20008G 6602T20008G CONNECTOR,WAFER [P401]
6630VK19608 6630VK19608 CONNECTOR,WAFER [P502B]
6602V12001A 6602V12001A CONNECTOR,WAFER [P605]
366-932C 366-932C CONNECTOR,WAFER [P700]
366-921B 366-921B CONNECTOR,WAFER [P701A]
366-921C 366-921C CONNECTOR,WAFER [P702A]
6602V39002A 6602V39002A CONNECTOR,WAFER [P820]
366-932G 366-932G CONNECTOR,WAFER [P8A]
3091V00776B 3091V00776B COVER ASSEMBLY [300]
3809V00547B 3809V00547B COVER ASSEMBLY [400]
3809V00548B 3809V00548B COVER ASSEMBLY [401]
3550V00589B 3550V00589B COVER [301]
3550V00269G 3550V00269G COVER [402]
3550V00572B 3550V00572B COVER [404]
3550V00574A 3550V00574A COVER [405]
3550V00573A 3550V00573A COVER [406]
3550V00588B 3550V00588B COVER [410]
3210V00165A 3210V00165A COVER [501]
3550V00567D 3550V00567D COVER [603]
6202VDT002A 6202VDT002A CRYSTAL [X101]
6212AB2851A 6212AB2851A CRYSTAL [X102]
6212AC2001D 6212AC2001D CRYSTAL [X1100]
6212AB2015E 6212AB2015E CRYSTAL [X1201]
156-A01E 156-A01E CRYSTAL [X1202]
6212AB2015A 6212AB2015A CRYSTAL [X1202]
156-A01P 156-A01P CRYSTAL [X1]
6212AB2845A 6212AB2845A CRYSTAL [X2401]
6212AB2806A 6212AB2806A CRYSTAL [X2501]
156-A02R 156-A02R CRYSTAL [X600]
6202VDT002E 6202VDT002E CRYSTAL [X600]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D1]
0DRSD00050B 0DRSD00050B DIODE,BRIDGE [D801]
0DR010009AA 0DR010009AA DIODE,RECTIFIER [D802]
0DD100009AM 0DD100009AM DIODE,RECTIFIER [D803]
0DD120000BB 0DD120000BB DIODE,RECTIFIER [D881]
0DR240000BA 0DR240000BA DIODE,RECTIFIER [D891]
0DRDI00148A 0DRDI00148A DIODE,SCHOTTKY [D100]
0DR360000BA 0DR360000BA DIODE,SCHOTTKY [D831]
0DRSD00091A 0DRSD00091A DIODE,SCHOTTKY [D871]
0DRGS00328A 0DRGS00328A DIODE,SCHOTTKY [D909]
0DRON00088A 0DRON00088A DIODE,SCHOTTKY [D912]
0DD414809ED 0DD414809ED DIODE,SWITCHING [D201]
0DD226239AA 0DD226239AA DIODE,SWITCHING [D3]
0DS113379BA 0DS113379BA DIODE,SWITCHING [D700]
0DRSE00038A 0DRSE00038A DIODE,TVS [D1201]
0DZ848209AA 0DZ848209AA DIODE,ZENER [D611]
0DZ620009BB 0DZ620009BB DIODE,ZENER [ZD1]
0DZ560009CF 0DZ560009CF DIODE,ZENER [ZD1]
0DZ200009AF 0DZ200009AF DIODE,ZENER [ZD802]
5900V05004B 5900V05004B FAN MODULE [620]
5900V09008F 5900V09008F FAN MODULE [622]
0TR830009BA 0TR830009BA FET [IC103]
0TFON80009A 0TFON80009A FET [Q102]
0TFON80004C 0TFON80004C FET [Q105]

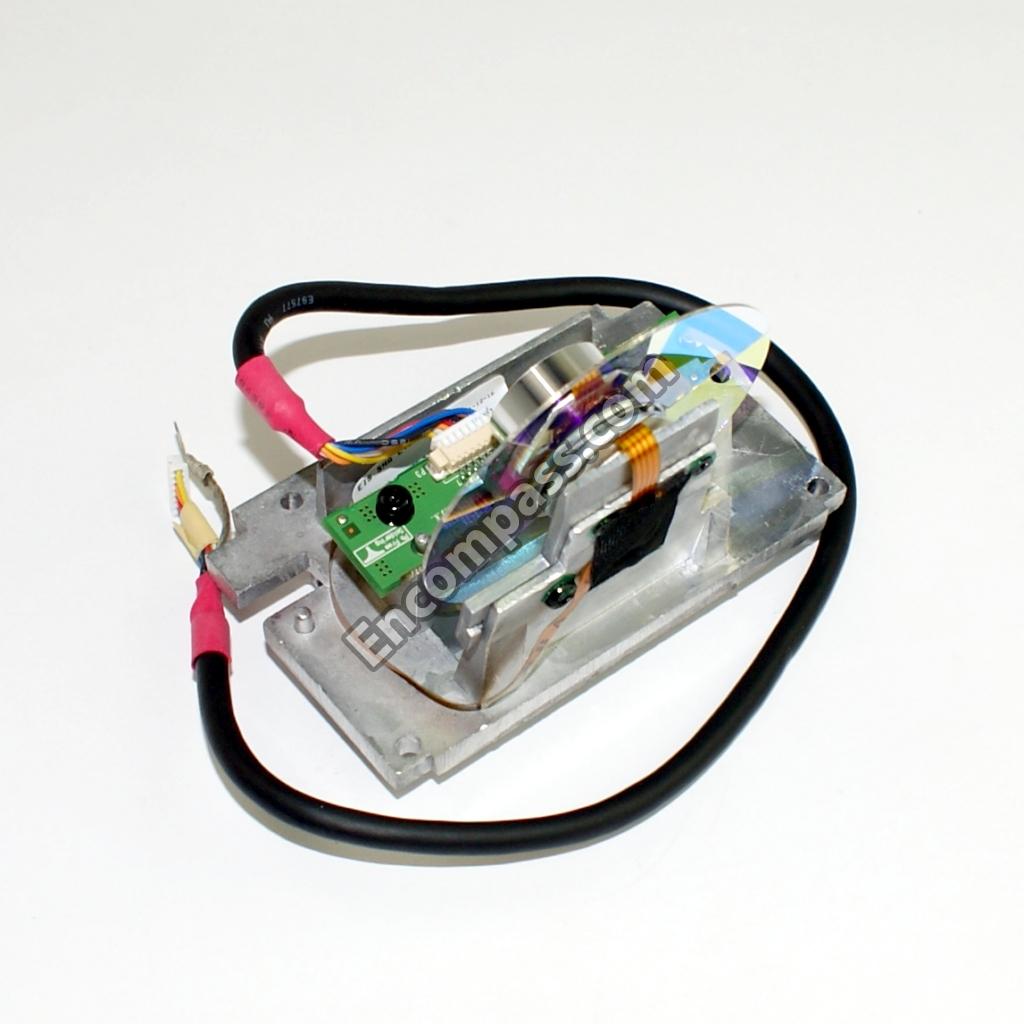

3141VSNH16C 3141VSNH16C FILTER [721] COLOR WHEEL
0LCML00004A 0LCML00004A FILTER,BEAD [B1]
0LCML00002A 0LCML00002A FILTER,BEAD [F1100]
125-022K 125-022K FILTER,BEAD [FB801]
125-123A 125-123A FILTER,BEAD [FB831]
0LCML00003B 0LCML00003B FILTER,BEAD [L1100]
0LCML00002B 0LCML00002B FILTER,BEAD [L1204]
6210VH0004A 6210VH0004A FILTER,FERRITE CORE [F1]
6210VH0004B 6210VH0004B FILTER,FERRITE CORE [F4]
6200J000123 6200J000123 FILTER,LCR [FL820]
6200VJT006A 6200VJT006A FILTER,LCR [L103]
6200QJ3001A 6200QJ3001A FILTER,LCR [L113]
6200JB8012T 6200JB8012T FILTER,LINE NOISE [L801]
6200J000066 6200J000066 FILTER,LINE NOISE [L803]
6200QL3002E 6200QL3002E FILTER,SAW [X151]
0FS5001B51D 0FS5001B51D FUSE,TIME DELAY [F800]
6631V12046L 6631V12046L HARNESS,MULTI [C10]
6631V12044G 6631V12044G HARNESS,MULTI [C8]
387-916K 387-916K HARNESS,SINGLE [C10]
6631V20046J 6631V20046J HARNESS,SINGLE [C11]
6631V23003M 6631V23003M HARNESS,SINGLE [C12]
6631V39009H 6631V39009H HARNESS,SINGLE [C13]
387-907J 387-907J HARNESS,SINGLE [C15]
387-G03M 387-G03M HARNESS,SINGLE [C16]
6631V12009B 6631V12009B HARNESS,SINGLE [C17]
6631V12010C 6631V12010C HARNESS,SINGLE [C18]
387-J12M 387-J12M HARNESS,SINGLE [C19]
6631V20019E 6631V20019E HARNESS,SINGLE [C21]
6631V20033M 6631V20033M HARNESS,SINGLE [C23]
387-G07M 387-G07M HARNESS,SINGLE [C26]
387-G04P 387-G04P HARNESS,SINGLE [C2]
6631V25032L 6631V25032L HARNESS,SINGLE [C31]
387-G06P 387-G06P HARNESS,SINGLE [C3]
387-G12P 387-G12P HARNESS,SINGLE [C4]
6631V25051P 6631V25051P HARNESS,SINGLE [C4]
6631900051A 6631900051A HARNESS,SINGLE [C5]
6631V25170A 6631V25170A HARNESS,SINGLE [C5]
6631V25169A 6631V25169A HARNESS,SINGLE [C6]
6631V00015B 6631V00015B HARNESS,SINGLE [C6]
6631V00030G 6631V00030G HARNESS,SINGLE [C7]
387-A04G 387-A04G HARNESS,SINGLE [P16]
387-G04L 387-G04L HARNESS,SINGLE [P404]
387-G03L 387-G03L HARNESS,SINGLE [P405]
387-G10L 387-G10L HARNESS,SINGLE [P5B]
0IZZVG0001A 0IZZVG0001A IC ASSEMBLY [IC502]
0IMCRLT002A 0IMCRLT002A IC,ANALOG SWITCH [IC1102]
0ISA715100D 0ISA715100D IC,ANALOG SWITCH [IC1202]
0ISO206900A 0ISO206900A IC,ANALOG SWITCH [IC200]
0IPRP00018A 0IPRP00018A IC,ASIC [IC3500]
0ICTMLG013A 0ICTMLG013A IC,ASIC [IC405]
0IMCRTI028B 0IMCRTI028B IC,AUDIO AMPLIFIER [IC105]
0IMCRNL001C 0IMCRNL001C IC,AUDIO AMPLIFIER [IC111]
0IPRPIC016A 0IPRPIC016A IC,BUFFER [IC114]
0IMCRCY001A 0IMCRCY001A IC,BUFFER [IC3202]
0IMCRPH026B 0IMCRPH026B IC,BUFFER [IC3204]
0IPH827150A 0IPH827150A IC,BUS CONTROLLER [IC104]
0IPRPBM001B 0IPRPBM001B IC,BUS CONTROLLER [IC3000]
0IMCRTI014A 0IMCRTI014A IC,CLOCK GENERATOR [IC801]
0IMCRFA013A 0IMCRFA013A IC,CMOS [IC1105]
0ISTL00002A 0ISTL00002A IC,CMOS [IC116]
0IMO744053B 0IMO744053B IC,CMOS [IC1202]
0IPRPTO002A 0IPRPTO002A IC,CMOS [IC1]
0ILNRON009B 0ILNRON009B IC,CMOS [IC412]
0ITO741570C 0ITO741570C IC,CMOS [IC501]
0IMCRSG007A 0IMCRSG007A IC,CMOS [IC504]
0ISTLON023B 0ISTLON023B IC,CMOS [IC511]
0IMCRSG008B 0IMCRSG008B IC,CMOS [IC511]
0IMCRSG008A 0IMCRSG008A IC,CMOS [IC511]
0ILNRID002A 0ILNRID002A IC,CMOS [IC703]
0IPMGNS026A 0IPMGNS026A IC,COMPARATOR [IC1203]
0IMCRFA003A 0IMCRFA003A IC,COMPARATOR [IC702]
0IPRPPH041A 0IPRPPH041A IC,D/A CONVERTER [IC105]
0IPRPFA014A 0IPRPFA014A IC,D/A CONVERTER [IC115]
0IPRP00539A 0IPRP00539A IC,D/A CONVERTER [IC403]
0ICTMLG019A 0ICTMLG019A IC,DATA CONTROLLER [IC801]
0IMCRTI012B 0IMCRTI012B IC,DISPLAY DRIVER [IC900]
0IMMRAL014D 0IMMRAL014D IC,EEPROM [IC2402]
0IMCRAL021A 0IMCRAL021A IC,EEPROM [IC3300]
0IMCRAL006A 0IMCRAL006A IC,EEPROM [IC5]
0IPMGSK015B 0IPMGSK015B IC,HIC [IC801]
0IMI623200B 0IMI623200B IC,I/O SUPPORT CHIP [IC1]
0IPRPFA015B 0IPRPFA015B IC,IMAGE FILTER [IC2502]
0IPRPFA016B 0IPRPFA016B IC,IMAGE FILTER [IC2900]
0IMCRKE006A 0IMCRKE006A IC,LDO VOLTAGE REGULATOR [IC101]
0IPMGS1012A 0IPMGS1012A IC,LDO VOLTAGE REGULATOR [IC108]
0IMCRSJ001A 0IMCRSJ001A IC,LDO VOLTAGE REGULATOR [IC110]
0IPMGKE030A 0IPMGKE030A IC,LDO VOLTAGE REGULATOR [IC1200]
0IPMGSG018C 0IPMGSG018C IC,LDO VOLTAGE REGULATOR [IC2500]
0IMCRKE018A 0IMCRKE018A IC,LDO VOLTAGE REGULATOR [IC3]
0IMCRKE003B 0IMCRKE003B IC,LDO VOLTAGE REGULATOR [IC409]
0IPMGKE019B 0IPMGKE019B IC,LDO VOLTAGE REGULATOR [IC701]
0IPMGKE045A 0IPMGKE045A IC,LDO VOLTAGE REGULATOR [IC703]
0IPMG00038A 0IPMG00038A IC,LDO VOLTAGE REGULATOR [IC850]
0IMCRMT003A 0IMCRMT003A IC,MICROCONTROLLERS [IC1200]
0IMCRMP006A 0IMCRMP006A IC,MICROCONTROLLERS [IC1204]
0IMCRMP007A 0IMCRMP007A IC,MICROCONTROLLERS [IC1205]
0IMCRAG001A 0IMCRAG001A IC,MOTOR DRIVER [IC401]
0IMMRAT006B 0IMMRAT006B IC,NOR FLASH MEMORY [IC112]
0IMMRAL050B 0IMMRAL050B IC,NOR FLASH MEMORY [IC701]
0IMCRFA004A 0IMCRFA004A IC,OP AMPLIFIER [IC152]
0ISS455880A 0ISS455880A IC,OP AMPLIFIER [IC601]
0ICTM00021A 0ICTM00021A IC,PLD [IC1103]
0IPRPAT003A 0IPRPAT003A IC,PLD [IC124]
0IMCRXL004A 0IMCRXL004A IC,PLD [IC701]
0IMCRMX001A 0IMCRMX001A IC,PMIC [IC805]
0ILNR00038A 0ILNR00038A IC,POWER AMPLIFIER [IC404]
0IMMRSS053B 0IMMRSS053B IC,RDRAM [IC800]
0IPRPS5006A 0IPRPS5006A IC,RECEIVER [IC2401]
0IMCRTH003B 0IMCRTH003B IC,RECEIVER [IC500]
0ICB841500B 0ICB841500B IC,RECEIVER [IC502]
0IMMRHY038E 0IMMRHY038E IC,SDRAM [IC109]
0IMMRSS037F 0IMMRSS037F IC,SDRAM [IC1102]
0IMMRHY033B 0IMMRHY033B IC,SDRAM [IC113]
0IMMR00080A 0IMMR00080A IC,SDRAM [IC2501]
0IMMR00141A 0IMMR00141A IC,SDRAM [IC400]
0IMCRMN012A 0IMCRMN012A IC,SOUND/AUDIO PROCESSOR [IC600]
0ICTMLG017A 0ICTMLG017A IC,TRANSCEIVER [IC1101]
0IMCRSG010A 0IMCRSG010A IC,TRANSCEIVER [IC3203]
0IMCRTH002A 0IMCRTH002A IC,TX/RX [IC2700]
0IMCRTI035A 0IMCRTI035A IC,VIDEO AMPLIFIER [IC151]
0IPRPNE008A 0IPRPNE008A IC,VIDEO DECODE [IC2503]
0ILNRMN005B 0ILNRMN005B IC,VIDEO DECODE [IC600]
0IPRPAL005A 0IPRPAL005A IC,VIDEO PROCESSORS [IC101]
0IMCRSO025A 0IMCRSO025A IC,VIDEO PROCESSORS [IC1201]
0ICTMLG009C 0ICTMLG009C IC,VIDEO PROCESSORS [IC301]
0ICTMLG018B 0ICTMLG018B IC,VIDEO PROCESSORS [IC3800]
0ICTM00019A 0ICTM00019A IC,VIDEO PROCESSORS [IC501]
0IPRPM3002D 0IPRPM3002D IC,VIDEO PROCESSORS [IC900]
0IFA752700A 0IFA752700A IC,VOLTAGE DETECTOR [IC110]
0IPMGON013B 0IPMGON013B IC,VOLTAGE REGULATOR [IC100]
0IKE780900M 0IKE780900M IC,VOLTAGE REGULATOR [IC102]
0IMCRFA007A 0IMCRFA007A IC,VOLTAGE REGULATOR [IC851]
0LC3332101A 0LC3332101A INDUCTOR,MULTILAYER,CHIP [IC2]
0LC6832101A 0LC6832101A INDUCTOR,MULTILAYER,CHIP [L101]
0LCML00020D 0LCML00020D INDUCTOR,MULTILAYER,CHIP [L1117]
0LC2232101A 0LC2232101A INDUCTOR,MULTILAYER,CHIP [L1202]
0LC1032101A 0LC1032101A INDUCTOR,MULTILAYER,CHIP [L1]
0LC1532101A 0LC1532101A INDUCTOR,MULTILAYER,CHIP [L2511]
0LC0233002A 0LC0233002A INDUCTOR,MULTILAYER,CHIP [L3000]
0LC0682001A 0LC0682001A INDUCTOR,MULTILAYER,CHIP [L404]
0LCML00019A 0LCML00019A INDUCTOR,MULTILAYER,CHIP [L501]
0LC4732101A 0LC4732101A INDUCTOR,MULTILAYER,CHIP [L504]
6140VB0021A 6140VB0021A INDUCTOR,WIRE WOUND,CHIP [CH3500]
6140VB0023A 6140VB0023A INDUCTOR,WIRE WOUND,CHIP [L100]
0LCML00019B 0LCML00019B INDUCTOR,WIRE WOUND,CHIP [L2510]
61409R0001B 61409R0001B INDUCTOR,WIRE WOUND,CHIP [L403]
6140VR0007A 6140VR0007A INDUCTOR,WIRE WOUND,CHIP [L903]
6613V00010D 6613V00010D JACK,COMPLEX [JA201]
6612B00015A 6612B00015A JACK,DIN [P2401]
6612BBBHN7A 6612BBBHN7A JACK,DIN [P601]
6612BBBHN4D 6612BBBHN4D JACK,FIBER OPTIC [J500]
6612BBBHN4E 6612BBBHN4E JACK,FIBER OPTIC [J501]
6612F00055B 6612F00055B JACK,PHONE [CN1202]
6613V00013M 6613V00013M JACK,RCA [JA1201]
6612VJH006C 6612VJH006C JACK,RCA [JA1202A]
6613V00013J 6613V00013J JACK,RCA [JA200]

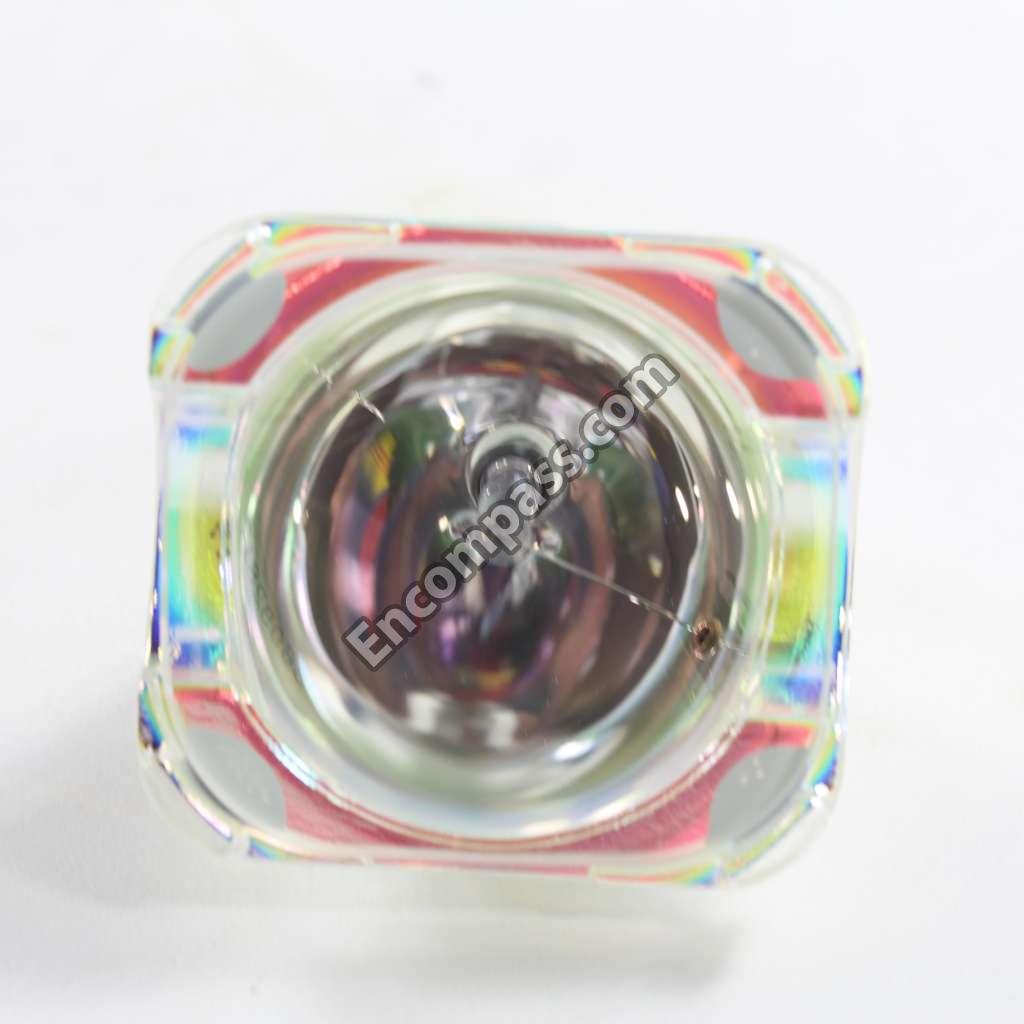

6912B22007B 6912B22007B LAMP,MERCURY [610]
6301V00003B 6301V00003B LED DISPLAY MODULE [IC1003]
3680V00135B 3680V00135B LENS [L1]
3680V00134B 3680V00134B LENS [L2]
3680V00157A 3680V00157A LENS [L3]
3680V00153A 3680V00153A LENS [L4]
5018V00067G 5018V00067G MIRROR [430]
6204B47985C 6204B47985C OSCILLATOR,CRYSTAL [IC704]
6204B47985L 6204B47985L OSCILLATOR,CRYSTAL [X3200]
6204B47985M 6204B47985M OSCILLATOR,CRYSTAL [X3500]
6204B47985K 6204B47985K OSCILLATOR,CRYSTAL [X800]
6204B60001B 6204B60001B OSCILLATOR,VCXO [X400]
6871VMMZL7A 6871VMMZL7A PCB ASSEMBLY,MAIN [520]
6871VSMAEWA 6871VSMAEWA PCB ASSEMBLY,SUB [560]
6871VSMANZJ 6871VSMANZJ PCB ASSEMBLY,SUB [570]
6871VSME85A 6871VSME85A PCB ASSEMBLY,SUB [580]
6871VSN221K 6871VSN221K PCB ASSEMBLY,SUB [630]
6871VSMADTA 6871VSMADTA PCB ASSEMBLY,SUB [650]
6871VSMADVA 6871VSMADVA PCB ASSEMBLY,SUB [660]
6871VSN220L 6871VSN220L PCB ASSEMBLY,SUB [680]
6871VSME03L 6871VSME03L PCB ASSEMBLY,SUB [690]
6871VSME82A 6871VSME82A PCB ASSEMBLY,SUB [700]
6871VSMW40F 6871VSMW40F PCB ASSEMBLY,SUB [720]
0IMCRTI011B 0IMCRTI011B PERIPHERAL IC [IC700]
0ILI817000G 0ILI817000G PHOTO,COUPLER [IC830]
0IMCRSH003A 0IMCRSH003A PHOTO,INTERRUPTER [IC2]
4814V00502D 4814V00502D PLATE [611]
3300V00420A 3300V00420A PLATE [723]
6410VUH004A 6410VUH004A POWER CORD [174]
6726VH0001A 6726VH0001A RECEIVER MODULE [PA1]
AKB73575301 AKB73575301 REMOTE CONTROLLER [A2]
0RJ0222C687 0RJ0222C687 RESISTOR,ARRAY [AR108]
0RJ1000C687 0RJ1000C687 RESISTOR,ARRAY [AR2501]
0RJ3001D605 0RJ3001D605 RESISTOR,ARRAY [AR3000]
0RJ4701C687 0RJ4701C687 RESISTOR,ARRAY [AR3008]
0RJ0332C687 0RJ0332C687 RESISTOR,ARRAY [AR800]
0RD0752F609 0RD0752F609 RESISTOR,CARBON FILM [R1]
0RD4703F609 0RD4703F609 RESISTOR,CARBON FILM [R2]
0RD0102H609 0RD0102H609 RESISTOR,CARBON FILM [R806]
0RD2000F609 0RD2000F609 RESISTOR,CARBON FILM [R808]
0RD2200F609 0RD2200F609 RESISTOR,CARBON FILM [R810]
0RD1503H609 0RD1503H609 RESISTOR,CARBON FILM [R811]
0RD1501F609 0RD1501F609 RESISTOR,CARBON FILM [R816]
0RD2001F609 0RD2001F609 RESISTOR,CARBON FILM [R851]
0RD8200F609 0RD8200F609 RESISTOR,CARBON FILM [R853]
0RD5100F609 0RD5100F609 RESISTOR,CARBON FILM [R854]
0RD0822F609 0RD0822F609 RESISTOR,CARBON FILM [R854]
0RD3601F609 0RD3601F609 RESISTOR,CARBON FILM [R865]
0RD3901F609 0RD3901F609 RESISTOR,CARBON FILM [R866]
0RD1002H609 0RD1002H609 RESISTOR,CARBON FILM [R891]
0RD1001F609 0RD1001F609 RESISTOR,CARBON FILM [R894]
0RJ2201D477 0RJ2201D477 RESISTOR,CHIP [C1171]
0RH0000D622 0RH0000D622 RESISTOR,CHIP [C1260]
0RJ0392D477 0RJ0392D477 RESISTOR,CHIP [IC1113]
0RJ3301D677 0RJ3301D677 RESISTOR,CHIP [R1012]
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP [R1016]
0RJ1002D677 0RJ1002D677 RESISTOR,CHIP [R1017]
0RJ1001D677 0RJ1001D677 RESISTOR,CHIP [R1028]
0RJ0222D677 0RJ0222D677 RESISTOR,CHIP [R102]
0RH0822D622 0RH0822D622 RESISTOR,CHIP [R102]
0RJ6800D677 0RJ6800D677 RESISTOR,CHIP [R1035]
0RJ0331H680 0RJ0331H680 RESISTOR,CHIP [R106]
0RJ1000D677 0RJ1000D677 RESISTOR,CHIP [R107]
0RH1800D622 0RH1800D622 RESISTOR,CHIP [R107]
0RH0682D622 0RH0682D622 RESISTOR,CHIP [R107]
0RH4700D622 0RH4700D622 RESISTOR,CHIP [R107]
0RH0102D622 0RH0102D622 RESISTOR,CHIP [R108]
0RH8200D622 0RH8200D622 RESISTOR,CHIP [R109]
0RH4702D622 0RH4702D622 RESISTOR,CHIP [R10]
0RH4701D622 0RH4701D622 RESISTOR,CHIP [R10]
0RJ0102D677 0RJ0102D677 RESISTOR,CHIP [R1100]
0RJ0332D677 0RJ0332D677 RESISTOR,CHIP [R1102]
0RH2201D622 0RH2201D622 RESISTOR,CHIP [R110]
0RJ6202D677 0RJ6202D677 RESISTOR,CHIP [R1110]
0RJ4991D477 0RJ4991D477 RESISTOR,CHIP [R1112]
0RJ3002D677 0RJ3002D677 RESISTOR,CHIP [R1114]
0RH5102D622 0RH5102D622 RESISTOR,CHIP [R111]
0RJ3300D677 0RJ3300D677 RESISTOR,CHIP [R1173]
0RJ1004D677 0RJ1004D677 RESISTOR,CHIP [R1185]
0RJ2701D677 0RJ2701D677 RESISTOR,CHIP [R118]
0RH0101D622 0RH0101D622 RESISTOR,CHIP [R118]
0RJ8202D677 0RJ8202D677 RESISTOR,CHIP [R1202]
0RJ0122D677 0RJ0122D677 RESISTOR,CHIP [R1203]
0RJ5600D677 0RJ5600D677 RESISTOR,CHIP [R1204]
0RH4703D622 0RH4703D622 RESISTOR,CHIP [R1209]
0RJ3303D677 0RJ3303D677 RESISTOR,CHIP [R1214]
0RJ2200D677 0RJ2200D677 RESISTOR,CHIP [R1217]
0RJ4700D677 0RJ4700D677 RESISTOR,CHIP [R1218]
0RH2001D622 0RH2001D622 RESISTOR,CHIP [R1220]
0RH2700D622 0RH2700D622 RESISTOR,CHIP [R1222]
0RJ4702D677 0RJ4702D677 RESISTOR,CHIP [R1223]
0RJ2202D677 0RJ2202D677 RESISTOR,CHIP [R1224]
0RJ8200D677 0RJ8200D677 RESISTOR,CHIP [R1231]
0RJ0562D477 0RJ0562D477 RESISTOR,CHIP [R1232]
0RJ1502D677 0RJ1502D677 RESISTOR,CHIP [R1250]
0RJ1500D677 0RJ1500D677 RESISTOR,CHIP [R1252]
0RH1501D622 0RH1501D622 RESISTOR,CHIP [R1252]
0RH0331D622 0RH0331D622 RESISTOR,CHIP [R126]
0RH0752D622 0RH0752D622 RESISTOR,CHIP [R1270]
0RJ2201D677 0RJ2201D677 RESISTOR,CHIP [R1280]
0RJ1602D677 0RJ1602D677 RESISTOR,CHIP [R1281]
0RH0222D622 0RH0222D622 RESISTOR,CHIP [R1284]
0RH1502D622 0RH1502D622 RESISTOR,CHIP [R1287]
0RJ2492D477 0RJ2492D477 RESISTOR,CHIP [R128]
0RH3000D622 0RH3000D622 RESISTOR,CHIP [R1362]
0RH0512D622 0RH0512D622 RESISTOR,CHIP [R153]
0RH0221D622 0RH0221D622 RESISTOR,CHIP [R195]
0RJ2203D677 0RJ2203D677 RESISTOR,CHIP [R199]
0RH1002D622 0RH1002D622 RESISTOR,CHIP [R1]
0RH1000D622 0RH1000D622 RESISTOR,CHIP [R1]
0RJ2000D677 0RJ2000D677 RESISTOR,CHIP [R1]
0RH2200D622 0RH2200D622 RESISTOR,CHIP [R1]
0RH5601D622 0RH5601D622 RESISTOR,CHIP [R203]
0RJ0472D677 0RJ0472D677 RESISTOR,CHIP [R219]
0RH2400D622 0RH2400D622 RESISTOR,CHIP [R220]
0RJ0471D677 0RJ0471D677 RESISTOR,CHIP [R2447]
0RJ2001D677 0RJ2001D677 RESISTOR,CHIP [R2481]
0RH3600D622 0RH3600D622 RESISTOR,CHIP [R2538]
0RJ1800D677 0RJ1800D677 RESISTOR,CHIP [R2544]
0RJ0752D677 0RJ0752D677 RESISTOR,CHIP [R2544]
0RJ0822D677 0RJ0822D677 RESISTOR,CHIP [R2545]
0RH0332D622 0RH0332D622 RESISTOR,CHIP [R26]
0RH1500D622 0RH1500D622 RESISTOR,CHIP [R2]
0RJ3001D677 0RJ3001D677 RESISTOR,CHIP [R3035]
0RJ0272D677 0RJ0272D677 RESISTOR,CHIP [R308]
0RH1004D622 0RH1004D622 RESISTOR,CHIP [R30]
0RJ5101D677 0RJ5101D677 RESISTOR,CHIP [R317]
0RJ9100D677 0RJ9100D677 RESISTOR,CHIP [R323]
0RJ2700D677 0RJ2700D677 RESISTOR,CHIP [R324]
0RJ6341D477 0RJ6341D477 RESISTOR,CHIP [R3507]
0RJ1802D677 0RJ1802D677 RESISTOR,CHIP [R406]
0RJ0330H680 0RJ0330H680 RESISTOR,CHIP [R408]
0RJ1501D677 0RJ1501D677 RESISTOR,CHIP [R412]
0RJ6802D677 0RJ6802D677 RESISTOR,CHIP [R417]
0RJ1201D677 0RJ1201D677 RESISTOR,CHIP [R501]
0RJ0222D477 0RJ0222D477 RESISTOR,CHIP [R511]
0RH3302D622 0RH3302D622 RESISTOR,CHIP [R600]
0RH1201D622 0RH1201D622 RESISTOR,CHIP [R602]
0RH7501D622 0RH7501D622 RESISTOR,CHIP [R605]
0RJ0342D477 0RJ0342D477 RESISTOR,CHIP [R621]
0RH6202D622 0RH6202D622 RESISTOR,CHIP [R626]
0RH2402D622 0RH2402D622 RESISTOR,CHIP [R628]
0RH1203D622 0RH1203D622 RESISTOR,CHIP [R639]
0RJ3302D677 0RJ3302D677 RESISTOR,CHIP [R701]
0RH2000D622 0RH2000D622 RESISTOR,CHIP [R751]
0RJ3900D677 0RJ3900D677 RESISTOR,CHIP [R802]
0RJ1100D477 0RJ1100D477 RESISTOR,CHIP [R806]
0RJ1202D677 0RJ1202D677 RESISTOR,CHIP [R855]
0RJ1180D477 0RJ1180D477 RESISTOR,CHIP [R858]
0RJ5100D677 0RJ5100D677 RESISTOR,CHIP [R922]
0RJ1801D677 0RJ1801D677 RESISTOR,CHIP [R964]
0RN1002F409 0RN1002F409 RESISTOR,METAL FILM [R1286]
0RKZVTA001B 0RKZVTA001B RESISTOR,METAL FILM [R800]
0RN1202F409 0RN1202F409 RESISTOR,METAL FILM [R852]
0RN5100F409 0RN5100F409 RESISTOR,METAL FILM [R856]
0RN2201F409 0RN2201F409 RESISTOR,METAL FILM [R895]
0RN8201F409 0RN8201F409 RESISTOR,METAL FILM [R896]
0RX2703K607 0RX2703K607 RESISTOR,METAL OXIDE FILM [R801]
0RS1003K607 0RS1003K607 RESISTOR,METAL OXIDE FILM [R804]
0RX1503K607 0RX1503K607 RESISTOR,METAL OXIDE FILM [R811]
0RS1001K607 0RS1001K607 RESISTOR,METAL OXIDE FILM [R892]
0RB0150K607 0RB0150K607 RESISTOR,WIRE WOUND [R802]
6212AB3004D 6212AB3004D RESONATOR,CERAMIC [X1203]
6927V3050AK 6927V3050AK S/W,FIRMWARE [IC102]
6927V0141AF 6927V0141AF S/W,FIRMWARE [IC1]
6927V0115AX 6927V0115AX S/W,FIRMWARE [IC3303]
6927V0135AX 6927V0135AX S/W,FIRMWARE [IC3304]
AHN30321901 AHN30321901 SCREEN ASSEMBLY [305]
6501VN0001D 6501VN0001D SENSOR ASSEMBLY [S1]
6630C00010B 6630C00010B SOCKET,CARD [CARD1]
6630C00012C 6630C00012C SOCKET,CARD [CARD2]
6630CE00168 6630CE00168 SOCKET,CARD [CN1102]
EAB30828601 EAB30828601 SPEAKER,FULL RANGE [120]
EAB30824501 EAB30824501 SPEAKER,TWEETER [121]
4980V00D32B 4980V00D32B SUPPORTER [302]
4980V01218C 4980V01218C SUPPORTER [303]
4980V00D35A 4980V00D35A SUPPORTER [431]
4980V00D11B 4980V00D11B SUPPORTER [602]
4980V00E80B 4980V00E80B SUPPORTER [623]
4980V00B42G 4980V00B42G SUPPORTER [722]
140-275E 140-275E SWITCH,PUSH BUTTON [SW01]
140-315F 140-315F SWITCH,TACT [SW1]
163-048D 163-048D THERMISTOR,NTC [TH801]
0TRON80020A 0TRON80020A TR,ARRAY [IC107]
EBK58172301 EBK58172301 TR,BIPOLAR [Q106]
0TRKE80046A 0TRKE80046A TR,BIPOLAR [Q1202]
0TR390609DC 0TR390609DC TR,BIPOLAR [Q1203]
0TR102008AA 0TR102008AA TR,BIPOLAR [Q206]
0TR437000BA 0TR437000BA TR,BIPOLAR [Q802]
0TR945009AA 0TR945009AA TR,BIPOLAR [Q852]
6170VMCC01X 6170VMCC01X TRANSFORMER,SWITCHING [T830]
6700NC0001A 6700NC0001A TUNER,ANALOG [TU101]
6700NFNS04H 6700NFNS04H TUNER,ANALOG/DIGITAL [TU104]
6634D00009C 6634D00009C TUNER,RF MODULATOR [C2]
6102W5V016A 6102W5V016A VARISTOR [VA2400]
164-003K 164-003K VARISTOR [VA800]
Main Menu x
