Model Image
Manufacturer

LG

Model Number

55LB5550UY

Description

55-inch Led 1080p Hdtv

Interactive Exploded View

Parts List

Part Number Description
AAN74355106 AAN74355106 BASE ASSEMBLY
MAY66330504 MAY66330504 BOX
MAY65262777 MAY65262777 BOX
ABA74669170 ABA74669170 BRACKET ASSEMBLY
EAD62572203 EAD62572203 CABLE,FFC
ECZH0001215 ECZH0001215 CAPACITOR,CERAMIC,CHIP
EAE62771201 EAE62771201 CAPACITOR,CERAMIC,CHIP
EAE62281601 EAE62281601 CAPACITOR,CERAMIC,CHIP
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
EAE58111001 EAE58111001 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE32246001 EAE32246001 CAPACITOR,CERAMIC,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
EAE31992101 EAE31992101 CAPACITOR,CERAMIC,CHIP
EAE31360401 EAE31360401 CAPACITOR,CERAMIC,CHIP
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP
0CK680BK4DA 0CK680BK4DA CAPACITOR,CERAMIC,CHIP
0CK475DD56A 0CK475DD56A CAPACITOR,CERAMIC,CHIP
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
0CK393CK56A 0CK393CK56A CAPACITOR,CERAMIC,CHIP
0CK333CK56A 0CK333CK56A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
0CK226DC67A 0CK226DC67A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK106CC67A 0CK106CC67A CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CC820BKFAA 0CC820BKFAA CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CC271BK4AA 0CC271BK4AA CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP

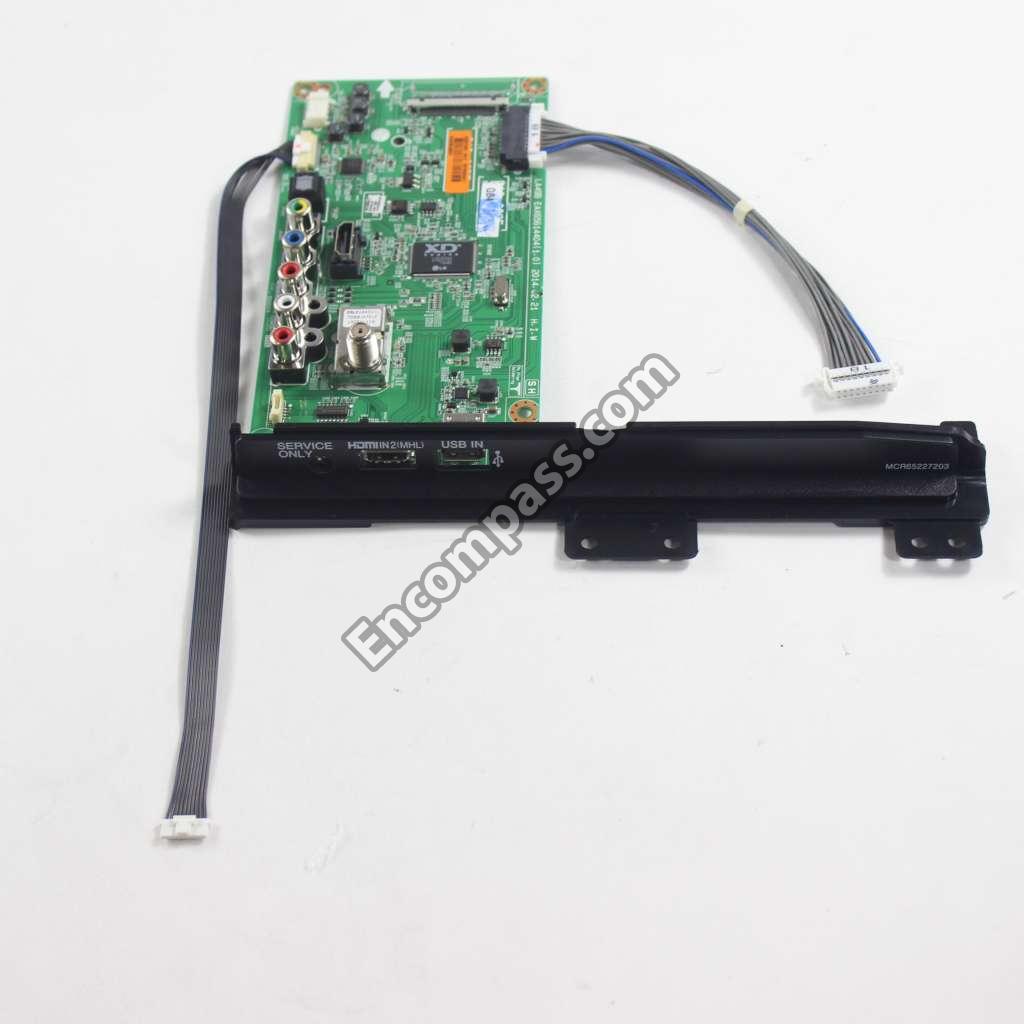

EBT63034611 EBT63034611 CHASSIS ASSEMBLY
EAG62611204 EAG62611204 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
EAG63590901 EAG63590901 CONNECTOR,WAFER
EAG61091601 EAG61091601 CONNECTOR,WAFER
EAG58732903 EAG58732903 CONNECTOR,WAFER
6630V93270J 6630V93270J CONNECTOR,WAFER
6630V90141F 6630V90141F CONNECTOR,WAFER
ACQ87013516 ACQ87013516 COVER ASSEMBLY
ACQ86877624 ACQ86877624 COVER ASSEMBLY,REAR
EAW43548908 EAW43548908 CRYSTAL
EAH62372501 EAH62372501 DIODE,SCHOTTKY
EAH40478101 EAH40478101 DIODE,SCHOTTKY
EAH61714301 EAH61714301 DIODE,SWITCHING
EAH62134701 EAH62134701 DIODE,TVS
EAH62033101 EAH62033101 DIODE,ZENER
EAN62738601 EAN62738601 DISPLAY SOC,DIGITAL TV
EBK61913601 EBK61913601 FET
EAM62091201 EAM62091201 FILTER,BEAD
EAM61130602 EAM61130602 FILTER,BEAD
EAM61090601 EAM61090601 FILTER,BEAD
EAM38769505 EAM38769505 FILTER,BEAD
0LCML00003B 0LCML00003B FILTER,BEAD
EAD62595402 EAD62595402 HARNESS,SINGLE
EAD62526503 EAD62526503 HARNESS,SINGLE
EAD61646293 EAD61646293 HARNESS,SINGLE
EAN62494901 EAN62494901 IC,AUDIO AMPLIFIER
EAN62911401 EAN62911401 IC,DC,DC CONVERTER
EAN62911301 EAN62911301 IC,DC,DC CONVERTER
EAN43349005 EAN43349005 IC,EEPROM
EAN43349004 EAN43349004 IC,EEPROM
EAN62952301 EAN62952301 IC,GATE
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAN62527401 EAN62527401 IC,SERIAL FLASH MEMORY
EAN41348201 EAN41348201 IC,TX/RX
EAN62945801 EAN62945801 IC,VOLTAGE DETECTOR
EAP62506403 EAP62506403 INDUCTOR,WIRE WOUND,CHIP
EAP62506402 EAP62506402 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
MEV64571001 MEV64571001 INSULATOR
EAG59023302 EAG59023302 JACK,DIN
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG61030006 EAG61030006 JACK,PHONE
EAG60968213 EAG60968213 JACK,RCA
CRD31713001 CRD31713001 LCD,MODULE-TFT
EAD62397301 EAD62397301 POWER CORD
EAY63072101 EAY63072101 POWER SUPPLY ASSEMBLY
AGF76631012 AGF76631012 REMOTE CONTROLLER ASSEMBLY
EBC62582708 EBC62582708 RESISTOR,ARRAY
EBC62582707 EBC62582707 RESISTOR,ARRAY
EBC62582706 EBC62582706 RESISTOR,ARRAY
EBC62582704 EBC62582704 RESISTOR,ARRAY
EBC62582701 EBC62582701 RESISTOR,ARRAY
EBC32260601 EBC32260601 RESISTOR,ARRAY
0RZZH033273 0RZZH033273 RESISTOR,ARRAY
ERHZ0000461 ERHZ0000461 RESISTOR,CHIP
EBC01890805 EBC01890805 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4700C678 0RJ4700C678 RESISTOR,CHIP
0RJ3301D477 0RJ3301D477 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ2701C478 0RJ2701C478 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ1802C478 0RJ1802C478 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1800C678 0RJ1800C678 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ1500C678 0RJ1500C678 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0182C478 0RJ0182C478 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RH3301D622 0RH3301D622 RESISTOR,CHIP
0RH0752D622 0RH0752D622 RESISTOR,CHIP
FAB30016124 FAB30016124 SCREW ASSEMBLY
FAB32418702 FAB32418702 SCREW,MACHINE
FAB32418701 FAB32418701 SCREW,MACHINE
FAB31843211 FAB31843211 SCREW,MACHINE
FAB31843204 FAB31843204 SCREW,MACHINE
FAB31639801 FAB31639801 SCREW,TAPTITE
EAB63069102 EAB63069102 SPEAKER ASSEMBLY
EAB63069101 EAB63069101 SPEAKER ASSEMBLY
MJH63102901 MJH63102901 SUPPORTER

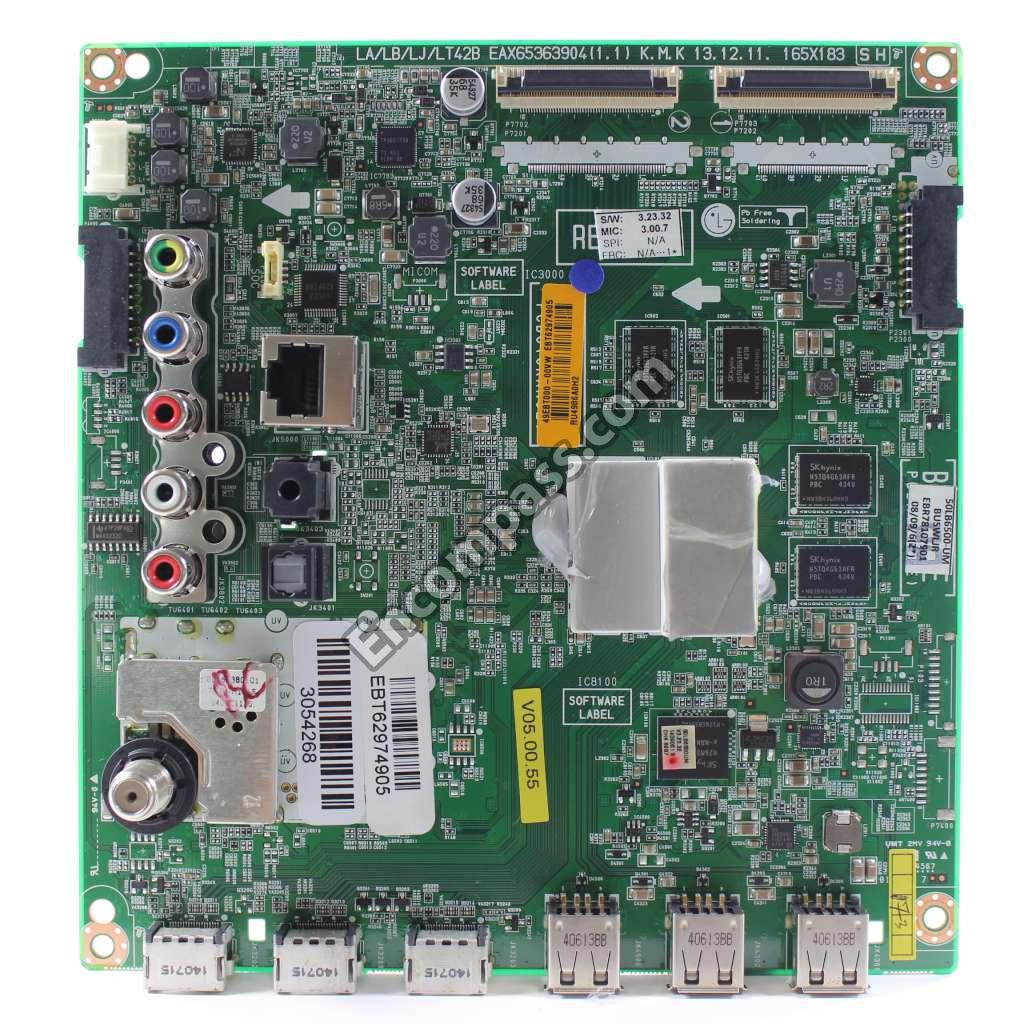

CRB34489201 CRB34489201 TIME CONTROL
EBK61012701 EBK61012701 TR,BIPOLAR
EBK61012601 EBK61012601 TR,BIPOLAR
EBL61440001 EBL61440001 TUNER,ANALOG/DIGITAL
EAF61530201 EAF61530201 VARISTOR
EAF61530102 EAF61530102 VARISTOR
