Model Image
Manufacturer

LG

Model Number

55UB9500UA

Description

55 Inch Uhd 4k Smart 3d Led Tv W/ Webos

Interactive Exploded View

Parts List

Part Number Description
EBX61668501 EBX61668501 3D GLASSES AG-F310

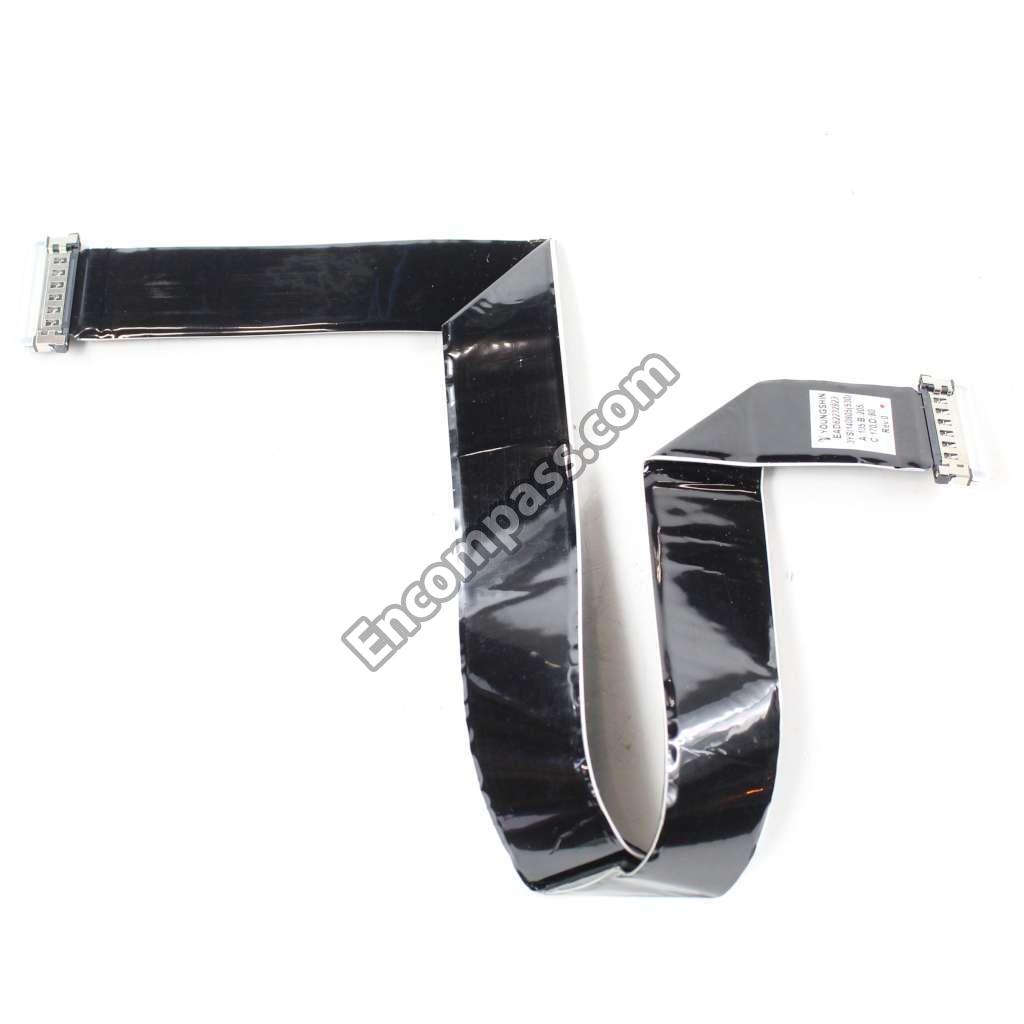

EAD62162217 EAD62162217 41PIN LVDS CABLE
EAD62232923 EAD62232923 51PIN LVDS CABLE
EBX61849405 EBX61849405 ACCESSORY,WIRELESS
MAY65262777 MAY65262777 BOX
MAY66431703 MAY66431703 BOX
MAZ63987603 MAZ63987603 BRACKET
MAZ63987706 MAZ63987706 BRACKET
EAD00926131 EAD00926131 CABLE,ASSEMBLY
EAD00926133 EAD00926133 CABLE,ASSEMBLY
EAD61273107 EAD61273107 CABLE,ASSEMBLY
EAD61273106 EAD61273106 CABLE,ASSEMBLY
EAG63030204 EAG63030204 CONNECTOR,DSUB
EAG63530102 EAG63530102 CONNECTOR,HDMI
EAG62571102 EAG62571102 CONNECTOR,USB
EAG63374202 EAG63374202 CONNECTOR,USB
EAG58732903 EAG58732903 CONNECTOR,WAFER
EAG58732904 EAG58732904 CONNECTOR,WAFER
6630V93270J 6630V93270J CONNECTOR,WAFER
6630V93270K 6630V93270K CONNECTOR,WAFER
EAG63590902 EAG63590902 CONNECTOR,WAFER
6630VK19605 6630VK19605 CONNECTOR,WAFER
EAG63590901 EAG63590901 CONNECTOR,WAFER
EAG61091602 EAG61091602 CONNECTOR,WAFER
EAG61234501 EAG61234501 CONNECTOR,WAFER
ACQ87044908 ACQ87044908 COVER ASSEMBLY,REAR
ACQ87265202 ACQ87265202 COVER ASSEMBLY,REAR
ACQ87148502 ACQ87148502 COVER ASSEMBLY,REAR
EAW61645502 EAW61645502 CRYSTAL
EAW60763704 EAW60763704 CRYSTAL
EAW58239602 EAW58239602 CRYSTAL
EAW58812603 EAW58812603 CRYSTAL
EAW61903502 EAW61903502 CRYSTAL
MDS62110209 MDS62110209 GASKET
EAD62806802 EAD62806802 HARNESS,MULTI
EAD62985001 EAD62985001 HARNESS,SINGLE
EAD62123312 EAD62123312 HARNESS,SINGLE
EAN62870301 EAN62870301 IC,DC,DC CONVERTER
EAN62870701 EAN62870701 IC,DC,DC CONVERTER
EAN62911501 EAN62911501 IC,DC,DC CONVERTER
EAN61829003 EAN61829003 IC,DDR3 SDRAM
EAN62954801 EAN62954801 IC,DDR3 SDRAM
EAN62683001 EAN62683001 IC,DDR3 SDRAM
EAN62571101 EAN62571101 IC,DDR3 SDRAM
EAN61133501 EAN61133501 IC,EEPROM
EAN62219201 EAN62219201 IC,ETHERNET
EAN62683501 EAN62683501 IC,I/O SUPPORT CHIP
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAN61387601 EAN61387601 IC,LDO VOLTAGE REGULATOR
EAN62868901 EAN62868901 IC,LDO VOLTAGE REGULATOR
EAN62632101 EAN62632101 IC,MICROCONTROLLERS
EAN39050404 EAN39050404 IC,SERIAL FLASH MEMORY
EAN62460901 EAN62460901 IC,SERIAL FLASH MEMORY
EAN61868101 EAN61868101 IC,VOLTAGE REGULATOR
MEV64672401 MEV64672401 INSULATOR
EBR78500601 EBR78500601 IR / FUNCTION PC BOARD
EAG37842007 EAG37842007 JACK,FIBER OPTIC
EAG62012404 EAG62012404 JACK,MODULAR
EAG61030017 EAG61030017 JACK,PHONE
EAG61030016 EAG61030016 JACK,PHONE
EAG61030015 EAG61030015 JACK,PHONE
EAJ62573501 EAJ62573501 LCD DISPLAY
EAV62034801 EAV62034801 LED,CHIP
EBR78075903 EBR78075903 LOGO LIGHTING PC BOARD
CRB34287801 CRB34287801 MAIN PC BOARD
AFN76115382 AFN76115382 MANUAL ASSEMBLY
MGJ63912901 MGJ63912901 PLATE,SHIELD
EAD62397301 EAD62397301 POWER CORD
EAY63149401 EAY63149401 POWER SUPPLY ASSEMBLY
AKB74076101 AKB74076101 REMOTE CONTROLLER ASSEMBLY
FAB32418702 FAB32418702 SCREW,MACHINE
FAB31843211 FAB31843211 SCREW,MACHINE
EAB63228502 EAB63228502 SPEAKER ASSEMBLY
EAB63170201 EAB63170201 SPEAKER ASSEMBLY
EAB63228501 EAB63228501 SPEAKER ASSEMBLY

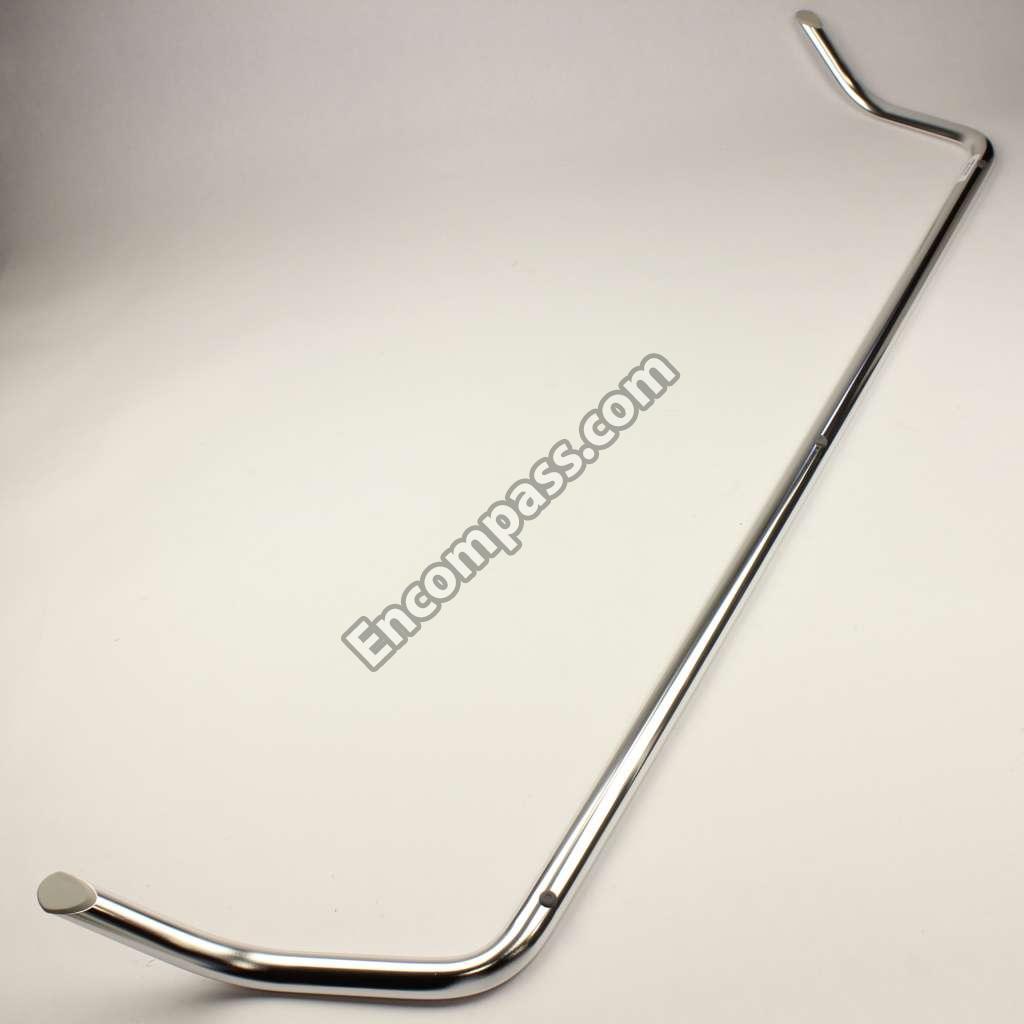

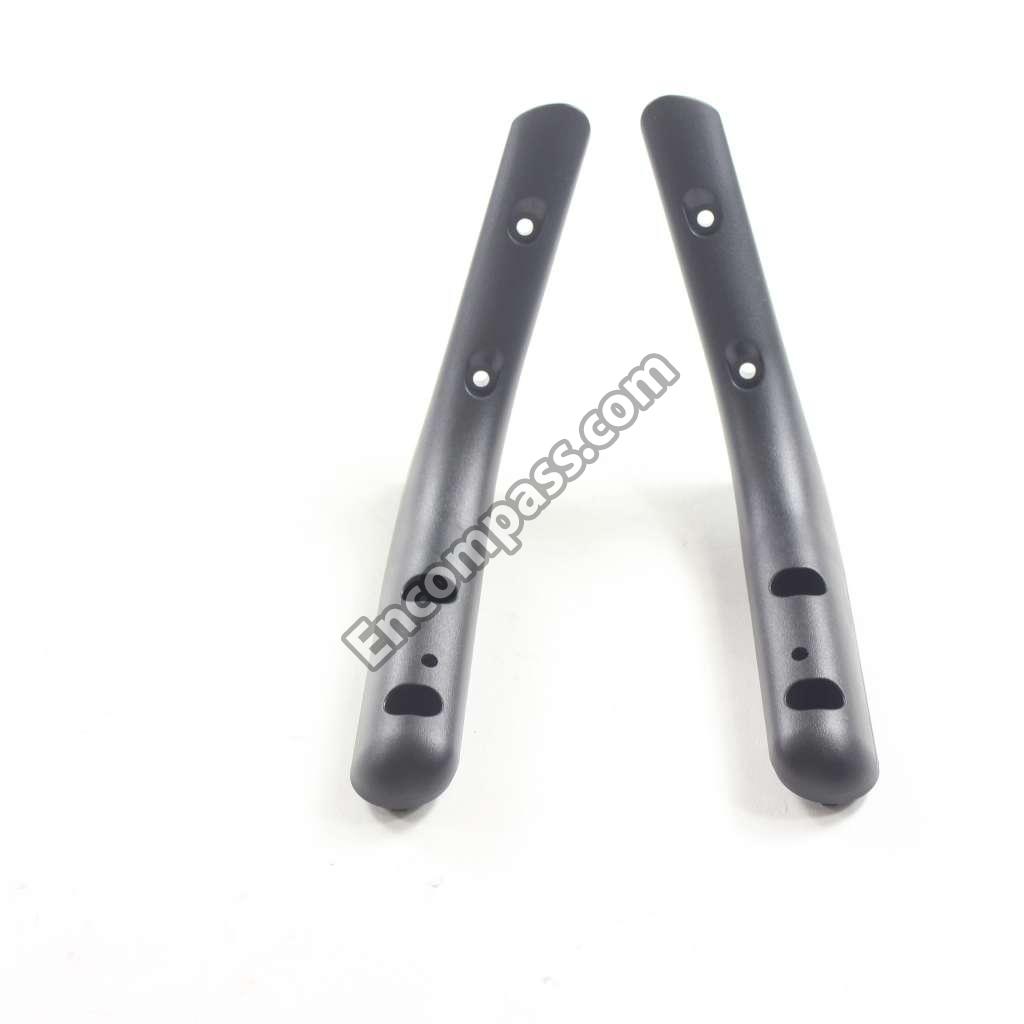

AJJ74158802 AJJ74158802 STAND BASE
FAB30016122 FAB30016122 STAND SCREW
ABA74868202 ABA74868202 STAND SUPPORT
MJH63293502 MJH63293502 SUPPORTER
MJH63293702 MJH63293702 SUPPORTER
MJH63293802 MJH63293802 SUPPORTER
6600R00004C 6600R00004C SWITCH,TACT
EBL61380102 EBL61380102 TUNER,ANALOG/DIGITAL
EAF61630101 EAF61630101 VARISTOR
EAF61530301 EAF61530301 VARISTOR
EAF61530201 EAF61530201 VARISTOR
EAT62093301 EAT62093301 WIFI PC BOARD
