Model Image
Manufacturer

LG

Model Number

619530

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
FAK30249601 FAK30249601 ANCHOR,CUSTOMIZED
4270W1N001B 4270W1N001B BAR
MAL61842001 MAL61842001 BARRIER
ABA34660001 ABA34660001 BRACKET ASSEMBLY
MAZ61885801 MAZ61885801 BRACKET,HINGE
MAZ34877102 MAZ34877102 BRACKET,IDLE
4810W1N056B 4810W1N056B BRACKET,IDLE
4810W1N042A 4810W1N042A BRACKET,IDLE
MAZ61951201 MAZ61951201 BRACKET,MOUNT
MAZ61672103 MAZ61672103 BRACKET,MOUNT
MAZ60113203 MAZ60113203 BRACKET,MOUNT

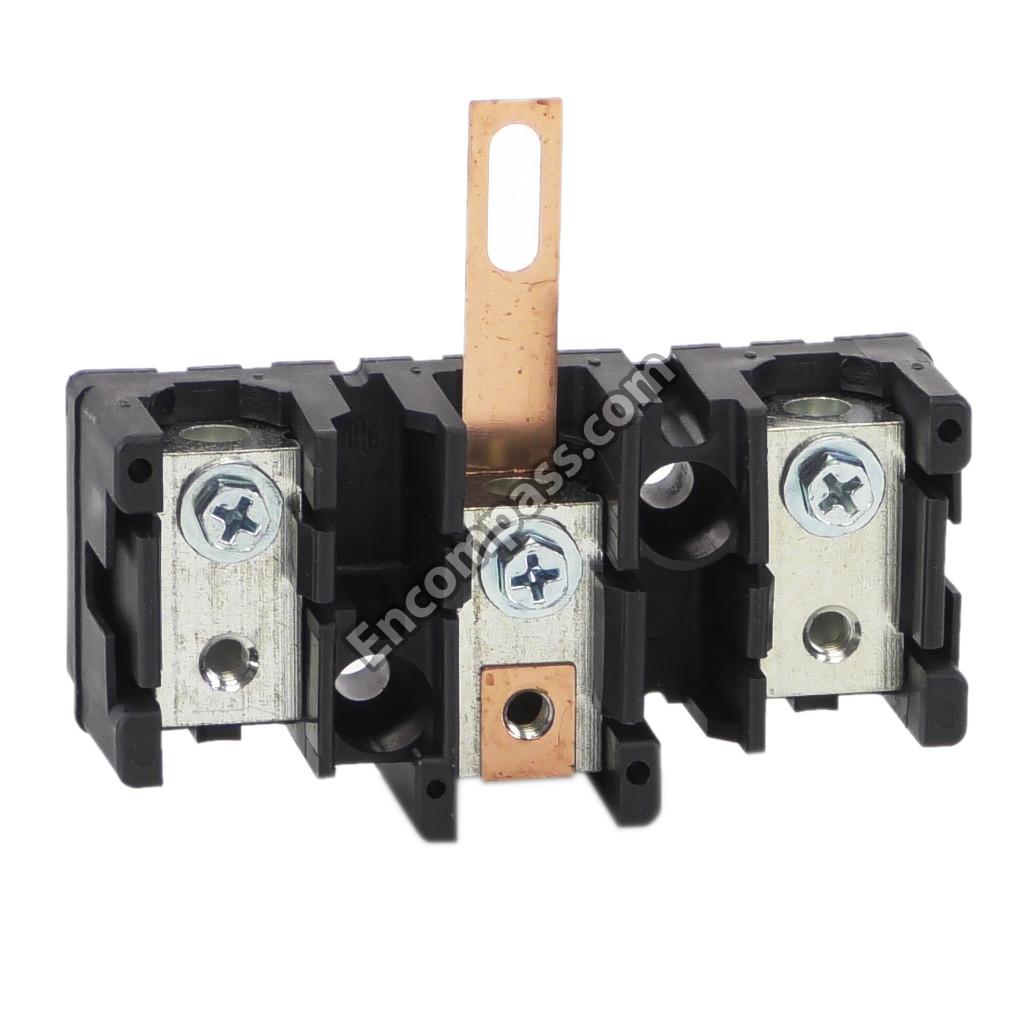

EAG32629302 EAG32629302 CONNECTOR,TERMINAL BLOCK
ACQ70890701 ACQ70890701 COVER ASSEMBLY,POISE
3550W0N006B 3550W0N006B COVER,INNER
3550W1N004B 3550W1N004B COVER,POWER CORD
MCK36350004 MCK36350004 COVER,REAR
MCK36350003 MCK36350003 COVER,REAR
MCK62093501 MCK62093501 COVER,REAR
MCR32112501 MCR32112501 DECOR,DOOR
MCX61841102 MCX61841102 DRAWER
MCX61841010 MCX61841010 DRAWER
EAM60740401 EAM60740401 FILTER ASSEMBLY
5230W1N001B 5230W1N001B FILTER,CHARCOAL
4778W1N001B 4778W1N001B FOOT
ADV66482005 ADV66482005 FRAME ASSEMBLY,DOOR
3212W0N001C 3212W0N001C FRAME,DOOR
3B74133Q 3B74133Q FUSE,TIME DELAY
MEA61857701 MEA61857701 GUIDE,RAIL
MEB42058901 MEB42058901 HANDLE,DOOR
6877W1N025B 6877W1N025B HARNESS,SINGLE
EAD60734201 EAD60734201 HARNESS,SINGLE
6877W1N024C 6877W1N024C HARNESS,SINGLE
EAD60734601 EAD60734601 HARNESS,SINGLE
EAD60734701 EAD60734701 HARNESS,SINGLE

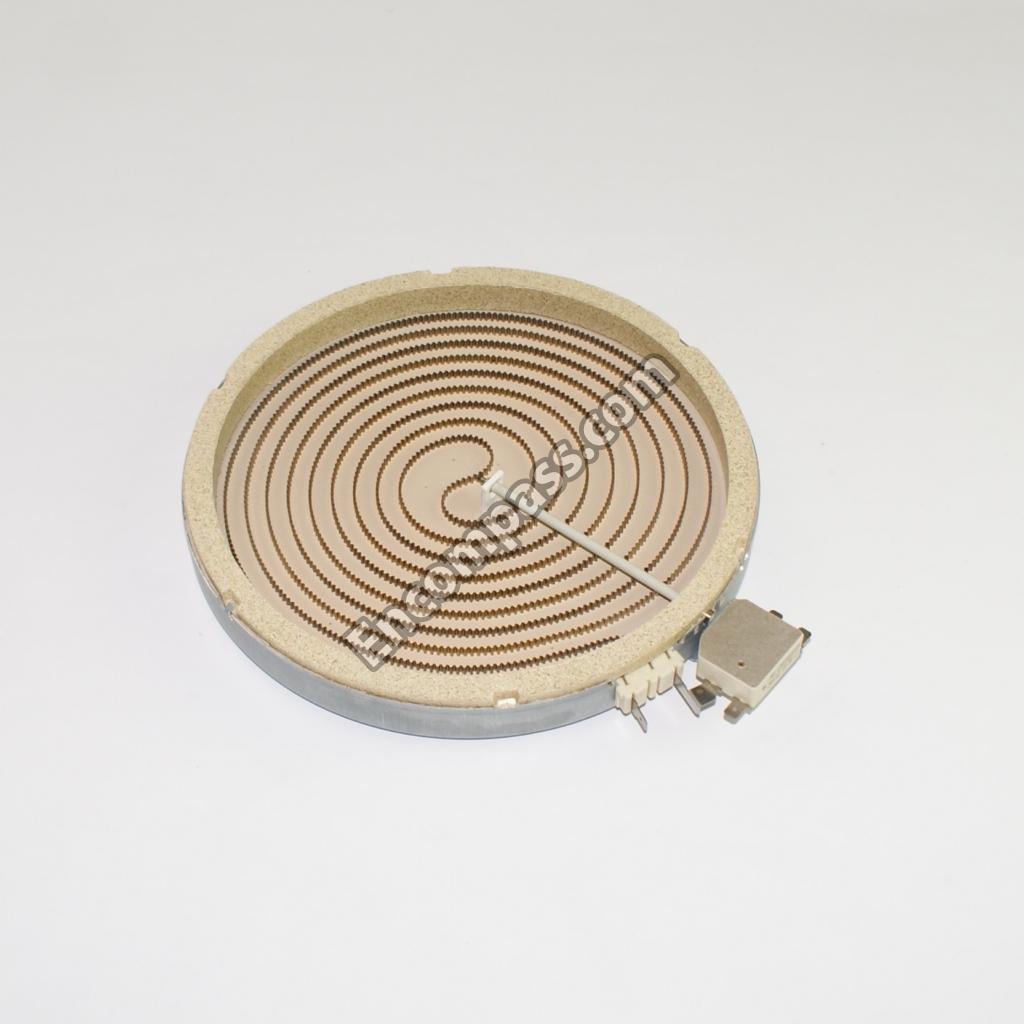

5300W1R004A 5300W1R004A HEATER,RADIATION
5300W1R005A 5300W1R005A HEATER,RADIATION
MEE50408702 MEE50408702 HEATER,RADIATION
MEE61843401 MEE61843401 HEATER,SHEATH
MEE61843501 MEE61843501 HEATER,SHEATH
4775W1N001D 4775W1N001D HINGE ASSEMBLY
AEH72957502 AEH72957502 HINGE ASSEMBLY
4B72510F 4B72510F HOLDER,WIRE
5012W0N001D 5012W0N001D INSULATOR
5012W0N002B 5012W0N002B INSULATOR
MEV64166605 MEV64166605 INSULATOR
MEV64166604 MEV64166604 INSULATOR
MEY61844803 MEY61844803 KNOB
6913W1N002C 6913W1N002C LAMP,INCANDESCENT
6913W1N002D 6913W1N002D LAMP,INCANDESCENT
EAQ60658301 EAQ60658301 LAMP,NEON

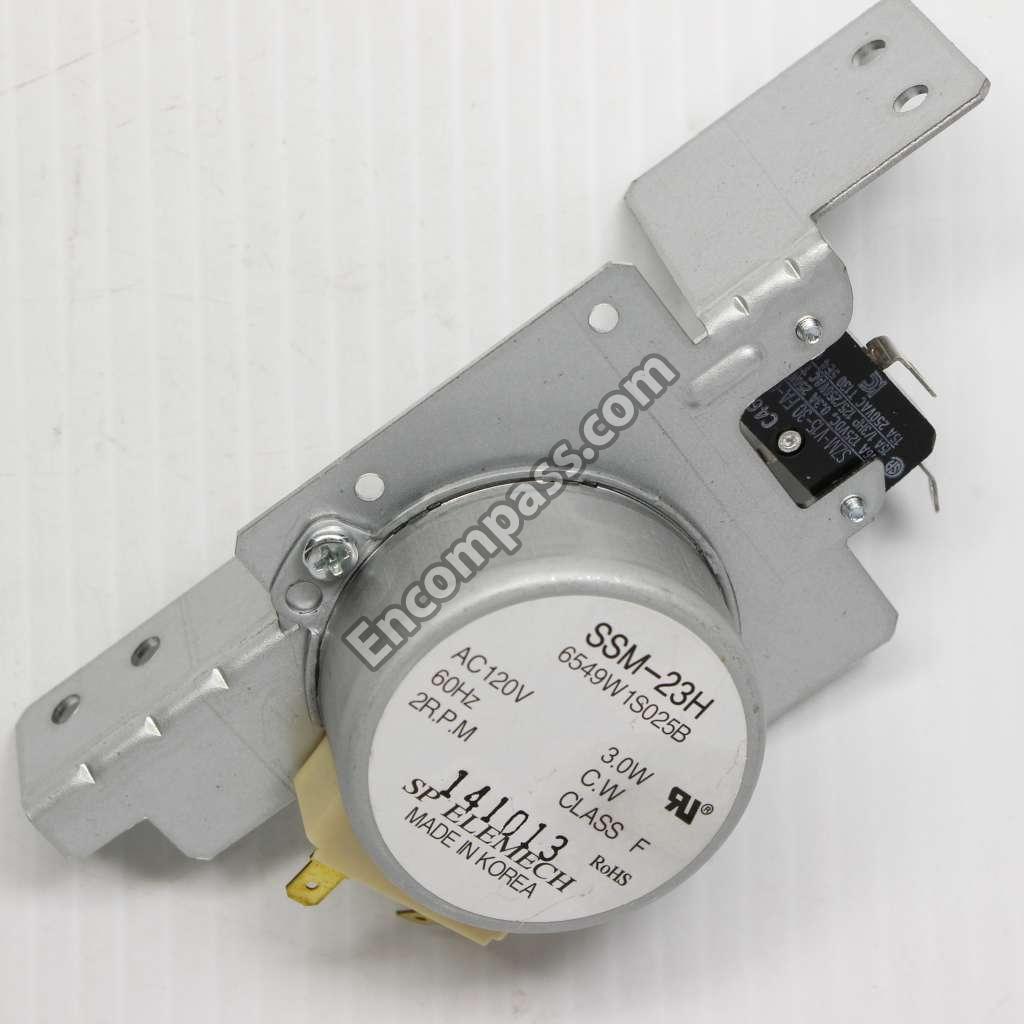

6549W1S025B 6549W1S025B MOTOR ASSEMBLY,AC,SYNCHRONOUS
3920W1N013A 3920W1N013A PACKING,GASKET
3920W0N001E 3920W0N001E PACKING,GASKET
MFZ54382601 MFZ54382601 PACKING,GASKET
3720W0E012Q 3720W0E012Q PANEL
MGC32115512 MGC32115512 PANEL,DRAWER
3720W0E011B 3720W0E011B PANEL,REAR
MGC62644005 MGC62644005 PANEL,SIDE
AGM72925301 AGM72925301 PARTS ASSEMBLY
AGM72925401 AGM72925401 PARTS ASSEMBLY
AGM73551601 AGM73551601 PARTS ASSEMBLY

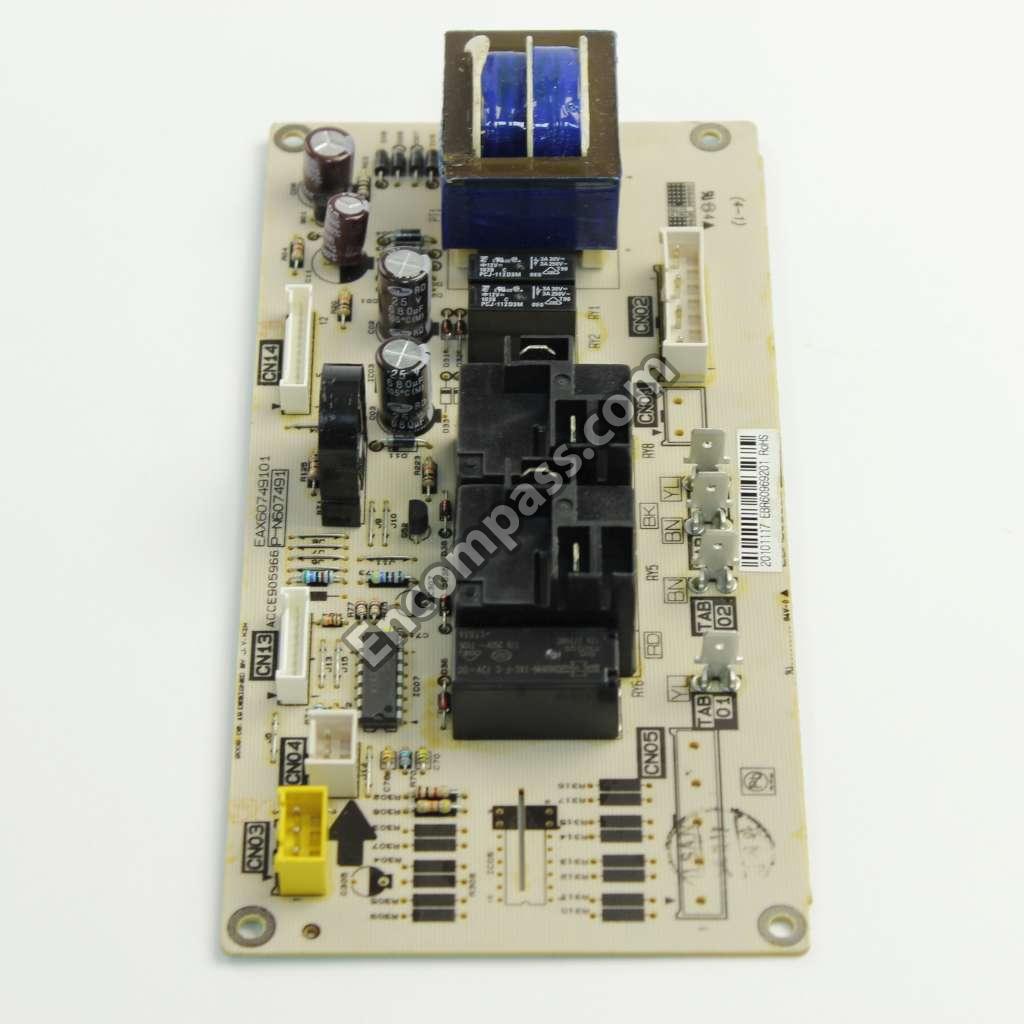

EBR60969301 EBR60969301 PCB ASSEMBLY,MAIN
EBR60969201 EBR60969201 PCB ASSEMBLY,POWER
AGU70894509 AGU70894509 PLATE ASSEMBLY
3302W1N001B 3302W1N001B PLATE,BASE
3446W0N001E 3446W0N001E PLATE,FRONT
MGJ62087501 MGJ62087501 PLATE,FRONT
1SZZW5N001H 1SZZW5N001H SCREW,CUSTOMIZED
1SZZW1N006A 1SZZW1N006A SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
1SZZW1N003A 1SZZW1N003A SCREW,CUSTOMIZED
1SZZW3Z001A 1SZZW3Z001A SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
1SBF0402618 1SBF0402618 SCREW,TAPTITE
1ATF0502610 1ATF0502610 SCREW,TAPTITE
1TTG0402422 1TTG0402422 SCREW,TAPTITE
MHL39256102 MHL39256102 SHELF
4970W1N004A 4970W1N004A SPRING
MJB61872201 MJB61872201 STOPPER,SLIDE
MJB61872101 MJB61872101 STOPPER,SLIDE
MJB61872001 MJB61872001 STOPPER,SLIDE
4980W1N013A 4980W1N013A SUPPORTER
4980W1A111B 4980W1A111B SUPPORTER
4980W0N002D 4980W0N002D SUPPORTER
4980W1N014A 4980W1N014A SUPPORTER
MJH61854803 MJH61854803 SUPPORTER
MJH61854903 MJH61854903 SUPPORTER
MJH37701305 MJH37701305 SUPPORTER,HOLDER

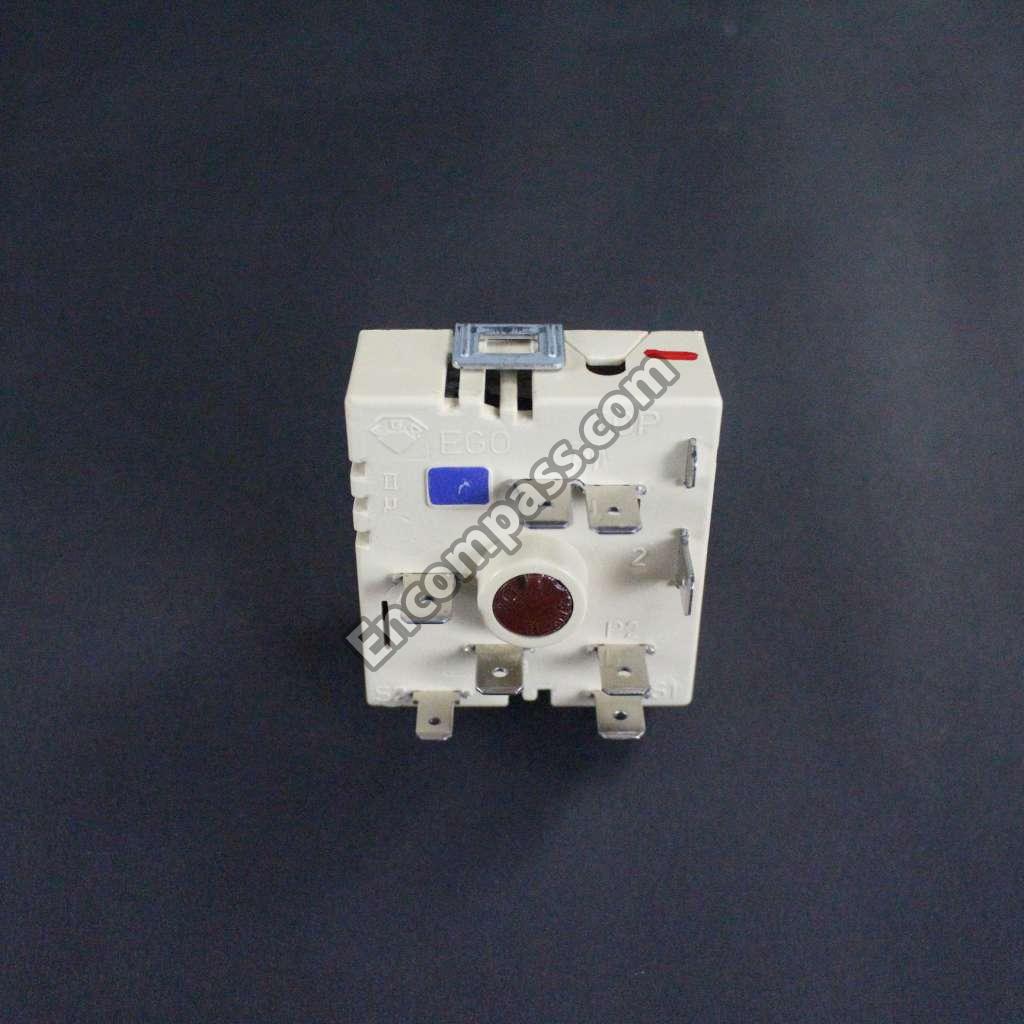

EBF60688001 EBF60688001 SWITCH,ROTARY
EBF60669101 EBF60669101 SWITCH,ROTARY
EBF60663201 EBF60663201 SWITCH,ROTARY
EBF60663403 EBF60663403 SWITCH,TACT
EBF60663401 EBF60663401 SWITCH,TACT
EBG61305801 EBG61305801 THERMISTOR,PTC
6930W1A003X 6930W1A003X THERMOSTAT
AJV31005901 AJV31005901 VENT ASSEMBLY
1WZZW3Z003B 1WZZW3Z003B WASHER,CUSTOMIZED
4890W1N005A 4890W1N005A WINDOW,GLASS
