Model Image
Manufacturer

LG

Model Number

65009

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3103JJ1001Y 3103JJ1001Y BASE ASSEMBLY,COMPRESSOR
5005JJ2009E 5005JJ2009E BASKET ASSEMBLY,DOOR

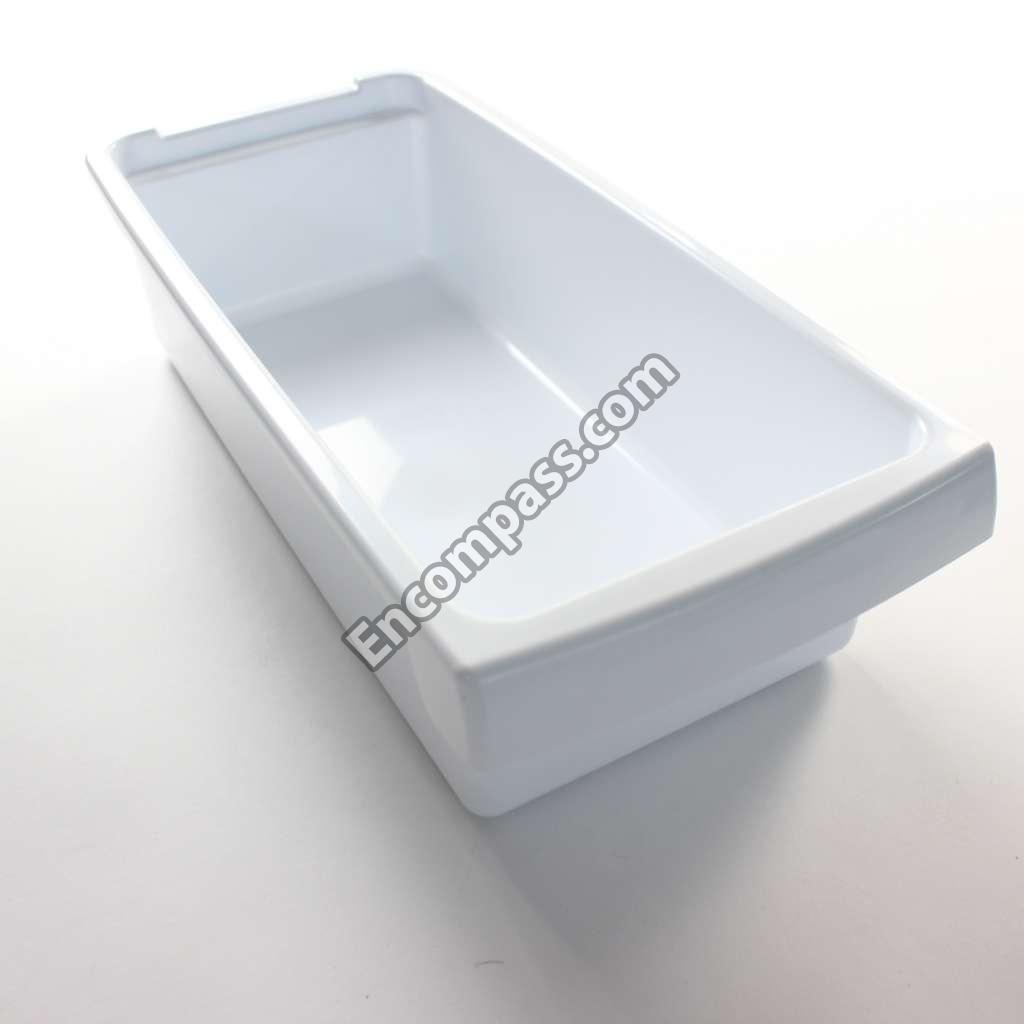

5004JJ1028A 5004JJ1028A BASKET,DOOR

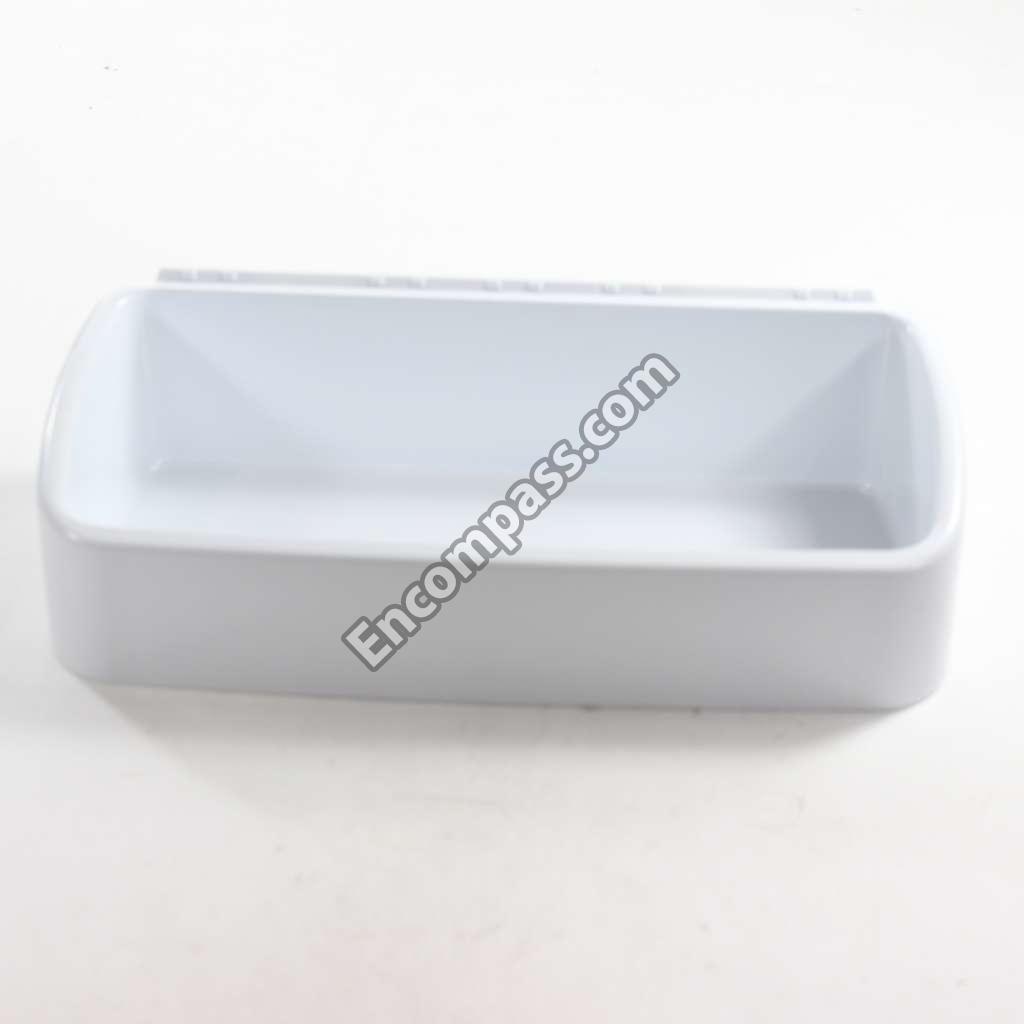

5004JJ0002A 5004JJ0002A BASKET,DOOR

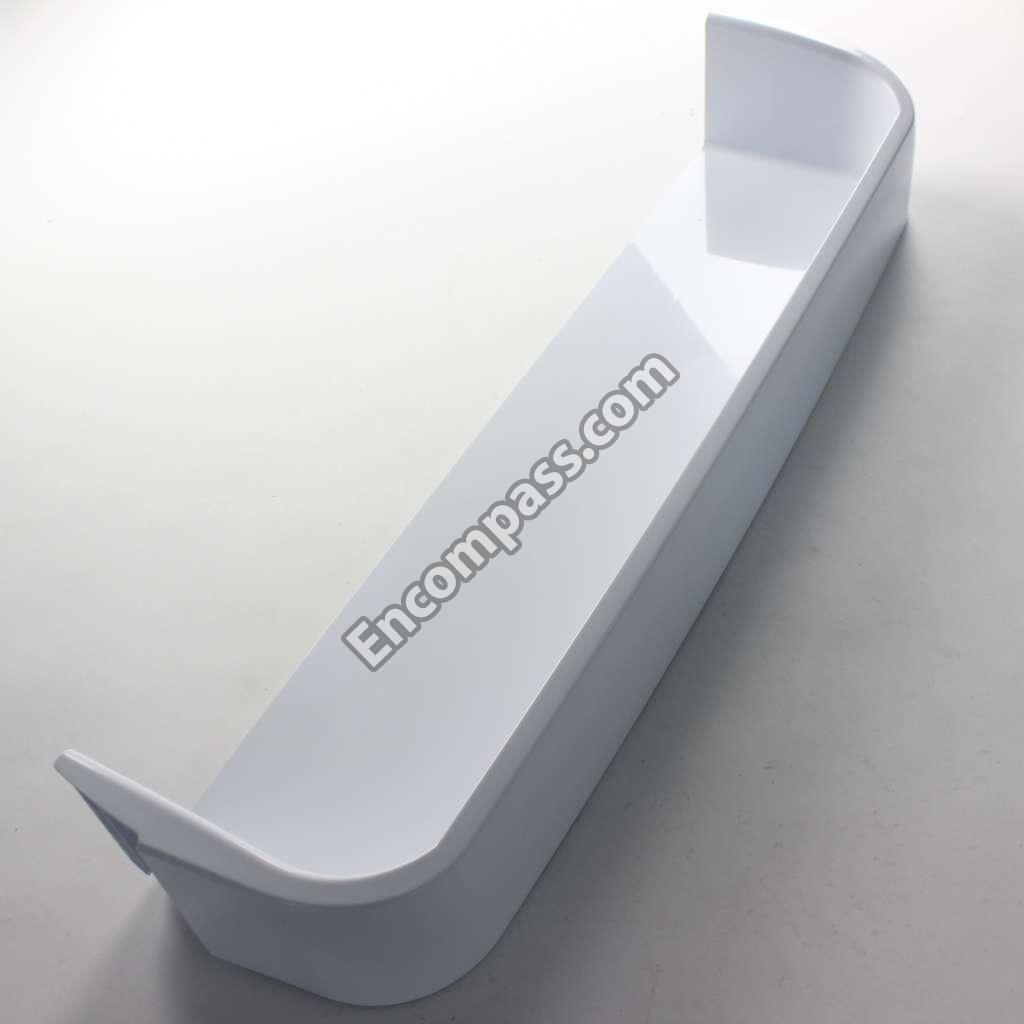

5004JJ1030A 5004JJ1030A BASKET,DOOR
5004JJ1041A 5004JJ1041A BASKET,DOOR
4811JJ2002B 4811JJ2002B BRACKET ASSEMBLY,MOTOR
4810JJ3015A 4810JJ3015A BRACKET,HANDLE
4810JA3007A 4810JA3007A BRACKET,MOTOR
4810JJ0002A 4810JJ0002A BRACKET,MOTOR
5074JJ1006A 5074JJ1006A BUCKET,ICE
4984JJ3003A 4984JJ3003A BUSH
5006JA3034A 5006JA3034A CAP,DRAIN TUBE
5006JJ3010C 5006JJ3010C CAP,HANDLE
5006JJ3010A 5006JJ3010A CAP,HANDLE
5006JJ3016C 5006JJ3016C CAP,HANDLE
5006JJ3004E 5006JJ3004E CAP,HINGE
5006JJ2001F 5006JJ2001F CAP,HINGE
5006JJ3014C 5006JJ3014C CAP,HINGE

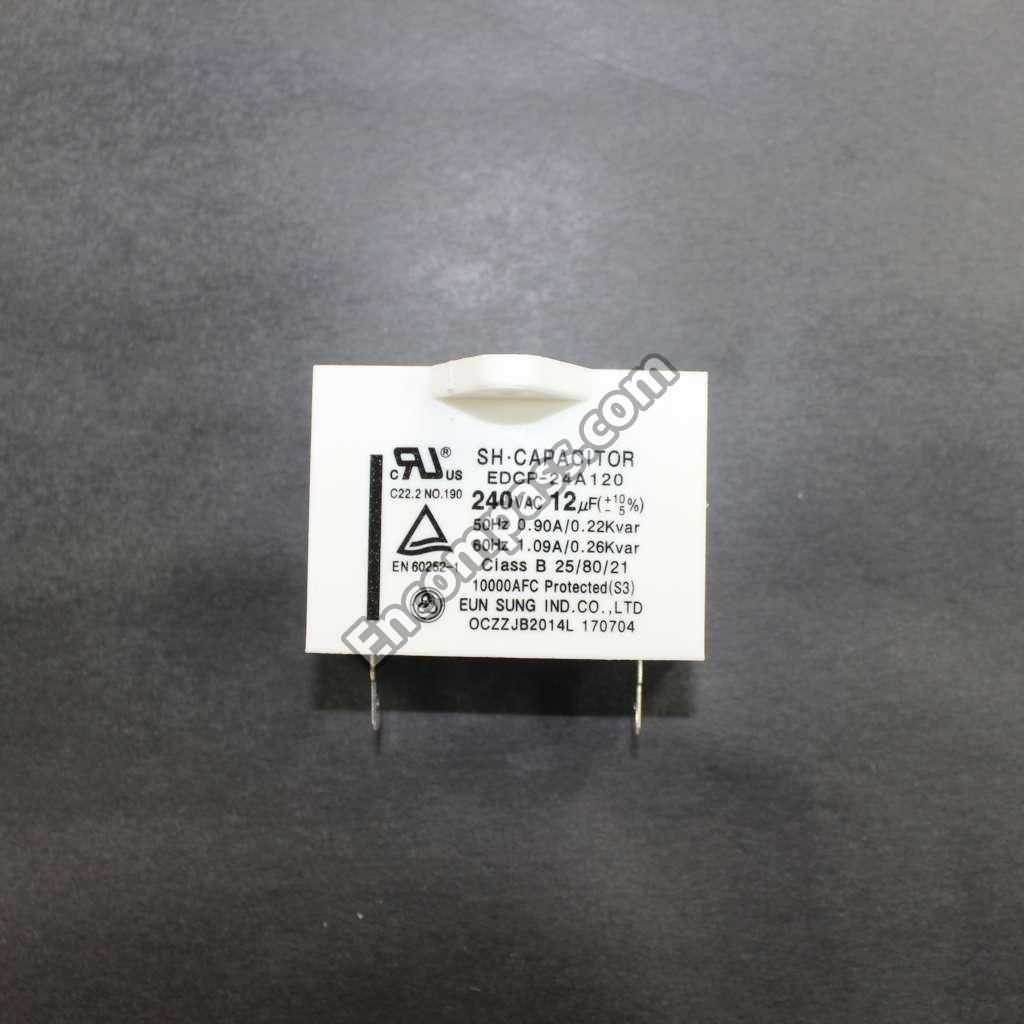

0CZZJB2014L 0CZZJB2014L CAPACITOR,ELECTRIC APPLIANCE FILM,BOX
3110JA1096A 3110JA1096A CASE,DISPLAY
ACF67062306 ACF67062306 COMPRESSOR ASSEMBLY
TCA35931726 TCA35931726 COMPRESSOR,SET ASSEMBLY
TCA00271707 TCA00271707 COMPRESSOR,SET ASSEMBLY
2521CRA5715 2521CRA5715 COMPRESSOR,SET ASSEMBLY
5403JJ1005A 5403JJ1005A CONDENSER ASSEMBLY,WIRE
6615JB2005C 6615JB2005C CONTROLLER ASSEMBLY
3550JJ0005C 3550JJ0005C COVER ASSEMBLY,LOWER
3551JJ2008A 3551JJ2008A COVER ASSEMBLY,MACHINERY(REAR)
3551JJ1020D 3551JJ1020D COVER ASSEMBLY,PCB
3551JJ1020A 3551JJ1020A COVER ASSEMBLY,PCB
3550JA3120A 3550JA3120A COVER,CONNECTOR
3550JJ2031A 3550JJ2031A COVER,DISPLAY
3550JJ2030A 3550JJ2030A COVER,GRILLE FAN
3550JJ2013C 3550JJ2013C COVER,HINGE
MCK30060901 MCK30060901 COVER,LAMP
3550JA1388A 3550JA1388A COVER,LAMP
3550JA2042C 3550JA2042C COVER,PTC
3550JJ8003A 3550JJ8003A COVER,PTC
3550JJ2020A 3550JJ2020A COVER,SENSOR
3550JJ2036A 3550JJ2036A COVER,TUBE
3550JJ3001A 3550JJ3001A COVER,TUBE
3550JL2001G 3550JL2001G COVER,TV
3550JJ2024A 3550JJ2024A COVER,VALVE
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR
J756-00008B J756-00008B DAMPER,MOTOR SUPPORT
4J03020A 4J03020A DAMPER,PIPE
3806JL1051A 3806JL1051A DECOR,CONTROL
3806JL2006D 3806JL2006D DECOR,DUCT
3581JJ8023F 3581JJ8023F DOOR ASSEMBLY,FREEZER
3581JJ8046C 3581JJ8046C DOOR ASSEMBLY,REFRIGERATOR
5433JJ0017P 5433JJ0017P DOOR FOAM ASSEMBLY,FREEZER
5433JJ0016S 5433JJ0016S DOOR FOAM ASSEMBLY,REFRIGERATOR
ADH73150210 ADH73150210 DRIER ASSEMBLY
5209JJ1002A 5209JJ1002A DUCT ASSEMBLY,MULTI
5421JJ1001A 5421JJ1001A EVAPORATOR ASSEMBLY
5901JJ1004B 5901JJ1004B FAN ASSEMBLY
5901JA1022A 5901JA1022A FAN ASSEMBLY

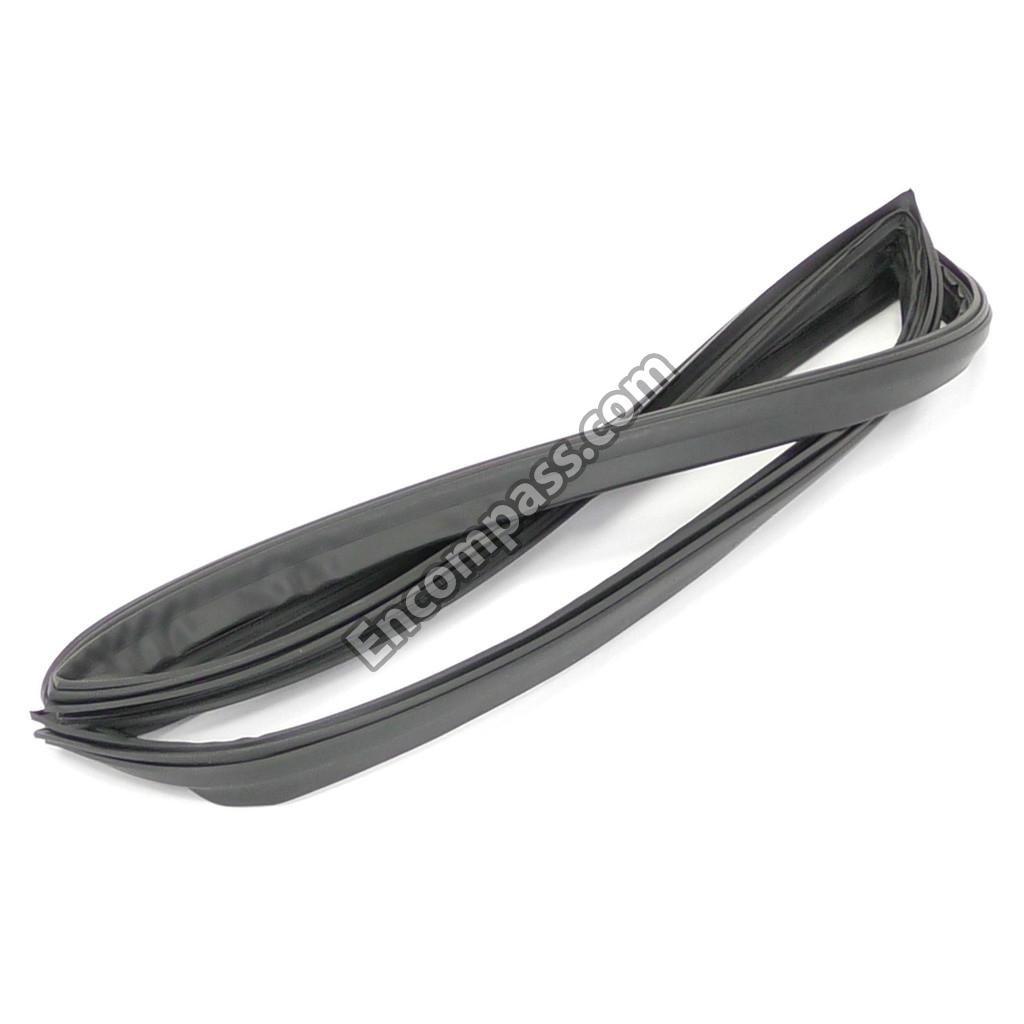

4987JJ1004H 4987JJ1004H GASKET ASSEMBLY,DOOR
ADX73350902 ADX73350902 GASKET ASSEMBLY,DOOR
3531JJ1004B 3531JJ1004B GRILLE ASSEMBLY,FAN
3531JJ1004T 3531JJ1004T GRILLE ASSEMBLY,FAN
AEC72997402 AEC72997402 GUIDE ASSEMBLY,FAN
4975JJ2009B 4975JJ2009B GUIDE ASSEMBLY,RAIL
4975JJ2009A 4975JJ2009A GUIDE ASSEMBLY,RAIL
4975JJ2002B 4975JJ2002B GUIDE ASSEMBLY,RAIL
4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL
4974JJ1009A 4974JJ1009A GUIDE,FAN
3650JJ2012B 3650JJ2012B HANDLE,FREEZER
MEB64014305 MEB64014305 HANDLE,REAR
3650JJ2003M 3650JJ2003M HANDLE,REAR
3651JJ2015B 3651JJ2015B HANDLE,REFRIGERATOR
6877JK2011D 6877JK2011D HARNESS ASSEMBLY
6621JK2003B 6621JK2003B HARNESS ASSEMBLY
4775JJ2006H 4775JJ2006H HINGE ASSEMBLY,CENTER
4775JJ2007C 4775JJ2007C HINGE ASSEMBLY,LOWER
4775JJ2003B 4775JJ2003B HINGE ASSEMBLY,UPPER
4774JJ2002A 4774JJ2002A HINGE,LOWER
4930JJ3007A 4930JJ3007A HOLDER,BRACKET
4930JJ2021A 4930JJ2021A HOLDER,COVER(LOWER)
4930JA3034A 4930JA3034A HOLDER,DRIER
4930JJ2003D 4930JJ2003D HOLDER,SHELF
4930JJ2004D 4930JJ2004D HOLDER,SHELF
4940JJ2003A 4940JJ2003A KNOB,SHUTTER
6912JK2002E 6912JK2002E LAMP,INCANDESCENT
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST
4680JK1002B 4680JK1002B MOTOR, AC FREEZING
4680JK1001B 4680JK1001B MOTOR,AC
4140JL2001C 4140JL2001C NAME PLATE

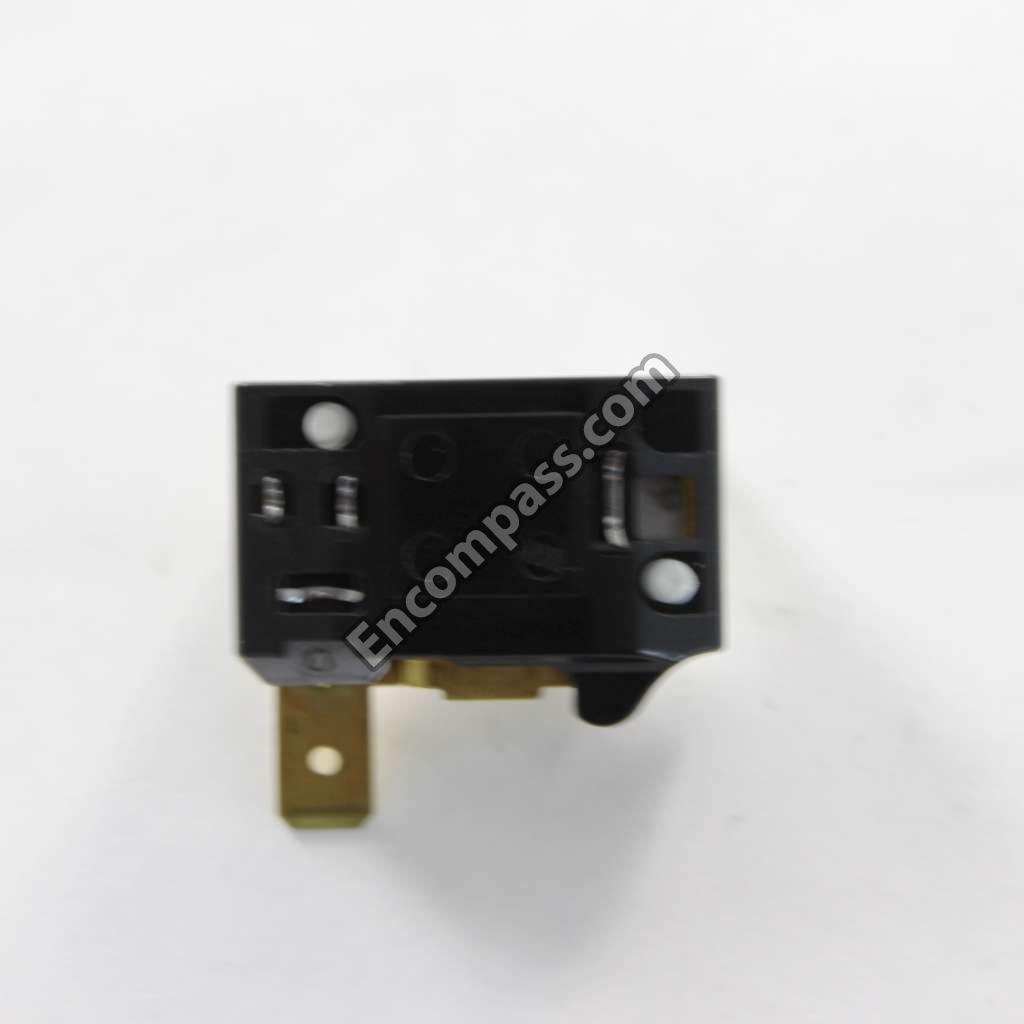

6750C-0004S 6750C-0004S OVERLOAD PROTECT
6750C-0005P 6750C-0005P OVERLOAD PROTECT
6750JJ8002A 6750JJ8002A OVERLOAD PROTECT
ABQ33905301 ABQ33905301 PCB ASSEMBLY,DISPLAY
6871JB1215J 6871JB1215J PCB ASSEMBLY,MAIN

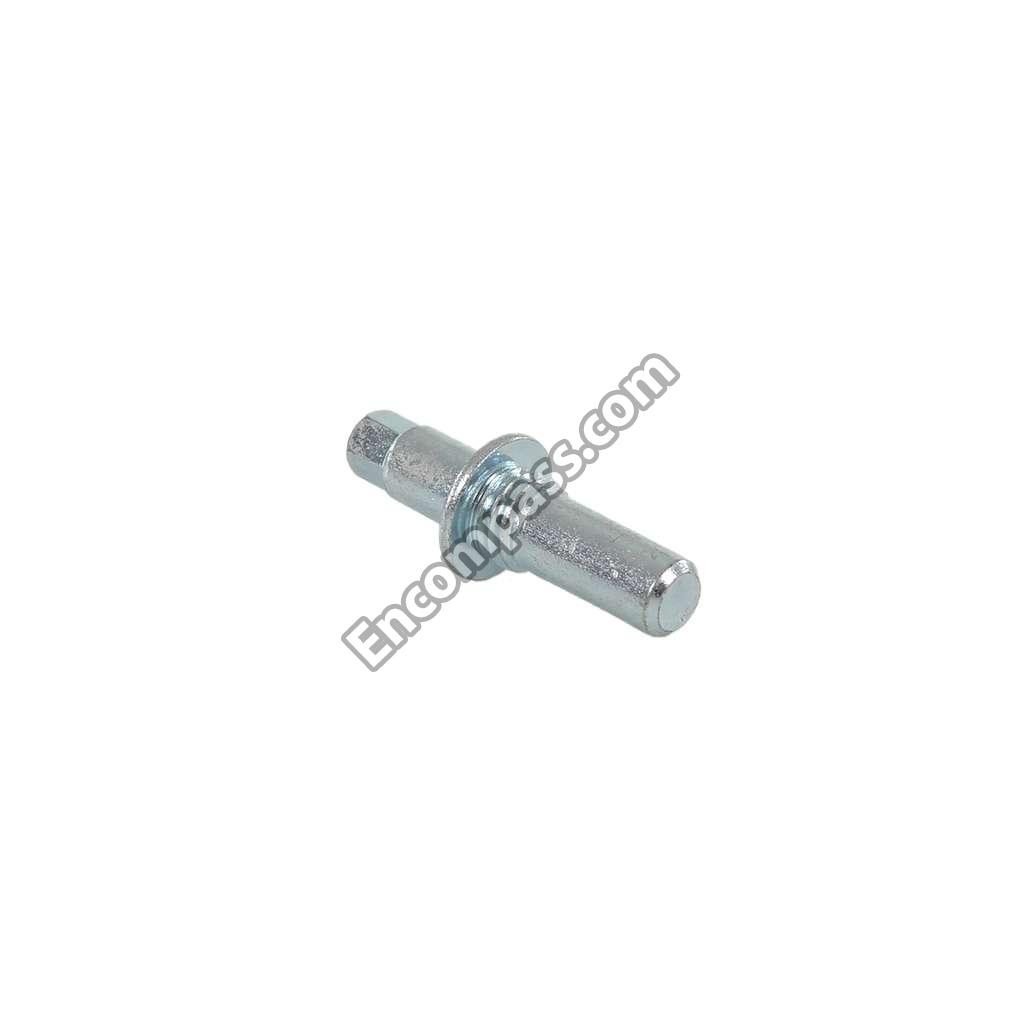

4J04238A 4J04238A PIN,COMMON
1PZZJJ3002B 1PZZJJ3002B PIN,COMMON
5200JJ3003E 5200JJ3003E PIPE,JOINT
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY
5218JJ3001A 5218JJ3001A RAIL,SLIDE
3034JJ1002B 3034JJ1002B REFLECTOR,LAMP

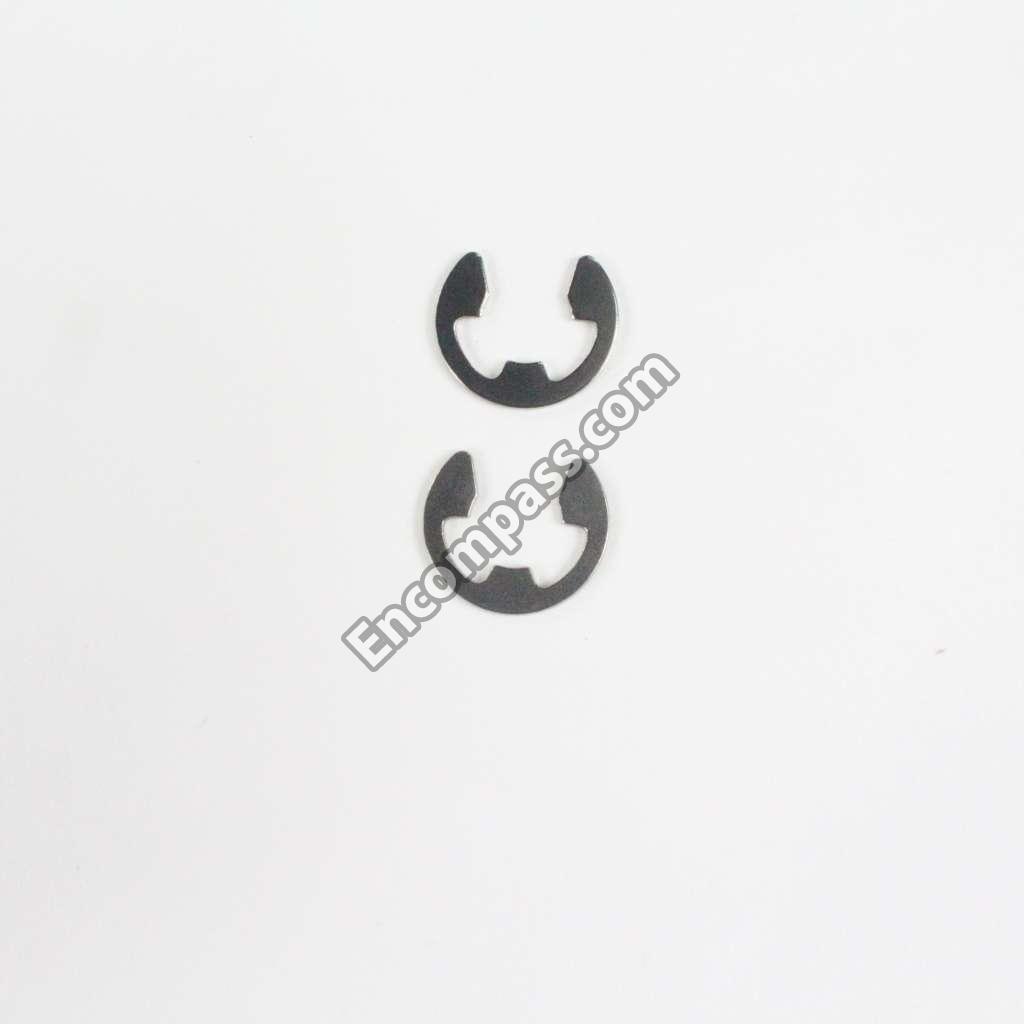

4350JA3005B 4350JA3005B RING
MHA62513601 MHA62513601 ROLLER
4J01424C 4J01424C SCREW,CUSTOMIZED
1SZZJA3011B 1SZZJA3011B SCREW,CUSTOMIZED
J471-00001J J471-00001J SCREW,CUSTOMIZED
1SZZJJ3010D 1SZZJJ3010D SCREW,CUSTOMIZED
1SZZJJ3010A 1SZZJJ3010A SCREW,CUSTOMIZED
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED
1STZJA3004D 1STZJA3004D SCREW,CUSTOMIZED
6500JB2002T 6500JB2002T SENSOR,TEMPERATURE
6500JB2001B 6500JB2001B SENSOR,TEMPERATURE

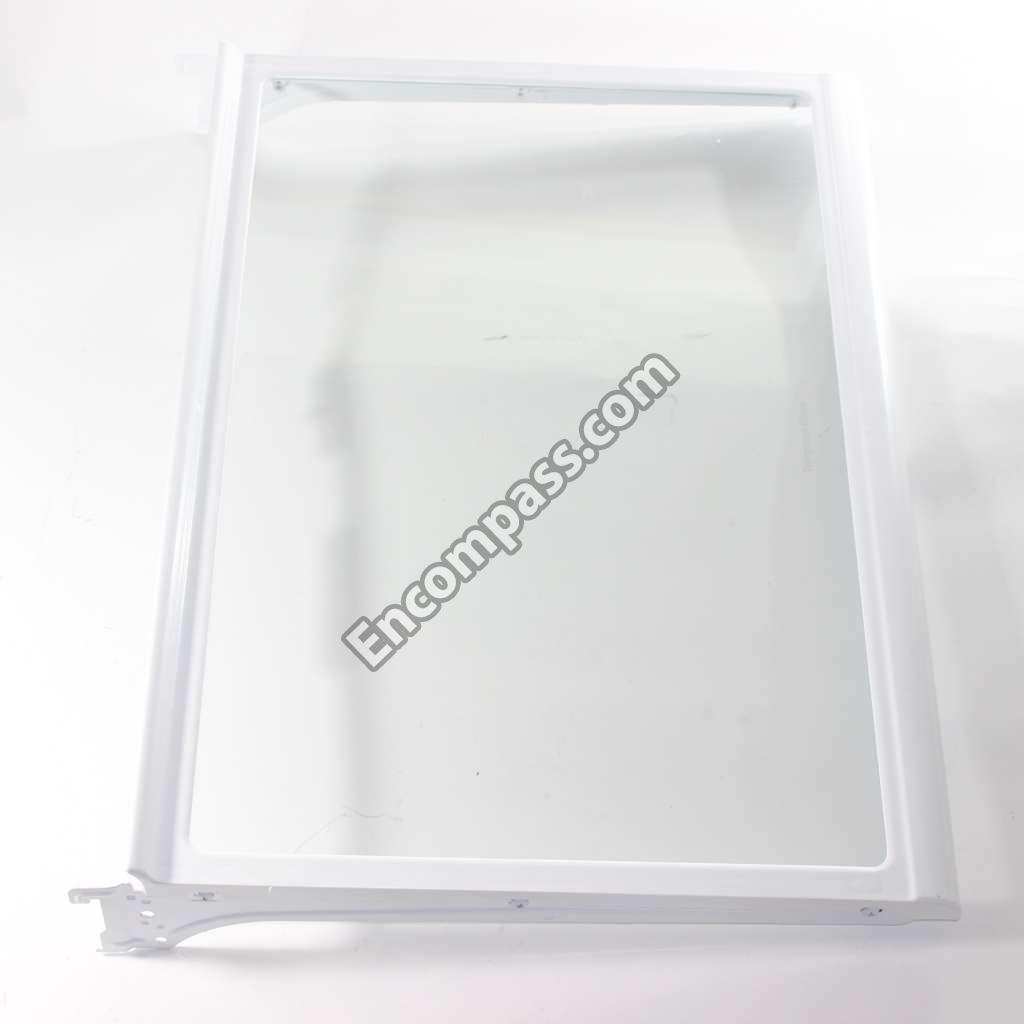

AHT72996101 AHT72996101 SHELF ASSEMBLY,REFRIGERATOR
AHT72996102 AHT72996102 SHELF ASSEMBLY,REFRIGERATOR
5027JJ1028E 5027JJ1028E SHELF ASSEMBLY,REFRIGERATOR
5027JJ1008A 5027JJ1008A SHELF ASSEMBLY,REFRIGERATOR
5026JJ1058D 5026JJ1058D SHELF,FREEZER
4890JL1002M 4890JL1002M SHELF,GLASS
5026JJ2001M 5026JJ2001M SHELF,NET
5026JJ2001L 5026JJ2001L SHELF,NET
5026JJ2001H 5026JJ2001H SHELF,NET
5026JJ2001G 5026JJ2001G SHELF,NET
5070JJ3002A 5070JJ3002A SKIRT,LOWER
EAG62831801 EAG62831801 SOCKET,LAMP
MJB61877901 MJB61877901 STOPPER,COMPRESSOR
4620JJ2007A 4620JJ2007A STOPPER,DOOR
4620JJ3006C 4620JJ3006C STOPPER,DOOR
4620JJ3007E 4620JJ3007E STOPPER,HANDLE
4981JJ2001B 4981JJ2001B SUPPORTER ASSEMBLY,COVER TV
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON
6748C-0004D 6748C-0004D THERMISTOR ASSEMBLY,PTC
6748JJ8002A 6748JJ8002A THERMISTOR,PTC
3391JJ2004G 3391JJ2004G TRAY ASSEMBLY,MEAT
3390JJ1058A 3390JJ1058A TRAY,DRAWER
3390JJ0003A 3390JJ0003A TRAY,DRIP
3390JJ1023A 3390JJ1023A TRAY,ICE
3391JJ1020D 3391JJ1020D TRAY,VEGETABLE
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN
4J00382C 4J00382C WASHER,COMMON
