Model Image
Manufacturer

LG

Model Number

65UB9500UA

Description

65 Inch Uhd 4k Smart 3d Led Tv W/ Webos

Interactive Exploded View

Parts List

Part Number Description
EBX61668501 EBX61668501 3D GLASSES AG-F310
EAD62162208 EAD62162208 41PIN LVDS CABLE
EAD62232908 EAD62232908 51PIN LVDS CABLE
MAZ63987603 MAZ63987603 BRACKET
MAZ63987706 MAZ63987706 BRACKET
MAZ62827604 MAZ62827604 BRACKET
EAD00926131 EAD00926131 CABLE,ASSEMBLY
EAD61273107 EAD61273107 CABLE,ASSEMBLY
EAD61273106 EAD61273106 CABLE,ASSEMBLY
ACQ87045008 ACQ87045008 COVER ASSEMBLY,REAR
ACQ87308102 ACQ87308102 COVER ASSEMBLY,REAR
ACQ87148702 ACQ87148702 COVER ASSEMBLY,REAR
EAD62806802 EAD62806802 HARNESS,MULTI
EAD62732401 EAD62732401 HARNESS,MULTI
EAD62847606 EAD62847606 HARNESS,MULTI
EAD62123312 EAD62123312 HARNESS,SINGLE
EAD62732501 EAD62732501 HARNESS,SINGLE
EAD62985001 EAD62985001 HARNESS,SINGLE
EAN62632101 EAN62632101 IC,MICROCONTROLLERS
EAN39050404 EAN39050404 IC,SERIAL FLASH MEMORY
EAN62460901 EAN62460901 IC,SERIAL FLASH MEMORY

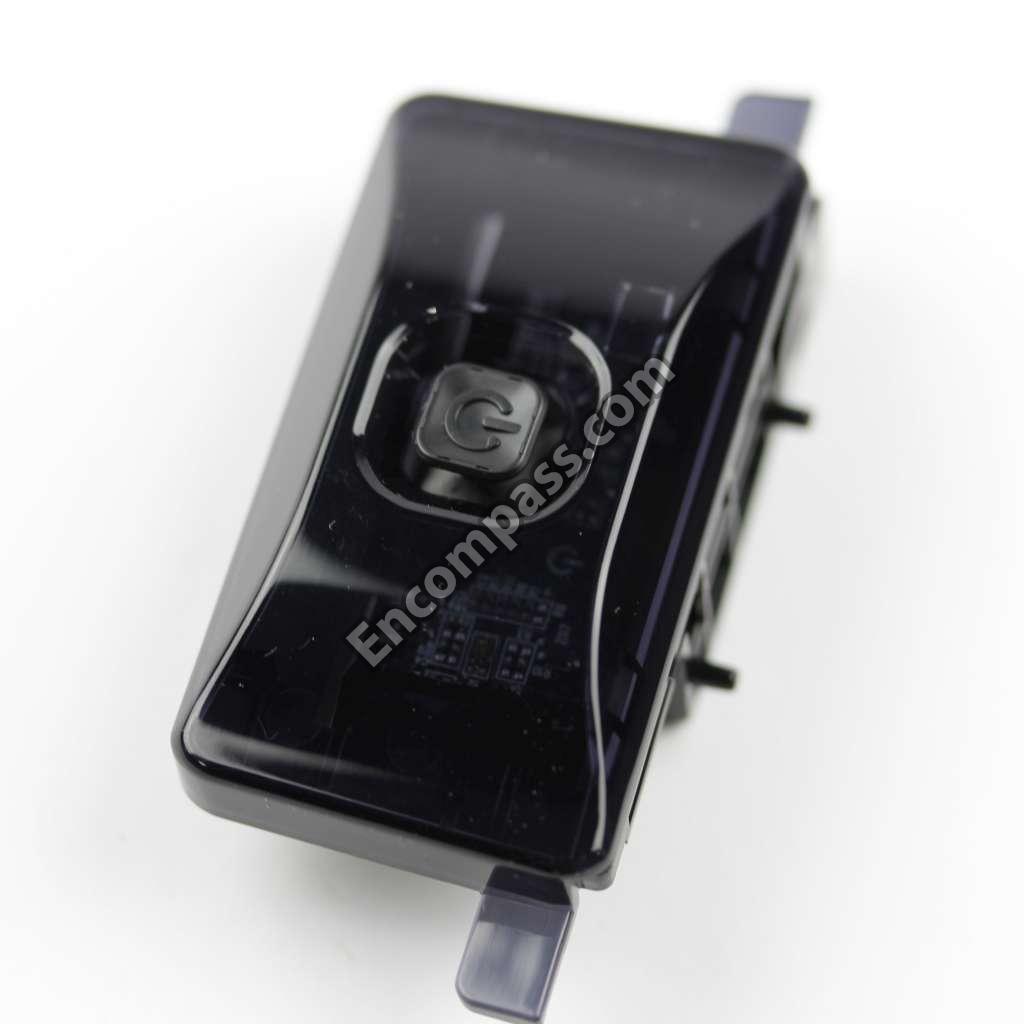

EBR78500601 EBR78500601 IR / FUNCTION PC BOARD
EAJ62573401 EAJ62573401 LCD DISPLAY
EBR78075903 EBR78075903 LOGO LIGHTING PC BOARD

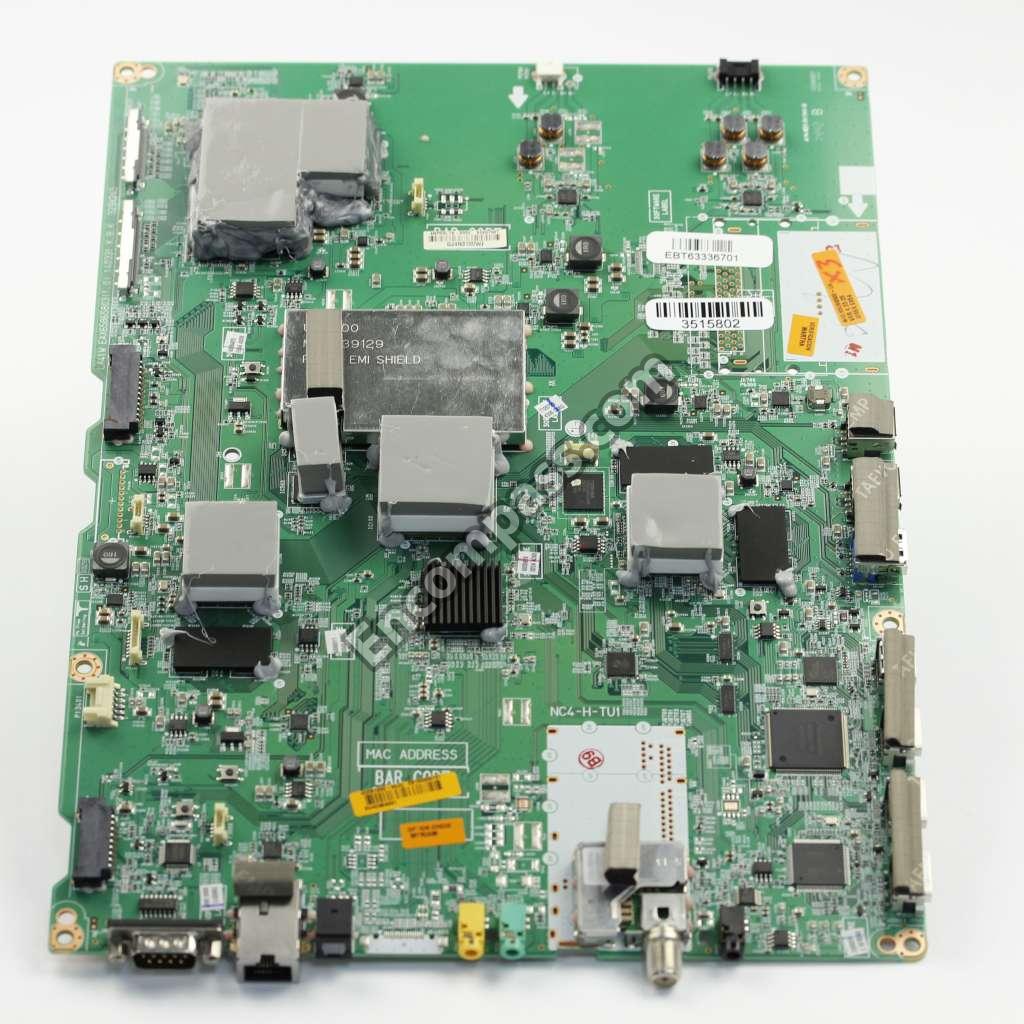

CRB34226801 CRB34226801 MAIN PC BOARD
EAD60817902 EAD60817902 POWER CORD
EAY63149101 EAY63149101 POWER SUPPLY ASSEMBLY

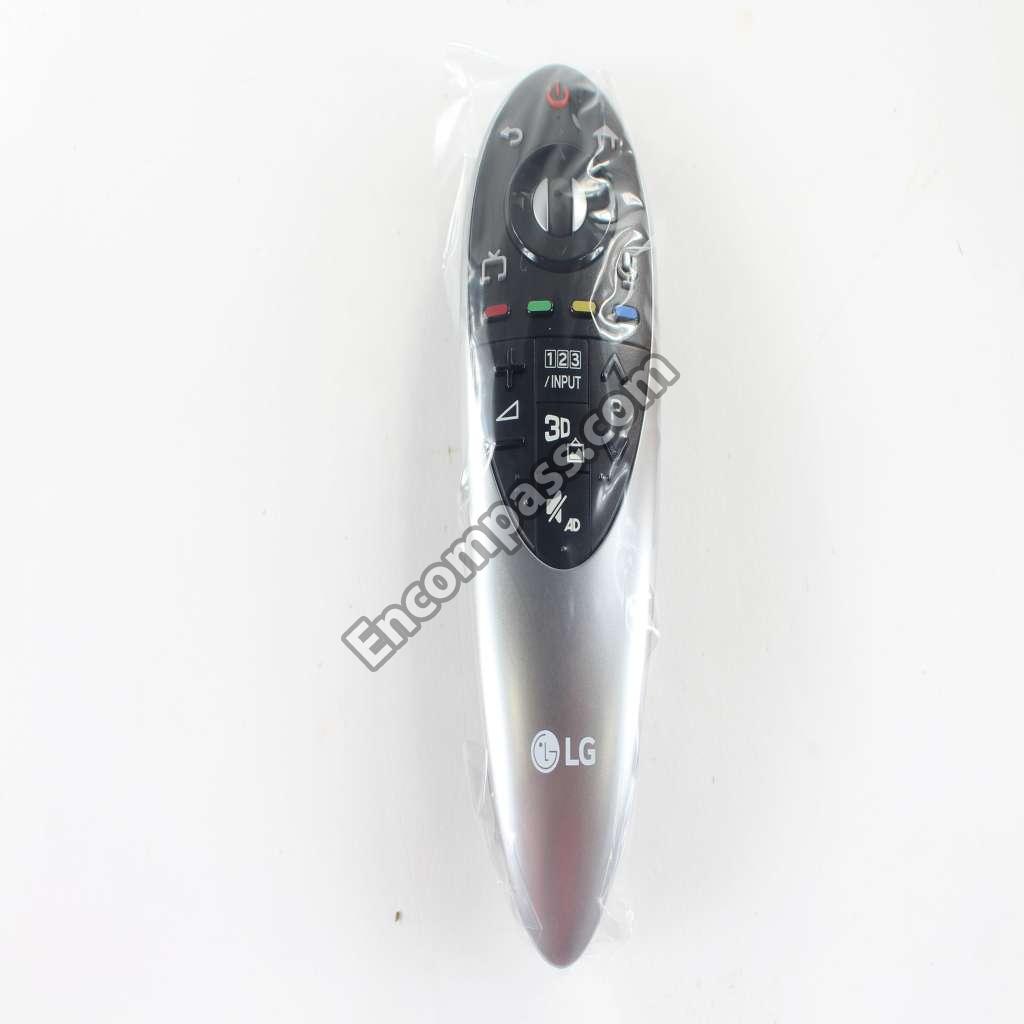

AKB74076101 AKB74076101 REMOTE CONTROLLER ASSEMBLY
EAB63228502 EAB63228502 SPEAKER ASSEMBLY
EAB63228501 EAB63228501 SPEAKER ASSEMBLY
EAB63170201 EAB63170201 SPEAKER ASSEMBLY
AJJ74159202 AJJ74159202 STAND BASE
FAB30016122 FAB30016122 STAND SCREW
ABA74829402 ABA74829402 STAND SUPPORT (INCLUDES 2 UPRIGHTS)
MJH63293602 MJH63293602 SUPPORTER
6600R00004C 6600R00004C SWITCH,TACT
EAT62093301 EAT62093301 WIFI PC BOARD
EBX61849405 EBX61849405 WIRELESS NFC TAG
