Model Image
Manufacturer

LG

Model Number

71522

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA35559323 AAA35559323 ACCESSORY ASSEMBLY
4400EL2001F 4400EL2001F BELT,POLY V
MAY63630601 MAY63630601 BOX,CARTON
4810EL3002A 4810EL3002A BRACKET,BASE
4810EL3001A 4810EL3001A BRACKET,BASE
4810EL1002A 4810EL1002A BRACKET,MOTOR
3091EL0001K 3091EL0001K CABINET ASSEMBLY
5006EL3001D 5006EL3001D CAP,DRIER
5835EL1002A 5835EL1002A CASING ASSEMBLY
4860EL3001A 4860EL3001A CLAMP
4861FR3068A 4861FR3068A CLAMP
4932EL4001A 4932EL4001A CONNECTOR,PIPE
ACQ75450501 ACQ75450501 COVER ASSEMBLY,CABINET
3550EL2004B 3550EL2004B COVER,FILTER
3550EL1005C 3550EL1005C COVER,GUIDE
3550EL2001A 3550EL2001A COVER,LAMP
MCK62973601 MCK62973601 COVER,LAMP
3550EL2003B 3550EL2003B COVER,PROTECT
MCK62423301 MCK62423301 COVER,SAFETY
MCQ38393001 MCQ38393001 DAMPER
ADC72922708 ADC72922708 DOOR ASSEMBLY
MCX61841201 MCX61841201 DRAWER
5209EL1006A 5209EL1006A DUCT ASSEMBLY
5209EL1002A 5209EL1002A DUCT ASSEMBLY
5209EL1001E 5209EL1001E DUCT ASSEMBLY
5231EL1001C 5231EL1001C FILTER ASSEMBLY,LINT
3211EL1002F 3211EL1002F FRAME ASSEMBLY
ADV72990308 ADV72990308 FRAME ASSEMBLY
MDQ61901001 MDQ61901001 FRAME,BODY
MDQ61902101 MDQ61902101 FRAME,BODY
3017EL1001A 3017EL1001A FUNNEL
4036EL3002A 4036EL3002A GASKET
4036EL3001A 4036EL3001A GASKET
3111ER1002E 3111ER1002E GENERATOR ASSEMBLY
4975EL3001A 4975EL3001A GUIDE ASSEMBLY
AEC72937801 AEC72937801 GUIDE ASSEMBLY
4974EL1001A 4974EL1001A GUIDE,BURNER
MEA61877501 MEA61877501 GUIDE,COVER
MEA38595802 MEA38595802 GUIDE,DRAWER
4974EL1002B 4974EL1002B GUIDE,FILTER
MEB61849503 MEB61849503 HANDLE
EAD39301901 EAD39301901 HARNESS,MULTI
EAD60946403 EAD60946403 HARNESS,MULTI
MEF61859401 MEF61859401 HINGE
MEF61859501 MEF61859501 HINGE
MEG38874401 MEG38874401 HOLDER
4930EL2003B 4930EL2003B HOLDER
4930EL3008A 4930EL3008A HOLDER
4930EL3004A 4930EL3004A HOLDER
4930ER4003B 4930ER4003B HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
MEJ38393301 MEJ38393301 HOSE,PUMP
MEJ38393101 MEJ38393101 HOSE,PUMP
MEJ38393201 MEJ38393201 HOSE,PUMP
MEK37661701 MEK37661701 HOUSING,BLOWER
5318EL3001A 5318EL3001A IGNITER
AEZ33665706 AEZ33665706 KNOB ASSEMBLY
6913EL3001E 6913EL3001E LAMP,INCANDESCENT
6913EL3002E 6913EL3002E LAMP,INCANDESCENT
4778EL3001B 4778EL3001B LEG
4432EL1002A 4432EL1002A LIFTER
4027EL1001C 4027EL1001C LOCKER ASSEMBLY
4026EL3002B 4026EL3002B LOCKER,BODY
MFG61849101 MFG61849101 LOCKER,HANDLE
4026EL3007C 4026EL3007C LOCKER,HOOK
AFN73973883 AFN73973883 MANUAL ASSEMBLY,OWNERS
MFL62119949 MFL62119949 MANUAL,SERVICE
4681EL1008A 4681EL1008A MOTOR ASSEMBLY,DC,DRUM
EAU37148701 EAU37148701 MOTOR ASSEMBLY,DC,PUMP
AGB34327803 AGB34327803 NOZZLE ASSEMBLY,STEAM
4948EL4001B 4948EL4001B ORIFICE
AGL73093113 AGL73093113 PANEL ASSEMBLY,FRONT
MGC62061202 MGC62061202 PANEL,REAR
383EEL3002D 383EEL3002D PARTS ASSEMBLY

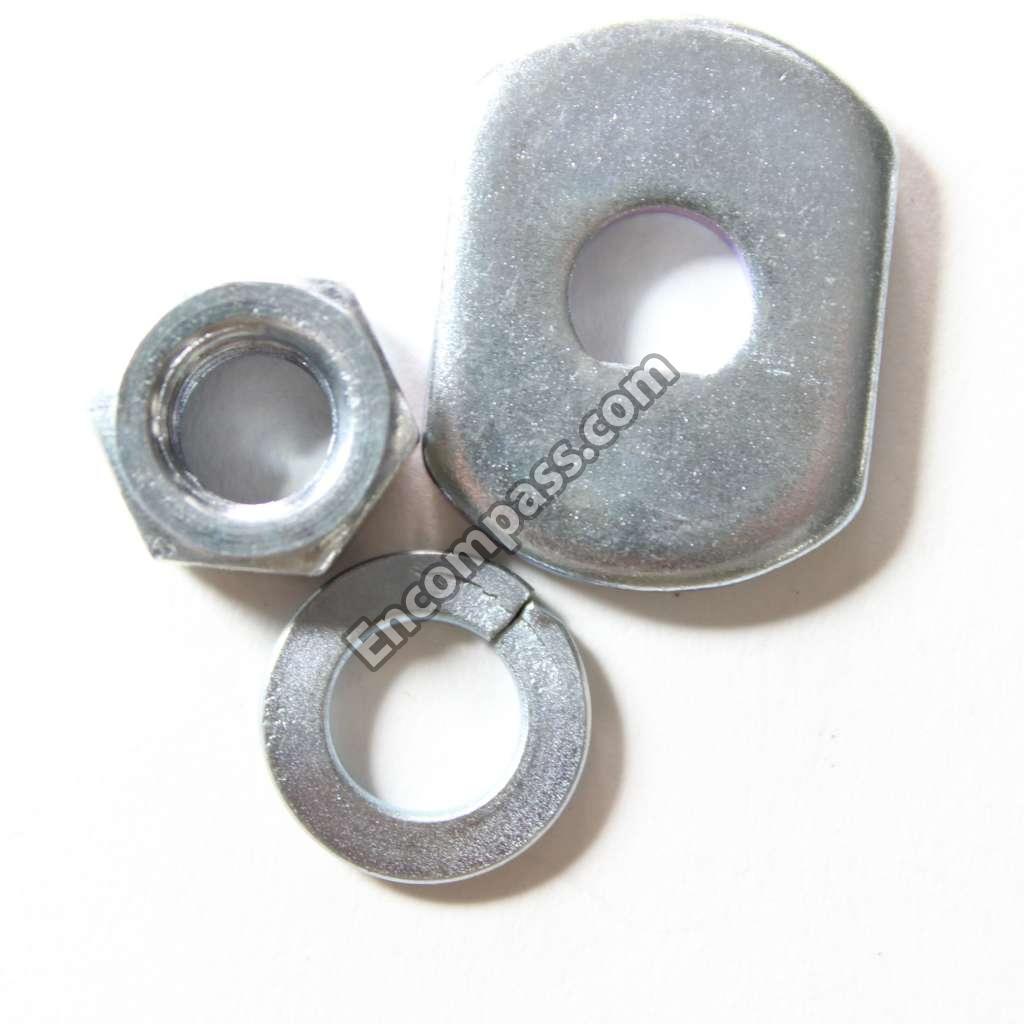

383EEL9001G 383EEL9001G PARTS ASSEMBLY
3911EZ9131X 3911EZ9131X PARTS ASSEMBLY
4026EL3002A 4026EL3002A PARTS ASSEMBLY
EBR68035203 EBR68035203 PCB ASSEMBLY,DISPLAY

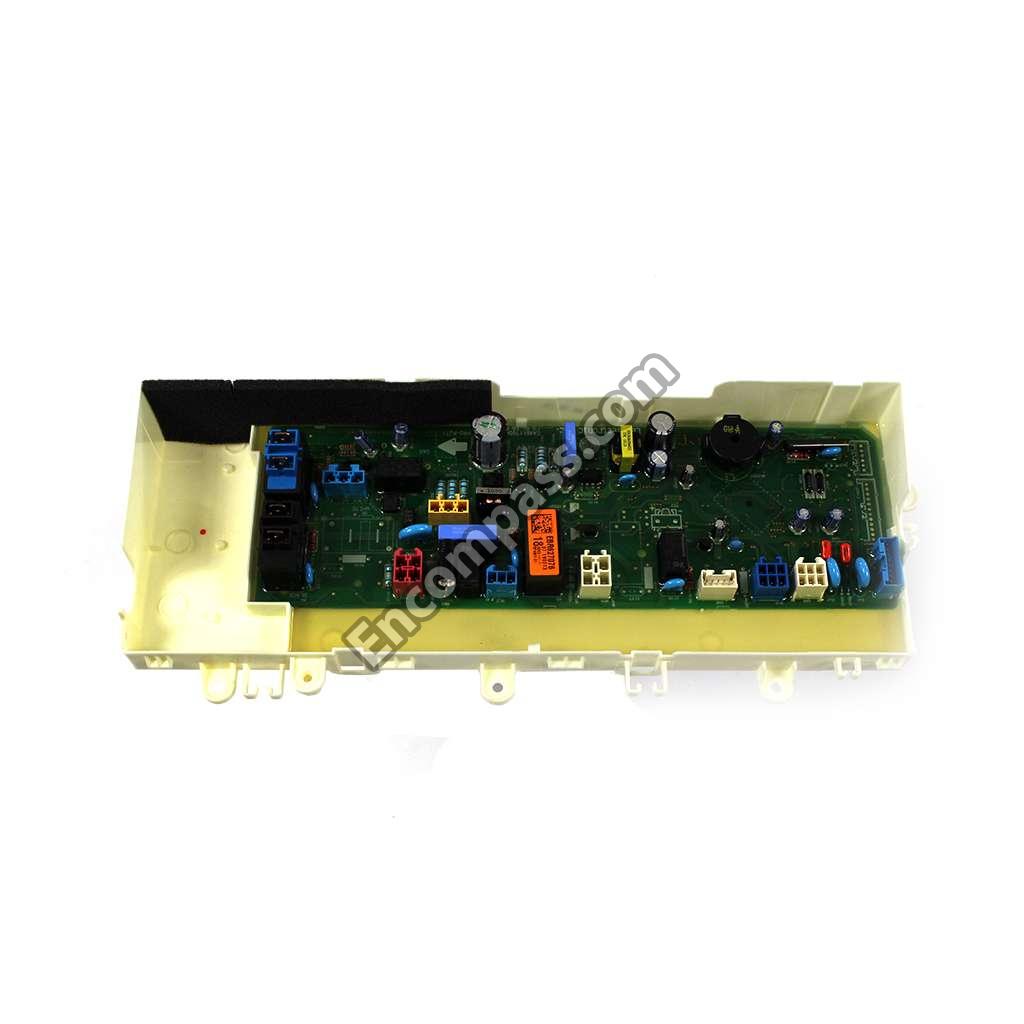

EBR62707618 EBR62707618 PCB ASSEMBLY,MAIN
5201EL2001A 5201EL2001A PIPE ASSEMBLY
5201EL3001A 5201EL3001A PIPE ASSEMBLY
AGU72925501 AGU72925501 PLATE ASSEMBLY,TOP
3300ER4003A 3300ER4003A PLATE,LOWER
3300EL4001A 3300EL4001A PLATE,UPPER
AGM34418433 AGM34418433 POWER CORD ASSEMBLY
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
3750EL0001C 3750EL0001C RACK
4581EL3001E 4581EL3001E ROLLER ASSEMBLY
4581EL2002C 4581EL2002C ROLLER ASSEMBLY
1SZZEL3001A 1SZZEL3001A SCREW,CUSTOMIZED
4000FD4191C 4000FD4191C SCREW,CUSTOMIZED
1MTC0402632 1MTC0402632 SCREW,MACHINE
1TPL0303218 1TPL0303218 SCREW,TAPPING
6501EL3001A 6501EL3001A SENSOR ASSEMBLY
6500EL3001A 6500EL3001A SENSOR,HUMIDITY
6631EL3003B 6631EL3003B SINGLE HARNESS
6601EL3001A 6601EL3001A SWITCH ASSEMBLY,SAFETY
EBF61734701 EBF61734701 SWITCH,MICRO
AJL34327901 AJL34327901 TANK ASSEMBLY,WATER
6323EL2001B 6323EL2001B THERMISTOR,NTC
6931EL3003C 6931EL3003C THERMOSTAT
6931EL3002M 6931EL3002M THERMOSTAT
6931EL3004B 6931EL3004B THERMOSTAT ASSEMBLY
3045EL1005A 3045EL1005A TUB ASSEMBLY,DRUM
3045EL1002Q 3045EL1002Q TUB ASSEMBLY,DRUM
3044EL0002T 3044EL0002T TUB,DRUM(REAR)
5221EL2002A 5221EL2002A VALVE ASSEMBLY,GAS
