Model Image
Manufacturer

LG

Model Number

AMMH36FA1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4848A20006L 4848A20006L ACCUMULATOR
4791A10019B 4791A10019B BARRIER ASSEMBLY,OUTDOOR
AAN73130002 AAN73130002 BASE ASSEMBLY,OUTDOOR

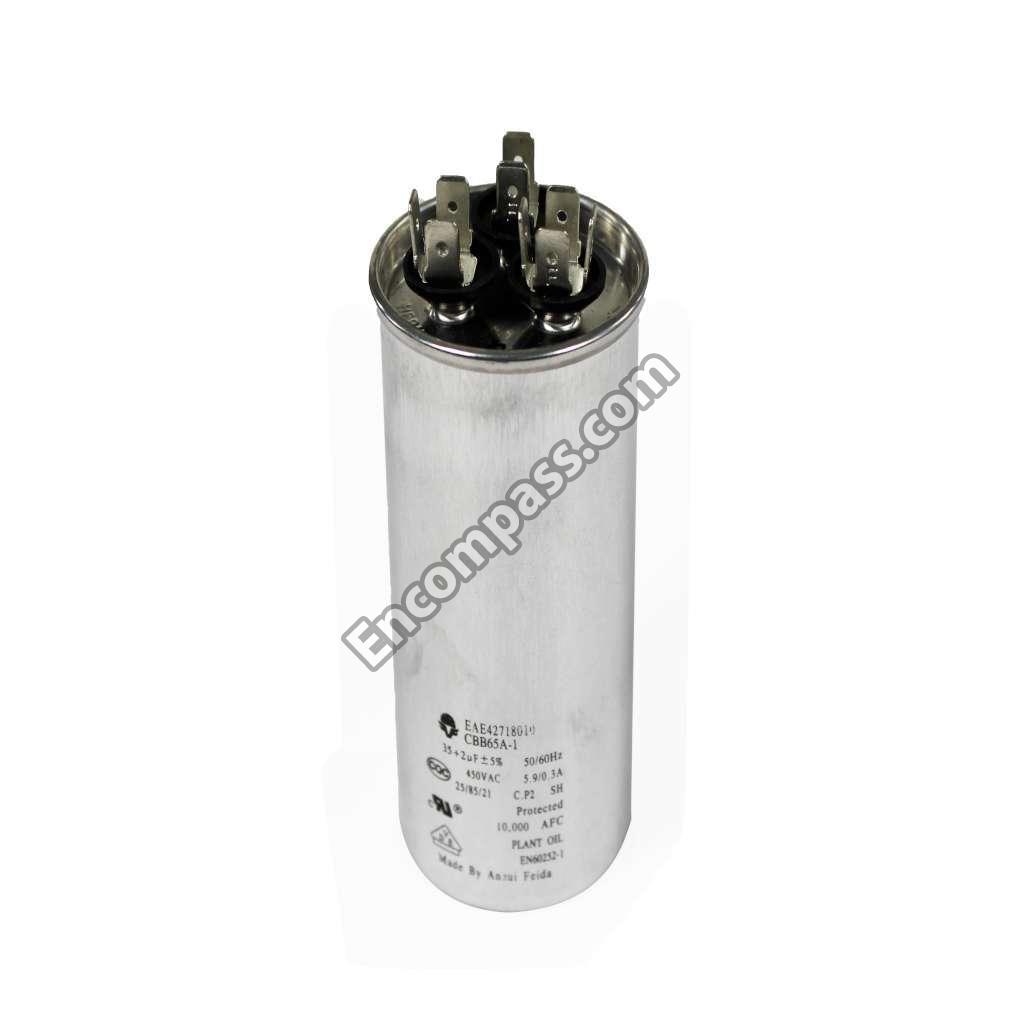

EAE42718010 EAE42718010 CAPACITOR,FILM,BOX
0CZZA20007Q 0CZZA20007Q CAPACITOR,FILM,BOX
4995A00002M 4995A00002M CASE ASSEMBLY,CONTROL(OUTDOOR)
2520UGKK2AA 2520UGKK2AA COMPRESSOR SET,KOREA
TBZ35275301 TBZ35275301 COMPRESSOR SET,KOREA
TBZ30111701 TBZ30111701 COMPRESSOR SET,KOREA
5403A20168A 5403A20168A CONDENSER ASSEMBLY,BENDING
ACQ36712503 ACQ36712503 COVER ASSEMBLY,CONTROL(OUTDOOR)
ACQ73019503 ACQ73019503 COVER ASSEMBLY,TOP(OUTDOOR)
3550U-L006B 3550U-L006B COVER,TERMINAL
3550U-L005A 3550U-L005A COVER,TERMINAL
EAD62437306 EAD62437306 DRAWING,ASSEMBLY
EAD62437302 EAD62437302 DRAWING,ASSEMBLY
EAP62228713 EAP62228713 DRAWING,ASSEMBLY
EAD62437301 EAD62437301 DRAWING,ASSEMBLY
6877A20050B 6877A20050B DRAWING,ASSEMBLY
EAD62437311 EAD62437311 DRAWING,ASSEMBLY
EAP30616909 EAP30616909 DRAWING,ASSEMBLY
5901A10033A 5901A10033A FAN ASSEMBLY,PROPELLER
4986U-L004A 4986U-L004A GASKET
MDX61846101 MDX61846101 GRILLE,DISCHARGE
3530A10176B 3530A10176B GRILLE,REAR
4681AR1392R 4681AR1392R MOTOR ASSEMBLY,AC,OUTDOOR
4H01010A 4H01010A NIPPLE,DRAIN
4948A20001A 4948A20001A ORIFICE
6750U-L048A 6750U-L048A OVERLOAD PROTECT
3721A20147A 3721A20147A PANEL ASSEMBLY,FRONT(OUTDOOR)
3721A10109C 3721A10109C PANEL ASSEMBLY,FRONT(OUTDOOR)
3721A10111C 3721A10111C PANEL ASSEMBLY,SIDE
3721A10110A 3721A10110A PANEL ASSEMBLY,SIDE
6871A20500B 6871A20500B PCB ASSEMBLY,MAIN
6871A20479F 6871A20479F PCB ASSEMBLY,MAIN
3A02028Z 3A02028Z SOLENOID
4908AR1016H 4908AR1016H SUPPORTER
EBG61286235 EBG61286235 THERMISTOR,NTC
EBG61186721 EBG61186721 THERMISTOR,NTC
5211A11010A 5211A11010A TUBE ASSEMBLY,CONDENSER(IN)
5211A12001A 5211A12001A TUBE ASSEMBLY,CONDENSER(OUT)
AJR30834101 AJR30834101 TUBE ASSEMBLY,DISCHARGE(OUTDOOR)
AJR30839801 AJR30839801 TUBE ASSEMBLY,REVERSE
5220A90010G 5220A90010G VALVE,EXPANSION BODY
5220AR3228Y 5220AR3228Y VALVE,REVERSE
5220A20005D 5220A20005D VALVE,SERVICE
2H02479J 2H02479J VALVE,SERVICE
2H02479D 2H02479D VALVE,SERVICE
MJX62472208 MJX62472208 VALVE,SERVICE
