Model Image
Manufacturer

LG

Model Number

ARUB144BT3

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
MAA41415102 MAA41415102 ACCUMULATOR
AAN34559104 AAN34559104 BASE ASSEMBLY,OUTDOOR
MAZ40016203 MAZ40016203 BRACKET
MAZ40016101 MAZ40016101 BRACKET
ABQ73980301 ABQ73980301 CASE ASSEMBLY,CONTROL(OUTDOOR)
4H01930A 4H01930A CLAMP,SPRING
EAP30616912 EAP30616912 COIL,EXPANSION
TBZ37996201 TBZ37996201 COMPRESSOR SET,KOREA
TBZ35362501 TBZ35362501 COMPRESSOR SET,KOREA
ACG35866005 ACG35866005 CONDENSER ASSEMBLY,BENDING
6640A30004H 6640A30004H CONNECTOR,TERMINAL BLOCK
MCK40004902 MCK40004902 COVER
MCK40005006 MCK40005006 COVER
MCK40005902 MCK40005902 COVER
3550A30339H 3550A30339H COVER
ACQ33787701 ACQ33787701 COVER ASSEMBLY
ACQ74759306 ACQ74759306 COVER ASSEMBLY,CONTROL(OUTDOOR)
MCQ62569601 MCQ62569601 DAMPER,COMPRESSOR

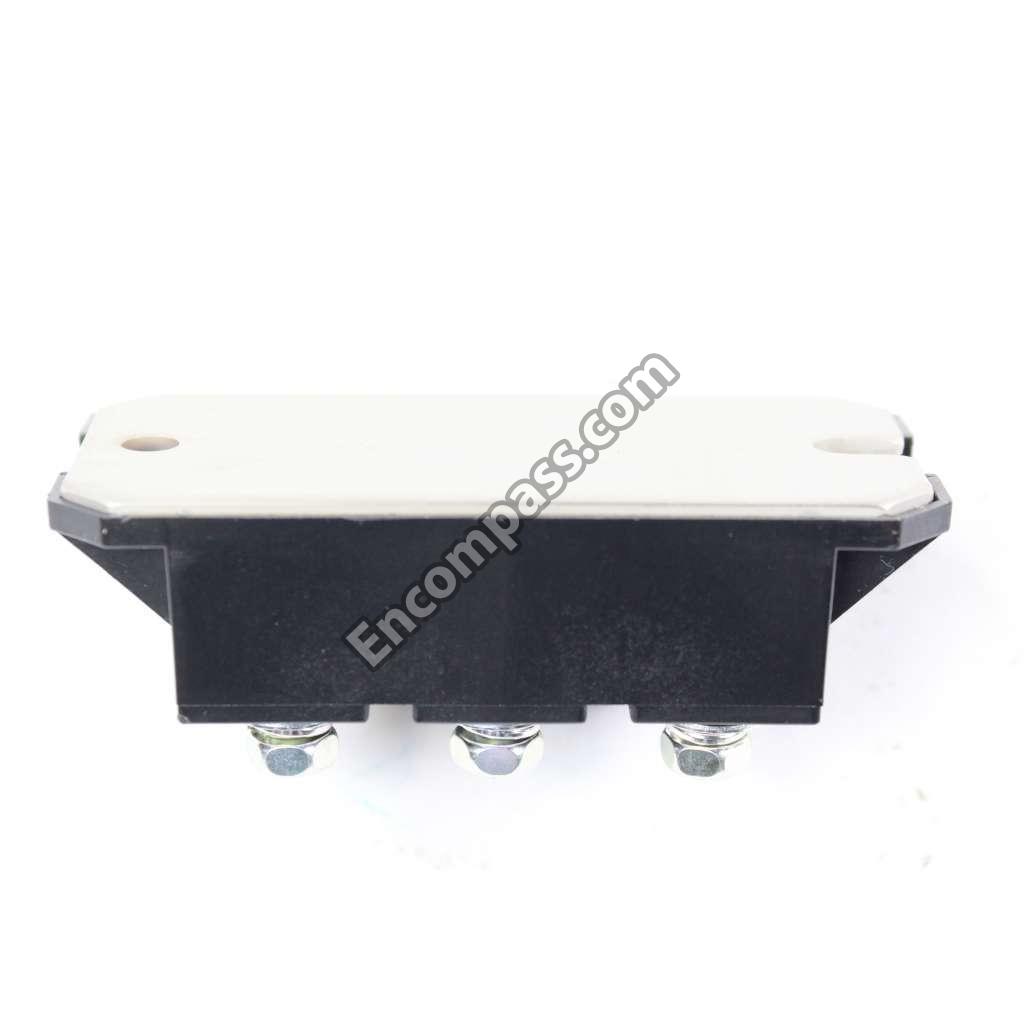

EAH61512601 EAH61512601 DIODE,BRIDGE
ADP73733501 ADP73733501 FAN ASSEMBLY,PROPELLER

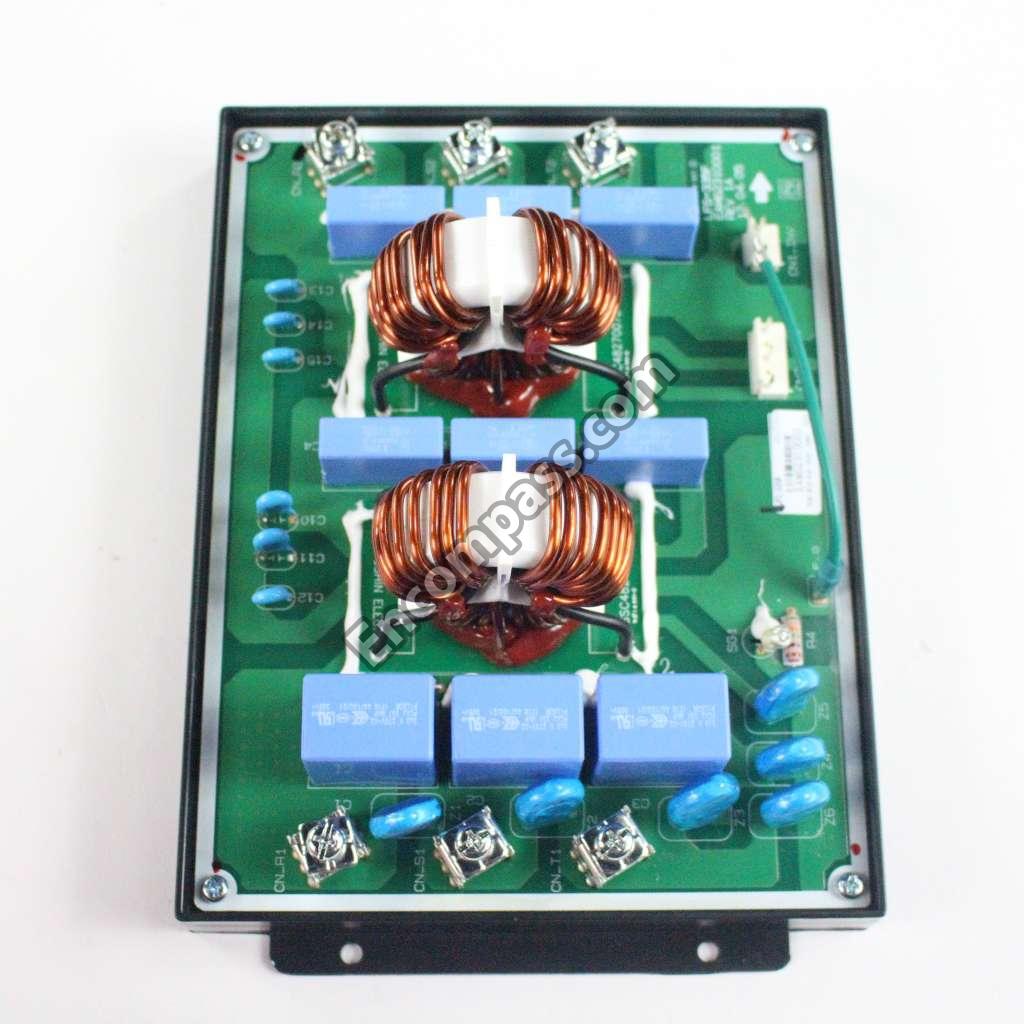

EAM62310001 EAM62310001 FILTER,AC LINE
AEB73704901 AEB73704901 GRILLE ASSEMBLY,REAR(OUTDOOR)
MDX40360902 MDX40360902 GRILLE,DISCHARGE
EAD61947801 EAD61947801 HARNESS,MULTI
EAD61947802 EAD61947802 HARNESS,MULTI
EAD43354416 EAD43354416 HARNESS,MULTI
MED37293704 MED37293704 HEAT SINK
MED42478105 MED42478105 HEAT SINK
5300A20008M 5300A20008M HEATER,SUMP
5300A20008X 5300A20008X HEATER,SUMP
MFA40133102 MFA40133102 LEG
EAU61423601 EAU61423601 MOTOR ASSEMBLY,DC,OUTDOOR
AGL34759608 AGL34759608 PANEL ASSEMBLY,FRONT(OUTDOOR)
AGL34759602 AGL34759602 PANEL ASSEMBLY,FRONT(OUTDOOR)
AGL72947304 AGL72947304 PANEL ASSEMBLY,SIDE
AGL72947302 AGL72947302 PANEL ASSEMBLY,SIDE
MGC40001402 MGC40001402 PANEL,UPPER
MGC40015602 MGC40015602 PANEL,UPPER
EBR73910901 EBR73910901 PCB ASSEMBLY,FAN

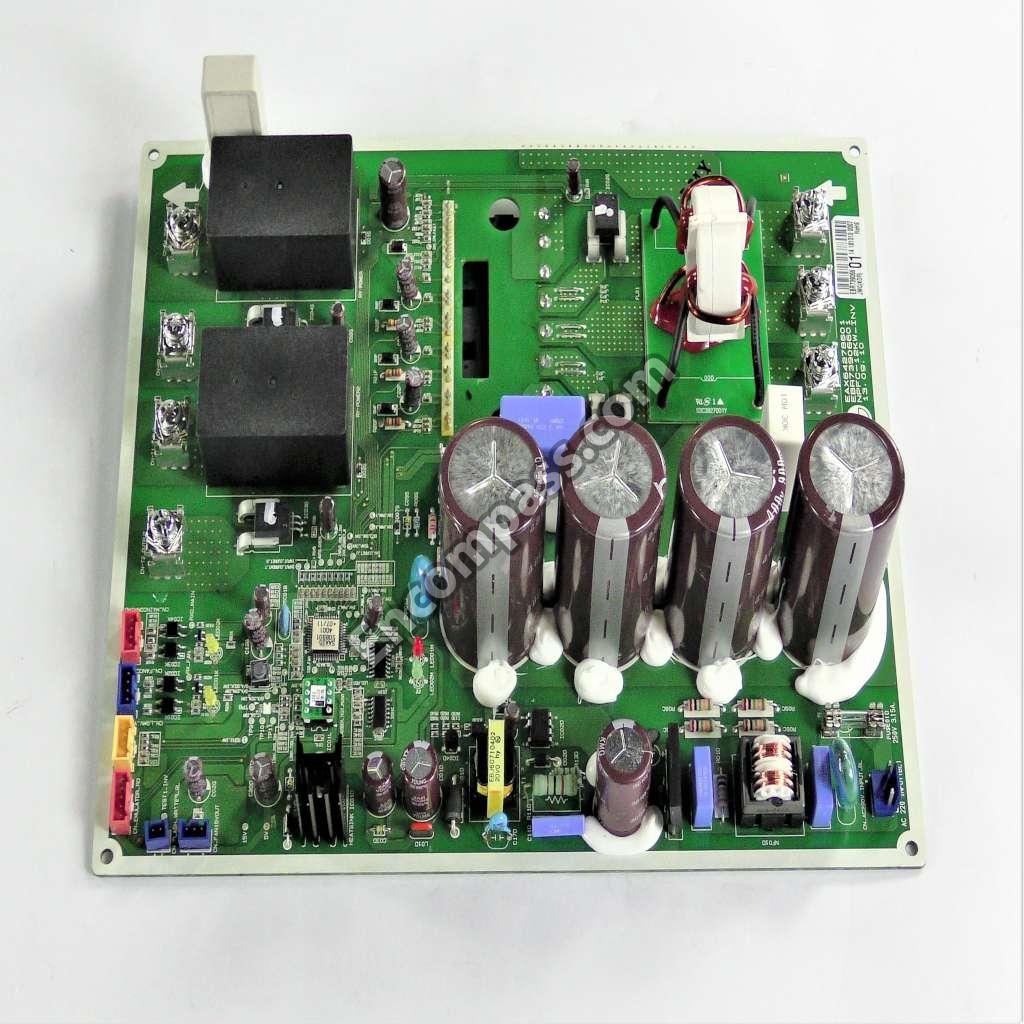

EBR73906601 EBR73906601 PCB ASSEMBLY,INV(H/W)

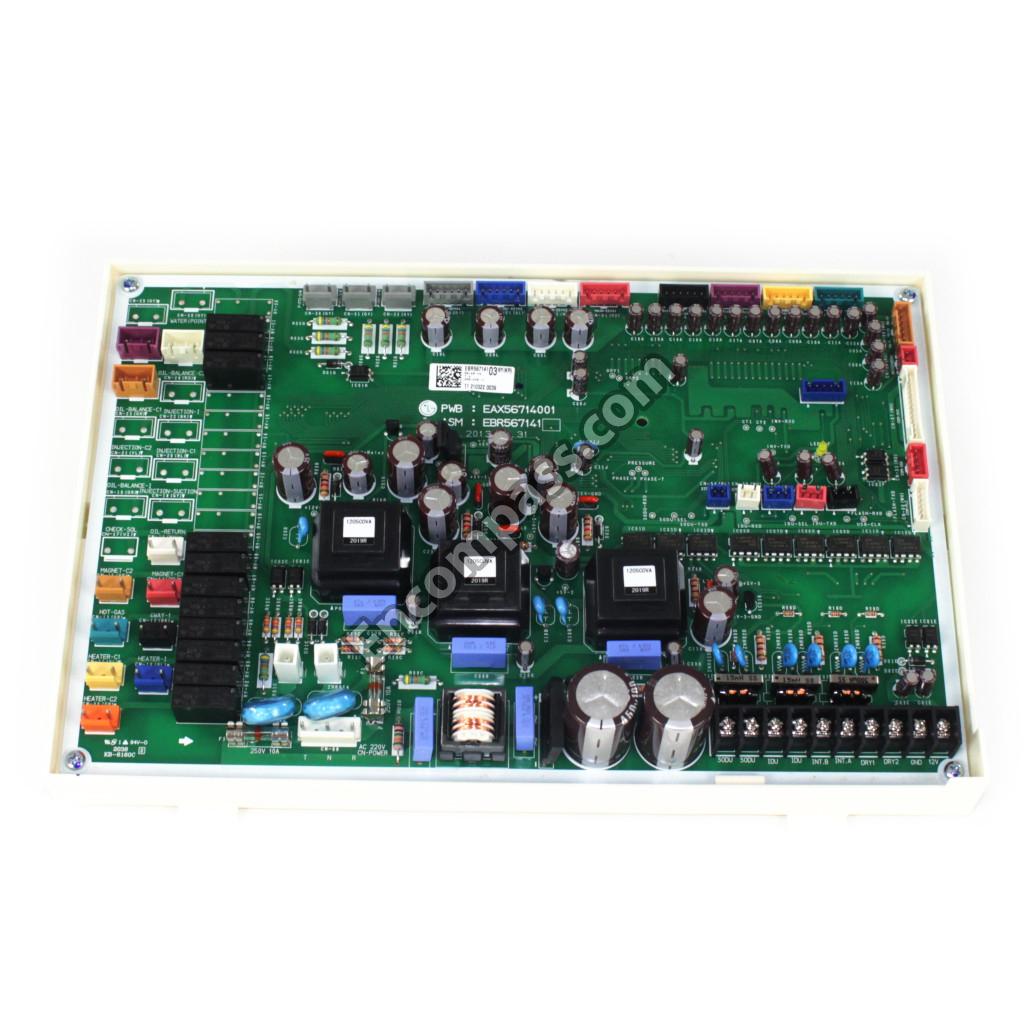

EBR56714103 EBR56714103 PCB ASSEMBLY,MAIN
6871A30042B 6871A30042B PCB ASSEMBLY,SUB

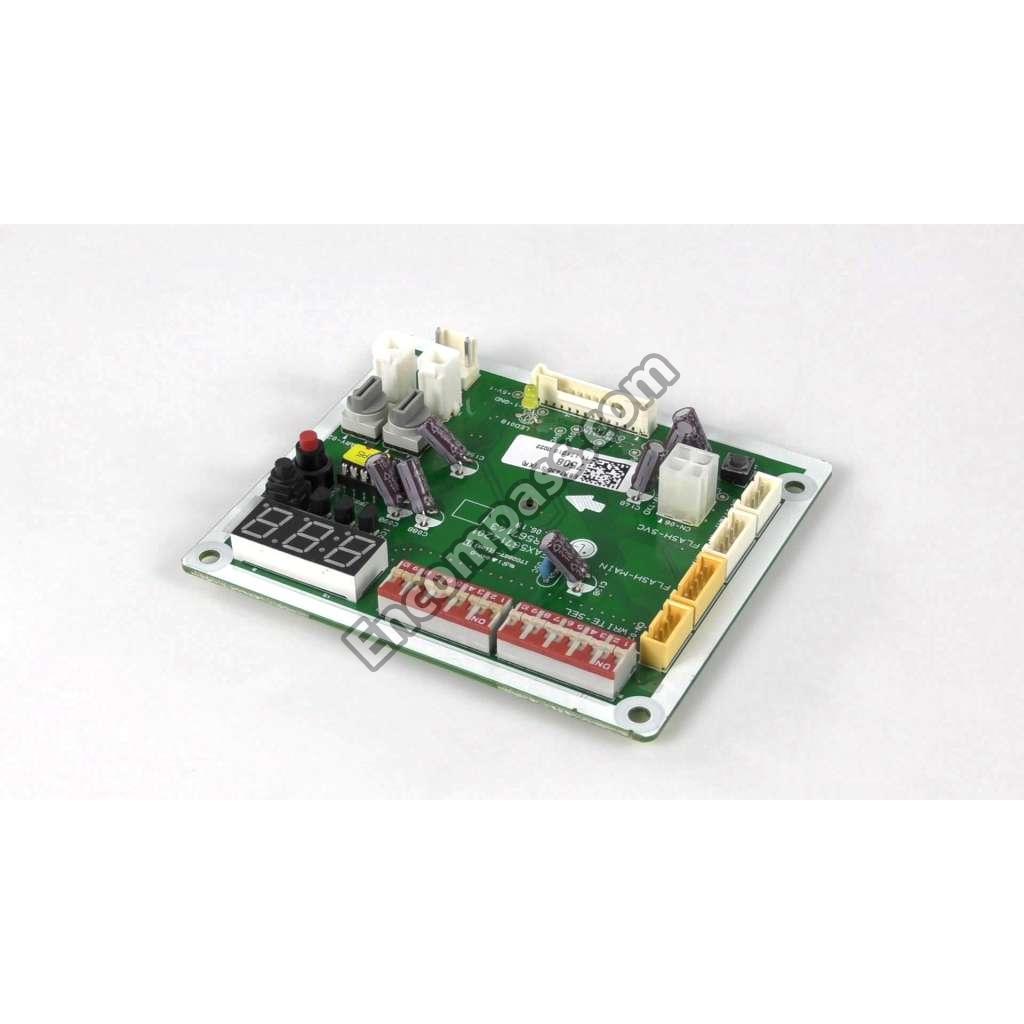

EBR74357508 EBR74357508 PCB ASSEMBLY,SUB
EBD62165601 EBD62165601 SENSOR,PRESSURE
EBD60663823 EBD60663823 SENSOR,PRESSURE
AHV35766201 AHV35766201 SHROUD ASSEMBLY
6141A20010W 6141A20010W SOLENOID
EBE60742004 EBE60742004 SOLENOID
EBE60661401 EBE60661401 SOLENOID
6141A20050Y 6141A20050Y SOLENOID
MDS42399709 MDS42399709 SOUND PROOF
MDS42294608 MDS42294608 SOUND PROOF
MDS42399707 MDS42399707 SOUND PROOF
MDS42294613 MDS42294613 SOUND PROOF
MDS61982404 MDS61982404 SOUND PROOF
5224A20005L 5224A20005L STRAINER
MJC62301701 MJC62301701 STRAINER
5224A20005D 5224A20005D STRAINER
MJH40033002 MJH40033002 SUPPORTER
MJH40032802 MJH40032802 SUPPORTER
MJH57203801 MJH57203801 SUPPORTER
6600B000048 6600B000048 SWITCH,MAGNET
EBF40271401 EBF40271401 SWITCH,PRESSURE
EBG61106912 EBG61106912 THERMISTOR ASSEMBLY,NTC
EBG61107401 EBG61107401 THERMISTOR ASSEMBLY,NTC
EBG61186709 EBG61186709 THERMISTOR ASSEMBLY,NTC
EBG61207011 EBG61207011 THERMISTOR ASSEMBLY,NTC
EBG61285701 EBG61285701 THERMISTOR ASSEMBLY,NTC
EBJ61310201 EBJ61310201 TRANSFORMER,REACTOR
AJR56661101 AJR56661101 TUBE ASSEMBLY,CONNECTOR
AJR72953201 AJR72953201 TUBE ASSEMBLY,DISCHARGE(OUTDOOR)
AJR72953101 AJR72953101 TUBE ASSEMBLY,DISCHARGE(OUTDOOR)
AJR56662803 AJR56662803 TUBE ASSEMBLY,DISCHARGE(OUTDOOR)
AJR72367706 AJR72367706 TUBE ASSEMBLY,DISTRIBUTOR
AJR72367608 AJR72367608 TUBE ASSEMBLY,DISTRIBUTOR
AJR72957305 AJR72957305 TUBE ASSEMBLY,EXPANSION
AJR73462303 AJR73462303 TUBE ASSEMBLY,EXPANSION
AJR73382904 AJR73382904 TUBE ASSEMBLY,MANIFOLD(OUTDOOR)
AJR73383004 AJR73383004 TUBE ASSEMBLY,MANIFOLD(OUTDOOR)
AJR73688406 AJR73688406 TUBE ASSEMBLY,REVERSE
AJR73763302 AJR73763302 TUBE ASSEMBLY,SUCTION
AJR72952006 AJR72952006 TUBE ASSEMBLY,SUCTION(OUTDOOR)
AJU36719715 AJU36719715 VALVE ASSEMBLY
AJU36719716 AJU36719716 VALVE ASSEMBLY
MJX62751401 MJX62751401 VALVE,EXPANSION BODY
3A02080B 3A02080B VALVE,REVERSE
MJX62254001 MJX62254001 VALVE,SERVICE
5220A20034C 5220A20034C VALVE,SERVICE
MJX62253901 MJX62253901 VALVE,SERVICE
MJX61841301 MJX61841301 VALVE,SOLENOID
5220A90008H 5220A90008H VALVE,SOLENOID
