LG

Model Number

ARWN096BAS4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4848A20001N 4848A20001N ACCUMULATOR
AAN74139503 AAN74139503 BASE ASSEMBLY,OUTDOOR
MAZ63589504 MAZ63589504 BRACKET
EAP30616911 EAP30616911 COIL,EXPANSION
TBZ37955401 TBZ37955401 COMPRESSOR SET,KOREA
TBZ35777801 TBZ35777801 COMPRESSOR SET,KOREA
EAG63111403 EAG63111403 CONNECTOR,TERMINAL BLOCK
ACQ34723601 ACQ34723601 COVER ASSEMBLY
MCQ62569601 MCQ62569601 DAMPER,COMPRESSOR

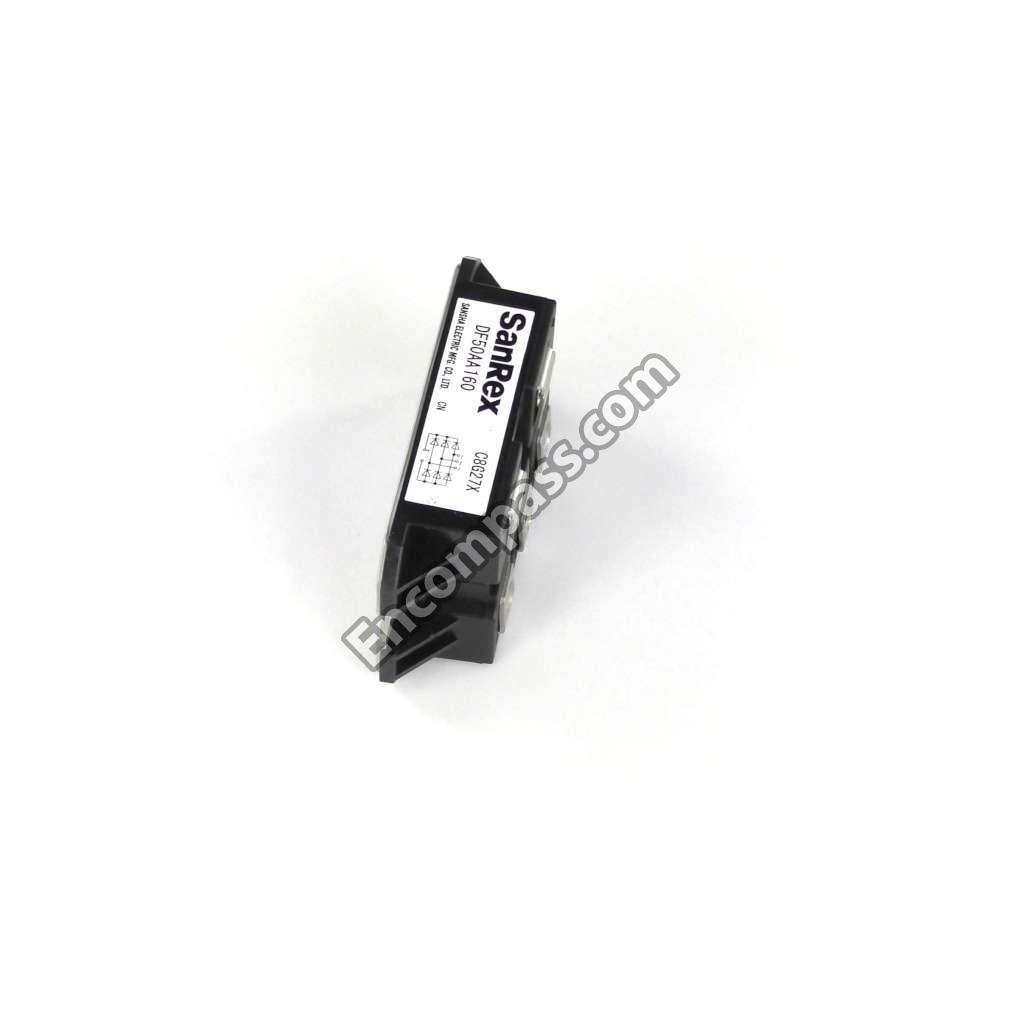

EAH61772601 EAH61772601 DIODE,BRIDGE
EAM62632301 EAM62632301 FILTER,AC LINE
EAF62630301 EAF62630301 FUSE,TIME DELAY
EAD62488801 EAD62488801 HARNESS,MULTI
MED37293905 MED37293905 HEAT SINK
MFA61841406 MFA61841406 LEG
MFA61841405 MFA61841405 LEG
EAU38500603 EAU38500603 MOTOR ASSEMBLY,AC,COOLING
AGL73919705 AGL73919705 PANEL ASSEMBLY,FRONT(OUTDOOR)
AGL73957601 AGL73957601 PANEL ASSEMBLY,REAR(OUTDOOR)
AGL73957502 AGL73957502 PANEL ASSEMBLY,SIDE
AGL74134401 AGL74134401 PANEL ASSEMBLY,UPPER
MGC62920602 MGC62920602 PANEL,SIDE
MGC62920502 MGC62920502 PANEL,SIDE
MGC62920402 MGC62920402 PANEL,SIDE
MGC62920304 MGC62920304 PANEL,SIDE
EBR76610203 EBR76610203 PCB ASSEMBLY,INVERTER
EBR74365001 EBR74365001 PCB ASSEMBLY,MAIN
EBR78043502 EBR78043502 PCB ASSEMBLY,MAIN
EBR74363402 EBR74363402 PCB ASSEMBLY,MAIN
EBR76196401 EBR76196401 PCB ASSEMBLY,POWER
EBR74801101 EBR74801101 PCB ASSEMBLY,SUB
EBR74374302 EBR74374302 PCB ASSEMBLY,SUB
MKW30000003 MKW30000003 PLUG,FUSIBLE
EBD62165606 EBD62165606 SENSOR,PRESSURE
EBD60663824 EBD60663824 SENSOR,PRESSURE
EBE60661401 EBE60661401 SOLENOID
6141A20010W 6141A20010W SOLENOID
MMC00280202 MMC00280202 SOUND PROOF
MMC00280102 MMC00280102 SOUND PROOF
3H03659N 3H03659N STRAINER
MJC62301701 MJC62301701 STRAINER
AJJ74578702 AJJ74578702 SUPPORTER ASSEMBLY
EBF40271416 EBF40271416 SWITCH,PRESSURE
EBG61285701 EBG61285701 THERMISTOR ASSEMBLY,NTC
EBG61585801 EBG61585801 THERMISTOR ASSEMBLY,NTC
EBG61106910 EBG61106910 THERMISTOR ASSEMBLY,NTC
EBJ61711302 EBJ61711302 TRANSFORMER,REACTOR
AJR74145402 AJR74145402 TUBE ASSEMBLY
AJR73989901 AJR73989901 TUBE ASSEMBLY,CONDENSER(OUT)
AJR73989602 AJR73989602 TUBE ASSEMBLY,DISCHARGE(OUTDOOR)
AJR74009006 AJR74009006 TUBE ASSEMBLY,REVERSE
AJR73949101 AJR73949101 TUBE ASSEMBLY,SUCTION(OUTDOOR)
AJU36719715 AJU36719715 VALVE ASSEMBLY
5220A30004A 5220A30004A VALVE,CHECK
5220A90003C 5220A90003C VALVE,EXPANSION BODY
5220AP3777C 5220AP3777C VALVE,REVERSE
5220A90012W 5220A90012W VALVE,SERVICE
MJX62572803 MJX62572803 VALVE,SERVICE
MJX61841306 MJX61841306 VALVE,SOLENOID
