Model Image
Manufacturer

LG

Model Number

CBEW3617BE

Description

36 Electric Cooktop With Ultraheat 3.6kw Element

Interactive Exploded View

Parts List

Part Number Description
AAA77250706 AAA77250706 ACCESSORY ASSEMBLY
AAA35649101 AAA35649101 ACCESSORY ASSEMBLY,OUTSOURCED
MAL64336701 MAL64336701 BARRIER
MAM66035401 MAM66035401 BASE,PCB
MAZ65354901 MAZ65354901 BRACKET,HEATER
MAZ50040102 MAZ50040102 BRACKET,MOUNT
MAZ47162501 MAZ47162501 BRACKET,MOUNT
4810W1N010A 4810W1N010A BRACKET,MOUNT
MBF65433501 MBF65433501 BUSH
5006W1N002G 5006W1N002G CAP,IDLE
ABQ30232928 ABQ30232928 CASE ASSEMBLY,SET
ABQ30232922 ABQ30232922 CASE ASSEMBLY,SET
EBR44995101 EBR44995101 CONTROL BOARD
EBR32418503 EBR32418503 CONTROL BOARD,WIFI
MCK47148804 MCK47148804 COVER,BASE
MCK71910501 MCK71910501 COVER,BASE
ADP74734001 ADP74734001 FAN ASSEMBLY,BLOWER
EAD00573701 EAD00573701 HARNESS,SINGLE
EAD00574301 EAD00574301 HARNESS,SINGLE
EAD65896403 EAD65896403 HARNESS,SINGLE
EAD00574201 EAD00574201 HARNESS,SINGLE
EAD66029101 EAD66029101 HARNESS,SINGLE
EAD66030002 EAD66030002 HARNESS,SINGLE
MED30112901 MED30112901 HEAT SINK

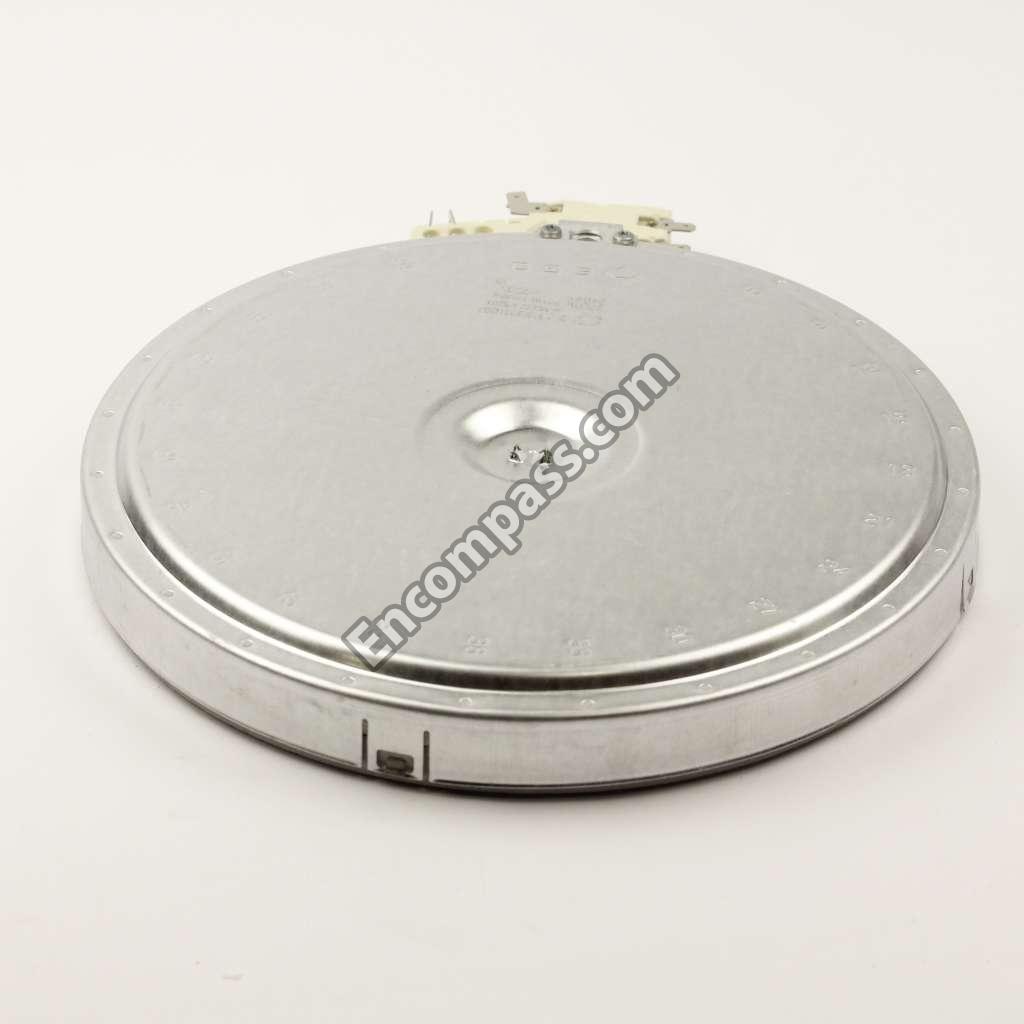

MEE62385201 MEE62385201 HEATER,RADIATION
MEE62704902 MEE62704902 HEATER,RADIATION
MEE64286201 MEE64286201 HEATER,RADIATION
MEE62385001 MEE62385001 HEATER,RADIATION
MEE64105401 MEE64105401 HEATER,RADIATION
MEV67823301 MEV67823301 INSULATOR
MEV00240101 MEV00240101 INSULATOR
EAV65082503 EAV65082503 LED DISPLAY MODULE
EBR44829501 EBR44829501 MAIN BOARD
4H00947C 4H00947C NUT,COMMON
MGJ30033902 MGJ30033902 PLATE,BASE
EAD39575709 EAD39575709 POWER CORD ASSEMBLY
1SZZW1N001A 1SZZW1N001A SCREW,CUSTOMIZED
FAB30162501 FAB30162501 SCREW,CUSTOMIZED
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TTL0502618 1TTL0502618 SCREW,TAPPING
1TPL0402018 1TPL0402018 SCREW,TAPPING
1TTL0403118 1TTL0403118 SCREW,TAPPING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
1ATF0502610 1ATF0502610 SCREW,TAPTITE
MHY64004101 MHY64004101 SPRING,COIL
MJH65813801 MJH65813801 SUPPORTER,PCB
