Model Image
Manufacturer

LG

Model Number

CBGJ3623S

Description

36 Gas Cooktop With Ultraheat 20k Btu Burner

Interactive Exploded View

Parts List

Part Number Description
AAA76578111 AAA76578111 ACCESSORY ASSEMBLY,NOZZLE
AAA35649102 AAA35649102 ACCESSORY ASSEMBLY,OUTSOURCED

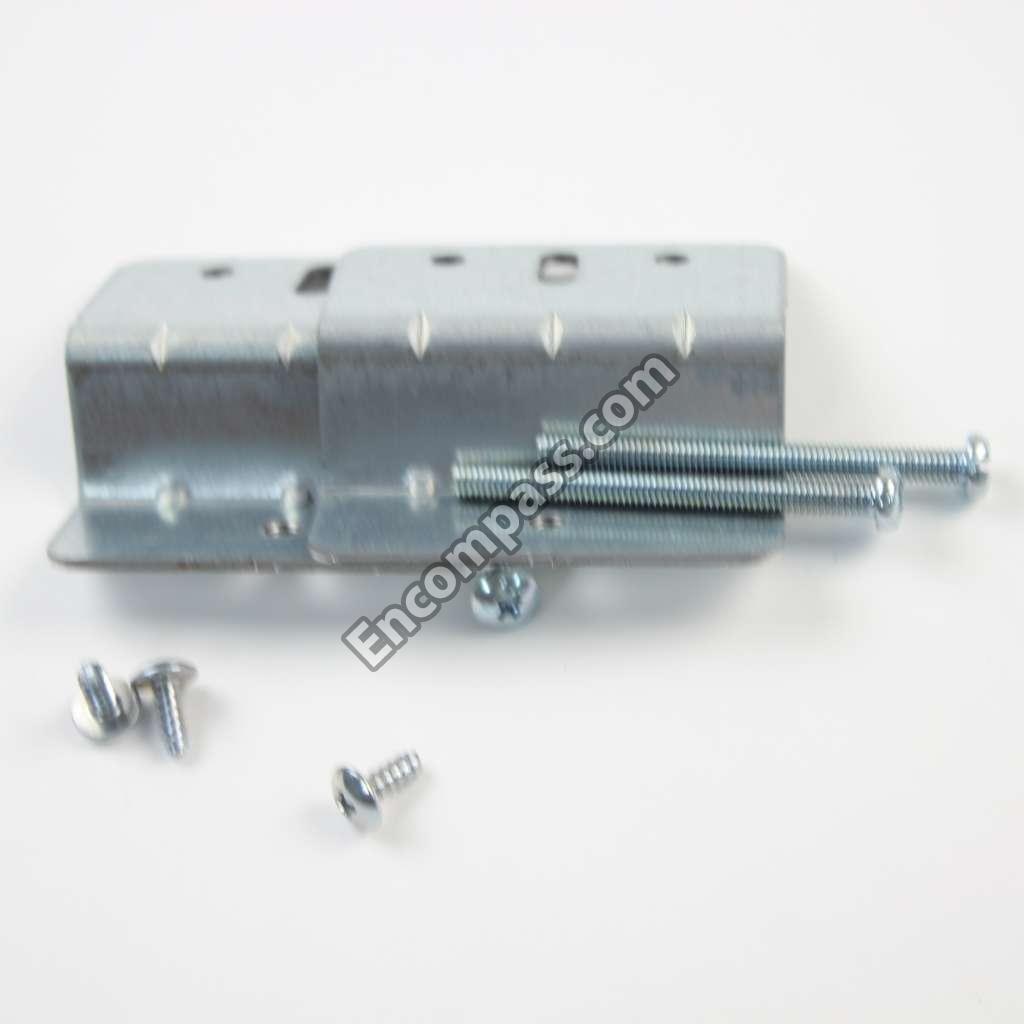

MAZ62607201 MAZ62607201 BRACKET
ABF74504301 ABF74504301 BURNER ASSEMBLY
ABF74504302 ABF74504302 BURNER ASSEMBLY
ABF74504303 ABF74504303 BURNER ASSEMBLY
ABF74504304 ABF74504304 BURNER ASSEMBLY
ABF74492609 ABF74492609 BURNER ASSEMBLY
ABF74492617 ABF74492617 BURNER ASSEMBLY
ABF74492615 ABF74492615 BURNER ASSEMBLY
ABF74492613 ABF74492613 BURNER ASSEMBLY
ABF74492614 ABF74492614 BURNER ASSEMBLY
MBE62284202 MBE62284202 BURNER,CAP
MBE62284102 MBE62284102 BURNER,CAP
MBE62284502 MBE62284502 BURNER,CAP
MBE62284302 MBE62284302 BURNER,CAP
MBE62424101 MBE62424101 BURNER,HEAD
MBE62424001 MBE62424001 BURNER,HEAD
MBE62423801 MBE62423801 BURNER,HEAD
MBE62423701 MBE62423701 BURNER,HEAD
EAD65965002 EAD65965002 CABLE,ASSEMBLY
EAD65965003 EAD65965003 CABLE,ASSEMBLY
4860W1A001A 4860W1A001A CLAMP,CORD
MCQ66717101 MCQ66717101 DAMPER
MCQ66717103 MCQ66717103 DAMPER

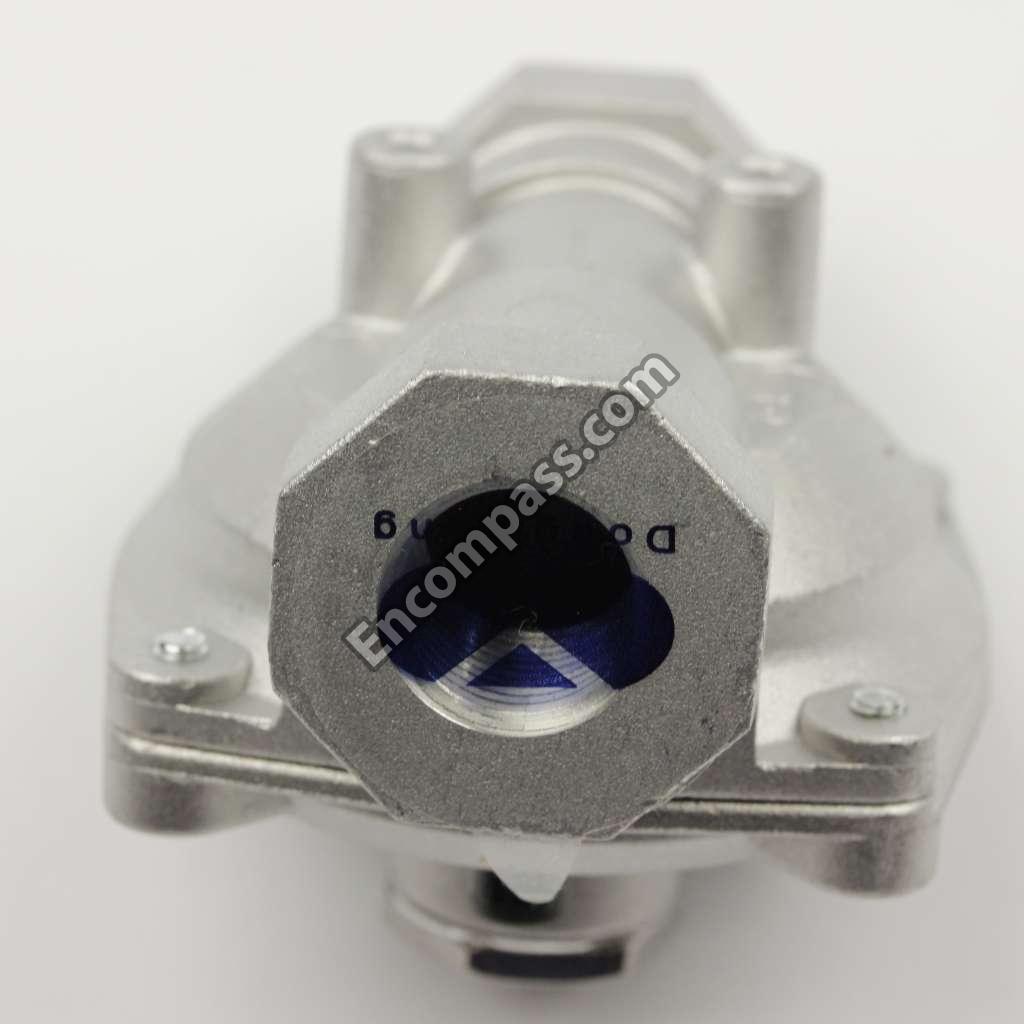

MDW61841101 MDW61841101 GOVERNOR
AEB76295901 AEB76295901 GRILLE ASSEMBLY
AEB76296501 AEB76296501 GRILLE ASSEMBLY
AEB76296101 AEB76296101 GRILLE ASSEMBLY
EAD65975805 EAD65975805 HARNESS,SINGLE
4B72944B 4B72944B HOLDER,WIRE
MEG66672701 MEG66672701 HOLDER,WIRE
AEZ75996802 AEZ75996802 KNOB ASSEMBLY
MFV64204622 MFV64204622 NOZZLE
MFV64204620 MFV64204620 NOZZLE
MFV64204624 MFV64204624 NOZZLE
MFV64204625 MFV64204625 NOZZLE
MFZ63772804 MFZ63772804 PACKING,GASKET
EBZ60710301 EBZ60710301 PIPE ASSEMBLY
MGE66435001 MGE66435001 PIPE,BENDING
MGE66431201 MGE66431201 PIPE,TERMINAL
AGU30065703 AGU30065703 PLATE ASSEMBLY,UPPER
MAM62585104 MAM62585104 PLATE,BASE
EAD61871301 EAD61871301 POWER CORD ASSEMBLY
MGZ65552101 MGZ65552101 RING,KNOB
MGZ65552202 MGZ65552202 RING,KNOB
FAB30424505 FAB30424505 SCREW,CUSTOMIZED
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
FAB30424503 FAB30424503 SCREW,CUSTOMIZED
FAB30424504 FAB30424504 SCREW,CUSTOMIZED
FAB35002801 FAB35002801 SCREW,CUSTOMIZED
1SZZW5N001W 1SZZW5N001W SCREW,CUSTOMIZED
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TTL0402422 1TTL0402422 SCREW,TAPPING
FAB30103101 FAB30103101 SCREW,TAPPING
MJH66358201 MJH66358201 SUPPORTER,PCB
EBF63434701 EBF63434701 SWITCH ASSEMBLY
EBJ64463801 EBJ64463801 TRANSFORMER ASSEMBLY,POWER
AJU74852822 AJU74852822 VALVE ASSEMBLY,GAS
AJU74852821 AJU74852821 VALVE ASSEMBLY,GAS
