Model Image
Manufacturer

LG

Model Number

DLEX7600ME

Description

7.3 Cu. Ft. Ultra Large Capacity Turbosteam/electr

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA75232303 AAA75232303 ACCESSORY ASSEMBLY
AAA75904801 AAA75904801 ACCESSORY ASSEMBLY
AAA75232311 AAA75232311 ACCESSORY ASSEMBLY
MAK62727001 MAK62727001 BAR,CONNECTOR
MAK62727101 MAK62727101 BAR,CONNECTOR
4400EL2001A 4400EL2001A BELT,POLY V
4400EL2001F 4400EL2001F BELT,POLY-V
5835EL1002A 5835EL1002A BLOWER ASSEMBLY

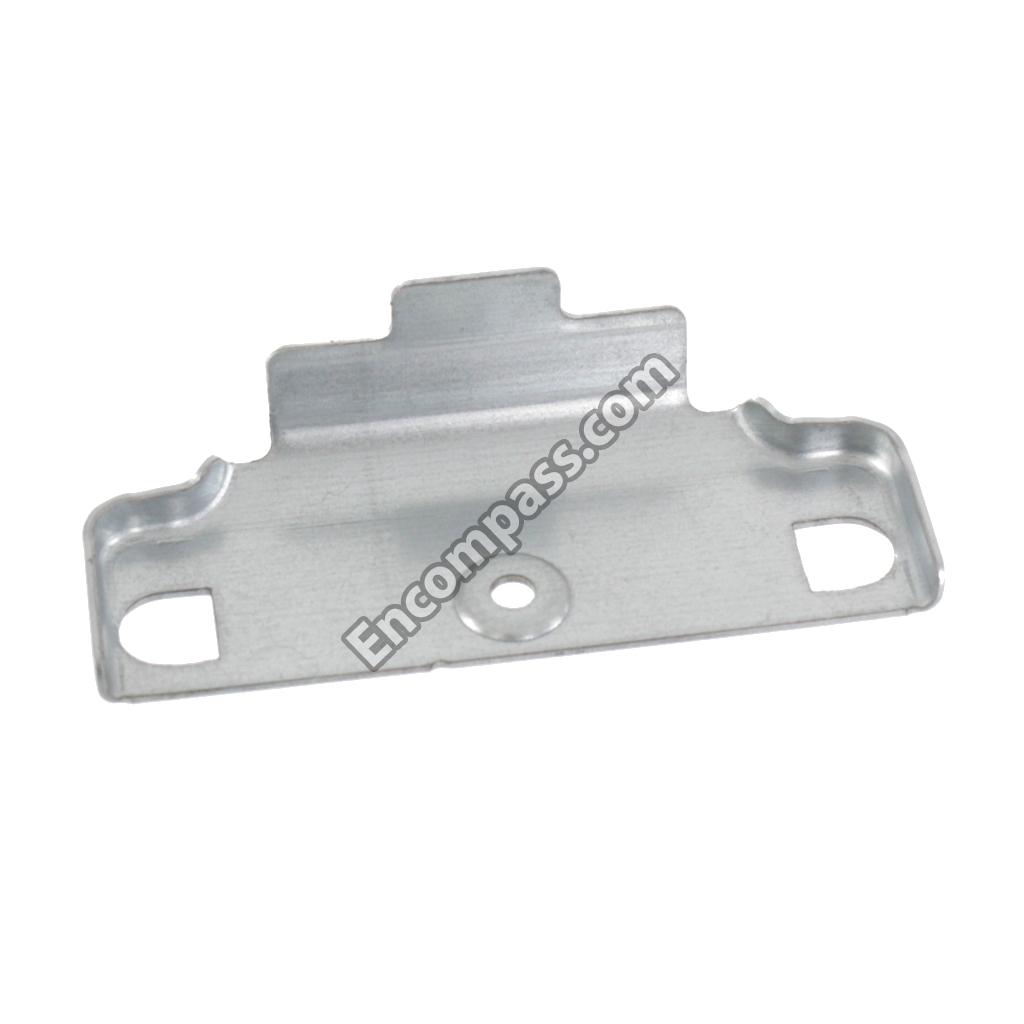

4810EL1002A 4810EL1002A BRACKET
4810EL3001A 4810EL3001A BRACKET,BASE
MAZ64606102 MAZ64606102 BRACKET,FRAME
4810EL1007A 4810EL1007A BRACKET,HEATER
MAZ61975501 MAZ61975501 BRACKET,HINGE
MAZ63869201 MAZ63869201 BRACKET,HINGE
MAZ63869301 MAZ63869301 BRACKET,HINGE
MAZ63869101 MAZ63869101 BRACKET,HINGE

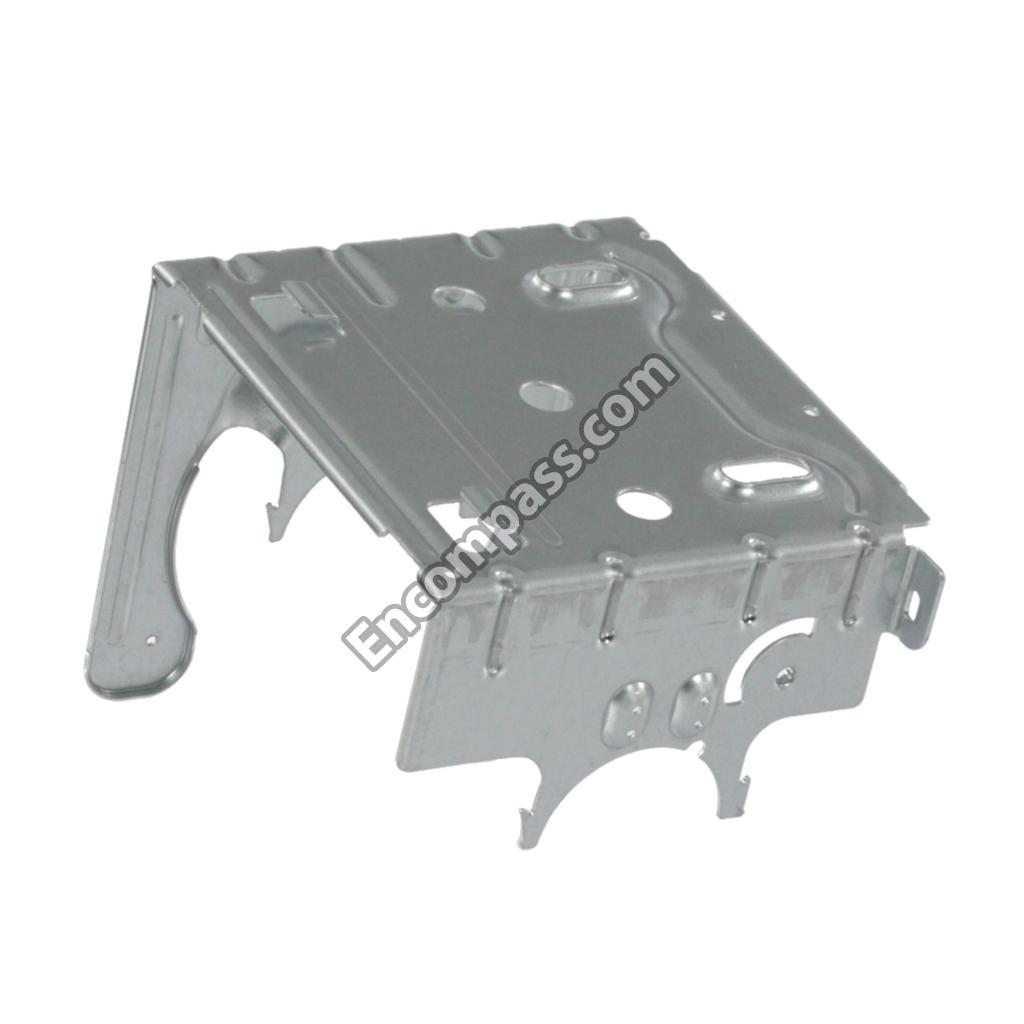

MAZ66065301 MAZ66065301 BRACKET,MOTOR
ABJ73928233 ABJ73928233 CABINET ASSEMBLY
MBL65579002 MBL65579002 CAP,COVER
MBL65958101 MBL65958101 CAP,COVER
MBL65958102 MBL65958102 CAP,COVER
MBL65578902 MBL65578902 CAP,COVER
MBL65217005 MBL65217005 CAP,DRIER
MBL62213310 MBL62213310 CAP,HOLE
MBL62213306 MBL62213306 CAP,HOLE
4860EL3001A 4860EL3001A CLAMP
6631EL3003B 6631EL3003B CONNECTOR ASSEMBLY
MCD63206801 MCD63206801 CONNECTOR,NOZZLE
MCD62587102 MCD62587102 CONNECTOR,NOZZLE
MCD63306801 MCD63306801 CONNECTOR,PIPE
ACQ86644217 ACQ86644217 COVER ASSEMBLY,CABINET
3550EL2004B 3550EL2004B COVER,FILTER
3550EL1005C 3550EL1005C COVER,GUIDE
3550EL2003B 3550EL2003B COVER,PROTECT
MCK62423301 MCK62423301 COVER,SAFETY
3550EL3002A 3550EL3002A COVER,SAFETY
4W50100F 4W50100F CUSTOMIZED
ACV73430101 ACV73430101 DAMPER ASSEMBLY
MCR65109903 MCR65109903 DECOR,GUARD
MCR66471702 MCR66471702 DECOR,PANEL
ADC74129516 ADC74129516 DOOR ASSEMBLY
5209EL1006A 5209EL1006A DUCT ASSEMBLY
5209EL1001C 5209EL1001C DUCT ASSEMBLY
5209EL1002A 5209EL1002A DUCT ASSEMBLY
5231EL1001C 5231EL1001C FILTER ASSEMBLY,LINT
ADV74568907 ADV74568907 FRAME ASSEMBLY
ADV74568803 ADV74568803 FRAME ASSEMBLY
MDS61982901 MDS61982901 GASKET
ADZ73410102 ADZ73410102 GENERATOR ASSEMBLY
ADZ73410101 ADZ73410101 GENERATOR ASSEMBLY
4975EL3001A 4975EL3001A GUIDE ASSEMBLY
4974EL1002B 4974EL1002B GUIDE,FILTER
MEB63034504 MEB63034504 HANDLE
AED73953302 AED73953302 HANDLE ASSEMBLY

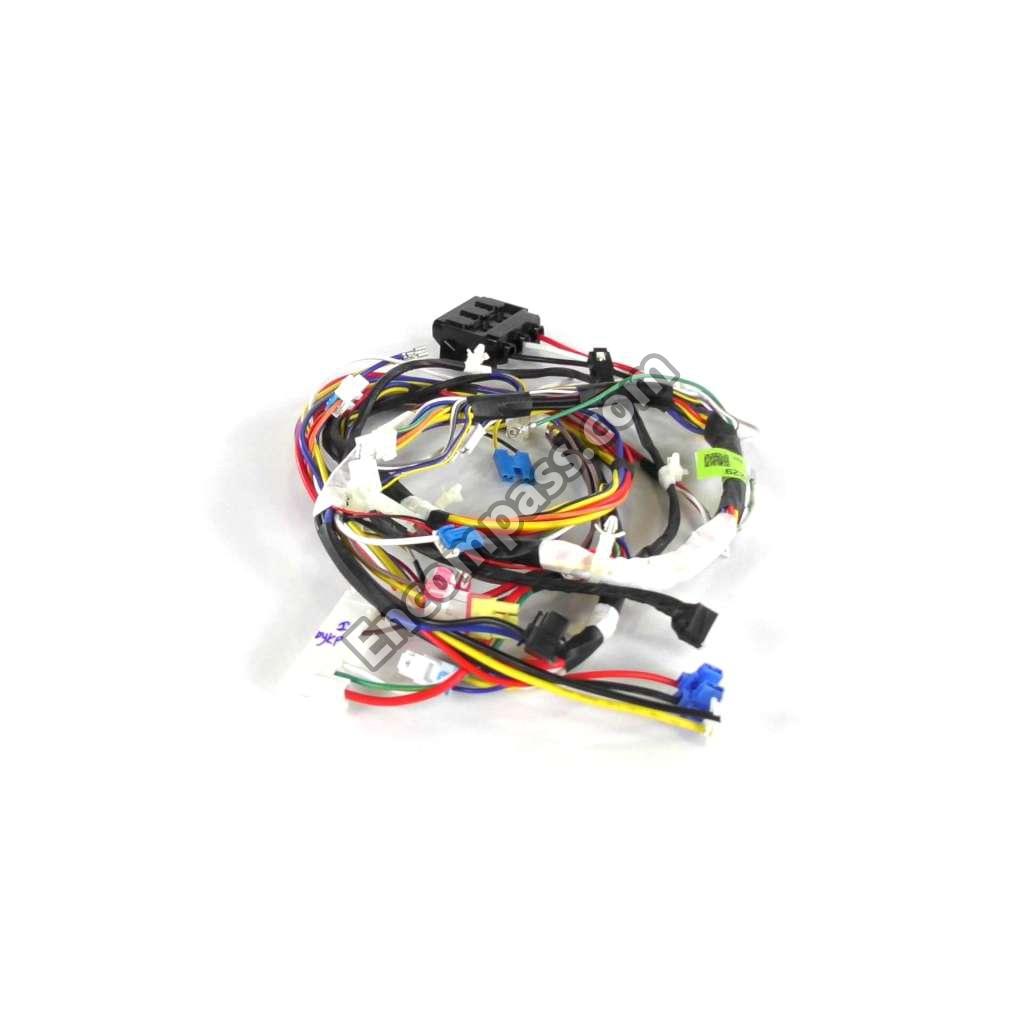

EAD39301914 EAD39301914 HARNESS,MULTI
EAD60946229 EAD60946229 HARNESS,MULTI
5301EL1001H 5301EL1001H HEATER ASSEMBLY

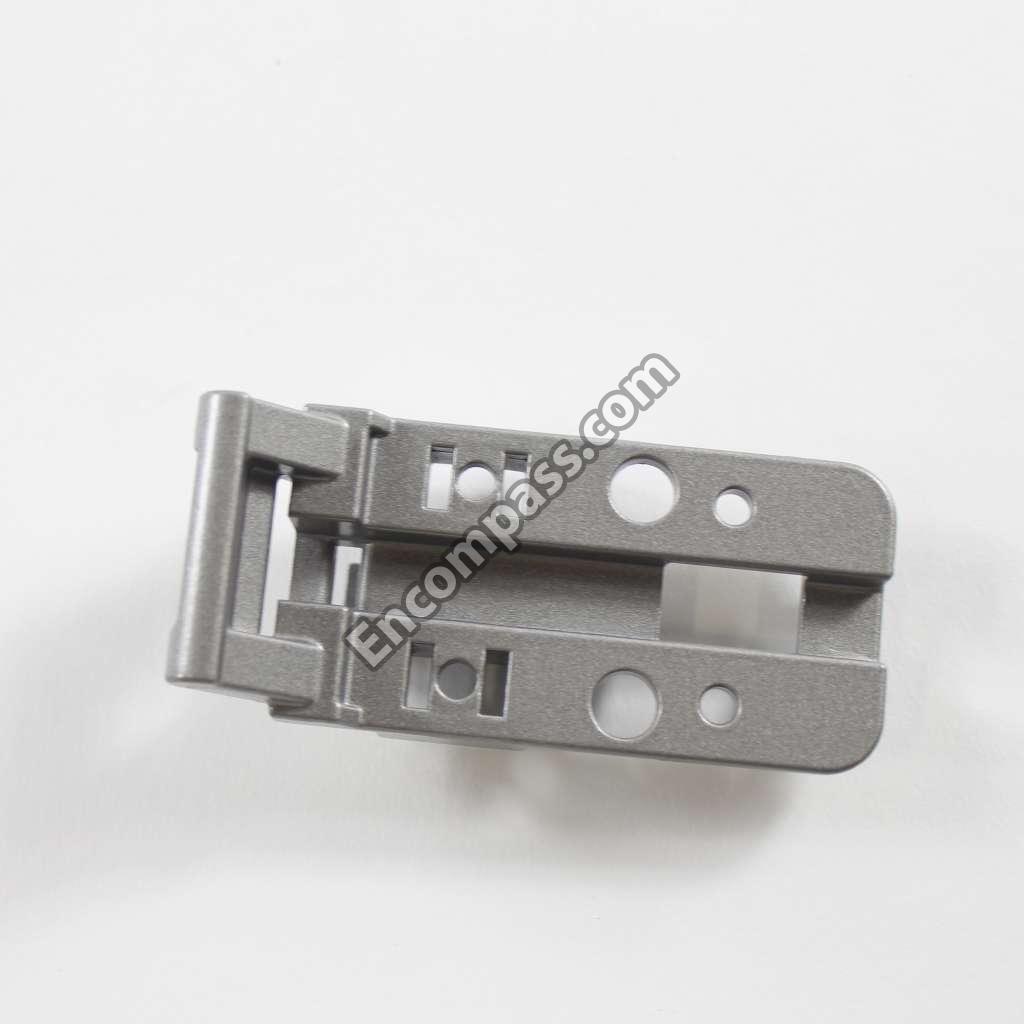

MEF62782001 MEF62782001 HINGE
MEF62782201 MEF62782201 HINGE
MEF62781901 MEF62781901 HINGE
MEF62782101 MEF62782101 HINGE
AEH74256601 AEH74256601 HINGE ASSEMBLY
4930ER4003A 4930ER4003A HOLDER
4930ER4002A 4930ER4002A HOLDER
4930EL3004A 4930EL3004A HOLDER
4930ER4003B 4930ER4003B HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY

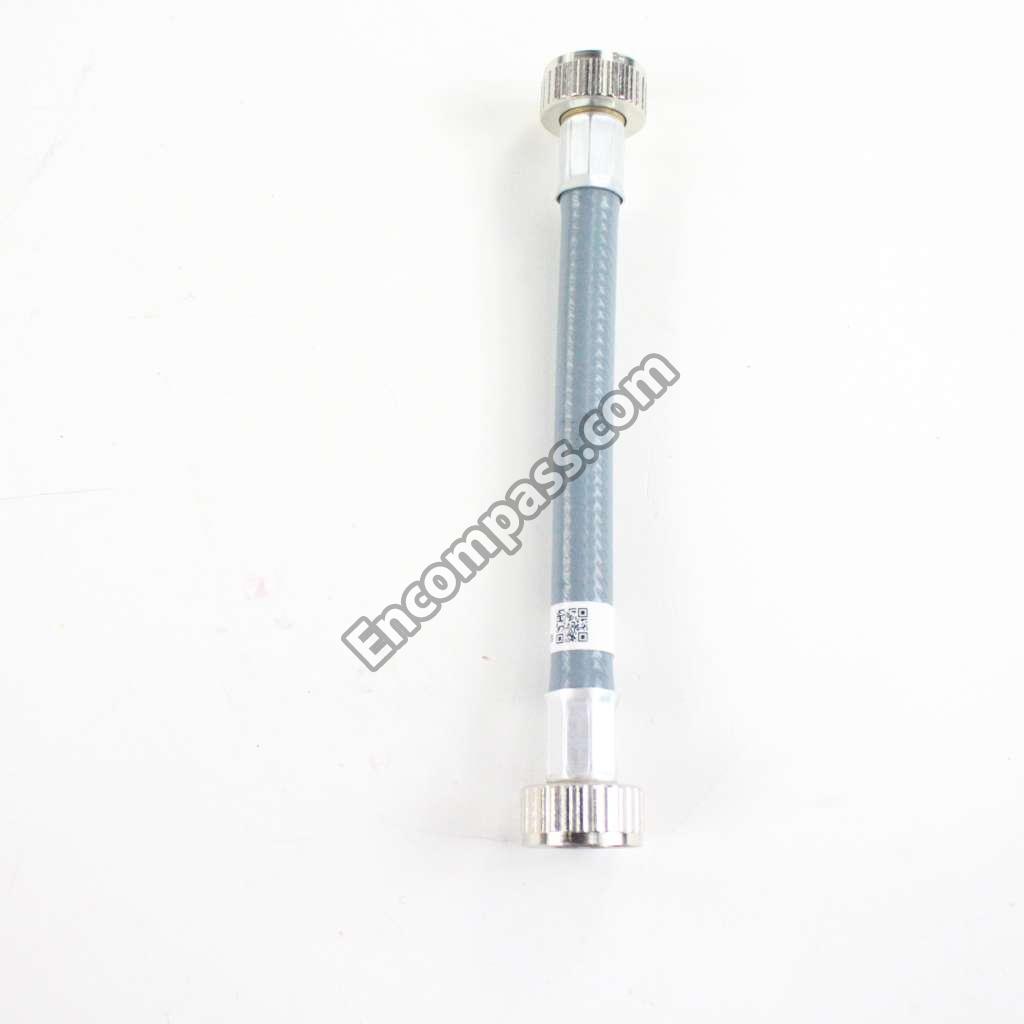

MEJ64525001 MEJ64525001 HOSE,INLET
5215FD3715V 5215FD3715V HOSE,INLET
5215FD3715W 5215FD3715W HOSE,INLET
MEJ62404702 MEJ62404702 HOSE,INLET
AGM30061302 AGM30061302 HOUSING,BLOWER
AEZ73913401 AEZ73913401 KNOB ASSEMBLY
EAQ61400801 EAQ61400801 LAMP,LED
4778EL3001B 4778EL3001B LEG
4432EL1002A 4432EL1002A LIFTER
4027EL1001C 4027EL1001C LOCKER ASSEMBLY
MFG63878901 MFG63878901 LOCKER,BODY
MFG63098601 MFG63098601 LOCKER,HANDLE
MFG63098701 MFG63098701 LOCKER,HOOK
4026EL3007C 4026EL3007C LOCKER,HOOK
4681EL1008A 4681EL1008A MOTOR,UNCLASSIFIED
AGL75452945 AGL75452945 PANEL ASSEMBLY,FRONT
MGC64406328 MGC64406328 PANEL,REAR
MGC64406318 MGC64406318 PANEL,REAR
383EEL9001G 383EEL9001G PARTS ASSEMBLY
383EEL9001H 383EEL9001H PARTS ASSEMBLY
383EEL9001C 383EEL9001C PARTS ASSEMBLY

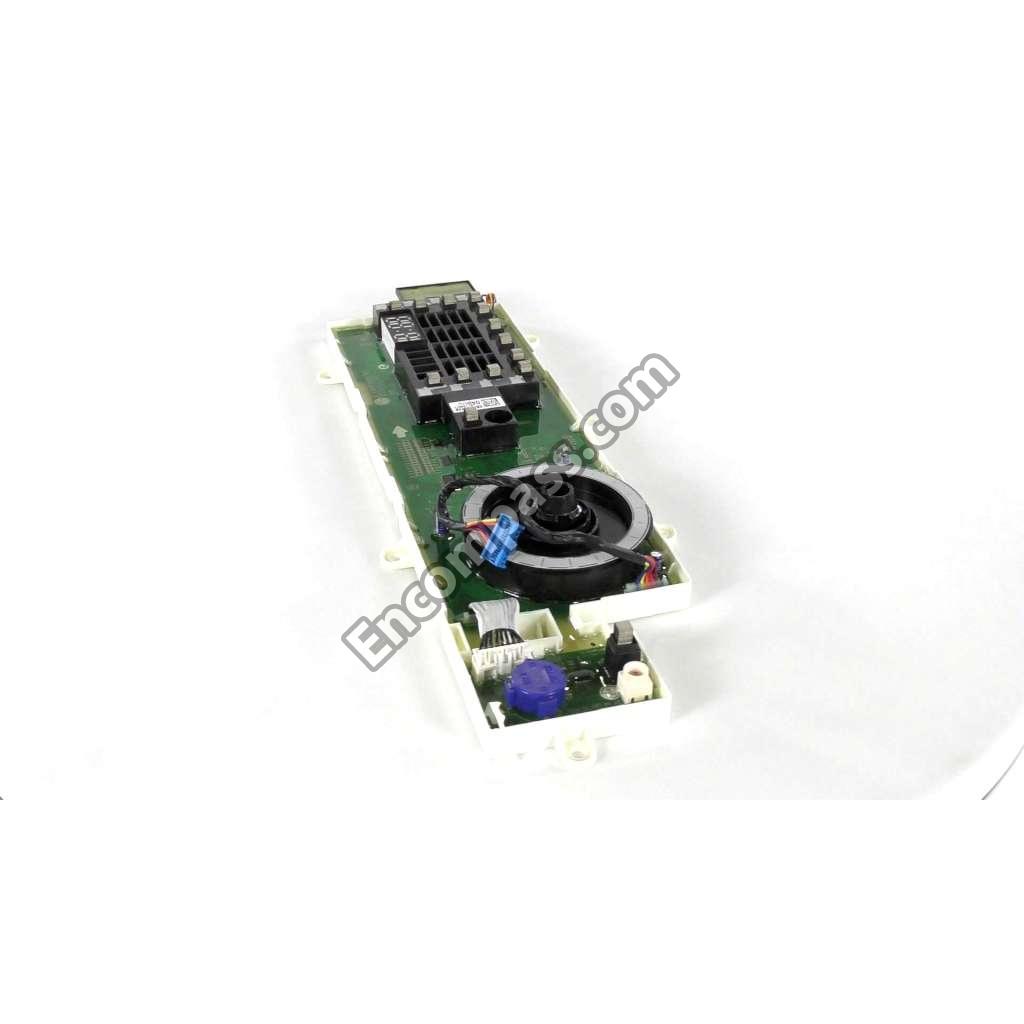

EBR79674804 EBR79674804 PCB ASSEMBLY,DISPLAY

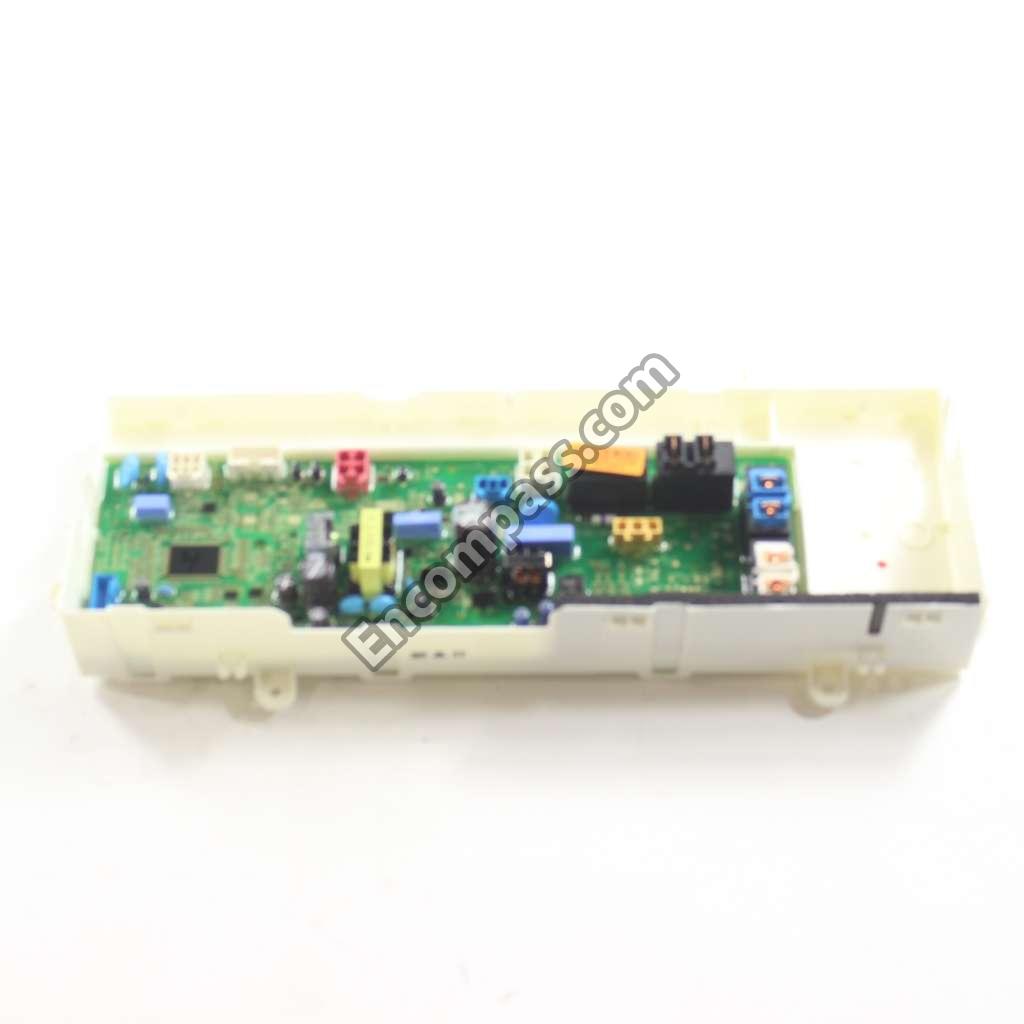

EBR80198607 EBR80198607 PCB ASSEMBLY,MAIN
AGU72925521 AGU72925521 PLATE ASSEMBLY,TOP
3300ER4003A 3300ER4003A PLATE, LOWER
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
3750EL0001C 3750EL0001C RACK
4581EL3001M 4581EL3001M ROLLER ASSEMBLY
4581EL2002L 4581EL2002L ROLLER ASSEMBLY
4000FD4191A 4000FD4191A SCREW
1SZZEL4001B 1SZZEL4001B SCREW,CUSTOMIZED
FAB32258901 FAB32258901 SCREW,CUSTOMIZED
1SZZEL2001A 1SZZEL2001A SCREW,CUSTOMIZED
1SZZEL3001A 1SZZEL3001A SCREW,DRAWING
FAB32139906 FAB32139906 SCREW,TAPPING
1TPL0303218 1TPL0303218 SCREW,TAPPING
1FTF0503507 1FTF0503507 SCREW,TAPTITE
4036EL3001A 4036EL3001A SEAL
6500EL3001A 6500EL3001A SENSOR,HUMIDITY
3911EZ9131X 3911EZ9131X SIDE VENTING KIT
MHY63244303 MHY63244303 SPRING,COIL
MHY63244302 MHY63244302 SPRING,COIL
MHY63244301 MHY63244301 SPRING,COIL
4970EL4002C 4970EL4002C SPRING,DISTORTION
MJH63096801 MJH63096801 SUPPORTER,HINGE
MJH63096901 MJH63096901 SUPPORTER,HINGE
EBF61496102 EBF61496102 SWITCH ASSEMBLY,SAFETY
EBF61734701 EBF61734701 SWITCH,MICRO
AGM30045804 AGM30045804 THERMISTOR ASSEMBLY
6931EL3002M 6931EL3002M THERMOSTAT
6931EL3003D 6931EL3003D THERMOSTAT ASSEMBLY
6931EL3001F 6931EL3001F THERMOSTAT ASSEMBLY
5215FD3715M 5215FD3715M TOP LOAD INLET HOSE (COLD)
1TTL0402418 1TTL0402418 TP SCREW+2 CUT 303,1003TMA-117
3045EL1005K 3045EL1005K TUB ASSEMBLY,DRUM
3045EL1002P 3045EL1002P TUB ASSEMBLY,DRUM
3045EL1002K 3045EL1002K TUB ASSEMBLY,DRUM
AJQ75298102 AJQ75298102 TUB ASSEMBLY,DRUM
3045EL1005D 3045EL1005D TUB ASSEMBLY,DRUM
3044EL0002N 3044EL0002N TUB,DRUM(REAR)
3044EL0002T 3044EL0002T TUB,DRUM(REAR)
3300EL4001A 3300EL4001A UPPER PLATE CLIP
