Model Image
Manufacturer

LG

Model Number

DLEX8980V

Description

9.0 Cu. Ft. Mega Capacity Smart Wi-fi Enabled Fron

Interactive Exploded View

Parts List

Part Number Description
AAA75232312 AAA75232312 ACCESSORYASSEMBLY
4400EL2001D 4400EL2001D BELT,POLYV
4810EL3009D 4810EL3009D BRACKET,BASE
4810EL3009A 4810EL3009A BRACKET,BASE
4810EL3001A 4810EL3001A BRACKET,BASE
MAZ64606103 MAZ64606103 BRACKET,FRAME
MAZ64606102 MAZ64606102 BRACKET,FRAME
4810EL1007A 4810EL1007A BRACKET,HEATER
MAZ63253203 MAZ63253203 BRACKET,HINGE
MAZ63224601 MAZ63224601 BRACKET,MOTOR
4810EL3008A 4810EL3008A BRACKET,TUB
ABJ73568815 ABJ73568815 CABINETASSEMBLY
5835EL1002A 5835EL1002A CASINGASSEMBLY
4860EL3001A 4860EL3001A CLAMP
MCD63206801 MCD63206801 CONNECTOR,NOZZLE
MCK66826301 MCK66826301 COVER,FILTER
MCK62423301 MCK62423301 COVER,SAFETY
3550EL3002A 3550EL3002A COVER,SAFETY
ACQ85638402 ACQ85638402 COVERASSEMBLY,CABINET
MCR65109903 MCR65109903 DECOR,GUARD
ADC73669602 ADC73669602 DOORASSEMBLY
5209EL1006F 5209EL1006F DUCTASSEMBLY
ADJ73372401 ADJ73372401 DUCTASSEMBLY
ADJ73392901 ADJ73392901 DUCTASSEMBLY
383EEL9001H 383EEL9001H FASTENERS,PARTSASSEMBLY,SVC
ADQ73373201 ADQ73373201 FILTERASSEMBLY,LINT
MDQ62936402 MDQ62936402 FRAME,DOOR(INNER)
MDQ62936401 MDQ62936401 FRAME,DOOR(INNER)
MDQ62936301 MDQ62936301 FRAME,DOOR(OUTER)
MDQ62976507 MDQ62976507 FRAME,PANEL
4036EL3001B 4036EL3001B GASKET

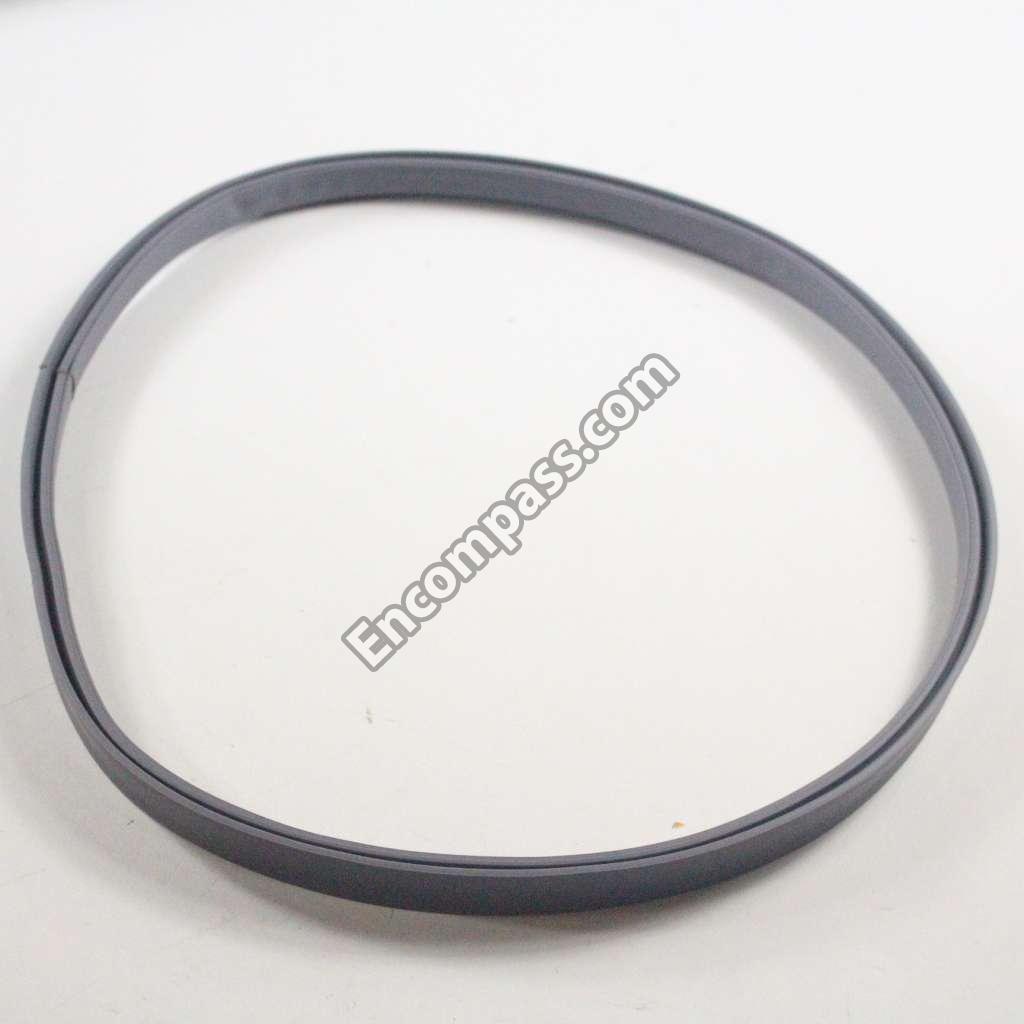

MDS62050802 MDS62050802 GASKET
ADZ73410102 ADZ73410102 GENERATORASSEMBLY
ADZ73410101 ADZ73410101 GENERATORASSEMBLY
MEA62770801 MEA62770801 GUIDE,COVER
MEA62790801 MEA62790801 GUIDE,FILTER
4975EL3001A 4975EL3001A GUIDEASSEMBLY
EAD39301920 EAD39301920 HARNESS,MULTI
EAD39301910 EAD39301910 HARNESS,MULTI
EAD60843562 EAD60843562 HARNESS,MULTI
6631EL3003F 6631EL3003F HARNESS,SINGLE
5301EL1001S 5301EL1001S HEATER ASSEMBLY
5301EL1001H 5301EL1001H HEATERASSEMBLY

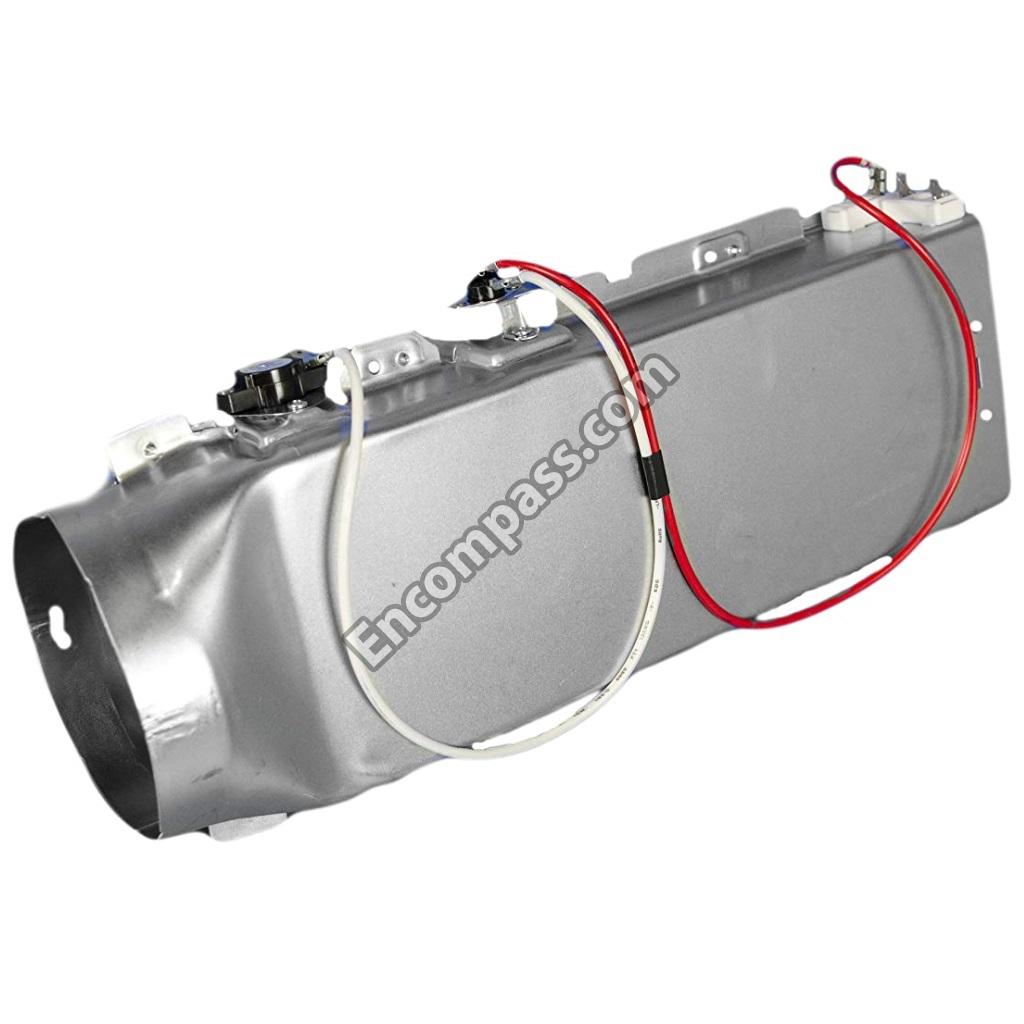

5301EL1001J 5301EL1001J HEATERASSEMBLY
MEF62382702 MEF62382702 HINGE
AEJ33026401 AEJ33026401 HOLDER
AEJ33026601 AEJ33026601 HOLDERASSEMBLY
MEJ62404702 MEJ62404702 HOSE,INLET
MEK37661708 MEK37661708 HOUSING,BLOWER
AGM30061302 AGM30061302 HOUSING,BLOWER
AEZ75996001 AEZ75996001 KNOBASSEMBLY
EAQ61400801 EAQ61400801 LAMP,LED
4778EL3001B 4778EL3001B LEG
MFE61921001 MFE61921001 LIFTER
4026EL3007B 4026EL3007B LOCKER,HOOK
383EEL9001G 383EEL9001G LOCKER,PARTSASSEMBLY,SVC
4027EL1001B 4027EL1001B LOCKERASSEMBLY
EAU30126205 EAU30126205 MOTOR ASSEMBLY,AC,DRUM
4681EL1008U 4681EL1008U MOTOR ASSEMBLY,DC,DRUM
4681EL1008J 4681EL1008J MOTORASSEMBLY,DC,DRUM
AGL30104402 AGL30104402 PANELASSEMBLY,CONTROL
383EEL9001L 383EEL9001L PARTSASSEMBLY,SVC
EBR35872601 EBR35872601 PCBASSEMBLY,DISPLAY
EBR31002615 EBR31002615 PCBASSEMBLY,MAIN
MGJ63083902 MGJ63083902 PLATE,UPPER
AGU73729916 AGU73729916 PLATEASSEMBLY,TOP
4560EL3001A 4560EL3001A PULLEY,IDLE
4561EL3002A 4561EL3002A PULLEYASSEMBLY,MOTOR
MGR62082001 MGR62082001 RACK
AGM30016974 AGM30016974 RACK,PARTS ASSEMBLY,SVC
4581EL3001M 4581EL3001M ROLLER ASSEMBLY
AGM75510754 AGM75510754 ROLLERASSEMBLY
4581EL2002L 4581EL2002L ROLLERASSEMBLY
1SZZEL3001A 1SZZEL3001A SCREW,CUSTOMIZED
1SZZEL2001A 1SZZEL2001A SCREW,CUSTOMIZED
1MTC0402632 1MTC0402632 SCREW,MACHINE
1TPL0303218 1TPL0303218 SCREW,TAPPING
FAB32139906 FAB32139906 SCREW,TAPPING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
1APF0402608 1APF0402608 SCREW,TAPTITE
4970EL4002C 4970EL4002C SPRING,DISTORTION

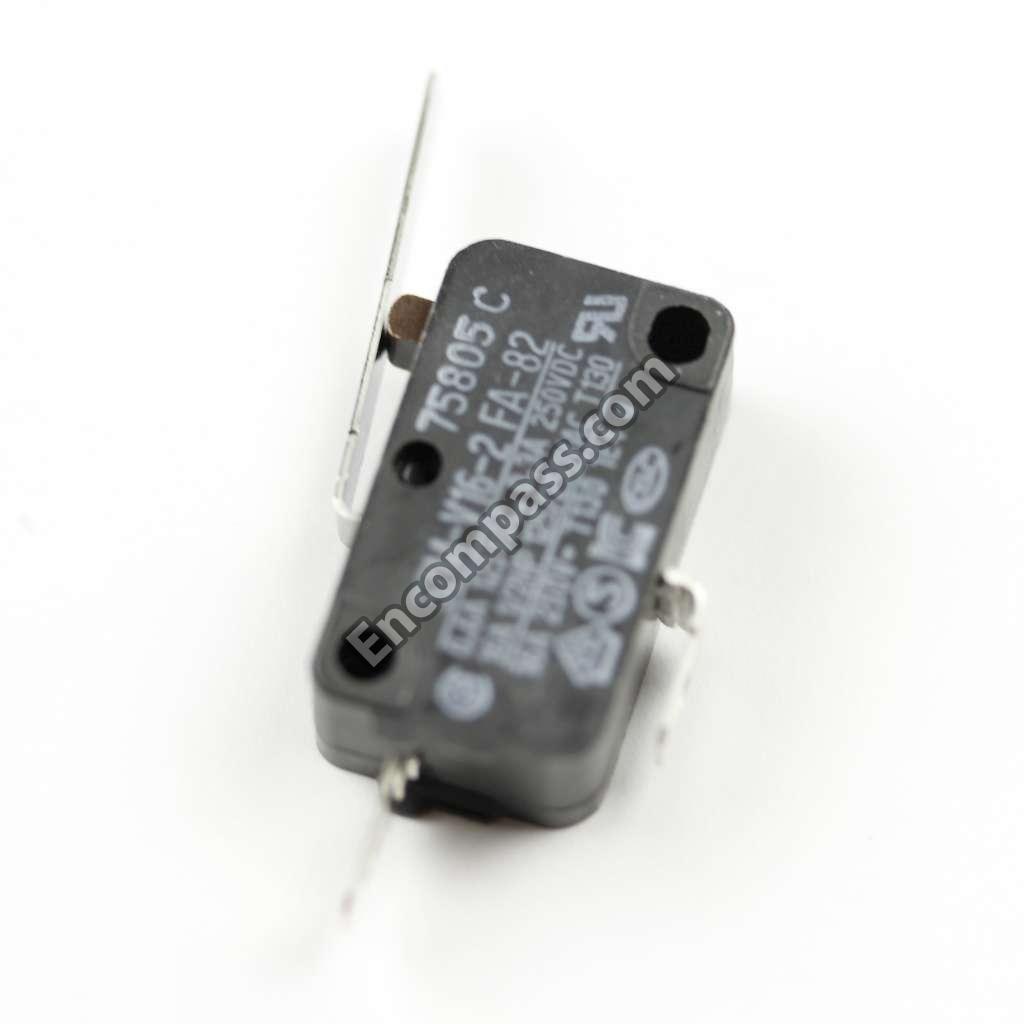

EBF61734701 EBF61734701 SWITCH,MICRO
EBF61496102 EBF61496102 SWITCHASSEMBLY,SAFETY
6323EL2001U 6323EL2001U THERMISTOR ASSEMBLY,NTC
AGM30045804 AGM30045804 THERMISTOR,NTC
6931EL3002M 6931EL3002M THERMOSTAT
6931EL3003D 6931EL3003D THERMOSTAT
383EEL9001C 383EEL9001C THERMOSTAT,PARTSASSEMBLY,SVC
6931EL3001F 6931EL3001F THERMOSTATASSEMBLY
MJT62002801 MJT62002801 TUB,DRUM(FRONT)
MJT62002905 MJT62002905 TUB,DRUM(REAR)
AJQ73274302 AJQ73274302 TUBASSEMBLY,DRUM
4W50100F 4W50100F WASHER,CUSTOMIZED
