Model Image
Manufacturer

LG

Model Number

DLEX9500K

Description

9.0 Cu. Ft. Smart Electric Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA75232311 AAA75232311 ACCESSORY ASSEMBLY
AAA75232303 AAA75232303 ACCESSORY ASSEMBLY
4400EL2001D 4400EL2001D BELT,POLY V
1SBF0402618 1SBF0402618 BINDING HD TAP TITE SCREW +
5835EL1002A 5835EL1002A BLOWER ASSEMBLY
4810EL1002A 4810EL1002A BRACKET
MEJ62505602 MEJ62505602 BRACKET,BASE
4810EL3001A 4810EL3001A BRACKET,BASE
4810EL3009A 4810EL3009A BRACKET,BASE
4810EL3009D 4810EL3009D BRACKET,BASE
MAZ64606101 MAZ64606101 BRACKET,FRAME
MAZ64606102 MAZ64606102 BRACKET,FRAME
MAZ64606103 MAZ64606103 BRACKET,FRAME
4810EL1007A 4810EL1007A BRACKET,HEATER
MAZ64644201 MAZ64644201 BRACKET,HINGE
MAZ64546301 MAZ64546301 BRACKET,HINGE
MAZ66065301 MAZ66065301 BRACKET,MOTOR
MAZ63224601 MAZ63224601 BRACKET,MOTOR
MAZ64546401 MAZ64546401 BRACKET,TOP
4810EL3008A 4810EL3008A BRACKET,TUB
MBF63564001 MBF63564001 BUSH
4830ER4002B 4830ER4002B BUSH
ABJ73568819 ABJ73568819 CABINET ASSEMBLY
MBL66138901 MBL66138901 CAP,COVER
MBL66258303 MBL66258303 CAP,HOLE
MBL66258203 MBL66258203 CAP,HOLE
4860EL3001A 4860EL3001A CLAMP
MCD63206801 MCD63206801 CONNECTOR,NOZZLE
MCD63306801 MCD63306801 CONNECTOR,PIPE
ACQ88270003 ACQ88270003 COVER ASSEMBLY,CABINET
MCK68510101 MCK68510101 COVER,DISPENSER
MCK68509901 MCK68509901 COVER,FILTER
MCK68485601 MCK68485601 COVER,GUIDE
MCK68509201 MCK68509201 COVER,GUIDE
3550EL3007D 3550EL3007D COVER,GUIDE
MCK68510001 MCK68510001 COVER,PROTECT
MCK68485301 MCK68485301 COVER,PROTECT
MCK62423301 MCK62423301 COVER,SAFETY
3550EL3002A 3550EL3002A COVER,SAFETY
4W50100F 4W50100F CUSTOMIZED
MCQ68365401 MCQ68365401 DAMPER
4W51162B 4W51162B DAMPER,LID
MCR65109903 MCR65109903 DECOR,GUARD
ADC75006603 ADC75006603 DOOR ASSEMBLY

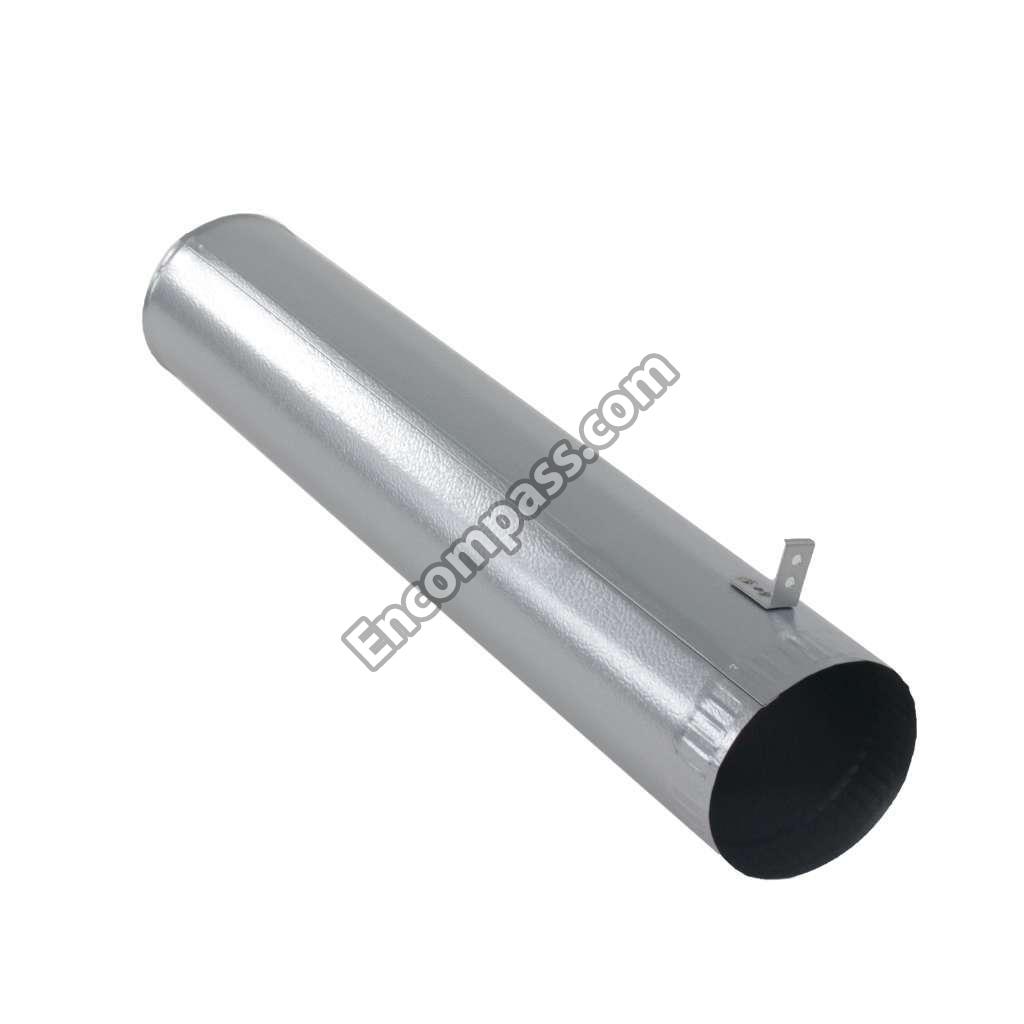

5209EL1006F 5209EL1006F DUCT ASSEMBLY
ADJ73372401 ADJ73372401 DUCT ASSEMBLY
ADJ73392901 ADJ73392901 DUCT ASSEMBLY
ADQ73373201 ADQ73373201 FILTER ASSEMBLY,LINT
ADV75546802 ADV75546802 FRAME ASSEMBLY
MDQ64156503 MDQ64156503 FRAME,BODY
MDQ64217201 MDQ64217201 FRAME,DOOR(INNER)
MDQ64217101 MDQ64217101 FRAME,DOOR(INNER)
4036EL3001B 4036EL3001B GASKET
ADZ73410101 ADZ73410101 GENERATOR ASSEMBLY
ADZ73410102 ADZ73410102 GENERATOR ASSEMBLY
4975EL3001C 4975EL3001C GUIDE ASSEMBLY

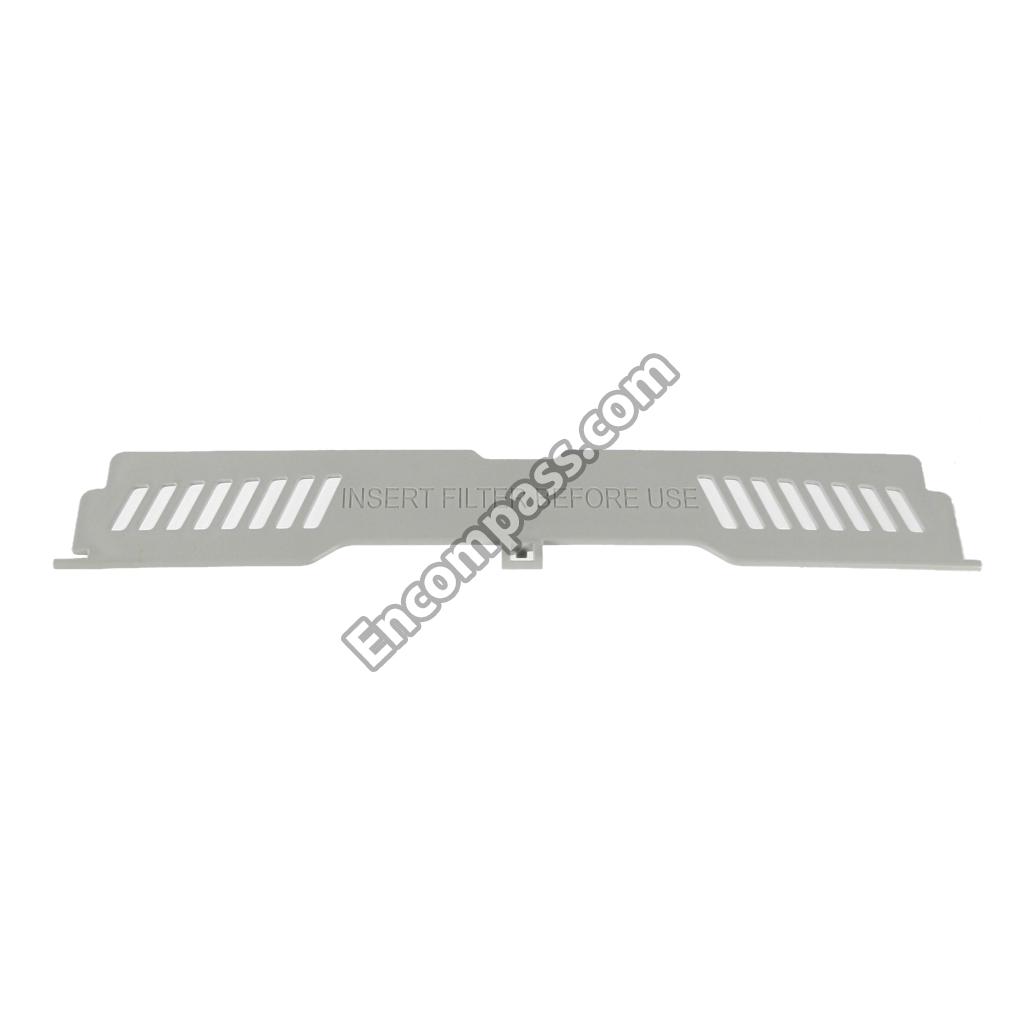

MEA63930901 MEA63930901 GUIDE,FILTER
EAD39301910 EAD39301910 HARNESS,MULTI
EAD60843532 EAD60843532 HARNESS,MULTI
EAD39301912 EAD39301912 HARNESS,MULTI
EAD39301911 EAD39301911 HARNESS,MULTI
EAD39301920 EAD39301920 HARNESS,MULTI
6631EL3003F 6631EL3003F HARNESS,SINGLE
5301EL1001H 5301EL1001H HEATER ASSEMBLY
5301EL1001J 5301EL1001J HEATER ASSEMBLY
5301EL1001S 5301EL1001S HEATER ASSEMBLY
MEF63162101 MEF63162101 HINGE
AEH74816501 AEH74816501 HINGE ASSEMBLY
4930ER3010A 4930ER3010A HOLDER
AEJ33026401 AEJ33026401 HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
MEJ62404702 MEJ62404702 HOSE,INLET
5215FD3715W 5215FD3715W HOSE,INLET
5215FD3715V 5215FD3715V HOSE,INLET
MEJ64525001 MEJ64525001 HOSE,INLET
AGM30061302 AGM30061302 HOUSING,BLOWER
MEK37661708 MEK37661708 HOUSING,BLOWER
EAQ61400801 EAQ61400801 LAMP,LED
4778EL3001B 4778EL3001B LEG

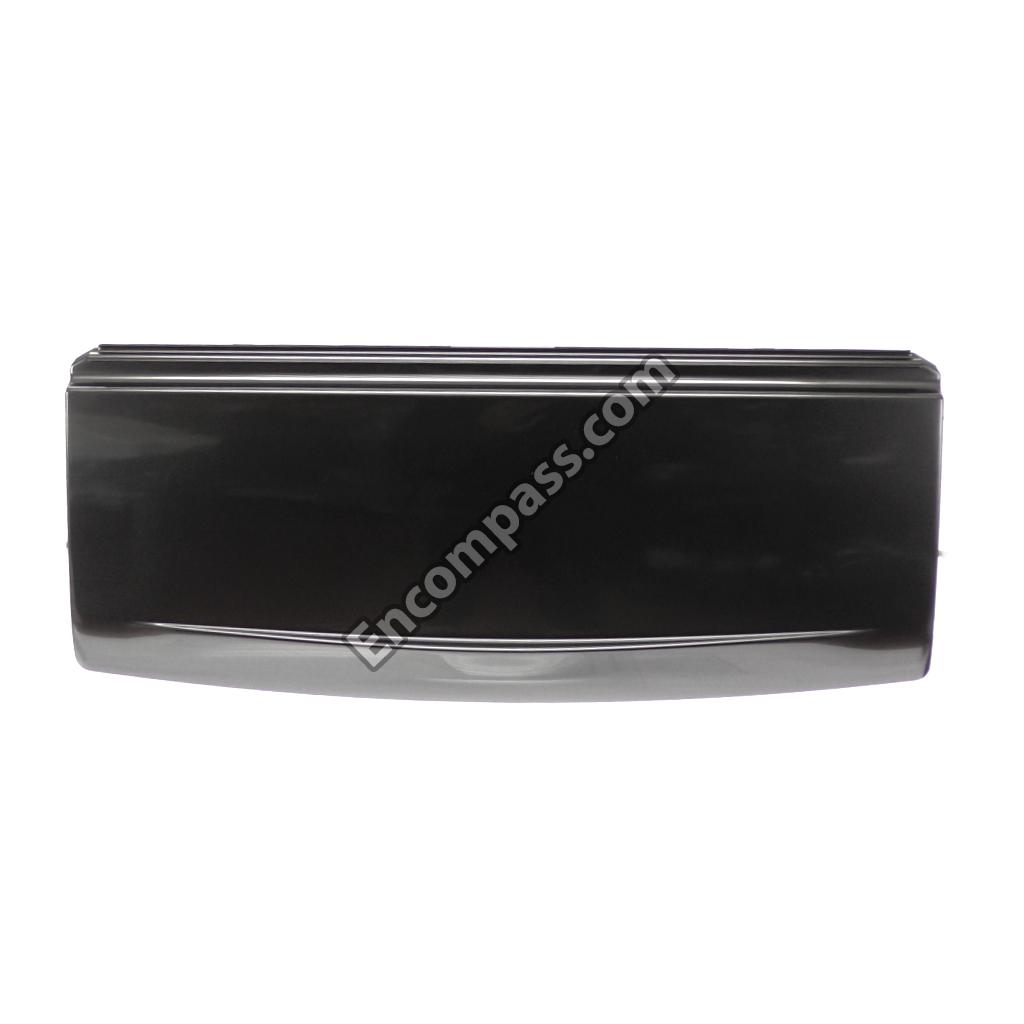

AFG73349707 AFG73349707 LID ASSEMBLY

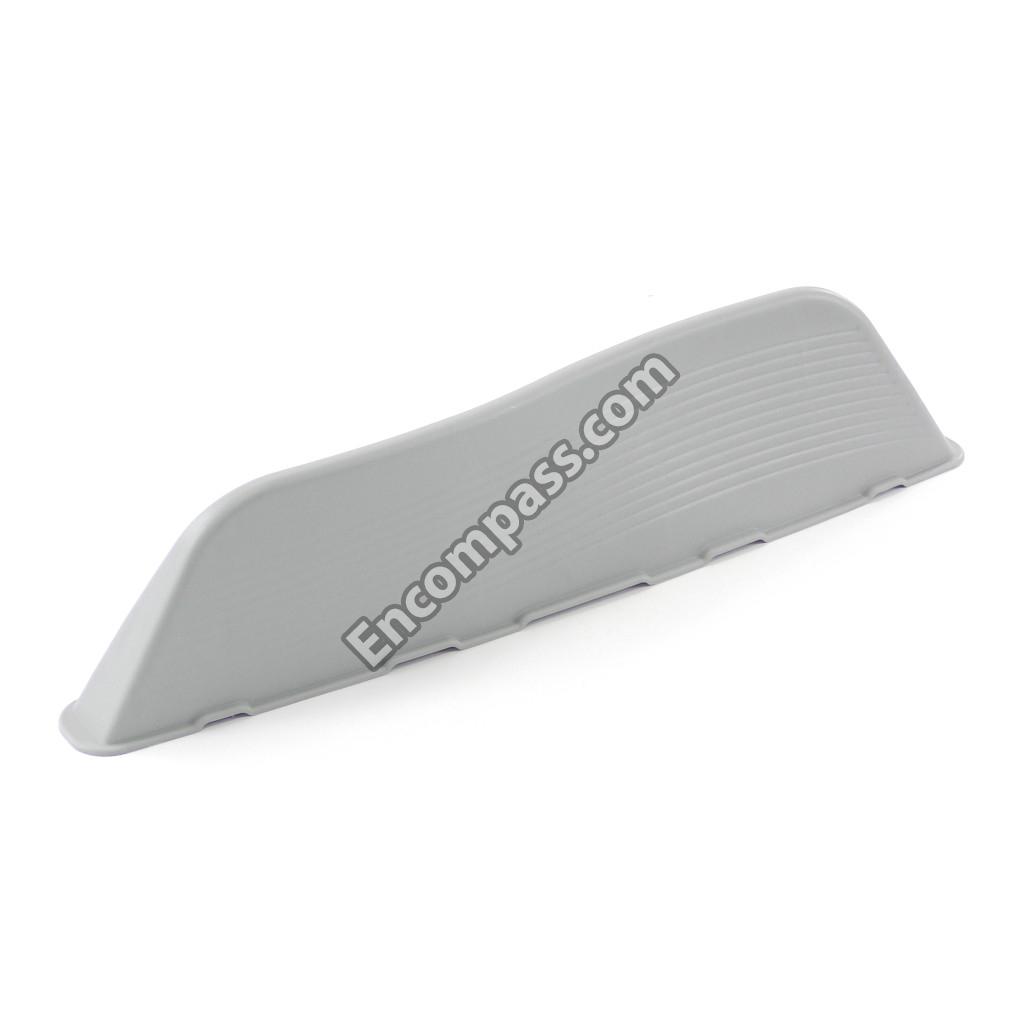

MFE61921001 MFE61921001 LIFTER
4027EL1001B 4027EL1001B LOCKER ASSEMBLY
4026EL3007B 4026EL3007B LOCKER,HOOK
AFN76213669 AFN76213669 MANUAL ASSEMBLY,OWNERS
EAU30126205 EAU30126205 MOTOR ASSEMBLY,AC,DRUM
4681EL1008G 4681EL1008G MOTOR ASSEMBLY,DC,DRUM
4681EL1008J 4681EL1008J MOTOR ASSEMBLY,DC,DRUM
383EEL9001N 383EEL9001N PARTS ASSEMBLY
383EEL9001L 383EEL9001L PARTS ASSEMBLY
383EEL9001G 383EEL9001G PARTS ASSEMBLY
383EEL9001C 383EEL9001C PARTS ASSEMBLY
383EEL9001H 383EEL9001H PARTS ASSEMBLY
EBR81219401 EBR81219401 PCB ASSEMBLY,DISPLAY
EBR80198605 EBR80198605 PCB ASSEMBLY,MAIN
AGU75308003 AGU75308003 PLATE ASSEMBLY,TOP
MGJ64365204 MGJ64365204 PLATE,TOP
MGJ63083902 MGJ63083902 PLATE,UPPER
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
4581EL2002L 4581EL2002L ROLLER ASSEMBLY
4581EL3001M 4581EL3001M ROLLER ASSEMBLY
1MTC0402632 1MTC0402632 SCREW
1SZZEL2001A 1SZZEL2001A SCREW,CUSTOMIZED
1SZZEL3001A 1SZZEL3001A SCREW,DRAWING
1TPL0303218 1TPL0303218 SCREW,TAPPING
FAB32139906 FAB32139906 SCREW,TAPPING
1APF0402608 1APF0402608 SCREW,TAPTITE
1FTF0503507 1FTF0503507 SCREW,TAPTITE
4970EL4002C 4970EL4002C SPRING,DISTORTION
MJH63714601 MJH63714601 SUPPORTER,HINGE
EBF61496102 EBF61496102 SWITCH ASSEMBLY,DOOR
EBF61734701 EBF61734701 SWITCH,MICRO
AGM30045804 AGM30045804 THERMISTOR ASSEMBLY
6323EL2001U 6323EL2001U THERMISTOR ASSEMBLY,NTC
6931EL3002M 6931EL3002M THERMOSTAT
6931EL3001F 6931EL3001F THERMOSTAT ASSEMBLY
6931EL3003D 6931EL3003D THERMOSTAT ASSEMBLY
5215FD3715M 5215FD3715M TOP LOAD INLET HOSE (COLD)
AJQ73274302 AJQ73274302 TUB ASSEMBLY,DRUM
MJT62802801 MJT62802801 TUB,DRUM(FRONT)
MJT62002905 MJT62002905 TUB,DRUM(REAR)
AJU73432602 AJU73432602 VALVE ASSEMBLY,INLET
FAF31991702 FAF31991702 WASHER,CUSTOMIZED
