Model Image
Manufacturer

LG

Model Number

DLGX3571V

Description

7.4 Cu. Ft. 12-cycle Steam Gas Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA35559316 AAA35559316 ACCESSORY ASSEMBLY
4400EL2001A 4400EL2001A BELT,POLY V
4400EL2001F 4400EL2001F BELT,POLY V
5835EL1002A 5835EL1002A BLOWER ASSEMBLY
4810EL1002A 4810EL1002A BRACKET
4810EL3009D 4810EL3009D BRACKET,BASE
4810EL3009A 4810EL3009A BRACKET,BASE
4810EL3002A 4810EL3002A BRACKET,BASE
4810EL3001B 4810EL3001B BRACKET,BASE
4810EL3009C 4810EL3009C BRACKET,BASE
MEJ62505602 MEJ62505602 BRACKET,BASE
MAZ47156202 MAZ47156202 BRACKET,HINGE
MAZ47156203 MAZ47156203 BRACKET,HINGE
MAZ66065301 MAZ66065301 BRACKET,MOTOR
ABJ34559252 ABJ34559252 CABINET ASSEMBLY
4860EL3001A 4860EL3001A CLAMP
4861FR3068A 4861FR3068A CLAMP
4932EL4001A 4932EL4001A CONNECTOR (MECH),PIPE
6631EL3003B 6631EL3003B CONNECTOR ASSEMBLY
ACQ72301001 ACQ72301001 COVER ASSEMBLY,CABINET
MCK66787901 MCK66787901 COVER,FILTER
MCK49049101 MCK49049101 COVER,GUIDE
MCK38392501 MCK38392501 COVER,GUIDE
3550EL2001A 3550EL2001A COVER,LAMP
MCK62423301 MCK62423301 COVER,SAFETY
4W50100F 4W50100F CUSTOMIZED
MCQ62786001 MCQ62786001 DAMPER
MCQ38393001 MCQ38393001 DAMPER,DAMPING

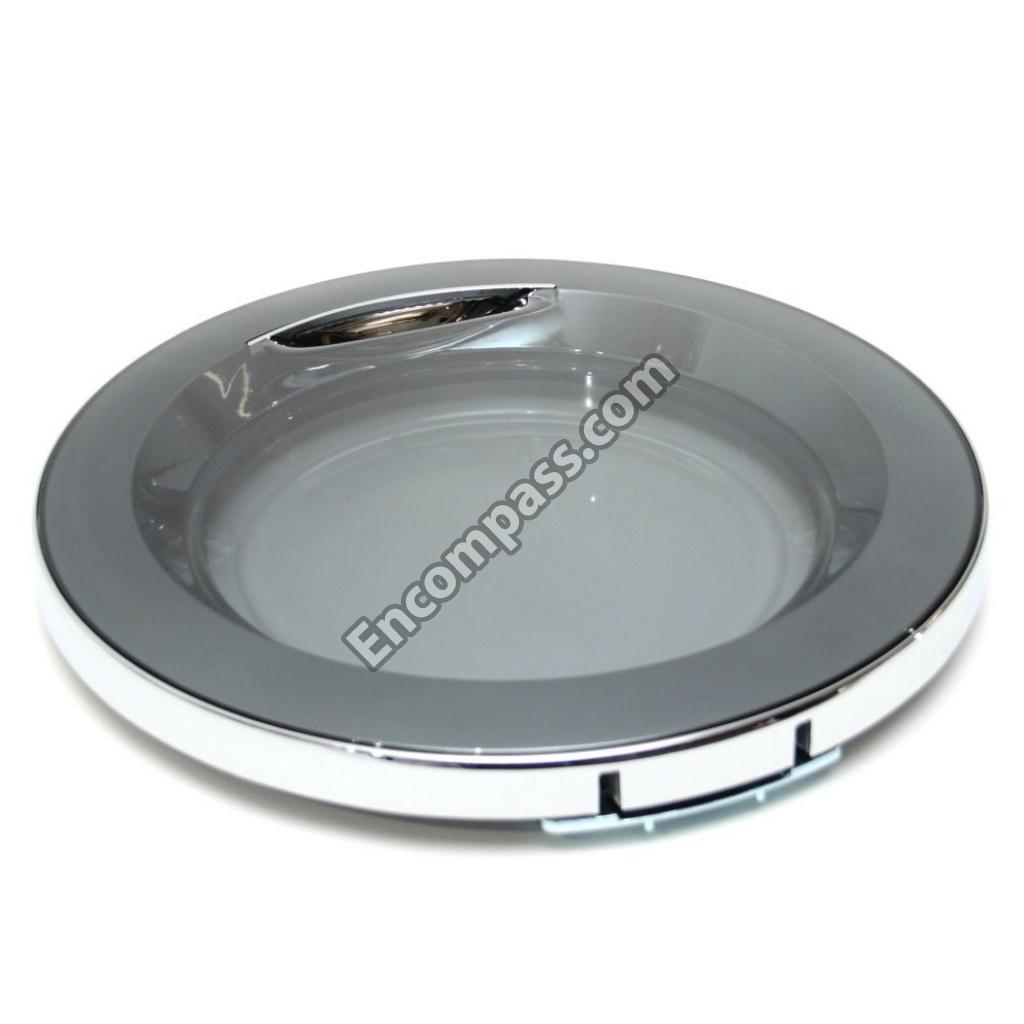

ADC73025601 ADC73025601 DOOR ASSEMBLY
5209EL1001R 5209EL1001R DUCT ASSEMBLY
5209EL1001L 5209EL1001L DUCT ASSEMBLY
5209EL1006A 5209EL1006A DUCT ASSEMBLY
5209EL1002C 5209EL1002C DUCT ASSEMBLY
5209EL1001E 5209EL1001E DUCT ASSEMBLY
ADQ56656403 ADQ56656403 FILTER ASSEMBLY,LINT
ADQ56656401 ADQ56656401 FILTER ASSEMBLY,LINT
ADV33609805 ADV33609805 FRAME ASSEMBLY
MDQ38393702 MDQ38393702 FRAME,BODY
MDQ58083301 MDQ58083301 FRAME,DOOR(INNER)

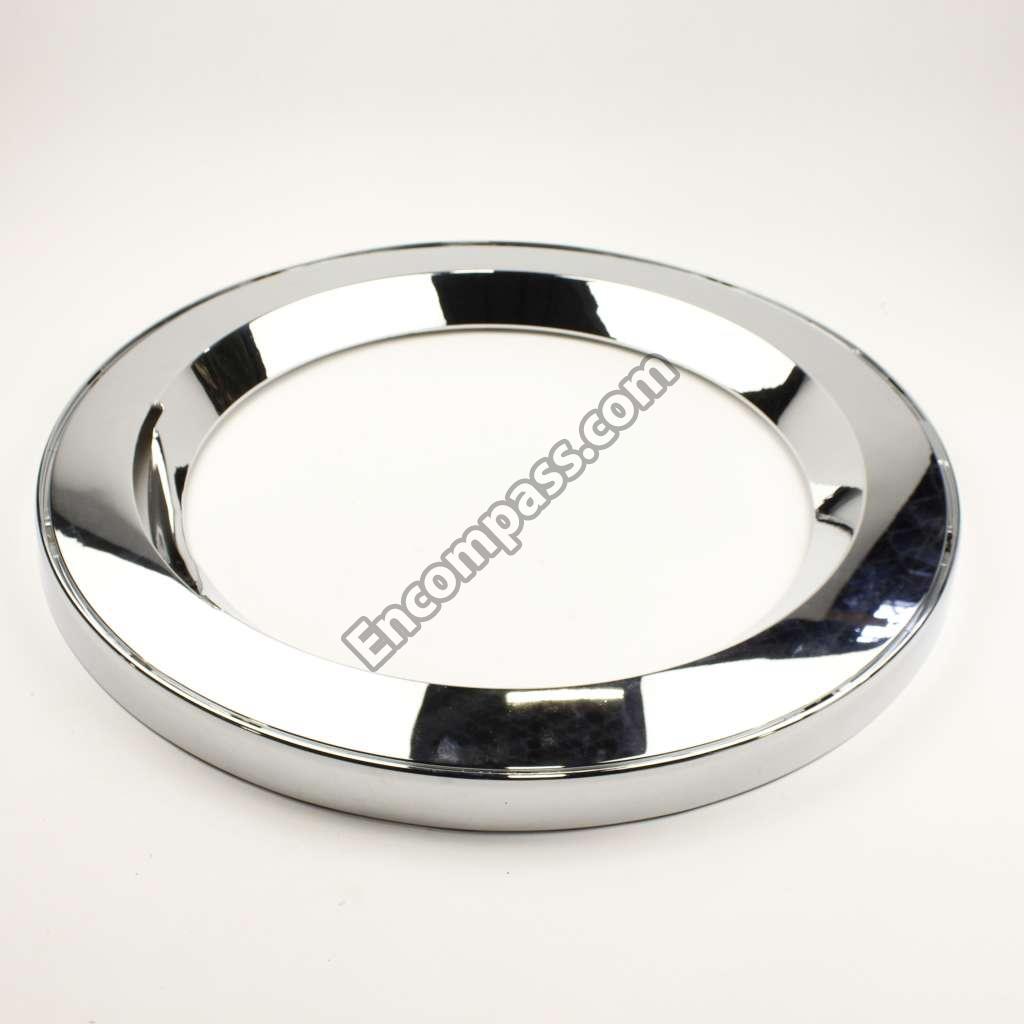

MDQ61997201 MDQ61997201 FRAME,DOOR(OUTER)
3017EL1001A 3017EL1001A FUNNEL
383EEL9001W 383EEL9001W GASKET,PARTS ASSEMBLY,SVC
3111ER1002R 3111ER1002R GENERATOR ASSEMBLY
4975EL3001A 4975EL3001A GUIDE ASSEMBLY
AEC36177502 AEC36177502 GUIDE ASSEMBLY
4974EL1001A 4974EL1001A GUIDE,BURNER
MEA38595802 MEA38595802 GUIDE,DRAWER
MEA49050001 MEA49050001 GUIDE,FILTER
EAD60870406 EAD60870406 HARNESS,MULTI
EAD39301901 EAD39301901 HARNESS,MULTI
4774EL2001A 4774EL2001A HINGE
AEJ33026401 AEJ33026401 HOLDER
4930EL2004D 4930EL2004D HOLDER
6913EL3002E 6913EL3002E HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
MEJ38393301 MEJ38393301 HOSE
MEJ38393101 MEJ38393101 HOSE,PUMP
MEJ38393201 MEJ38393201 HOSE,PUMP
AGM30061302 AGM30061302 HOUSING,BLOWER
5318EL3001A 5318EL3001A IGNITER
4941ER3005D 4941ER3005D KNOB ASSEMBLY
6913EL3002K 6913EL3002K LAMP,INCANDESCENT
6913EL3001E 6913EL3001E LAMP,INCANDESCENT
4027EL1001A 4027EL1001A LATCH ASSEMBLY
4026EL3007A 4026EL3007A LATCH,HOOK
4778EL3001B 4778EL3001B LEG
4432EL1002A 4432EL1002A LIFTER
4026EL3007B 4026EL3007B LOCKER,HOOK
AFN78572602 AFN78572602 MANUAL ASSEMBLY,OWNERS
EAU30126201 EAU30126201 MOTOR ASSEMBLY,AC,DRUM
EAU37148701 EAU37148701 MOTOR ASSEMBLY,DC,PUMP
4681EL1008A 4681EL1008A MOTOR,UNCLASSIFIED
AGB34327803 AGB34327803 NOZZLE ASSEMBLY,STEAM
4948EL4001B 4948EL4001B ORIFICE-NATURAL GAS

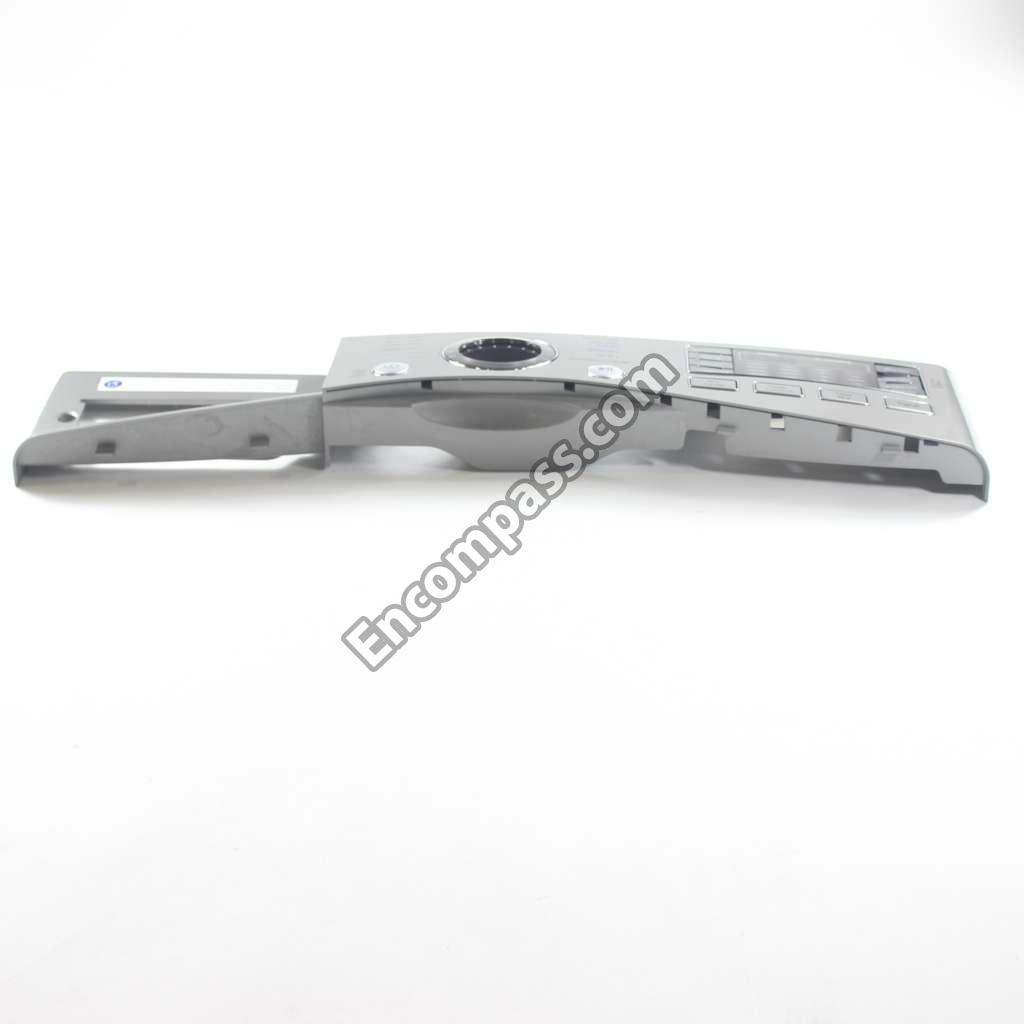

AGL73754025 AGL73754025 PANEL ASSEMBLY,CONTROL
AGL73852507 AGL73852507 PANEL ASSEMBLY,DRAWER
AGL73852522 AGL73852522 PANEL ASSEMBLY,DRAWER
383EEL9001G 383EEL9001G PARTS ASSEMBLY
383EEL9001D 383EEL9001D PARTS ASSEMBLY
MDS47263101 MDS47263101 PARTS ASSEMBLY
383EEL3002R 383EEL3002R PARTS ASSEMBLY
EBR78914116 EBR78914116 PCB ASSEMBLY,DISPLAY

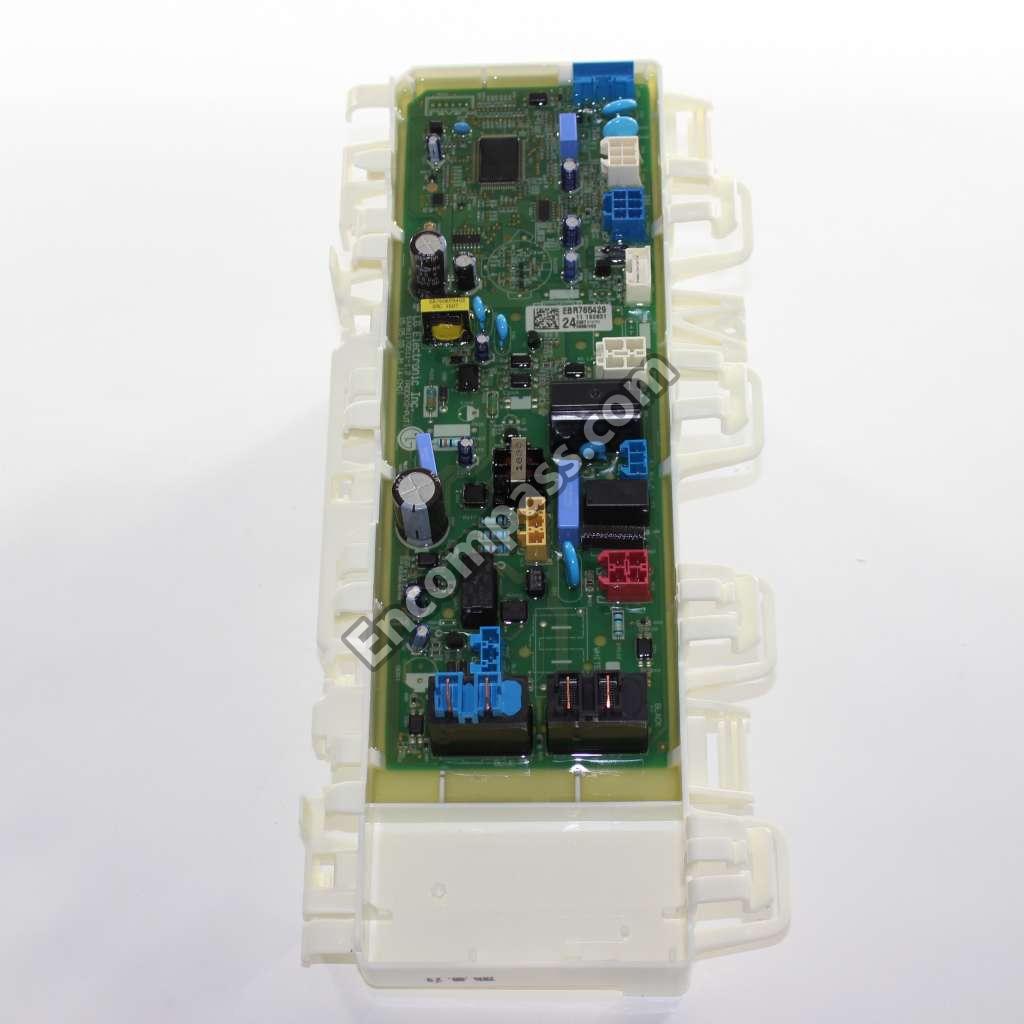

EBR76542924 EBR76542924 PCB ASSEMBLY,MAIN
5201EL2001A 5201EL2001A PIPE ASSEMBLY
5201EL3001A 5201EL3001A PIPE ASSEMBLY
AGU73708774 AGU73708774 PLATE ASSEMBLY,TOP
AGU30071289 AGU30071289 PLATE ASSEMBLY,TOP
3300EL2001D 3300EL2001D PLATE,UPPER
6411ER1005B 6411ER1005B POWER CORD ASSEMBLY
AGM34418433 AGM34418433 POWER CORD ASSEMBLY
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
3750EL1001A 3750EL1001A RACK
4581EL3001M 4581EL3001M ROLLER ASSEMBLY
4581EL2002L 4581EL2002L ROLLER ASSEMBLY
1MTC0402632 1MTC0402632 SCREW
1SZZEL3001A 1SZZEL3001A SCREW,DRAWING
FAB32139906 FAB32139906 SCREW,TAPPING
1TPL0303218 1TPL0303218 SCREW,TAPPING
1FTF0503507 1FTF0503507 SCREW,TAPTITE
1APF0402608 1APF0402608 SCREW,TAPTITE
4036EL3002A 4036EL3002A SEAL
4036EL3001A 4036EL3001A SEAL
6500EL3001A 6500EL3001A SENSOR
6501EL3001A 6501EL3001A SENSOR ASSEMBLY
3911EZ9131X 3911EZ9131X SIDE VENTING KIT
4970EL4002C 4970EL4002C SPRING,DISTORTION
4980EL3001A 4980EL3001A SUPPORTER,HOLDER
EBF61496102 EBF61496102 SWITCH ASSEMBLY,DOOR
EBF61734701 EBF61734701 SWITCH,MICRO
AJL34327901 AJL34327901 TANK ASSEMBLY,WATER
AGM30045804 AGM30045804 THERMISTOR ASSEMBLY
6931EL3002M 6931EL3002M THERMOSTAT
3045EL1002K 3045EL1002K TUB ASSEMBLY,DRUM
AJQ73594004 AJQ73594004 TUB ASSEMBLY,DRUM
3044EL0002G 3044EL0002G TUB,DRUM(REAR)
3044EL0002T 3044EL0002T TUB,DRUM(REAR)
5221EL2002A 5221EL2002A VALVE ASSEMBLY,GAS
