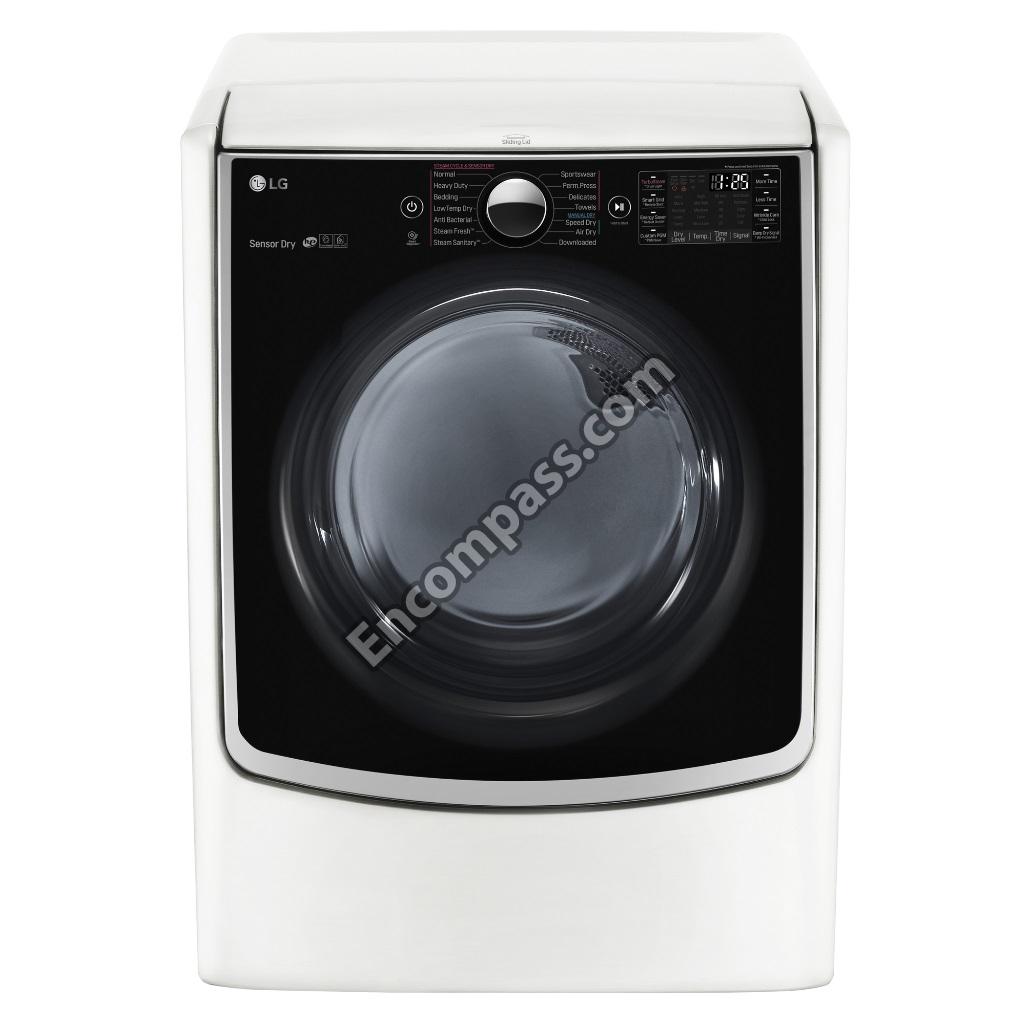

Model Image
Manufacturer

LG

Model Number

DLGX5001W

Description

27-inch 7.4 Cu. Ft. Gas Dryer With 14 Dry Cycles

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA75232311 AAA75232311 ACCESSORY ASSEMBLY
4400EL2001A 4400EL2001A BELT,POLY V
4400EL2001F 4400EL2001F BELT,POLY-V
1SBF0402618 1SBF0402618 BINDING HD TAP TITE SCREW +
5835EL1002A 5835EL1002A BLOWER ASSEMBLY

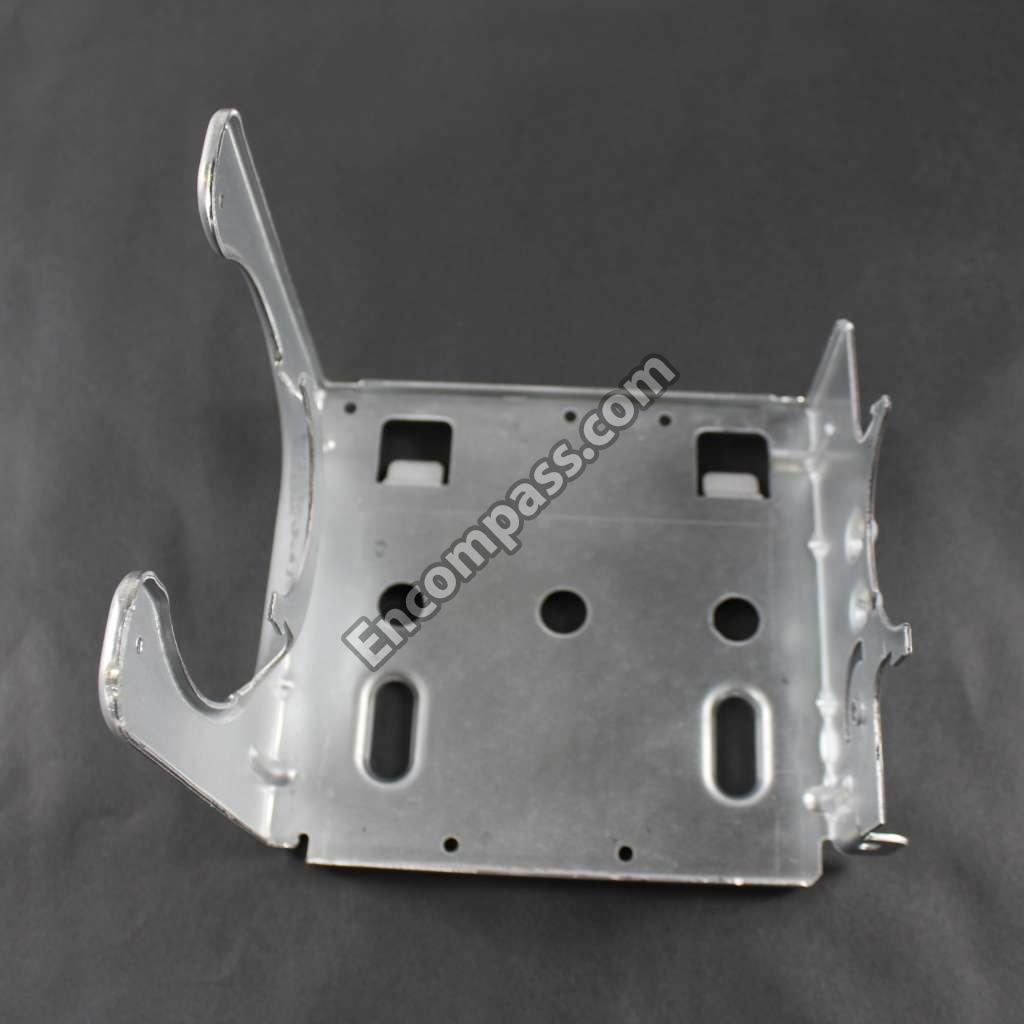

4810EL1002A 4810EL1002A BRACKET
4810EL3009D 4810EL3009D BRACKET,BASE
4810EL3002A 4810EL3002A BRACKET,BASE
MEJ62505602 MEJ62505602 BRACKET,BASE
4810EL3001B 4810EL3001B BRACKET,BASE
4810EL3009A 4810EL3009A BRACKET,BASE
MAZ64606101 MAZ64606101 BRACKET,FRAME
MAZ64644201 MAZ64644201 BRACKET,HINGE
MAZ64546301 MAZ64546301 BRACKET,HINGE
MAZ66065301 MAZ66065301 BRACKET,MOTOR
MAZ64546401 MAZ64546401 BRACKET,TOP
MBF63564001 MBF63564001 BUSH
4830ER4002B 4830ER4002B BUSH
ABJ34559299 ABJ34559299 CABINET ASSEMBLY
MBL66138901 MBL66138901 CAP,COVER
MBL66258201 MBL66258201 CAP,HOLE
MBL66258301 MBL66258301 CAP,HOLE
4860EL3001A 4860EL3001A CLAMP
4932EL4001A 4932EL4001A CONNECTOR (MECH),PIPE
MCD63206801 MCD63206801 CONNECTOR,NOZZLE
MCD63306801 MCD63306801 CONNECTOR,PIPE
ACQ87916101 ACQ87916101 COVER ASSEMBLY,CABINET
MCK68510101 MCK68510101 COVER,DISPENSER
MCK68509901 MCK68509901 COVER,FILTER
MCK68509201 MCK68509201 COVER,GUIDE
MCK68485601 MCK68485601 COVER,GUIDE
MCK68485301 MCK68485301 COVER,PROTECT
MCK68510001 MCK68510001 COVER,PROTECT

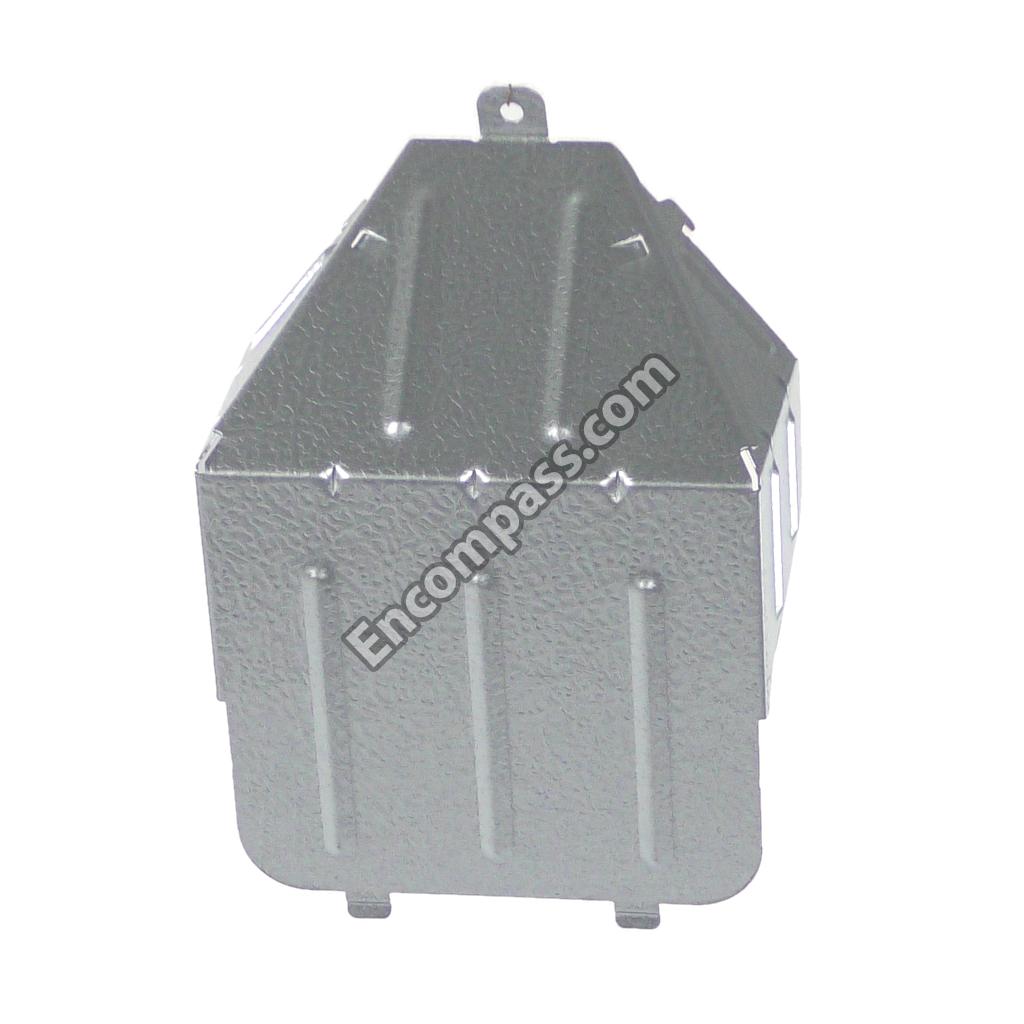

MCK62423301 MCK62423301 COVER,SAFETY
4W50100F 4W50100F CUSTOMIZED
MCQ62786001 MCQ62786001 DAMPER
MCQ67072026 MCQ67072026 DAMPER
4W51162B 4W51162B DAMPER,LID
MCR65109903 MCR65109903 DECOR,GUARD
MCR65687601 MCR65687601 DECOR,GUARD
ADC75446404 ADC75446404 DOOR ASSEMBLY
5209EL1001R 5209EL1001R DUCT ASSEMBLY
ADJ73372401 ADJ73372401 DUCT ASSEMBLY
5209EL1001E 5209EL1001E DUCT ASSEMBLY
5209EL1006A 5209EL1006A DUCT ASSEMBLY

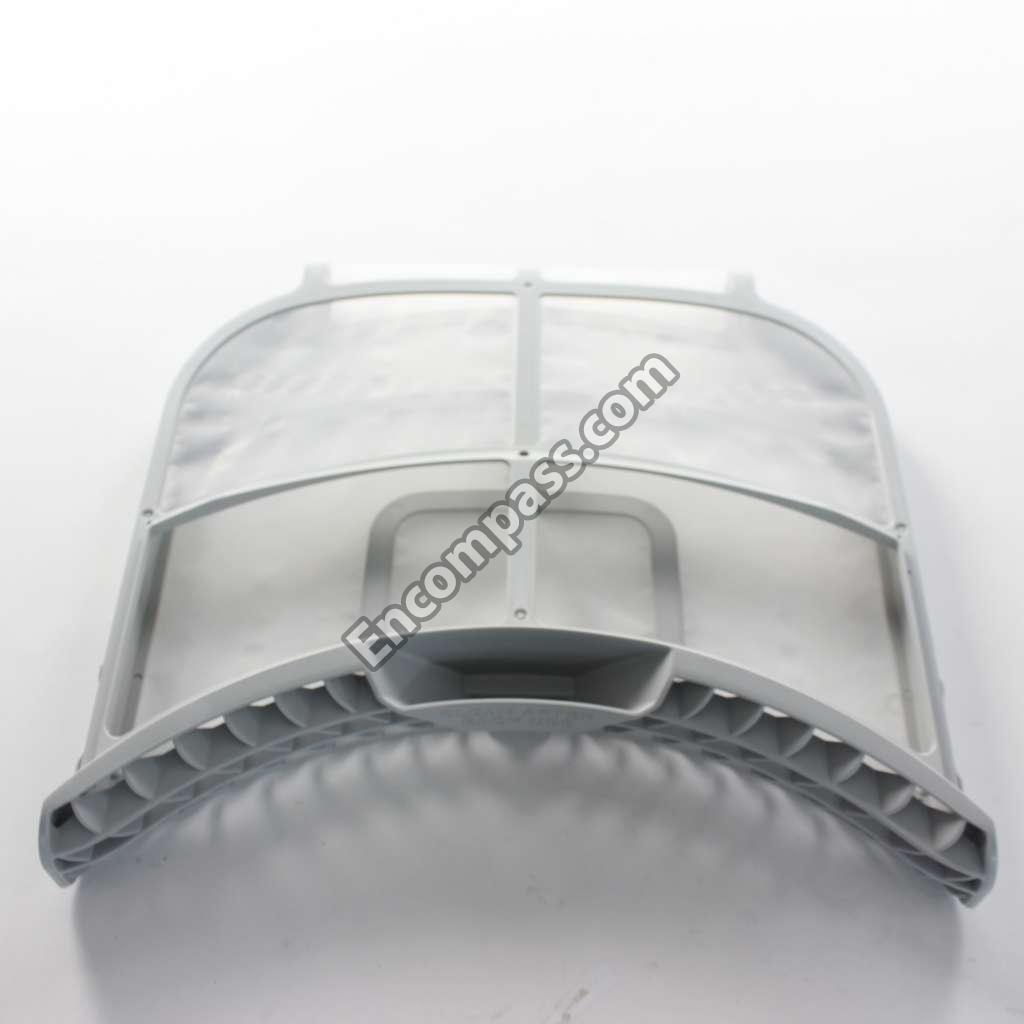

ADQ73373201 ADQ73373201 FILTER ASSEMBLY,LINT
ADV75287602 ADV75287602 FRAME ASSEMBLY
MDQ64156501 MDQ64156501 FRAME,BODY
3017EL1001A 3017EL1001A FUNNEL
ADZ73410101 ADZ73410101 GENERATOR ASSEMBLY
ADZ73410102 ADZ73410102 GENERATOR ASSEMBLY
4975EL3001B 4975EL3001B GUIDE ASSEMBLY
4974EL1001A 4974EL1001A GUIDE,BURNER
MEA63930901 MEA63930901 GUIDE,FILTER
EAD39301912 EAD39301912 HARNESS,MULTI
EAD60870415 EAD60870415 HARNESS,MULTI
EAD39301911 EAD39301911 HARNESS,MULTI
EAD39301910 EAD39301910 HARNESS,MULTI
6631EL3003F 6631EL3003F HARNESS,SINGLE
MEF63162101 MEF63162101 HINGE
AEH74816501 AEH74816501 HINGE ASSEMBLY
AEJ33026401 AEJ33026401 HOLDER
4930ER3010A 4930ER3010A HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
5215FD3715V 5215FD3715V HOSE,INLET
MEJ62404702 MEJ62404702 HOSE,INLET
5215FD3715W 5215FD3715W HOSE,INLET
AGM30061302 AGM30061302 HOUSING,BLOWER
5318EL3001A 5318EL3001A IGNITER
AEZ73913401 AEZ73913401 KNOB ASSEMBLY
EAQ61400801 EAQ61400801 LAMP,LED
4778EL3001B 4778EL3001B LEG
AFG73349703 AFG73349703 LID ASSEMBLY
4432EL1002A 4432EL1002A LIFTER
4027EL1001B 4027EL1001B LOCKER ASSEMBLY
4681EL1008A 4681EL1008A MOTOR,UNCLASSIFIED
4948EL4001B 4948EL4001B ORIFICE-NATURAL GAS
383EEL9001G 383EEL9001G PARTS ASSEMBLY
383EEL3002R 383EEL3002R PARTS ASSEMBLY
383EEL9001D 383EEL9001D PARTS ASSEMBLY
383EEL9001N 383EEL9001N PARTS ASSEMBLY
EAX66813801 EAX66813801 PCB
EBR82616903 EBR82616903 PCB ASSEMBLY,DISPLAY
EBR80198602 EBR80198602 PCB ASSEMBLY,MAIN
5201EL2001A 5201EL2001A PIPE ASSEMBLY
5201EL3001A 5201EL3001A PIPE ASSEMBLY
AGU75009401 AGU75009401 PLATE ASSEMBLY,TOP

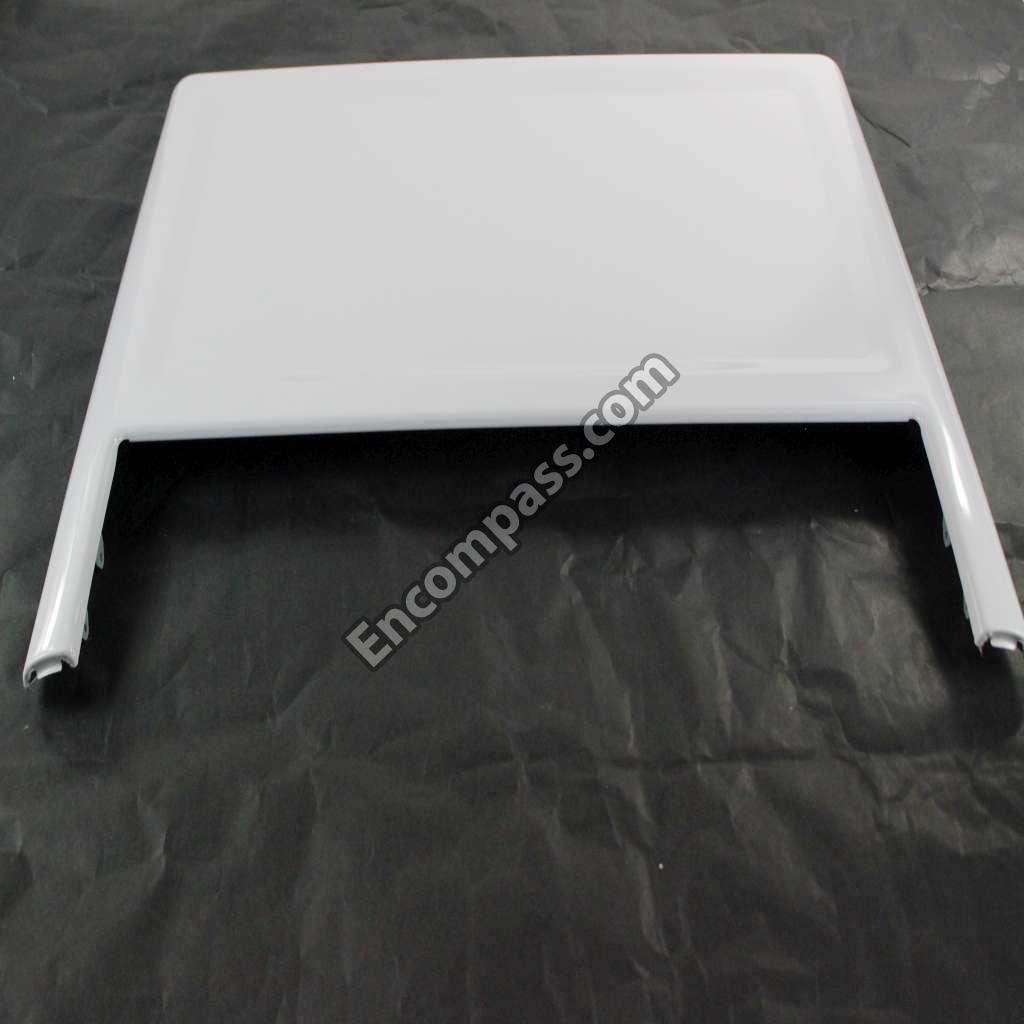

MGJ64304102 MGJ64304102 PLATE,TOP
3300EL2001A 3300EL2001A PLATE,UPPER
6411ER1005B 6411ER1005B POWER CORD ASSEMBLY
AGM34418433 AGM34418433 POWER CORD ASSEMBLY
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE

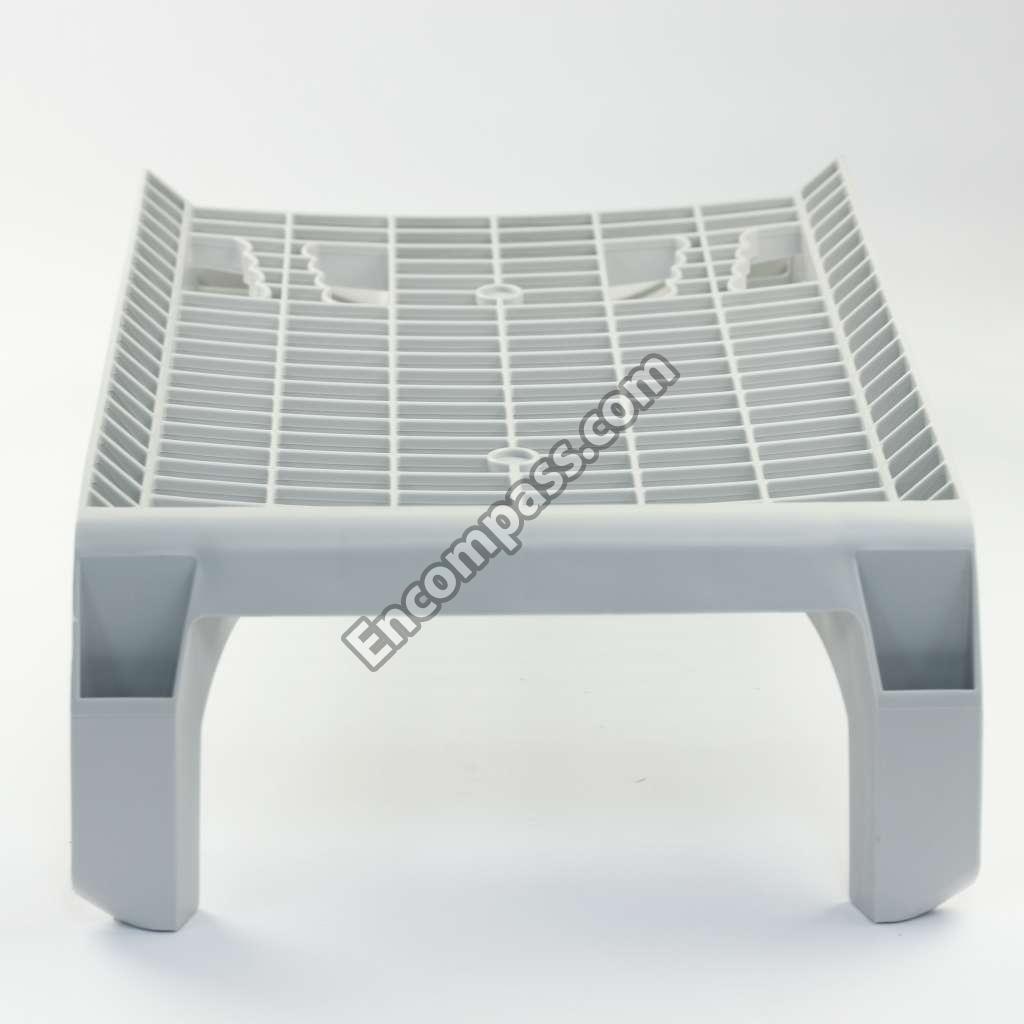

3750EL1001F 3750EL1001F RACK
4581EL3001M 4581EL3001M ROLLER ASSEMBLY
4581EL2002L 4581EL2002L ROLLER ASSEMBLY
1MTC0402632 1MTC0402632 SCREW
1SZZEL2001A 1SZZEL2001A SCREW,CUSTOMIZED
1SZZEL3001A 1SZZEL3001A SCREW,DRAWING
FAB32139906 FAB32139906 SCREW,TAPPING
1TPL0303218 1TPL0303218 SCREW,TAPPING
1FTF0503507 1FTF0503507 SCREW,TAPTITE
1APF0402608 1APF0402608 SCREW,TAPTITE
4036EL3002A 4036EL3002A SEAL
4036EL3001A 4036EL3001A SEAL
6501EL3001A 6501EL3001A SENSOR ASSEMBLY
3911EZ9131X 3911EZ9131X SIDE VENTING KIT
4970EL4002C 4970EL4002C SPRING,DISTORTION
MJH63714601 MJH63714601 SUPPORTER,HINGE
4980EL3001A 4980EL3001A SUPPORTER,HOLDER
EBF61496102 EBF61496102 SWITCH ASSEMBLY,DOOR
EBF61734701 EBF61734701 SWITCH,MICRO

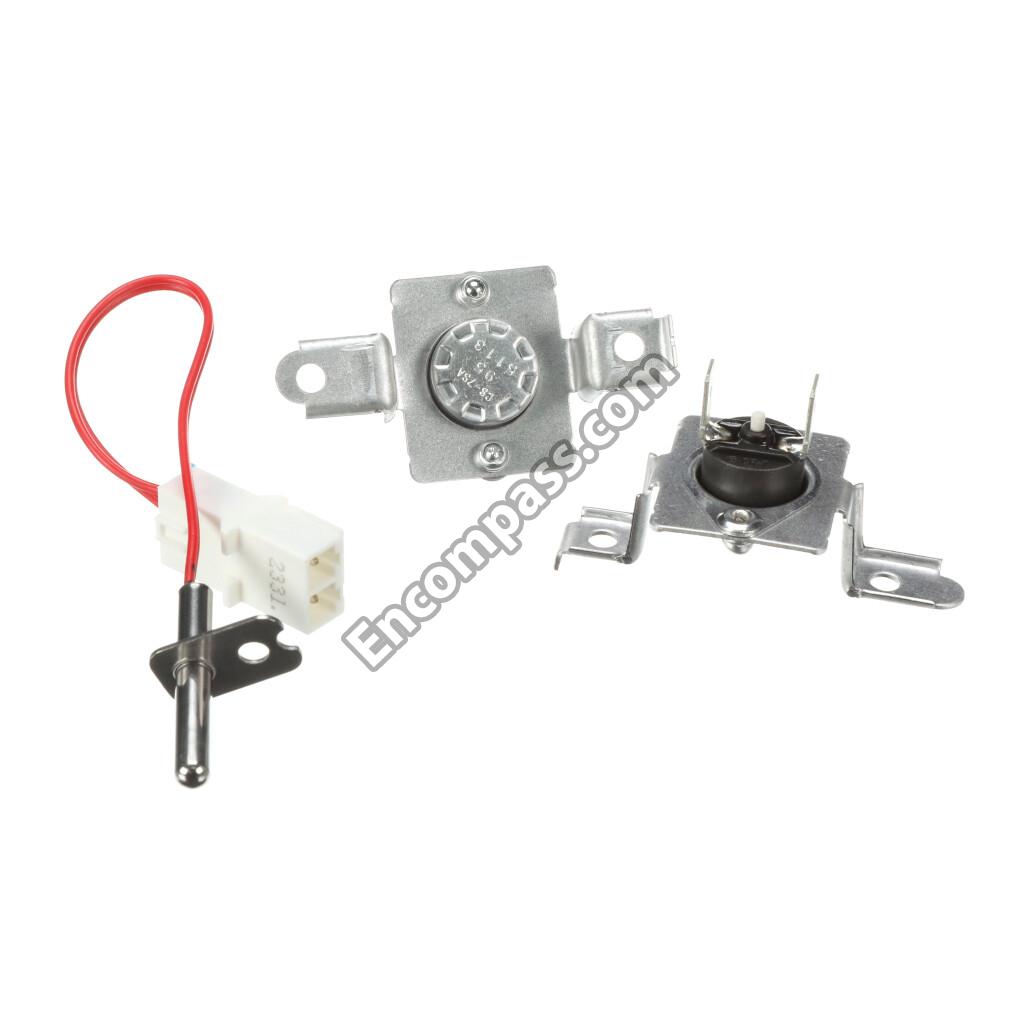

AGM30045804 AGM30045804 THERMISTOR ASSEMBLY
6931EL3002M 6931EL3002M THERMOSTAT
5215FD3715M 5215FD3715M TOP LOAD INLET HOSE (COLD)
3045EL1002P 3045EL1002P TUB ASSEMBLY,DRUM
AJQ75298102 AJQ75298102 TUB ASSEMBLY,DRUM
3045EL1002K 3045EL1002K TUB ASSEMBLY,DRUM
MJT62763001 MJT62763001 TUB,DRUM(FRONT)
3044EL0002T 3044EL0002T TUB,DRUM(REAR)
5221EL2002A 5221EL2002A VALVE ASSEMBLY,GAS
AJU73432602 AJU73432602 VALVE ASSEMBLY,INLET
FAF31991702 FAF31991702 WASHER,CUSTOMIZED
MKC65220101 MKC65220101 WINDOW
