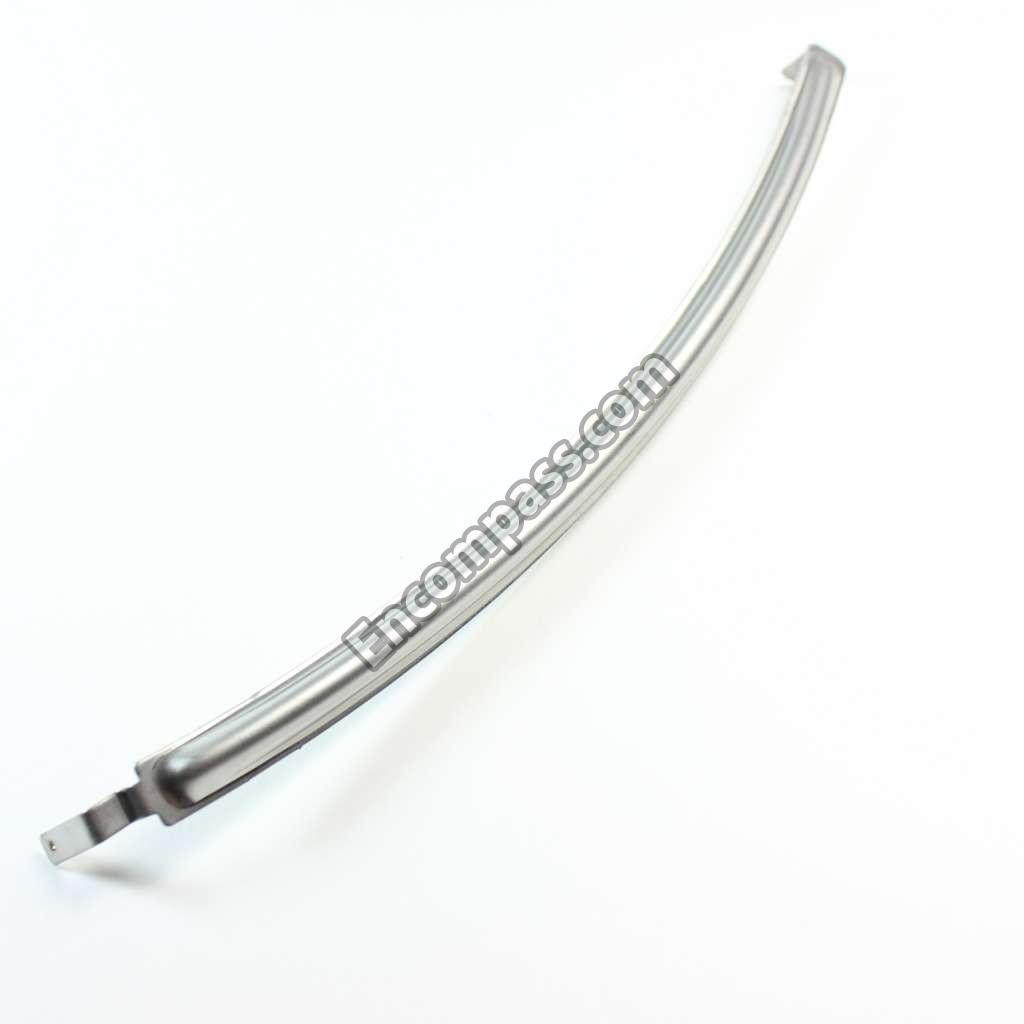

Model Image
Manufacturer

LG

Model Number

DLGX8501W

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4400EL2001D 4400EL2001D BELT,POLY V
4810EL3002A 4810EL3002A BRACKET,BASE
MEJ62505602 MEJ62505602 BRACKET,BASE
4810EL3009A 4810EL3009A BRACKET,BASE
4810EL3001A 4810EL3001A BRACKET,BASE
MAZ63253202 MAZ63253202 BRACKET,HINGE
4810EL1002A 4810EL1002A BRACKET,MOTOR
ABJ73568806 ABJ73568806 CABINET ASSEMBLY
5835EL1002A 5835EL1002A CASING ASSEMBLY
4860EL3001A 4860EL3001A CLAMP
4861FR3068A 4861FR3068A CLAMP
4932EL4001A 4932EL4001A CONNECTOR,PIPE
ACQ85638401 ACQ85638401 COVER ASSEMBLY,CABINET
MCK66826301 MCK66826301 COVER,FILTER
MCK38392501 MCK38392501 COVER,GUIDE
MCK62423301 MCK62423301 COVER,SAFETY
MCQ38393001 MCQ38393001 DAMPER
ADC73669601 ADC73669601 DOOR ASSEMBLY
5209EL1006F 5209EL1006F DUCT ASSEMBLY
ADJ73372401 ADJ73372401 DUCT ASSEMBLY
ADJ73392902 ADJ73392902 DUCT ASSEMBLY
ADQ73373201 ADQ73373201 FILTER ASSEMBLY,LINT
MDQ38393703 MDQ38393703 FRAME,BODY
MDQ62936401 MDQ62936401 FRAME,DOOR(INNER)
MDQ62936301 MDQ62936301 FRAME,DOOR(OUTER)
MDQ62976502 MDQ62976502 FRAME,PANEL
3017EL1001A 3017EL1001A FUNNEL
4036EL3002A 4036EL3002A GASKET
4036EL3001B 4036EL3001B GASKET
MDS62050802 MDS62050802 GASKET
3111ER1002E 3111ER1002E GENERATOR ASSEMBLY
4975EL3001A 4975EL3001A GUIDE ASSEMBLY
AEC36177516 AEC36177516 GUIDE ASSEMBLY
4974EL1001A 4974EL1001A GUIDE,BURNER
MEA38595802 MEA38595802 GUIDE,DRAWER
MEA62790801 MEA62790801 GUIDE,FILTER
EAD39301904 EAD39301904 HARNESS,MULTI
EAD61933103 EAD61933103 HARNESS,MULTI
6631EL3003F 6631EL3003F HARNESS,SINGLE
MEF62382701 MEF62382701 HINGE
MEG38874401 MEG38874401 HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
MEJ38393302 MEJ38393302 HOSE,PUMP
MEJ38393101 MEJ38393101 HOSE,PUMP
MEJ38393201 MEJ38393201 HOSE,PUMP
MEK37661701 MEK37661701 HOUSING,BLOWER
5318EL3001A 5318EL3001A IGNITER

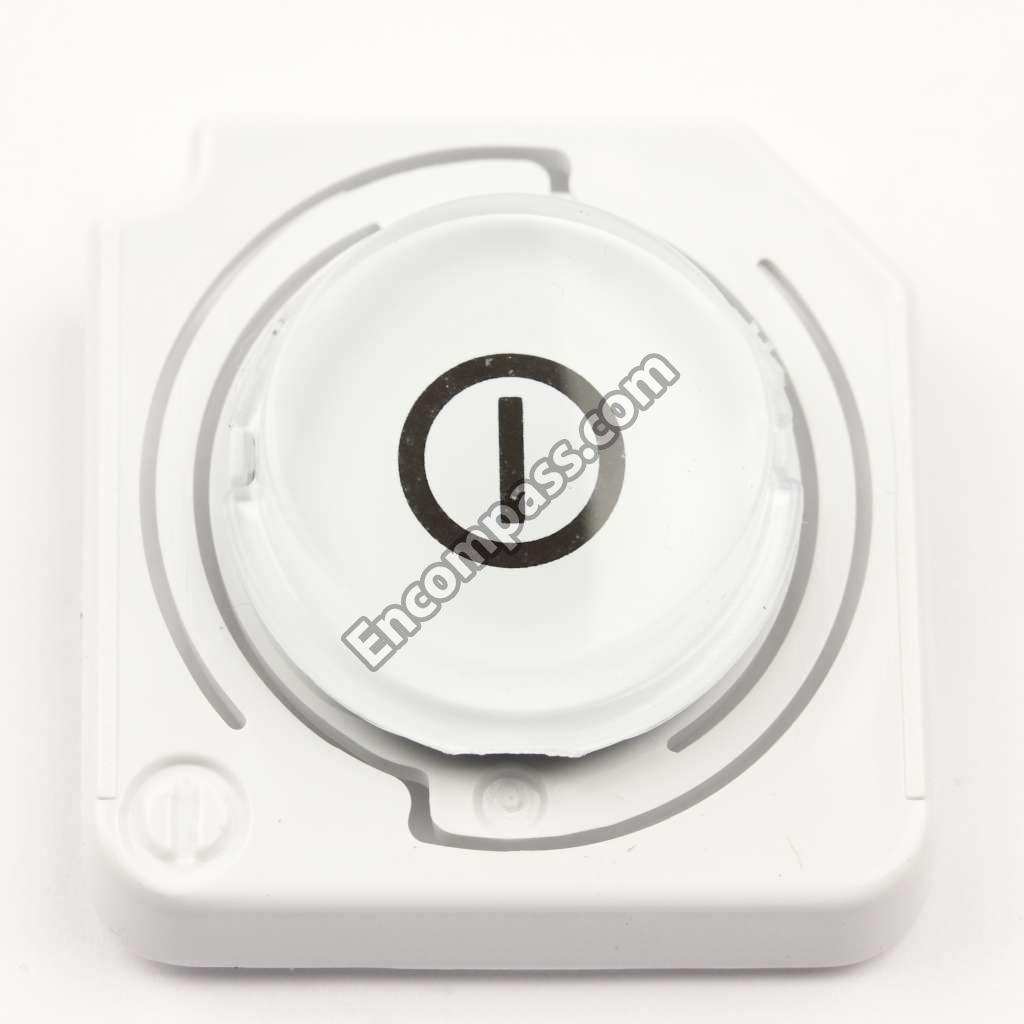

4941ER3005D 4941ER3005D KNOB ASSEMBLY
4941ER3005A 4941ER3005A KNOB ASSEMBLY
EAQ61400801 EAQ61400801 LAMP,LED
4778EL3001B 4778EL3001B LEG
MFE61921001 MFE61921001 LIFTER
4027EL1001B 4027EL1001B LOCKER ASSEMBLY
4026EL3007B 4026EL3007B LOCKER,HOOK
4681EL1008G 4681EL1008G MOTOR ASSEMBLY,DC,DRUM
EAU37148701 EAU37148701 MOTOR ASSEMBLY,DC,PUMP
AGB34327803 AGB34327803 NOZZLE ASSEMBLY,STEAM
4948EL4001B 4948EL4001B ORIFICE
AGL73954410 AGL73954410 PANEL ASSEMBLY,CONTROL
AGL73678603 AGL73678603 PANEL ASSEMBLY,DRAWER
AGL73678503 AGL73678503 PANEL ASSEMBLY,DRAWER
383EEL3002A 383EEL3002A PARTS ASSEMBLY
383EEL9001G 383EEL9001G PARTS ASSEMBLY
383EEL9001N 383EEL9001N PARTS ASSEMBLY
AGM73610704 AGM73610704 PARTS ASSEMBLY
383EEL9001L 383EEL9001L PARTS ASSEMBLY
EBR78122601 EBR78122601 PCB ASSEMBLY,DISPLAY

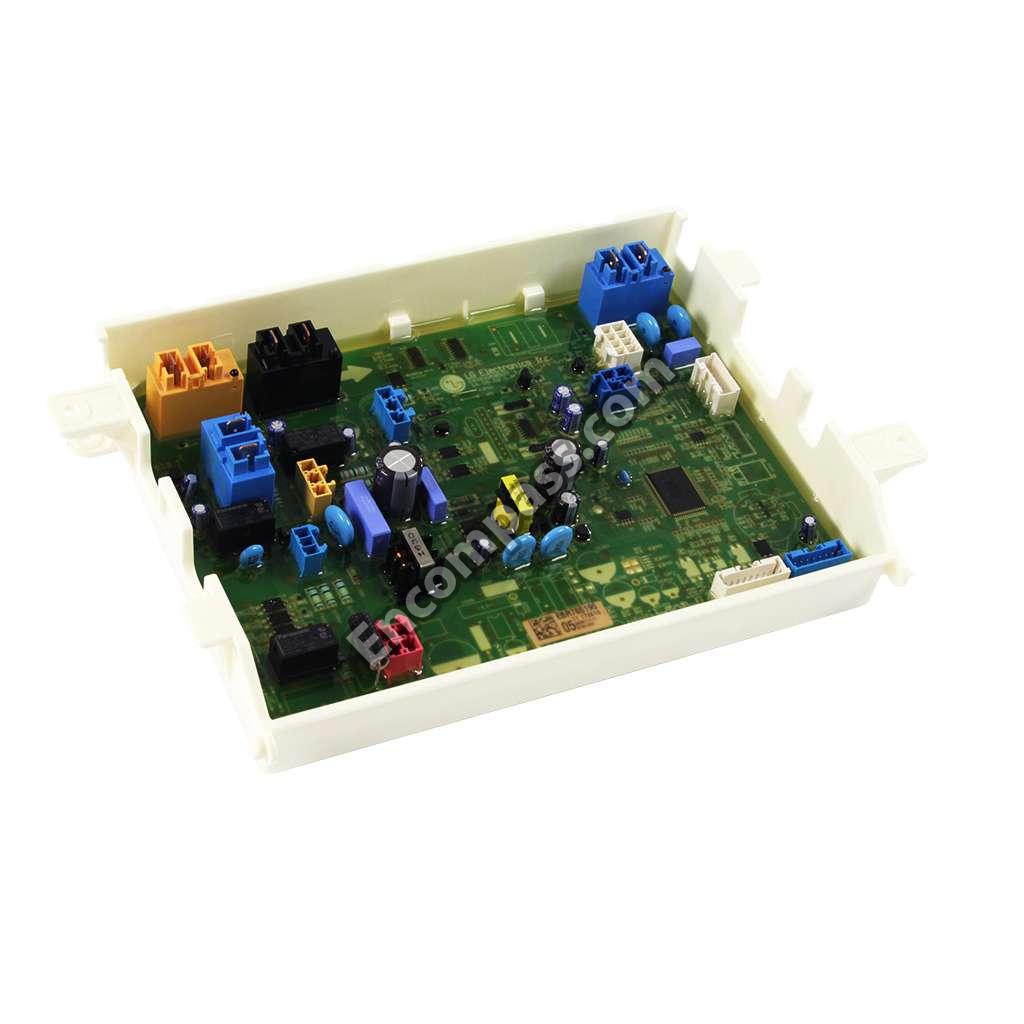

EBR76519505 EBR76519505 PCB ASSEMBLY,MAIN
5201EL2001A 5201EL2001A PIPE ASSEMBLY
5201EL3001A 5201EL3001A PIPE ASSEMBLY
AGU73729901 AGU73729901 PLATE ASSEMBLY,TOP
MGJ63083901 MGJ63083901 PLATE,UPPER
AGM34418433 AGM34418433 POWER CORD ASSEMBLY
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
MGR62082001 MGR62082001 RACK
4581EL3001E 4581EL3001E ROLLER ASSEMBLY
4581EL2002C 4581EL2002C ROLLER ASSEMBLY
1SZZEL3001A 1SZZEL3001A SCREW,CUSTOMIZED
1MTC0402632 1MTC0402632 SCREW,MACHINE
1TPL0303218 1TPL0303218 SCREW,TAPPING
1APF0402608 1APF0402608 SCREW,TAPTITE
6501EL3001A 6501EL3001A SENSOR ASSEMBLY
EBD50964602 EBD50964602 SENSOR,PRESSURE
4970EL4002C 4970EL4002C SPRING,DISTORTION
6601EL3001A 6601EL3001A SWITCH ASSEMBLY,SAFETY
EBF61734701 EBF61734701 SWITCH,MICRO
AJL34327901 AJL34327901 TANK ASSEMBLY,WATER
6323EL2001B 6323EL2001B THERMISTOR,NTC
6931EL3003C 6931EL3003C THERMOSTAT
6931EL3002M 6931EL3002M THERMOSTAT
6931EL3004B 6931EL3004B THERMOSTAT ASSEMBLY
AJQ73274302 AJQ73274302 TUB ASSEMBLY,DRUM
MJT62002801 MJT62002801 TUB,DRUM(FRONT)
MJT62002901 MJT62002901 TUB,DRUM(REAR)
5221EL2002A 5221EL2002A VALVE ASSEMBLY,GAS
