Model Image
Manufacturer

LG

Model Number

DLGX8601WE

Description

7.3 Cu.ft. Ultra Large High Efficiency Gas Turbost

Interactive Exploded View

Parts List

Part Number Description
AAA75904801 AAA75904801 ACCESSORY ASSEMBLY
AAA75232312 AAA75232312 ACCESSORY ASSEMBLY
MAK65402401 MAK65402401 BAR,CONNECTOR
MAK62727101 MAK62727101 BAR,CONNECTOR
4400EL2001A 4400EL2001A BELT,POLY V
4400EL2001F 4400EL2001F BELT,POLY V
4810EL3001A 4810EL3001A BRACKET,BASE
4810EL3002A 4810EL3002A BRACKET,BASE
MAZ64606103 MAZ64606103 BRACKET,FRAME
MAZ64606102 MAZ64606102 BRACKET,FRAME
MAZ67750301 MAZ67750301 BRACKET,HINGE
MAZ67750201 MAZ67750201 BRACKET,HINGE
MAZ67750001 MAZ67750001 BRACKET,HINGE
MAZ65395701 MAZ65395701 BRACKET,HINGE
MAZ67750501 MAZ67750501 BRACKET,HINGE
MAZ66065301 MAZ66065301 BRACKET,MOTOR
ABJ76765613 ABJ76765613 CABINET ASSEMBLY
MBL68744401 MBL68744401 CAP,COVER
MBL68744301 MBL68744301 CAP,COVER
MBL65958102 MBL65958102 CAP,COVER
MBL65958101 MBL65958101 CAP,COVER
MBL62213306 MBL62213306 CAP,HOLE
MBL68752902 MBL68752902 CAP,HOLE
5835EL1002A 5835EL1002A CASING ASSEMBLY
4860EL3001A 4860EL3001A CLAMP
MCD63206801 MCD63206801 CONNECTOR,NOZZLE
4932EL4001A 4932EL4001A CONNECTOR,PIPE
ACQ30640503 ACQ30640503 COVER ASSEMBLY,CABINET
3550EL2004B 3550EL2004B COVER,FILTER
3550EL1005C 3550EL1005C COVER,GUIDE
MCK62423301 MCK62423301 COVER,SAFETY
ACV73430106 ACV73430106 DAMPER ASSEMBLY
MCR65109903 MCR65109903 DECOR,GUARD
EBR42278901 EBR42278901 DISPLAY CONTROL BOARD
ADC30040201 ADC30040201 DOOR ASSEMBLY
5209EL1001R 5209EL1001R DUCT ASSEMBLY
5209EL1002C 5209EL1002C DUCT ASSEMBLY
5209EL1006A 5209EL1006A DUCT ASSEMBLY
3911EZ9131X 3911EZ9131X DUCT ASSEMBLY,PARTS ASSEMBLY,SVC
ADQ74233201 ADQ74233201 FILTER ASSEMBLY,LINT
ADV30107301 ADV30107301 FRAME ASSEMBLY
ADV30098101 ADV30098101 FRAME ASSEMBLY
ADV74568804 ADV74568804 FRAME ASSEMBLY
3017EL1001A 3017EL1001A FUNNEL
4036EL3001A 4036EL3001A GASKET
4036EL3002A 4036EL3002A GASKET
ADZ73410101 ADZ73410101 GENERATOR ASSEMBLY
ADZ73410102 ADZ73410102 GENERATOR ASSEMBLY
4975EL3001A 4975EL3001A GUIDE ASSEMBLY
4974EL1001A 4974EL1001A GUIDE,BURNER
4974EL1002B 4974EL1002B GUIDE,FILTER
MEB65436501 MEB65436501 HANDLE
EAD60946430 EAD60946430 HARNESS,MULTI
EAD39301914 EAD39301914 HARNESS,MULTI
6631EL3003B 6631EL3003B HARNESS,SINGLE
MEF62782201 MEF62782201 HINGE
MEF62782101 MEF62782101 HINGE
MEF64894601 MEF64894601 HINGE
MEF64894501 MEF64894501 HINGE
AEH76196601 AEH76196601 HINGE ASSEMBLY
4930ER4003B 4930ER4003B HOLDER
4930ER4002A 4930ER4002A HOLDER
4930EL3004A 4930EL3004A HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
MEJ62404702 MEJ62404702 HOSE,INLET
5215FD3715V 5215FD3715V HOSE,INLET
MEJ64525001 MEJ64525001 HOSE,INLET
AGM30061302 AGM30061302 HOUSING,BLOWER
5318EL3001A 5318EL3001A IGNITER
AEZ75994973 AEZ75994973 KNOB ASSEMBLY
AEZ75998601 AEZ75998601 KNOB ASSEMBLY
EAQ61400801 EAQ61400801 LAMP,LED
4778EL3001B 4778EL3001B LEG
4432EL1002A 4432EL1002A LIFTER
4027EL1001C 4027EL1001C LOCKER ASSEMBLY
MFG63878901 MFG63878901 LOCKER,BODY
4026EL3007C 4026EL3007C LOCKER,HOOK
MFG64681501 MFG64681501 LOCKER,HOOK
MFG63098701 MFG63098701 LOCKER,HOOK
383EEL9001G 383EEL9001G LOCKER,PARTS ASSEMBLY,SVC
EBR31002638 EBR31002638 MAIN BOARD
EAU30126201 EAU30126201 MOTOR ASSEMBLY,AC,DRUM
4681EL1008A 4681EL1008A MOTOR ASSEMBLY,DC,DRUM
383EEL3002R 383EEL3002R NOZZLE,PARTS ASSEMBLY,SVC
4948EL4001B 4948EL4001B ORIFICE
AGL30192926 AGL30192926 PANEL ASSEMBLY,FRONT
MGC66441106 MGC66441106 PANEL,REAR
5201EL3001A 5201EL3001A PIPE ASSEMBLY
5201EL2001A 5201EL2001A PIPE ASSEMBLY
AGU30093203 AGU30093203 PLATE ASSEMBLY,TOP
3300ER4003A 3300ER4003A PLATE,LOWER
3300EL4001B 3300EL4001B PLATE,UPPER
6411EL1001H 6411EL1001H POWER CORD ASSEMBLY
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
3750EL0001C 3750EL0001C RACK
4581EL2002L 4581EL2002L ROLLER ASSEMBLY
AGM75510754 AGM75510754 ROLLER ASSEMBLY
4000FD4191A 4000FD4191A SCREW,CUSTOMIZED
1SZZEL2001A 1SZZEL2001A SCREW,CUSTOMIZED
FAB32258901 FAB32258901 SCREW,CUSTOMIZED
1SZZEL4001B 1SZZEL4001B SCREW,CUSTOMIZED
1SZZEL3001A 1SZZEL3001A SCREW,CUSTOMIZED
FAB32139906 FAB32139906 SCREW,TAPPING
1TPL0303218 1TPL0303218 SCREW,TAPPING
6501EL3001A 6501EL3001A SENSOR ASSEMBLY
6500EL3001A 6500EL3001A SENSOR,HUMIDITY
MHY63244307 MHY63244307 SPRING,COIL
MHY63244303 MHY63244303 SPRING,COIL

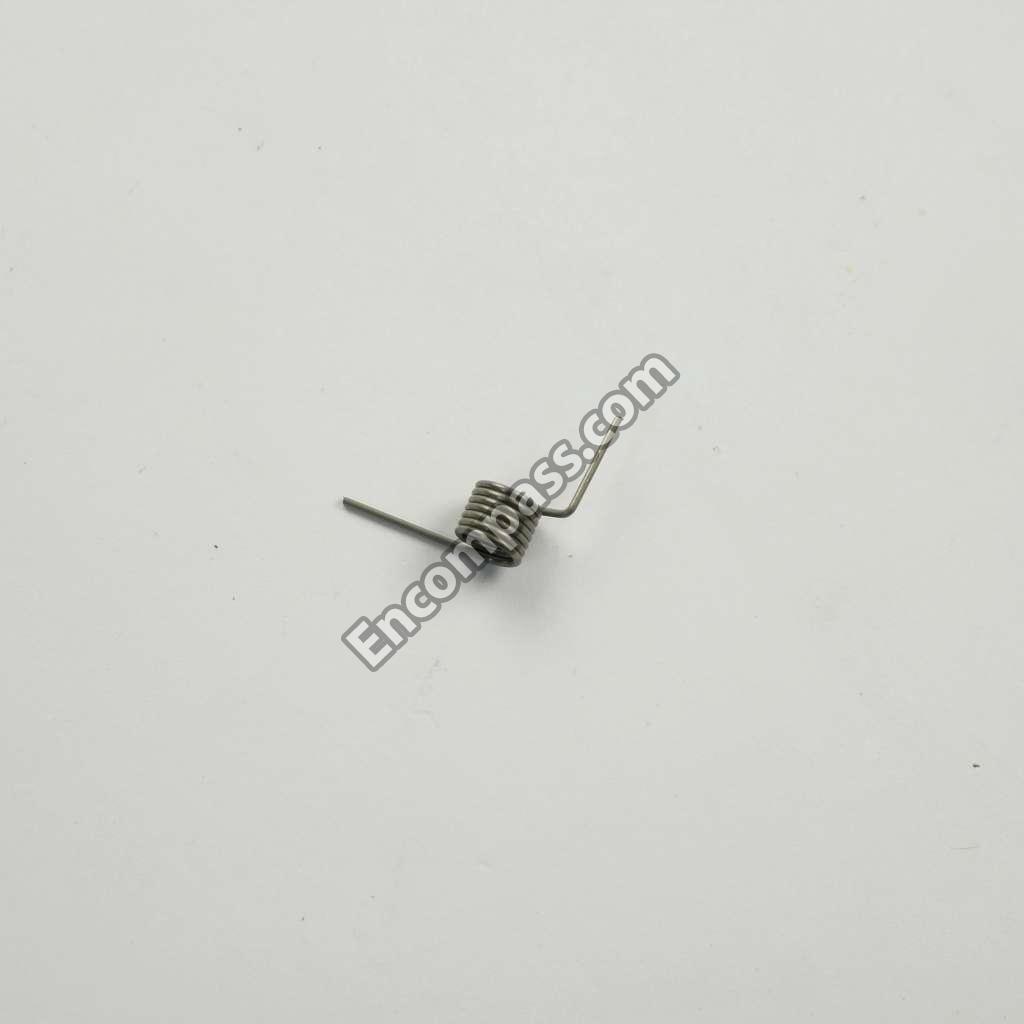

4970EL4002C 4970EL4002C SPRING,DISTORTION
MJH66400901 MJH66400901 SUPPORTER,HINGE
4980EL3001A 4980EL3001A SUPPORTER,HOLDER
EBF61496102 EBF61496102 SWITCH ASSEMBLY,SAFETY
EBF61734701 EBF61734701 SWITCH,MICRO
AGM30045804 AGM30045804 THERMISTOR,NTC
6931EL3002M 6931EL3002M THERMOSTAT
383EEL9001D 383EEL9001D THERMOSTAT,PARTS ASSEMBLY,SVC
AJQ75298102 AJQ75298102 TUB ASSEMBLY,DRUM
AJQ75298106 AJQ75298106 TUB ASSEMBLY,DRUM
3045EL1005N 3045EL1005N TUB ASSEMBLY,DRUM
3044EL0002N 3044EL0002N TUB,DRUM(REAR)
5221EL2002A 5221EL2002A VALVE ASSEMBLY,GAS
4W50100F 4W50100F WASHER,CUSTOMIZED
AJU73432602 AJU73432602 WATER INLET VALVE
