Model Image
Manufacturer

LG

Model Number

DLGY1202V

Description

7.3 Cu. Ft. Gas Dryer With Steam

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA75232311 AAA75232311 ACCESSORY ASSEMBLY
4400EL2001A 4400EL2001A BELT,POLY V
4400EL2001F 4400EL2001F BELT,POLY-V
5835EL1002A 5835EL1002A BLOWER ASSEMBLY
MAY67911202 MAY67911202 BOX,CARTON
4810EL3002A 4810EL3002A BRACKET,BASE
4810EL3001A 4810EL3001A BRACKET,BASE
MAZ66065301 MAZ66065301 BRACKET,MOTOR
ABJ73928241 ABJ73928241 CABINET ASSEMBLY
5006EL3001S 5006EL3001S CAP,DRIER
MBL62213302 MBL62213302 CAP,HOLE
MBL62213306 MBL62213306 CAP,HOLE
4860EL3001A 4860EL3001A CLAMP
4932EL4001A 4932EL4001A CONNECTOR (MECH),PIPE
6631EL3003B 6631EL3003B CONNECTOR ASSEMBLY
MCD63306801 MCD63306801 CONNECTOR,PIPE
ACQ75450509 ACQ75450509 COVER ASSEMBLY,CABINET
3550EL2004B 3550EL2004B COVER,FILTER
3550EL1005C 3550EL1005C COVER,GUIDE
MCK62973601 MCK62973601 COVER,LAMP
3550EL2001A 3550EL2001A COVER,LAMP
3550EL1003A 3550EL1003A COVER,PROTECT

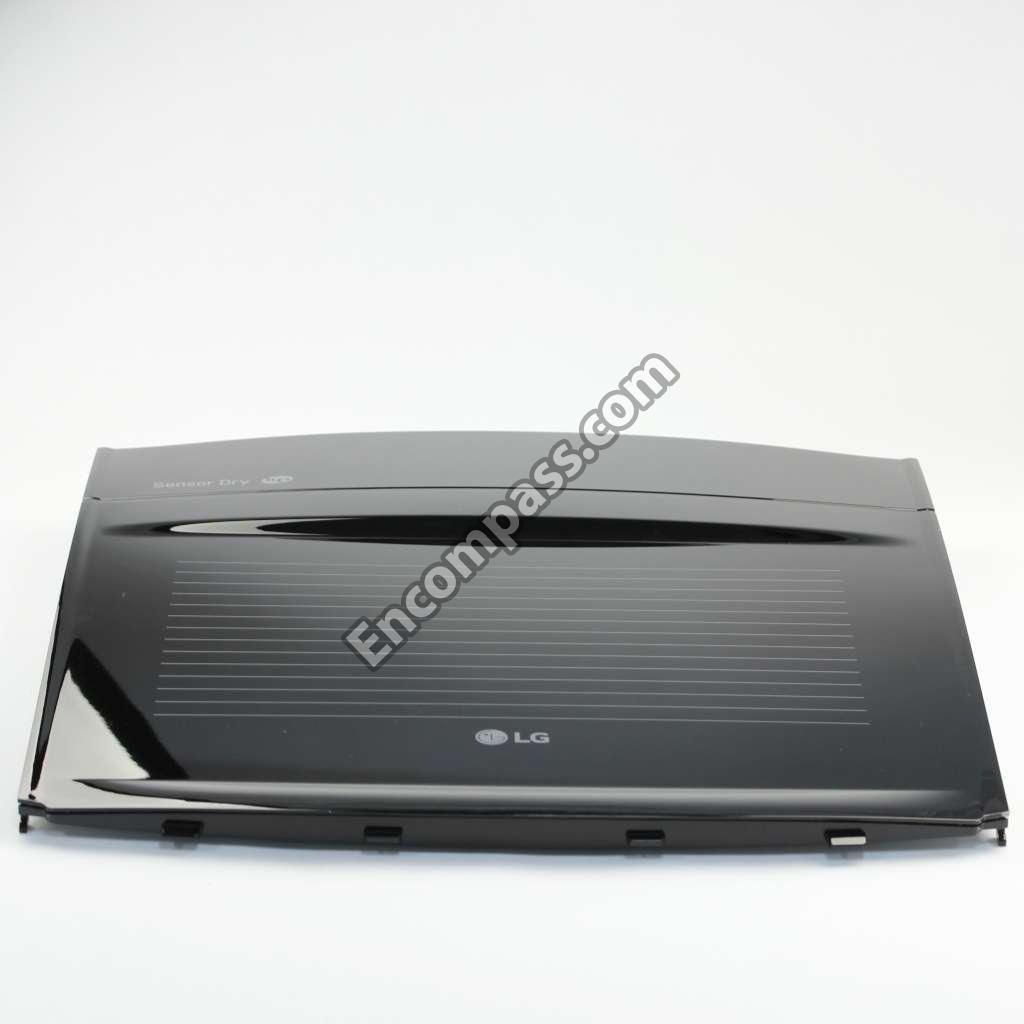

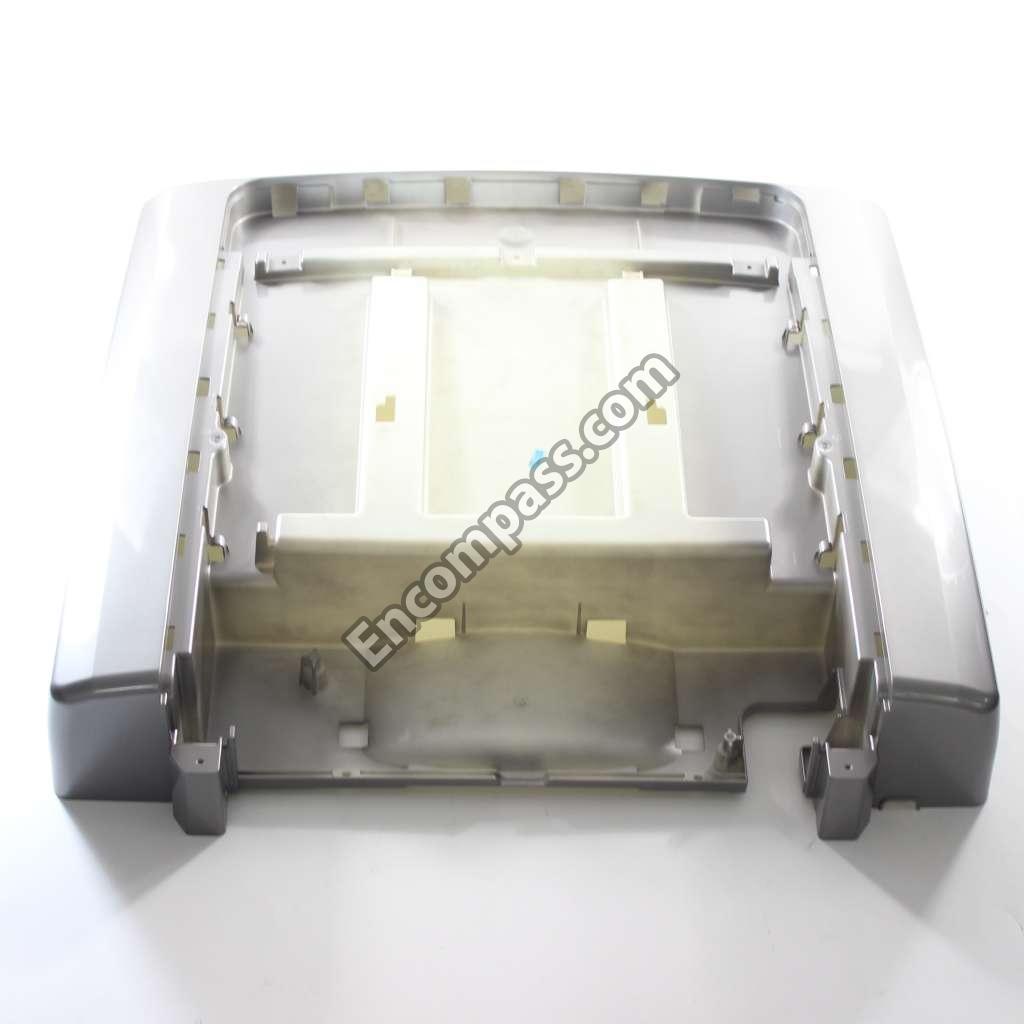

MCK67165002 MCK67165002 COVER,TOP
4W50100F 4W50100F CUSTOMIZED

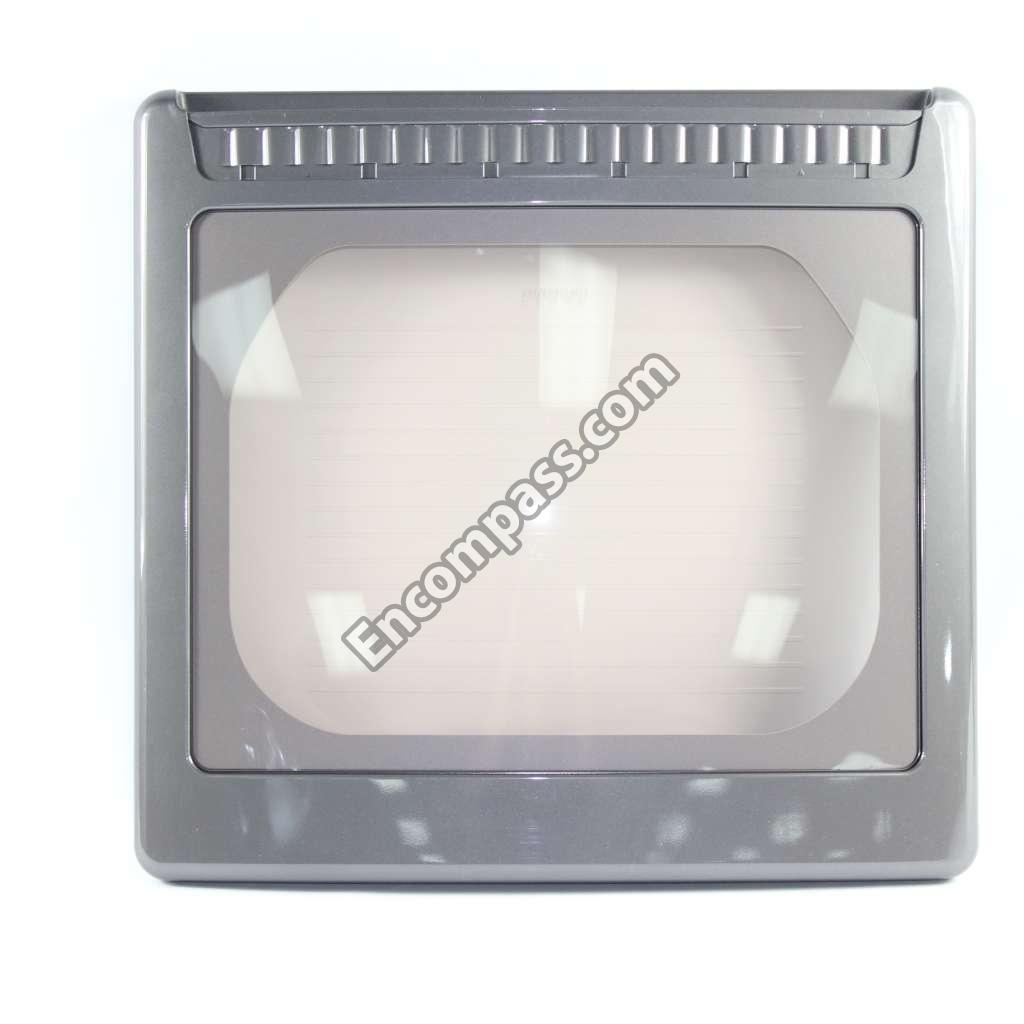

ADC72922714 ADC72922714 DOOR ASSEMBLY
5209EL1006A 5209EL1006A DUCT ASSEMBLY
5209EL1002A 5209EL1002A DUCT ASSEMBLY
5209EL1001E 5209EL1001E DUCT ASSEMBLY
MDB62021001 MDB62021001 ELBOW
5231EL1001C 5231EL1001C FILTER ASSEMBLY,LINT
ADV72990302 ADV72990302 FRAME ASSEMBLY
3211EL1002G 3211EL1002G FRAME ASSEMBLY
3017EL1001A 3017EL1001A FUNNEL
4975EL3001A 4975EL3001A GUIDE ASSEMBLY
4974EL1001A 4974EL1001A GUIDE,BURNER
4974EL1002B 4974EL1002B GUIDE,FILTER
MEB61849503 MEB61849503 HANDLE
EAD60946406 EAD60946406 HARNESS,MULTI
MEF61859401 MEF61859401 HINGE
4930EL3004A 4930EL3004A HOLDER
4930EL3005A 4930EL3005A HOLDER
4930EL3006A 4930EL3006A HOLDER
6913EL3002E 6913EL3002E HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
5215FD3715V 5215FD3715V HOSE,INLET
5215FD3715W 5215FD3715W HOSE,INLET
AGB72911101 AGB72911101 HOSE,PUMP
AGM30061302 AGM30061302 HOUSING,BLOWER
5318EL3001A 5318EL3001A IGNITER
6913EL3002K 6913EL3002K LAMP,INCANDESCENT
6913EL3001E 6913EL3001E LAMP,INCANDESCENT
4778EL3001B 4778EL3001B LEG
4432EL1002A 4432EL1002A LIFTER
4027EL1001C 4027EL1001C LOCKER ASSEMBLY
MFG63878901 MFG63878901 LOCKER,BODY
4026EL3007C 4026EL3007C LOCKER,HOOK

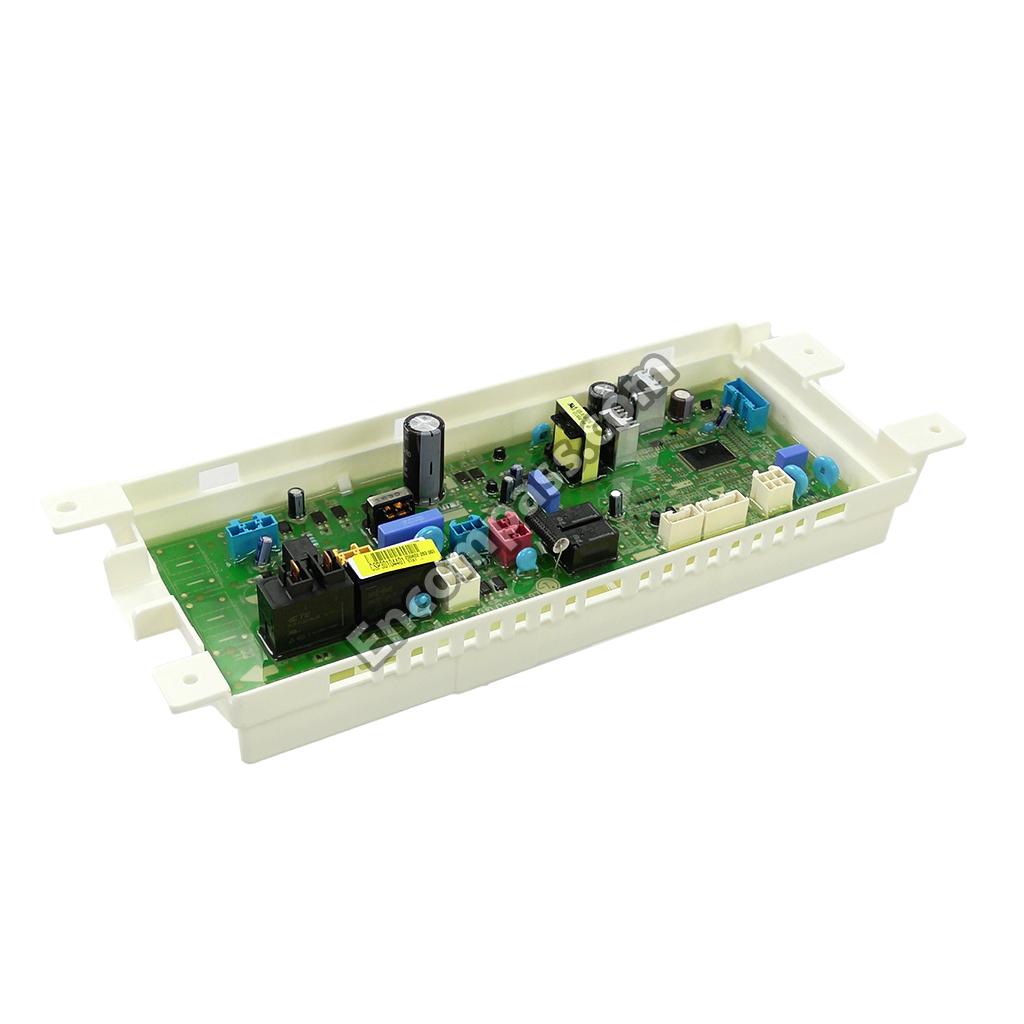

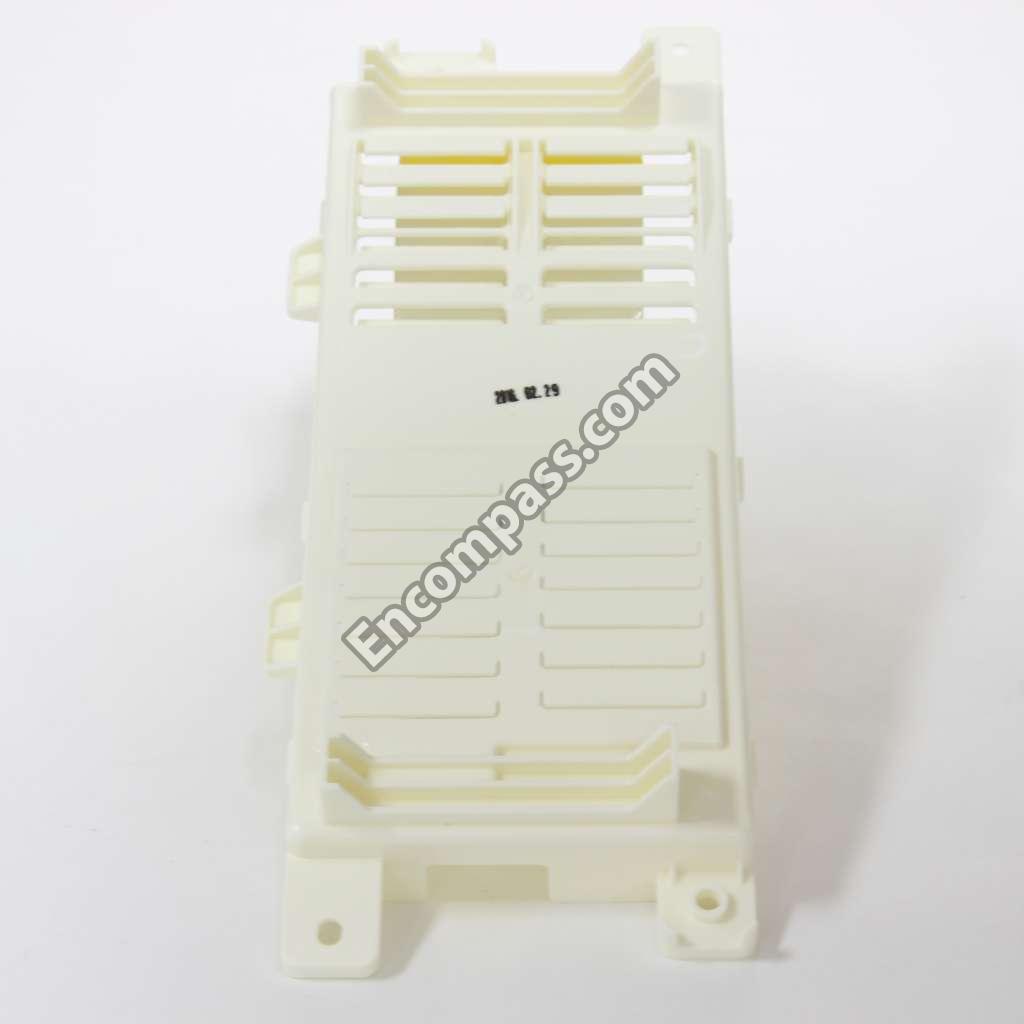

EBR76210902 EBR76210902 MAIN BOARD
AFN77913533 AFN77913533 MANUAL ASSEMBLY,OWNERS
4681EL1008A 4681EL1008A MOTOR,UNCLASSIFIED
AGB72909801 AGB72909801 NOZZLE ASSEMBLY
4948EL4001B 4948EL4001B ORIFICE-NATURAL GAS
AGL73959705 AGL73959705 PANEL ASSEMBLY,FRONT
MGC62805602 MGC62805602 PANEL,REAR
383EEL9001P 383EEL9001P PARTS ASSEMBLY
383EEL9001D 383EEL9001D PARTS ASSEMBLY
383EEL3002R 383EEL3002R PARTS ASSEMBLY
383EEL9001G 383EEL9001G PARTS ASSEMBLY

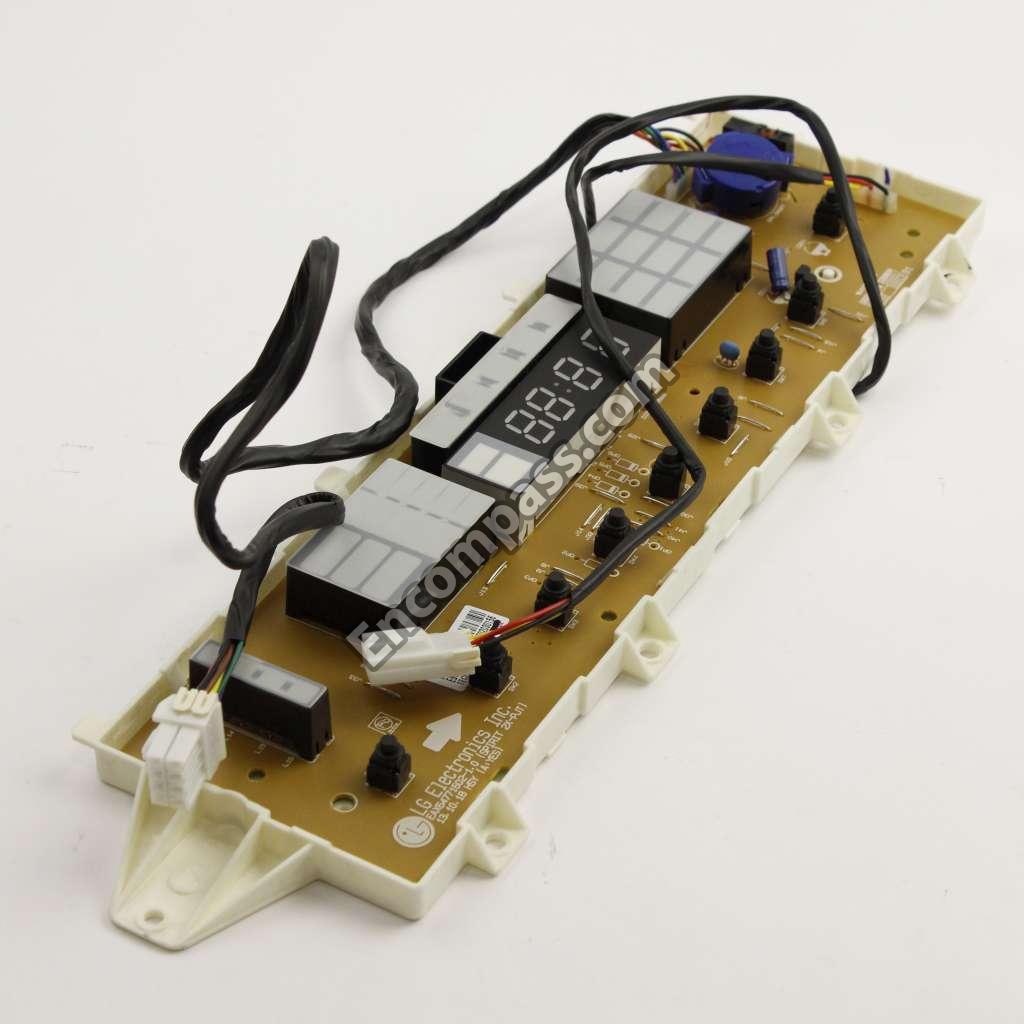

EBR75439403 EBR75439403 PCB ASSEMBLY,DISPLAY
CSP30104401 CSP30104401 PCB ASSEMBLY,MAIN
5201EL3001A 5201EL3001A PIPE ASSEMBLY
5201EL2001A 5201EL2001A PIPE ASSEMBLY
MGJ63308504 MGJ63308504 PLATE,TOP
3456EL0001C 3456EL0001C PLATE,TOP
6411ER1004Z 6411ER1004Z POWER CORD ASSEMBLY
4561EL3002A 4561EL3002A PULLEY ASSEMBLY,MOTOR
4560EL3001A 4560EL3001A PULLEY,IDLE
3750EL0001C 3750EL0001C RACK
4581EL3001M 4581EL3001M ROLLER ASSEMBLY
4581EL2002L 4581EL2002L ROLLER ASSEMBLY
4000FD4191A 4000FD4191A SCREW
1SZZEL2001A 1SZZEL2001A SCREW,CUSTOMIZED
1SZZEL3001A 1SZZEL3001A SCREW,DRAWING
FAB32139906 FAB32139906 SCREW,TAPPING
1TPL0303218 1TPL0303218 SCREW,TAPPING
1FTF0503507 1FTF0503507 SCREW,TAPTITE
4036EL3002A 4036EL3002A SEAL
4036EL3001A 4036EL3001A SEAL
6500EL3001A 6500EL3001A SENSOR
6501EL3001A 6501EL3001A SENSOR ASSEMBLY
3911EZ9131X 3911EZ9131X SIDE VENTING KIT
4970EL4002C 4970EL4002C SPRING,DISTORTION
4980EL3001A 4980EL3001A SUPPORTER,HOLDER
EBF61496102 EBF61496102 SWITCH ASSEMBLY,DOOR
EBF61734701 EBF61734701 SWITCH,MICRO
AGM30045804 AGM30045804 THERMISTOR ASSEMBLY
6931EL3002M 6931EL3002M THERMOSTAT
5215FD3715M 5215FD3715M TOP LOAD INLET HOSE (COLD)
3045EL1002K 3045EL1002K TUB ASSEMBLY,DRUM
3045EL1005C 3045EL1005C TUB ASSEMBLY,SUB[DRUM]
3044EL0002M 3044EL0002M TUB,DRUM(REAR)
3044EL0002T 3044EL0002T TUB,DRUM(REAR)
5221EL2002A 5221EL2002A VALVE ASSEMBLY,GAS
AJU73432602 AJU73432602 VALVE ASSEMBLY,INLET
