Model Image
Manufacturer

LG

Model Number

DMC12SB0

Description

Dmc12sb-0

Interactive Exploded View

Parts List

Part Number Description
4681A20122B 4681A20122B AC MOTOR ASSEMBLY [546810]
4791A30002U 4791A30002U BARRIER ASSEMBLY,OUTDOOR [447910]
3041A20008K 3041A20008K BASE ASSEMBLY,OUTDOOR [430410]
4280A20004A 4280A20004A BEARING
4280A20004M 4280A20004M BEARING [342800]
4961A10015B 4961A10015B BRACKET ASSEMBLY,MOTOR(OUTDOOR) [549610]
0CZZA20005H 0CZZA20005H CAPACITOR,FILM,BOX
EAE62421820 EAE62421820 CAPACITOR,FILM,BOX [W0CZZ]
4995A10205D 4995A10205D CASE ASSEMBLY,CONTROL(INDOOR) [249951]
4995A21006Q 4995A21006Q CASE ASSEMBLY,CONTROL(OUTDOOR) [649950]
3141A20034A 3141A20034A CHASSIS ASSEMBLY [131410]
TBZ37777401 TBZ37777401 COMPRESSOR SET,KOREA [554160]
5403A20221C 5403A20221C CONDENSER ASSEMBLY,BENDING [554031]
4G00103A 4G00103A CONNECTOR,TERMINAL BLOCK [W6640A]
6640000041M 6640000041M CONNECTOR,TERMINAL BLOCK [W6640]
3551A20208G 3551A20208G COVER ASSEMBLY,CONTROL(INDOOR) [135511]
3551A10005A 3551A10005A COVER ASSEMBLY,CONTROL(OUTDOOR) [435511]
3551A20156B 3551A20156B COVER ASSEMBLY,MOTOR [135516]
4H00982E 4H00982E DAMPER,COMPRESSOR [550140]
5421A20258B 5421A20258B EVAPORATOR ASSEMBLY,FIRST [354210]
5901A20017H 5901A20017H FAN ASSEMBLY,CROSS FLOW [359011]
5901A10033A 5901A10033A FAN ASSEMBLY,PROPELLER [559010]
5231A20040K 5231A20040K FILTER ASSEMBLY,DEODORIZER [152313]
5230A20064A 5230A20064A FILTER,AIR [152302A]
3531A10362M 3531A10362M GRILLE ASSEMBLY,DISCHARGE(INDOOR) [135311]
AEB30571502 AEB30571502 GRILLE ASSEMBLY,FRONT(INDOOR) [135316]
3530A20006G 3530A20006G GRILLE,DISCHARGE [435301]
3530A10286A 3530A10286A GRILLE,INLET [135303]
3530A10297A 3530A10297A GRILLE,INLET [135313]
5251A20011F 5251A20011F HOSE ASSEMBLY,DRAIN [352150]
5990A20068A 5990A20068A LOUVER,HORIZONTAL [147581]
4758A30057A 4758A30057A LOUVER,VERTICAL [147582]
4681AR2295L 4681AR2295L MOTOR ASSEMBLY,AC,INDOOR [346810]
4681A20042G 4681A20042G MOTOR ASSEMBLY,DC,STEPPING [146811]
6750U-L029A 6750U-L029A OVERLOAD PROTECT [567502]
AGL32476404 AGL32476404 PANEL ASSEMBLY,FRONT(OUTDOOR) [437211]
3721A20026M 3721A20026M PANEL ASSEMBLY,REAR(OUTDOOR) [437212]
6871A20682A 6871A20682A PCB ASSEMBLY,DISPLAY [268711A]

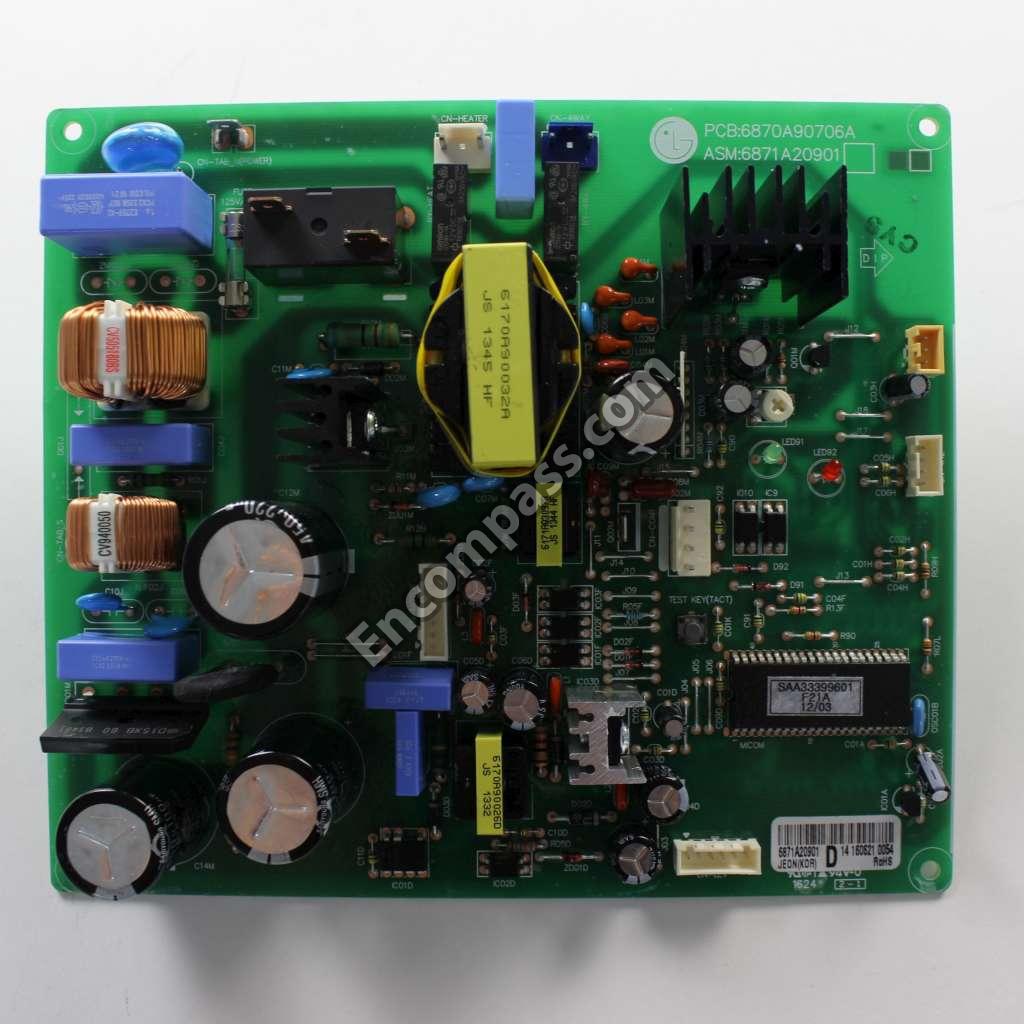

6871A20771C 6871A20771C PCB ASSEMBLY,MAIN [268711C]
6871A20901D 6871A20901D PCB ASSEMBLY,MAIN [268711F]
6871A20990F 6871A20990F PCB ASSEMBLY,SUB [268711D]
3301A20020A 3301A20020A PLATE ASSEMBLY,INSTALLATION [733010]
AKB74375404 AKB74375404 REMOTE CONTROLLER ASSEMBLY [267110]
6600L000013 6600L000013 SWITCH,PRESSURE [566000]
6323A20016N 6323A20016N THERMISTOR,NTC
EBG61107004 EBG61107004 THERMISTOR,NTC
EBG61108908 EBG61108908 THERMISTOR,NTC [263230A]
EBG61107009 EBG61107009 THERMISTOR,NTC [567480D]
EBG61106528 EBG61106528 THERMISTOR,NTC [567480F]
5211A24117A 5211A24117A TUBE ASSEMBLY,CONDENSER(IN) [552112]
5211A24118B 5211A24118B TUBE ASSEMBLY,CONDENSER(OUT) [552113]
5211A29042A 5211A29042A TUBE ASSEMBLY,EVAPORATOR(IN) [352115]
5211A29043B 5211A29043B TUBE ASSEMBLY,EVAPORATOR(OUT) [352116]
5211A29044B 5211A29044B TUBE ASSEMBLY,TUBING [35211B]
5220A20006A 5220A20006A VALVE,SERVICE [552203A]
5220A20006J 5220A20006J VALVE,SERVICE [552203A]
2H02479H 2H02479H VALVE,SERVICE [552203B]
2H02479N 2H02479N VALVE,SERVICE [552203B]
2H02479P 2H02479P VALVE,SERVICE [552203B]
5220A20005B 5220A20005B VALVE,SERVICE [552203B]
