Model Image
Manufacturer

LG

Model Number

DMH18SB1

Description

Dmh18sb-1

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4791A30004H 4791A30004H BARRIER ASSEMBLY,OUTDOOR [447910]
3041AP2741G 3041AP2741G BASE ASSEMBLY,OUTDOOR [430410]
4280A20004M 4280A20004M BEARING [342800]
1A00206B 1A00206B BRACKET,MOTOR [349600]

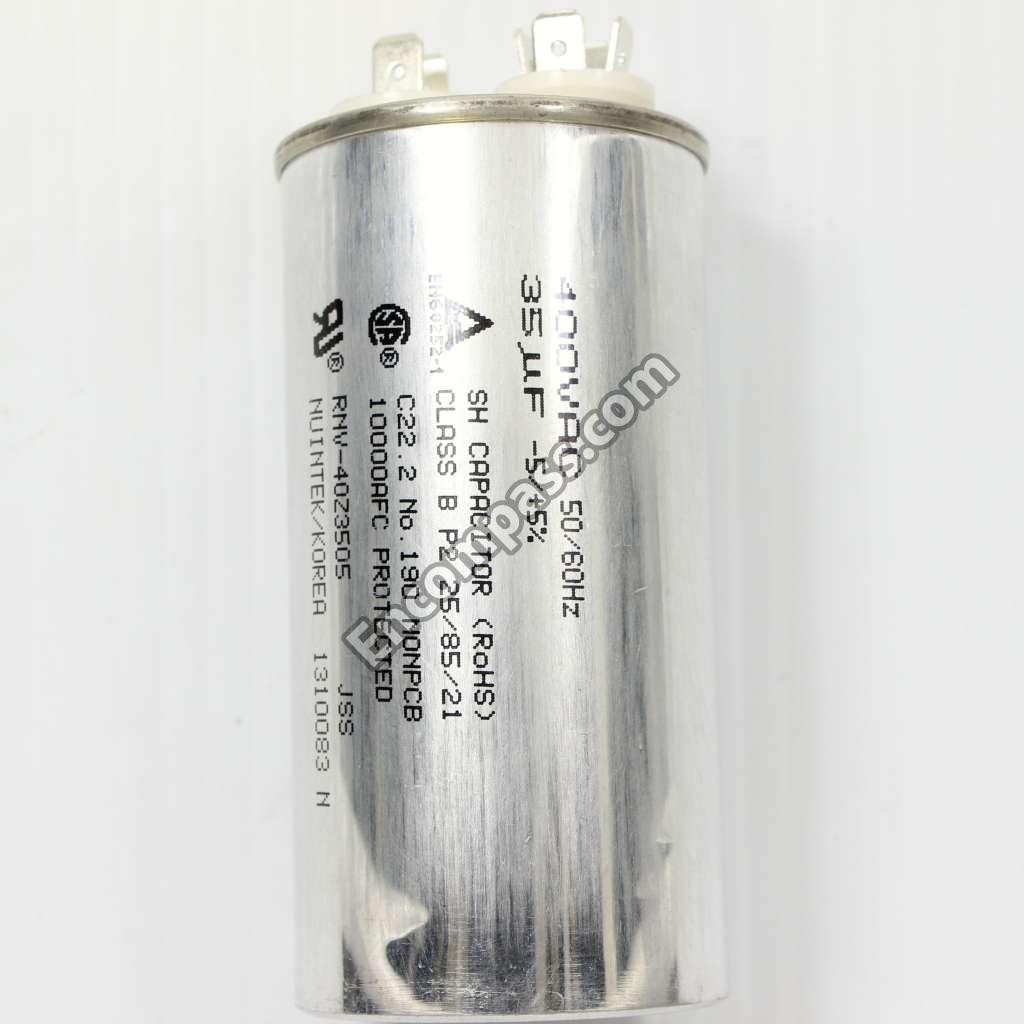

EAE43285403 EAE43285403 CAPACITOR,FILM,BOX [W0CZZA]
EAE43285408 EAE43285408 CAPACITOR,FILM,BOX [W0CZZB]
4995A10205E 4995A10205E CASE ASSEMBLY,CONTROL(INDOOR) [249951]
4995A20383L 4995A20383L CASE ASSEMBLY,CONTROL(OUTDOOR) [649950]
3141A20020G 3141A20020G CHASSIS ASSEMBLY [131410]

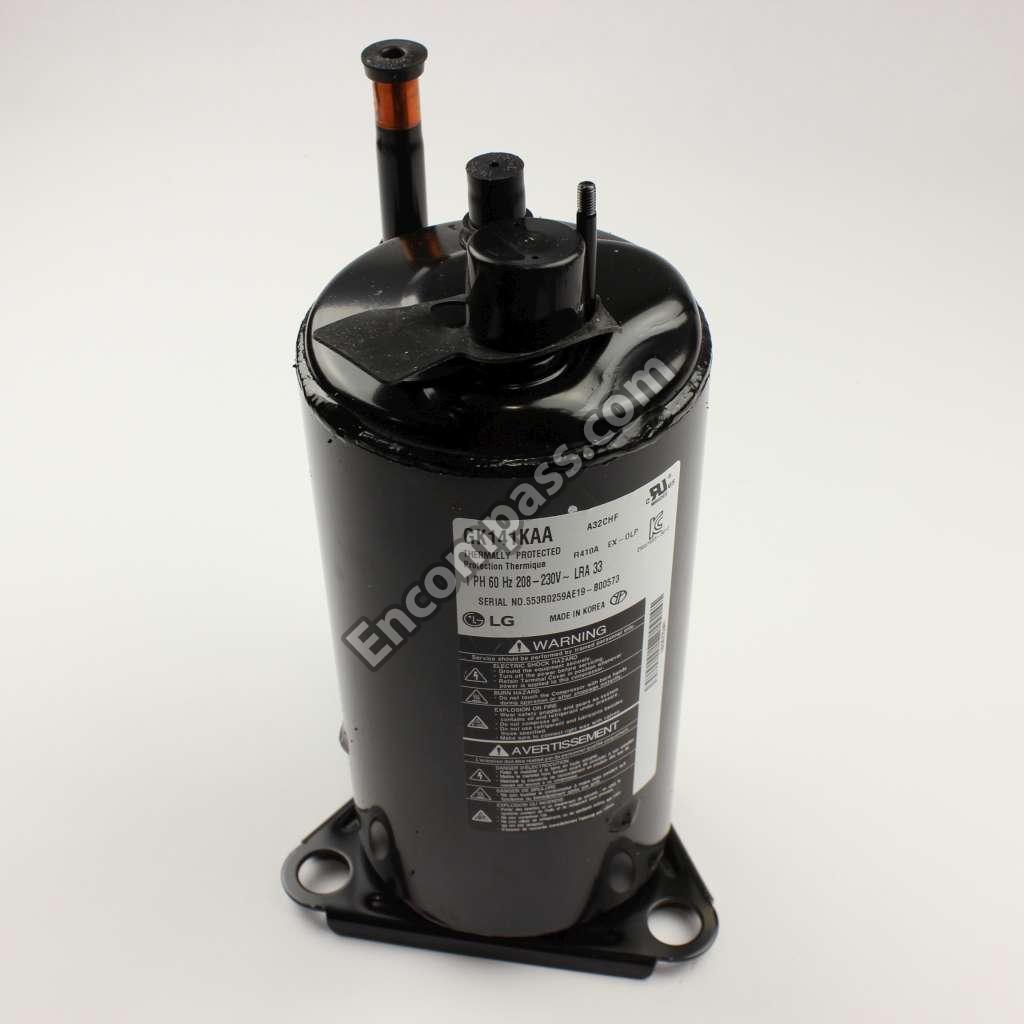

TBZ35275301 TBZ35275301 COMPRESSOR SET,KOREA
TBZ34894601 TBZ34894601 COMPRESSOR SET,KOREA [554160A]
5403A20047B 5403A20047B CONDENSER ASSEMBLY,BENDING [554031]
6640000041M 6640000041M CONNECTOR,TERMINAL BLOCK [W6640A]
4G00103A 4G00103A CONNECTOR,TERMINAL BLOCK [W6640B]
3551A20155H 3551A20155H COVER ASSEMBLY,CONTROL(INDOOR) [135511]
3551A10005G 3551A10005G COVER ASSEMBLY,CONTROL(OUTDOOR) [435511]
3551A20154A 3551A20154A COVER ASSEMBLY,MOTOR [135516]
3H03266H 3H03266H COVER ASSEMBLY,TOP(OUTDOOR) [435512]
4H00982E 4H00982E DAMPER,COMPRESSOR [550140]
5421A20220A 5421A20220A EVAPORATOR ASSEMBLY,FIRST [354210]
5901AR2441D 5901AR2441D FAN ASSEMBLY,CROSS FLOW
5901A92441E 5901A92441E FAN ASSEMBLY,CROSS FLOW [359011]
5901A92441D 5901A92441D FAN ASSEMBLY,CROSS FLOW [359011]
5901AR2441E 5901AR2441E FAN ASSEMBLY,CROSS FLOW [359011]
1A00195B 1A00195B FAN ASSEMBLY,PROPELLER
1A00195D 1A00195D FAN ASSEMBLY,PROPELLER [559010]
5231A20040B 5231A20040B FILTER ASSEMBLY,DEODORIZER [152313]

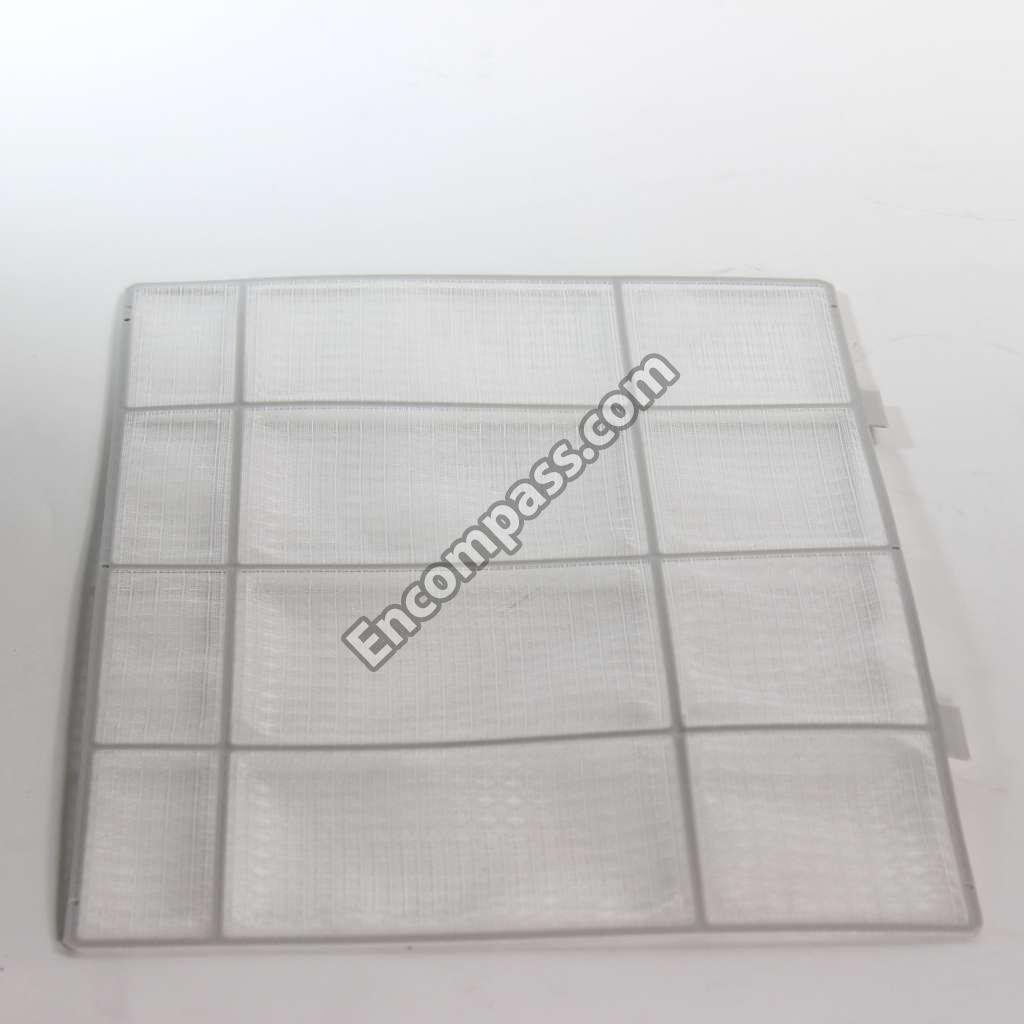

5230A20052A 5230A20052A FILTER,DEODORIZING
5230A20052L 5230A20052L FILTER,DEODORIZING
5230A20052B 5230A20052B FILTER,DEODORIZING [152302]
AEB30240204 AEB30240204 GRILLE ASSEMBLY,DISCHARGE(INDOOR) [135311]
3531A20299J 3531A20299J GRILLE ASSEMBLY,FRONT(INDOOR) [135316]
3531A20298B 3531A20298B GRILLE ASSEMBLY,INLET [135313]
MDX61844501 MDX61844501 GRILLE,DISCHARGE [435301]
1A00208H 1A00208H GRILLE,REAR [435300]
5251A20011D 5251A20011D HOSE ASSEMBLY,DRAIN [352150]
5990A20071A 5990A20071A LOUVER,HORIZONTAL [147581]
5990A20050A 5990A20050A LOUVER,VERTICAL [147582]
4681AR2295M 4681AR2295M MOTOR ASSEMBLY,AC,INDOOR [346810]

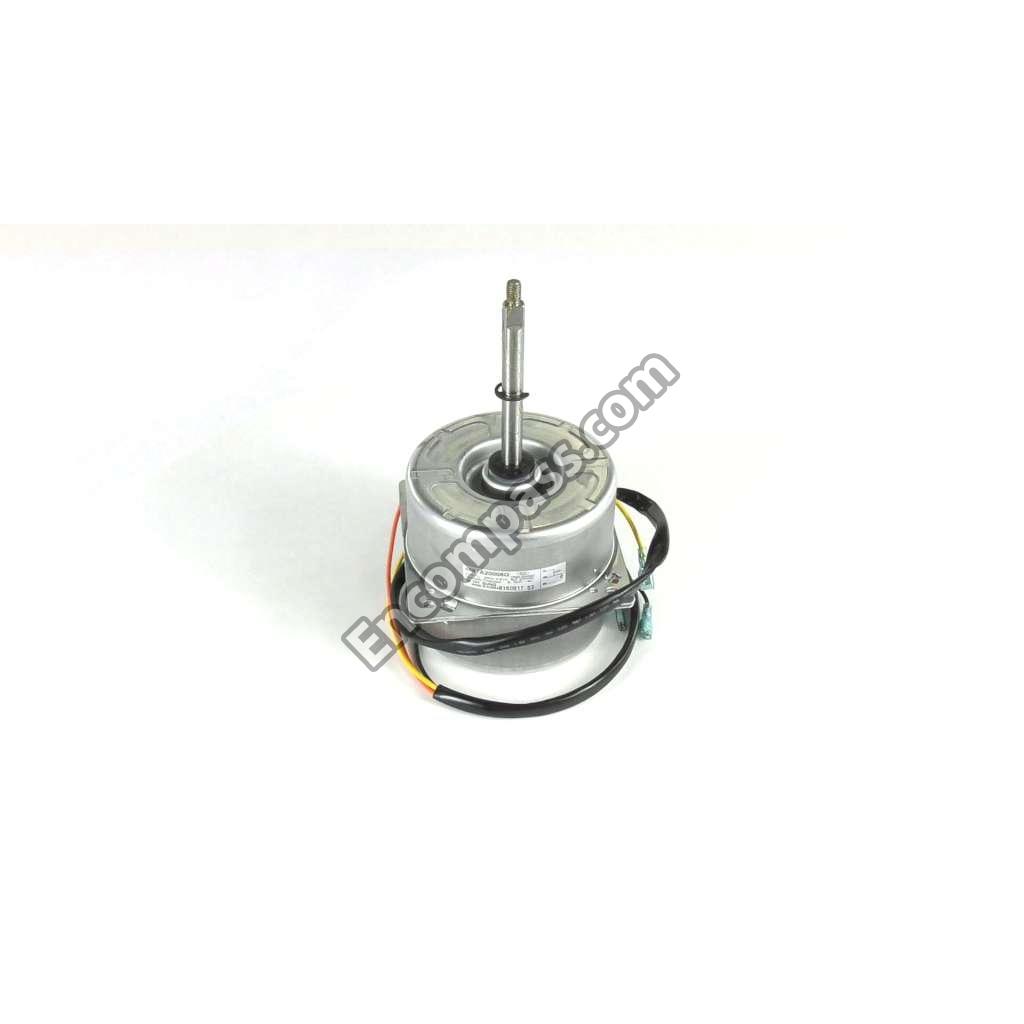

4681A20008Q 4681A20008Q MOTOR ASSEMBLY,AC,OUTDOOR [546810]
4681A20042E 4681A20042E MOTOR ASSEMBLY,DC,STEPPING [146811]
4681A20042G 4681A20042G MOTOR ASSEMBLY,DC,STEPPING [146811]
4948AP2527A 4948AP2527A ORIFICE [349480]

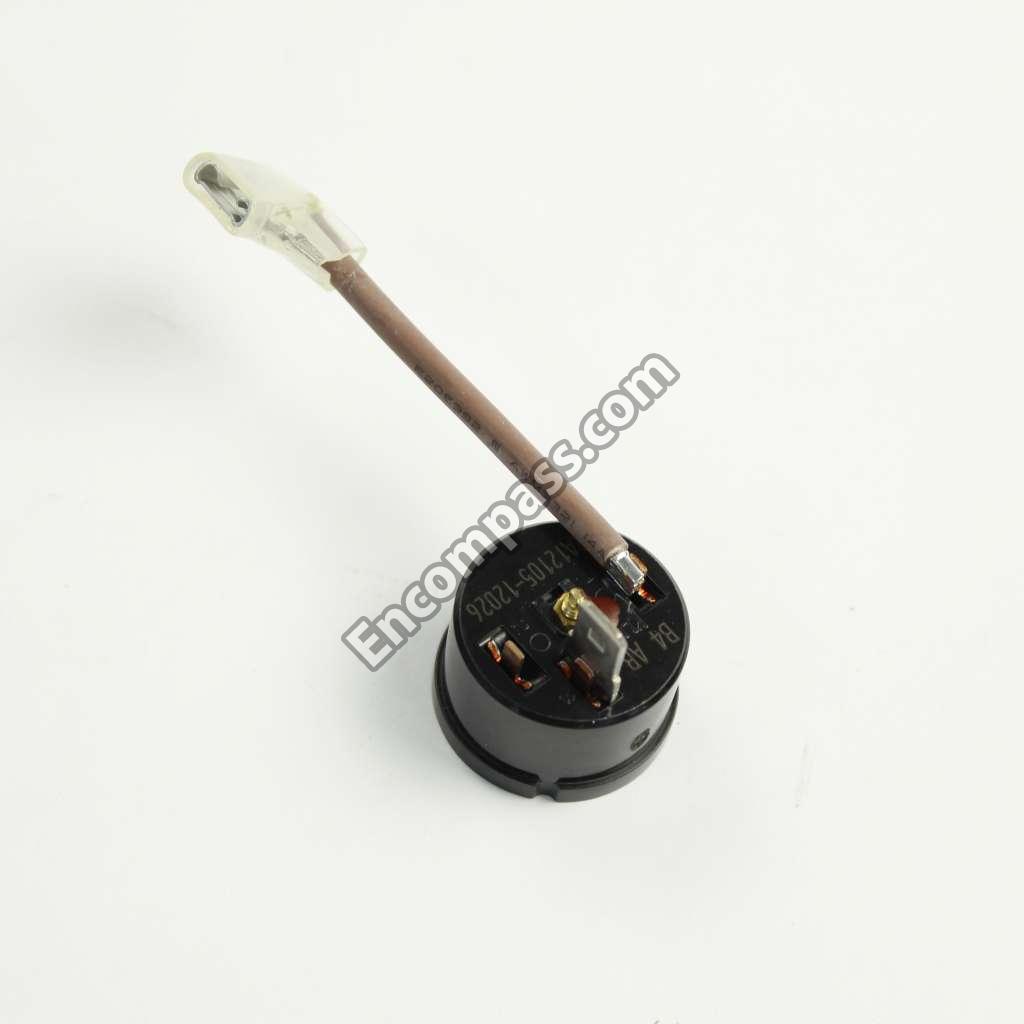

6750U-L035A 6750U-L035A OVERLOAD PROTECT [567502A]
6750U-L048A 6750U-L048A OVERLOAD PROTECT [567502B]
AGL32105604 AGL32105604 PANEL ASSEMBLY,FRONT(OUTDOOR) [437211]
1A00197C 1A00197C PANEL ASSEMBLY,FRONT(SUB) [437210]
1A00202F 1A00202F PANEL ASSEMBLY,SIDE [137213A]
3A02284N 3A02284N PANEL ASSEMBLY,SIDE [137213B]
6871A20683A 6871A20683A PCB ASSEMBLY [268711A]
6871A10184F 6871A10184F PCB ASSEMBLY [268711F]
6871A20771D 6871A20771D PCB ASSEMBLY,MAIN [268711B]
6871A20522C 6871A20522C PCB ASSEMBLY,MAIN [268711E]
6871A20990D 6871A20990D PCB ASSEMBLY,SUB [268711C]
3301A20020B 3301A20020B PLATE ASSEMBLY,INSTALLATION [733010]
6711A20128B 6711A20128B REMOTE CONTROLLER ASSEMBLY
AKB74375404 AKB74375404 REMOTE CONTROLLER ASSEMBLY [267110]
6141AR3733R 6141AR3733R SOLENOID [561410]
6600L000013 6600L000013 SWITCH,PRESSURE [566000]
6323A20016N 6323A20016N THERMISTOR,NTC
EBG61107004 EBG61107004 THERMISTOR,NTC
EBG61108908 EBG61108908 THERMISTOR,NTC [263230A]
EBG61107009 EBG61107009 THERMISTOR,NTC [263230B]
EBG61106528 EBG61106528 THERMISTOR,NTC [263230C]
5211A34007A 5211A34007A TUBE ASSEMBLY,CONDENSER(IN) [552112]
5211A34008C 5211A34008C TUBE ASSEMBLY,CONDENSER(OUT) [552113]
5211A24108B 5211A24108B TUBE ASSEMBLY,REVERSE [552116]
5211A21378D 5211A21378D TUBE ASSEMBLY,TUBING [35211B]
5220AR3228E 5220AR3228E VALVE,REVERSE [552202]
5220A20013A 5220A20013A VALVE,SERVICE [552203A]
5220A20013C 5220A20013C VALVE,SERVICE [552203A]
5220A20013D 5220A20013D VALVE,SERVICE [552203A]
5220A20005C 5220A20005C VALVE,SERVICE [552203B]
