Manufacturer
LG
Model Number
DN788
Description

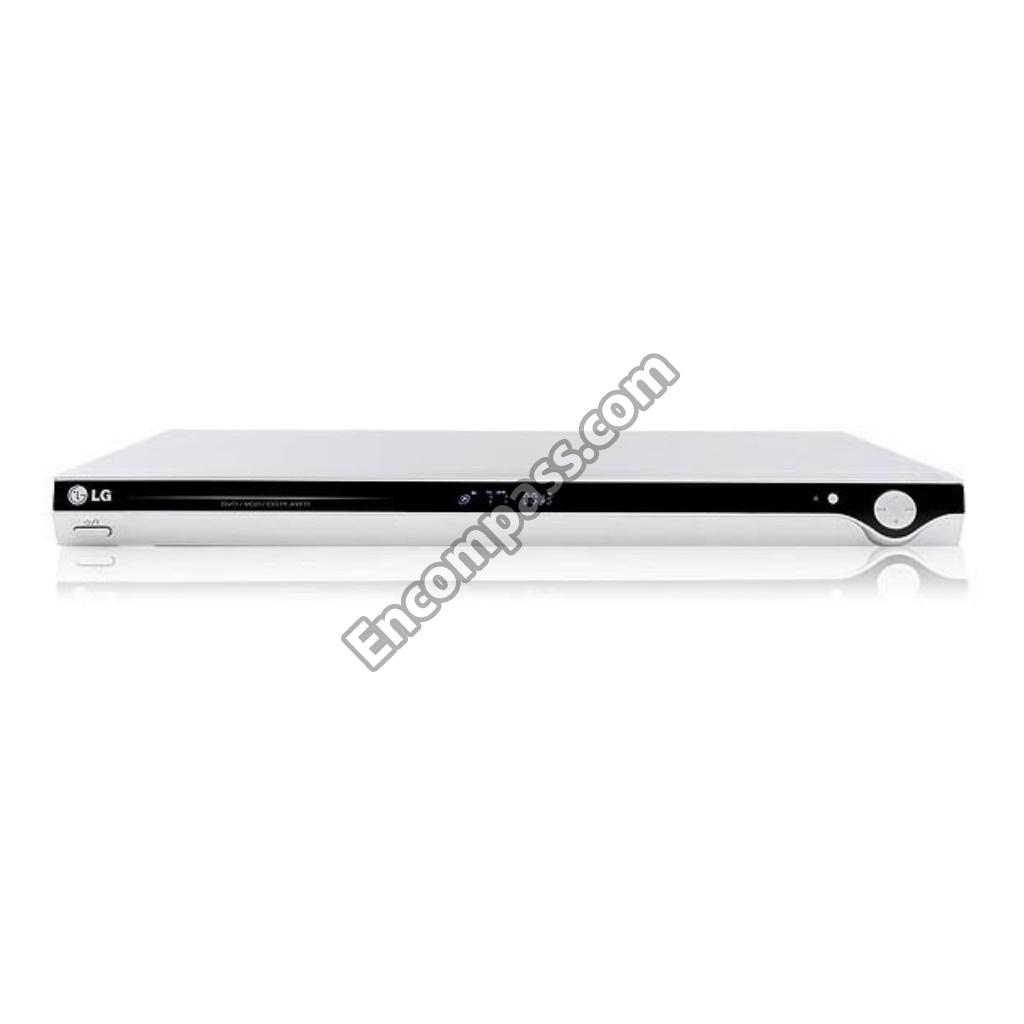

1080i Up-scaling Hdmi Player
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BAG,VINYL [804] |
|
|
BASE ASSEMBLY [A02] |
|
|
BASE ASSEMBLY [A03] |
|
|
BASE [20] |
|
|
BATTERY,MANGANESE [808] |
|
|
BELT [13] |
|
|
BOARD ASSEMBLY [A43] |
|
|
BOX,MASTER [802] |
|
|
BRACKET [262] |
|
|
CABLE,ASSEMBLY [810] |
|
|
CABLE,ASSEMBLY [811] |
|
|
CABLE,ASSEMBLY [812] |
|
|
CABLE,FFC [10] |
|
|
CABLE,FFC [10] |
|
|
CABLE,FFC [CABLE1] |
|
|
CAPACITOR,AL,RADIAL [C109] |
|
|
CAPACITOR,AL,RADIAL [C121] |
|
|
CAPACITOR,AL,RADIAL [C122] |
|
|
CAPACITOR,AL,RADIAL [C123] |
|
|
CAPACITOR,AL,RADIAL [C123] |
|
|
CAPACITOR,AL,RADIAL [C153] |
|
|
CAPACITOR,AL,RADIAL [C154] |
|
|
CAPACITOR,AL,RADIAL [C155] |
|
|
CAPACITOR,AL,RADIAL [C208] |
|
|
CAPACITOR,AL,RADIAL [C209] |
|
|
CAPACITOR,AL,RADIAL [C214] |
|
|
CAPACITOR,AL,RADIAL [C227] |
|
|
CAPACITOR,AL,RADIAL [C686] |
|
|
CAPACITOR,AL,RADIAL [C6E4] |
|
|
CAPACITOR,AL,RADIAL [C6E6] |
|
|
CAPACITOR,AL,RADIAL [C6E7] |
|
|
CAPACITOR,AL,RADIAL [C6E8] |
|
|
CAPACITOR,AL,RADIAL [C7E2] |
|
|
CAPACITOR,CERAMIC,AXIAL [C108] |
|
|
CAPACITOR,CERAMIC,AXIAL [C156] |
|
|
CAPACITOR,CERAMIC,CHIP [C202] |
|
|
CAPACITOR,CERAMIC,CHIP [C203] |
|
|
CAPACITOR,CERAMIC,CHIP [C211] |
|
|
CAPACITOR,CERAMIC,CHIP [C216] |
|
|
CAPACITOR,CERAMIC,CHIP [C602] |
|
|
CAPACITOR,CERAMIC,CHIP [C604] |
|
|
CAPACITOR,CERAMIC,CHIP [C618] |
|
|
CAPACITOR,CERAMIC,CHIP [C619] |
|
|
CAPACITOR,CERAMIC,CHIP [C675] |
|
|
CAPACITOR,CERAMIC,CHIP [C687] |
|
|
CAPACITOR,CERAMIC,CHIP [C713] |
|
|
CAPACITOR,CERAMIC,CHIP [C715] |
|
|
CAPACITOR,CERAMIC,CHIP [C717] |
|
|
CAPACITOR,CERAMIC,CHIP [C719] |
|
|
CAPACITOR,CERAMIC,CHIP [C728] |
|
|
CAPACITOR,CERAMIC,CHIP [C907] |
|
|
CAPACITOR,CERAMIC,RADIAL [C106] |
|
|
CAPACITOR,CERAMIC,RADIAL [C111] |
|
|
CAPACITOR,FILM,BOX [C101] |
|
|
CAPACITOR,FILM,BOX [C101] |
|
|
CAPACITOR,FILM,BOX [C101] |
|
|
CAPACITOR,FILM,DIP [C101] |
|
|
CAPACITOR,FILM,DIP [C105] |
|
|
CAPACITOR,FILM,DIP [C113] |
|
|
CAPACITOR,FILM,DIP [C114] |
|
|
CAPACITOR,FILM,DIP [C128] |
|
|
CAPACITOR,UNCLASSIFIED [C103] |
|
|
CASE [250] |
|
|
CHASSIS [260] |
|
|
CLAMP ASSEMBLY [A01] |
|
|
CLAMP [3] |
|
|
COIL,CHOKE [L121] |
|
|
COIL,RF [L121] |
|
|
CONNECTOR,FFC/FPC/PIC [CN201] |
|
|
CONNECTOR,FFC/FPC/PIC [CN202] |
|
|
CONNECTOR,FFC/FPC/PIC [CN604] |
|
|
CONNECTOR,USB [JK803] |
|
|
CONNECTOR,WAFER [CN603] |
|
|
CONNECTOR,WAFER [CN610] |
|
|
CONNECTOR,WAFER [CN902] |
|
|
CONNECTOR,WAFER [PW101] |
|
|
CRYSTAL [X601] |
|
|
CRYSTAL [X601] |
|
|
DAMPER [012A] |
|
|
DAMPER [12] |
|
|
DAMPER [261] |
|
|
DIODE,RECTIFIER [D101] |
|
|
DIODE,RECTIFIER [D101] |
|
|
DIODE,RECTIFIER [D101] |
|
|
DIODE,RECTIFIER [D104] |
|
|
DIODE,RECTIFIER [D104] |
|
|
DIODE,RECTIFIER [D104] |
|
|
DIODE,RECTIFIER [D105] |
|
|
DIODE,RECTIFIER [D105] |
|
|
DIODE,RECTIFIER [D123] |
|
|
DIODE,RECTIFIER [D123] |
|
|
DIODE,RECTIFIER [D201] |
|
|
DIODE,RECTIFIER [D201] |
|
|
DIODE,SCHOTTKY [D121] |
|
|
DIODE,SWITCHING [D151] |
|
|
DIODE,SWITCHING [D151] |
|
|
DIODE,SWITCHING [D700] |
|
|
DIODE,SWITCHING [D700] |
|
|
DIODE,ZENER [ZD101] |
|
|
DIODE,ZENER [ZD102] |
|
|
DIODE,ZENER [ZD151] |
|
|
DIODE,ZENER [ZD152] |
|
|
DOOR [283] |
|
|
FILTER,BEAD [BC101] |
|
|
FILTER,BEAD [L202] |
|
|
FILTER,BEAD [L612] |
|
|
FILTER,BEAD [L637] |
|
|
FILTER,LINE NOISE [L101] |
|
|
FRAME ASSEMBLY [A44] |
|
|
FRAME [19] |
|
|
GEAR [14] |
|
|
GEAR [17] |
|
|
GEAR [24] |
|
|
GEAR [25] |
|
|
GEAR [30] |
|
|
GUIDE [18] |
|
|
HARNESS,SINGLE [CN903] |
|
|
HARNESS,SINGLE [P101] |
|
|
HARNESS,SINGLE [P8601] |
|
|
HOLDER [276] |
|
|
IC,LDO VOLTAGE REGULATOR [IC103] |
|
|
IC,LED DRIVER [IC901] |
|
|
IC,MOTOR DRIVER [IC201] |
|
|
IC,OP AMPLIFIER [IC703] |
|
|
IC,OP AMPLIFIER [IC703] |
|
|
IC,OP AMPLIFIER [IC703] |
|
|
IC,PWM CONTROLLER [IC101] |
|
|
IC,RESET [IC606] |
|
|
IC,SDRAM [IC603] |
|
|
IC,VIDEO PROCESSORS [IC601] |
|
|
IC,VOLTAGE REGULATOR [IC103] |
|
|
IC,VOLTAGE REGULATOR [IC103] |
|
|
INDUCTOR,MULTILAYER,CHIP [L704] |
|
|
INDUCTOR,MULTILAYER,CHIP [L716] |
|
|
INDUCTOR,WIRE WOUND,RADIAL [L121] |
|
|
JACK,COMPLEX [JK701] |
|
|
JACK,FIBER OPTIC [JK703] |
|
|
LED ASSEMBLY [DG901] |
|
|
LED ASSEMBLY [DG901] |
|
|
MAGNET [2] |
|
|
MOTOR ASSEMBLY,DC [15] |
|
|
OPTION CODE ASSEMBLY [A46] |
|
|
PACKING [803] |
|
|
PANEL ASSEMBLY,FRONT [280] |
|
|
PANEL,REAR [320] |
|
|
PCB ASSEMBLY [16] |
|
|
PCB ASSEMBLY [A41] |
|
|
PCB ASSEMBLY [A42] |
|
|
PCB ASSEMBLY [A49] |
|
|
PCB ASSEMBLY,POWER [A47] |
|
|
PLATE [1] |
|
|
POWER CORD ASSEMBLY [300] |
|
|
POWER CORD ASSEMBLY [300] |
|
|
PRIMARY CELL BATTERY,CARBON ZINC [808] |
|
|
PULLEY [015B] |
|
|

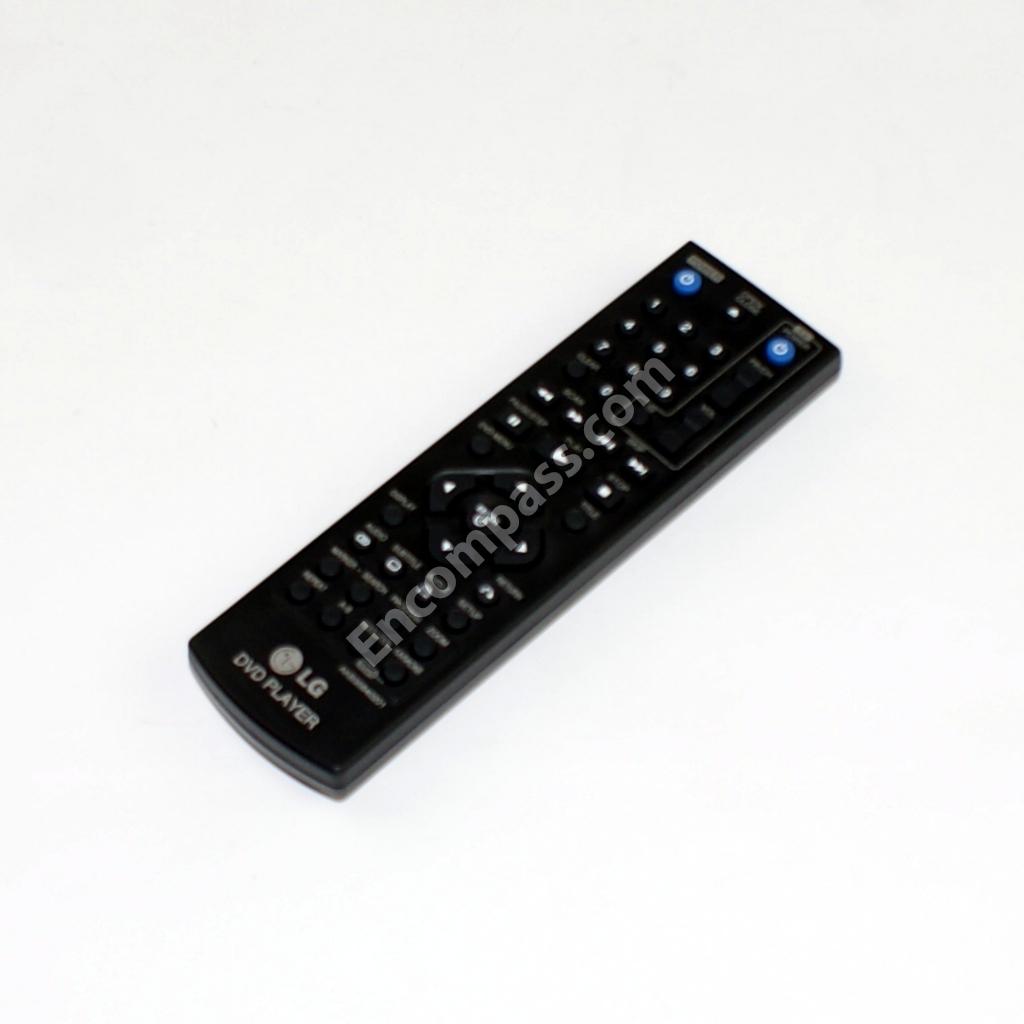

REMOTE CONTROLLER ASSEMBLY [900] |
|
|
RESISTOR,ARRAY [RA701] |
|
|
RESISTOR,CARBON FILM [R105] |
|
|
RESISTOR,CARBON FILM [R121] |
|
|
RESISTOR,CARBON FILM [R123] |
|
|
RESISTOR,CARBON FILM [R124] |
|
|
RESISTOR,CARBON FILM [R125] |
|
|
RESISTOR,CARBON FILM [R130] |
|
|
RESISTOR,CARBON FILM [R140] |
|
|
RESISTOR,CARBON FILM [R151] |
|
|
RESISTOR,CEMENT [FR101] |
|
|
RESISTOR,CHIP [C776] |
|
|
RESISTOR,CHIP [R202] |
|
|
RESISTOR,CHIP [R203] |
|
|
RESISTOR,CHIP [R204] |
|
|
RESISTOR,CHIP [R208] |
|
|
RESISTOR,CHIP [R209] |
|
|
RESISTOR,CHIP [R211] |
|
|
RESISTOR,CHIP [R213] |
|
|
RESISTOR,CHIP [R216] |
|
|
RESISTOR,CHIP [R219] |
|
|
RESISTOR,CHIP [R222] |
|
|
RESISTOR,CHIP [R602] |
|
|
RESISTOR,CHIP [R604] |
|
|
RESISTOR,CHIP [R605] |
|
|
RESISTOR,CHIP [R608] |
|
|
RESISTOR,CHIP [R613] |
|
|
RESISTOR,CHIP [R621] |
|
|
RESISTOR,CHIP [R624] |
|
|
RESISTOR,CHIP [R631] |
|
|
RESISTOR,CHIP [R683] |
|
|
RESISTOR,CHIP [R684] |
|
|
RESISTOR,CHIP [R691] |
|
|
RESISTOR,CHIP [R692] |
|
|
RESISTOR,CHIP [R717] |
|
|
RESISTOR,CHIP [R738] |
|
|
RESISTOR,CHIP [R753] |
|
|
RESISTOR,CHIP [R781] |
|
|
RESISTOR,CHIP [R904] |
|
|
RESISTOR,CHIP [R905] |
|
|
RESISTOR,METAL FILM [R127] |
|
|
RESISTOR,METAL FILM [R128] |
|
|
RESISTOR,METAL OXIDE FILM [R102] |
|
|
RESISTOR,METAL OXIDE FILM [R103] |
|
|
S/W,SYSTEM PROGRAM [IC604A] |
|
|
SCREW,CUSTOMIZED [430] |
|
|
SCREW,CUSTOMIZED [431] |
|
|
SCREW,CUSTOMIZED [432] |
|
|
SCREW,CUSTOMIZED [435] |
|
|
SCREW,CUSTOMIZED [439] |
|
|
SCREW,CUSTOMIZED [440] |
|
|
SCREW,CUSTOMIZED [452] |
|
|
SCREW,CUSTOMIZED [461] |
|
|
SCREW,CUSTOMIZED [462] |
|
|
SCREW,CUSTOMIZED [463] |
|
|
SCREW,CUSTOMIZED [465] |
|
|
SCREW,CUSTOMIZED [467] |
|
|
SENSOR,POSITION [IC102] |
|
|
SENSOR,POSITION [IC102] |
|
|
SHAFT [36] |
|
|
SWITCH,TACT [SW901] |
|
|
SWITCH,TACT [SW901] |
|
|
TR,BIPOLAR [Q121] |
|
|
TR,BIPOLAR [Q121] |
|
|
TR,BIPOLAR [Q121] |
|
|
TR,BIPOLAR [Q122] |
|
|
TR,BIPOLAR [Q122] |
|
|
TR,BIPOLAR [Q123] |
|
|
TR,BIPOLAR [Q123] |
|
|
TR,BIPOLAR [Q124] |
|
|
TR,BIPOLAR [Q124] |
|
|
TR,BIPOLAR [Q201] |
|
|
TR,BIPOLAR [Q201] |
|
|
TR,BIPOLAR [Q201] |
|
|
TR,BIPOLAR [Q203] |
|
|
TR,BIPOLAR [Q601] |
|
|
TR,BIPOLAR [Q705] |
|
|
TR,BIPOLAR [Q705] |
|
|
TR,BIPOLAR [Q705] |
|
|
TRANSFORMER,SWITCHING [T101] |
|
|
TRANSISTOR ASSEMBLY [Q122] |
|
|
TRAY [26] |
|
|
VARISTOR [V101] |
