Model Image
Manufacturer

LG

Model Number

DU42PZ60

Description

Du-42pz60

Interactive Exploded View

Parts List

Part Number Description
4810V00737A 4810V00737A BRACKET [532]
5020V00768A 5020V00768A BUTTON [531]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY [A4]
6631V12040B 6631V12040B CABLE,ASSEMBLY [C11]
6631V12029A 6631V12029A CABLE,ASSEMBLY [C19]
6851V00022B 6851V00022B CABLE,ASSEMBLY [C1]
6851V00022D 6851V00022D CABLE,ASSEMBLY [C2]
6631V10004C 6631V10004C CABLE,FFC [C10]
6631V10004A 6631V10004A CABLE,FFC [C6]
0CE105VK6DC 0CE105VK6DC CAPACITOR,AL,CHIP [C102]
0CE226VF6DC 0CE226VF6DC CAPACITOR,AL,CHIP [C107]
0CE226SF6DC 0CE226SF6DC CAPACITOR,AL,CHIP [C109]
0CE476VK6DC 0CE476VK6DC CAPACITOR,AL,CHIP [C109]
0CE477VF6DC 0CE477VF6DC CAPACITOR,AL,CHIP [C1105]
0CE476VF6DC 0CE476VF6DC CAPACITOR,AL,CHIP [C110]
0CE476SF6DC 0CE476SF6DC CAPACITOR,AL,CHIP [C110]
0CE107SF6DC 0CE107SF6DC CAPACITOR,AL,CHIP [C113]
0CE106VF6DC 0CE106VF6DC CAPACITOR,AL,CHIP [C122]
0CE475VK6DC 0CE475VK6DC CAPACITOR,AL,CHIP [C122]
0CE335VK6DC 0CE335VK6DC CAPACITOR,AL,CHIP [C144]
0CE225VK6DC 0CE225VK6DC CAPACITOR,AL,CHIP [C146]
0CE227VF6DC 0CE227VF6DC CAPACITOR,AL,CHIP [C1834]
0CE107VF6DC 0CE107VF6DC CAPACITOR,AL,CHIP [C183]
0CE107VH6DC 0CE107VH6DC CAPACITOR,AL,CHIP [C185]
0CE4763F618 0CE4763F618 CAPACITOR,AL,RADIAL [C002]
0CE108DK61A 0CE108DK61A CAPACITOR,AL,RADIAL [C101]
0CE227DK618 0CE227DK618 CAPACITOR,AL,RADIAL [C1117]
0CH4101K416 0CH4101K416 CAPACITOR,CERAMIC,CHIP [C001]
0CH2103K516 0CH2103K516 CAPACITOR,CERAMIC,CHIP [C100]
0CH3104K566 0CH3104K566 CAPACITOR,CERAMIC,CHIP [C101]
0CH5100K416 0CH5100K416 CAPACITOR,CERAMIC,CHIP [C101]
0CH5220K416 0CH5220K416 CAPACITOR,CERAMIC,CHIP [C107]
0CH2334F566 0CH2334F566 CAPACITOR,CERAMIC,CHIP [C1103]
0CH5821K416 0CH5821K416 CAPACITOR,CERAMIC,CHIP [C126]
0CH5120K416 0CH5120K416 CAPACITOR,CERAMIC,CHIP [C127]
0CH5470K416 0CH5470K416 CAPACITOR,CERAMIC,CHIP [C128]
0CH2474F566 0CH2474F566 CAPACITOR,CERAMIC,CHIP [C140]
0CH5271K416 0CH5271K416 CAPACITOR,CERAMIC,CHIP [C142]
0CH2332K516 0CH2332K516 CAPACITOR,CERAMIC,CHIP [C143]
0CH2102K516 0CH2102K516 CAPACITOR,CERAMIC,CHIP [C1812]
0CN105EJ56A 0CN105EJ56A CAPACITOR,CERAMIC,CHIP [C1862]
0CH5331K416 0CH5331K416 CAPACITOR,CERAMIC,CHIP [C1931]
0CH2473K516 0CH2473K516 CAPACITOR,CERAMIC,CHIP [C210]
0CK684DF56A 0CK684DF56A CAPACITOR,CERAMIC,CHIP [C301]
0CH5102K416 0CH5102K416 CAPACITOR,CERAMIC,CHIP [C302]
0CH5030K116 0CH5030K116 CAPACITOR,CERAMIC,CHIP [C305]
0CH2822K516 0CH2822K516 CAPACITOR,CERAMIC,CHIP [C342]
0CK823DK56A 0CK823DK56A CAPACITOR,CERAMIC,CHIP [C343]
0CH5471K416 0CH5471K416 CAPACITOR,CERAMIC,CHIP [C383]
0CH5270K416 0CH5270K416 CAPACITOR,CERAMIC,CHIP [C535]
0CH2472K516 0CH2472K516 CAPACITOR,CERAMIC,CHIP [C606]
0CH5820K416 0CH5820K416 CAPACITOR,CERAMIC,CHIP [C834]
0CH5561K416 0CH5561K416 CAPACITOR,CERAMIC,CHIP [C885]
0CH5221K416 0CH5221K416 CAPACITOR,CERAMIC,CHIP [C905]
0CH5150K416 0CH5150K416 CAPACITOR,CERAMIC,CHIP [C913]
0CH2152K516 0CH2152K516 CAPACITOR,CERAMIC,CHIP [C932]
0CH2122K516 0CH2122K516 CAPACITOR,CERAMIC,CHIP [C946]
0CH2222K516 0CH2222K516 CAPACITOR,CERAMIC,CHIP [C972]
0CH5560K416 0CH5560K416 CAPACITOR,CERAMIC,CHIP [C989]
0CH5020K116 0CH5020K116 CAPACITOR,CERAMIC,CHIP [C991]
181-120K 181-120K CAPACITOR,CERAMIC,RADIAL [C103]
0CK5610K515 0CK5610K515 CAPACITOR,CERAMIC,RADIAL [C182]
0CQ1041N509 0CQ1041N509 CAPACITOR,FILM,DIP [C190]
0CH7226F652 0CH7226F652 CAPACITOR,TA,NIOBIUM [C540]
3141VSNB49D 3141VSNB49D CHASSIS ASSEMBLY [600]
6140VB0004B 6140VB0004B COIL,CHOKE [L120]
6630VGA001C 6630VGA001C CONNECTOR,DSUB [JK101]
6630GZ00724 6630GZ00724 CONNECTOR,DSUB [JK103]
6630VGA004B 6630VGA004B CONNECTOR,DSUB [JK111]
6630VE00731 6630VE00731 CONNECTOR,FFC/FPC/PIC [P102]
6612JH003EB 6612JH003EB CONNECTOR,TERMINAL [JK113]
366-921J 366-921J CONNECTOR,WAFER [P100]
366-922L 366-922L CONNECTOR,WAFER [P101]
366-921G 366-921G CONNECTOR,WAFER [P101]
6602T11001A 6602T11001A CONNECTOR,WAFER [P101]
366-921E 366-921E CONNECTOR,WAFER [P104]
366-932E 366-932E CONNECTOR,WAFER [P105]
366-932C 366-932C CONNECTOR,WAFER [P105]
366-922C 366-922C CONNECTOR,WAFER [P107]
366-932B 366-932B CONNECTOR,WAFER [P201]
366-921L 366-921L CONNECTOR,WAFER [P701]
6602V39003A 6602V39003A CONNECTOR,WAFER [P801]
366-922J 366-922J CONNECTOR,WAFER [P900A]
366-921F 366-921F CONNECTOR,WAFER [P908]
3091V00543C 3091V00543C COVER ASSEMBLY [300]
3809V00352J 3809V00352J COVER ASSEMBLY [400]
6212AB2015E 6212AB2015E CRYSTAL [X100]
6202VDT002E 6202VDT002E CRYSTAL [X300]
6212AB2015A 6212AB2015A CRYSTAL [X801]
6212AB2015B 6212AB2015B CRYSTAL [X802]
6202VDT002D 6202VDT002D CRYSTAL [X901]
6202VDT002H 6202VDT002H CRYSTAL [X902]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D101]
0DD226239AA 0DD226239AA DIODE,SWITCHING [D101]
0DR050008AA 0DR050008AA DIODE,TVS [ZD101]
0DZRM00178A 0DZRM00178A DIODE,ZENER [ZD801]
0DZ820009AH 0DZ820009AH DIODE,ZENER [ZD902]
0TR830009BA 0TR830009BA FET [Q500]
5230V00019B 5230V00019B FILTER [305]
6200JB8009T 6200JB8009T FILTER,AC LINE [F1]
6210VC0006A 6210VC0006A FILTER,BEAD [L1002]
6210VC0005A 6210VC0005A FILTER,BEAD [L101]
6200JB8010L 6200JB8010L FILTER,BEAD [R102]
6210VH0004A 6210VH0004A FILTER,FERRITE CORE [F2]
6210VH0004B 6210VH0004B FILTER,FERRITE CORE [F3]
6200C000012 6200C000012 FILTER,LCR [IC301]
6200VKR002A 6200VKR002A FILTER,LCR [IC311]
6200C000009 6200C000009 FILTER,LCR [LT801]
6200C000010 6200C000010 FILTER,LCR [LT803]
6200VJS001A 6200VJS001A FILTER,LINE NOISE [F101]
6200VJS001B 6200VJS001B FILTER,LINE NOISE [F102]
6871QRH030A 6871QRH030A HAND INSERT PCB ASSEMBLY [201]
6871QLH029A 6871QLH029A HAND INSERT PCB ASSEMBLY [202]
6871QZH029A 6871QZH029A HAND INSERT PCB ASSEMBLY [203]
6871QDH054A 6871QDH054A HAND INSERT PCB ASSEMBLY [204]
6871QDH055A 6871QDH055A HAND INSERT PCB ASSEMBLY [205]
6871QRH031A 6871QRH031A HAND INSERT PCB ASSEMBLY [206]
6871QLH030A 6871QLH030A HAND INSERT PCB ASSEMBLY [207]
6871QCH035A 6871QCH035A HAND INSERT PCB ASSEMBLY [208]
6871QYH025A 6871QYH025A HAND INSERT PCB ASSEMBLY [209]
6871QEH017A 6871QEH017A HAND INSERT PCB ASSEMBLY [210]
6631V39018A 6631V39018A HARNESS,MULTI [C23]
387-G06A 387-G06A HARNESS,SINGLE [C12]
387-J10H 387-J10H HARNESS,SINGLE [C13]
387-J12M 387-J12M HARNESS,SINGLE [C14]
387-J08J 387-J08J HARNESS,SINGLE [C16]
6631V00020C 6631V00020C HARNESS,SINGLE [C18]
6631V25083E 6631V25083E HARNESS,SINGLE [C20]
6631V25084E 6631V25084E HARNESS,SINGLE [C21]
6631V39013F 6631V39013F HARNESS,SINGLE [C22]
387-J04H 387-J04H HARNESS,SINGLE [C3]
387-J08A 387-J08A HARNESS,SINGLE [C4]
387-J10A 387-J10A HARNESS,SINGLE [C5]
6631V25085F 6631V25085F HARNESS,SINGLE [C7]
6631V00020E 6631V00020E HARNESS,SINGLE [C8]
387-J10B 387-J10B HARNESS,SINGLE [C9]
387-G03C 387-G03C HARNESS,SINGLE [P903]
0IZZVA0095A 0IZZVA0095A IC ASSEMBLY [IC902]
0IPRPAD008B 0IPRPAD008B IC,A/D CONVERTER [IC308]
0ISO206900A 0ISO206900A IC,ANALOG SWITCH [IC803]
0ICTMLG013A 0ICTMLG013A IC,ASIC [IC203]
0IMCRPH026B 0IMCRPH026B IC,BUFFER [IC201]
0IMCRCY002A 0IMCRCY002A IC,BUFFER [IC211]
0IPH741400E 0IPH741400E IC,CMOS [IC106]
0ITO741570C 0ITO741570C IC,CMOS [IC601]
0IMO140530D 0IMO140530D IC,CMOS [IC802]
0IMCRTI001A 0IMCRTI001A IC,CMOS [IC901]
0ITK118100B 0ITK118100B IC,DC,DC CONVERTER [IC104]
0IAL242110A 0IAL242110A IC,EEPROM [IC101]
0IAL242561B 0IAL242561B IC,EEPROM [IC200]
0IMCRAL006A 0IMCRAL006A IC,EEPROM [IC903]
0IMCRSO008A 0IMCRSO008A IC,GRAPHIC CONTROLLER [IC801]
0IMCRRH001A 0IMCRRH001A IC,LDO VOLTAGE REGULATOR [IC101]
0IMCRSJ001A 0IMCRSJ001A IC,LDO VOLTAGE REGULATOR [IC102]
0IPMGKE030A 0IPMGKE030A IC,LDO VOLTAGE REGULATOR [IC103]
0IPRPML001A 0IPRPML001A IC,LDO VOLTAGE REGULATOR [IC702]
0IMCRSS016A 0IMCRSS016A IC,MICROPROCESSORS [IC100]
0IMMRAL016A 0IMMRAL016A IC,NOR FLASH MEMORY [IC101]
0IMCRXL004A 0IMCRXL004A IC,PLD [IC210]
0ISA428200A 0ISA428200A IC,POWER AMPLIFIER [IC107]
0ICTMLG014A 0ICTMLG014A IC,RECEIVER [IC106]
0IMCRS5003B 0IMCRS5003B IC,RECEIVER [IC500]
0ICB841500D 0ICB841500D IC,RECEIVER [IC600]
0IMMRSS041G 0IMMRSS041G IC,SDRAM [IC103]
0IMCRMN012A 0IMCRMN012A IC,SOUND/AUDIO PROCESSOR [IC904]
0IMCRSG010A 0IMCRSG010A IC,TRANSCEIVER [IC202]
0IMCRFA014A 0IMCRFA014A IC,TTL [IC602]
0IPH740800H 0IPH740800H IC,TTL [IC815]
0ILNRMN005A 0ILNRMN005A IC,VIDEO DECODE [IC305]
0IMMRNE002B 0IMMRNE002B IC,VIDEO PROCESSORS [IC804]
0IKE704200J 0IKE704200J IC,VOLTAGE DETECTOR [IC905]
0IMCRFA010A 0IMCRFA010A IC,VOLTAGE REGULATOR [IC908]
0LC1032101A 0LC1032101A INDUCTOR,MULTILAYER,CHIP [L001]
0LC6832101A 0LC6832101A INDUCTOR,MULTILAYER,CHIP [L101]
0LCML00019A 0LCML00019A INDUCTOR,MULTILAYER,CHIP [L102]
0LC6461201A 0LC6461201A INDUCTOR,MULTILAYER,CHIP [L113]
0LC2232101A 0LC2232101A INDUCTOR,MULTILAYER,CHIP [L507]
0LC4732101A 0LC4732101A INDUCTOR,MULTILAYER,CHIP [L806]
0LCML00005A 0LCML00005A INDUCTOR,MULTILAYER,CHIP [L810]
0LC3332101A 0LC3332101A INDUCTOR,MULTILAYER,CHIP [L903]
0LC1020101A 0LC1020101A INDUCTOR,MULTILAYER,CHIP [L907]
6613V00004S 6613V00004S JACK,COMPLEX [JK101]
380-363G 380-363G JACK,DIN [JK110]
6612BBBHN4E 6612BBBHN4E JACK,FIBER OPTIC [JK104]
6612BBBHN4D 6612BBBHN4D JACK,FIBER OPTIC [JK105]
380-068E 380-068E JACK,PHONE [JK102]
6612VJH019B 6612VJH019B JACK,RCA [JK107]
6612VJH020C 6612VJH020C JACK,RCA [JK108]
6612VJH020B 6612VJH020B JACK,RCA [JK109]
0DL200000CA 0DL200000CA LED,DIP [LD001]
3828VA0434A 3828VA0434A MANUAL [A1]
6204B47985K 6204B47985K OSCILLATOR,CRYSTAL [X101]
6204B60001B 6204B60001B OSCILLATOR,VCXO [X200]
6871VMMF04A 6871VMMF04A PCB ASSEMBLY,MAIN [520]
6871VSMF01C 6871VSMF01C PCB ASSEMBLY,SUB [521]
6871VSMF08A 6871VSMF08A PCB ASSEMBLY,SUB [530]
6871VSMF02B 6871VSMF02B PCB ASSEMBLY,SUB [540]
6871VSMF03A 6871VSMF03A PCB ASSEMBLY,SUB [550]
6871VSMF04A 6871VSMF04A PCB ASSEMBLY,SUB [570]
6348Q-E041M 6348Q-E041M PDP,MODULE-XGA [200]
3301V00017C 3301V00017C PLATE ASSEMBLY [401]
4814V00407A 4814V00407A PLATE [522]
4814V00408A 4814V00408A PLATE [525]
4814V00418A 4814V00418A PLATE [582]
3501V00164A 3501V00164A POWER SUPPLY ASSEMBLY [580]
6726VH0001A 6726VH0001A RECEIVER MODULE [PA001]

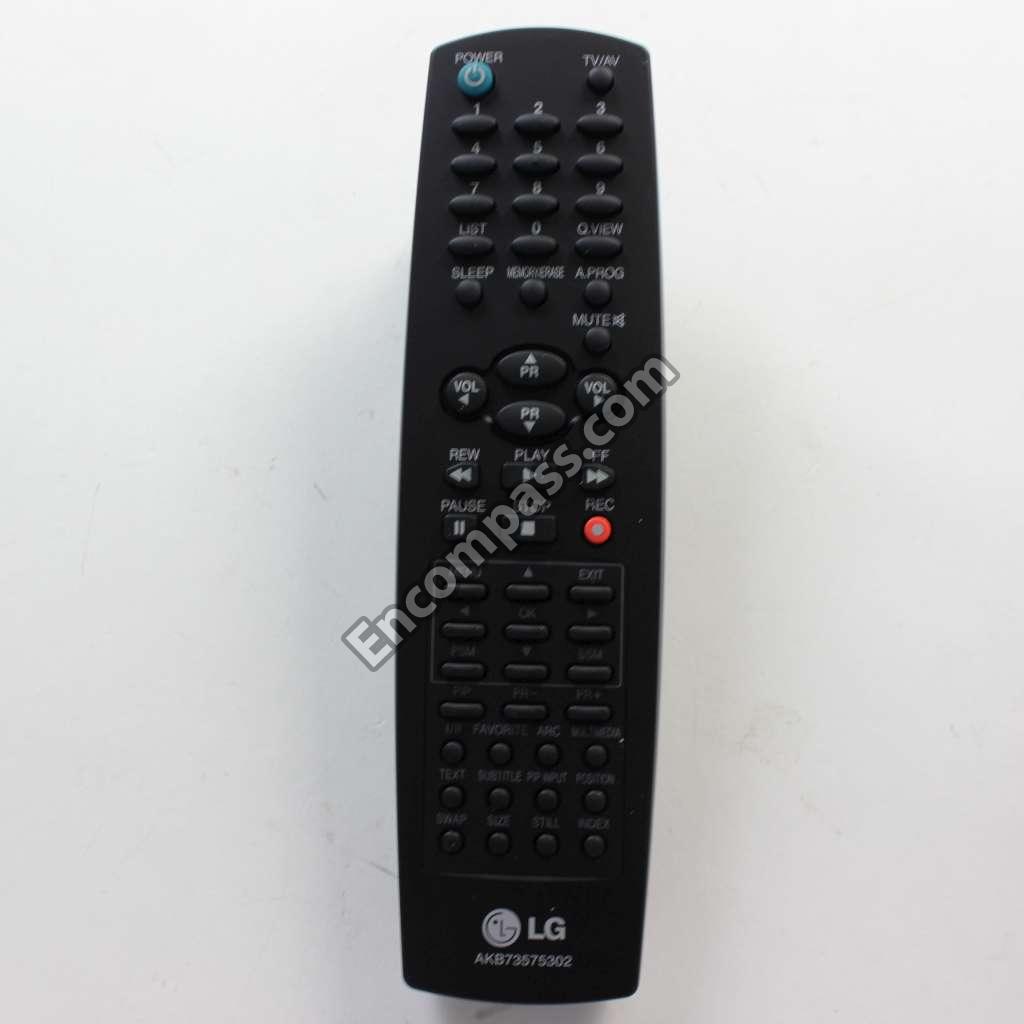

AKB73575302 AKB73575302 REMOTE CONTROLLER [A2]
0RJ4701C687 0RJ4701C687 RESISTOR,ARRAY [AR100]
0RJ0222C687 0RJ0222C687 RESISTOR,ARRAY [AR101]
0RJ0512C687 0RJ0512C687 RESISTOR,ARRAY [AR105]
0RD4700H609 0RD4700H609 RESISTOR,CARBON FILM [R105]
0RH0000D622 0RH0000D622 RESISTOR,CHIP [J1]
0RH1201D622 0RH1201D622 RESISTOR,CHIP [L103]
0RH2200D622 0RH2200D622 RESISTOR,CHIP [R004]
0RH6800D622 0RH6800D622 RESISTOR,CHIP [R005]
0RH2001D622 0RH2001D622 RESISTOR,CHIP [R007]
0RH4701D622 0RH4701D622 RESISTOR,CHIP [R008]
0RH0222D622 0RH0222D622 RESISTOR,CHIP [R100]
0RH0472D622 0RH0472D622 RESISTOR,CHIP [R101]
0RH1000D622 0RH1000D622 RESISTOR,CHIP [R101]
0RH1002D622 0RH1002D622 RESISTOR,CHIP [R102]
0RH0102D622 0RH0102D622 RESISTOR,CHIP [R103]
0RH0822D622 0RH0822D622 RESISTOR,CHIP [R106]
0RH1202D622 0RH1202D622 RESISTOR,CHIP [R119]
0RH4700D622 0RH4700D622 RESISTOR,CHIP [R120]
0RH6200D622 0RH6200D622 RESISTOR,CHIP [R124]
0RH2701D622 0RH2701D622 RESISTOR,CHIP [R125]
0RH8203D622 0RH8203D622 RESISTOR,CHIP [R126]
0RH1302D622 0RH1302D622 RESISTOR,CHIP [R127]
0RH1102D622 0RH1102D622 RESISTOR,CHIP [R127]
0RH3901D622 0RH3901D622 RESISTOR,CHIP [R128]
0RH3001D622 0RH3001D622 RESISTOR,CHIP [R144]
0RH5100D622 0RH5100D622 RESISTOR,CHIP [R156]
0RH5101D622 0RH5101D622 RESISTOR,CHIP [R161]
0RH3300D622 0RH3300D622 RESISTOR,CHIP [R1805]
0RH1501D622 0RH1501D622 RESISTOR,CHIP [R1807]
0RH0752D622 0RH0752D622 RESISTOR,CHIP [R1809]
0RH3600D622 0RH3600D622 RESISTOR,CHIP [R1817]
0RH4703D622 0RH4703D622 RESISTOR,CHIP [R1822]
0RH3302D622 0RH3302D622 RESISTOR,CHIP [R1828]
0RH5600D622 0RH5600D622 RESISTOR,CHIP [R1831]
0RH3000D622 0RH3000D622 RESISTOR,CHIP [R1832]
0RH0682D622 0RH0682D622 RESISTOR,CHIP [R1833]
0RH1801D622 0RH1801D622 RESISTOR,CHIP [R1835]
0RH3301D622 0RH3301D622 RESISTOR,CHIP [R1836]
0RH8200D622 0RH8200D622 RESISTOR,CHIP [R1837]
0RH4702D622 0RH4702D622 RESISTOR,CHIP [R1841]
0RH2203D622 0RH2203D622 RESISTOR,CHIP [R1842]
0RH2201D622 0RH2201D622 RESISTOR,CHIP [R1846]
0RH2700D622 0RH2700D622 RESISTOR,CHIP [R1847]
0RH5601D622 0RH5601D622 RESISTOR,CHIP [R1869]
0RH0432D622 0RH0432D622 RESISTOR,CHIP [R1911]
0RH6201D622 0RH6201D622 RESISTOR,CHIP [R227]
0RH6202D622 0RH6202D622 RESISTOR,CHIP [R238]
0RH1602D622 0RH1602D622 RESISTOR,CHIP [R271]
0RH4300D622 0RH4300D622 RESISTOR,CHIP [R359]
0RH3900D622 0RH3900D622 RESISTOR,CHIP [R430]
0RH7500D622 0RH7500D622 RESISTOR,CHIP [R539]
0RH0332D622 0RH0332D622 RESISTOR,CHIP [R555]
0RH1502D622 0RH1502D622 RESISTOR,CHIP [R812]
0RH6801D622 0RH6801D622 RESISTOR,CHIP [R813]
0RH1004D622 0RH1004D622 RESISTOR,CHIP [R920]
0RN1002F409 0RN1002F409 RESISTOR,METAL FILM [R855]
0RS0202K607 0RS0202K607 RESISTOR,METAL OXIDE FILM [R742]
4980V00718A 4980V00718A SUPPORTER [301]
4980V00719A 4980V00719A SUPPORTER [302]
4980V00720A 4980V00720A SUPPORTER [303]
4980V00721A 4980V00721A SUPPORTER [304]
4980V00963A 4980V00963A SUPPORTER [410]
4980V00853A 4980V00853A SUPPORTER [411]
4980V00641A 4980V00641A SUPPORTER [523]
4980V00642C 4980V00642C SUPPORTER [524]
4980V00723B 4980V00723B SUPPORTER [551]
4980V00982B 4980V00982B SUPPORTER [552]
6600VM2006A 6600VM2006A SWITCH,PUSH BUTTON [S1]
140-315F 140-315F SWITCH,TACT [SW001]
6600VR1004A 6600VR1004A SWITCH,TACT [SW100]
0IMCRS2001A 0IMCRS2001A TELECOMMUNICATION CIRCUIT [IC501]
0TR102008AA 0TR102008AA TR,BIPOLAR [Q100]
EBK58172301 EBK58172301 TR,BIPOLAR [Q103]
0TRKE80038A 0TRKE80038A TR,BIPOLAR [Q104]
0TR102009AG 0TR102009AG TR,BIPOLAR [Q815]
6700NFNS04F 6700NFNS04F TUNER,ANALOG/DIGITAL [TU101]
6634D00002B 6634D00002B TUNER,RF MODULATOR [T1]
3720V00237A 3720V00237A VFD [581]
0ICTMLG009D 0ICTMLG009D VIDEO IC [IC400]
Main Menu x
