Manufacturer

Model Number

FB163A0P

Description

Fb163-a0p

Interactive Exploded View

Parts List

Part Number	Description
EAA62667401	ANTENNA,LOOP [824]
EAA62667301	ANTENNA,T [825]
MAC34818401	ARM [8]
3880SCS001E	BAG [804]
AAN37038501	BASE ASSEMBLY [A30]
MAM34818201	BASE [16]
841N0015	BATTERY,MANGANESE [808]
MAS34822001	BELT [10]
AAX37038101	BOARD ASSEMBLY [35]
MAZ40257501	BRACKET [265]
MAZ34974101	BRACKET [3]
6850R-PAA8H	CABLE,ASSEMBLY [811]
EAD42342603	CABLE,FFC [035A]
EAD39264002	CABLE,FFC [33]
EAD35665105	CABLE,FFC [CABLE1]
EAD42742301	CABLE,FFC [CABLE2]
0CE107SF6DC	CAPACITOR,AL,CHIP [C101]
0CH8227D611	CAPACITOR,AL,CHIP [C149]
0CH8106F611	CAPACITOR,AL,CHIP [C205]
0CH8476F611	CAPACITOR,AL,CHIP [C230]
0CH8227C621	CAPACITOR,AL,CHIP [C242]
0CH8226C621	CAPACITOR,AL,CHIP [C445]
0CH8476C611	CAPACITOR,AL,CHIP [C573]
0CE477VD6DC	CAPACITOR,AL,CHIP [C7A3]
0CE1073F638	CAPACITOR,AL,RADIAL [C302]
0CE4766K618	CAPACITOR,AL,RADIAL [C318]
0CE4763F638	CAPACITOR,AL,RADIAL [C347]
0CE108AK610	CAPACITOR,AL,RADIAL [C703]
0CE1066K618	CAPACITOR,AL,RADIAL [C903]
EAE30400901	CAPACITOR,AL,RADIAL [C905]
0CE4776F638	CAPACITOR,AL,RADIAL [C922]
0CE3376F618	CAPACITOR,AL,RADIAL [C932]
0CE108BF630	CAPACITOR,AL,RADIAL [C945]
0CE1056K618	CAPACITOR,AL,RADIAL [C946]
0CE1076F638	CAPACITOR,AL,RADIAL [C949]
0CE228EK650	CAPACITOR,AL,RADIAL [C950]
0CE108EH610	CAPACITOR,AL,RADIAL [C970]
0CE1076K618	CAPACITOR,AL,RADIAL [C971]
0CN1040K949	CAPACITOR,CERAMIC,AXIAL [C923]
0CK104CKG6A	CAPACITOR,CERAMIC,CHIP [C100]
0CH1101K965	CAPACITOR,CERAMIC,CHIP [C117]
0CH1103K562	CAPACITOR,CERAMIC,CHIP [C120]
0CH4220K412	CAPACITOR,CERAMIC,CHIP [C148]
0CH4330K412	CAPACITOR,CERAMIC,CHIP [C151]
0CH1102K512	CAPACITOR,CERAMIC,CHIP [C221]
0CH1222K562	CAPACITOR,CERAMIC,CHIP [C251]
0CH1104K566	CAPACITOR,CERAMIC,CHIP [C301]
0CH4101K416	CAPACITOR,CERAMIC,CHIP [C313]
0CH1471K516	CAPACITOR,CERAMIC,CHIP [C317]
0CH1473K566	CAPACITOR,CERAMIC,CHIP [C319]
0CH1103K566	CAPACITOR,CERAMIC,CHIP [C339]
0CH4470K416	CAPACITOR,CERAMIC,CHIP [C343]
0CH1474K562	CAPACITOR,CERAMIC,CHIP [C409]
0CH1473K942	CAPACITOR,CERAMIC,CHIP [C419]
0CH1681K562	CAPACITOR,CERAMIC,CHIP [C501]
0CK154CK94A	CAPACITOR,CERAMIC,CHIP [C507]
0CH4200K412	CAPACITOR,CERAMIC,CHIP [C527]
0CH1223K562	CAPACITOR,CERAMIC,CHIP [C530]
0CH1472K562	CAPACITOR,CERAMIC,CHIP [C544]
0CH1333K566	CAPACITOR,CERAMIC,CHIP [C710]
0CH1224K946	CAPACITOR,CERAMIC,CHIP [C711]
0CH1331K516	CAPACITOR,CERAMIC,CHIP [C712]
EAE37475001	CAPACITOR,CERAMIC,CHIP [C716]
0CH1105K946	CAPACITOR,CERAMIC,CHIP [C744]
0CH4470K412	CAPACITOR,CERAMIC,CHIP [C784]
0CH1331K412	CAPACITOR,CERAMIC,CHIP [C792]
0CH1225F946	CAPACITOR,CERAMIC,CHIP [C7H0]
EAE42617201	CAPACITOR,CERAMIC,RADIAL [C902]
0CG2220U630	CAPACITOR,CERAMIC,RADIAL [C902]
EAE42618801	CAPACITOR,CERAMIC,RADIAL [C906]
624-087A	CAPACITOR,CERAMIC,RADIAL [C916]
0CQ1031Y519	CAPACITOR,FILM,DIP [C907]
0CQ1041N409	CAPACITOR,FILM,DIP [C910]
0CQ4711N449	CAPACITOR,FILM,DIP [C911]
0CQ1021N409	CAPACITOR,FILM,DIP [C915]
0CQ1031N409	CAPACITOR,FILM,DIP [C919]
624-088L	CAPACITOR,FILM,DIP [CM901]
MBS40256601	CHASSIS [272]
MBU34816901	CLAMP [1]
633-088G	COIL,CHOKE [L943]
6140RCC008A	COIL,RF [L701]
561-7073	CONNECTOR,FFC/FPC/PIC [P3101]
6630XF00429	CONNECTOR,FFC/FPC/PIC [PN101]
561-707L	CONNECTOR,FFC/FPC/PIC [PN301]
6630XE00109	CONNECTOR,FFC/FPC/PIC [PN3A1]
EAG32731602	CONNECTOR,FFC/FPC/PIC [PN3A2]
6630XE00123	CONNECTOR,FFC/FPC/PIC [PN4401]
6630XE00105	CONNECTOR,FFC/FPC/PIC [PN4402]
6630XE00204	CONNECTOR,FFC/FPC/PIC [PN4403]
EAG42342401	CONNECTOR,I/O [JK3C1]
6640000071B	CONNECTOR,TERMINAL BLOCK [JK701]
6630S70048B	CONNECTOR,USB [JK303]
561-711L	CONNECTOR,WAFER [CN202]
561-7150	CONNECTOR,WAFER [P9701]
561-711H	CONNECTOR,WAFER [P9702]
561-292B	CONNECTOR,WAFER [P9900]
561-661B	CONNECTOR,WAFER [PN100]
561-715D	CONNECTOR,WAFER [PN205]
6630R3S006L	CONNECTOR,WAFER [PN2301]
561-712L	CONNECTOR,WAFER [PN3C1]
ACQ52705701	COVER ASSEMBLY [A80L]
ACQ52705801	COVER ASSEMBLY [A80R]
6212AB2327X	CRYSTAL [X100]
EAW32918901	CRYSTAL [X101]
EAW32919201	CRYSTAL [X501]
EAW32919901	CRYSTAL [X701]
5040R-0110A	DAMPER [24]
MCQ54165301	DAMPER [25]
AFP34979601	DECK MECHANISM PARTS [21]
MCR42210105	DECOR [253]
MCR40257101	DECOR [255]
MCR39962501	DECOR [861]
0DRTW00180B	DIODE,BRIDGE [BD901]
0DRTW00268A	DIODE,RECTIFIER [D101]
0DR104009AB	DIODE,RECTIFIER [D301]
0DRGF00239A	DIODE,RECTIFIER [D903]
0DR104009BA	DIODE,RECTIFIER [D903]
0DD010009CA	DIODE,RECTIFIER [D908]
0DRVH00020A	DIODE,RECTIFIER [D940]
0DSTW00010A	DIODE,RECTIFIER [D941]
0DR202000AB	DIODE,RECTIFIER [D945]
0DSTW00030A	DIODE,SCHOTTKY [D943]
0DSGF00030A	DIODE,SCHOTTKY [D943]
0DSDI00090A	DIODE,SCHOTTKY [D943]
0DRRE00083A	DIODE,SCHOTTKY [D953]
0DD160009AB	DIODE,SWITCHING [D105]
0DD133009AB	DIODE,SWITCHING [D904]
EAH38080101	DIODE,SWITCHING [D909]
0DZPH00069A	DIODE,ZENER [D103]
0DZPH00048A	DIODE,ZENER [ZD107]
0DZPC00193A	DIODE,ZENER [ZD901]
0DZ270009BC	DIODE,ZENER [ZD901]
0DZSE00134A	DIODE,ZENER [ZD902]
0DZSE00224A	DIODE,ZENER [ZD905]
0DZ910009AG	DIODE,ZENER [ZD905]
0DZSE00054A	DIODE,ZENER [ZD906]
0DZSE00164A	DIODE,ZENER [ZD990]
MCZ30292001	DUCT [856]
MCZ41913801	DUCT [857]
5900R-D010C	FAN MODULE [262]
0TRRH80042A	FET [Q401]
0LCCE00005N	FILTER,BEAD [FB700]
636-004C	FILTER,BEAD [FB901]
0LC11608C01	FILTER,BEAD [L201]
6200J000039	FILTER,LINE NOISE [CF3C1]
MDP30320001	FOOT [274]
MDP47178201	FOOT [863]
MDP47178401	FOOT [864]
ADV36030901	FRAME ASSEMBLY [A44]
0FS8001B51B	FUSE,TIME DELAY [F901]
MDT34821901	GEAR [11]
MDT34821801	GEAR [12]
MDT34821701	GEAR [14]
4470R-0180A	GEAR [30]
4470R-0178A	GEAR [31]
4470R-0179A	GEAR [32]
MDX39962601	GRILLE [862]
MEA34817601	GUIDE [6]
EAD42218201	HARNESS,SINGLE [9701]
EAD42744304	HARNESS,SINGLE [CABLE3]
EAD42744901	HARNESS,SINGLE [CN101]
EAD42743301	HARNESS,SINGLE [CN302]
EAD44367601	HARNESS,SINGLE [CN3201]
4930R-0506A	HOLDER [273]
4930RC0033A	HOLDER [276]
EAN40076401	IC,A/D CONVERTER [IC201]
EAN35369601	IC,EEPROM [IC103]
0IMMRSE002A	IC,EEPROM [IC504]
0IPMG00044A	IC,HIC [IC901]
0IPMG00042A	IC,HIC [IC902]
0IPRP00732A	IC,KEYBOARD CONTROLLER [IC304]
0IPMGUC005A	IC,LDO VOLTAGE REGULATOR [IC301]
0IPMGUC004B	IC,LDO VOLTAGE REGULATOR [IC942]
0IKE781200S	IC,LDO VOLTAGE REGULATOR [IC947]
0IPMG78358B	IC,LDO VOLTAGE REGULATOR [IC955]
EAN42369201	IC,LDO VOLTAGE REGULATOR [IC957]
EAN40199101	IC,MOTOR DRIVER [IC401]
0ILNRUC001A	IC,OP AMPLIFIER [IC703]
EAN41711301	IC,POWER AMPLIFIER [IC700]
EAN39871601	IC,PWM CONTROLLER [IC702]
0IMMREB008C	IC,SDRAM [IC502]
0IPRPRH017A	IC,VIDEO AMPLIFIER [IC507]
EAN41510001	IC,VIDEO PROCESSORS [IC501]
0IKE704200J	IC,VOLTAGE DETECTOR [IC101]
0IKE702700D	IC,VOLTAGE DETECTOR [IC102]
0IPMGKE009C	IC,VOLTAGE REGULATOR [IC924]
0IKE431000A	IC,VOLTAGE REGULATOR [IC942]
0LR1000K035	INDUCTOR,WIRE WOUND,RADIAL [L306]
6612R-A002A	JACK,PHONE [JK301]
EAG42957401	JACK,RCA [JK201]
0DL307119BA	LED,DIP [LD301]
EAV42876001	LED,DIP [LD302]
MFC35715901	LEVER [17]
MFC35715801	LEVER [2]
MFC35716001	LEVER [9]
6200JB8009X	LINE NOISE FILTER [LF901]

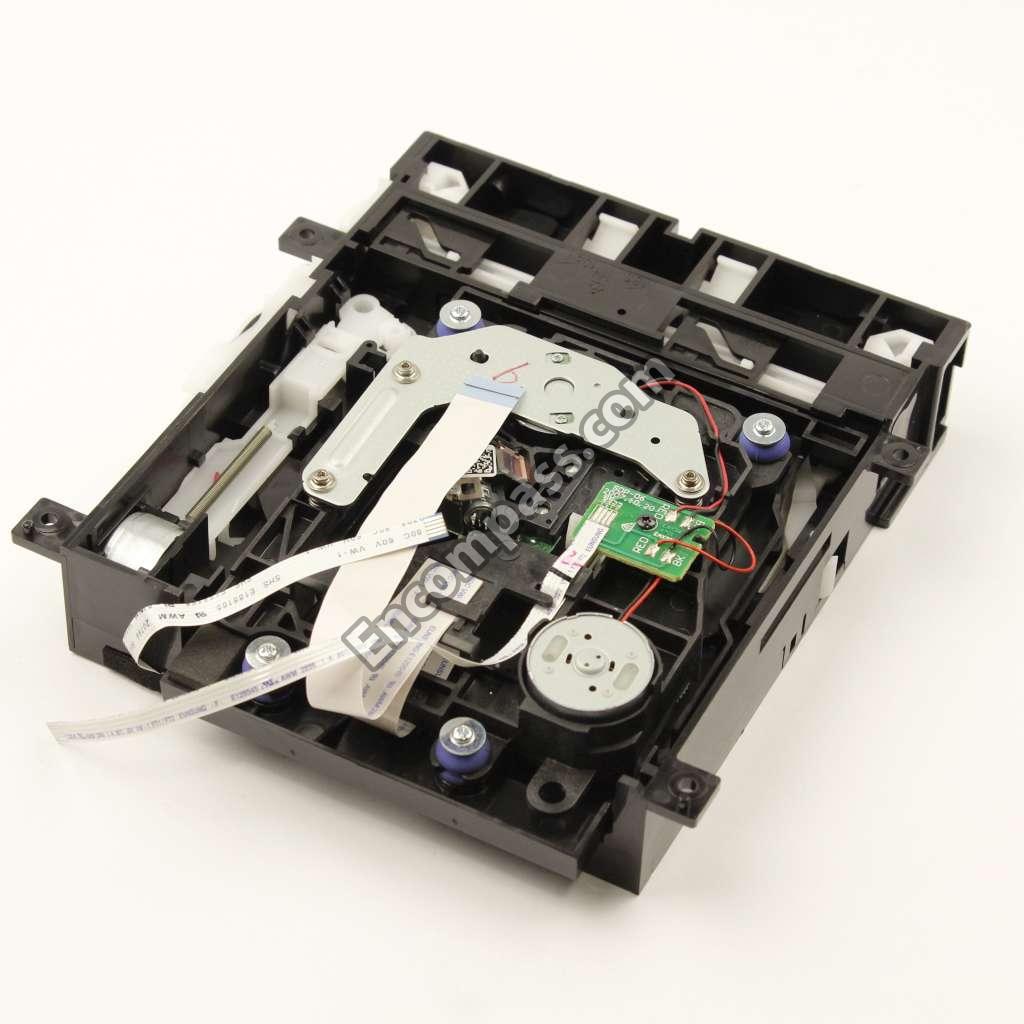

AFP37038701	MECHANISM ASSEMBLY [A26]
EBR43569407	OPTION CODE ASSEMBLY [A46]
MFZ34189176	PACKING [803]
AGL52705901	PANEL ASSEMBLY,AUDIO [A80A]
AGL36023104	PANEL ASSEMBLY,FRONT [250]
MGC40256802	PANEL,AUDIO [261]
MGC40257002	PANEL,AUDIO [263]
MGC39961501	PANEL,FRONT [850]
EBR43447301	PCB ASSEMBLY [A43]
EBR43571801	PCB ASSEMBLY [A53]
EBR40326103	PCB ASSEMBLY,POWER [A47]
EBR50263001	PCB ASSEMBLY,SUB [WIRE80]
EBR50263901	PCB ASSEMBLY,SUB [WIRE81]
3300R-V127A	PLATE [254]
MGJ35928801	PLATE [264]
MGJ33054601	PLATE [275]
6410RAHK02D	POWER CORD ASSEMBLY [305]
0CG4710U610	RADIAL TYPE CERAMIC CAPACITOR [C906]
624-087D	RADIAL TYPE CERAMIC CAPACITOR [C908]
6712R1638GD	RECEIVER MODULE [RC301]
0RD1504H632	RESISTOR,CARBON FILM [R900]
0RD1202F609	RESISTOR,CARBON FILM [R904]
0RD1800F609	RESISTOR,CARBON FILM [R907]
0RD3901F609	RESISTOR,CARBON FILM [R911]
0RD0102F609	RESISTOR,CARBON FILM [R913]
0RD2001F609	RESISTOR,CARBON FILM [R916]
0RD2201F609	RESISTOR,CARBON FILM [R919]
0RD4701F609	RESISTOR,CARBON FILM [R931]
0RD2200F609	RESISTOR,CARBON FILM [R941]
0RD1001F609	RESISTOR,CARBON FILM [R950]
0RD5602F609	RESISTOR,CARBON FILM [R959]
0RD1801F609	RESISTOR,CARBON FILM [R964]
0RD3300F609	RESISTOR,CARBON FILM [R973]
0RD1501F609	RESISTOR,CARBON FILM [R974]
0RD1802F609	RESISTOR,CARBON FILM [R976]
0RD5601F609	RESISTOR,CARBON FILM [R997]
0RH1002C622	RESISTOR,CHIP [R101]
0RH1001C622	RESISTOR,CHIP [R103]
0RH4702C622	RESISTOR,CHIP [R104]
0RH4700C622	RESISTOR,CHIP [R105]
0RH1000C622	RESISTOR,CHIP [R111]
0RH4704C622	RESISTOR,CHIP [R127]
0RH1003C622	RESISTOR,CHIP [R129]
0RH3303C622	RESISTOR,CHIP [R134]
0RH1004C622	RESISTOR,CHIP [R144]
0RH4701C622	RESISTOR,CHIP [R150]
0RH2202C622	RESISTOR,CHIP [R156]
0RH0221C622	RESISTOR,CHIP [R157]
0RH1800C622	RESISTOR,CHIP [R159]
0RH2702C622	RESISTOR,CHIP [R202]
0RH0752C622	RESISTOR,CHIP [R212]
0RH0682C622	RESISTOR,CHIP [R217]
0RH3302C622	RESISTOR,CHIP [R222]
0RH1802C622	RESISTOR,CHIP [R224]
0RH1500C622	RESISTOR,CHIP [R240]
0RH1800D622	RESISTOR,CHIP [R301]
0RH4701D622	RESISTOR,CHIP [R302]
0RH1000D622	RESISTOR,CHIP [R303]
0RH4702D622	RESISTOR,CHIP [R306]
0RH0221D622	RESISTOR,CHIP [R308]
0RH8202D622	RESISTOR,CHIP [R318]
0RH1201D622	RESISTOR,CHIP [R325]
0RH0152D622	RESISTOR,CHIP [R329]
0RH0471D622	RESISTOR,CHIP [R338]
0RH2201C622	RESISTOR,CHIP [R3A1]
EBC36543501	RESISTOR,CHIP [R3C1]
0RH3902C622	RESISTOR,CHIP [R3C4]
0RH5601C622	RESISTOR,CHIP [R3C5]
0RH7502C622	RESISTOR,CHIP [R3C6]
0RH3301C622	RESISTOR,CHIP [R3D3]
0RH1201C622	RESISTOR,CHIP [R3E0]
0RH0222C622	RESISTOR,CHIP [R402]
0RH0332C622	RESISTOR,CHIP [R406]
0RH1502C622	RESISTOR,CHIP [R407]
0RH2002C622	RESISTOR,CHIP [R408]
0RH1801C622	RESISTOR,CHIP [R417]
0RH1501C622	RESISTOR,CHIP [R422]
0RH8201C622	RESISTOR,CHIP [R429]
0RH5101C622	RESISTOR,CHIP [R431]
0RH5602C622	RESISTOR,CHIP [R438]
0RJ9101C677	RESISTOR,CHIP [R439]
0RH2203C622	RESISTOR,CHIP [R440]
0RH0221E622	RESISTOR,CHIP [R458]
0RH0512C622	RESISTOR,CHIP [R560]
0RH0472C622	RESISTOR,CHIP [R561]
0RJ3900C477	RESISTOR,CHIP [R570]
0RH0331D622	RESISTOR,CHIP [R700]
0RH0102G622	RESISTOR,CHIP [R701]
0RH0182D622	RESISTOR,CHIP [R707]
0RH6801C622	RESISTOR,CHIP [R761]
0RH0102D622	RESISTOR,CHIP [R764]
0RH6802C622	RESISTOR,CHIP [R771]
0RH1200C622	RESISTOR,CHIP [R792]
0RN2001F409	RESISTOR,METAL FILM [R963]
0RN1002F409	RESISTOR,METAL FILM [R969]
0RN4701F409	RESISTOR,METAL FILM [R977]
0RN3301F409	RESISTOR,METAL FILM [R986]
0RS1500J619	RESISTOR,METAL OXIDE FILM [R902]
0RS5602K619	RESISTOR,METAL OXIDE FILM [R906]
0RS0300K618	RESISTOR,METAL OXIDE FILM [R908]
EBC31729501	RESISTOR,METAL OXIDE FILM [R909]
0RS0220K619	RESISTOR,METAL OXIDE FILM [R912]
0RS0470K619	RESISTOR,METAL OXIDE FILM [R917]
TCG31076605	RING [852]
SAA31718401	S/W,SYSTEM PROGRAM [IC100A]
SAA31718501	S/W,SYSTEM PROGRAM [IC3A1A]
SAA31718301	S/W,SYSTEM PROGRAM [IC503A]
1SZZR-0064B	SCREW,CUSTOMIZED [25]
1SZZR-0062A	SCREW,CUSTOMIZED [431]
1SZZR-0072A	SCREW,CUSTOMIZED [432]
1SZZR-0011A	SCREW,CUSTOMIZED [435]
1SZZR-0081B	SCREW,CUSTOMIZED [455]
353-025C	SCREW,CUSTOMIZED [463]
353-025HAAA	SCREW,CUSTOMIZED [468]
353M025F	SCREW,CUSTOMIZED [853]
353M025X	SCREW,CUSTOMIZED [854]
353M025Q	SCREW,CUSTOMIZED [860]
657-063A	SENSOR,POSITION [PC901]
4370R-0136A	SHAFT [36]
MHK41526501	SHEET [251]
EAB48946601	SPEAKER ASSEMBLY [A80]
EAB48946901	SPEAKER ASSEMBLY [A81]
EAB44216001	SPEAKER,MID,RANGE [855]
EAB48776501	SPEAKER,TWEETER [851]
EAB44223601	SPEAKER,WOOFER [859]
MHY34822101	SPRING [13]
MHY34824801	SPRING [15]
MHY34825001	SPRING [4]
4404R-D002J	SPRING [5]
MHY34825101	SPRING [7]
6600R000036	SWITCH,TACT [SW301]
6600R000005	SWITCH,TACT [SW31]
6322B62204A	THERMISTOR,PTC [TH901]
0TR103009AA	TR,BIPOLAR [Q100]
0TRAU80008A	TR,BIPOLAR [Q101]
0TR150409AC	TR,BIPOLAR [Q101]
0TR387509AC	TR,BIPOLAR [Q103]
0TR102009AA	TR,BIPOLAR [Q211]
0TR129809BB	TR,BIPOLAR [Q3C1]
0TR103709BB	TR,BIPOLAR [Q405]
0TR130409BA	TR,BIPOLAR [Q704]
0TR186209AB	TR,BIPOLAR [Q941]
0TR127709AB	TR,BIPOLAR [Q942]
0TR127309AA	TR,BIPOLAR [Q942]
0TR198009CA	TR,BIPOLAR [Q951]
0TR126709AC	TR,BIPOLAR [Q951]
EBJ34934901	TRANSFORMER,SWITCHING [T901]
EBJ40392102	TRANSFORMER,SWITCHING [T902]
0TR320209AA	TRANSISTOR ASSEMBLY [Q904]
0TR320509AB	TRANSISTOR ASSEMBLY [Q941]
EBL41605403	TUNER,ANALOG [TU100]
EBL41605401	TUNER,ANALOG [TU100]
EAF43134201	VARISTOR [VR901]
EAF38754501	VARISTOR [VR901]
EAJ42378801	VFD [DIG301]
EBC40167001	WIRE PAD [R519]
