Model Image
Manufacturer

LG

Model Number

GC349SQF

Description

Gc-349sqf

Interactive Exploded View

Parts List

Part Number Description
3103JQ1006A 3103JQ1006A BASE ASSEMBLY,COMPRESSOR [315A]
MAN36996405 MAN36996405 BASKET,DOOR [241A]
AAP34980202 AAP34980202 BASKET,DOOR [241C]
4810JQ3021A 4810JQ3021A BRACKET,MOTOR [405A]
5075JQ2002F 5075JQ2002F BUCKET ASSEMBLY,DAIRY [249A]
MKK36999005 MKK36999005 BUCKET,DAIRY [249C]
5020JS1002A 5020JS1002A BUTTON,LINK [114A]
5006JQ3032A 5006JQ3032A CAP,COVER [109A]
5006JQ3038A 5006JQ3038A CAP,COVER [109B]
5006JQ3039A 5006JQ3039A CAP,COVER [109C]
5006JQ3012D 5006JQ3012D CAP,HINGE [281D]
EAE42451505 EAE42451505 CAPACITOR,FILM,DIP [410G]
4994JS1003H 4994JS1003H CASE,CONTROL REFRIGERATOR [120B]
4994JS1002E 4994JS1002E CASE,CONTROL REFRIGERATOR [120B]
TCA30129802 TCA30129802 COMPRESSOR,SET ASSEMBLY [307A]
ACG65804801 ACG65804801 CONDENSER ASSEMBLY,WIRE [323B]
4781JR2004C 4781JR2004C CONTROLLER ASSEMBLY [401A]
3551JQ1012A 3551JQ1012A COVER ASSEMBLY,MACHINERY(REAR) [304A]
3123JQ2007R 3123JQ2007R COVER ASSEMBLY,TOP [102A]
3551JQ2013A 3551JQ2013A COVER ASSEMBLY,TV [155A]
3550JQ2046A 3550JQ2046A COVER,DUCT [604F]
3550JQ3009B 3550JQ3009B COVER,LAMP [120D]
3550JA2076A 3550JA2076A COVER,LED [120H]
3551JQ2014A 3551JQ2014A COVER,LOWER [103C]
MCK51763401 MCK51763401 COVER,PTC [310A]
3550JQ2025A 3550JQ2025A COVER,SENSOR [610E]
3122JS1013N 3122JS1013N COVER,TOP [102B]
3550JA1087A 3550JA1087A COVER,TRAY [249B]
5040JQ3008B 5040JQ3008B DAMPER,COMPRESSOR [312A]
5040JQ3003A 5040JQ3003A DAMPER,MOTOR SUPPORT [405C]
5040JQ3023A 5040JQ3023A DAMPER,PIPE [328A]
3581JQ8042A 3581JQ8042A DOOR ASSEMBLY,FREEZER [200A]
3581JQ8040M 3581JQ8040M DOOR ASSEMBLY,REFRIGERATOR [230A]
5433JQ0011B 5433JQ0011B DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JQ0009N 5433JQ0009N DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
6877JR2021G 6877JR2021G DRAWING,ASSEMBLY [303D]
ADH69749101 ADH69749101 DRIER ASSEMBLY [317A]
5421JQ0019A 5421JQ0019A EVAPORATOR ASSEMBLY [301A]
5901JQ1003A 5901JQ1003A FAN ASSEMBLY [329A]
J753-00011A J753-00011A FAN ASSEMBLY [329C]
ADX73590902 ADX73590902 GASKET ASSEMBLY,DOOR [203A]
ADX73590903 ADX73590903 GASKET ASSEMBLY,DOOR [233A]
4974JQ1006A 4974JQ1006A GUIDE,FAN [319C]
4974JA2020D 4974JA2020D GUIDE,PITCHER [237A]

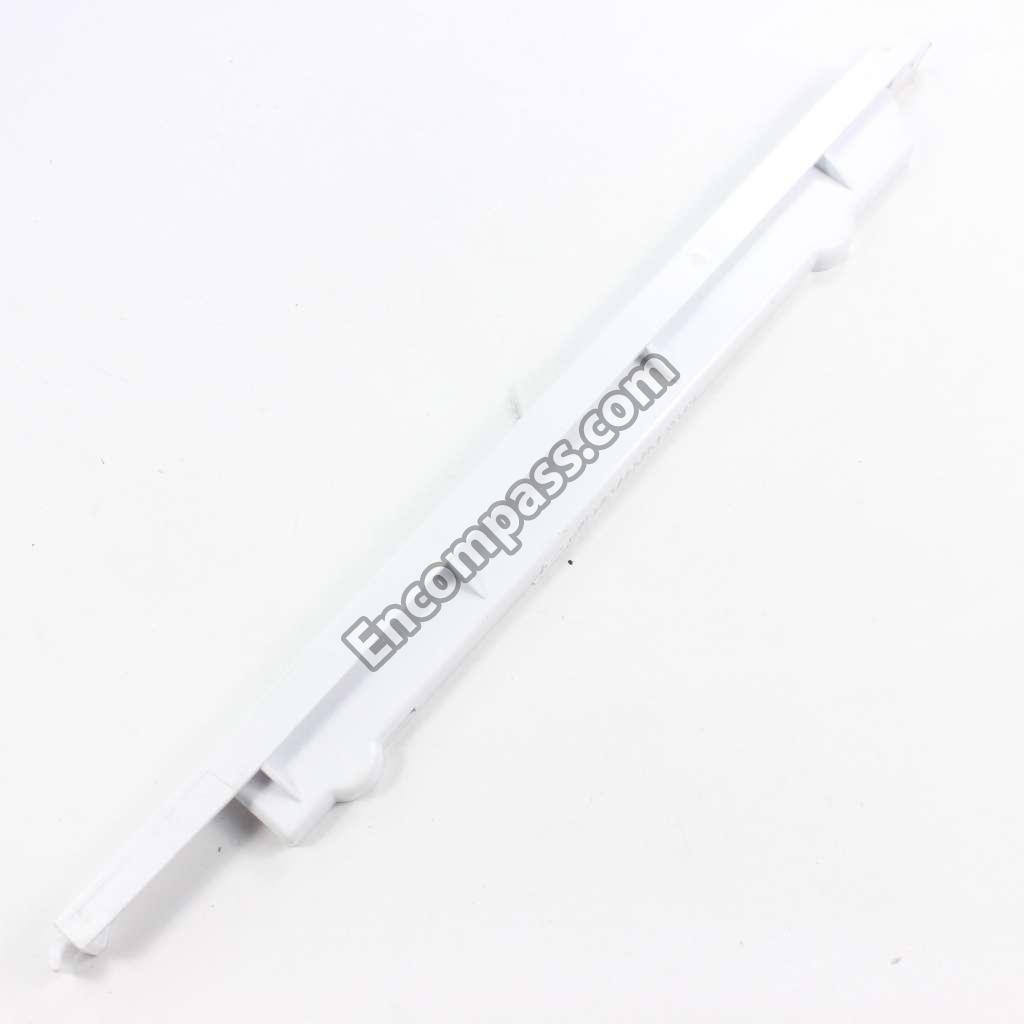

4974JA2040A 4974JA2040A GUIDE,RAIL [145C]
3650JQ2006A 3650JQ2006A HANDLE,REAR [103A]
MEB61847006 MEB61847006 HANDLE,REAR [103A]
3650JQ2006B 3650JQ2006B HANDLE,REAR [103B]
MEB61847005 MEB61847005 HANDLE,REAR [103B]
5300JR1006D 5300JR1006D HEATER,SHEATH [418A]
4775JQ2026A 4775JQ2026A HINGE ASSEMBLY,CENTER [282B]
4775JQ2027A 4775JQ2027A HINGE ASSEMBLY,LOWER [283B]
4775JQ3002A 4775JQ3002A HINGE ASSEMBLY,UPPER [281B]
4775JQ3002B 4775JQ3002B HINGE ASSEMBLY,UPPER [281F]
4930JQ3020A 4930JQ3020A HOLDER,DRIER [318A]
4940JQ3003A 4940JQ3003A KNOB,DAMPER [120C]
6912JB2002C 6912JB2002C LAMP,INCANDESCENT [409B]
4981JQ3001A 4981JQ3001A LEG ASSEMBLY,ADJUST [106B]
4680JB1034G 4680JB1034G MOTOR,AC [404A]
6750C-0005P 6750C-0005P OVERLOAD PROTECT [309A]
6871JR3001A 6871JR3001A PCB ASSEMBLY,DISPLAY [503B]
1PZZJQ3017A 1PZZJQ3017A PIN,COMMON [315C]
6411JR1003C 6411JR1003C POWER CORD ASSEMBLY [411A]
4580JQ3001A 4580JQ3001A ROLLER [315B]
4999JQ2001A 4999JQ2001A SHROUD ASSEMBLY,FREEZER [330B]
4J03277A 4J03277A STOPPER [314A]
4980JQ3033A 4980JQ3033A SUPPORTER,LEG [104C]
6600JB1004G 6600JB1004G SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [308A]
3391JQ2010A 3391JQ2010A TRAY ASSEMBLY,DRAIN [108A]
AJP34979902 AJP34979902 TRAY ASSEMBLY,DRAWER [136A]
AJP30627503 AJP30627503 TRAY ASSEMBLY,DRAWER [136D]
3390JQ2001A 3390JQ2001A TRAY,ICE [125A]
5251JQ3002A 5251JQ3002A TUBE ASSEMBLY,DRAIN [105A]
