Model Image
Manufacturer

LG

Model Number

GF5D906SL

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
EAU62563501 EAU62563501 AC MOTOR
ADQ73214405 ADQ73214405 AIR CLEANER FILTER ASSEMBLY
AAP74271302 AAP74271302 APPLIANCE DOOR BASKET
AAP73711501 AAP73711501 BASKET ASSEMBLY,DOOR
AAP73692803 AAP73692803 BASKET ASSEMBLY,DOOR
AAP74271303 AAP74271303 BASKET ASSEMBLY,DOOR
AAP74271301 AAP74271301 BASKET ASSEMBLY,DOOR
AAP73692501 AAP73692501 BASKET ASSEMBLY,DOOR
AAP73873301 AAP73873301 BASKET,DOOR
MAN62648301 MAN62648301 BASKET,DOOR
MAN62571901 MAN62571901 BASKET,DOOR
MAN62591101 MAN62591101 BASKET,WINDOW
AKC73369914 AKC73369914 BUCKET ASSEMBLY,ICE
ABH74540602 ABH74540602 BUTTON ASSEMBLY
ABH75059601 ABH75059601 BUTTON ASSEMBLY
ABH74680305 ABH74680305 BUTTON ASSEMBLY
MBG64225801 MBG64225801 BUTTON,LEVER
ABN72938909 ABN72938909 CAP ASSEMBLY,DUCT
ABN72938901 ABN72938901 CAP ASSEMBLY,DUCT
MBL65698301 MBL65698301 CAP,COVER
MBL67039201 MBL67039201 CAP,COVER
MBL65039902 MBL65039902 CAP,DUCT
MBL65205601 MBL65205601 CAP,DUCT
5040JA3033A 5040JA3033A CAP,RUBBER
ABQ73948815 ABQ73948815 CASE ASSEMBLY,HOME BAR
ABQ72940011 ABQ72940011 CASE ASSEMBLY,PCB
MBN62790801 MBN62790801 CASE,HOME BAR
MBN62749403 MBN62749403 CASE,PCB
4004JA3003A 4004JA3003A CLIP
TCA36351201 TCA36351201 COMPRESSOR,SET ASSEMBLY
ACG75305801 ACG75305801 CONDENSER ASSEMBLY,WIRE
ACG73645004 ACG73645004 CONDENSER ASSEMBLY,WIRE
4932JA3002C 4932JA3002C CONNECTOR,TUBE
MCD62887401 MCD62887401 CONNECTOR,TUBE
ACM73919220 ACM73919220 CONTROLLER ASSEMBLY
ACM73919219 ACM73919219 CONTROLLER ASSEMBLY
ACQ85959318 ACQ85959318 COVER ASSEMBLY
ACQ86596306 ACQ86596306 COVER ASSEMBLY
ACQ86948322 ACQ86948322 COVER ASSEMBLY,HINGE
ACQ86948318 ACQ86948318 COVER ASSEMBLY,HINGE
ACQ86284801 ACQ86284801 COVER ASSEMBLY,MACHINERY(REAR)
ACQ77079705 ACQ77079705 COVER ASSEMBLY,PCB
ACQ86036102 ACQ86036102 COVER ASSEMBLY,TV
ACQ86036109 ACQ86036109 COVER ASSEMBLY,TV
ACQ88521302 ACQ88521302 COVER ASSEMBLY,TV
MCK67971001 MCK67971001 COVER,FRONT
MCK68532006 MCK68532006 COVER,HINGE
MCK68471605 MCK68471605 COVER,HINGE
MCK66593601 MCK66593601 COVER,HOME BAR
MCK67195101 MCK67195101 COVER,LAMP
MCK67195001 MCK67195001 COVER,LAMP
3550JA3171S 3550JA3171S COVER,LEVER
MCK63734907 MCK63734907 COVER,LEVER
MCK70052506 MCK70052506 COVER,PTC
MCK70052501 MCK70052501 COVER,PTC
MCK67228501 MCK67228501 COVER,SENSOR
MCQ66921101 MCQ66921101 DAMPER,COMPRESSOR
MCR64742904 MCR64742904 DECOR,COVER
MCR64741603 MCR64741603 DECOR,HOME BAR
- - DELETION
ACX72949201 ACX72949201 DEODORIZER ASSEMBLY
EBR78924913 EBR78924913 DISPLAY CONTROL BOARD
ACQ87058910 ACQ87058910 DISPLAY COVER
ACQ87058911 ACQ87058911 DISPLAY COVER
ACQ87058907 ACQ87058907 DISPLAY COVER
ACQ87058902 ACQ87058902 DISPLAY COVER
ACQ87058908 ACQ87058908 DISPLAY COVER
ADC72987144 ADC72987144 DOOR ASSEMBLY,FREEZE ROOM
ADC74186693 ADC74186693 DOOR ASSEMBLY,HOME BAR
ADX73250609 ADX73250609 DOOR GASKET
ADX72930429 ADX72930429 DOOR GASKET
ADX73250606 ADX73250606 DOOR GASKET ASSEMBLY
AJP73654833 AJP73654833 DRAWER TRAY
ADH73150208 ADH73150208 DRIER ASSEMBLY
ADJ73632217 ADJ73632217 DUCT ASSEMBLY,CONNECTOR
ADJ73632143 ADJ73632143 DUCT ASSEMBLY,MULTI
MCZ63192701 MCZ63192701 DUCT,CONNECTOR
ADL73683305 ADL73683305 EVAPORATOR ASSEMBLY
ADL73980929 ADL73980929 EVAPORATOR ASSEMBLY
ADP73273402 ADP73273402 FAN ASSEMBLY
AEB73784613 AEB73784613 FAN GRILLE
ADQ73214408 ADQ73214408 FILTER ASSEMBLY,AIR CLEANER
ADQ73613301 ADQ73613301 FILTER ASSEMBLY,HEAD
ADQ73913302 ADQ73913302 FILTER ASSEMBLY,WATER
ADQ73613401 ADQ73613401 FILTER ASSEMBLY,WATER
MDQ63817301 MDQ63817301 FRAME,FUNNEL
ADD73898518 ADD73898518 FREEZER DOOR FOAM
ADD73878218 ADD73878218 FREEZER DOOR FOAM
MDR62482201 MDR62482201 FUNNEL
ADW73249901 ADW73249901 FUNNEL ASSEMBLY
ADX72930430 ADX72930430 GASKET ASSEMBLY,DOOR
ADX72930427 ADX72930427 GASKET ASSEMBLY,DOOR
ADX72930428 ADX72930428 GASKET ASSEMBLY,DOOR
ADX73250604 ADX73250604 GASKET ASSEMBLY,DOOR
MDS62111103 MDS62111103 GASKET,DOOR
MDS62152460 MDS62152460 GASKET,HOME BAR

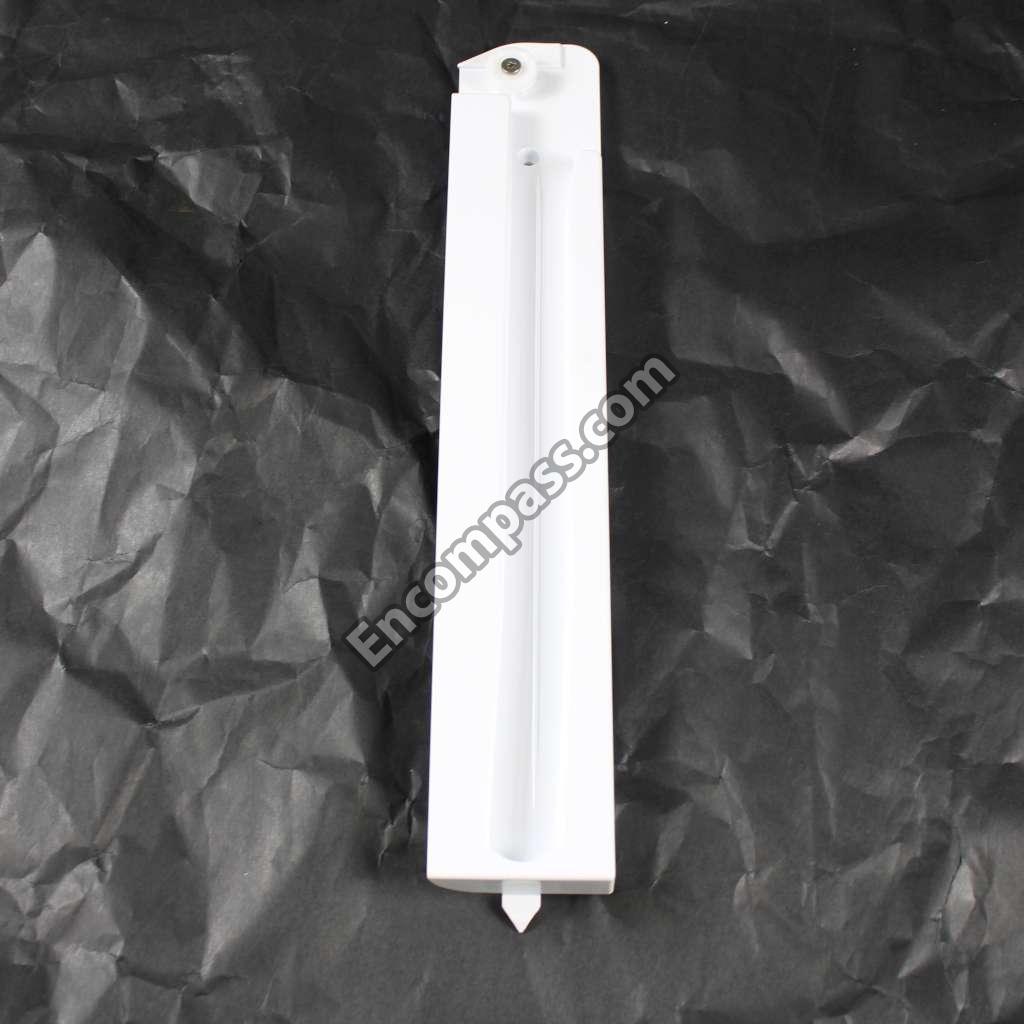

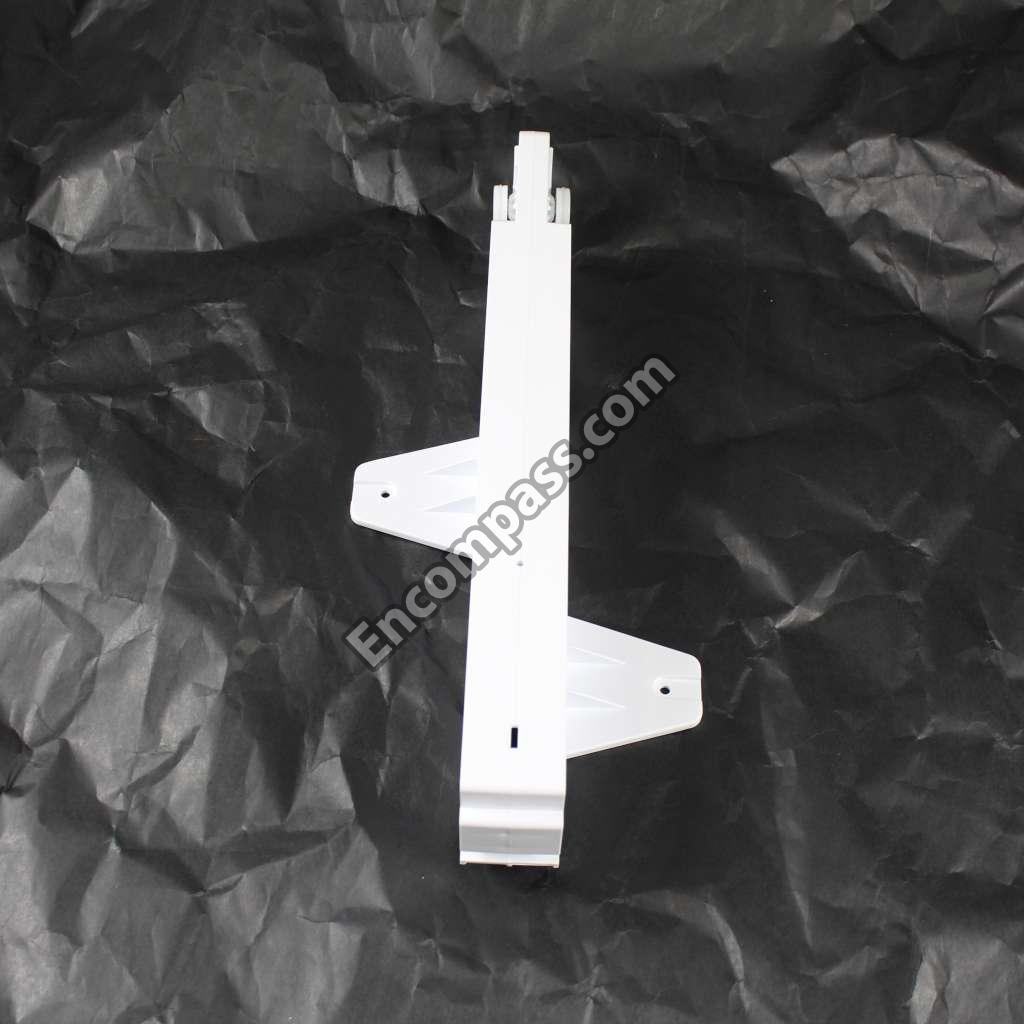

AEC73658001 AEC73658001 GUIDE ASSEMBLY,RAIL
AEC73658002 AEC73658002 GUIDE ASSEMBLY,RAIL
AEC73658003 AEC73658003 GUIDE ASSEMBLY,RAIL
AEC73658004 AEC73658004 GUIDE ASSEMBLY,RAIL
AEC73657813 AEC73657813 GUIDE ASSEMBLY,RAIL
AEC73657814 AEC73657814 GUIDE ASSEMBLY,RAIL
AEC73657706 AEC73657706 GUIDE ASSEMBLY,RAIL
MEA42772905 MEA42772905 GUIDE,FAN
MEB63234201 MEB63234201 HANDLE,DECOR
MEB62915403 MEB62915403 HANDLE,HOME BAR
MEB61894003 MEB61894003 HANDLE,HOME BAR
3650JA2061W 3650JA2061W HANDLE,REAR
3650JA2061A 3650JA2061A HANDLE,REAR
3650JA2061X 3650JA2061X HANDLE,REAR
EAD64168606 EAD64168606 HARNESS ASSEMBLY
EAD62356703 EAD62356703 HARNESS ASSEMBLY
EAD60704023 EAD60704023 HARNESS ASSEMBLY
MEE62105231 MEE62105231 HEATER,SHEATH
MEE62225156 MEE62225156 HEATER,SHEATH
AEH36821914 AEH36821914 HINGE ASSEMBLY,CENTER
AEH74556306 AEH74556306 HINGE ASSEMBLY,CENTER
AEH74556304 AEH74556304 HINGE ASSEMBLY,CENTER
ABA74591209 ABA74591209 HINGE ASSEMBLY,HOME BAR
AEH73958009 AEH73958009 HINGE ASSEMBLY,LOWER
AEH73958010 AEH73958010 HINGE ASSEMBLY,LOWER
AEH73577901 AEH73577901 HINGE ASSEMBLY,LOWER
AEH72957208 AEH72957208 HINGE ASSEMBLY,UPPER
AEH73998908 AEH73998908 HINGE ASSEMBLY,UPPER
AEH73998904 AEH73998904 HINGE ASSEMBLY,UPPER
AEH72976201 AEH72976201 HINGE ASSEMBLY,UPPER
MEF62662101 MEF62662101 HINGE,HOME BAR
4931JA3005B 4931JA3005B HOLDER ASSEMBLY,BRACKET
AEJ73660001 AEJ73660001 HOLDER ASSEMBLY,BRACKET
AEJ73219506 AEJ73219506 HOLDER ASSEMBLY,BRACKET
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET
MEG63261302 MEG63261302 HOLDER,DOOR
MEG61899901 MEG61899901 HOLDER,DOOR
4930JA3034C 4930JA3034C HOLDER,DRIER
4930JA3034A 4930JA3034A HOLDER,DRIER
MEG62900301 MEG62900301 HOLDER,LEVER
MEG63262301 MEG63262301 HOLDER,LEVER
4930JA3087B 4930JA3087B HOLDER,PIPE
MEG63160003 MEG63160003 HOLDER,SHELF
MEG63105801 MEG63105801 HOLDER,SHELF
AKC73369912 AKC73369912 ICE BUCKET
EAV61916705 EAV61916705 LED ASSEMBLY
EAV48995113 EAV48995113 LED ASSEMBLY
EAV61572001 EAV61572001 LED ASSEMBLY
EBF61314813 EBF61314813 MAGNET SWITCH
RAB32775604 RAB32775604 MAGNET,FERRITE
EBR78763209 EBR78763209 MAIN BOARD
EBR80437224 EBR80437224 MAIN BOARD
EBR80437205 EBR80437205 MAIN BOARD
EAU64824803 EAU64824803 MOTOR ASSEMBLY,DC
EAU64824802 EAU64824802 MOTOR ASSEMBLY,DC
EAU63503703 EAU63503703 MOTOR ASSEMBLY,DC
EAU64824801 EAU64824801 MOTOR ASSEMBLY,DC
EAU63503704 EAU63503704 MOTOR ASSEMBLY,DC
EAU60784230 EAU60784230 MOTOR, AC INDOOR
EAU61083523 EAU61083523 MOTOR, AC INDOOR
EAU63103301 EAU63103301 MOTOR,DC
EAU61644301 EAU61644301 MOTOR,DC
MFT62346511 MFT62346511 NAME PLATE
6750C-0002C 6750C-0002C OVERLOAD PROTECT
EBR76787002 EBR76787002 PCB ASSEMBLY,DISPLAY
EBR71326804 EBR71326804 PCB ASSEMBLY,SENSOR
EBR64730408 EBR64730408 PCB ASSEMBLY,SUB
1PZZJA3010A 1PZZJA3010A PIN,COMMON
1PZZJA3013B 1PZZJA3013B PIN,COMMON
MGE62010606 MGE62010606 PIPE,COMPRESSOR SEALING
AGU73972110 AGU73972110 PLATE ASSEMBLY,CENTER
AGU74008301 AGU74008301 PLATE ASSEMBLY,CENTER
AGU74268151 AGU74268151 PLATE ASSEMBLY,FRONT
EAD62329144 EAD62329144 POWER CORD ASSEMBLY
AHC73535001 AHC73535001 RAIL ASSEMBLY,SLIDE
AHC73535002 AHC73535002 RAIL ASSEMBLY,SLIDE
ADD73536417 ADD73536417 REFRIGERATOR DOOR FOAMR
ADC74186771 ADC74186771 REFRIGERATOR DOOR(RIGHT)
AEQ73130003 AEQ73130003 REFRIGERATOR ICE MAKER
AHT73574004 AHT73574004 REFRIGERATOR SHELF
AHT73573805 AHT73573805 REFRIGERATOR SHELF
MHA62513604 MHA62513604 ROLLER
4580JT3001B 4580JT3001B ROLLER
MHA62513601 MHA62513601 ROLLER
MHA62652801 MHA62652801 ROLLER
EBD60925804 EBD60925804 SENSOR,TEMPERATURE
AHT72910320 AHT72910320 SHELF ASSEMBLY,REFRIGERATOR
AHT73233937 AHT73233937 SHELF ASSEMBLY,REFRIGERATOR
AHT73234028 AHT73234028 SHELF ASSEMBLY,REFRIGERATOR
AHT73234044 AHT73234044 SHELF ASSEMBLY,REFRIGERATOR
AHT73234011 AHT73234011 SHELF ASSEMBLY,REFRIGERATOR
AHT73234034 AHT73234034 SHELF ASSEMBLY,REFRIGERATOR
AHT73233914 AHT73233914 SHELF ASSEMBLY,REFRIGERATOR
AHT73233947 AHT73233947 SHELF ASSEMBLY,REFRIGERATOR
MEG63144601 MEG63144601 SHELF HOLDER
MHN62562401 MHN62562401 SHROUD,FREEZER
MHN62482301 MHN62482301 SHROUD,REFRIGERATOR
MHQ62181301 MHQ62181301 SKIRT,LOWER
MHU38218911 MHU38218911 SPANNER
MHU38218908 MHU38218908 SPANNER
AJC68689638 AJC68689638 STOPPER ASSEMBLY,DOOR
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR
MJB62709701 MJB62709701 STOPPER,DOOR
MJB63030702 MJB63030702 STOPPER,DOOR
MJB63030801 MJB63030801 STOPPER,DOOR
MJB63030802 MJB63030802 STOPPER,DOOR
MJB63171101 MJB63171101 STOPPER,DOOR
MJB63171201 MJB63171201 STOPPER,DOOR
MJB63030703 MJB63030703 STOPPER,DOOR
MJH62740701 MJH62740701 SUPPORTER,HOLDER
MJH62740801 MJH62740801 SUPPORTER,HOLDER
EBF62234504 EBF62234504 SWITCH,MAGNET
EBF61314804 EBF61314804 SWITCH,MAGNET
EBF62234501 EBF62234501 SWITCH,MAGNET
6600JB3001C 6600JB3001C SWITCH,MICRO
MJM62864601 MJM62864601 TANK,WATER
EBG60663257 EBG60663257 THERMISTOR ASSEMBLY,PTC
3391JJ2013M 3391JJ2013M TRAY ASSEMBLY,DRAIN
3391JJ2013Y 3391JJ2013Y TRAY ASSEMBLY,DRAIN
AJP73654823 AJP73654823 TRAY ASSEMBLY,DRAWER
AJP73654706 AJP73654706 TRAY ASSEMBLY,DRAWER
AJP73654825 AJP73654825 TRAY ASSEMBLY,DRAWER
AJP73654801 AJP73654801 TRAY ASSEMBLY,DRAWER
AJP73654624 AJP73654624 TRAY ASSEMBLY,VEGETABLE

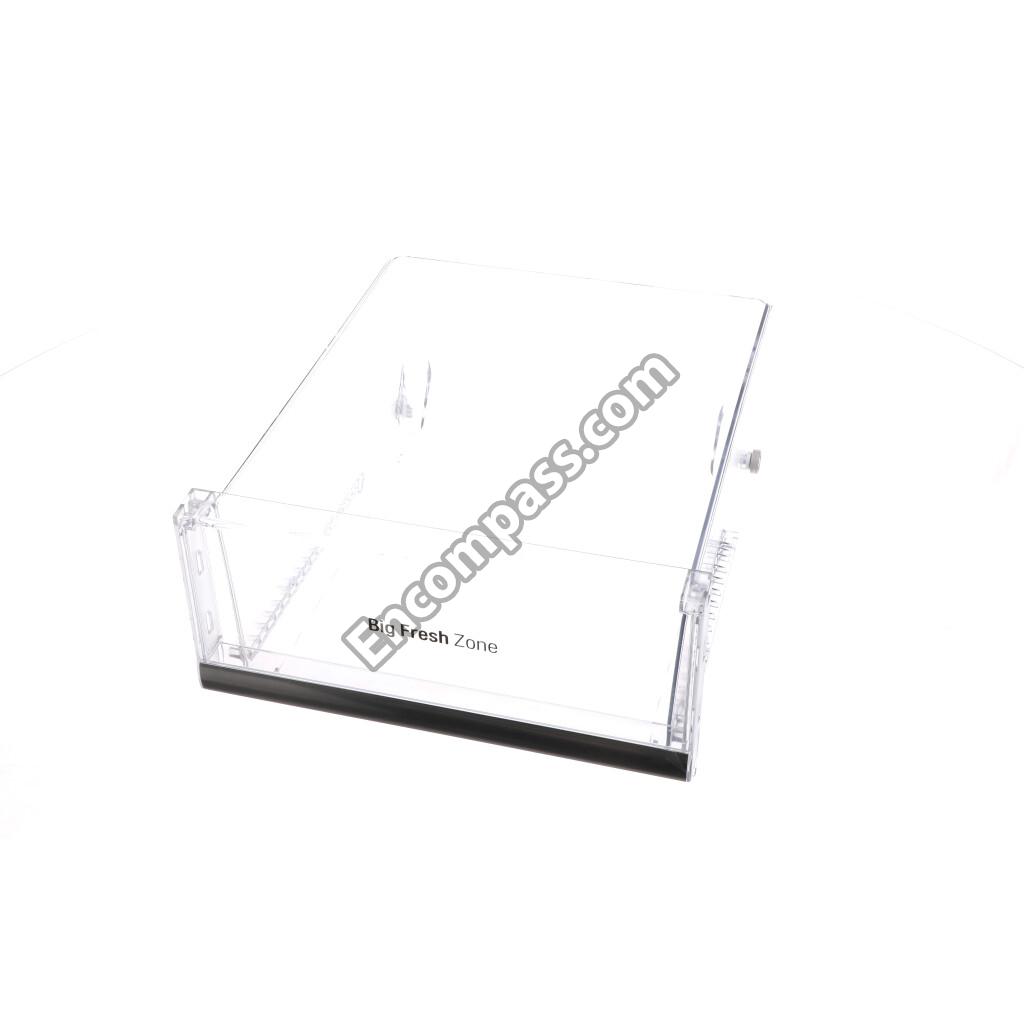

AJP73654634 AJP73654634 TRAY ASSEMBLY,VEGETABLE
MJS63332001 MJS63332001 TRAY,DRAIN
MJS62614401 MJS62614401 TRAY,DRAIN
MJS62233502 MJS62233502 TRAY,DRIP
AJR74166102 AJR74166102 TUBE ASSEMBLY,DRAIN
5251JA2006A 5251JA2006A TUBE ASSEMBLY,DRAIN
5251JA3004E 5251JA3004E TUBE ASSEMBLY,DRAIN
AJR56656503 AJR56656503 TUBE ASSEMBLY,ICE WATER
5210JA3004A 5210JA3004A TUBE,PLASTIC
MJU62070602 MJU62070602 TUBE,PLASTIC
5210JA3013B 5210JA3013B TUBE,PLASTIC
AJU73872501 AJU73872501 VALVE ASSEMBLY,GAS
AJU74892401 AJU74892401 VALVE ASSEMBLY,GAS
AJU72992607 AJU72992607 VALVE ASSEMBLY,WATER
MJX62831302 MJX62831302 VALVE,WATER
ACG75305802 ACG75305802 WIRE CONDENSER ASSEMBLY
